Gazer 6438370 User manual

GAZER Smart TV


EN
RU
UK
User manual �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4-24
Руководство пользователя ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 25-45
Посібник користувача ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 46-66

4
EN
Contents
Safety Tips ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 5
Equipment ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 6
Description of External Appearance ���������������������������������������������������������������������������������������������������������������������������������������������������������������� 7
Description of Connectors ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 8
Description of buttons on the remote control ��������������������������������������������������������������������������������������������������������������������������������������������������� 9
Preparation of the TV Set ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 10
• Installation of the TV Set �������������������������������������������������������������������������������������������������������������������������������������������������������������������� 10
• Preparation of the Remote Control Panel ��������������������������������������������������������������������������������������������������������������������������������������������� 10
Use of Interface ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 11
• Initial Setting ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 11
• Switchover of the Sources ������������������������������������������������������������������������������������������������������������������������������������������������������������������ 14
• Settings Menu ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 14
Android Control ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 21
Trouble Shooting ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 24

5
EN
Safety Tips
We congratulate you! Now you are an owner of one of the very modern and technologically advanced television sets Gazer�
In order to adjust this device as easy as possible, please read this manual carefully� Keep this manual for future reference�
Safety Tips
1. To avoid the risk of electric shock, do not remove the back cover off the device�
2. To reduce the risk of re, do not expose the TV set to rain, water or any other kind of moisture. Do not use the TV set in any location with water.
3. Do not block the vent holes�
4. Do not install the TV set in a location near heat sources such as radiators, ovens or any other heat-generating facilities�
5. Lay the power-supply cable carefully so as not to damage it�
6. Do not use the device if the power-supply cable is damaged. That can cause a short circuit and a re. Replace the damaged cable.
7. If the TV set is installed at an elevation or xed on special brackets – be careful with the device to avoid the injuries from the TV-set tipping over.
8. Unplug the TV set during lightning storms or when unused for long periods of time�
9. Never try to repair the device yourself�
10. To repair or service the TV set, please contact experienced specialists, service centres�
11. To clean any dust or contamination off the TV set, use a piece of lint-free cloth�
12. The manufacturer reserves the right to make changes to the equipment, hardware and software of the TV set without any prior notice�

6
EN
Equipment
TV set 2 AAA batteries
Screws
Remote
Stands Manual Warranty card

7
EN
Description of External Appearance
1
3
4
6
5
2
1
3
4
6
5
2
1. Operation indicator and infrared sensor
2. Control joystick
3. VESA mounting holes
4. Periphery connectors
5. Power-supply cable
6. Periphery connectors

8
EN
Description of Connectors
1. PC Audio – line audio input (operates when a video source is connected to the VGA connector)
2. VGA video input
3. RJ45 to connect wired network
4. VIDEO – RCA connector of the analogue video input
5. L – RCA connector of the audio input of the left channel
6. R – RCA connector of the audio input of the right channel
7. HDMI 1 Input
8. RF(S2) - connector to connect the signal from a satellite antenna
9. RF(T2) – connector to connect a TV broadcasting antenna
10. HDMI 2 input
11. HDMI 3 input
12. USB 1 connector
13. CI slot to connect add-in modules
14. EARPHONE – connector of the line audio output to connect earphones or external acoustic devices
15. USB 2 connector
16. OPTICAL – connector of an optical audio output

9
EN
Description of buttons on the remote control
Button functions:
Turns on and o the TV-set. When held for a long time, a
complete reboot of the TV set may be chosen.
Displays list the of accessible sources.
Mutes instantly. When repressed, unmutes and restores the
saved volume.
Increases and decreases the volume.
Moves through the interface elements, changes the channels.
Conrms the operations and chooses the required parameter.
Returns to the previous menu, exits the application.
Returns to the main screen.
Calls the settings menu.
Digital keys from to – input digital values into the interface.
Quickly adjusts the height-to-width aspect ratio and the
picture size.
Turns on the timer of the TV-set automatic cut-o.

10
EN
Preparation of the TV Set
Installation of the TV Set:
Carry out the operations as follows to use the TV set comfortably and safely:
• Carefully take the device from the box, remove all transport means of protection (foam holders, protective wrapping)�
• In addition, remove the entire protective lm from the device.
• If you are going to fasten the TV set on the wall with a bracket, use the VESA mounting holes on the back cover of the device�
• In choosing the installation location, pay attention to the stability of the surface to install the TV set� An unstable, rocking piece of furniture may
be a cause of the TV-set tipping over�
• While fastening the TV set on the wall xture, be attentive and reliably fasten the TV set in order to avoid any injuries from the device fall.
• On installing the TV set, plug in the power-supply cable into the socket� Lay the power-supply cable so as to avoid any tension or break that may
lead to the cable damage�
Preparation of the Remote Control
To ensure the operation of the control, it is necessary to insert batteries therein� The remote is powered by two AAA 1�5 V batteries�
The following operations should be carried out to install the batteries inside the remote:
• Carefully open the cover of the battery section�
• Install two batteries in the correct polarity (pursuant to the diagram inside the section)�
• Carefully close the cover of the battery section�
Note: In case of the normal use, new batteries are to operate about half a year� If you are going not to use the TV set for a long period of time,
remove the batteries from the remote�

11
EN
Use of Interface
• Select the interface language� To select necessary item, use the
UP/DOWN buttons on the joystick of the remote; in order to
conrm, use the button�
• Press the RIGHT button on the joystick of the remote in order to
proceed to the next step�
Initial Setting
The rst time your device is switched on and booted in, it is necessary to full the initial setting of the TV set. For this purpose, carry out the following:
• Select the time zone�

12
EN
Use of Interface
• Select the wireless network, enter the password and connect to the network, pressing the Connect button�
• Choose the location to use the TV set�

13
EN
Use of Interface
• Select the priority mode, wherein the TV set starts after turning-
on�
• Press the RIGHT button of the remote to complete the settings
and proceed to the use of the device�

14
EN
Use of Interface
Settings Menu
To enter the settings menu, use the button on the remote control�
The navigation among the menu items is carried out with the DOWN/UP buttons�
To move over to a submenu, use the or RIGHT button�
To change the values or select the necessary parameters in the menu items, use the LEFT/RIGHT or DOWN/
UP buttons�
To return to the previous menu, press the LEFT or button�
To exit the settings menu, press the button�
Switchover of the Sources
In order to call the list of accessible sources, press the button on the remote control, the navigation among the accessible sources is carried out
with the DOWN/UP buttons on the joystick of the control panel, in order to select the required source, press the button�
ATV – Analogue television tuner.
DVB-S – Satellite television tuner.
DVB-T – Digital television tuner.
AV – Input of the analogue audio-video signal.
HDMI 1, 2, 3 – HDMI digital audio-video inputs.
VGA – Input of the video signal from a PC or other devices using the VGA video-connection
type. If this input is selected, the sound is sent from the 3.5mm line audio input (PC AUDIO),
located near the VGA connector on the lower bound of the TV set.

15
EN
Use of Interface
Sound and Picture Setup:
In the Picture Setup, you may set:
• Picture mode
• Colour Temperature
• DNR
• Aspect Ratio

16
EN

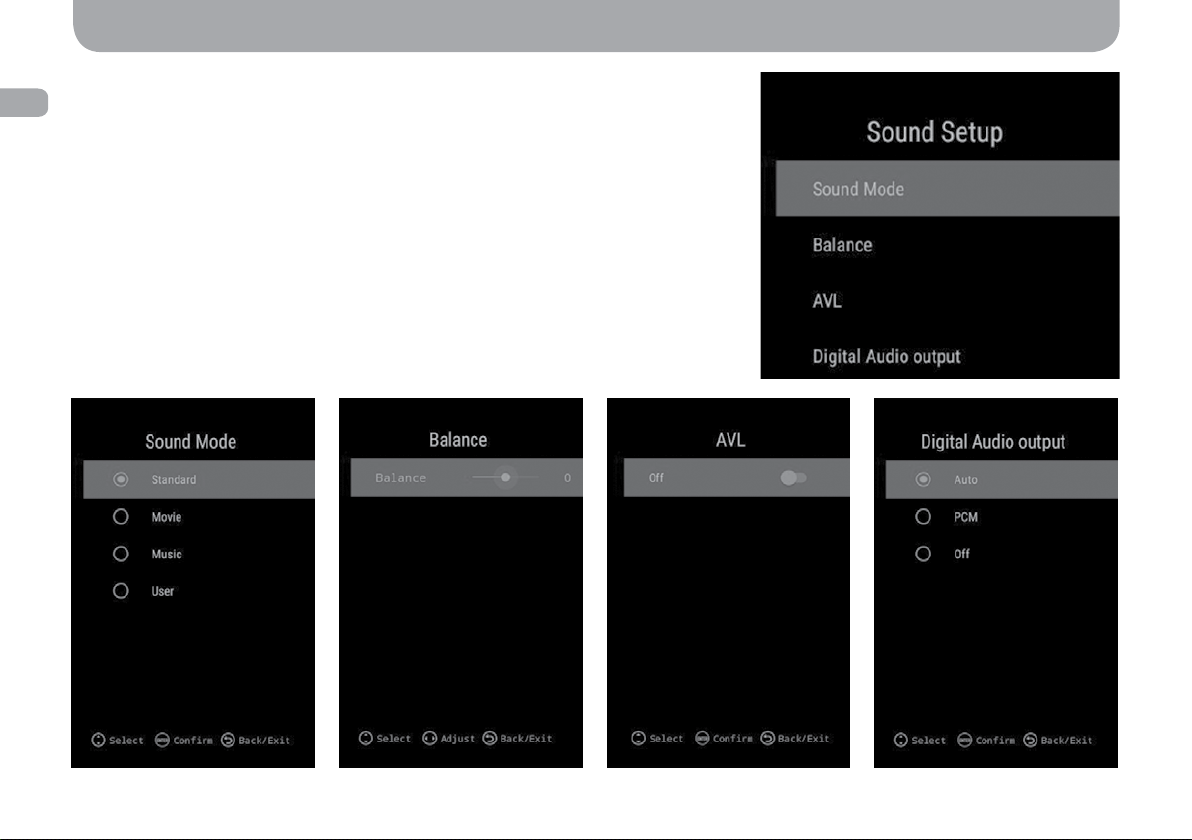

In the Sound Setup, you may set:
• Sound mode
• Balance
• AVL
• Digital Audio output
Use of Interface

17
EN
Use of Interface
Setting of Additional Functions:
In the Functions item you may:
• Auto Power Down
• CEC
Moreover, depending on the selected source, this menu represents additional settings whereby you may:
• Set the teletext language
• Set the parental control� In order to enter the parental-control settings, you should put in the PIN code (0000 is the default value)� In this item
you can install the channels pursuant to the permitted rating, as well as replace the PIN code
• Set the parameters of the VGA (PC) connected source
• Set the record of digital TV channels to an external memory device

18
EN
Settings:
In the Settings item you may set:
• OSD Timer
• Sleep timer
• Location of the TV set (House/Store)
• Carry out quick settings
Use of Interface

19
EN

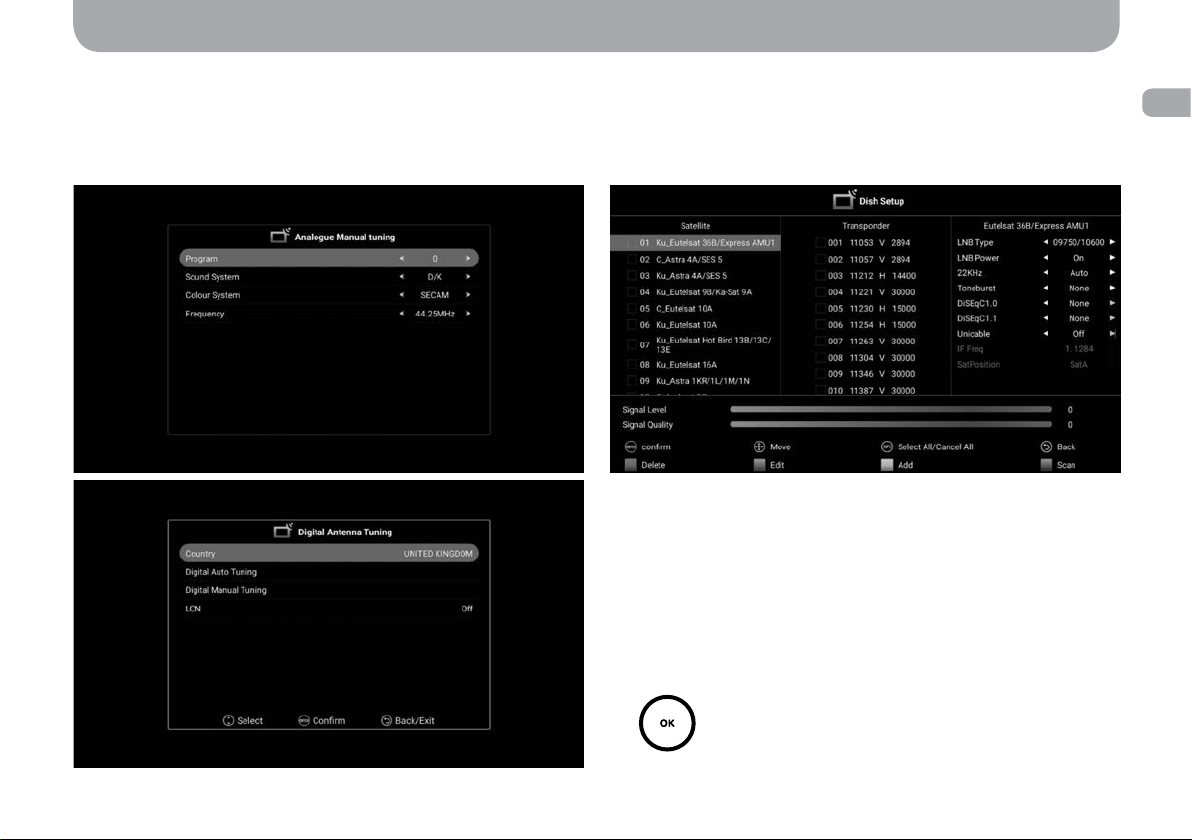

Channel Settings:
The channels of the analogue/digital/satellite television have not been stored and set in the memory of your new TV set�
To congure the channels:
• Select the required source (ATV, DVB-S, DVB-T)
Use of Interface
• Search the channels in the mode you need and with the required
settings
• Once the channels are found, they can be put in order, renamed or
a new search can be carried out using the respective items in the
settings menu�
• In browsing the ATV, DVB-S, DVB-T sources in order to call the
list of channels and a quick navigation through them, press the
button�

20
EN
• In the event that control buttons of different colours should be used while searching/controlling the channels, browsing the teletext and during
other operations – use the buttons on the digital pad, which match the required colour buttons in order.
Use of Interface
= red
= green
= yellow
= blue
Other not colourized buttons may be also displayed in the screen� Use buttons 5, 6 etc� to press them�
