GB Wood 01OVLPA0806SDFW-V1 User manual

Redskabsskur –Model Dorte
N/A
Overlap
Cladding
Shiplap
Cladding
Fixed
Windows
Opening
Windows
No
Windows
Solid Sheet
Floor
T&G Floor
Solid Sheet
Roof
T&G Roof
01OVLPA0806SDFW-V1
8x6 Overlap apex shed with single door, fixed windows, solid sheet floor and roof.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand
(not supplied) including a Phillips screwdriver, Stanley knife, wood saw,
step ladder and drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
x2
All building’s should be erected by two
adults
For ease of assembly, it is advisable to
pilot drill all screw holes and ensure
all screw heads are countersunk.
01OVLPA0806SDFW-V1-NW
8x6 Overlap apex shed with single door, no windows, solid sheet floor and roof.
TIMBER
As with all natural materials, timber can be a ected during various weather
conditions. For the duration of heavy or extended periods of rain, swelling of the
wood panels may occur. Warping of the wood may also occur during excessive
dry spells due to an interior moisture loss. Unfortunately, these processes cannot
be avoided but can be helped. It is suggested that the outdoor building is
sprayed with water during extended periods of warm sunshine and sheltered as
much as possible during rain or snow.
Our buildings are pre treated with a water based treatment**; this only helps to
protect the product during transit and for up to 3 months against mould. To
validate your guarantee and ensure longevity of the product, it is ESSENTIAL the
building is treated with a wood preserver within the rst three months of
assembly and thereafter in accordance with the manufactures recommenda-
tions. Care must be taken to ensure the product is placed on a suitable base.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer
to diagrams for the base dimensions, The base should be slightly smaller than
the external measurement of the building, i.e. The cladding should overlap the
base, creating a run o for water. It is also recommended that the oor be at
least 25mm above the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the
highest standards of Safety and in the case of children's
products independently tested to EN71 level, we cannot
accept responsibility for your safety whilst erecting or
using this product.
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
CAUTION
Every e ort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces
of the timber. You are strongly advised
to wear gloves when working with or
handling rough sawn timer.
01OSBA0806SDFW-V1
8x6 Shiplap apex shed with single door, fixed windows, solid sheet floor and roof.
01OSBA0806SDFW-V1-NW
8x6 Shiplap apex shed with single door, no windows, solid sheet floor and roof.
Refer to the instructions pages for you speci c product code
**Protim Fentex E5**
Biocidal Product Regulation (EU 528/2012) Article 58 Information
Protim Fentex E2 preserved wood is a “treated article” which incorporates biocidal products.
Wood correctly preserved with Protim Fentex E2 is protected against mould in storage.
Contains: IPBC (3-iodo-2-propynyl-N-butyl carbamate) and propiconazole.
Wear gloves when handling freshly treated wood.
Avoid breathing dust when cutting treated or untreated wood.
Dispose of o -cuts responsibly –do not burn.
Mercia Garden Products Limited, Sutton On Trent, Newark, Nottinghamshire, NG23 6QN
www.merciagardenproducts.co.uk
P1

Overall Dimensions:
Length = 2414mm
Width = 1905mm
Height = 1986mm
01OSBA0806SDFW-V1
Please retain product label and instructions for future reference
Pre Assembly
Remove transportation
blocks from the bottom
of each panel before
beginning assembly. Each
Panel should have two
01OSBA0806SDFW-V1-NW
Base Dimensions:
Length = 2350mm
Width = 1753mm
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Building content
1
2
3
4
5
6
7

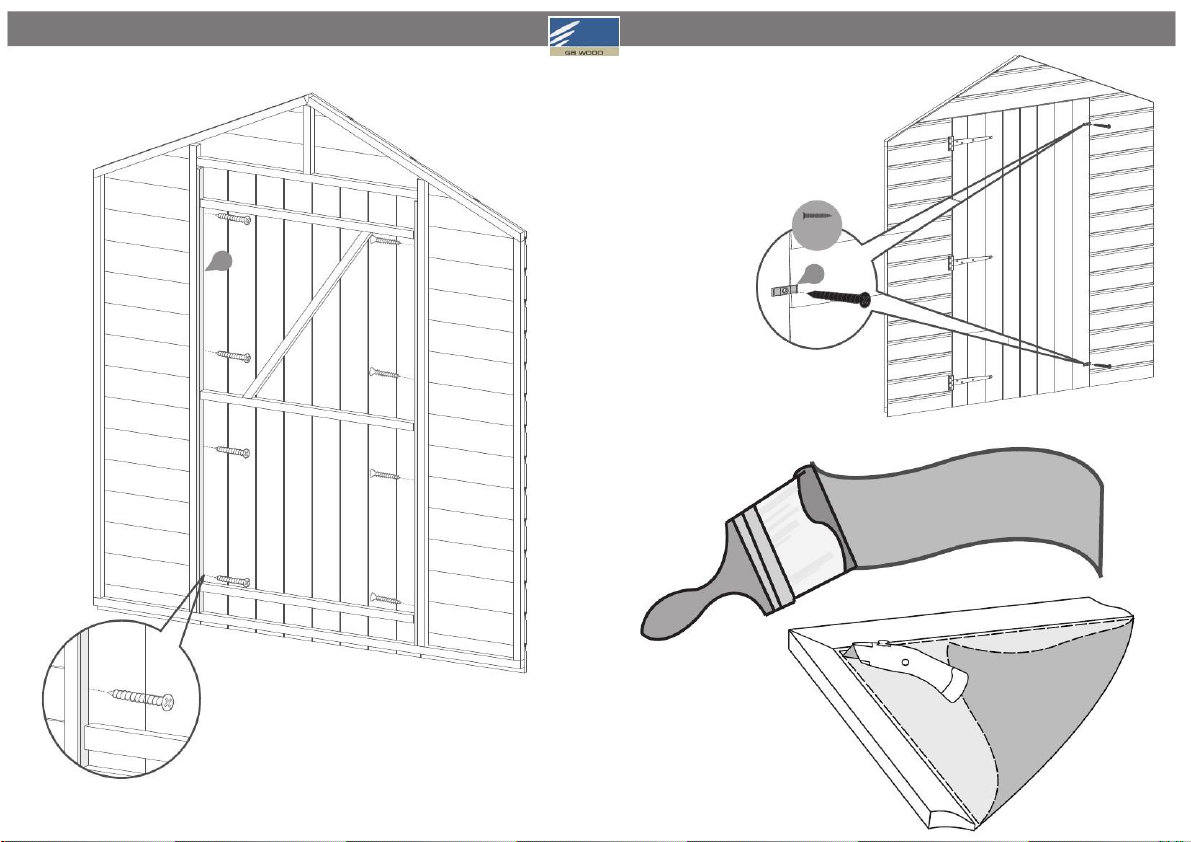

Fix the T Hinges onto the
doors and door frame as
shown. Ensure that the
screws go through the
cladding and into the
framing behind.
Roof
x2
Door
x2
21x30mm screws
15
1
Door Gable
Back Gable
Plain Side
Qty 2 -NW only
Window Panel
FW-V1 ONLY
Floor
8
9
10
11
12
13
14
Fascia 1016mm x4
Fixed Window Strip 546mm x5 FW-V1 ONLY
Cover Trims 1575mm x4
Door Beading Strip 1590mm x2
15
T Hinge
Qty 3
16
Plastic Window Cill
FW-V1 ONLY
17
Turn Button
Qty 2
7
18
Felt
19
Capping
Felt
Ridge Bar 2304mm
Eaves Frame 1195mm x4
20
21
Pre drill
hole
30mm
screw
Styrene Qty 2
FW-V1 ONLY
L-Bracket
Qty 2
Finial x2
Nail Bag
Felt Tacks x 100
20mm Screw x 8
30mm Black Screw x 2
30mm Screw x 62
40mm Screw x 44
50mm Screw x 28
P7

Step 1
Place the floor on a firm and level base,
ensure the base has suitable drainage free
from areas where standing water can collect.
See the front page for base requirments.
Step 3
Fix the corners with 50mm
screws as shown in diagram.
9x50mm Screws
1
Pre drill
hole
4
5
50mm
screw
Use 3 for no
window buildings
Step 2
Fix the corners with 50mm screws
as shown in diagram.
Do not secure the building to the
floor until the roof is fitted. Fix the
panels onto the floor using 50mm
screws in alignment with the floor
joists
Position the panels so there is equal spacing
between the floor and cladding on all 4 sides
Step 4
Place the ridge bar in between the front
and back gables. Ensure the top corners
of the ridge bar sit flush with the top
points of the door gable. Fix the ridge bar
to the gable using one L bracket for each
end.
Fix with 4x20mm screws each
8x20mm Screws
20mm
screw
2
3
3x50mm Screws
Pre drill
hole
Pre drill
hole
50mm
screw
12
21
P8

Step 5
Fix two eaves frames to each roof sheet
using 3x30mm screws per eave.
Fix the roof sheets to the roof ensuring
they come together at the top using
40mm screws directly through the roof
sheet at the top. Make sure to attach the
roofs to the ridge bar.
40mm
screw
Pre drill
hole
Step 7
Cut the felt into 2 sheets at 2490mm and
fix onto the roof using felt tacks as shown
in diagram ensuring there is 50mm
overhang around the sides. Cut the
capping felt to 2490mm and fix over the
centre of the apex as shown in the
diagram ensuring there is 50mm over-
hang around the sides.
192
18
12x 30mm Screws
28x 40mm Screws
6
19
30mm
screw
Felt
tacks
13
13
Pre drill
hole
18
100x Tacks
Step 6
b
Once the roof is fixed
attach the building to
the floor with 50 mm
screws.
1
2
16x 50mm Screws
3
50mm
screw
Pre drill
hole
4
HANDLE
WITH CARE
P9

Step 8
Fit the Cover Trims to the front
and back of the building as
shown in the illustration using
30mm screws. Trim the length
of the cover trims to the
required size before fitting if
necessary.
Pre drill to avoid splitting.
12x30mm Screws
30mm
screw
Pre drill
hole
Step 10
10
For the no window version go to step 11
30mm
screw
Pre drill
hole
10
10
Fix the window strips to the
two pieces of framing that sit
alongside the outside edges
of the window with 3x30mm
screws for each strip.
6x30mm Screws
9
9
Side View
16
Place the
plastic window
cill onto the
Window Panel
in the same
way as shown
on both
diagrams to the
left.
Step 9
Attach the faiscas to the roof
leaving a slight overhang at the
top.
Fit the fascias to the roof over
the felt and secure in place with
40mm screws as shown.
Pre drill to avoid splitting.
16x40mm Screws
9
8
14
8
8
14
9
9
19
Fit the styrene sheets on top of
the window cill.
When positioning the styrene
sheets ensure there is an equal
distance between them and at
either side of the windows.
8
Pre drill
hole
40mm
screw
30mm
screw
9
9
Pre drill
hole
9
Attach the three window strips
at either side of the windows
using 3x30mm screws each.
Make sure the screws enter the
framing in the window panel
and not the styrene.
9x30mm Screws
P 10

Step 11
Step 12
Use 2x30mm black screw to
fix the turn button onto the
door.
2x 30mm Black Screw
30mm
screw
11
17
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
Use 4x30mm Screws to fix
each beading strip onto the
door gable. Ensure that the
screw is parallel with the
door frame when fixing the
strip to the door gable as
shown in the close up view.
8x30mm Screws
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
P 11
