OLT CLA128-SLIDER-METAL-ES User manual

Classic 12x8 Shed - Sliding Doors - ES
Assembly Manual
Version #1.0
March 30, 2022
1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 1
Thank you for purchasing a
Classic 12x8 Shed. Please
take the time to identify all
the parts prior to assembly.
In the event of a missing or broken piece, call the Outdoor Living Today Customer Support Line @ 1-888-658-1658 with-
in 30 days of the delivery of your purchase. It is our commitment to you to courier replacement parts, free of charge,
within 10 business days of this notification. Replacement parts will not be provided free of charge after the 30 day
grace period.
All structures purchased from Outdoor Living Today are covered for a period of one year for defects in manufacturing
and workmanship. Costs incurred for customer installations are not included.
Failure to use supplied parts included in this kit could result in poor product performance and may void your warranty.
Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our written instructions.
- Snow load ratings vary by geographical location. If heavy or wet snowfall occurs, it
is advisable to sweep snow off roof frequently.
- If the product is elevated, any structural and building code requirements are solely
the customer's responsibility, and should be abided by.
- In areas with high or gusty wind conditions, it is advisable to install the structure
securely to the ground.
- Have a regular maintenance plan to ensure screws, doors, windows and parts are
tightly affixed.
Customer agrees to hold Outdoor Living Today and any Authorized
Dealers free of any liability for improper installation, maintenance and
repair.
STOCK CODE #
CLA128-SLIDER-METAL-ES
Safety Points and Other Considerations
Our products are built for use based on
proper installation on level ground and
normal residential use. Please follow the
instruction manual when building your
shed and retain the manual for future
maintenance purposes.
Customers are responsible for ensuring
a solid, level, well-draining site for
construction.
Please check with your local municipal
or county by-laws before ordering this
product to confirm it complies with
building codes.

What to do before my Shed arrives?
Become familiar with this assembly manual and determine if you can•
complete the project yourself or will require a professional contractor.
Clear the construcon area and ensure a clear pathway for delivery when•
the freight company arrives. Remove all debris: roots, grass, rocks, etc.
Excavate the site. Contact your local ulies company to ensure there are•
no gas or electric lines buried in the area before digging.
Decide on the type of foundaon you will be using:•
 Concrete slab, or
 46 inches of crushed gravel with paver stones or 4x4 stringers.
You can find the footprint for your shed on Page 3 of your Assembly Manual.
If doing the assembly yourself, have all the necessary tools ready to go and in•
working condion. A list of required tools can be found aer the parts list.
One helper is recommended to assist in construcng your shed.•
It generally takes two people over two days to assemble a shed. If you’re
hiring a contractor, their rate should be in line with that duraon of work.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 2

Foundation Types for 8x12 Garden Shed
Concrete Slab Foundation:
- Slab must be at least the same size as assembled floor frame (136 1/2” x 96”) or larger.
- 6” Deep foundation.
- 1.7 Cubic Yards of concrete required.
- A concrete slab will have the longest durability out of your foundation options.
Once level, a concrete slab is the easiest surface to build on.
Gravel with 4x4 Pressure Treated Stringers:
- Excavate at least 6” deep, and 6” wider than floor frame on each side.
- 2.1 Cubic Yards of gravel required, approximately 19 wheelbarrows.
- 7 - 4x4 Pressure Treated Stringers 8’ long required.
- Evenly spaced, with one at each end of floor frame.
Saves money on materials, easy to level and work with.
Gravel with Patio Paver Stones:
- Excavate at least 6” deep, and 6” wider than floor frame on each side.
- 2.1 Cubic Yards of gravel required, approximately 19 wheelbarrows.
- 25 patio pavers (8” x 8” or larger).
- Center patio paver stones underneath floor runners and underneath seams in floor joists.
Patio paver stones are widely available from most landscape stores.
96”
136 1/2”
6” Deep
108”
148 1/2”
7 - 4”x4”x96”
25 Patio Stones
Floor FrameConcrete Foundation Completed Foundation
18 5/8”
Gravel Foundation Gravel Foundation with treated stringers Completed Foundation
Gravel Foundation Gravel Foundation with Patio Pavers Completed Foundation
96”
136 1/2”
108”
148 1/2”
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 3

Thank you for purchasing our Classic 12x8 Shed. Please take the time to identify all the parts prior to assembly.
Note: All Trim, Facia and Bottom Skirting pieces will be positioned rough face out when installed.
1. Floor Section
Floors
3 - 45 1/2” x 75” - Floor Joist Frames - Large
3 - 45 1/2” x 21” - Floor Joist Frames - Small
6 - 1 1/2” x 3 1/2” x 71 7/8” - Center Floor Joists - Unattached
8 - 1 1/2” x 3 1/2” x 68 3/16” - Floor Runners
2 - 1 1/2” x 5 1/2” x 68 3/16” - Front Floor Runners - Notched Corner
3 - 45 3/8” x 74 7/8” - Plywood Floor - Large
3 - 45 3/8” x 20 7/8” - Plywood Floor - Small
2. Wall Section
Main Wall Panels
7 - 45 1/2” x 75” - Solid Wall Panels
7 - 1 1/2” x 2 1/2” x 45 1/2” - Bottom Wall Plates
2 - 35” x 73” - Front Wall Panels
Door Header & Jamb
1 - 2” x 2 7/8” x 84” - Door Header - Long (Dado cut on edge)
2 - 2” x 2 7/8” x 26 1/4” - Door Headers - Short (Dado cut on edge)
1 - 1 1/2” x 2 7/8” x 66 1/2” - Interior Door Header
Top Wall Plates & Gables
6 - 3/4” x 2 1/2” x 32” - Side Top Plates
(4 pieces angle cut on end, 2 piece straight cut both ends)
4 - 3/4” x 2 1/2” x 65 3/4” - Front & Rear Top Plates (angle cut edge)
4 - Gable Half Walls - Triangular Shaped
3. Rafter and Roof Section
Rafter Assembly
2 - 3/4” x 4 1/2” x 84” - Roof Ridge Boards
2 - 3/4” x 4 1/2” x 52 1/2” - Roof Ridge Boards
18 - 1 1/2” x 3 1/2” x 56 1/2” - Roof Rafters
4 - 1” x 4 1/2” x 68 1/4” - Soffits
3 - 3/4” x 3 1/2” x 72” - Roof Gussets (angle cut on ends)
Roof
16 - 3/4” x 3 1/2” x 49 1/4” Roof Batten (outside)
8 - 3/4” x 3 1/2” x 45 1/2” Roof Batten (middle)
12 - 3/4” x 1 1/2” x 14 1/8” - Batten Spacers
8 - 61”long x 39” wide Metal Roof Panels
3 - 13”w x 60” Metal Ridge Cap
8 - Several Strips of Foam Enclosures for Metal Roof Ends
4. Trim & Miscellaneous Section
Outer Wall Trim
3 - 1/2” x 4” x 43 1/2” - Front Bottom Skirting
4 - 3/8” x 2 1/2” x 75” - Filler Trim (ES Strips)
Door Section
2 - Aluminum Door Tracks
2 - 36” x 73” - Sliding Doors
2 - 1 1/2” x 1 5/8” x 60” - Lower Door Track
3 - 3/4” x 3 1/2” x 43 1/2” - Lower Door Track Cover
3 - 1 1/2” x 2 1/4” x 3 1/2” - Sliding Door Track Stops
Outer Wall Trim Cont.
4 - 1/2” x 4 1/2” x 42 1/2” - Horizontal Gable Trim
4 - 1/2” x 3 1/2” x 79” - Corner Trim
4 - 1/2” x 5 1/2” x 82” - Wide Corner Trim
2 - 1/2” x 2 1/2” x 79” - Rear Wall Narrow Trim
2 - 1/2” x 2 1/2” x 77 1/2” - Side Wall Narrow Trim
19 - 21
Steps
Steps
23 - 26
Steps
38 - 53
54 - 55
Steps
12 - 18
1 - 11
27 - 37
Parts List - Pages 4 and 5
56 - 59
Continued on next page
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 4
60 - 64

Facia Trim
4 - 3/4” x 2 1/2” x 51” - Facia Nailing Strips
4 - 3/4” x 5 1/2” x 58” - Side Facia (Angle Cut, 2 right, 2 left)
4 - 3/4” x 5 1/2” x 71 3/4” - Front and Rear Facia
2 - Pentagon Facia Plate - For Side Facia Peaks
2 - Horizontal Gable Trim Detail Plates - 4 1/2” high
2 - Facia Detail Plates - 5 1/2” high
Miscellaneous
2 - Metal Window Inserts
2 - Window Trim Pkgs - (1 - 24 1/16” angle cut / 3 - 23” square cut)
1 - 3/4” x 3 1/2” x 71” - Interior Door Flange
2 - Spare Shingles - use to shim door, etc
CLASSIC 12x8 SHED ES WITH METAL ROOF HARDWARE SHEET
S1 - 2 1/2”
S3 - 2”
S2 - 1 1/4”
SS2 - 3/4”
SB2 - 2”
N1 - 1 1/2”
Silver
Finishing
Square Drive Bit
Hardware Kit (Provided)
Safety Glasses
Work Gloves
Safety Equipment
Required (Not Provided)
Screw Gun/Drill
Tape Measure
Hammer
Wood ClampLevel Pliers
Tools Required (Not Provided)
1/8” Drill Bit
330 Pcs
155 Pcs
28 Pcs
200 Pcs
2 Pcs
365 Pcs
20 Pcs
25 Pcs
Black Headed
Black Headed
Y30 - Single
Rafter
Bracket x 6 Y31 - Double
Rafter Bracket x 4
65 - 69
Steps
70 - 73
Parts List - Pages 4 and 5
Ladder
SB1 - 3/4”
BR1
Y9 - Ridge Board
Connector x 2
1/4” x 2”
Metal Roof Screw
1/4” Nut Driver
Silicon Caulking x 2
Y38 - Metal Roof
Hanger x 4
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 5
Y35 - Roller Assembly x 4
Y3 - Black Handle x 2 Y11 - Black Hasp x 1
53 Pcs

Regular Maintenance & Tips to prolong the life of your shed.
Before/During Assembly:
1.) Paint each face and edge of your plywood floor with a latex exterior paint.
2.) Caulk wall seams if gaps appear.
3.) Caulk around window framing.
4.) Caulk perimeter between floor plywood and bottom wall plate.
5.) Caulk channels in lap siding at the top of your door above the trim, just a drop in each channel.
6.) Caulk edge of door threshold (if applicable).
7.) Optional: Install a Sill Gasket between floor runners and foundation.
8.) Optional: Install an 8” strip of roofing paper below Cedar Ridge Caps for Cedar Roof Sheds.
Routine Maintenance:
- Routinely check all fasteners are tight (ex. Door Hinges, Nails)
- Brush off dirt from walls.
- Brush off snow from roof regularly.
- Routinely remove needles and leaves from roof.
Painting/Staining
- Your shed, if left untreated, will weather to a silvery grey color.
- Painting or staining your structure is highly recommended and will prolong the life of your shed.
- You do not need to wait to paint or stain your shed, the wood in your kit has been dried and can be
—stained or painted immediately.
- Consult your local paint store for the best paint or stain for cedar trim and engineered siding.
- Optional: stain the inside of your shed. (Note: this will remove the fresh cedar smell.)
1. 2. 3.
4. 5. 6.
7.
Sill Gasket
Floor Joists
Floor Runner
Foundation
8.
Floor Plywood
Wall Panel
Small gap between
bevel siding and
window trim
Dab of caulking
Strip of roofing paper over
apex of roof panels
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 6

You can find the
Square Drive Bit for
the screws in with
the Hardware Kit Bag.
1. Lay out Large Floor Joist Frame and 2 Floor Joists as
illustrated above. Position Joists equally in Floor Joist Frame.
Use Small Floor Joist Frame as a template to determine
joist position. Position Joist so flush with framing.
Parts (Steps 1 - 6)
Floor Joists
(1 1/2” x 3 1/2” x 71 7/8”) x 6
Floor Joist Frames - Large
(45 1/2” x 75”) x 3
Floor Joist Frames - Small
(45 1/2” x 21”) x 3
Hardware (Steps 1 - 6)
S1 - 2 1/2” Screws
x 58 total

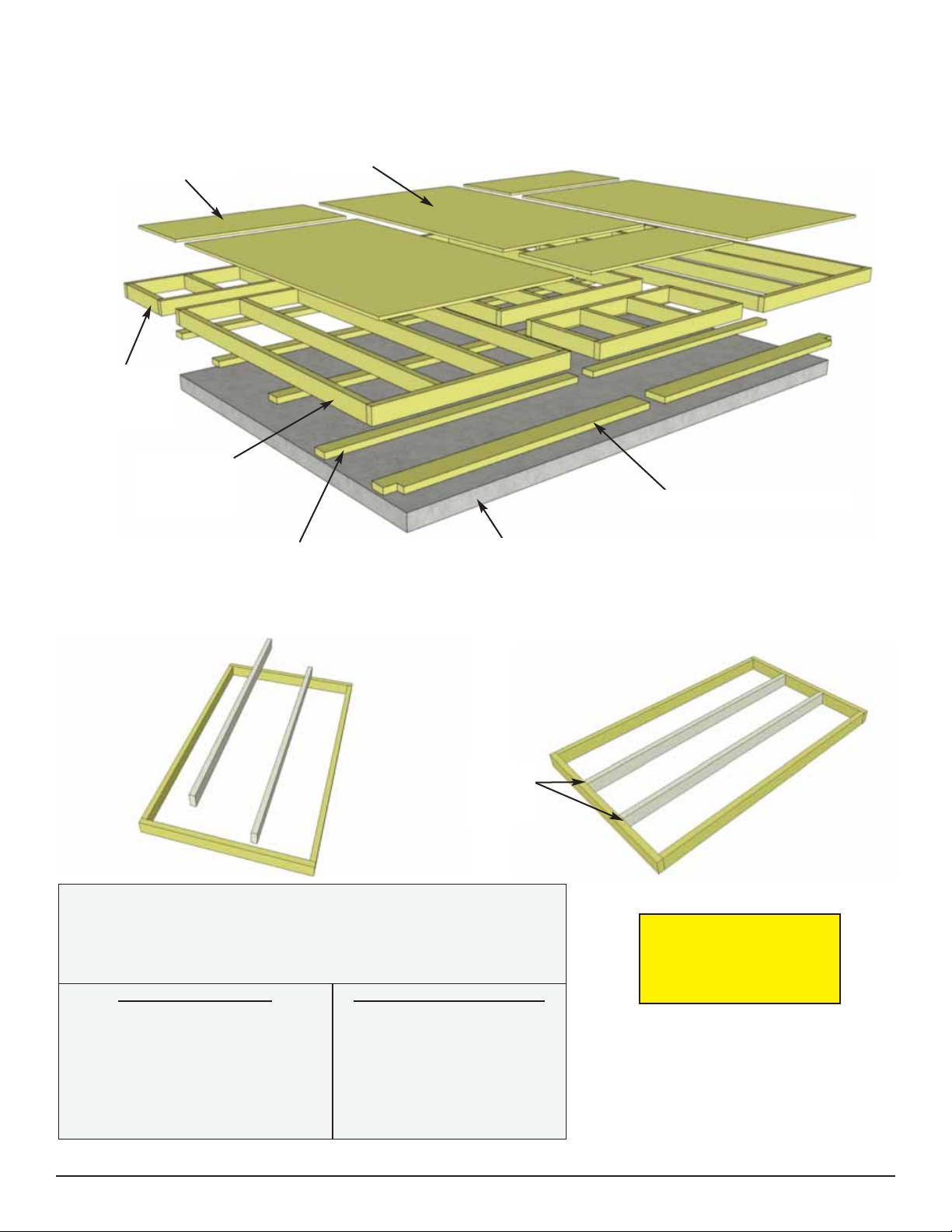

A. Floor Section Exploded view of all parts necessary to complete
Floor Section. Identify all parts prior to starting.
Note: Floor Footprint is 136 1/2” wide x 96” deep.
Flush
with
framing
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 7
Plywood Floor
Large (3)
Floor Joist
Frames
Large (3)
Floor Runners (8)
Plywood Floor
Small (3)
Concrete Pad
(optional foundation method)
Floor Joist
Frames
Small (3)
Front Floor Runners (2)

2. When correctly positioned, attach each Joist with 4 - 2 1/2” screws (2 per end). You can find the
Square Drive Screw Bit in the Hardware Kit Bag.
3. Lay out Floor Joist Frames as illustrated.
There are 3 larger and 3 smaller Frame Sections.
The Footprint for the floor when attached together
will be 136 1/2” wide x 96” deep.
5. Complete all large and small frame
attachments. Screw each completed section
together with 8 - 2 1/2” Screws.
Front of Shed
You can find the
Square Drive Bit for
the screws in with the
Hardware Kit Bag.
4. Attach each large and small floor joist
frame together with 6 - 2 1/2” Screws per
section.
96”
136 1/2”
6. When completed, your floor footprint
should be 136 1/2” wide x 96” deep.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 8

7. Attach Front Floor Runners to completed floor frame with notch aligned
flush with corner of floor framing and edge overhanging front by 2”.
The overhanging edge of the front floor runners will be used later to support
the sliding door track. Attach with 6 - 2 1/2” Screws per Runner.
Parts
Front Floor Runners
(1 1/2” x 5 1/2” x 68 3/16”) x 2
Hardware
S1 - 2 1/2” Screws x 12 total
9. With Floor Runners attached, carefully flip the floor over and place on your foundation.
Caution: you will need 2 people to assist you. Be careful when laying floor down not to bend or twist floor.
When in place, level floor completely.
Note: The floor will be flipped over
and the floor runners will sit on your
foundation. It is important to note that
having a level foundation is critical.
Choosing a foundation will vary
between regions.
See page 3 of this assembly manual
for more information on foundations.
Foundations
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 9
8. Attach Floor Runners to completed floor frame as shown
above. Make sure Runners are flush with side and rear of
floor framing but not overhanging. Use 6 - 2 1/2” Screws per
Runner.
Parts
Floor Runners
(1 1/2” x 3 1/2” x 68 3/16”) x 8
Hardware
S1 - 2 1/2” Screws x 48 total
Concrete Slab
Foundation
Door Side

Hint: Use a chalk line
to mark location of floor
joists to determine
screw placement.
Front

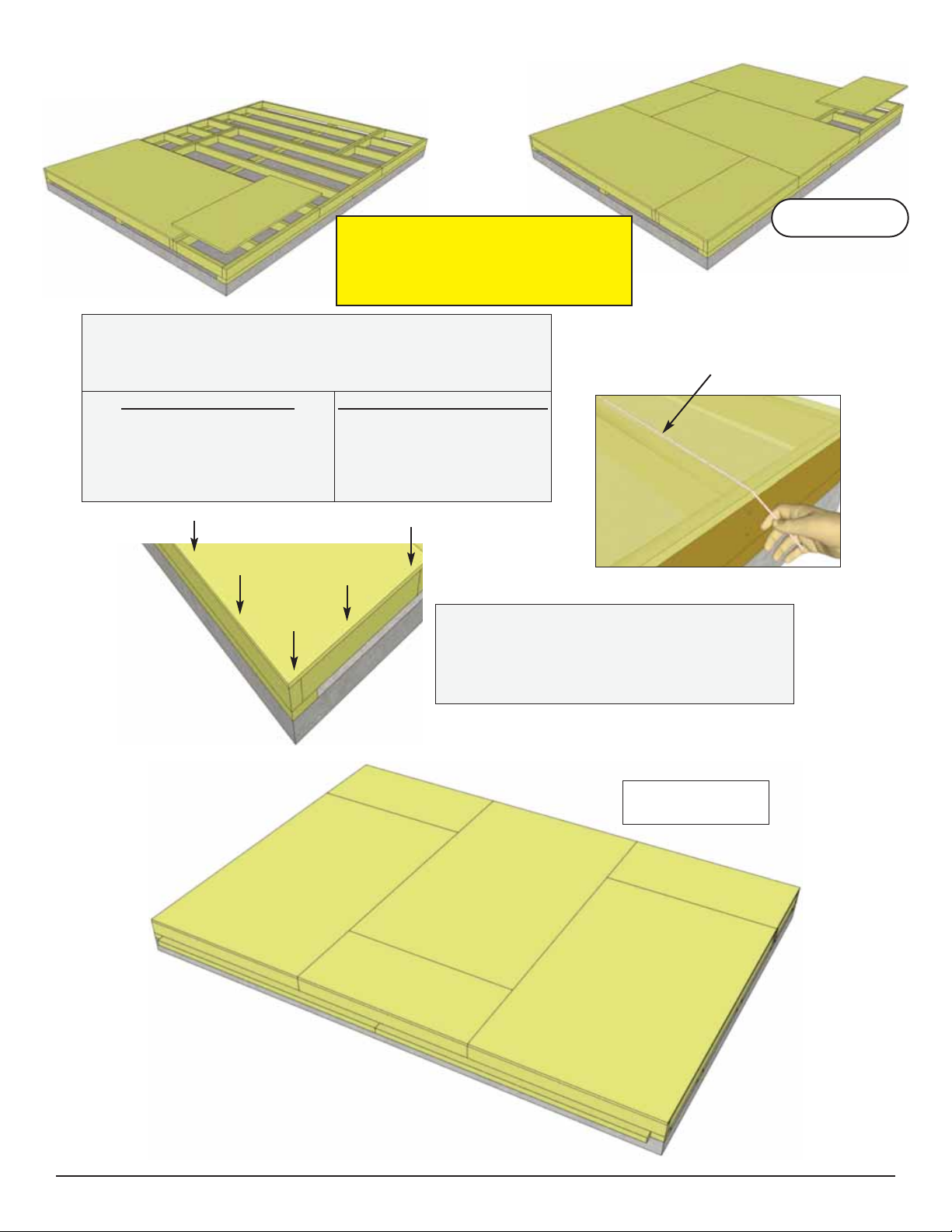

10. Position all Large & Small Plywood Floor pieces
on top of completed floor joists. Plywood will sit flush with
outside of floor joist frame.
Parts (Steps 10 - 11)
Plywood Floor - Large
(45 3/8” x 74 7/8”) x 3
Plywood Floor - Small
(45 3/8” x 20 7/8”) x 3
Hardware (Steps 10 - 11)
S2 - 1 1/4” Screws
x 70 total (approx.)
Important - Make sure floor is
level before moving on to wall
section. Use a level to confirm,
and shim floor joists as required.
11. With Plywood positioned correctly on
floor framing, attach with 1 1/4” Screws.
Use screws every 16” along the perimeter
of each piece of floor plywood.
push plywood
together at seams.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 10
Front
Completed Floor
configuration

12. Lay out all the wall
panels and become
familiar with their location.
On Standard Kits, there
are 2 Front Wall Panels
and 7 Solid Wall Panels.
B. Wall Section
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 11

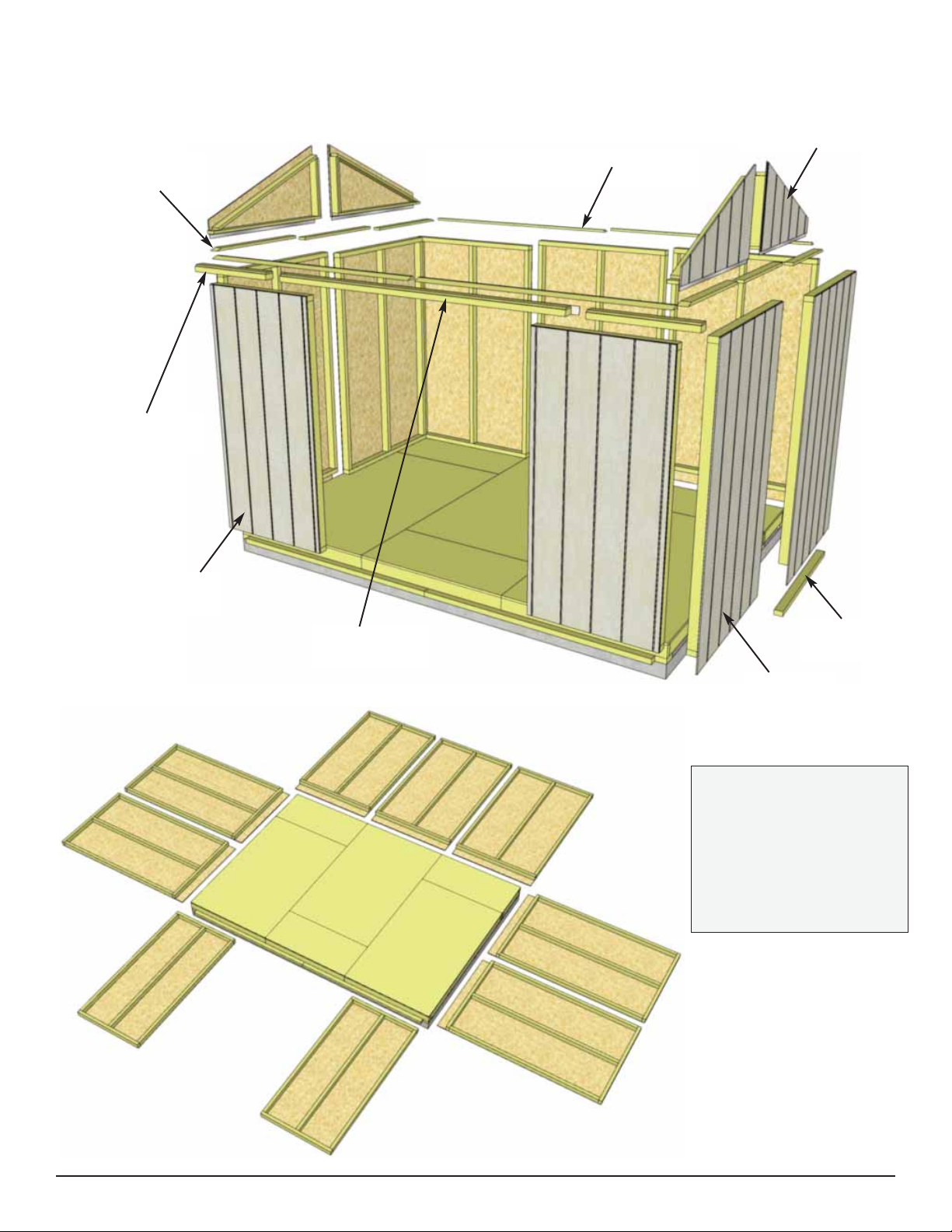

Exploded view of all parts necessary to complete the Wall Section.
Identify all parts prior to starting.
Front Wall
Panels (2)
Front and Rear Top Plates (4)
(Angle cut on edge)
Side Top Plates (6)
(4 Angle cut on one end
and 2 square cut.)
Gable Walls (4)
Door Headers
- Short (2)
Solid Wall
Panels (7)
Door Header
- Long (1)
Bottom Wall
Plates (7)

13. For each Solid Wall Panel, carefully lay panel
face down. Position and attach a Bottom Wall
Plate to bottom of wall studs of each wall panel with
3 - 2 1/2” Screws. Position so plates are flush with
framing. Wall siding will overhang bottom wall plate.
Parts
Solid Wall Panels
(45 1/2” x 75”) x 7
Bottom Wall Plates
(1 1/2” x 2 1/2” x 45 1/2”) x 7
Hardware
S1 - 2 1/2” Screws
x 21 total
14. Starting at Rear Corner, position a Solid Wall Panel
on top of plywood floor. The Wall Panel bottom framing
will sit flush with plywood. Wall siding will overhang the
floor. The Rear Wall panels will sit flush at the end of the
plywood floor with the side wall panels sandwiched
between them
Note: Siding will overhang the floor by approximately
4 1/2”.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 12
Pilot Hole
first.
Bottom Wall Plate
Important:
Pilot hole ALL 2x3 Wall
Studs with 1/8” drill bit prior
to screwing. This will make it
much easier to attach
together.
Side of Shed
1st Rear
Wall Panel
Front of Shed
Important - Make sure all walls are aligned
in their upright position. If not, water may
leak into your shed. Unsure if panel is
facing up or down? Wall siding overhangs
the base of the wall.
1st Rear Wall Panel
side of shed
2x3 wall frame
Flush with
Floor Framing
4 1/2” overhang

15. Position side solid wall into place on plywood floor. Butt both vertical
wall studs of side and rear walls together and attach with 3 - 2 1/2” Screws.
Screw at the bottom, middle and top of stud to secure properly.
Hardware (Steps 15 -17)
S1 - 2 1/2” Screws
x 18 total
16. With the corner wall attachment complete, position a second Side Wall panel in place so bottom
2x3 wall framing is sitting flush with outside floor joists and plywood floor. Wall siding should overhang
floor by approximately 4 1/2”. When positioned correctly, attach both Side Wall panel studs together
as shown.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 13
Do Not Attach Walls To
Floor Until Step 22
Side Wall
Rear Wall
Rear Wall
Side Wall
Optional - Caulking seams
will help prevent moisture
from entering your shed.
Caulking not included in kit.
Pilot Hole
first.

17. Complete all Side and Rear Wall attachments as per Steps 14 - 16.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 14
Pilot Hole
first.
Pilot Hole
first.
Pilot Hole
first.

18. Position and attach both Front Wall Panels
as per Steps 14 - 17.
Parts
Front Wall Panels
(35” x 73”) x 2
Hardware
S1 - 2 1/2” Screws
x 6 total
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 15
Pilot Hole
first.
Pilot Hole
first.
19. Position Door Header - Short on top of
wall stud so it is flush on the inside with 2x3 wall
stud. Attach by screwing down into top wall fram-
ing with 3 - 3” Screws.
Parts (Step 19 - 20)
Door Headers - Short
(2” x 2 7/8” x 26 1/4”) x 2
Door Header - Long
(2” x 2 7/8” x 84”) x 1
Hardware (Step 19 - 20)
S4 - 3” Screws
x 10 total
S2 - 1 1/4” Screws
x 4 total
Step to front
and top.
Align flush
outside with
wall siding.

Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 16
20. Attach Door Header - Short to other side. Position and attach Door Header - Long between short
door headers. The Long Door Header has an aluminum strip attached to the back for added support.
Attach by screwing down into wall framing with 2 - 3” Screws per side. Fasten aluminum strip to short
headers with 2 - 1 1/4” Screws per side.
Aluminum strip on back
of Long Door Header
21. Attach Interior Door Header as shown above.
Align with top framing of front walls. Attach with
4 - 2 1/2” screws to underside of Door Header.
Parts
Interior Door Header
(1 1/2” x 2 7/8” x 66 1/2”) x 1
Hardware
S1 - 2 1/2” Screws
x 4 total
66 1/2”

22. When all walls are attached together, check alignment with the floor. Bottom of
wall frames should sit flush with outside of floor framing, with siding overhanging by
approximately 4 1/2”. Confirm 66 1/2” wide door opening at bottom. When
positioned correctly, fasten Bottom Wall Plates to floor using 4 - 2 1/2” Screws per
wall panel.
Hardware
S1 - 2 1/2” Screws
x 38 total
23. Position Side Top Plates (one side only) on top of wall studs so they are flush on the inside.
There are 3 Side Top Plate pieces per side (2 angle cut on one end and one straight cut - both
ends). Together, the plates should be centered evenly on the wall left to right. Attach by screwing
down into top wall framing with 3 - 2” Screws per plate.
Parts (Steps 23 - 24)
Side Wall Top Plates - 4 Angle Cut End, 2 Straight Cut
(3/4” x 2 1/2” x 32”) x 6
Front & Rear Wall Top Plates - Angle Cut Edge
(3/4” x 2 1/2” x 65 3/4”) x 4
Hardware (Steps 23 - 24)
S3 - 2” Screws
x 34 total
Advice: Prior to fastening walls and installing rafters, take time to confirm your walls are level, square and plumb.
Measure diagonal at top and bottom of walls corner-to-corner. This should be approximately 159 7/8”. More importantly,
if measurements are not within 1/4”, your walls are not square. Adjusting now will make it easier to install roof section.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 17
159 7/8”
159 7/8”
Angle
screws into perimeter
Floor Joists.
Pilot Hole
first.
66 1/2”

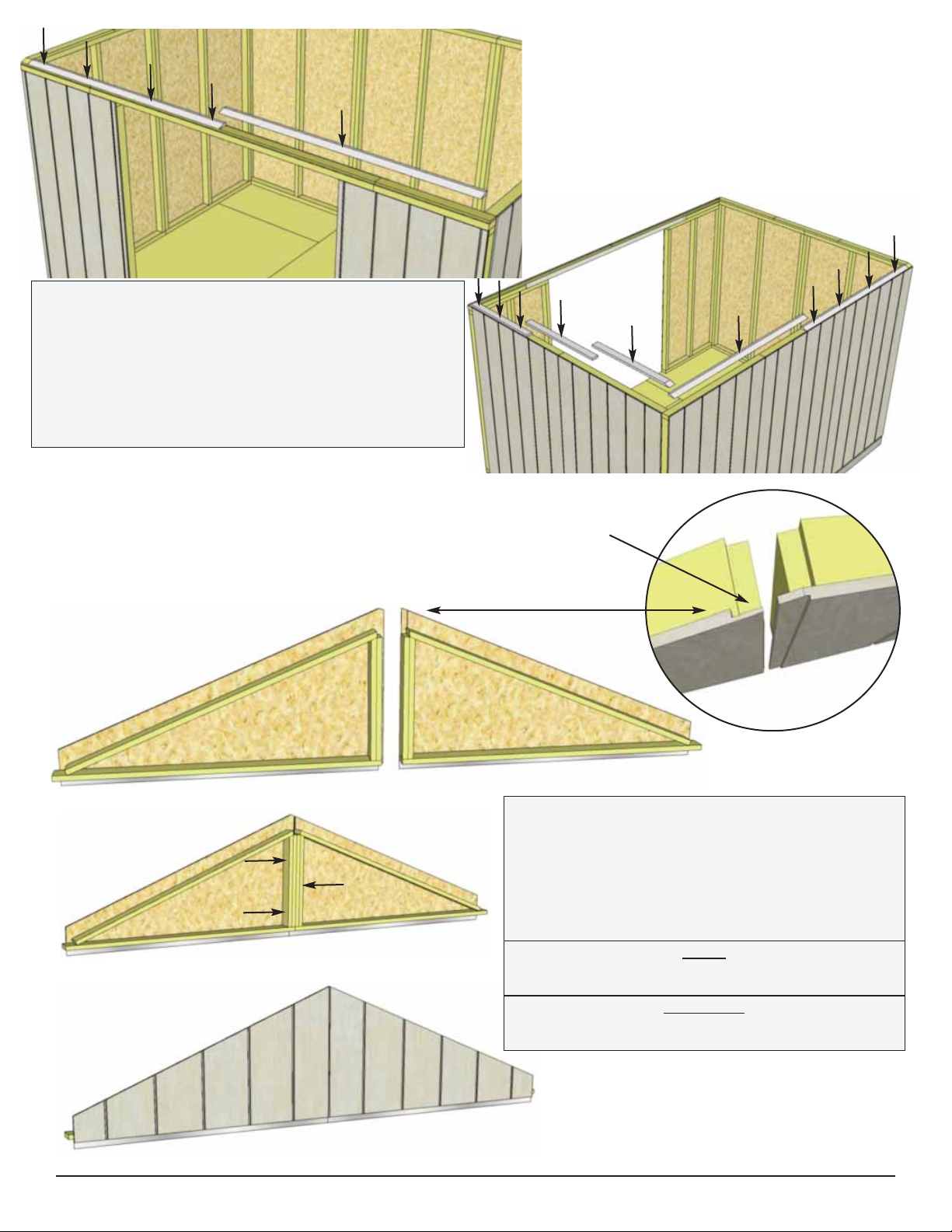

24. Next, attach the Front Top Plates. The Front
and Rear Top Plates are angle cut down the length.
Once again, position Top Plates on wall frame so
they are flush. Front and Rear Top Plates will fit
between Side Top Plates. Attach with 4 - 2” Screws
per plate. Complete all other Side &Rear Top Plate
attachments the same.
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 18
Male / Female Gable
Siding Overlap
25. Locate Triangular Gable Half Walls for
both sides of the shed. Align framing and wall
siding lap together. Screw center wall framing of
each piece together with 3 - 2 1/2” Screws.
Note: Prior to attaching, try each combination of
Gables for best fit.
Parts
Triangular Gable Half Walls x 4
Hardware
S1 - 2 1/2” Screws x 6 total

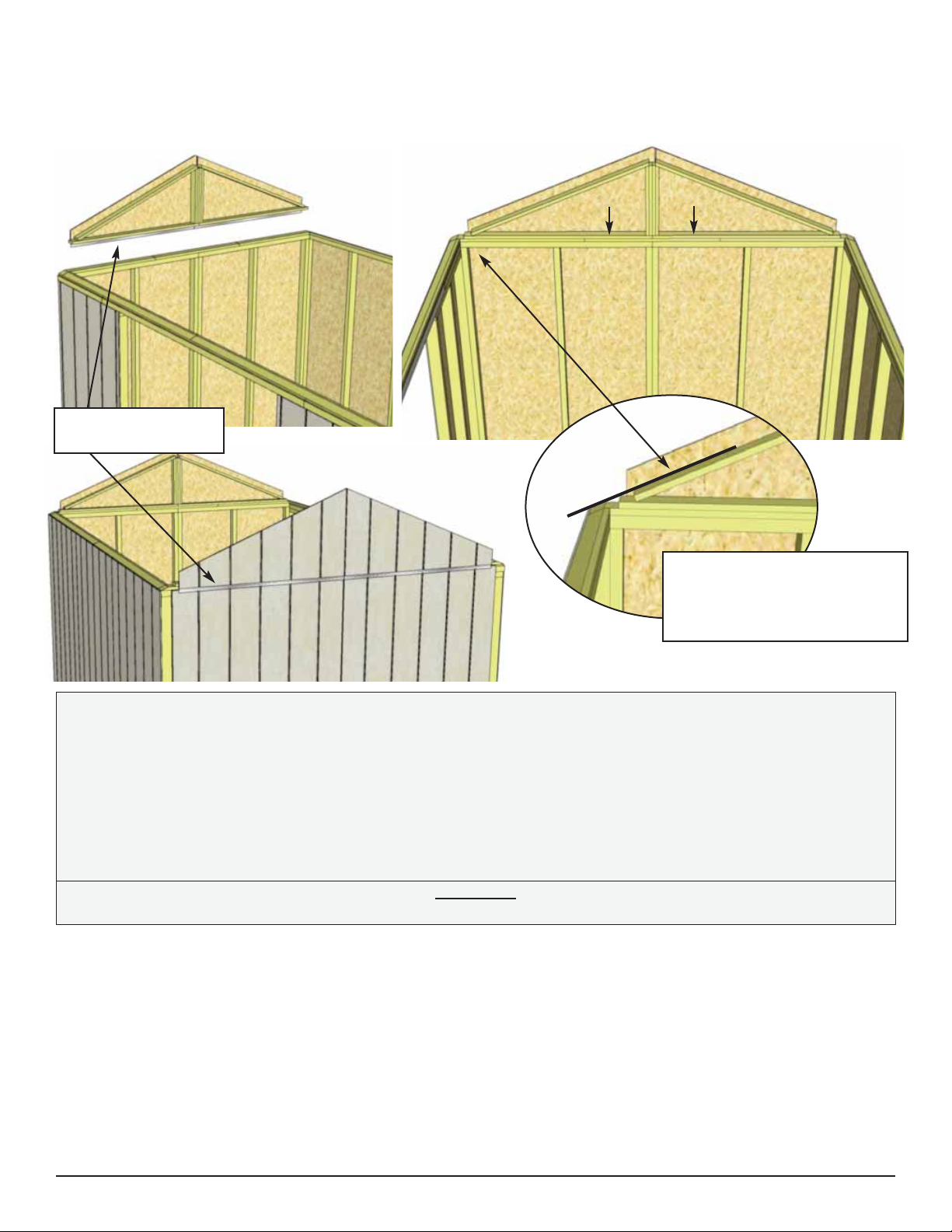

26. Place completed Gable section so framing sits flush with the inside of the Top Wall Plate. It
should also be centered side-to-side on the Top Wall Plate. Gable Flashing overhangs wall on the
outside. Temporarily attach to Gables and Top Wall Plate with 2 - 2” Screws. Gables may need slight
adjustment in Step 36 when attachment will be completed with an additional 6 Screws. Screw from
the bottom of Gable framing down into Top Wall Plate and Wall Framing. Complete Gable positioning
and attachment on the other side.
Hint: Use a straight edge to check the angle of the Gable framing and Top Plate. Both angles should
line up (see diagram above).
Hardware
S3 - 2” Screws x 4 total
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 19
Flashing overhangs
wall on outside.
Use a straight edge to check
that angle of Gable lines up
with Top Wall Plate angle.
Adjust Gable for best fit.

C. & D. Rafter and Roof Section
Exploded view of all parts necessary to complete the Roof Section.
Identify all parts prior to starting.
Ridge Board
Ridge Board
Metal Ridge Board Connector
8 - 3/4” Screws
Parts (Step 27)
Ridge Board Long
(3/4” x 4 1/2” x 84”) x 2
Ridge Board Short
(3/4” x 4 1/2” x 52 1/2”)
x 2
Hardware (Step 27)
SS2 - 3/4” Screws
x 16 total
Y9 - Ridge Board
Connector
x 2 total
27. Locate Ridge Boards Long & Ridge Boards Short
and attach together with Metal Ridge Board Connector
using 8 - 3/4” silver screws. Position Metal Ridge Board
Connector evenly on Ridge Boards. Total length when
connected is 136 1/2”. Complete two sets.
Metal Ridge
Caps (3)
Metal Roof
Panels (8)
Roof Rafters (18)
(9 per side)
Ridge Boards
(4) 2 - 84” long
2 - 52 1/2” long
Soffits (4)
1” x 4 1/2” x 68 1/4”
Metal Ridge
Board
Connectors (2)
Roof
Gussets (3)
Rafter
Brackets (6)
4 - Single
2 - Double
Foam Enclosures
(Several Pcs)
Batten
Spacers (12)
Roof Batten
Inside (8)
Roof Batten
Outside (16)
Toll Free 1-888-658-1658 www.outdoorlivingtoday.com [e-mail]
Page 20
