Profile Bottom Mount
Double Drawer
Refrigerators
Technical Service Guide
March 2008
GE Consumer & Industrial
PGCS1NFXSS
PGCS1PJXSS
PGSS5NFXSS
PGSS5PJXSS

– 2 –
IMPORTANT SAFETY NOTICE
The information in this service guide is intended for use by
individuals possessing adequate backgrounds of electrical,
electronic, and mechanical experience. Any attempt to repair a
major appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible for the
interpretation of this information, nor can it assume any liability in
connection with its use.
WARNING
To avoid personal injury, disconnect power before servicing
this product. If electrical power is required for diagnosis or test
purposes, disconnect the power immediately after performing the
necessary checks.
RECONNECT ALL GROUNDING DEVICES
If grounding wires, screws, straps, clips, nuts, or washers used to
complete a path to ground are removed for service, they must be
returned to their original position and properly fastened.
GE Consumer & Industrial
Technical Service Guide
Copyright © 2008
All rights reserved. This service guide may not be reproduced in whole or in part
in any form without written permission from the General Electric Company.

– 3 –
Table of Contents
Airflow .................................................................................................................................................................................32
Anti-Tip Floor Bracket (on 21 ft. models).............................................................................................................20
Articulating Door Mullion .........................................................................................................................................49
Components.....................................................................................................................................................................34
Components Locator Views......................................................................................................................................29
Condenser Fan................................................................................................................................................................37
Control Board Connector Locator..........................................................................................................................60
Control Diagnostics Using LCD Screen ................................................................................................................55
Control Diagnostics Using the Temperature Display On Non-Dispenser Models............................58
Control Features............................................................................................................................................................. 7
Defrost Heater.................................................................................................................................................................44
Deli Pan Removal ...........................................................................................................................................................46
Door Closure Mechanisms.........................................................................................................................................18
EMI Filter.............................................................................................................................................................................52
Evacuation and Charging Procedure....................................................................................................................33
Evaporator.........................................................................................................................................................................41
Evaporator Fan ...............................................................................................................................................................35
Freezer Basket Removal .............................................................................................................................................24
Freezer Double Drawer (DD) Mullion Assembly ...............................................................................................50
Freezer Drawers .............................................................................................................................................................25
Freezer Drawers Mullion Troubleshooting .........................................................................................................71
Freezer/Fresh Food Mullion Heater.......................................................................................................................50
Fresh Food and Freezer Light Thermostats.......................................................................................................35
Fresh Food Damper ......................................................................................................................................................47
Humidity Sensor.............................................................................................................................................................48
Ice Level Switch .............................................................................................................................................................28
Icemaker ...........................................................................................................................................................................27
Icemaker Fill Tube Heater ..........................................................................................................................................45
Icemaker Service Test Mode.....................................................................................................................................72
Introduction...................................................................................................................................................................... 4
Inverter................................................................................................................................................................................38
Inverter Compressor.....................................................................................................................................................40
Mullion Heaters...............................................................................................................................................................48
Nomenclature.................................................................................................................................................................. 6
Precise Fill .........................................................................................................................................................................53
Precise Fill Troubleshooting.......................................................................................................................................70
Refrigeration Components ........................................................................................................................................31
Refrigeration System ...................................................................................................................................................31
Refrigerator Doors.........................................................................................................................................................22
Refrigerator Lights.........................................................................................................................................................17
Replacing Evaporator Using the Brazing Method...........................................................................................43
Replacing Evaporator Using the LOKRING Method........................................................................................44
Return Duct Heaters.....................................................................................................................................................45
Schematic..........................................................................................................................................................................73
Technical Data................................................................................................................................................................. 5
Thermistors.......................................................................................................................................................................34
Troubleshooting..............................................................................................................................................................55
Warranty............................................................................................................................................................................74
Water Dispenser and Interface...............................................................................................................................51

– 4 –
*This new Profile Bottom Mount Double Drawer Refrigerator has the following features:
New integrated dispenser with child lock and door alarm, combined with LCD screen, provides customer•
control of temperatures and features presented in computer-style menus.
• Precise Fill technology dispenses fresh, filtered water in accurate measurements.
Two coil water tanks provide added storage volume with increased surface area for quick temperature•
recovery.
Factory installed Icemaker•
with Water Filtration System
automatically creates fresh, filtered
ice cubes.
ClimateKeeper™ Temperature•
Management System, digital
controls, and electronic sensors
give you a greater degree of control
over food preservation. An external
"air" thermistor changes the control
setting based on ambient condition
to keep the fresh food and freezer at
the correct temperature.
TurboCool• TM ―Rapidly cools the
refrigerator compartment in order to
more quickly cool foods.
Two freezer drawers add•
convenience by allowing easy
access and organization of frozen
foods.
An articulating door mullion,•
attached to the right side door,
provides a movable center mullion that maximizes access to the fresh food compartment.
Damper/air inlet assembly, located in the bottom of the fresh food section, creates more usable space on•
the top shelf.
Secure-Close Door Systems - Securely pulls the doors and drawers shut, even after you release the•
handles.
Anti-tip kit will be required for 21 cubic foot models.•
LED Lighting - Casts a clean, beautiful light throughout the fresh food area of the refrigerator. (GE•
Reveal™ Lighting in freezer.)
• The 3-speed compressor is controlled by an inverter that receives input from the low voltage DC side
of the main control board. The inverter always has 120 VAC applied when the refrigerator is connected
to power. The main control board still makes compressor decisions based on the input of thermistors,
door-open time, and input from the LCD display. The main control also operates all other electrical
components in the refrigerator such as the water valve, fan motors, lights, etc.
* Features may vary by model.
Introduction

– 5 –
Technical Data
4
;42C
A
820;B?4285820C8>=
B
C
T\
_
TaPcdaT2^]ca^[?^bXcX^]$


&



5
3
TUa^bc2^]ca^[f

]^S^^a^_T]X]Vb

 (%Wab/#$\X
]
CWT
a\X
bc^
a
Z
X
[^

^W
\a
Tb
X
bcP
]
RT


/

5


#
!$

/
"&
5


#

/&&
5


$
>
eTacT\
_
TaPcdaTCWTa\^bcPc

#




5
3
T
U
a^bcC
W
Ta\Xbc^
a


$
5
4
[TRcaXRP[APcX]
V
) $E02%7i 

%0\
_
<
PgX\d\2daaT]c;TP
Z
PVT 


&$\0
<P
gX\
d
\
6
a
^d
]
S
?
Pc
WA
Tb
X
bcP
]
RT



#
>
W\
b
=>
;
>
03?4A5
>
A<0=
24
2
^]ca^[?^bXcX^]$

$P]S0\QXT]c^U%$5c^(
5
5
aTb
W
5^^
S
5 

"
#
c^
#

5
a^iT]5^^S


5



"

c^

"5
A
d]C
X
\T/%$5

"

c^$

A
d]CX\T

/(5

$

c^

'
0
8A5;
>F
8<?>
A
C0=CB054CH=>C82
4
C
W
XbX]
U
^a\PcX^]XbX]cT]
S
T
S

U
^adbT
Q
hX]
S
XeX
S
dP
[
b_^bbTbbX]V
P
S
T`dPcT
Q
PR
Z
Va^d]
S
b^
U
T
[
TRcaXRP
[
T
[
TRca^]XRP]
S
\TR
W
P]XRP
[
Tg_TaXT]RT0]hPccT\_cc^aT_PXaP\PY^aP__
[
XP]RT\PhaTbd
[
c
X]_Tab^]P
[
X]YdahP]
S
_a^_Tach
S
P\PVTC
W
T\P]d
U
PRcdaTa^a
bT[[TaRP]]^cQTaTb
_
^]bXQ[TU^acWTX]cTa
_
aTcPcX^]^UcWXbX]U^a\P

cX^]]^aRP]XcPbbd\TP]
h
[XPQX[Xc
h
X]R^]]TRcX^]fXcWXcbdbT

A
45
A
864
A
0C8>=BHBC4
<
2^\_aTbb^a2^\_aTbb^a
!

!$<^
S
T
[
b

'""1CD

Wa/"A?
<
<
X]X\d\2^\
_
aTbb^a2P
_
PRXc
h

!!X]RWTb7
V
<
X]X\d\4`dP
[
XiT
S
?aTbbda
T
/
&5 

#
$

c^
#
'
?
B
8
6
/(

5

$#c^
%
?
B
8
6
A45A864A0=C270A64

A "#P

!

!$\^ST[b

$$

^d
]
RTb
38B2>==42C?>F4
A
2>
A
3145>
A
4B4
A
E828=
6
8<?>
A
C0=
C

A
42>==42C0;;6
A
>D=38=634E824
B
0[[
_
Pacb^UcWXbP
__
[XP]RTRP
_
PQ[T^UR^]SdRcX]
V
T[TRcaXRP[Rda

aT]cPaT
V
a^d]STS8U
V
a^d]SX]
V
fXaTbbRaTfbbcaP
_
bR[X
_
b]dcb
^afPbWTabdbTSc^R^\
_
[TcT
P_Pc
W
c^Va^d]
S
PaTaT\^eT
S

U
^abTaeXRTc
W
Th\dbc
Q
TaTcda]T
S
c^c
W
TXa^aXVX]P
[
_^bXcX^]P]
S
_a^_Ta
[
h
U
PbcT]T
S































































 







– 6 –
Nomenclature
The nomenclature plate is located on the upper
left wall of the fresh food compartment. It
contains the following information:
The letter designating
the year repeats every
12 years.
Example:
T - 1974
T - 1986
T - 1998
Exterior Color
SS - Stainless/Stainless
Model Year
X - 2008
Brand/Product
P - Profile
Capacity
1 - 21 Cubic Foot
5 - 25 Cubic Foot
Mini-Manual Location
•Model and Serial
Number
• Minimum Installation
Clearances
• Electrical Voltage,
Frequency
• Maximum Amperage
Rating
• Refrigerant Charge
and Type
Nomenclature
P G C S 1 P J X S S
Serial Number
The first two numbers of the serial number
identify the month and year of manufacture.
Example: AR123456S = January, 2008
A- JAN 2008 - R
D - FEB 2007 - M
F - MAR 2006 - L
G - APR 2005 - H
H - MAY 2004 - G
L - JUN 2003 - F
M - JUL 2002 - D
R - AUG 2001 - A
S - SEP 2000 - Z
T - OCT 1999 - V
V - NOV 1998 - T
Z - DEC 1997 - S
Exterior
S - Stainless Steel
Style
C - Counter Depth
S - Standard Depth
Configuration
G - French Door w/Double FZ Drawer
Feature Pack
N - Non-Dispenser
P - LED Lighting
Ice/Water
F - 1 Year Filter/Icemaker
J - External Water Dispenser, 1 Year
Filter/Icemaker

– 7 –
Control Features
About the controls with temperature settings.
The temperature controls are preset in the factory at 37°F for the refrigerator
compartment and 0°F for the freezer compartment. Allow 24 hours for the temperature
to stabilize to the preset recommended settings.
The temperature controls can display both the SET temperature as well as the actual
temperature in the refrigerator and freezer. The actual temperature may vary slightly
from the SET temperature based on usage and operating environment.
Setting either or both controls to OFF stops cooling in both the freezer and refrigerator
compartments, but does not shut off electrical power to the refrigerator.
For Controls-on-the-Door Models:
Models with External Dispensers:
To change the Refrigerator temperature:
Access By: Home > Refrigerator
Activate By: Using the arrows to select the desired
temperature. You must press ENTER to set the new
temperature.
To change the Freezer temperature:
Access By: Home > Freezer
Activate By: Using the arrows to select the desired
temperature. You must press ENTER to set the new
temperature.
Once the desired temperature has been set, the display will
return to the HOME screen and show the set temperatures
underneath the actual temperature display for several
seconds. Several adjustments may be required. Each time
you adjust the controls, allow 24 hours for the refrigerator
to reach the temperature you have set.
For Controls Inside the Refrigerator:
Opening the door displays the actual temperature. To
change the temperature, press either the WARMER or
COLDER touch pads until the desired temperature is
displayed.
Once the desired temperature has been set, the
temperature display will return to the actual refrigerator
and freezer temperatures after 5 seconds. Several
adjustments may be required.
Each time you adjust controls, allow 24 hours for the
refrigerator to reach the temperature you have set.
To turn the cooling system off, tap the WARMER pad for
either the refrigerator or the freezer until the display shows
OFF. To turn the unit back on, press the COLDER pad for
either the refrigerator or freezer. Then press the COLDER
pad again and it will go to the preset points of 0°F for the
freezer and 37°F for the refrigerator. Setting either or both
controls to OFF stops cooling in both the freezer and
refrigerator compartments, but does not shut off electrical
power to the refrigerator.
Models with External Dispensers:
Access By: Home > Options > Information and Settings >
Cooling System Off
To turn the cooling system back on, press the touch screen
and press the ON button.
Activate By: Pressing ENTER.
Changing the Temperature
NOTE: The refrigerator is shipped with protective film covering the temperature controls.
If this film was not removed during installation, remove it now.
HOME
HELP

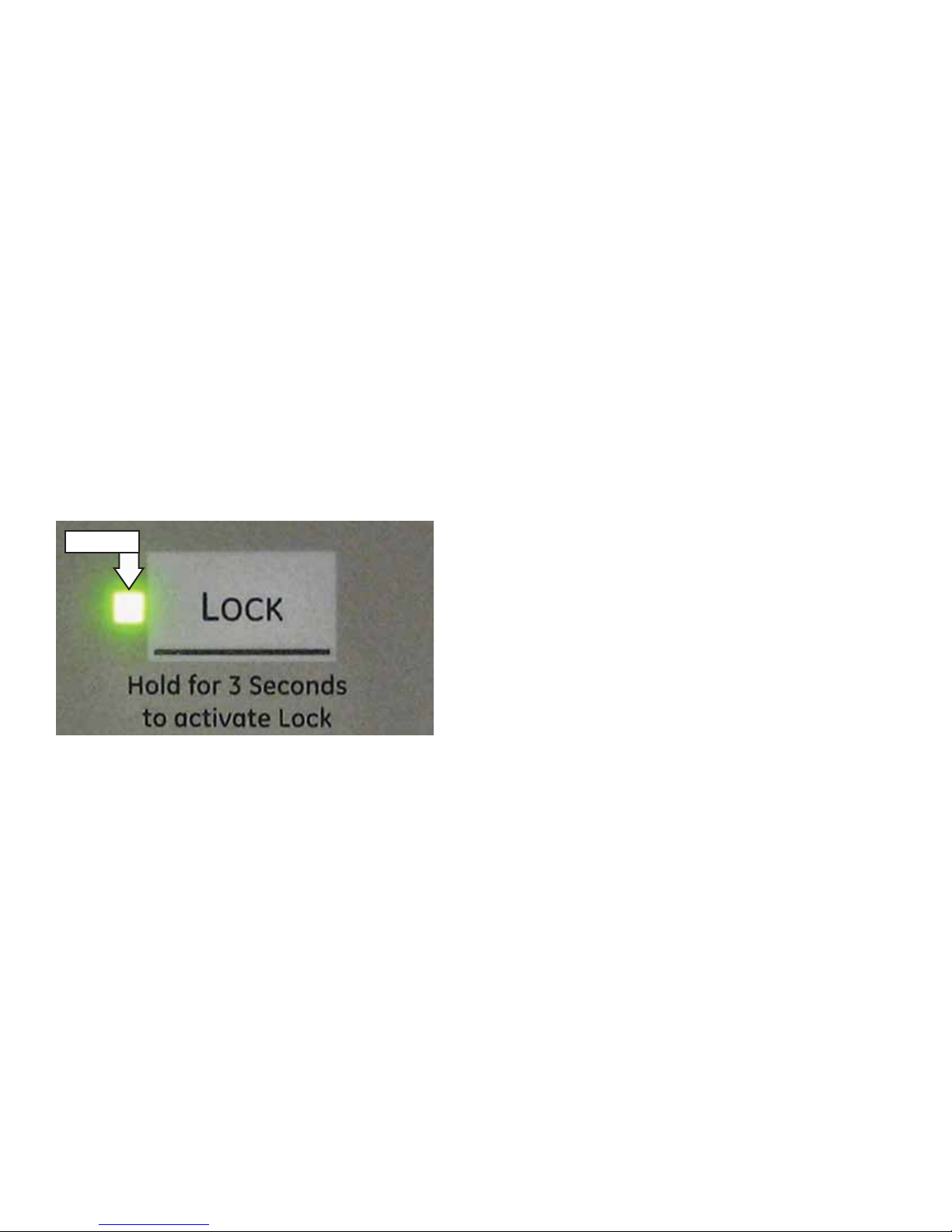

LOCK
Hold for 3 Seconds
to activate Lock
TURBO
COOL
ENERGY
SAVER
DOOR
ALARM
F REEZER
F0
R EFRIGERATOR
F37
O PTIONS P RECISE F ILL
E NERGY S AVER ON
(Models with controls inside the refrigerator)
(Models with controls on the door)
Note:
Note:The following procedure is the only method to turn
the cooling system off.
AccessBy:Home > Options > Information and Settings >
Cooling System Off
To turn the cooling system back on, press the touch
screen and press the ONbutton.
ActivateBy:Pressing ENTER.

– 8 –
About the temperature controls
About the home screen
The temperature controls are preset in the factory at
37°F (3°C) for the refrigerator compartment and 0°F
(-18°C) for the freezer compartment. Allow 24 hours for
the temperature to stabilize to the preset recommended
settings.
Refrigerator temperatures can be adjusted between 34°F
and 43°F (1°C to 6°C), and the freezer temperatures can
be adjusted between –6°F and +7°F (–21°C to –14°C).
The temperature controls can display both the SET
temperature as well as the actual temperature in the
refrigerator and freezer. The actual temperature may
vary slightly from the SET temperature based on usage
and operating environment.
Once the desired temperature has been set, the
display will return to the HOME screen and show the
set temperatures underneath the actual temperature
display for several seconds. Several adjustments may
be required. Each time you adjust the controls, allow 24
hours for the refrigerator to reach the temperature you
have set.
To change the Refrigerator temperature:
Access By: Home > Refrigerator
Activate By: Using the arrows to select the desired
temperature. You must press ENTER to set the new
temperature.
(Continued next page)
The home screen is the initial screen presented after
power-up. The status bar at the top displays the status
of many of the refrigerator features. Freezer and
Refrigerator sections display present compartment
temperatures.
Press displayed set temperatures. Set temperatures•
then can be changed.
Press• Precise Fill for fill options.
Press• Options to provide access to Screen
Appearance, Metric/English units, Button Beep on/off,
and Water Filter Instructions.
Note: If an attempt is made to adjust the refrigerator set
temperature above 43°F (6°C) or below 34°F (1°C), the
+ or - arrow will disappear. If ENTER is not pressed, the
last refrigerator temperature entered will remain the set
temperature shown underneath the actual temperature
display. If ENTER is pressed, the set temperature
displayed will be the maximum of 43°F (6°C) or the
minimum of 34°F (1°C).
Reset Attempt Above 43°F (6°C)
Reset Attempt Below 34°F (1°C)

– 9 –
To change the Freezer temperature:
Access By: Home > Freezer
Activate By: Using the arrows to select the desired
temperature. You must press ENTER to set the new
temperature.
Options
Use Options to access Settings, Water Filter Reset, and
Cooling System Off. Access by: Home> Options.
Press• Settings to access Screen Appearance, Metric/
English units, and Button Beep on/off.
Press• Cooling System Off to turn off refrigerator.
Press• Reset Water Filter to display percent of
filter life expectancy used, replacement and order
instructions.
Note: If an attempt is made to adjust the freezer set
temperature above +7°F (-14°C) or below -6°F (-21°C),
the + or - arrow will disappear. If ENTER is not pressed,
the last freezer temperature entered will remain the set
temperature shown underneath the actual temperature
display. If ENTER is pressed, the set temperature
displayed will be the maximum of +7°F (-14°C) or the
minimum of -6°F (-21°C).
Reset Attempt Above +7°F (-14°C)
Reset Attempt Below -6°F (-21°C)

– 10 –
About TurboCoolTM
Note:
On dispenser models, the refrigerator temperature•
can be changed during TurboCool, but when
attempting to change refrigerator temperature with
TurboCool on, the LED will go out and TurboCool will
be cancelled.
The freezer temperature is not affected and can be•
changed during TurboCool.
When opening the refrigerator door during•
TurboCool, the fans will continue to run if they have
cycled on.
How to Use
Press the TurboCool pad. TurboCool activated will be
indicated by an illuminated LED next to the pad. The
status bar section of the LCD will indicate TurboCool ON.
The displayed refrigerator temperature will be replaced
with TurboCool.
How it Works
TurboCool™ rapidly cools the refrigerator compartment
in order to more quickly cool foods. Use TurboCool
when adding a large amount of food to the refrigerator
compartment, putting away foods after they have been
sitting out at room temperature or when putting away
warm leftovers. It can also be used if the refrigerator has
been without power for an extended period.
Once activated, the compressor will turn on immediately
and the fans will cycle on and off at high speed as
needed for eight hours. The compressor will continue
to run until the refrigerator compartment cools to
approximately 34°F (1°C), then it will cycle on and off
to maintain this setting. After 8 hours, or if TurboCool is
pressed again, the refrigerator compartment will return
to the original setting.
TurboCool LED

– 11 –
About the water filter.
Precise Fill(on some models)
This water dispenser is equipped with a feature called
“precise fill.” This feature allows you to choose a precise
amount of water (cups, ounces, pints, or liters) that you
would like dispensed. Access by pressing: Home > Precise
Fill > Set Amount. Activate by using the arrow buttons to
select the desired amount. Press MORE UNITS to select
between CUPS, OUNCES, LITERS or PINTS.
Select the precise amount of water you would like
dispensed. If you selected OUNCES, press the arrowpads
on either side of the display to select the number of
ounces you would like to have dispensed between
2–128 ounces. If you selected LITERS you can dispense
between 0-4 liters. If you selected PINTS you can
dispense between 0-8 pints.
If you selected CUPS, you can dispense between whole
cups (1–16 cups) or fractions of a cup (1/4–3/4 cups).
Press GO TO FAVORITES for a commonly used or saved amount. Use the arrows to select the desired amount.
Press the cup against the cradle and water will begin dispensing. It will automatically stop when the amount set has
been dispensed. The display will show there is no water left to dispense, then reset.
Note: Do not leave the dispenser unattended when water is being dispensed.
If you would like to stop dispensing water before the specified amount has been dispensed, just remove the cup from
the cradle. The display will show the amount left to dispense.
Water Filter Cartridge
The water filter cartridge is located in the back upper
right corner of the refrigerator compartment.
When to Replace the Filter
On models with controls inside refrigerator, there is a
replacement indicator light for the water filter cartridge
on the temperature display. This light will turn orange
to tell you that you need to replace the filter soon. The
filter cartridge should be replaced when the replacement
indicator light turns red or if the flow of water to the
dispenser or icemaker decreases.
On models with external dispensers, the top of the
LCD screen will display, "Replace Water Filter". You can
check the status of the water filter manually and obtain
replacement instructions. Access by pressing: Home >
Options > Reset Water Filter.
Filter Bypass Plug
You must use the filter bypass plug when a replacement
filter cartridge is not available. The dispenser and the
icemaker will not operate without the filter or filter bypass
plug.
MODELS WITH EXTERNAL DISPENSERS
MODELS WITH CONTROLS INSIDE REFRIGERATOR
Note: To activate filter alerts, the main control board
monitors the accumulated time the dispenser is
used. On models with precise fill, both accumulated
time and the volume of water dispensed are used.

– 12 –
Settings
Use Settings to access Screen Appearances, Button Beep,
and Units Metric/English. Access by: Home> Options>
Settings.
Press• Screen Appearance to access Color Options,
Brightness, and Screen Saver.
Press• Button Beep to turn beep on or off.
Press• Units Metric/English to change temperature
presentation.
Cooling System Off
Access by: Home> Options> Cooling System Off. Press
Enter to turn the cooling system off. To turn the cooling
system back on, press the touch screen and press the ON
button.
Activate By: Pressing ENTER.
Note
Turning the• cooling system OFF stops cooling in
both the freezer and refrigerator compartments, but
does not shut off electrical power to the refrigerator.
When the unit is turned back on, it will be set to the•
standard settings and will take up to 24 hours to
stabilize.
Screen Appearance
Access by: Home> Options> Settings > Screen
Appearance.
Press• Color Options to select the color theme of the
touch screen.
Press• Brightness to adjust the brightness of the
touch screen.
Press• Screen Saver to turn on or off the screen saver
display.

– 13 –
About the help screen
The Help screen provides general information and
guidance to certain features of the refrigerator. The
help screen can also provide help regarding the Current
screen displayed. To access Help, press the Help pad.
General
Access by: Help> General.
Scroll to select help on:
Refrigerator
Freezer
Precise Fill
Reset Water Filter
Settings
Cooling System Off
Energy Saver
TurboCoolTM
Door Alarm
Status Bar
Lock
Current
Access by: Help> Current. Press Status Bar, Freezer,
Refrigerator, Precise Fill, or Options to receive help on
selected item.

– 14 –
Dispensing Functions
The water function is controlled by the main control
board. To select this function, press the cradle on
the dispenser.
Dispenser Lock
When the dispenser system is locked, no dispenser
command will be accepted. This includes the
dispenser cradle and will prevent accidental
dispensing that may be caused by children or pets.
If the touch screen, pad, or the cradle is depressed
with the system locked, it will be acknowledged with
three pulses of the LOCK LED accompanied by an
audible tone.
To lock or unlock communication between the
dispenser and main control board, press the LOCK
pad and hold it for 3 seconds. The LOCK LED will
flash while the LOCK pad is pressed. When the
communication is locked, the LOCK LED will be
illuminated.
On some models, the status of other functions
selected prior to the initiation of the lock feature will
be displayed. If the lock is engaged while a mode is
active, the LED will remain on until that mode times
out.
If the lock is engaged when the filter timer expires,
the LED will come on but cannot be reset until the
lock is turned off.
The lock feature will be restored in the event of a
power disruption.
Lock LED
Liner Protection Mode
The refrigerator incorporates a liner protection
mode for the freezer section. The freezer evaporator
fan will start and run on high speed if any door
or drawer has been open for 3 minutes. Air will
circulate into the fresh food section if the damper is
in the open position.
This mode is controlled by 2 timers. Timer #1
monitors door/drawer-open time. A 3-minute door/
drawer-open count begins when a door/drawer is
opened. If 3 minutes elapse before the door/drawer
is closed, the liner protection mode will become
active. Once the door/drawer is closed, timer #1
resets and liner protection mode goes into standby.
In standby, normal fan operation resumes and timer
#2 begins a 3-minute door/drawer-closed count. If
3 minutes elapse without a door/drawer opening,
liner protection mode will completely deactivate. If
a door/drawer is opened within the timer #2 door/
drawer-closed count, the remaining time in the
door/drawer-closed count will be deducted from the
timer #1 door/drawer-open count.
Defrost Cycle
The refrigerator utilizes an adaptive defrost cycle
that operates a glass enclosed heater to remove
frost from the evaporator. The defrost cycle has
changed from 60 hours adaptive defrost to 96 hours
adaptive defrost.
The control board determines the length of time the
heater is energized. It does this by monitoring the
freezer evaporator thermistor. Once the temperature
of the thermistor reaches 50°F, the control cycles
the defrost heater off. A bi-metal safety thermostat
provides a backup in the event the evaporator
thermistor fails. The safety thermostat prevents the
temperature from exceeding 140°F.
Note: Refer to Pub# 31-9062 for information about
basic adaptive defrost.
Automatic Quick Ice Feature
When the main board senses icemaker water valve
operation, a timer in the main board will run the
evaporator fan (when the sealed system is off) for
120 minutes and then return to normal operation.
At every water valve cycle the timer is reset to zero
and counts to 120 minutes. Increased evaporator
fan operation provides approximately even ice
production in 90° (longer compressor on-time) to 70°
(longer compressor off-time) ambients.

– 15 –
Door Alarm (non-dispenser models)
The door alarm will sound if any door/drawer is
open for more than 2 minutes. When you close the
door/drawer, the beeping stops.
Door Alarm LED
Energy Saver (on some models)
This product is equipped with an energy saver
feature. The refrigerator is shipped with the energy
saver feature enabled.
Over time, moisture can form on the front surface of
the refrigerator cabinet and cause rust. If moisture
does appear on the front surface of the refrigerator
cabinet, turn off the energy saver feature by
pressing and releasing the ENERGY SAVER pad on
the control panel.
MODELS WITH CONTROLS INSIDE REFRIGERATOR
MODELS WITH EXTERNAL DISPENSERS
Energy Saver LED
When any refrigerator door/freezer drawer is left
open, the LCD screen presents information that
allows the consumer to silence the alarm without
closing the door/drawer. After pressing SILENCE
ALARM, the beeping will stop and the door alarm
LED will continue blinking until the door/drawer is
closed. If the door/drawer is left open after silencing
the alarm, periodic 5-minute reminders will occur.
The door/drawer open information reappears on the
LCD and the beeping alarm comes on again. When
the door/drawer is closed, the reminders stop and
the LED returns to full non-blinking on.
Door Alarm (dispenser models)
The door alarm will sound and the door alarm LED
will be flashing if any door/drawer is open for more
than 2 minutes. When you close the door/drawer,
the beeping stops and the LED will reset to full on.

– 16 –
The LCD screen has a DEMO MODE that can be accessed. To enter the DEMO Mode, press the HOME and
HELP pads simultaneously for 3 seconds. Upon entering, the cooling system will turn off.
The VIEW FEATURE selection provides a description and instructions on how to use 6 features of the
refrigerator. The 6 features presented are Precise Fill, LCD Screen Colors, Temperature Set, TurboCoolTM,
Energy Saver, and Door Alarm.
DEMO SCREEN allows consumer to select and change compartment temperatures and operate Precise Fill
while in the DEMO MODE. An OPTIONS setting will display Settings, Water Filter Reset, and Cooling System
Off.
To exit the DEMO MODE, press the HOME and HELP pads simultaneously for 3 seconds. Upon exiting,
the cooling system will turn on and the DEMO MODE temperature settings will be used to operate the
refrigerator. Unplugging the refrigerator does not escape the demo mode.
Demo Mode

– 17 –
4. After replacing light bulb with an appliance bulb
of the same or lower wattage, replace the shield.
5. Plug the refrigerator back in.
Refrigerator LED Lights
Note: Setting the controls to OFF does not remove
power to the LED light circuit.
The refrigerator utilizes 12 LED lights that are
permanently contained in a fixture and cannot be
replaced separately. The fixture is attached to the
ceiling of the fresh food section with 3 Phillips-head
screws.
The fixture is connected to the refrigerator with a
wire harness. After removing the screws, the wire
harness can be disconnected.
Disconnect
(Continued next page)
The LED light fixture is powered by a transformer
assembly that is located behind the water valve
in the machine compartment. The assembly
consists of a bracket, transformer, circuit board, and
replaceable fuse.
Note
Determine and correct the cause of fuse•
failure when replacing the 3-amp fuse (part #
WR55X10766).
The replacement transformer assembly is•
supplied as a complete unit. The bracket,
transformer, and circuit board cannot be
ordered separately.
On later production models, the fuse is•
eliminated in the LED transformer assembly.
Fuse
Transformer Assembly Removed
Bracket
Refrigerator Lights
Incandescent Lights
CAUTION: Light bulbs may be hot.
Note: Setting the controls to OFF does not remove
power to the light circuit. Reveal®appliance bulbs
are used on some models. They can be identified by
their blue color when they are not illuminated.
The 2 refrigerator bulbs and the single freezer bulb
are located inside light shields. Each light shield
is located at the top of the freezer or refrigerator
compartment.
To remove the bulb:
Unplug the refrigerator.1.
Grasp the shield at the back and pull out to2.
release the tabs at the back.
Rotate the shield down and then forward to3.
release the tabs at the front of the shield.

– 18 –
The hinge closure assembly is held to the top of the
cabinet with two 5/16-in. hex-head screws. The cam
is attached to the top of the door with two T-20 Torx
screws.
Cover
T-20 Torx Screw
T-20 Torx Screw
5/16-in. Hex-head Screws
Door Closure Mechanisms
Refrigerator Doors
The closure mechanism for each refrigerator door
consists of a hinge closure assembly attached to
the top of the cabinet, which interacts with a cam
attached to the top of each door.
To access the hinge closure assembly, it is
necessary to remove the Phillips-head screw
and the cover from the top of the hinge closure
assembly.
(Continued next page)
Fuse
Transformer
Circuit Board
Transformer Assembly Components
The transformer assembly converts 120 VAC to
approximately 36 VDC to power the LED lights. The
transformer primary winding has an approximate
resistance value of 9.9 Ω. The secondary winding
has an approximate resistance value of .9 Ω.
To remove the LED transformer assembly:
Unplug the refrigerator.1.
Remove the Inverter. (See2. Inverter.)
Disconnect the 2 transformer wire harnesses.3.
4. Remove the two 1/4-in. hex-head screws
that attach the transformer assembly to the
machine compartment.
5. Lift up and carefully remove the transformer
assembly from the machine compartment.

– 19 –
Hook
Spring
Lever
Roller
Cam
Note: Each door closer cam can be installed
incorrectly. Ensure each cam is installed on the
bottom of the drawer with the hooked end towards
the center of the drawer.
Bottom View of Drawer and Right Side Cam
Bottom of Drawer
Lower Freezer Drawer Closure Mechanisms
Two self-closing freezer drawer cam and lever
mechanisms automatically pull the lower freezer
drawer shut when it is within 1 inch of the closed
position. The closure mechanisms are located on
the lower corner areas of the drawer and cabinet.
Each closure mechanism consists of a lever, spring,
and cam. The lever is attached with a spring to a
hook in the base channel. The cam is attached to
the bottom of the drawer with two T-20 Torx screws.
The lever interacts with the cam to complete the
closing of the drawer.
A pair of pliers can be used to remove the spring
from the hook. The spring and lever can then be
pulled out through the hole in the base channel.
Door Alignment
If the top of the doors are uneven, first try to raise
the lowest door by turning the leveling leg on the
same side as the door until the doors are even. If the
unit rocks, re-adjust the leveling legs until the unit is
stable.
If the doors remain uneven, turn the adjustable pin
to raise or lower the left door to match the right
door. Use a 1/4-in. Allen wrench to turn the pin.
Upper Freezer Drawer Closure Mechanisms
The upper freezer drawer utilizes 2 closure
mechanisms that automatically pull the drawer shut
when it is within 1 inch of the closed position. The
mechanisms are built into the 2 upper drawer rail
assemblies and are not replaceable as a separate
part.
Adjustable Pin
Upper Drawer Closure Mechanism

– 20 –
MEASURE CABINET OPENING
AVAILABLE VS. REFRIGERATOR WIDTH
Measure width of cabinet opening where
refrigerator will be placed, W.
Be sure to account for any countertop
overhang, baseboard thickness and any
clearance desired. Width, W, should not be less
than 36 inches. The refrigerator will be placed
approximately in the middle of this opening.
WARNING
Under certain circumstances, this refrigerator
can tip forward.
Injury to persons can result.
Install Anti-Tip Bracket packed with this
refrigerator.
1
Baseboard
Thickness
or Countertop
Overhang
(Whichever
Is Greater) Plus
Any Desired
Clearance
Rear Wall
Front
RH Side
W
REFRIGERATOR
MATERIALS YOU MAY NEED (not included)
Lag Bolts Anchor Sleeves
For Anti-Tip Bracket Mounted on CONCRETE Floors Only
Drill Bit Appropriate for Anchors
LOCATING THE ANTI-TIP
FLOOR BRACKET
Place the anti-tip floor bracket locator template
(included inside the anti-tip kit) onto the floor
up against the rear wall, within W, and in line
with the desired location of the RH side of the
refrigerator (see Figure 1).
Place the anti-tip floor bracket onto the locator
template with its RH floor holes lined up with
the floor holes indicated on the template sheet,
approximately 71⁄4” from the edge of the sheet
or the RH side of the refrigerator.
Hold down in position and use the anti-tip floor
bracket as a template for marking the holes
based upon your configuration and type of
construction as shown in Step 3. Mark the hole
locations with a pencil, nail or awl.
NOTE:
• It is REQUIRED to use at least 2 screws to
mount the floor bracket (one on each side of
the anti-tip floor bracket). Both must be into
either the wall or the floor. Figure 2 indicates
all the acceptable mounting configurations
for screws. Identify the screw holes on the
anti-tip floor bracket for your configuration.
2
A
B
C
Base
Bracket
on the
Refrigerator
2 Wall Holes
RH Side of
Refrigerator
Floor – Concrete
(2 Holes)
Floor – Wood
(2 Holes)
71⁄4”
Locator Template
Sheet
Floor Bracket
to Install
RH Holes
Rear RH
Corner of
Cabinet Wall
Figure 1 – Installation Overview
Anti-Tip Floor Bracket (on 21 ft. models)
(Continued next page)
