GE AEZ18 User manual

GEAppliances.com
0_
"0
Safety Instructions ............. 2,3
Recycle Information ................... 3
Operating Instructions
Controls ........................... 4-6
Care and Cleaning
Air Filter .............................. 6
Outdoor Coils ......................... 6

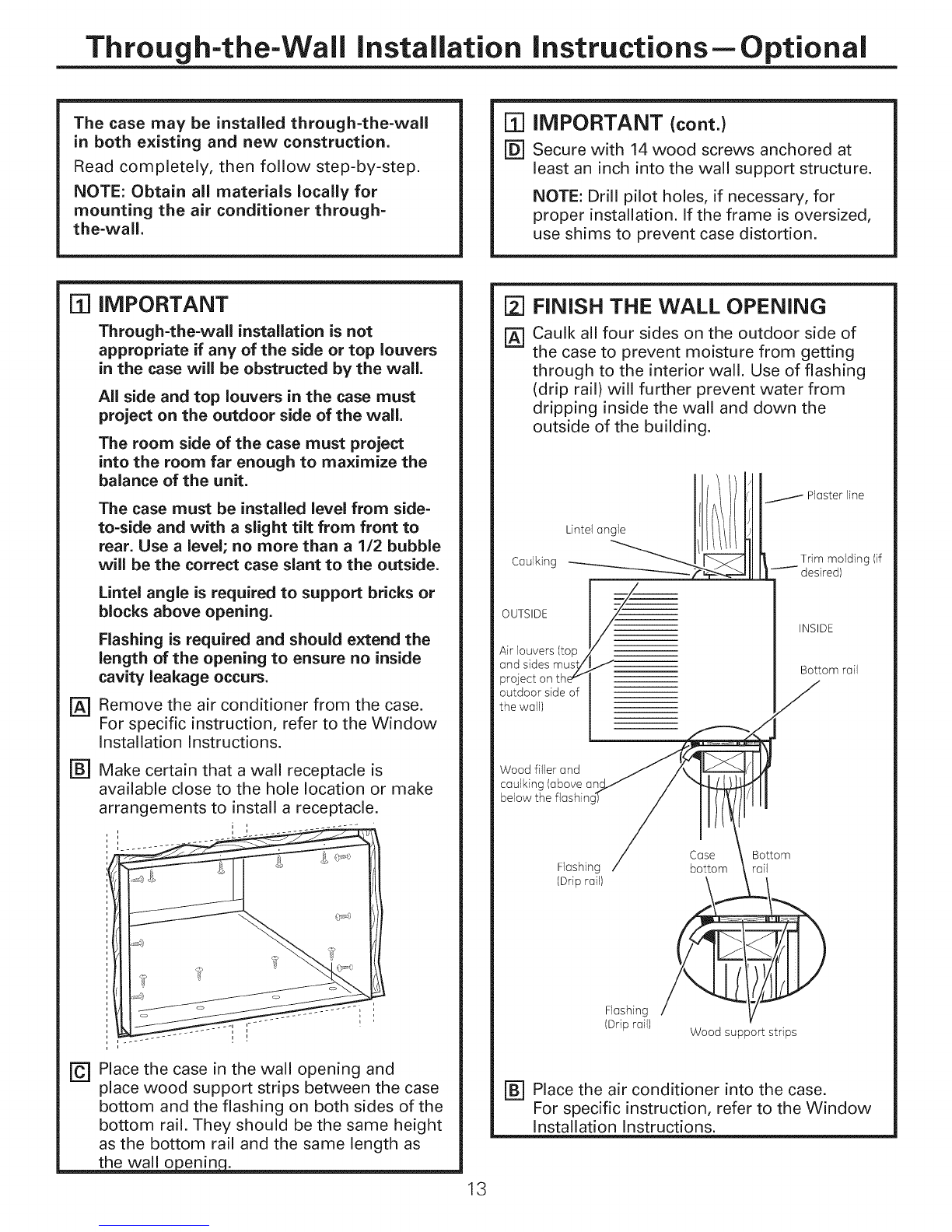

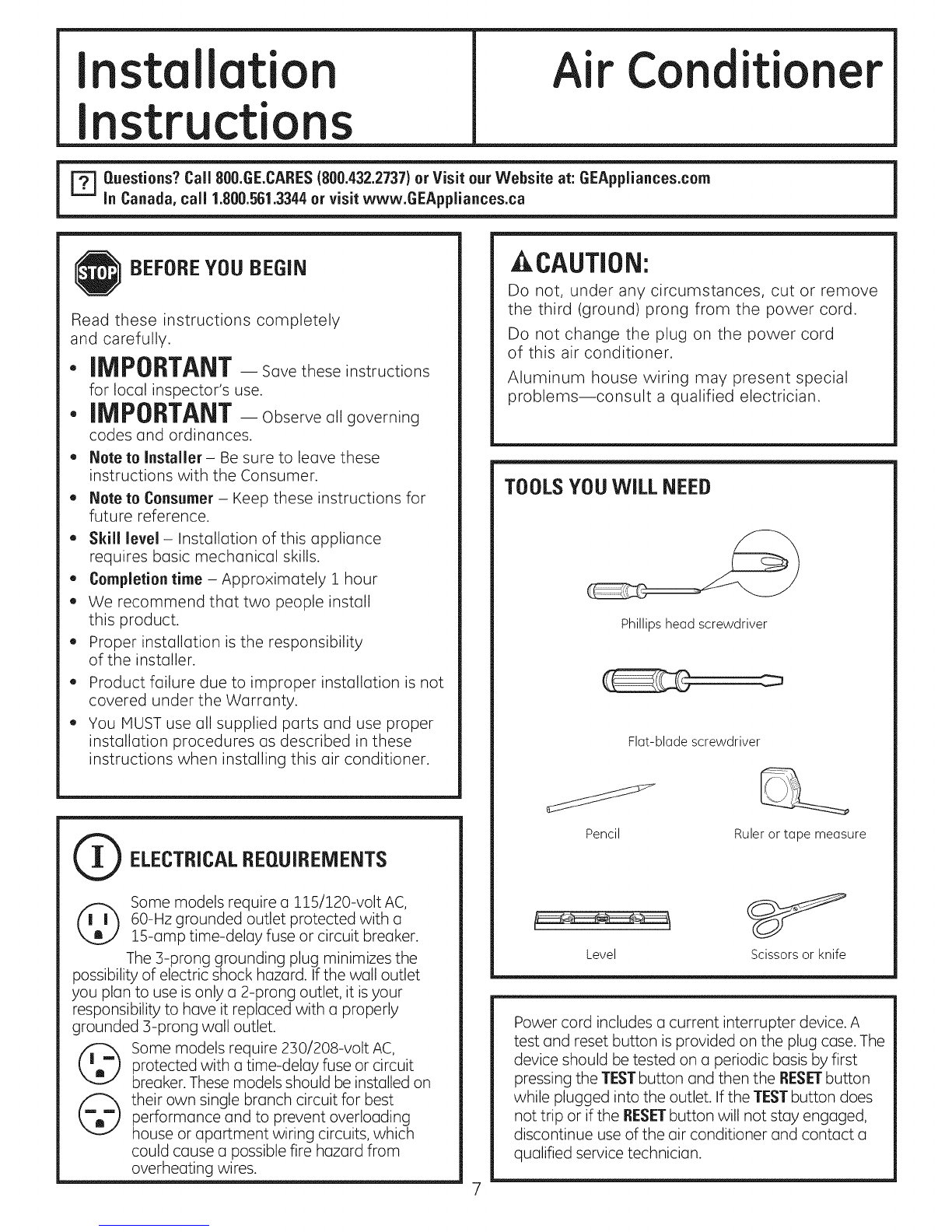

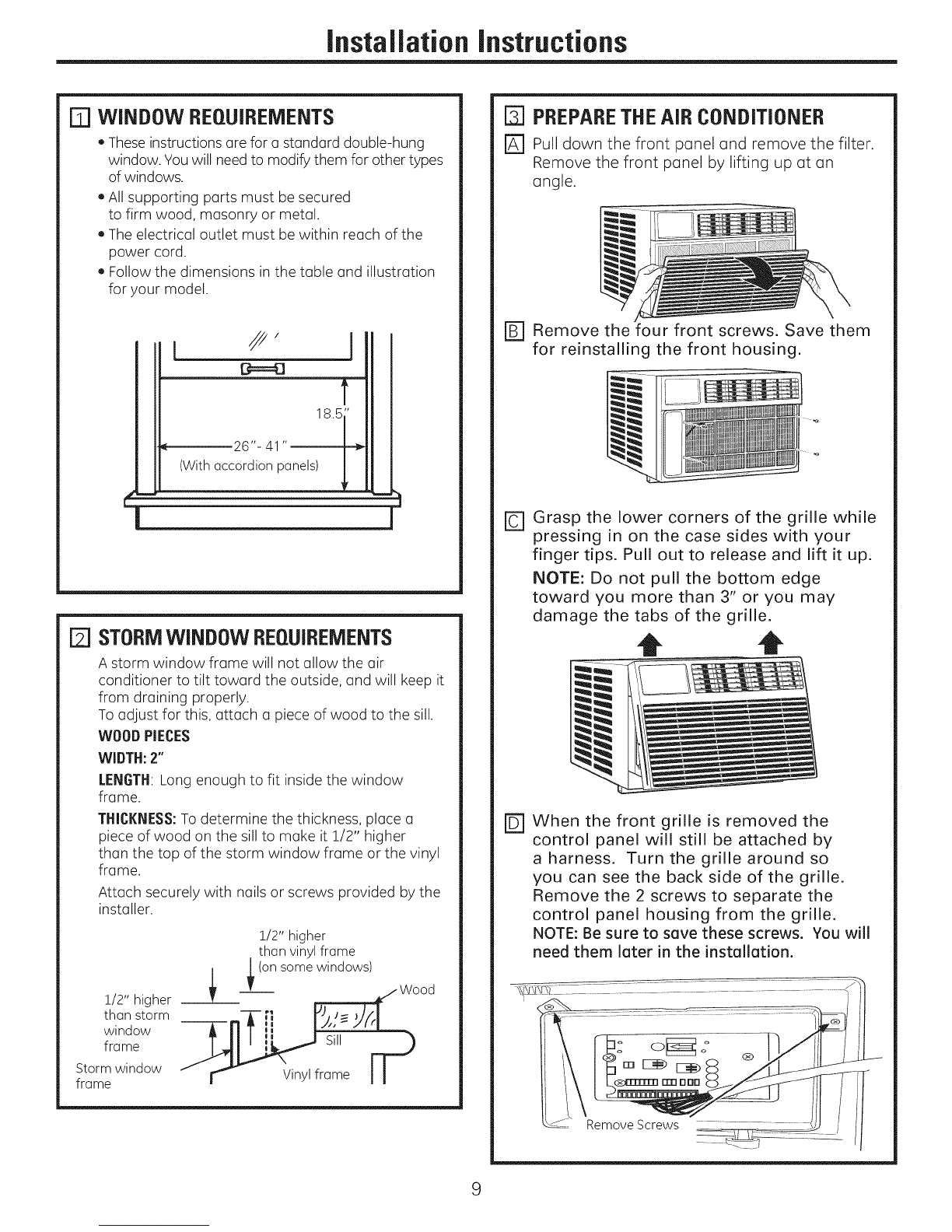

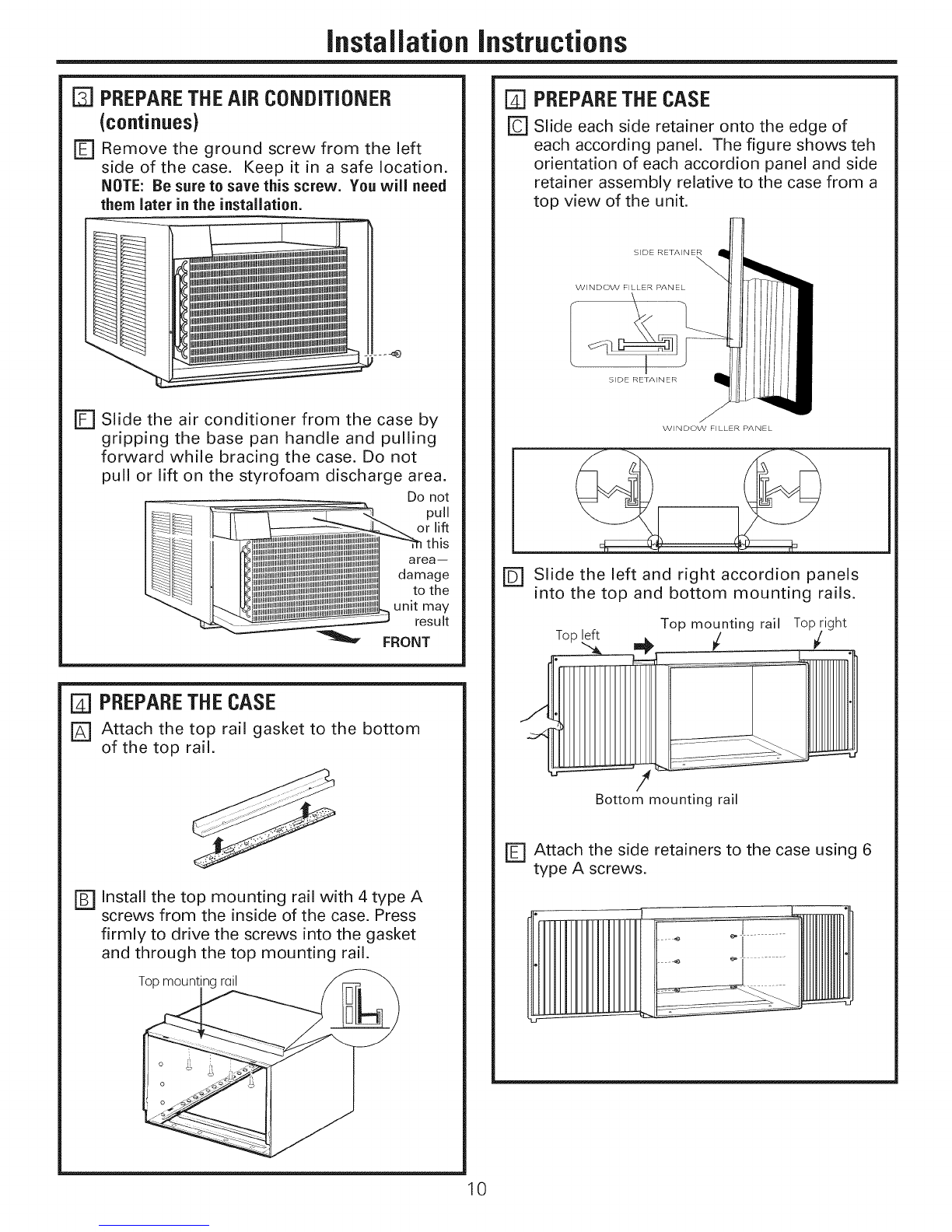

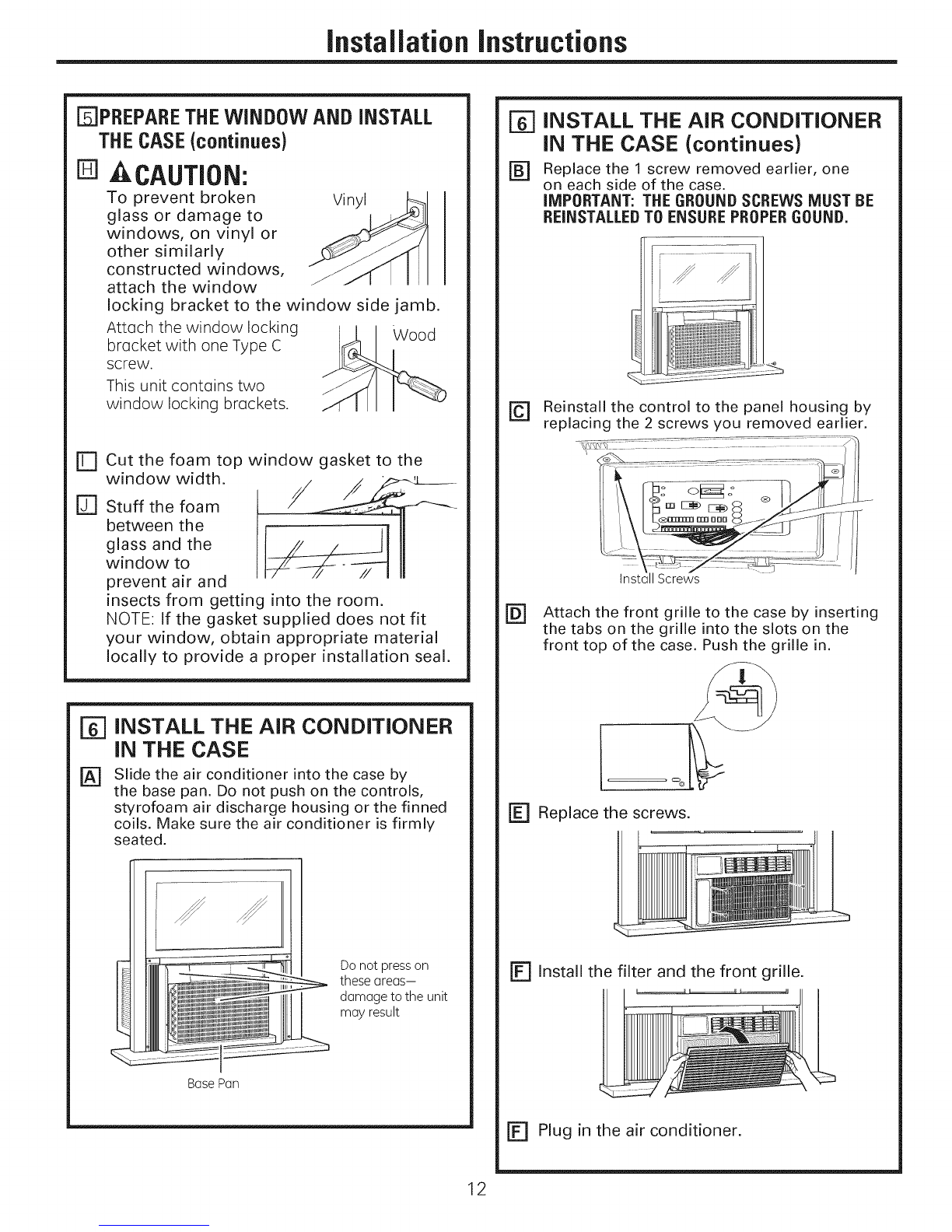

Installation Instructions ...... 7-1s

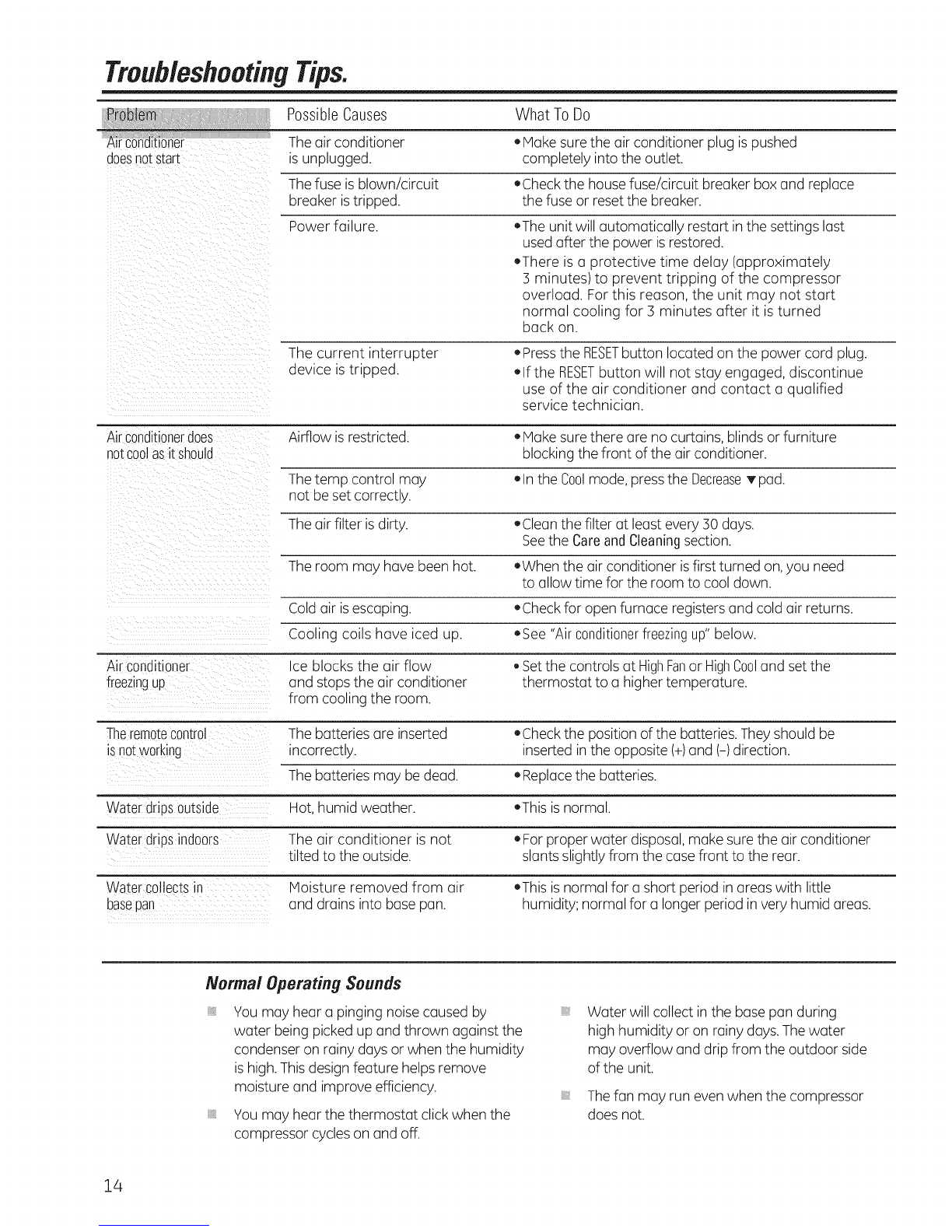

Troubleshooting Tips ............ 14
Normal Operating Sounds ............ 14
Consumer Support
Consumer Support .......... Back Cover
Warranty ............................ 15
*ENERGY STAR® labeled product
I
AEZ28
AEW28
AEW24
Acondicionador
deaire
La secci6n en espaflol empieza en la p6gina 16
®
ENERGYSTAR
As an ENERGYSTAR®partner, GE has
determined that this product meets
the ENERGYSTAR®guidelines for
energy efficiency.
Write the model and serial numbers here:
Model #
Serial #
Find these numbers on a label on the side of
the air conditioner.
49-7737 I0-14GE

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
AWARNING!
Foryour safety, the information in this manual must be followed to minimize the risk of fire, electric
shock or personal injury.
SAFETYPRECAUTIONS
Use this appliance only for its intended
purpose as described in this Owner's
Manual.
This air conditioner must be properly
installed in accordance with the Installation
Instructions before it is used.
Never unplug your air conditioner by pulling
on the power cord. Always grip plug firmly
and pull straight out from the receptacle.
Replace immediately all electric service
cords that have become frayed or otherwise
damaged. A damaged power supply cord
must be replaced with a new power supply
cord obtained from the manufacturer and
not repaired. Do not use a cord that shows
cracks or abrasion damage along its length
or at either the plug or connector end.
Turn the unit OFFand unplug your air
conditioner before cleaning.
GEdoes not support any servicing of the
air conditioner. We strongly recommend
that you do not attempt to service the air
conditioner yourself.
For your safety...do not store or use
combustible materials, gasoline or other
flammable vapors or liquids in the vicinity
of this or any other appliance.
All air conditioners contain refrigerants,
which under federal law must be removed
prior to product disposal. If you are getting
rid of an old product with refrigerants, check
with the company handling disposal about
what to do.
If the receptacle does not match the plug,
the receptacle must be changed out by a
qualified electrician.
These R410A air conditioning systems
require contractors and technicians to
use tools, equipment and safety standards
approved for use with this refrigerant.
DO NOT use equipment certified for
R22 refrigerant only.
2
HOW TO CONNECT ELECTRICITY
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
For personal safety, this appliance must be
properly grounded.
DO NOT use an adapter plug with this appliance.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall outlet
to minimize the possibility of electric
shock hazard from this appliance.
Have the wall outlet and circuit checked by
a qualified electrician to make sure the outlet
is properly grounded.
Where a 2-prong wall outlet is encountered,
it isyour personal responsibility and obligation to
have it replaced with a properly grounded
3-prong wall outlet.
The air conditioner should always be plugged
into its own individual electrical outlet which has
a voltage rating that matches the rating plate.
Power cord includes a current interrupter device.
A test and reset button is provided on the plug
case. The device should be tested on a periodic
basis by first pressing the TESTbutton and
then the RESETbutton while plugged into the
outlet. If the TESTbutton does not trip or if the
RESETbutton will not stay engaged, discontinue
use of the air conditioner and contact a qualified
service technician.
This provides the best performance and also
prevents overloading house wiring circuits which
could cause a fire hazard from overheated wires.
See the Installation Instructions, Electrical
Requirements section for specific electrical
connection requirements.

AWARNING!
USEOF EXTENSION CORDS
RISK OF FIRE. Could cause serious injury or
death.
•DO NOT use an extension cord with this
Window Air Conditioner.
DO NOT use surge protectors or multi-outlet
adaptors with this Window Air Conditioner.
GEAppliances.com
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS
RECYCLINGINFORMATION
For appliance recycling information please visit
www.geappliances.com/recycling.

About the controls on the air conditioner.
Features and appearance will vary.
Lights next to the touch pads on the air conditioner control panel indicate the selected settings.
0
Light indicates the unit is in the
temperature or delay time Set mode. Dght indicates the delay timer Jsset.
•Auto @O
[] High [] Cool
[] Med [] Fan Only
[] Low [] Energy Saver
0 0
NOTE: The display always shows the room temperature except
when setting the Set temperature or the Delay timer.
Air Conditioner Controls
Delay
---_ timer
Increase
J----_ Auto Fan
on
_j_.OFon speed
Increase
_nit power
on/off
Remote Control
4
Controls
Power Pad
Turnsair conditioner on and off.When
turned on,the display will show the room
temperature.
Display
Shows the room temperature or time remaining
on the Delay timer. Showsthe Settemperature
while setting the temperature in Cool or Energy
Saver modes.TheSetlight will turn on while
setting.
Temp Increase A/Decrease T Pads
Useto set temperature when in Coolor
Energy Saver mode. TheSet lightwill turn on
while setting.
Delay Timer Increase A(+)/Decrease
(-) Pads
Eachtouch of the Increase A/ Decrease T
pads on the unit or the Increase +/ Decrease
- pads on the remote control will set the delay
time when using the Delay 1-24hr timer.The
Setlight will turn on while setting.
FanSpeedPads
Useto set the fan speedto Law, heed,High
or Auto on the unit. NOTE:On the remote
control, usethe fan speed Increase +/
Decrease - padsto set the fan speedsto Low,
heedor High. Usethe Auto pad to turn Auto
fan on.
Mode Pad
Useto set the air conditioner to Coo/,Energy
Saver or Fan Only mode.
Delay Pads/Delay 1-24hr Pad
Delay ON--When the air conditioner isoff, it can
be set to automatically come on in I to 24 hours
at its previous mode and fan settings.
Delay OFF--When the air conditioner ison,
it can be setto automatically turn off in I to
24 hours.
How to set:
Pressthe Delay 1-24hr pad on the unit or the
Delaypad on the remote control. Eachtouch
of the Increase A/ DecreaseT pads on the
unit or the Increase +/ Decrease - pads on
the remote control will set the timer in 1-hour
intervals.TheSet light will turn on while setting.
Toreview the remaining time on the Delay
.1.-24hrtimer, pressthe Delay .1.-24hrpad on
the unit or the Delaypad on the remote control.
Usethe Increase A/ Decrease _' pads on the
unit or the Increase +/ Decrease - pads on the
remote control to set a new time if desired.
To cancel the timer, pressthe Delay 1-24hr pad
until the light on the Delay 1-24hr pad goesoff.
Reset Filter
LEDwill turn on when fan has accumulated 250
hours of run time as a reminder to clean filter.
PressResetFilter to turn off the LEDand reset
the accumulated run time.
Note: The default temperature reading on the display isdegree Fahrenheit (°F). Tochange the display to
degree Celcius (°C),press the Temp Increase A and Temp Decrease T buttons together and hold for 3
seconds. Repeat the process to change back to degree Fahrenheit (°F)

GEAppliances.com
Do Not Operatein Freezing Outdoor Conditions
Thiscool-only air conditioner was not designed for
freezing outdoor conditions. It must not be usedin
freezing outdoor conditions.
Remote Control
, To ensure proper operation, aim the remote
control at the signal receiver on the air
conditioner.
, ivlakesure nothing isbetween the air conditioner
and the remote control that could block the
signal.
, Theremote control signal has u range of
up to 20 feet.
, Make sure batteries are fresh and installed
correctly us indicated on the remote control.
, Remotecontains u magnet allowing it to attach
to metal surfaces.
Cool Mode
Usethe Cool mode at Low, Meal,High or Auto Fan
Speedfor cooling. Usethe Temperature Increase A
/ Decrease • padsto set the desiredtemperature
between 64% and 86°F in I°F increments.
An electronicthermostat isusedto maintain the room
temperature. Thecompressorwill cycleon
and off to keepthe room at the set levelof comfort.
Setthe thermostat at u lower number and the indoor
air will become cooler.Setthe thermostat at u higher
number and the indoor air will become warmer.
NOTE:If theair conditioner isoff and is then turned on
while set to aCool setting or if turned from afan
setting to a Cool setting,it may take approximately
5 minutes for the compressor to start and coolingto
begin.
Cooling Descriptions
For Normal Cooling-Select the Cool mode and
High or Med fan with a middle set temperature.
For Maximum Cooling-Select the Cool mode
and High fan with a lower set temperature.
For Quieter and Nighttime Cooling-Select the
Cool mode and Low fun with a middle set
temperature.
Energy Saver Mode
This mode optimizes the cooling power of your air
conditioner, thereby saving you energy. Once the
set point temperature has been reached, the fan
will cycle off to save energy. Thefan will cycle back
on periodically to insure all cooling capacity in the
system isused.This mode isthe default mode for the
unit. Eachtime the unit ispowered off, it will restart
in Energy Saver mode ON.This includes Delay timer
mode. Thefirst time the unit isturned on,the settings
will be 70°and Low fan. You can adjust the fan
speed and temperature to your personal comfort.
Energy Saver ON--Helps minimize electricity use.
It is normal for the fan to cycle off and then back
on in this mode. This on/off cycle can repeat
multiple times. Because the fan will cycle off, you
may notice a variation in room temperature and
humidity.
Energy Saver OFF--Whenthis mode is not engaged,
the fan will run continuously, and in Cool mode the
compressor will cycle on and off to maintain room
temperature.
Fan Only Mode
Usethe FanOnly Modeat Low, Medor Highfan
speedto provide air circulation and filtering without
cooling. Sincefan-only settings do not provide
cooling, a Settemperature cannot be entered.The
room temperature will appear in the display.
NOTE:Auto FanSpeedcannot be usedwhen in the
Fan Only Mode.
Auto Fan Speed
Setto Auto fan speedfor the fan speedto
automatically set to the speedneeded to provide
optimum comfort settings with the set temperature.
If the room needsmore cooling, the fan speed
will automatically increase.If the room needs less
cooling, the fan speedwill automatically decrease.
NOTE:Auto FanSpeedcannot be usedwhen in the
Fan Only Mode.
Power Outage Recovery Feature
Inthe case of a power outage or interruption, the
unit will automatically restart in the settings last
used after the power isrestored. Ifthe Delay 1-24hr
feature was set,it will resume countdown. You may
need to set a new time if desired.

About the controls onthe air conditioner
Additional important information.
Air Direction
Usethe leverto adjust the air direction left and right
only.
Care and cleaning of the air conditioner.
Grille and Case
Turn the air conditioner off and remove the plug from
the wall outlet before cleaning. Toclean, usewater and a mild detergent. Do not use
bleachor abrasives.
Air Filter
Theair filter behind the front grille should be checked
and cleaned at least every 30 days or
more often if necessary.
To remove:
Open the inlet grille by pulling downward on the tabs
at the top upper corners ofthe inlet grille until the
grille is in a 450position. Removethe filter.
Cleanthe filter with warm, soapy water. Rinseand let
the filter dry before replacing it. Donot cleanthe filter
in a dishwasher.
A CAUTION: DoNOroperatetheair
conditioner without a filter because dirt and lint will
clog it and reduce performance.
Tab Tab
Outdoor Coils
Thecoils on the outdoor sideof the air conditioner
should be checked regularly. Ifthey are clogged with
dirt or soot,they may be professionallycleaned.
6
How to insert the Batteries in the Remote Control
-] emove the battery cover by sliding it according
to the arrow direction.
[2-2-] Insertnew batteries, making sure that the (+)
and (-) of battery are installed correctly.
[-3] Reuttuchthe cover by slidingit back
into position.
NOTES:
, Use2 "AAA"(1.5volt) alkaline batteries. Do not
use rechargeable batteries.
, Removethe batteriesfrom the remote control if
the system isnot going to be usedfor a long time.
, Donot mix old and new batteries. Donot mix
alkaline,standard (carbon-zinc)or rechargeable
(ni-cad,ni-mh, etc) batteries.

Istall ti
Istructi ns Air Conditio r
BEFOREYOU BEGIN
Read these instructions completely
and carefully.
•IMPORTANT-Savetheseinstructions
for local inspector's use.
•IMPORTANT- Observeallgoverning
codes and ordinances.
•Note to Installer- Be sure to leave these
instructions with the Consumer.
•Note to Consumer - Keep these instructions for
future reference.
,, Skill level- Installation of this appliance
requires basic mechanical skills.
,, Completion time -Approximately 1 hour
,, We recommend that two people install
this product.
,, Proper installation is the responsibility
of the installer.
,, Product failure due to improper installation is not
covered under the Warranty.
,, You HUST use all supplied parts and use proper
installation procedures as described in these
instructions when installing this air conditioner.
ELECTRICALREQUIREMENTS
Some models require a 115/120-volt AC,
60-Hz grounded outlet protected with a
15-amp time-delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the
possibility of electric shock hazard. If the wall outlet
you plan to use is only a 2-prong outlet, it isyour
responsibility to have it replaced with a properly
grounded 3-prong wall outlet.
©
@Some models require 230/208-volt AC,
protected with a time-delay fuse or circuit
breaker. These models should be installed on
their own single branch circuit for best
performance and to prevent overloading
house or apartment wiring circuits, which
could cause a possible fire hazard from
overheating wires.
ACAUTION:
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
Do not change the plug on the power cord
of this air conditioner.
Aluminum house wiring may present special
problems--consult a qualified electrician.
TOOLSYOUWILL NEED
Phillips head screwdriver
Pencil
Flat-blade screwdriver
Ruler or tape measure
Level Scissors or knife
Power cord includes a current interrupter device. A
test and reset button is provided on the plug case. The
device should be tested on a periodic basis by first
pressing the TESTbutton and then the RESETbutton
while plugged into the outlet. If the TESTbutton does
not trip or if the RESETbutton will not stay engaged,
discontinue use of the air conditioner and contact a
qualified service technician.

JnstaJlationinstructions
PARTS INCLUDED
(Appearance may vary)
Top rail gasket (!)
saW_ds°i,
Foam top window /
gasket(i) __ /
_o_ ac!,:_
mounting _ pan
ra,,\ \i
Right
accordion
panel
Side rail (2)
Sill angle
V-supports (2) bracket (2)
Window
locking bracket
(2)
@ @
Type A Type B Type C
screws (!0) screws (2) screws (4) Type Ebolt with Type Fbolt with
nut (4) nut (2)
8

JnstaJlationinstructions
WINDOW REQUIREMENTS
• These instructions are for u standard double-hung
window. You will need to modify them for other types
of windows.
• All supporting parts must be secured
to firm wood, masonry or metal.
• The electrical outlet must be within reach of the
power cord.
• Follow the dimensions in the table and illustration
for your model.
18.5"
26"- 41 "-
(With accordion panels)
I
[] STORMWINDOW REQUIREMENTS
A storm window frame will not allow the air
conditioner to tilt toward the outside, and will keep it
from draining properly.
To adjust for this, attach u piece of wood to the sill.
WOODPIECES
WIDTH:2"
LENGTH:Long enough to fit inside the window
frame.
THICKNESS:To determine the thickness, place o
piece of wood on the sill to make it 1/2" higher
than the top of the storm window frame or the vinyl
frame.
Attach securely with nails or screws provided by the
installer.
1/2" higher
than storm
window
frame
Storm window
frame
1/2" higher
than vinylframe
_ _ (onsomewindows
_ Wood
- r_ Vinylframe I
DPREPARETHEAiR CONDITIONER
r_ Pull down the front panel and remove the filter.
Remove the front panel by lifting up at an
angle.
[] Remove the four front screws. Save them
for reinstalling the front housing.
rc] Grasp the lower corners of the grille while
pressing in on the case sides with your
finger tips. Pull out to release and lift it up.
NOTE: Do not pull the bottom edge
toward you more than 3" or you may
damage the tabs of the grille.
t t
@When the front grille is removed the
control panel will still be attached by
a harness, Turn the grille around so
you can see the back side of the grille.
Remove the 2 screws to separate the
control panel housing from the grille.
NOTE: Be sure to save these screws. You will
need them later in the installation.
Remove Screws
9

JnstaJlationinstructions
[] PREPARETHEAiR CONDiTiONER
(continues)
r_ Remove the ground screw from the left
side of the case. Keep it in a safe location.
NOTE: Be sure to save this screw. You will need
them later in the installation.
r_ Slide the air conditioner from the case by
gripping the base pan handle and pulling
forward while bracing the case. Do not
pull or lift on the styrofoam discharge area.
Do not
pull
area--
damage
to the
unit may
result
FRONT
PREPARETHECASE
r_ Attach the top rail gasket to the bottom
of the top rail.
r_ Install the top mounting rail with 4 type A
screws from the inside of the case. Press
firmly to drive the screws into the gasket
and through the top mounting rail.
Topmount rail
0
DPREPARETHECASE
r_ Slide each side retainer onto the edge of
each according panel. The figure shows teh
orientation of each accordion panel and side
retainer assembly relative to the case from a
top view of the unit.
SIDE RETAINER
r_ Slide the left and right accordion panels
into the top and bottom mounting rails.
Top left , Top mounting rail To.iLightpr
/
Bottom mounting rail
r_ Attach the side retainers to the case using 6
type A screws.

JnstaJlationinstructions
[_ PREPARETHEWINDOW AND iNSTALL
THECASE
r_ cut the window sash seal to the proper length.
Peel off the backing and attach the seal to the
underside of the window sash.
Open the window and mark the center of
the window sill.
Carefully slide the case into the window
and center the case. Lower the window
behind the top mounting rail. Pull the
bottom of the case forward so that the
bottom mounting rail is tight against the
back of the window stool. Mount the case
to the window sill using 2 type B screws.
Drill pilot holes, if necessary.
Stool
r_ Assemble the V-support and V-support
bracket with Type F nut and bolt
Type Ebolt
and nut
Left
Sillangle
bracket _--__ _
V-support Type
Fbolt and nut
Mht
DPREPARETHEWINDOW AND iNSTALL
THECASE(continues)
r_ Position the V-supports J_.
on the case bottom so
that they will be near
the outside wall. Attach
a V-support to each side
of the bottom of the case
with Type E bolts, 2 for
each support.
D
ipport
Adjust sill angle brackets to rest on sill.
FG-']Extend the left and right accordion panels
to the vertical window sashes. Drill pilot
holes and attach the top corners with 2 type
C screws.
L JL.:J_L_2JI
TypeC
screw c
screw
11

JnstaJlationinstructions
r_PREPARETHEWINDOW AND iNSTALL
THECASE(continues)
A CAUTION:
To prevent broken Vinyl
glass or damage to
windows, on vinyl or
other similarly
constructed windows,
attach the window
locking bracket to the window side jamb.
Attach the window locking Wood
bracket with one Type C
screw.
This unit contains two
window locking brackets.
[r] cut the foam top window gasket to the
window width.
r_ stuff the foam
between the
glass and the
window to
prevent air and
insects from getting into the room.
NOTE: If the gasket supplied does not fit
your window, obtain appropriate material
locally to provide a proper installation seal.
re-] INSTALL THE AIR CONDITIONER
IN THE CASE
Slide the air conditioner into the case by
the base pan. Do not push on the controls,
styrofoam air discharge housing or the finned
coils. Make sure the air conditioner is firmly
seated.
Do not presson
these areas-
damage to the unit
may result
Base Pan
F6] INSTALL THE AIR CONDITIONER
IN THE CASE (continues)
F_ Replace the 1 screw removed earlier, one
on each side of the case.
IMPORTANT: THE GROUND SCREWS MUST BE
REINSTALLED TO ENSURE PROPERGOUND.
f F .............
FC-] Reinstall the control to the panel housing by
replacing the 2 screws you removed earlier.
@
Screws
Attach the front grille to the case by inserting
the tabs on the grille into the slots on the
front top of the case. Push the grille in.
FEI Replace the screws.
r_ Install the filter and the front grille.
r_ Plug in the air conditioner.
12

Through-the-Wall Installation Instructions--Optional
The case may be installed through-the-wall
in both existing and new construction.
Read completely, then follow step-by-step.
NOTE: Obtain all materials locally for
mounting the air conditioner through-
the-wall.
IT] IMPORTANT (cont.)
rD=]Secure with 14 wood screws anchored at
least an inch into the wall support structure.
NOTE: Drill pilot holes, if necessary, for
proper installation. If the frame is oversized,
use shims to prevent case distortion.
[] iMPORTANT
Through-the-wall installation is not
appropriate if any of the side or top louvers
in the case will be obstructed by the wall.
All side and top louvers in the case must
project on the outdoor side of the wall.
The room side of the case must project
into the room far enough to maximize the
balance of the unit.
[]
[]
The case must be installed level from side-
to-side and with a slight tilt from front to
rear. Use alevel; no more than a1/2 bubble
will be the correct case slant to the outside.
Lintel angle is required to support bricks or
blocks above opening.
Flashing is required and should extend the
length of the opening to ensure no inside
cavity leakage occurs.
Remove the air conditioner from the case.
For specific instruction, refer to the Window
Installation Instructions.
Make certain that a wall receptacle is
available close to the hole location or make
arrangements to install a receptacle.
F_ Place the case in the wall opening and
place wood support strips between the case
bottom and the flashing on both sides of the
bottom rail. They should be the same height
as the bottom rail and the same length as
FINISH THE WALL OPENING
Caulk all four sides on the outdoor side of
the case to prevent moisture from getting
through to the interior wall. Use of flashing
(drip rail) will further prevent water from
dripping inside the wall and down the
outside of the building.
Caulking
OUTSIDE
Air louvers (top j
and sides mus,t/
project on thev
outdoor side of
the wall)
INSIDE
Bottom rail
J
Wood filler and
caulking (above an
below the flashinc
Flashing
(Drip rail)
Bottom
rail
Flashing
(Drip rail) Wood support strips
FB'] Place the air conditioner into the case.
For specific instruction, refer to the Window
Installation Instructions.
13

TroubleshootingTips.
PossibleCauses What To Do
Theair conditioner
doesnots[art * Make surethe air conditioner plug ispushed
isunplugged, completely into the outlet.
Thefuse isblown/circuit ,Check the housefuse/circuit breaker box and replace
breaker istripped, the fuse or resetthe breaker.
Power failure. *The unitwill automatically restart in the settings last
usedafter the power is restored.
,There is a protective time delay (approximately
3 minutes) to prevent tripping of the compressor
overload. For this reason, the unit may not start
normal cooling for 3 minutes after it isturned
back on.
The current interrupter * Pressthe RESETbutton located on the power cord plug.
device istripped. * If the RESETbutton will not stay engaged, discontinue
use of the air conditioner and contact a qualified
service technician.
Airconditionerdoes Airflow isrestricted. * Hake surethere are no curtains, blindsor furniture
notcoolasitshould blocking the front of the air conditioner.
Thetemp control may * Inthe Coolmode, pressthe Decrease_rpad.
not be set correctly.
Theair filter is dirty. ,Clean the filter at least every 30 days.
Seethe CareandCleaningsection.
Theroom may have been hot. ,When the air conditioner isfirst turned on,you need
to allow time for the room to cool down.
Coldair isescaping. ,Check for open furnace registersand cold air returns.
Cooling coils have iced up. *See "Air conditionerfreezingup" below.
Airconditione[ Ice blocks the air flow oSetthe controls at HighFanor HighCooland set the
freezingup and stops the air conditioner thermostat to a higher temperature.
from cooling the room.
Therernotecontrol Thebatteries are inserted ,Check the position of the batteries.They should be
isnotworking incorrectly, inserted in the opposite (+)and (-) direction.
Thebatteries may be dead. * Replacethe batteries.
Water dripsoutside Hot,humid weather. ,This is normal.
Water d[usindoors The air conditioner is not * Forproper water disposal,make surethe air conditioner
tilted to the outside, slants slightly from the case front to the rear.
Watercollects n
basepan Moisture removed from air and drains into basepan. •This isnormal for a short period in areas with little humidity; normal for a longer period invery humid areas.
Normal Operating Sounds
, Vou may hear a pinging noisecaused by
water being picked up and thrown against the
condenser on rainy days or when the humidity
is high.Thisdesign feature helps remove
moisture and improve efficiency.
Vou may hear the thermostat click when the
compressor cycles on and off.
Water will collect inthe base pan during
high humidity or on rainy days.Thewater
may overflow and drip from the outdoor side
of the unit.
Thefan may run even when the compressor
does not.
14

GEAir Conditioner--One-Year Limited Warranty. (Forcustomers in theU.S.A.)
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care®technician. To schedule service,
visit us on-line at ge.com, or call 800.GE.CARES (800.432.2737).
Have serial number and model number available when calling
for service.
Stapleyour receipt here.
Proof of the original purchase
date isneeded to obtain service
under the warranty.
One Year
Fromthe date Ofthe
Origin01purch0se
GE Will Replace:
Any part of the air conditioner which fails due to a defect in materials or workmanship.
Duringthis limited one-year warranty, GEwill also provide,free of charge, all labor and related
serviceto replacethe defective part.
Service trips to your home to teach you how to
usethe product.
, Improper installation, delivery or maintenance. If you
have an installation problem, or if the air conditioner
isof improper cooling capacity for the intended use,
contact your dealer or installer. You are responsible
for providing adequate electrical connecting facilities.
Failure of the product resulting from modifications to
the product or due to unreasonable use including failure
to provide reasonable and necessary maintenance.
Incommercial locations, labor necessary to move the
unit to a location where it isaccessible for service
by an individual technician.
Replacement of house fuses or resetting of circuit
breakers.
, Failure due to corrosion on models not corrosion-
protected.
, Damage to the product caused by improper power
supply voltage, accident, fire, floods or acts of God.
, Incidental or consequential damage caused by possible
defects with this air conditioner.
Damage caused after delivery.
EXCLUSION OF IMPLIED WARRANTIES--Your sole and exclusive remedy is product repair as provided in
this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or
fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for
home use within the USA. If the product is located in an area where service by a GEAuthorized Servicer is
not available, you may be responsible for a trip charge or you may be required to bring the product to an
Authorized GEService location for service. In Alaska, the warranty excludes the cost of shipping or service calls
to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know
what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
15

Instrucciones de seguridud ......... 17, 18
Informaci6n sobre Reciclaje .................. 18
Instrucciones de operaci6n
Controle .................................. 19-21
Cuidado ylimpieza
Bobinas para exteriores ...................... 21
Filtro de aire .................................. 21
Instrucciones de instuluciGn ....... 22-28
Solucionur problemus ................... 29
Sonidos de operaci6n normales .............. 29
Servicio ul consumidor
Garantia ...................................... 30
Apo7o al consumidor ......................... 31
AEZ18
AEW28
AEW24
Producto etiquetado *ENERGYSTAR®
ENERGYSTAR
Como socio de ENERGYSTAR®,
GEha confirmado que este
producto cumple los directrices
de ENERGYSTAR®relativas al
rendimiento energdtico.
Escribu los nEmeros de modelo
yserie uqui'.
#de Modelo
#de Serie
Puede encontrar estos nOmeros
en una etiqueta en el costado
del acondicionador de aire.
16

s
INFORMACiON IMPORTANTE DE SEGURIDAD.
LEA TODAS LAS INSTRUCCIONES ANTES DE USAR.
iADVERTENCIA!
Por su seguridad, se debe seguir la informaci6n en este manual para minimizar el riesgo de
incendios, descargas el6ctricas o lesiones personales.
PRECAUCIONESDE SEGURIDAD
Use este electrodom6stico solamente para
el prop6sito determinado segOn se describe
en el Manual del propietario.
Este acondicionador de aire debe instalarse
correctamente de acuerdo con las
Instrucciones de instalaci6n antes de su uso.
Nunca desenchufe su acondicionador de
aire tirando del cable el6ctrico. Siempre
agarre firmemente el enchufe y tire de
61directamente hacia afuera.
Reemplaceinmediatamente todos los
cablesel6ctricosque se hayan pelado o que
se hayan da_ado de alguna otra manera.
Un cable de corriente daBado no debe
repararse,sino que debe sersustituido por
uno nuevoque seadquiera delfabricante.
No use un cable el6ctricoque muestre
evidenciasdedeterioro, o daBosde
abrasi6n en susuperficieen alguno desus
extremos.
Apague la unidad y desenchufe su
acondicionador de aire antes de limpiar.
GE no est6 no apoya que se le proporcione
ningOn servicio al acondicionador de aire.
Vehementemente recomendamos que
usted no intente proporcionar servicio al
acondicionador de aire usted mismo.
Por su seguridad...no almacene ni use
materiales combustibles, gasolina u
otros vapores o liquidos inflamables
en la proximidad de 6ste o alg0n otro
electrodom6stico.
Todoslos acondicionadores deaire
contiene refrigerantes,los que por Ley
Federaldeben ser removidosantes de
desecharlos.Siusted planea deshacersede
alg0n producto que contenga refrigerantes,
p6ngase en contacto con la compa_ia que
seencarga de recoger su basura para que
le indiquen qu6 hacer.
Si el recept6culo no coincide con el enchufe,
un electricista calificado debe reemplazar el
recept6culo.
Estos sistemas de acondicionadores de
aire R410A requieren que los contratistas
y t6cnicos usen herramientas, equipos y
est6ndares de seguridad aprobados para
su uso con este refrigerante. NO use
equipamiento certificado s61opara
refrigerante R22.
COMO CONECTARLA ELECTRICIDAD
Bajo ninguna circunstancia, corte o remueva la
tercera p0a (tierra) del cable el6ctrico. En pos
de la seguridad personal, este electrodom6stico
debe siempre conectarse a tierra.
NO use un enchufe adaptudor con este
electrodom_stico.
Elcable el6ctrico de este electrodom6stico est6
equipado con un enchufe de tres p0as (tierra)
que combina con un tomacorriente est6ndar
de tres tomas de pared para minimizar la
posibilidad de una descarga el6ctrica.
Elcable de alimentaci6n incluye un
dispositivo para interrupci6n de corriente.
Se incluye un bot6n de prueba y de reinicio
en el dispositivo. Eldispositivo debe ponerse
a prueba peri6dicamente: primero se presiona
el bot6n de TEST(prueba)y luego RESET
(reinicioJ mientras se encuentra enchufado al
tomacorriente. Si el bot6n TESTno se dispara
o si el bot6n RESETno queda enganchado,
deje de utilizar el acondicionador de aire y
comuniquese con un t6cnico calificado.
Pida a un t#cnico que inspeccione el
tomacorriente y el circuito para cerciorarse
de que el tomacorriente est6 conectado a
tierra de la manera apropiada.
Donde exista un tomacorriente de dos
tomas, es su responsabilidad y obligaci6n
personal hacer que dicho tomacorriente
sea reemplazado pot uno de tres tomas
con conexi6n a tierra.
Elacondicionador de aire deberia siempre estar
conectado a un tomacorriente individualcon su
circuito devoltaje correspondiente.
Esto proporciona el mayor rendimiento y
adem6s evita que los circuitos del resto de
la casa se sobrecarguen, Iocual podria causar
incendios por el sobrecalentamiento del
cableado.
Ver las Instrucciones de instalaci6n, en la
secci6n Requisitos El_ctricos para los requisitos
espedficos de conexi6n.
17

s

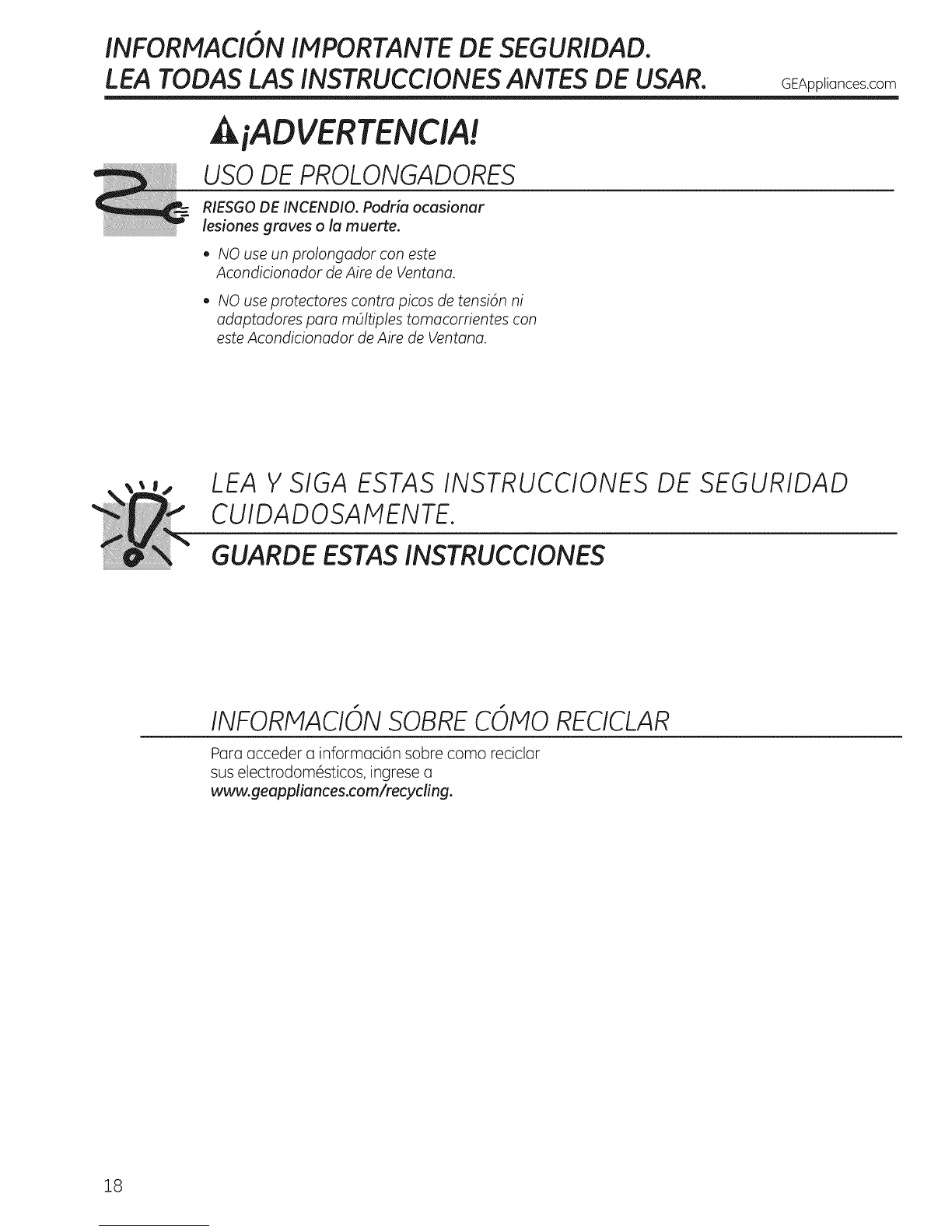

INFORMACION IMPORTANTE DE SEGURIDAD.
LEA TODAS LAS INSTRUCCIONES ANTES DE USAR. GEAppliances.com
AiADVERTENCIA!
USO DE PROLONGADORES
RIESGO DE INCENDIO. Podr[a ocasionar
lesiones graves ola muerte.
•NO use un prolongador con este
Acondicionador de Aire de Ventana.
•NO use protectores contra picos de tensi6n ni
adaptadores para mOltiples tomacorrientes con
este Acondicionador de Aire de Ventana.
LEA Y SIGA ESTAS INSTRUCCIONES DE SEGURIDAD
CUIDADOSAMENTE.
GUARDE ESTAS INSTRUCCIONES
INFORMACION SOBRE COMO RECICLAR
Pura occeder u informuci6n sobre como reciclor
sus electrodom6sticos, ingrese c]
www.geuppliunces.com/recycling.
18

A propos des commundes du climutiseur.
LesfonctionsetI'aspectpeuventvorier.
Lestdmoinslumineux6c6tddestouches8effleurementsurletableaudecommandesduclimatiseurindiquentlesr_glagess@dionnds.
Le tdmoin indique qua I'opporesl
est en mode Progrommation de
Io tempdroture ou du ddloi. |
mAuto
[] High
[] Hed
[] Low
Le tdmoin lumineux indique qua
Io minutene est progrommde.
[] Cool
[] Fan Only
[] Energy Saver
NOTE : L'dcron affiche toujours la temperature de la piece sauf lorsque vous programmez
la temp_roture ou la minuterie.
Commandes du Ciimutiseur
DdaJ1-24hr
A
Rdductiondu dalai
S@ctiondu mode
Rdduetionde
lavJtessedu_l
ventJlateur
Augmentation 0
etR_duetionde
la temperature
programm@
Augmentation
du ddai
._ Narehe
_ __ automatJquedu
_ I _ ventilateur
_ _ I A Augmentationde la
I _ Nise enmarche
l._ de I'apparellON/OFF
_(marehe/angt)
T l commande
Commandes
Touche d'alimentation
Met leclimatiseuren positionde marche
ou d'arr@t.L'@cranaffichela temp@ature
de la pieceIorsqueI'appareilestmis en marche.
,Affichage
Affichela temp@aturede la pieceou letemps
restantavant la miseen marche ou I'arr@tde
I'appareil.Affichela temp@aturede r_glagelots
de la programmationde la temp@aturepour les
modesCoo/Irefroidissemen#ou EnergySaver
(economied'energie).Let@moinlumineuxSet
(programme)s'allumeIorsdu r@glage.
Touches Tamp Increase (Augmentation
temperature) A/ Decrease (R_duction
de la temp_rature)T Sontutilis@espour
programmerlatemp@aturedenslesmodesCool
ou EnergySaver.Let@moinlumineuxSets'allume
Iorsdu r@glage.
Touches Delay Timer Increase (Augmentation du
d_lai)A (+)/Decrease (Diminution du d_lai) T (-)
Chaquefoisquevous effleurezlestouches
Increase A/ DecreaseT surI'appareilou
lestouchesIncrease+/ Decrease- de la
t_l_commande,vous programmezladur@
du d6laiIorsde I'utilisationde la minuterieDelay
!-24hr (d6laide 1-2ah).Let6moin lumineuxSet
s'allumeIorsdu glage.
Touches de vitesse du ventilateur
Sontutilis@spour r_glerlavitessedu ventilateur
de I'appareilsurLow(faible),Ned(moyennel,
High(elev6e)ouAuto (automatiquel.REMARQUE:
Surlat_l_commande,utilisezlestouchesIncrease
+/Decrease- pour r6glerlavitessedu ventilateur
surLow,Ned, ou High. Utilisezla toucheAuto
pour allumerleventilateuren modeAuto.
Touche Mode
Estutilis@pour programmer leclimatiseursur
lesmodesCool, EnergySaverou FanOnly
(ventilateuruniquement).
Touches de D_lai/ D_laide I _24heures
Delay ON(d6laide miseen marche)-Lorsque
leclimatiseurest 6teint,il peut@treprogramm_
pour d@marrerautomatiquementdansun d@lai
de 1 _ 2/4heuresa sesr6glagespr6c@dents(mode,
vitessedu ventilateur).
Delay OFF(d_laid'arr_t)-Lorsque leclimatiseur
esten fonctionnement,il peut_tre programm6
pour s'arr6terautomatiquement dansun d61aide
i e 24 heures.
Comment leprogrammer:
AppuyezsurlatoucheDelay1-24hr(D@laide 1
2/4heures)de I'appareilouDelaypad (Touchesde
D6lai)delat616commandeChaquefoisquevous
effleurezlestouchesIncrease•/Decrease Tsur
I'appareilou lestouchesIncrease+/Decrease
-de lat61_commande,vousprogrammezla
durOedu dOlaipar intervallede ]. heure.LetOmoin
lumineuxSets'allumeIorsdu r6glage.
Pourconna_treletempsrestantsurla minuterie
Delay1-24hr,appuyezsurlatoucheDelay 1-24hr
deI'appareilouDelaypad (Touchesde D_lai)de
lat_l_commande.UtilisezlestouchesIncrease_
/Decrease_ sur I'appareilou lestouches
Increase+/Decrease -de lat_l_commondepour
programmer un nouveaud6lai sin6cessaire.
Pourannular la minuterie, appuyezsurlatouche
Delay 1-24hrjusqu'(_ceque levoyant lumineux
surla toucheDelay 1-24hrs'@eigne.
R_initialisation du Filtre
Let6moin lumineuxs'allumemau bout d'uncumul
de 250heuresde fonctionnementdu ventilateur
pour mppelerla n6cessit6de nettoyerlefiltre.
AppuyezsurResetFilter pour 6teindrelet6moin
et remettre5 z6roletempsdefonctionnement
cumul6.
Remarque : La lecture de temp6rature par d6faut s'affiche en degr6 Fahrenheit (°F).Pour modifier
I'affichage en degr6 Celcius (°C),appuyez simultan6ment sur les boutons d'augmentation Aou
d'abaissement _de la temp6rature et maintenez-les enfonc6s pendant 3 secondes. R6p6tez la m6thode
pour effectuer un retour 5 I'affichage des degr6s Fahrenheit (°F). 19

Acerca de los controles en el acondicionador de aire
Ne faites pas fonctionner votre appareil Ceclimotiseurfroidseuln'estpascon_upour fonctionner
Iorsque les temperatures ext_rieures sont ovec destemperatures e×t_rieuresen dessousde 0 °C
en dessous de 0 °C(32°F). 132°F).IInedoltpus_tre utilis_Iorsquelestemperatures
ext_rieures sont en dessousde 0°C(32°F).
T_l_commande
Pourvousassurerd'unfonctionnementcorrect,pointez
lut616commundeversler6cepteurdesignal
duclimatiseur.
Assurez-vousqu'oucunobstaclepouvontbloquer
lesignalnesetrouveentreleclimatiseuretla
t616commande.
Mode Cool (reffoidissement)
Utilisezle modeCool(refroidissement)avec lavitesse
du ventiloteursurLow(foible),Med (moyenne),
High lelev_e)ou Auto(automotique)pour refroidir.
Appuyezsur lestouchesTemperatureIncrease
(augmentation dela temperature) A/Decrease
(diminution de la temp#rature)T pour programmer Io
temperature souhuit_eentre 18°Cet30 °C(64
et 86 °F)par incrementsde 0,5°C(1°F).
Unthermostat_lectroniquepermetde muintenirIo
temperaturede Iopiece.Lecompresseursemet en
murcheets'urr_tehintervallesr_gulierspourmuintenir
Iotemperaturede lapbce hun niveaudeconfortchoisi.
R_glezlethermostat6 unevuleurplusbasseetI'uir
umbiant serefroidiro.R_glezlethermostat6 unevuleur
plus61ev6eetI'airambiantser6chauffera.
Lerayon d'action de Iot616commande s'6tendjusqu'5
6,4 m (20pieds).
Assurez-vous que lespilessont r6centes et
correctement install6es dons la t616commande.
Lot616commande renferme un aimant permettant de
la fixer sur des surfaces m6talliques.
REMARQUE:Sile climatiseur6teint estallum6alorsqu'il
est programm6 surun r6glageCoolou sivous passez
d'un modeVentilation6 un modede Refroidissement,il
faudra environ3 minutespourque lecompresseurse
remetteen marcheet recommence6 refroidir.
Descriptions du Refraidissement
Pour un RefroidissementNormal - %lectionnez
lemodeCoolavec lavitessedu ventilateursurMed
ou High et un r_glagehune temperature moyenne.
Pour un RefroidissementMaximal - %lectionnez
lemodeCool avec lavitessedu ventilateursurHigh
et un r_glagehune temperatureplusbasse.
Pour un RefroidissementplusSilencieuxou Dumnt
la Nuit- %lectionnezle modeCod ovecIovitessedu
ventiloteursurLowet un r6gloge6 une temperature
moyenne.
Mode Energy Saver (economie d'#nergie)
Ce mode optimise la puissance de refroidissement
de votre climatiseur, vous faisant du m_me coup
6conomiser de I'_nergie. Une lois la temperature
du point de r_glage atteinte, le ventilateur
s'_teindra par intervalles pour 6conomiser
1'6nergie.II s'allumera aussi p6riodiquement
pour faire en sorte que la pleine capacit6 de
refroidissement du syst_me salt utilis_e. II s'agit
du mode par d6faut de I'appareil. A chaque lois
qu'il est mis hors tension, I'appareil red_marrera
en mode Economie d'6nergie. Cela inclut aussi
le mode Delay (Ddlai de raise en marche). _,
la premiere mise sous tension de I'appareil,
les r6glages de temperature et du ventilateur
indiqueront respectivement 70° et Low (Foible).
Vous pouvez r6gler la vitesse du ventilateur et la
temp6rature selon vos crit_res de confort.
Energy Saver ON (dconomie d'dnergie activde) :
Le mode d'6conomie d'6nergie contribue @r6duire
la consommation d'61ectricit6. Dans ce mode,
il est normal que le ventilateur s'6teigne puis se
rallume en alternance. Cecycle de red6marrage
peut se r6p6ter plusieurs lois. En raison des arr@ts
p6riodiques du ventilateur, vous remarquerez
peut-@treune variation de la temp6rature et de
I'humidit6 ambiantes.
Energy Saver OFF (dconomie d'dnergie ddsactivde):
Lorsque ce mode est d6sactiv6, le ventilateur
fonctionne continuellement, et dans le mode
Cool (refroidissement), le compresseur s'allume
et s'6teint en alternance pour maintenir la
temp6rature ambiante.
Mode Fan Only (ventilateur uniquement)
Utilisezle modeFanOnlyavec unevitessede ventilateur
r_gl6esurLow,Had ou Highpourfoirecircular I'oiret
leflitter sanslerefroidir.Etantdonn_qua lemode Fan
Onlyne permetpusde refroidissement,ler_glogede Io
temp6rature n'affichepas.Latemp6raturede Iopi@ce
s'affiche6 1'6cran.
REMAROUE:Lovitessedeventilateurauto ne peut6tre
utilis6eIorsquele climatiseurest surlemodeFanOnly.
20
Auto Fan Speed (vitesse du ventilateur auto)
R_glezlavitessedu ventilateursurauto pourque
lavitessedu ventilateurseregleautomatiquement6 la
vitessen_cessoire6 I'obtentiondesr_glagesopportont
un niveaude confortoptimal 6 latemperature
progromm_e.
Sila pi6cedemandeun refroidissementsuppl6mentaire,
lavitessedu ventilateuraugmente automatiquement.Si
Iopiecedemandemainsde refroidissement,Iovitesse
du ventilateurdiminueautomatiquement.
REMAROUE:Lavitessedeventilateurauto ne peut6tre
utilis6eIorsquele climatiseurest surlemodeFanOnly.
Fonction de conservation des r#glages apr_s une coupure de courant
Encosde panne ou d'interruptiondecourant,I'appareil 6 24 heures)6tait utilis6e,I'appareilreprendsoncompte
red6marreautomatiquementapresr6tablissement 6 rebours.Vousaurezpeut-_tre besoinde programmer
deI'alimentation61ectriqueet conservelesderniers unenouvelleheure.
r6glagesutilis6s.Sila fonction DelayZ-24hr(D61aide Z
