GE GFDN240 User manual

0GEAppliances.com
Safety Instructions ........ 2-s
Operating Instructions
Control Panels ................ 6-8
Cycle Options ................. 9-10
Dryer Features .................. 10

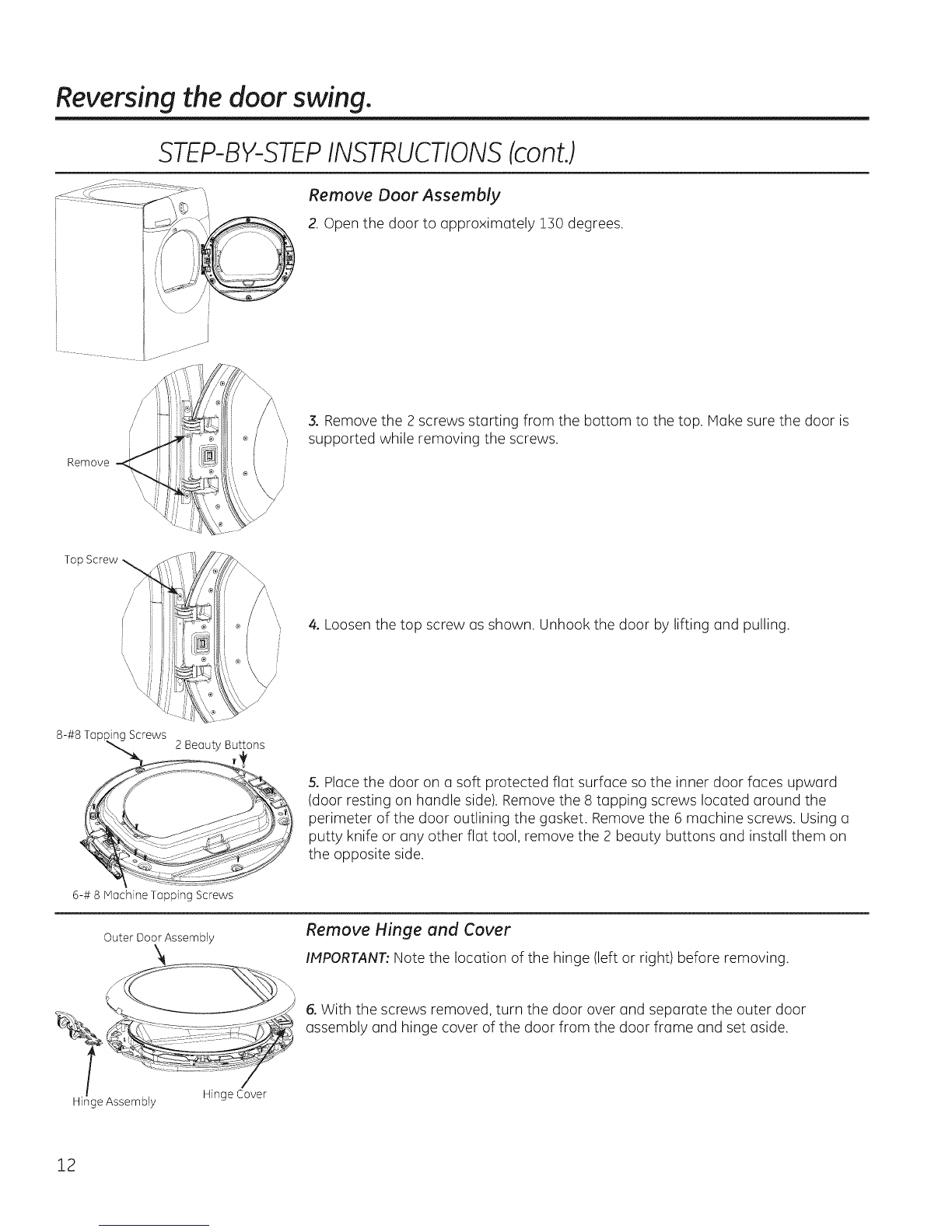

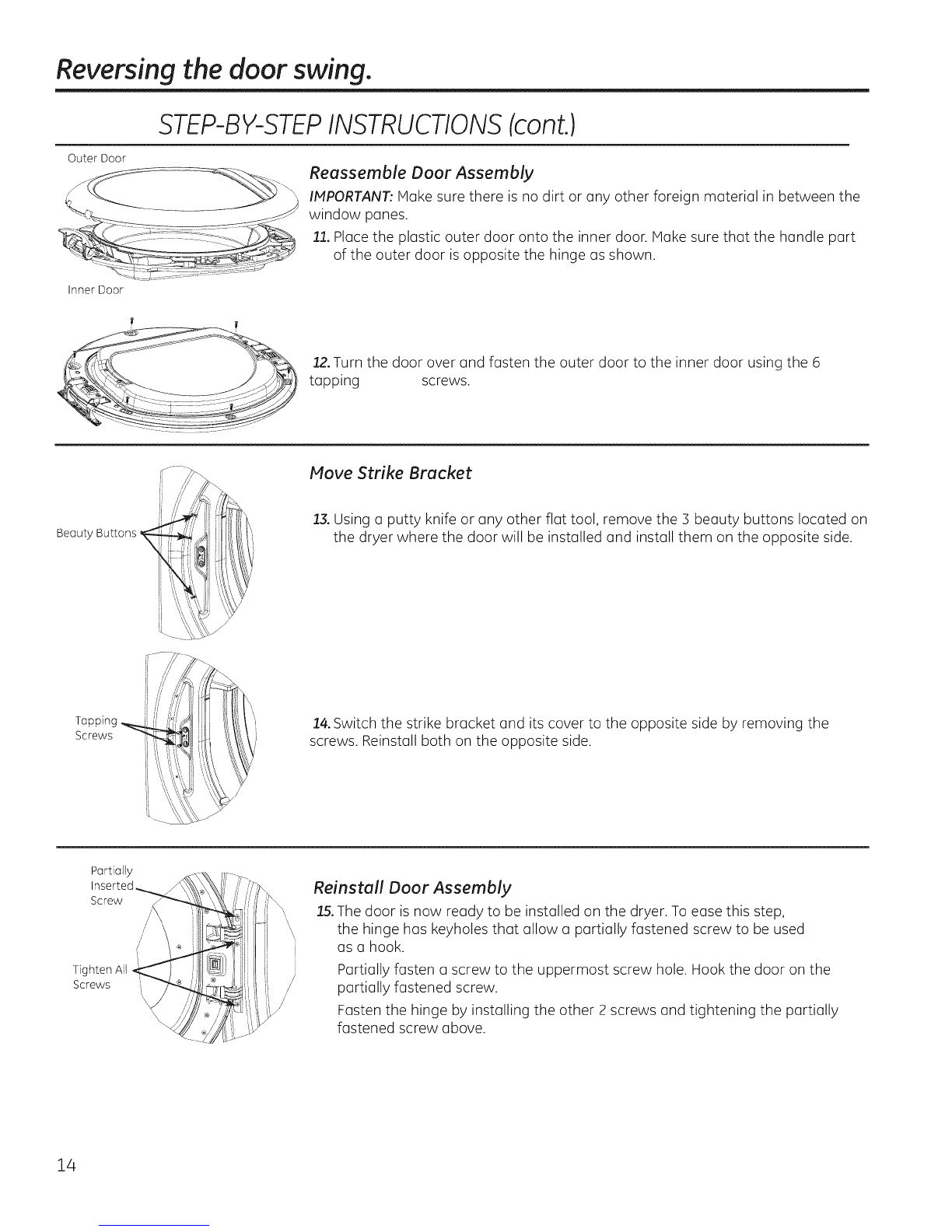

Reversing the Door Swing .... 11-14

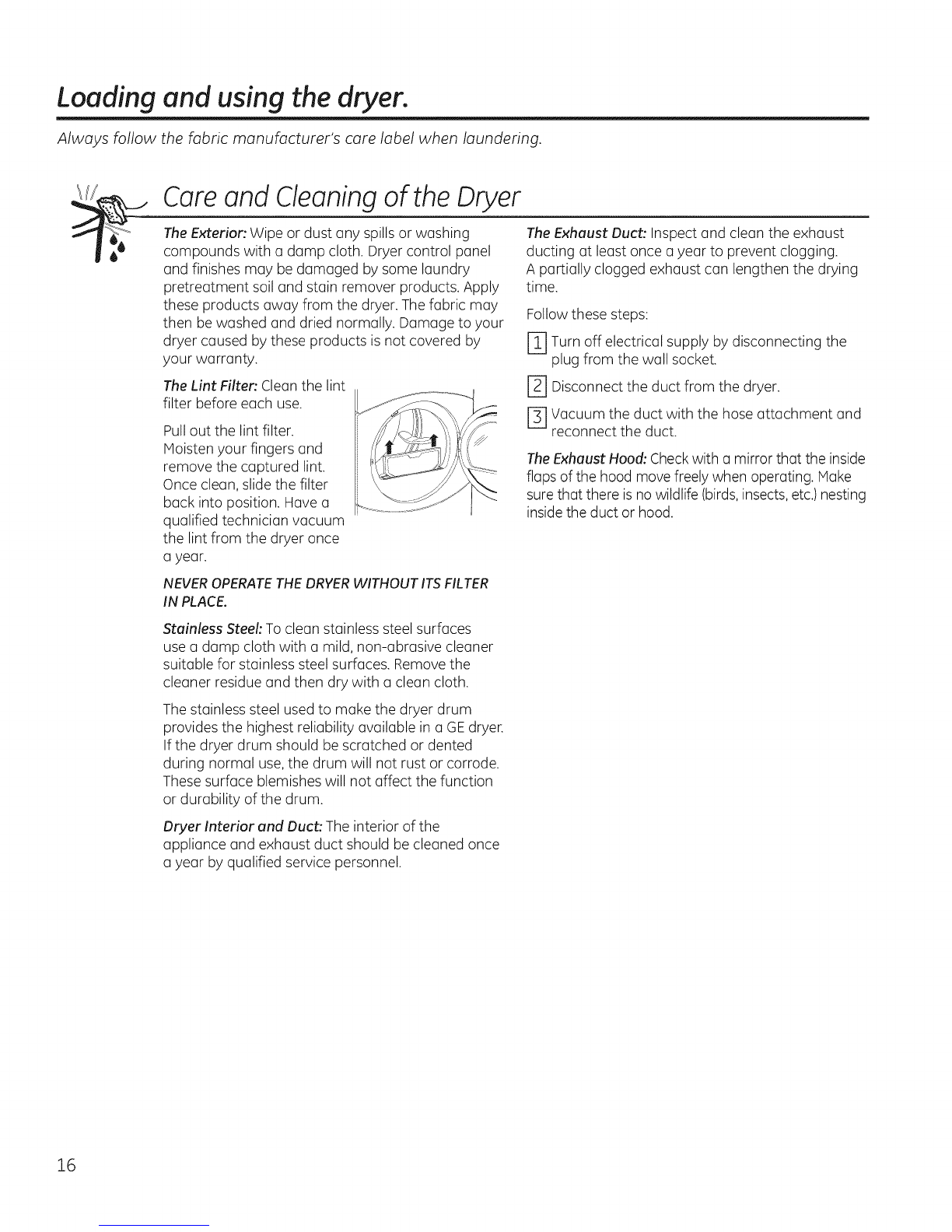

Loading and Using
the Dryer ..................... 15-16
Venting the Dryer ............... 17

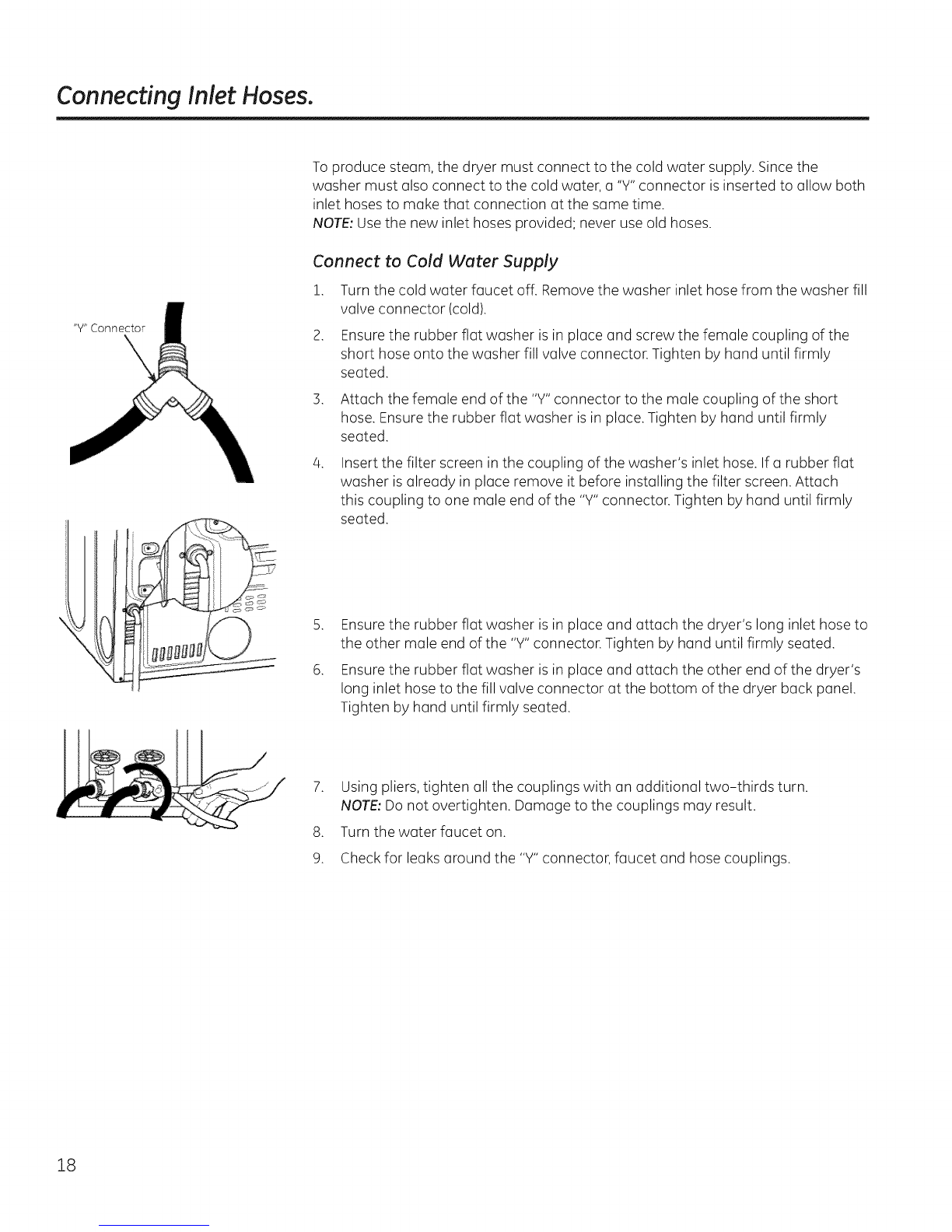

Connecting Inlet Hoses .......... 18

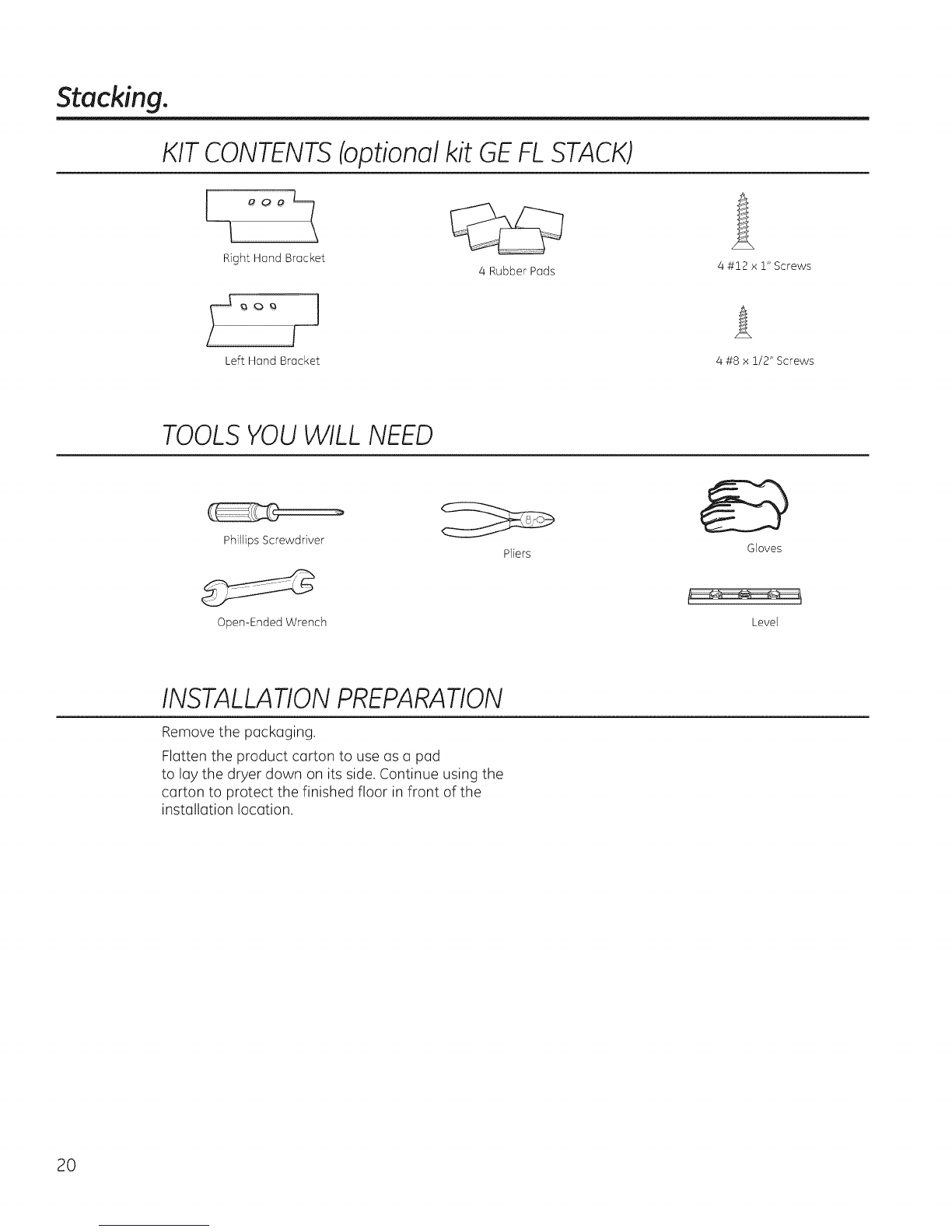

Stacking ..................... 19-22
Troubleshooting Tips .... 23-26
Consumer Support
Warranty ................... 28, 29
Consumer Support .............. 30
GFDN240
GFDN245
GFDS350
GFDS355
Write the model and serial
numbers here:
Model #
Serial #
They (]re on the I(]bel on
the front of the dryer behind
the door. 49-90394-2 08-11 GE
234D1050P007

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
AWARNING!
Foryour safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, personal injury, or death.
[] Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
[] Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
WHAT TO DO IF YOU SMELL GAS:
F_ Do not try to light a match, or cigarette, or
turn on any gas or electrical appliance.
[_ Do not touch any electrical switch;
do not use any phone in your building.
[_ Clear the room, building or area of all
occupants.
[_ Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions carefully.
_] If you cannot reach your gas supplier, call
the fire department.
California Safe Drinking Water and Toxic Enforcement Act
Thisact requiresthe governor of Californiato publisha list of substancesknown to the state to cause cancer,birth defects or
other reproductive harm and requiresbusinessesto warn customers of potential exposure to such substances.
Gasappliances can cause minor exposure to four ofthese substances, namely benzene,carbon monoxide,formaldehyde
and soot,caused primarily by the incomplete combustion of natural gasor LPfuels.
Properlyadjusted dryers will minimize incomplete combustion. Exposureto these substances can be minimized further by
properly venting the dryerto the outdoors.

GEAppliances.com
PROPERINSTALLATION
This dryer must be properly installed and located in accordance with the Installation Instructions
before it is used. If you did not receive an Installation Instructions sheet, you can receive one by
visiting GEAppliunces.com, or by calling 800.GE.CARES (800.432.2737).
[] Properlyground dryer to conform with all governing
codes and ordinances. Followdetails in Installation
Instructions.
[] Installor store where itwill not be exposed to
temperatures below freezing or exposed to the
weather.
[] Connect to u properly rated, protected and sized
power supply circuit to avoid electrical overload.
[] Removethe colored protective film from both the
control panel and the door.
[] Removeall sharp packing items and dispose of all
shipping materials properly.
[] Donot obstruct the flow of ventilating air. Donot
stack or place laundry or throw rugs against the
front or buck of the dryer.
Exhaust/Ducting:
r_ DryersMUSTbe exhausted to the outside to
prevent large amounts of moisture and lintfrom
being blown into the room.
Useonly rigid metal 4" diameter ductwork inside
D .
the dryer cabinet and useonly ULapproved
transition ducting between the dryer and the home
duct. USEOFPLASTICOROTHERCOMBUSTIBLE
DUCTWORKCAN CAUSEA FIRE.PUNCTURED
DUCTWORKCANCAUSEA FIREIF ITCOLLAPSES
ORBECOMESOTHERWISERESTRICTEDIN USEOR
DURINGINSTALLATION.
Forcomplete details,follow the Installation Instructions.

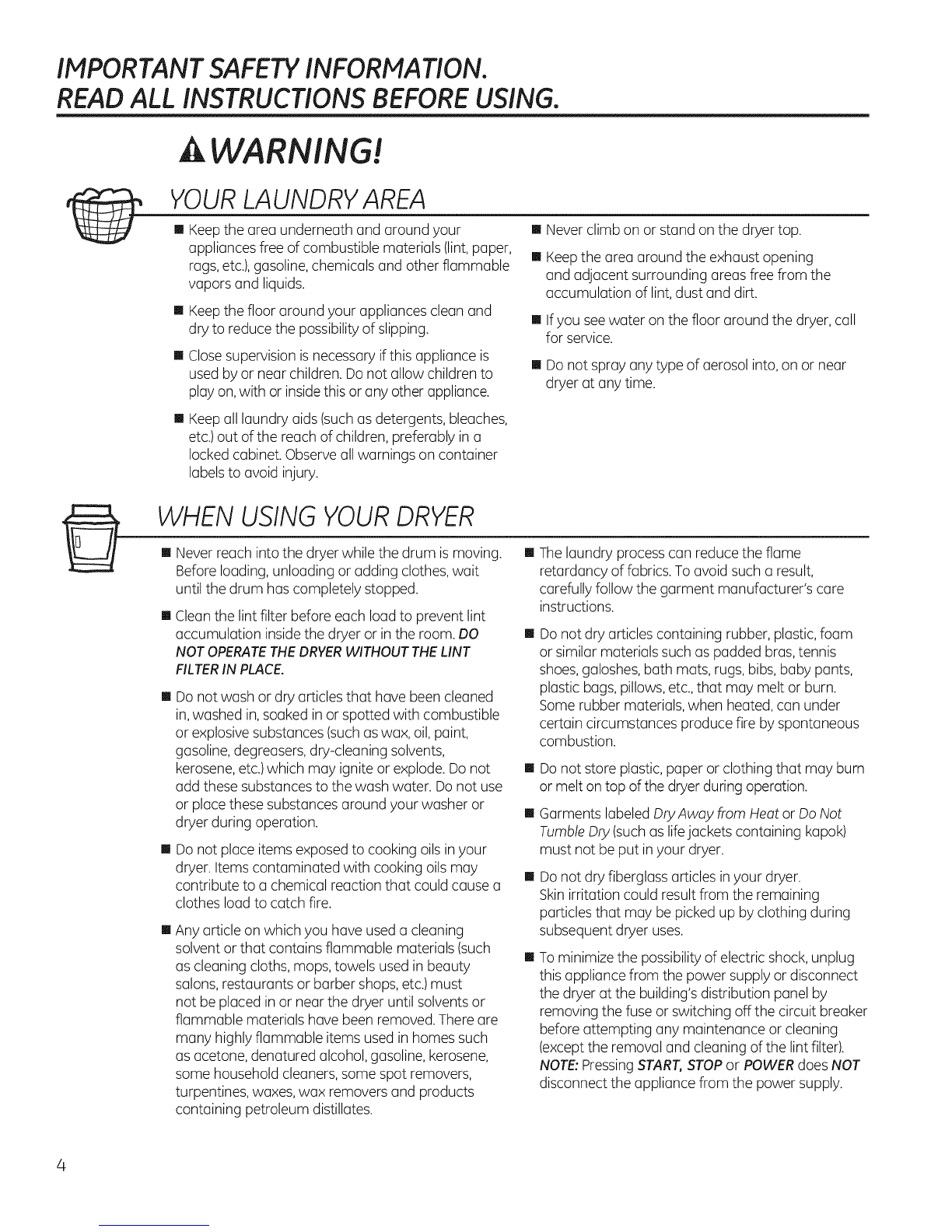

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
YOUR LAUNDRY AREA
[]
[]
[]
Keepthe area underneath and around your
appliances free of combustible materials (lint,paper,
rags, etc.),gasoline,chemicals and other flammable
vapors and liquids.
Keepthe floor around your appliances clean and
dry to reducethe possibility of slipping.
Closesupervisionis necessary ifthis appliance is
used by or near children. Donot allow children to
play on,with or insidethis or any other appliance.
[] Never climb on or stand on the dryer top.
[] Keepthe area around the exhaust opening
and adjacent surrounding areas free from the
accumulation of lint, dust and dirt.
[] Ifyou seewater on the floor around the dryer, call
for service.
[] Donot spray any type of aerosol into, on or near
dryer at any time.
[] Keep all laundry aids (suchas detergents, bleaches,
etc.)out of the reach of children, preferably in a
locked cabinet. Observeall warnings on container
labelsto avoid injury.
WHEN USING YOURDRYER
[]
Never reach into the dryerwhile the drum is moving.
Beforeloading, unloading or adding clothes,wait
until the drum has completely stopped.
Cleanthe lint filter before each load to prevent lint
accumulation insidethe dryer or inthe room. DO
NOTOPERATETHEDRYERWITHOUTTHELINT
FILTERIN PLACE.
Donot wash or dry articles that have been cleaned
in,washed in,soaked in or spotted with combustible
or explosivesubstances (suchas wax, oil,paint,
gasoline,degreasers,dry-cleaning solvents,
kerosene,etc.)which may ignite or explode. Do not
add these substancesto the wash water. Donot use
or place these substances around your washer or
dryer during operation.
Donot place items exposed to cooking oilsin your
dryer. Items contaminated with cooking oilsmay
contribute to a chemical reaction that could cause a
clothes load to catch fire.
Any article on which you have useda cleaning
solvent or that contains flammable materials (such
ascleaning cloths,mops, towels used in beauty
salons,restaurants or barber shops,etc.)must
not be placed in or near the dryer until solvents or
flammable materials have been removed.Thereare
many highly flammable items usedin homes such
asacetone, denatured alcohol, gasoline, kerosene,
some household cleaners,some spot removers,
turpentines, waxes, wax removers and products
containing petroleum distillates.
[]
[]
[]
[]
[]
[]
Thelaundry processcan reducethe flame
retardancy of fabrics. Toavoid such a result,
carefully follow the garment manufacturer's care
instructions.
Donot dry articles containing rubber, plastic,foam
or similar materials such as padded bras,tennis
shoes,galoshes,bath mats, rugs,bibs, baby pants,
plastic bags,pillows,etc.,that may melt or burn.
Some rubber materials, when heated, can under
certain circumstances produce fire byspontaneous
combustion.
Donot store plastic, paper or clothing that may burn
or melt on top of the dryerduring operation.
Garments labeled DryAway from Heat or DoNot
TumbleDry (suchas lifejackets containing kapok)
must not be put inyour dryer.
Donot dry fiberglass articles in your dryer.
Skinirritation could result from the remaining
particlesthat may be picked up by clothing during
subsequent dryer uses.
Tominimize the possibilityof electric shock, unplug
this appliance from the power supply or disconnect
the dryer at the building'sdistribution panel by
removing the fuse or switching off the circuit breaker
beforeattempting any maintenance or cleaning
(exceptthe removal and cleaning of the lint filter).
NOTE:PressingSTART,STOPor POWERdoes NOT
disconnect the appliance from the power supply.

GEAppliances.com
WHEN USINGYOURDRYER(cont.)
[]
[]
Never attempt to operate this appliance if it is
damaged, malfunctioning, partially disassembled,or
has missingor broken parts, including a damaged
cord or plug.
Theinterior of the machine and the exhaust duct
connection insidethe dryer should be cleaned at
least once a year by a qualified technician. Seethe
Loading and Usingthe Dryersection.
Ifyours isa gas dryer, it isequipped with an
automatic electric ignition and does not have a pilot
light. DONOTATTEMPTTOLIGHTWITHA MATCH.
Burnsmay resultfrom having your hand in the
vicinity of the burner when the automatic ignition
turns on.
[]
[]
You may wish to soften your laundered fabrics or
reduce the static electricity in them by using a dryer-
applied fabric softener or an anti-static conditioner.
We recommend you use either a fabric softener in
the wash cycle,according to the manufacturer's
instructions for those products, or try u dryer-added
product for which the manufacturer gives written
assurance on the package that their product can
be safely used inyour dryer. Serviceor performance
problems caused by use ofthese products are
the responsibility of the manufacturers of those
products and are not covered under the warranty to
this appliance.
Never attempt to usethe STEAMDEWRINKLEor
STEAMREFRESHcycleswithout clothes in the drum.
It is highly recommended to select the appropriate
load sizefor best results.Selectinglarge load cycles
for small loads may result in wetting of clothes,and
selectingsmall load cyclesfor large loads may result
in poor dewrinkling performance.
WHEN NOT USING YOURDRYER
[] Graspthe plug firmly when disconnecting this
appliance to avoid damage to the cord while
pulling. Placethe cord away from traffic areas so it
will not be stepped on,tripped overor subjected to
damage.
[] Donot attempt to repair or replace any part of
this appliance or attempt any servicingunless
specificallyrecommended in this Owner's IVlanual
or in publisheduser-repdr instructions that you
understand and have the skillsto carry out.
[] Beforediscarding a dryer, or removing itfrom
service,remove the dryer door to prevent children
from hiding inside.
[] Do not tamper with controls.
READAND FOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS

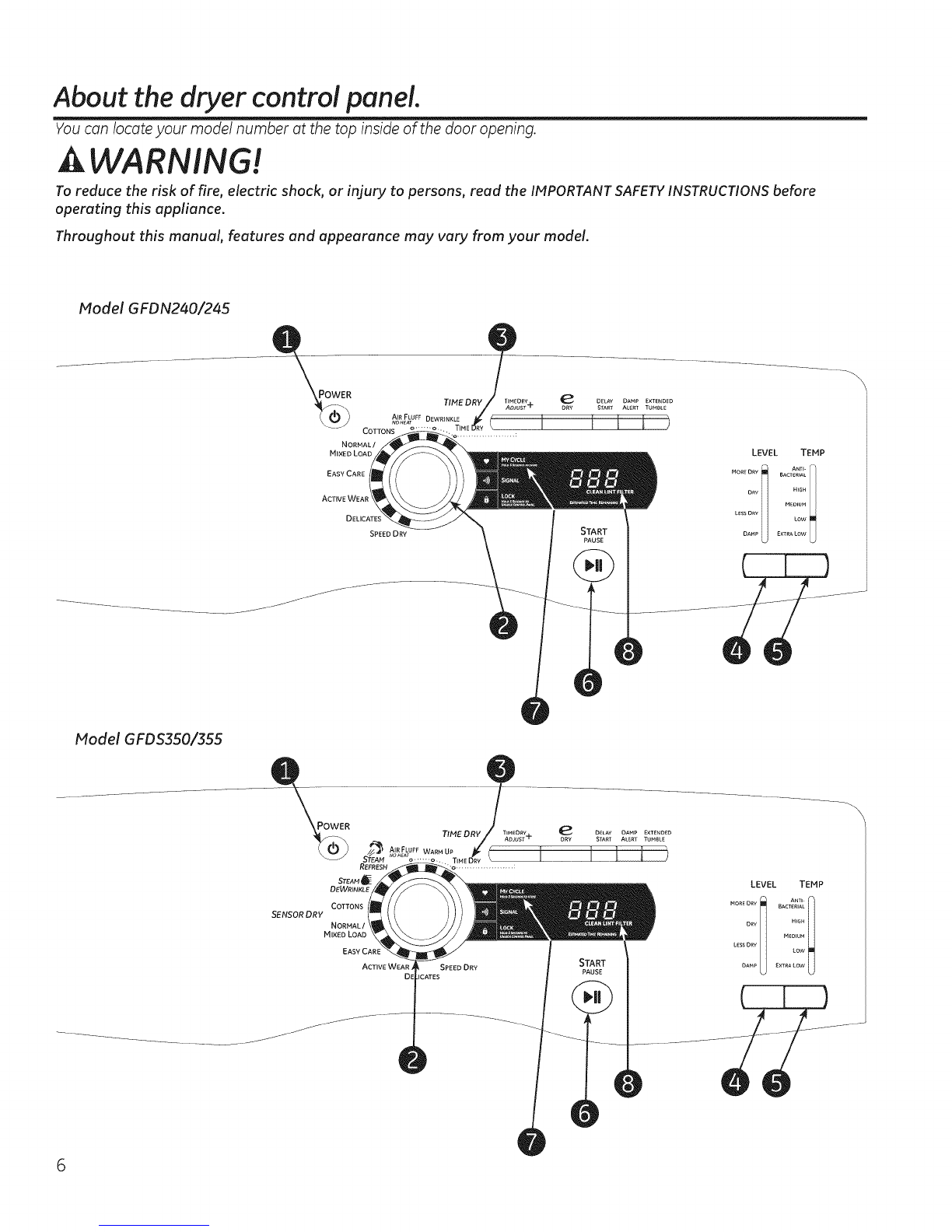

About the dryer control panel.
You can locate your mode! number at the top inside of the door opening.
AWARNING!
Toreduce the risk of fire, electric shock, or injury to persons, read the IMPORTANTSAFETYINSTRUCTIONSbefore
operating this appliance.
Throughout this manual, features and appearance may vary from your model.
Model GFDN240/245
POWER TIME DRY
AIR FLUFF DEWRINKLE
No._Ar
COTTONS
NORMAL/
MINED LOAD
EASY CARE
ACTIVE WEAE
DELICATES
SPEED DRY
J
Model GFDS350/355
POWER
STEAf_
DEWRINKLE
COTTONS
SENSOR DRY
NORHAL
MI×ED LOAD
EASY CARE
ACTIVE WEAR
LEVEL TEHP
11.....
MO_EDRy BACTEmAL
ORv HEGH
N_DIUM
LESSORV LOW
OAMp EXTRALOW
\

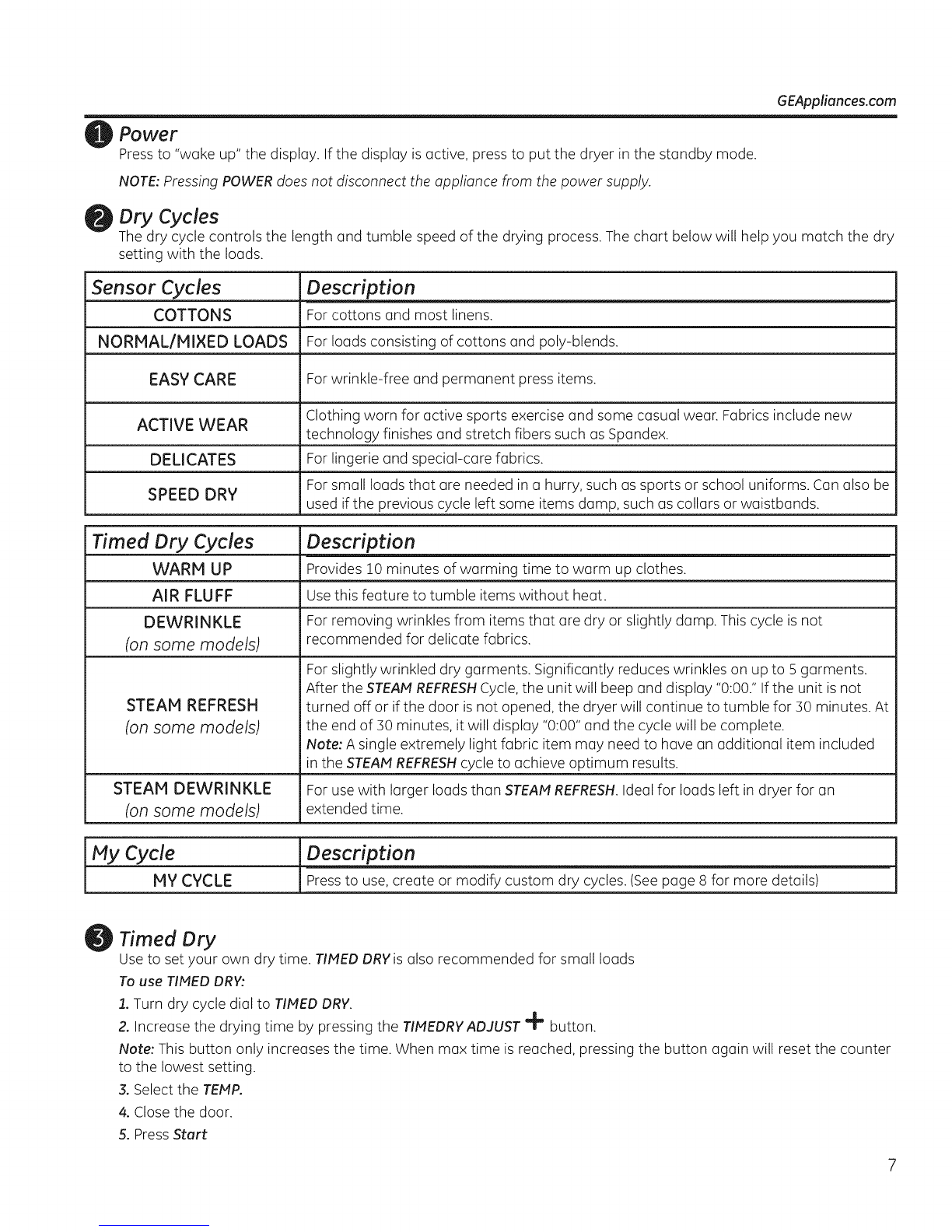

Power
Pressto "wake up" the display. If the display is active, press to put the dryer in the standby mode.
NOTE:Pressing POWERdoes not disconnect the appliance from the power supply.
GEAppliances.com
Dry Cycles
The dry cycle controls the length and tumble speed of the drying process. The chart below will help you match the dry
setting with the loads.
Sensor Cycles Description
COTTONS For cottons and most linens.
NORMAL/MIXED LOADS For loads consisting of cottons and poly-blends.
EASY CARE Forwrinkle-free and permanent press items.
ACTIVE WEAR Clothing worn for active sports exercise and some casual wear. Fabrics include new
technology finishes and stretch fibers such as Spandex.
DELICATES For lingerie and special-core fabrics.
For small loads that ore needed in a hurry, such as sports or school uniforms. Con also be
SPEED DRY used ifthe previous cycle left some items damp, such as collars or waistbands.
Timed Dry Cycles Description
WARM UP Provides 10 minutes of warming time to warm up clothes.
AIR FLUFF Use this feature to tumble items without heat.
DEWRINKLE For removing wrinkles from items that ore dry or slightly damp. This cycle is not
(on some models) recommended for delicate fabrics.
STEAM REFRESH
(on some models)
For slightly wrinkled dry garments. Significantly reduces wrinkles on up to 5 garments.
After the STEAMREFRESHCycle, the unit will beep and display "0:00." If the unit is not
turned off or if the door is not opened, the dryer will continue to tumble for 30 minutes. At
the end of 30 minutes, it will display "0:00" and the cycle will be complete.
Note: A single extremely light fabric item may need to have on additional item included
in the STEAMREFRESHcycle to achieve optimum results.
STEAM DEWRINKLE For use with lurger loads than STEAMREFRESH.Ideal for loads left in dryer for an
(on some models) extended time.
Ply Cycle Description
MY CYCLE Pressto use, create or modify custom dry cycles. (Seepage 8 for more details)
Timed Dry
Use to set your own dry time. TIMED DRY is also recommended for small loads
To use TIMED DRY:
1.Turn dry cycle dial to TIMED DRY.
2. Increase the drying time by pressing the TIMEDRYADJUST 4" button.
Note: This button only increases the time. When max time is reached, pressing the button again will reset the counter
to the lowest setting.
3. Select the TEMP.
4. Close the door.
5. Press Start

About the dryer control panel.
Sensor Dry "Level"
The sensor continuously monitors the (]mount of moisture in the Io(]d. When the moisture in your clothes re(]ches your
selected dry level, the dryer will stop.
_IR_: Sensor dry "LEVEL"only works for COTTONS,NORMAL/MIXED LOAD, ACTIVE WEAR,DELICATE& and SPEED
Dry "Temp"
You c(]n ch(]nge the temper(]ture of your dry cycle.
ANTI-BACTERIAL This option m(]y only be used with COTTONSor NORPIAL/PIlXEDLOAD cycles.This option
reduces (on some models) cert(]in types of b(]cteri(] by 99.9%, including: St(]phylococcus (]ureus,
Pseudomon(]s (]eruginos(] (]nd Klebsiell(] pneumoni(]e*. The (]nti-b(]cteri(]l process occurs when
high he(]t isused during (] portion of this drying cycle.
NOTE:Do not use this cycle on delic(]te f(]brics.
* The Anti-B(]cteri(]l Cycle isCertified by NSFIntemotion(]l (formerly Notional Sanitation Founda-
tion) to NSFProtocol P!54 Sonitizotion Performance of Residenti(]l Clothes Dryers.
NSF Protocol P154
Sanitization Performance ot
Residential Clothes Dwers
HIGH Forregul(]r to he(]vy cottons.
MEDIUM Forsynthetics, blends (]nd items I(]beled perm(]nent press.
LOW Fordelic(]tes, synthetics (]nd items I(]beled Tumble Dry Low.
EXTRA LOW Forlingerie (]nd speci(]l-c(]re f(]brics.
START
Press to st(]rt (] dry cycle. If the dryer is running, press it once (]nd it will p(]use the dryer.
Press it (]g(]in to resume the dry cycle.
Ply Cycle
Set up your f(]vorite combination of settings (]nd s(]ve them here for one touch rec(]ll.
These custom settings c(]n be set while (] cycle is in progress.
To store aPlY CYCLEcombination of settings:
1. Select your drying cycle.
2. Ch(]nge DRY"TEPIP",(]nd SENSORDRY"LEVEL" settings to fit your needs.
3. Select (]ny drying OPTIONSyou w(]nt.
4. Press(]nd hold the _ p(]d for three seconds to store your selection. A beep will sound (]nd the p(]d will
light up.
To recall your stored PlYCYCLEcombination:
Press the PlY CYCLEbutton before drying (] Io(]d.
To change your stored PlYCYCLEcombination:
Follow steps 1-4 in "To store a PlY CYCLEcombination of settings".
"CLEAN LINT FILTER" (message)
(Thismess(]ge represents only (] reminder (]nd does not (]lw(]ys (]ppe(]r when filter needs cle(]ning. The filter should be
cle(]ned (]fter every drying cycle iscomplete.)
This mess(]ge will dis(]ppe(]r (]fter the STARTbutton is pressed. Eventhough you m(]y h(]ve (]lre(]dy cle(]ned the filter
(before or (]fter the POWERbutton h(]s been pressed), the "CLEAN LINT FILTER"mess(]ge will still be displ(]yed until
the STARTbutton is (]ctiv(]ted.

About cycleoptions.
NOTE: Not all features are available on all dryer models. GEAppliances.com
EXTENDED
TUHBLE Extended Tumble
Minimizeswrinkles byadding approximately
60 minutes of no-heat tumbling after clothes
are dry. The beeperwill sound every two
minutes as a reminder to remove the clothes.
TheESTIMATEDTIMEREMAININGdisplay will
show 00.
The ExtendedTumble time does not get added
to the cycletime on the display
DAMP
ALERT Damp Alert
Thisoption causesthe dryer to beep when
clothes have dried to a damp level.Remove
items that you wish to hang dry.The
DAMPALERTwillonly beepwhen this option
isselected.
Removingclothes and hanging them when
they are damp can reduce the need to iron
some items.
DELAY
START Delay Start
Useto delay the start ofyour dryer.
!. Chooseyour dry cycleand any options.
2. PressDELAYSTART.You can increase
the delaytime in 1 hour increments using
the DELAYSTARTbutton.
3. Pressthe STARTpad to start
the countdown.
NOTES:
[] If the door is opened while the dryer is
in DELAYSTART,the countdown time will
not restart unless the door is closed and
STARThas been pressed again.
e
DRY
e-DRY
Reducesthe total energy consumption of
specific dryer cycles by adjusting certain heat
settings.
Note: Cycletimes will change when e-DRYis
selected.
This feature can be used with DELICATE&
ACTIVE WEAR, EASY CARE, NORMAL/MIXED
LOADS and COTTON&
Signal
Alertsyou that the cycle iscomplete.
Thebeeper will continue to sound every
minute for the next 5 minutes, until the
clothes have been removed. Theclothes
should be removed when the beeper goes
off sowrinkles don't set in.
PressSIGNALto select low, medium or high
volume, or to turn the beeper off.

About cycle options. NOTE:Not allfeatures are available on all dryer models.
Lock
You can lock the controls to prevent any
selections from being made. Youcan also lock
the controls after you have started a cycle.
Children cannot accidentally start the dryer
by touching pads with this option selected.
To lock the dryer, pressthe lock icon.To
unlock the dryer, pressand hold the lock icon
for 3 seconds.
The Lockicon next to the timer will light up
when the controls are locked.
Estimated Time Remaining
Displaysthe approximate time remaining until
the end of the cycle.
Asthe cycle begins,you will seean initial
approximate total cycletime in the display.
Then lightswill "race" in the display.This
means the dryer iscontinuously monitoring
the amount of moisture in the load.
The lights will continue until the dryer sensesa
low levelof moisture in the load.Atthat point,
the dryer will calculate and display
the approximate time remaining.
My Cycle
Tosave a favorite cycle,set the desired
settings and hold down the MYCYCLEbutton
for 3 seconds.A beep will sound to indicate
the cycle has been saved.
Touseyour custom cycle,press
the MYCYCLEbutton before drying a load.
Tochange the saved cycle,set the desired
settings and hold down the MYCYCLEbutton
for 3 seconds.
About dryer features.
Drum Lamp
Before replacing the light bulb, be sure to unplug the dryer power cord
or disconnect the dryer at the household distribution panel by removing
the fuse or switching off the circuit breaker. Reach above dryer opening
from inside the drum. Removethe bulb and replace with the same size bulb.
Note: Drum lamp only (and automatically) turns on when the dryer door isopen.
10
Drying Rack (onsome models)
A handy drying rack may be used for drying delicate items such as washable
sweaters. Place items flat on the drying rack and block such items as wool
sweaters and delicate fabrics. Dry with low heat.
To install the drying rack, pull up the lint filter slightly. Insert the drying rack into
the slots, then push the filter back down.
NOTE:
[] The drying rack is designed for use with the TIMED DRYcycles. Use with
sensor cycles may result in damp items or extended cycle times.
[] Do not use this drying rack when there are other clothes in the dryer, that are
not placed on the rack.

Reversing the door swing. GEApUio,ces.com
IMPORTANT NOTES:
[] Readthe instructions all the way through
before starting.
[] Handle parts carefully to avoid scratching
paint.
[] Set screws down by their related parts to
avoid using them in the wrong places.
[] Provide a non-scratching work surface
for the door.
[] Normal completion time to reverse
the door swing is 30-60 minutes.
IMPORTANT:Once you begin, do not move
the cabinet until door-swing reversal is
completed.
These instructions are for changing
the hinges from the right side to the left
side-if you ever want to switch them
back to the right side, follow these same
instructions and reverse all references
to the left and right.
TOOLSYOUWILL NEED
Adjustable Crescent Wrench
Phillips Head Screwdriver
y Knife or
n-Blade
Screwdriver
DOOR PARTS
Hinge Assembly
Hinge
Cover
Plastic Cover
A
5 - # 8 Screws
(door asm and front panel)
4 - # 8 Screws
(strike plate)
A
8 - # 8 Screws
(inner door, outer ring & hinge cover)
6 - # 8 Machine Screws
(inner door & hinge) 5 - Beauty Buttons
STEP-BY-STEPINSTRUCTIONS
Before You Start
Unplug the dryer from its electrical outlet.
11

Reversing the door swing.
STEP-BY-STEPINSTRUCTIONS(cont.)
Remove Door Assembly
2. Open the door to approximately 130 degrees.
Remove
,\\\
3. Remove the 2 screws starting from the bottom to the top. Make sure the door is
supported while removing the screws.
Top
\\ \\\
4. Loosen the top screw as shown. Unhook the door by lifting and pulling.
8-#8 Tap1 ng Screws 2 Beauty Buttons
6-# 8 Machine Tapping Screws
5. Placethe door on a soft protected flat surface so the inner door faces upward
(door resting on handle side). Remove the 8 tapping screws located around the
perimeter of the door outlining the gasket. Remove the 6 machine screws. Using a
putty knife or any other flat tool, remove the 2 beauty buttons and install them on
the opposite side.
Outer Door Assembly Remove Hinge end Cover
IMPORTANT: Note the location of the hinge (left or right) before removing.
Hi!qe Assembly Hinge Cover
6. With the screws removed, turn the door over and separate the outer door
assembly and hinge cover of the door from the door frame and set aside.
12

GEAppliances.com
/
STEP-BY-STEPINSTRUCTIONS(cont.)
Reinstall Hinge Assembly
7. Install the hinge assembly in the opposite side of the door as shown. Push
the hinge assembly in place until the hinge holes align with the door holes.
Machine
screws
oHold the hinge and door on their side with one hand and fasten the 6
machine screws us shown.
Hinge
Cover
Reinstall Hinge Cover
9. Insert the hinge cover. Align the hinge cover holes with the holes in the door.
//
//
//
/
/
!
10. Secure the hinge cover with 2 taping screws.
Tapping
Screws
13

Reversing the door swing.
STEP-BY-STEPINSTRUCTIONS(cont.)
Outer Door Reassemble Door Assembly
IMPORTANT:Make sure there is no dirt or any other foreign material in between the
window panes.
11.Placethe plastic outer door onto the inner door. Make sure that the handle part
of the outer door isopposite the hinge as shown.
Inner Door
12.Turn the door over and fasten the outer door to the inner door using the 6
tapping screws.
Beauty Buttons
Move Strike Bracket
13.Using a putty knife or any other flat tool, remove the 3 beauty buttons located on
the dryer where the door will be installed and install them on the opposite side.
Tapping
Screws 14.Switch the strike bracket and its cover to the opposite side by removing the
screws. Reinstall both on the opposite side.
Partially
Screw
/
/
Tighten All
Screws /
/
/
/
S
Reinstall Door Assembly
15.The door is now ready to be installed on the dryer. To ease this step,
the hinge has keyholes that allow a partially fastened screw to be used
as a hook.
Partially fasten a screw to the uppermost screw hole. Hook the door on the
partially fastened screw.
Fasten the hinge by installing the other 2 screws and tightening the partially
fastened screw above.
14

Loading and using the dryer.
Always follow the fabric manufacturer's care label when laundering.
FabricCareLabels
Below are fabric care label "symbols" that affect the clothing you will be laundering.
WASH LABELS
wash m
cycle Normal Permanent Press/ 6entle_/ Do not wash Do not wring
wrinkle resistant delicate Hand wash
Target Automatic
Front load Category Water Temperature Temperature Control
target water Tap Cold Inlet Water Temperature Not used
Cold 27°C/80°F Used
temnerature Warm 40°C/105°F Used
Hot S0°C/Z20°F Used
Sanitize 70°C/Z60°F Used
GEAppliances.com
DRY LABELS
om ,e
dry oonotdry
Do not tumble dry (used with
do not wash)
Heat
setting
rq
Dry
@DE3D
Normal Permanent Press/ Gentle/
wrinkle resistant delicate
® ®
High Medium Low No heat/air
Special _ _] [_ _
instructions Line dry/ Drip dry Dry fiat In the shade
hang to dry
BLEACH LABELS
symuols Any bleach 0nly non-chlorine bleach Donot bleach
(when needed) (when needed)
Sorting and Loading Hints
Asa general rule, if clothes are sorted
properly for the washer, they are sorted properly
for the dryer. Try also to sort items according to size.
For example, do not dry a sheet with socks or other
small items.
Do not add fabric softener sheets once the load
has become warm. They may cause fabric softener
stains. Bounce®Fabric Conditioner Dryer Sheets have
been approved for use in all GE Dryerswhen used in
accordance with the manufacturer's instructions.
Do not overload. This wastes energy and causes
wrinkling.
Do not dry the following items: fiberglass items,
woolens, rubber-coated items, plastics, items with
plastic trim and foam-filled items.
15

Loading and using the dryer,
Always follow the fabric manufacturer's care label when laundering.
Careand Cleaningof the Dryer
TheExterior: Wipe or dust any spills or washing
compounds with a damp cloth. Dryer control panel
and finishes may be damaged by some laundry
pretreatment soil and stain remover products. Apply
these products away from the dryer. Thefabric may
then be washed and dried normally. Damage to your
dryer caused by these products is not covered by
your warranty.
TheLint Filter'. Cleanthe lint
filter before each use.
The Exhaust Duct: Inspect and clean the exhaust
ducting at least once a year to prevent clogging.
A partially clogged exhaust can lengthen the drying
time.
Follow these steps:
Pull out the lint filter.
Moisten your fingers and
remove the captured lint.
Once clean, slidethe filter
back into position. Have a
qualified technician vacuum
the lint from the dryer once
a year.
NEVER OPERATE THE DRYER WITHOUT ITS FILTER
IN PLACE.
r-1-1Turn off electrical supply by disconnecting the
plug from the wall socket.
r21 Disconnect the duct from the dryer.
J-3]Vacuum the duct with the hose attachment and
reconnect the duct.
TheExhaust Hood: Checkwith a mirror that the inside
flaps of the hood move freely when operating. Make
sure that there isno wildlife (birds,insects,etc.)nesting
insidethe duct or hood.
Stainless Steel: To clean stainless steel surfaces
use a damp cloth with a mild, non-abrasive cleaner
suitable for stainless steel surfaces. Removethe
cleaner residue and then dry with a clean cloth.
The stainless steel used to make the dryer drum
provides the highest reliability available in a GEdryer.
If the dryer drum should be scratched or dented
during normal use, the drum will not rust or corrode.
These surface blemishes will not affect the function
or durability of the drum.
Dryer Interior and Duct: The interior of the
appliance and exhaust duct should be cleaned once
ayear by qualified service personnel.
16

Venting the dryer. GEApplioncescom
For the best drying performance, the dryer needs to be properly vented. The dryer will use more
energy end run longer if it is not vented to the below specificotions. Curefully follow the
detoils on Exhousting in the Instollotion Instructions.
[] Use only rigid metal 4" diameter ductwork inside the dryer cabinet and use only UL approved
transition ducting between the dryer and the home duct.
[] Do not use plastic or other combustible ductwork.
[] Use the shortest length possible.
[] Do not crush, kink or collapse the duct.
[] Avoid resting the duct on sharp objects.
[] Venting must conform to Iocol building codes.
Correct
Venting
m
m
Incorrect
Venting
17

Connecting Inlet Hoses.
"Y" Connector
\
To produce steam, the dryer must connect to the cold water supply. Sincethe
washer must also connect to the cold water, a "Y"connector isinserted to allow both
inlet hoses to make that connection at the same time.
NOTE:Use the new inlet hoses provided; never use old hoses.
Connect to Cold Water Supply
1. Turn the cold water faucet off. Remove the washer inlet hose from the washer fill
valve connector (cold).
2. Ensurethe rubber flat washer is in place and screw the female coupling of the
short hose onto the washer fill valve connector. Tighten by hand until firmly
seated.
3. Attach the female end of the "V" connector to the male coupling of the short
hose. Ensurethe rubber flat washer isin place. Tighten by hand until firmly
seated.
4. Insert the filter screen in the coupling of the wusher's inlet hose. Ifu rubber flat
washer is already in place remove it before installing the filter screen. Attach
this coupling to one mule end of the '"7" connector. Tighten by hand until firmly
seated.
5.
.
Ensurethe rubber flat washer is in place and attach the dryer's long inlet hose to
the other mule end of the '"7"connector. Tighten by hand until firmly seated.
Ensurethe rubber flat washer is in place and attach the other end of the dryer's
long inlet hose to the fill valve connector at the bottom of the dryer buck panel.
Tighten by hand until firmly seated.
7.
.
9.
Using pliers, tighten all the couplings with an additional two-thirds turn.
NOTE:Do not overtighten. Damage to the couplings may result.
Turn the water faucet on.
Checkfor leaks around the '"7"connector, faucet and hose couplings.
18

S!:acking. EAppliances.com
BEFOREYOU BEGIN
Readthese instructions completely and carefully.
[] IMPORTANT'.Savethese instructions for local
electrical inspector's use.
[] IMPORTANT'.Observeall governing codes and
ordinances.
[] Note to Installer - Be sure to leave these
instructions with the Consumer.
[] Note to Consumer - Keep these instructions
for future reference.
[] Installation must be performed by a qualified
installer.
[] Proper installation is the responsibility
of the installer.
FOR YOURSAFETY
AWARNING!
[]
[]
Electric Shock Hazard. Disconnect power before
installing. Failure to do so could result in serious
injury or death.
Potential Personal Injury. When stacking the
dryer, more than two people are recommended
to lift the dryer into position because of its
weight and size. Failure to do so could result in
personal injury or death.
[]
[]
Whenstacking the dryer, avoid tipping and
rupture of utility services. Dryer must be securely
attached to the washer. DONOTplace the
washer on top of the dryer. Failure to do so
could result in personal injury/death or property
damage.
Mobile Home or Manufactured Home Installation
- Stacking of a gas dryer is not permitted in a
mobile home or manufactured home.
MINIMUM CLEARANCEOTHERTHANALCOVEORCLOSET
INSTALLATION
Minimum clearance to combustible surfaces
and for air opening are: 0" both sides, 1" front, and
3" rear. Consideration must be given to provide
adequate clearance for installation and service.
ALCOVEORCLOSETINSTALLATION
[] If your dryer is approved for installation []
in an alcove or closet, it will be stated on
a label on the dryer back.
[]
[]
The dryer MUST be vented to the outdoors. Refer
to dryer Installation Instructions for details.
Minimum clearance between dryer cabinet and
adjacent walls or other surfaces is:
0" either side
3"front
3" rear
[]
Minimum vertical space from floor to overhead
cabinets, ceiling, etc. is 52".
Closet doors must be Iouvered or otherwise
ventilated and must contain a minimum
of 60 square inches of open area equally
distributed. If the closet contains both a washer
and a dryer, doors must contain a minimum
of 120 square inches of open area equally
distributed.
19

Stacking.
KITCONTENTS(optional kit GEFLSTACK)
I
Right Hand Bracket 4 Rubber Pads 4 #12 × 1" Screws
¢_09 /
Left Hand Bracket 4 #8 × 1/2" Screws
TOOLS YOU WILL NEED
Phillips Screwdriver Pliers Gloves
Open-Ended Wrench Level
INSTALLATIONPREPARATION
Remove the packaging.
Flatten the product carton to use as a pad
to lay the dryer down on its side. Continue using the
carton to protect the finished floor in front of the
installation location.
20
Other manuals for GFDN240
1
This manual suits for next models
3
Table of contents
Languages:
Other GE Dryer manuals

GE
GE Unitized Spacemaker WSM2420D User manual

GE
GE GFV40 User manual

GE
GE DPSB619GD User manual

GE
GE GFDN100EL Manual

GE
GE DCVH680EJBB - 27" Electric Dryer User manual

GE
GE DSLVR48GH User manual

GE
GE Model 591 User manual

GE
GE Profile DPSE810 User manual

GE
GE 333 User manual

GE
GE DDP1275F Installation instructions
Popular Dryer manuals by other brands

Miele
Miele PT 5136 OS Operating and installation instructions

Electrolux
Electrolux T4530 Service manual

Admiral
Admiral 3RAED3005TQ brochure

Samsung
Samsung DV15K6500GV user manual

Whirlpool
Whirlpool Electric and Gas Dryers installation instructions

Fisher & Paykel
Fisher & Paykel Intuitive DEIX1 user guide
