GE GE2110 User manual

GE
SERVICE MANUAL
1. Caution……………………………………………………………2
2. Specification………………………………………………………6
3. BOM List…………………………………………………………9
4. Alignment Procedure………………………………………….…34
5. Block Diagram……………………………………………………39
6. Schematic Diagram………………………………………………40
7. PCB Layout………….……………………………………………41
8. Exploded ViewDiagram………………………………………….42
This manual is the latest at the time of printing, and does not
include the modification which may be made after the printing, by
the constant improvement of product.
GE2110

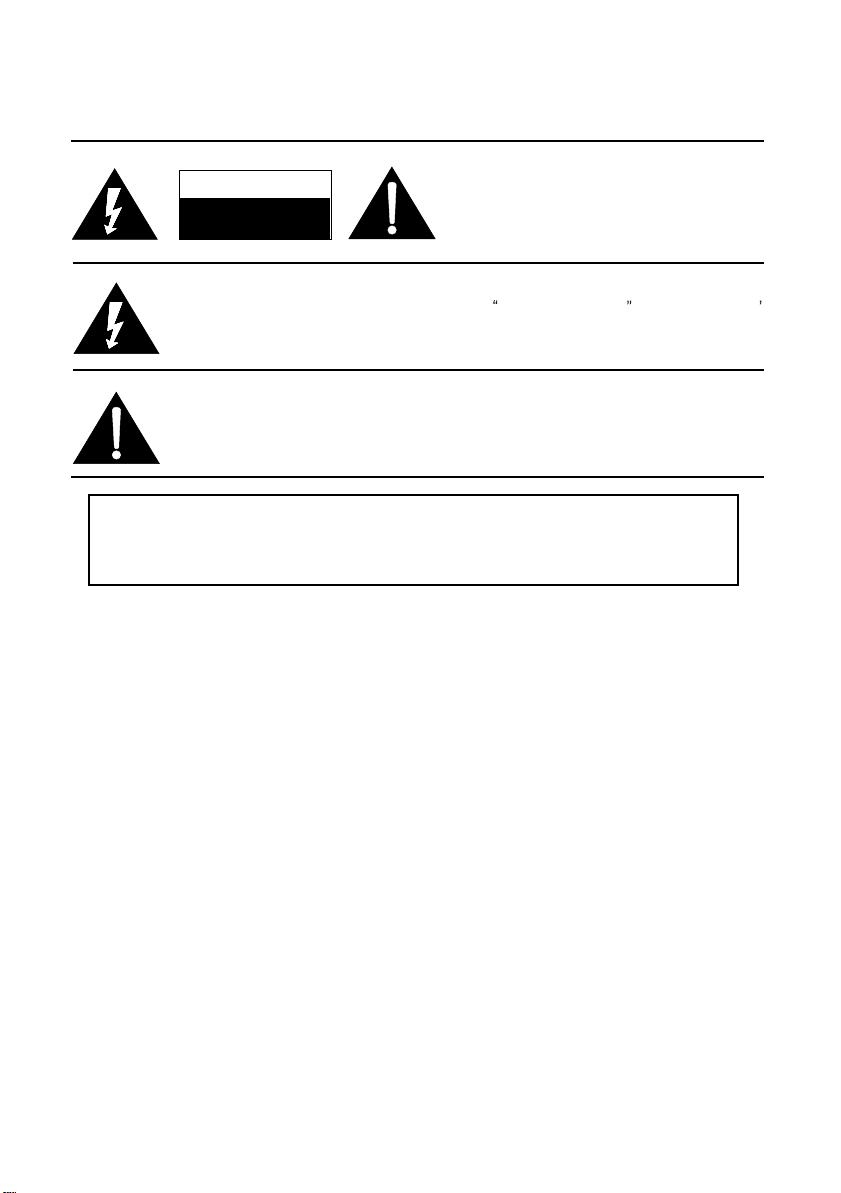

WARNING: TOREDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF
ELECTRICAL SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the product s
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CAUTION
RISKRISK OFOF ELECTRIELECTRICC
SHOCKSHOCK DODO NOTNOT OPEN.OPEN.
2
dangerous

3
FOR YOUR PERSONAL SAFETY
1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance.Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
CAUTION:
Read all of these instructions. Save these instructions for later use.Follow all Warnings and
Instructions marked on the audio equipment.
1. Read Instructions- All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
IMPORTANT SAFETY INSTRUCTIONS

4
PROTECTION AND LOCATION OF YOUR SET
11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water.If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
PROTECTION AND LOCATION OF YOUR SET
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits.When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.
ANTENNA
LEAD- IN WIRE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
NEC-NATIONAL ELECTRICAL CODE

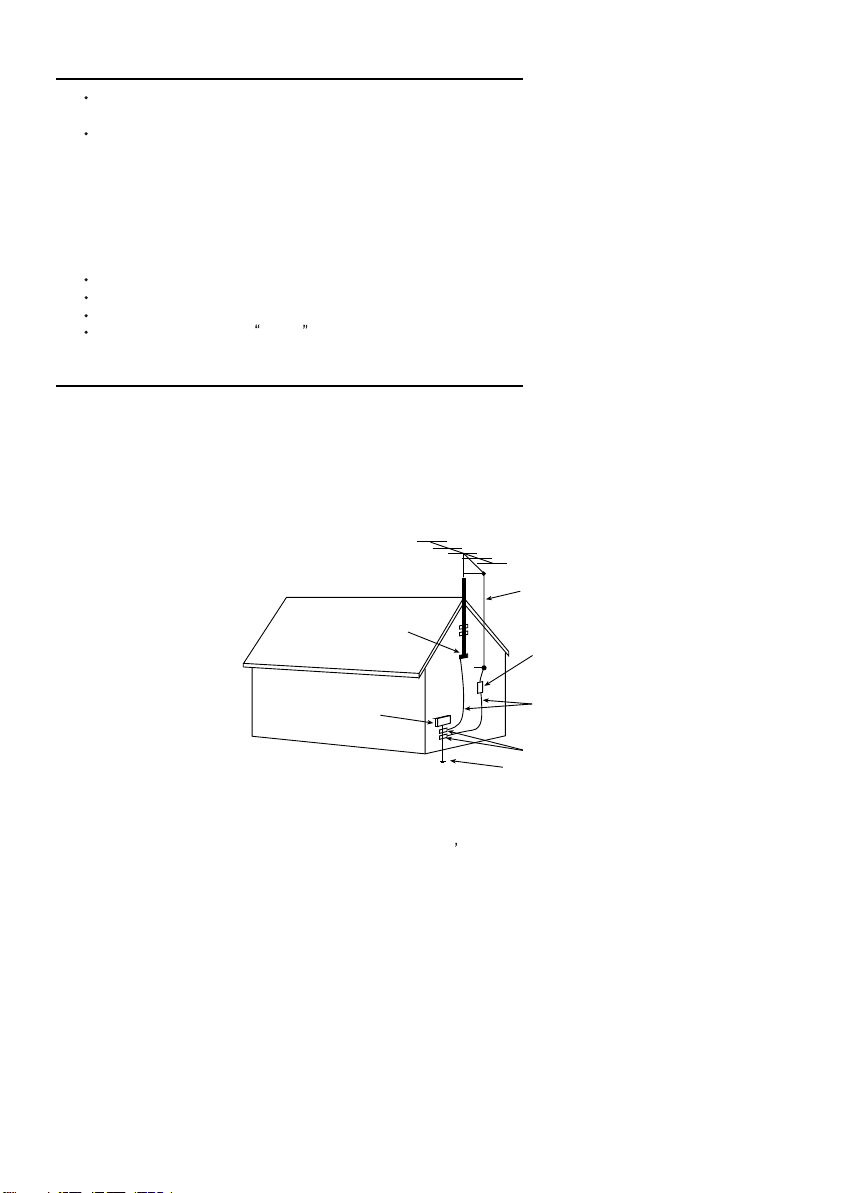

EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
a built-in
installer s

OPERATION OF YOUR SET
18. This television set should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
IF THE SET DOES NOT OPERATE PROPERLY
21. If you are unable to restore normal operation by following the detailed procedure in your operating instructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off.If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
FOR SERVICE AND MODIFICATION
24. Do not use attachments not recommended by the television set manufacturer as they may cause hazards.
25.When replacement parts are required, be sure the service technician has used replacement parts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
5
off

PFS2 FORMAT-1 Report
Date: 2003-11-26 13:32
ProductView......:
Re
p
ort b
y
............:
Specs / Products
SRF NO./ODF NO. ON43044001R3
MasterData
Customer Id BGH S.A.
Version 0.1
Status WG Archived
Brand GE
EAN \
UPC \
Rece
p
tion
+Tunin
g
-
p
resets/channels 181
+Tunin
g
- technolo
gy
PLL
+Tunin
g
- Indication ---
+Fre
q
Bands Full-Cable
+Channels VHF:2-13, UHF:14-69, CATV: 1-
13, A-W.W+1---W+84,A-5---A-
1,5A
+IF Fre
q
PICTURE 45.75MHz
+TV S
y
stems Off Ai
r
PAL NTSC M M/N
+Add S
y
stems Ext In ---
+TV S
y
stems Multi PAL NTSC
+Sound Systems AV STEREO
Picture - Processin
g
+Scan Standard
+Scan Modes 4:3
+Wide Screen Switchin
g
+Combfilter
+Picture Control 4 Picture Modes, Brightness,
Color, Contrast, Tint, Sharpness
Cont Var
+Pict Enhancement Black Stretch
+Pict Noise Reduction ---
Picture - Dis
p
la
y
+Dis
p
la
y
T
ype
DV - CRT - FSQ
+Screen Format 4:3
+Size
(
Visual
)
" - size/vis. cm 21"
+Deflection S
y
stem
(
CRT onl
y)
+Tube Technolo
gy
(
CRT onl
y)
Black Matrix, Iron
+CRT Defl
+CRT Gun Stand Gun
+CRT Ma
g
n field Normal
+Resolution
+Coatin
g
(
onl
y
for D.V. sets
)
+White Point
Sound
+Leaflet Power
+RMS Power Intern
+RMS Power Extern
+Surround Sound
+Sound Features Mute
+Sound Control Volume
Sound - S
p
eakers
+S
p
eaker confi
g
uration 2 speakers
+S
p
eakers used Normal Range
+S
p
eaker Size
User Interface
+Interface Name 2175
+Voice Control
+Menu Cursor Control
+Menu Colours
+Menu Lan
g
ua
g
es Spanish, English, Portuguese
+S
p
ecial Features
+O
p
erational Features
+PP Features
+Tuning/Install Features Auto Store, Factory Mode,
Language Selection, Service
Mode
Product:@
GE2110
2003-11-27 14:48 2175 PFS 1 of 3

Date: 2003-11-26 13:32
ProductView......:
Re
p
ort b
y
............:
Specs / Products Product:@
GE2110
+Clock/Timer Functions Sleep timer
+Local Controls Front
+Local Controls To
p
+Indicators - screen
+Indicators - front
+Numb of Loc Cont
(
incl Mains
)
7
+Number of Ind.
(
incl Mains
)
+Local Controls (Old) Channel +-, Tact Switch, Vol +-,
TV/AV, MENU
Remote Control
+Remote Control - sco
p
eTV
+Remote Control - t
yp
eStandard
+Remote Control - t
yp
en
r
E
+Remote Control - features
Connectors Rea
r
+Scart RGB+Y/C+CVBS
+Scart RGB+CVBS
+Scart CVBS+Y/C
+Com
p
onent In
(
Y/U/V
)
Cinch
+In Y/C+Cinch
(
CVBS+St
)
+In Y/C+Cinch
(
CVBS+Mo
)
+In Y/C+Cinch
(
St
)
+In BNC
(
CVBS
)
+In Cinch
(
CVBS+St
)
X
+In Cinch
(
CVBS+Mo
)
---
+Out Cinch
(
CVBS+St
)
X
+Out Cinch
(
CVBS+Mo
)
+Out Cinch Audio Stereo
+Out Cinch Audio Mono
+Out Cinch Dolb
y
Surround
+Di
g
Audio Out
+Louds
p
eakers
+Control Busses
+Feature Slot
+ITV Smart Port
+Terr. Antenna in 75 Ohms (F type)
Guide + IR Blaster Jack
Connectors Fron
t
+In Cinch
(
CVBS + St
)
+In Cinch
(
CVBS+Mo
)
+Head
p
hone Out
Connectors Side
+In Y/C + Cinch
(
CVBS+St
)
+In Y/C + Cinch Stereo
+In Cinch
(
CVBS + St
)
x
+IN Cinch
(
CVBS + Mo +St
)
+Head
p
hone Out
Connectors To
p
Connectors Mechanical
St
y
lin
g
+Cabinet Name 2175
+Confi
g
uration Symm
+Gra
p
hics/Lo
g
o's
+Cabinet Colour and Finish
+Mechanics
+S
p
eaker Visibilit
y
Standard
General
+Se
g
ment Standard 4:3
+Chassis M23
+Software Deliver
y
Mode
+Software Version
+Mains Volta
g
e110-240V
+Mains Fre
q
uenc
y
50/60Hz
+T
yp
e Mains Cord
Power Consum
p
tion
(
P
)
TV in On
Power Consum
p
tion SB in Watts Less than 10W
Power Consum
p
tion Semi SB in W
2003-11-27 14:48 2175 PFS 2 of 3

Date: 2003-11-26 13:32
ProductView......:
Re
p
ort b
y
............:
Specs / Products Product:@
GE2110
+Power in "ON" for
+Power in Standb
y
for
+Power in "OFF" for
Wei
g
ht
(
P
)
TV
(
incl. Packa
g
in
g)
Wei
g
ht
(
P
)
TV
(
excl. Packa
g
e
)
Wei
g
ht AVUnit excl Packa
g
in
g
+INDICATION on BACKCOVE
R
+Channel
Final E
q
ui
p
ment
+Packa
g
in
g
- methods
+Documents and manuals
+Lan
g
ua
g
es DFU
+Cables Su
pp
lied
+Antenna Su
pp
lied
+Stand Su
pp
lied
+Aux E
q
ui
p
m Su
pp
lied Batteries for RC (2 x AA)
Packa
g
in
g
- width cm
Packa
g
in
g
- hei
g
ht cm
Packa
g
in
g
- de
p
th cm
Miscellaneous
+EAN Indication
+A
pp
robation
+Tests
+Local Inte
g
ration
V
arious Perf. Param.
+Service Call-Rate
PIP/POP
+T
ype
No PIP/POP
+Features n/a
Di
g
ital Rece
p
tion
+Transmission
Built-in Data S
y
stem
+Text Standard
+
(
Tele
)
text Features
+Nbr bck
g
rnd
p
a
g
e / Mem Size
+Text Technolo
gy
+Di
g
ital Data handlin
g
+Pro
g
ram Guide
Built-in Clock/Timer
+T
ype
+Features
Built-in Radio
+T
ype
Built-in PC dis
p
la
y
+PC S
y
nch
+PC Control
Built-in DVD drive
+T
yp
e of Medium
+T
yp
e of Dec
k
Phased Out Items
+Tuner/Frontend
+Sensitivit
y
+CRT EHT
+Li
g
htnin
g
Protection NO
+Accoun
t
+XX
(
Radio Antenna in
)
+Non Volatile Memor
y
+In Y/C + Cinch
(
CVBS+Mo
)
Version of deck
2003-11-27 14:48 2175 PFS 3 of 3

Item No. Description Quantity Req. Designator Remarks
08-02109X-CR3 ASS'Y - CRT PARTS 1
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D501
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D502
11-0BF422-0BX TRANSISTOR BF422 (NPN) 1 Q501
11-0BF422-0BX TRANSISTOR BF422 (NPN) 1 Q503
11-0BF422-0BX TRANSISTOR BF422 (NPN) 1 Q505
11-A562TM-0BX TRANSISTOR 2SA562TM-0 1 Q507
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q502
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q504
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q506
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R515
18-CB0272-JNX RES. C.F. 2.7k OHM 1/6W +/-5% 1 R514
18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% 1 R501
18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% 1 R505
18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% 1 R510
18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% 1 R503
18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% 1 R508
18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% 1 R513
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R502
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R506
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R509
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R511
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R522
18-FE0272-JNX RES. M.O. 2.7K OHM 1/2W +/-5% 1 R519
18-FE0272-JNX RES. M.O. 2.7K OHM 1/2W +/-5% 1 R520
18-FE0272-JNX RES. M.O. 2.7K OHM 1/2W +/-5% 1 R521
18-FG0153-JHX RES. M.O. 15k OHM 2W +/-5% 1 R516
18-FG0153-JHX RES. M.O. 15k OHM 2W +/-5% 1 R517
18-FG0153-JHX RES. M.O. 15k OHM 2W +/-5% 1 R518
25-BLA100-M1X CAP. ELEC 10 UF 250V +/-20% 1 C504
26-AMK102-KRX CAP. CER 1000 pF 2KV +/-10% R 1 C505
9

Item No. Description Quantity Req. Designator Remarks
26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C509
26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C508
26-EBP471-JCX CAP. CER 470PF 50V +/-5% CH 1 C501
26-EBP471-JCX CAP. CER 470PF 50V +/-5% CH 1 C502
26-EBP471-JCX CAP. CER 470PF 50V +/-5% CH 1 C503
34-R100K2-1BX COIL CHOKE 10 UH +/-10% 1 L502
35-139730-00X FERR. BEAD BF60 2 FOR C508 (L505 & L506)
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 L504
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 L501
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 L503
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R504
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R507
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R512
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J503
46-10967W-01X PIN BASE *1 TJC1-1A 1 P501 FOR CRT GROUNDING
47-265540-0U7 SOCKET CRT GZS10-2-4 (C.B.) 1 S501
25-BCB471-M1X CAP. ELEC 470 UF 16V +/-20% 1 C506
08-02175X-AVY ASS'Y - SIDE AV BD 1
40-2175MU-SIC P.C.B. SIDE AV BD 1
46-30790H-06X HS 6P24 400 TJC3-6Y/SCN-6Y 1 P1104B FOR M.BD P904
47-RCA041-XX0 JACK RCA 3PH H=8MM YL WH RD/SW 1 P1101
08-02175X-FBY ASS'Y - FRONT CTL BD 1
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R1207
18-CB0152-JNX RES. C.F. 1.5k OHM 1/6W +/-5% 1 R1202
18-CB0182-JNX RES. C.F. 1.8K OHM 1/6W +/-5% 1 R1203
18-CB0272-JNX RES. C.F. 2.7k OHM 1/6W +/-5% 1 R1204
18-CB0432-JNX RES. C.F. 4.3K OHM 1/6W +/-5% 1 R1205
18-CB0622-JNX RES. C.F. 6.2k OHM 1/6W +/-5% 1 R1206
40-2175SX-FBA P.C.B. FRONT CTL BD 1
46-28246H-04X HS 4P 2468#24 200 TJC3-4Y/JC25-4Y 1 P1201 FOR M.BD S006
48-TAC001-XX0 TACT SWITCH 1 CH-
10

Item No. Description Quantity Req. Designator Remarks
48-TAC001-XX0 TACT SWITCH 1 CH+
48-TAC001-XX0 TACT SWITCH 1 VOL-
48-TAC001-XX0 TACT SWITCH 1 VOL+
48-TAC001-XX0 TACT SWITCH 1 MENU
48-TAC001-XX0 TACT SWITCH 1 VIDEO
48-TAC001-XX0 TACT SWITCH 1 DISP
08-02175X-PW4 ASS'Y - POWER PARTS 1
10-0001H8-FBX DIODE 1H8 (FAST RECOVERY) 1 D810
10-00RU3C-F0X DIODE RU3C (FAST RECTIFIER) 1 D824
10-0RL255-EBX DIODE RL255 (POWER RECTIFIER) 1 D801
10-0RL255-EBX DIODE RL255 (POWER RECTIFIER) 1 D802
10-0RL255-EBX DIODE RL255 (POWER RECTIFIER) 1 D803
10-0RL255-EBX DIODE RL255 (POWER RECTIFIER) 1 D804
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D832
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D807
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D805
10-79C8V2-DBX DIODE ZENER 8V2 1/2W 5% 1 D833
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q806
13-TDA168-46P IC TDA16846 (SMPS) 1 IC801
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R829
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R828
18-CB0182-JNX RES. C.F. 1.8K OHM 1/6W +/-5% 1 R804
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R827
18-CB0470-JNX RES. C.F. 47 OHM 1/6W +/-5% 1 R826A
18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R826
18-CB0563-JNX RES. C.F. 56K OHM 1/6W +/-5% 1 R812
18-CB0563-JNX RES. C.F. 56K OHM 1/6W +/-5% 1 R806
18-CB0752-JNX RES. C.F. 7.5K OHM 1/6W +/-5% 1 R810
18-CB0823-JNX RES. C.F. 82K OHM 1/6W +/-5% 1 R803
18-CD0101-JNX RES. C.F. 100 OHM 1/4W +/-5% 1 R808
18-CD0153-JNX RES. C.F. 15K OHM 1/4W +/-5% 1 R811
11

Item No. Description Quantity Req. Designator Remarks
18-CD0470-JNX RES. C.F. 47 OHM 1/4W +/-5% 1 R808A
18-CE0102-JNX RES. C.F. 1k OHM 1/2W +/-5% 1 R808B
18-EF0228-JGX RES. FUS. 0.22 0HM 1W +/-5% 1 R831
18-EF0228-JGX RES. FUS. 0.22 0HM 1W +/-5% 1 R832
18-FE0120-JNX RES. M.0. 12 OHM 1/2W +/-5% 1 R825
18-FG0121-JHX RES. M.O. 120 OHM 2W +/-5% 1 R854A
18-FG0153-JHX RES. M.O. 15k OHM 2W +/-5% 1 R824
18-FG0563-JHX RES. M.O. 56K OHM 2W +/-5% 1 R809
18-KE0475-JN1 RES. H. VOLT. CC 4.7M OHM 1/2W +/-5% 1 R805
18-KE0475-JN1 RES. H. VOLT. CC 4.7M OHM 1/2W +/-5% 1 R835
18-KE0475-JN1 RES. H. VOLT. CC 4.7M OHM 1/2W +/-5% 1 R835A
20-TR502H-5CX TRIMMER B5K HORIZ TYPE 1 VR801
22-PTC200-XX1 PTC 20 OHM +/-20% 1 RT801
25-315130-M1X CAP. ELEC 330UF 400V +/-20% 1 C809
25-343260-M1X CAR. ELEC 1 C845
25-BJG221-M1X CAP. ELEC 220 UF 160V +/-20% 1 C827
26-AIC221-KBX CAP. CER 220 PF 500V +/-10% B 1 C840
26-AIC221-KBX CAP. CER 220 PF 500V +/-10% B 1 C843
26-AIM103-KBX CAP. CER 0.01UF 500V +/-10% B 1 C826
26-AIM103-KBX CAP. CER 0.01UF 500V +/-10% B 1 C808
26-AMK221-JZX CAP. CER 220pF 2KV +/-5% SL 1 C839
26-AMK331-JZX CAP. CER 330 pF 2KV +/-5% SL 1 C830
26-AMK561-JZX CAP. CER 560 pF 2KVDC +/-5% SL 1 C819
26-AQK472-ZFX CAP. CER 4700PF 250VAC+80-20%F 1 C804
26-AQK472-ZFX CAP. CER 4700PF 250VAC+80-20%F 1 C805
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C844
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C846
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C841
26-EBP220-JZX CAP. CER 22PF 50V +/-5% SL TU 1 C810
26-EBP561-JCX CAP. CER 560PF 50V +/-5% CH 1 C808A
27-MBC224-J0X CAP. M.P.E 0.22UF 63V +/-5% 1 C814
12

Item No. Description Quantity Req. Designator Remarks
27-MHM104-K0X CAP. METAL P.E. 0.1UF 400V 10% 1 C803
27-MQW683-M0X CAP.M.PE 0.068UF 250VAC +/-20% 1 C818
27-PBC102-J0X CAP. P.E 0.001UF 63V +/-5% 1 C815
27-PBC103-J0X CAP. P.E. 0.01UF 63V +/-5% 1 C817
27-PBC103-J0X CAP. P.E. 0.01UF 63V +/-5% 1 C812
27-PBC222-J0X CAP. P.E 0.0022UF 63V +/-5% 1 C811
34-R101K2-1BX COIL CHOKE 100 UH +/-10% 1 L804
35-139730-00X FERR. BEAD BF60 2 FOR L801
35-139730-00X FERR. BEAD BF60 2 FOR D831 (L810 & L811)
35-139730-00X FERR. BEAD BF60 2 FOR D830 (L808 & L809)
35-237250-00X FERR. BEAD HF70 4.5X5.0 2 FOR D824 (L806 & L807)
41-AJ0125-BEE WIRE BARE JUMPER 12.5MM 1 L801 FOR FERR. BEAD BF60 X2
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J810
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J811
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J812
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J813
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J814
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J815
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J816
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 J817
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J803
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J801
41-WJ0150-B00 WIRE BARE JUMPER 15MM 1 J804
41-WJ0175-B00 WIRE BARE JUMPER 17.5MM 1 J802B
46-10962W-02X PIN BASE *2 TJC2-2A 1 P801 FOR DEGAUSSING COIL
66-20516X-0B0 FUSE HOLDER 2 FOR F801
67-339070-1E7 SPRING CLIP 1 FOR Q801
67-H28649-3A0 HEAT SINK 1 FOR Q801
11-SK2645-0AX TRANSISTOR 2SK2645-01MR (POWER 1 Q801
11-2SD882-0AX TRANSISTOR 2SD882-P (NPN) 1 Q805
26-APK102-ME4 CAP. CER 1000PF 400VAC+/-20% E 1 C835
13

Item No. Description Quantity Req. Designator Remarks
26-APK102-ME4 CAP. CER 1000PF 400VAC+/-20% E 1 C835A
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D831
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D830
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D806
36-LIF010-AX0 LINE FILTER 1 T801
36-TRF020-AX2 TRANSFORMER CONV. BCK-4001-34d 1 T802
18-KE0105-JN3 RES. H.VOLT. CC 1M OHM 1/2W +/-5% 1 R807
18-KE0105-JN3 RES. H.VOLT. CC 1M OHM 1/2W +/-5% 1 R802
27-AQT224-MVH CAP. M.PP 0.22 UF 275VAC 20% 1 C802
25-BDA471-M1X CAP. ELEC 470 UF 25V +/-20% 1 C842
25-BFB470-M1X CAP. ELEC 47 UF 50V +/-20% 1 C816
35-139730-00X FERR. BEAD BF60 1 FOR Q801 "S"
50-02000D-1GS1 FUSE 2.0AT 250VAC 5mmX20mm 1 F801
22-NTC479-XX0 NTC 4.7 OHM +/-18% NTC4.7D2-14 1 R801B
25-BFB470-M1X CAP. ELEC 47 UF 50V +/-20% 1 C847A [(+) TO C846A]
46-28559W-02X PIN BASE *2 TJC1-2A 1 P802
36-LIF001-XX0 LINE FILTER LCL1602 1 T803
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 6 FOR T802
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 2 FOR C827
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 2 FOR D824
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 2 FOR L804
66-343730-0B0 HOLLOW RIVET 1.6X3.0XL3.2 3 FOR RT801
66-382330-0B7 RIVET 2.0X3.7X3.5 2 FOR P801
51-DC0220-0QB01 POWER CORD 1
48-POW007-AX0 SWITCH POWER PS5E-B 1 S801
25-BCB471-M1X CAP. ELEC 470 UF 16V +/-20% 1 C850
08-02175X-RCY ASS'Y - REAR CABINET 1
54-114000-00X FELT TAPE (150mmX19mmX0.3mm) 10 STICK ON R.CAB
58-2175MP-JKT PLATE MODEL NO. 1
58-347960-1UI INLAY TERMINAL BD(RCA-6) 1
59-130460-00X RUBBER PAD (25mmX7mm) 2 STICK ON R.CAB (FOOTING)
14

Item No. Description Quantity Req. Designator Remarks
62-314340-0UN FBT SUPPORTER HIPS-KINGFA 113 (VO) 1 FOR FBT
63-F30100-BT3 S/T SCREW F 3 X 10 BT (BLACK) 2 MTG RCA JACK & REAR CAB.
63-W30100-AB4 S/T SCREW W 3 X 10 AB 2 MTG SUPPORTOR & REAR CAB
55-356640-1CN REAR CABINET (AND GAME BOX) 1
63-B40300-AB2 S/T SCREW B 4 X 30 AB 4 MTG FRONT & REAR CAB
08-2175SX-MA5 ASS'Y - MAIN BD 1
07-457FF5-NX7 ALPS FS TUNER TEDH9-249A 1 TU101
10-1N4001-EBX DIODE 1N4001 (RECTIFIER) 1 D301
10-1N4002-EBX DIODE 1N4002 (RECTIFIER) 1 D411
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D206
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D312
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D313
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D314
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D315
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D381
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D412
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D601
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D452
10-79C3V9-DBX DIODE ZENER 3V9 1/2W 5% 1 D901
10-79C5V1-DBX DIODE ZENER 5V1 1/2W 5% 1 D004
10-79C5V6-DBX DIODE ZENER 5V6 1/2W 5% 1 D902
10-79C9V1-DBX DIODE ZENER 9V1 1/2W 5% 1 D404
11-DD1555-0AX TRANSISTOR 3DD1555 1 Q402
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q007
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q203
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q220
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q601
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q004
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q005
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q006
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q205
15

Item No. Description Quantity Req. Designator Remarks
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q902
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q904
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q906
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q920
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q921
11-SC2482-0BX TRANSISTOR 2SC2482 1 Q401
11-SC3779-DBX TRANSISTOR 2SC3779D (RF AMPL) 1 Q101
13-000040-53P IC 4053 (ANALOG SW) 1 IC901
13-000040-66P IC 4066 (ANALOG SW.) 1 IC902
13-00M24C-04P IC 4K EEPROM M24C04-BN6 1 IC002
13-0TA840-3KS IC TA8403K (VERT. OUTPUT) 1 IC301
13-A09V01-TOP IC TCL-A09V01-TO 1 IC001
13-TB1238-ANP IC TB1238AN (P/SIF/VCD) CH/JP 1 IC201
13-TDA705-7AS IC TDA7057AQ (R/L AUDIO O/P) 1 IC603
14-LED05R-XX1 LED RED FB205 1 D051
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R107
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R027
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R041
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R054
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R129
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R226
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R227
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R238
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R281
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R285
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R301
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R302
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R411
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R913
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R927
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R933
16

Item No. Description Quantity Req. Designator Remarks
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R934
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R009
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R017
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R019
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R020
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R028
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R033
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R034
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R038
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R043
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R047
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R050
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R222
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R415
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R915
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R926
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R928
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R930
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R931
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R953
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R042
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R035
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R037
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R294
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R919
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R952
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R917
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R916
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R918
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R951
18-CB0123-JNX RES. C.F. 12k OHM 1/6W +/-5% 1 R231
17

Item No. Description Quantity Req. Designator Remarks
18-CB0123-JNX RES. C.F. 12k OHM 1/6W +/-5% 1 R904
18-CB0123-JNX RES. C.F. 12k OHM 1/6W +/-5% 1 R906
18-CB0123-JNX RES. C.F. 12k OHM 1/6W +/-5% 1 R908
18-CB0123-JNX RES. C.F. 12k OHM 1/6W +/-5% 1 R909
18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R109
18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R401
18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R234
18-CB0152-JNX RES. C.F. 1.5k OHM 1/6W +/-5% 1 R267
18-CB0152-JNX RES. C.F. 1.5k OHM 1/6W +/-5% 1 R268
18-CB0152-JNX RES. C.F. 1.5k OHM 1/6W +/-5% 1 R269
18-CB0153-JNX RES. C.F. 15k OHM 1/6W +/-5% 1 R046
18-CB0153-JNX RES. C.F. 15k OHM 1/6W +/-5% 1 R381
18-CB0181-JNX RES. C.F. 180 OHM 1/6W +/-5% 1 R914
18-CB0181-JNX RES. C.F. 180 OHM 1/6W +/-5% 1 R932
18-CB0182-JNX RES. C.F. 1.8K OHM 1/6W +/-5% 1 R080
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R215
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R216
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R217
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R251
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R230
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R032
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 J410
18-CB0224-JNX RES. C.F. 220k OHM 1/6W +/-5% 1 R232
18-CB0241-JNX RES. C.F. 240 OHM 1/6W +/-5% 1 R270
18-CB0303-JNX RES. C.F. 30K OHM 1/6W +/-5% 1 R210
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R048
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R049
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R219
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R220
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R239
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R910
18

Item No. Description Quantity Req. Designator Remarks
18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R236
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R209
18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% 1 R622
18-CB0334-JNX RES. C.F. 330K OHM 1/6W +/-5% 1 R937
18-CB0334-JNX RES. C.F. 330K OHM 1/6W +/-5% 1 R938
18-CB0363-JNX RES. C.F. 36K OHM 1/6W +/-5% 1 R304
18-CB0392-JNX RES. C.F. 3.9K OHM 1/6W +/-5% 1 R280
18-CB0392-JNX RES. C.F. 3.9K OHM 1/6W +/-5% 1 R903
18-CB0392-JNX RES. C.F. 3.9K OHM 1/6W +/-5% 1 R905
18-CB0392-JNX RES. C.F. 3.9K OHM 1/6W +/-5% 1 R920
18-CB0392-JNX RES. C.F. 3.9K OHM 1/6W +/-5% 1 R921
18-CB0432-JNX RES. C.F. 4.3K OHM 1/6W +/-5% 1 R266
18-CB0470-JNX RES. C.F. 47 OHM 1/6W +/-5% 1 R061
18-CB0470-JNX RES. C.F. 47 OHM 1/6W +/-5% 1 R026
18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R110
18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R912
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 J004 - FOR P8/IC001
18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R454
18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 1 R036
18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 1 R380
18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 1 R306A
18-CB0560-JNX RES. C.F. 56 OHM 1/6W +/-5% 1 R112
18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% 1 R247
18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% 1 R292
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R040
18-CB0682-JNX RES. C.F. 6.8K OHM 1/6W +/-5% 1 R029
18-CB0682-JNX RES. C.F. 6.8K OHM 1/6W +/-5% 1 R030
18-CB0682-JNX RES. C.F. 6.8K OHM 1/6W +/-5% 1 R031
18-CB0683-JNX RES. C.F. 68K OHM 1/6W +/-5% 1 R307
18-CB0750-JNX RES. C.F. 75 OHM 1/6W +/-5% 1 R911
18-CB0750-JNX RES. C.F. 75 OHM 1/6W +/-5% 1 R902
19

Item No. Description Quantity Req. Designator Remarks
18-CB0750-JNX RES. C.F. 75 OHM 1/6W +/-5% 1 R907
18-CB0751-JNX RES. C.F. 750 OHM 1/6W +/-5% 1 R081
18-CB0821-JNX RES. C.F. 820 OHM 1/6W +/-5% 1 R273
18-CB0912-JNX RES. C.F. 9.1K OHM 1/6W +/-5% 1 R073
18-CD0100-JNX RES. C.F. 10 OHM 1/4W +/-5% 1 R039
18-CD0183-JNX RES. C.F. 18K OHM 1/4W +/-5% 1 R412A
18-CE0121-JNX RES. C.F. 120 OHM 1/2W +/-5% 1 R221
18-CE0222-JNX RES. C.F. 2.2k OHM 1/2W +/-5% 1 R310A
18-EF0109-JGX RES. FUS. 1 OHM 1W +/-5% (LS) 1 R409
18-EF0109-JGX RES. FUS. 1 OHM 1W +/-5% (LS) 1 R405
18-EF0109-JGX RES. FUS. 1 OHM 1W +/-5% (LS) 1 R403
18-EF0109-JGX RES. FUS. 1 OHM 1W +/-5% (LS) 1 R841
18-EF0109-JGX RES. FUS. 1 OHM 1W +/-5% (LS) 1 R407
18-FF0103-JGX RES. M.O. 10k OHM 1W +/-5% 1 R413
18-FF0103-JGX RES. M.O. 10k OHM 1W +/-5% 1 R404
18-FF0189-JGX RES. M.O. 1.8 OHM 1W +/-5% 1 R305
18-FF0391-JGX RES. M.O. 390 OHM 1W +/-5% 1 R336
18-FF0472-JGX RES. M.O. 4.7K OHM 1W +/-5% 1 R408
18-FG0681-JHX RES. M.O. 680 OHM 2W +/-5% 1 R441
25-BHB100-M1X CAP. ELEC 10 UF 100V +/-20% 1 C420
25-BJA470-M1X CAP. ELEC 47 UF 160V +/-20% 1 C411
25-BLA100-M1X CAP. ELEC 10 UF 250V +/-20% 1 C408
25-GFB109-K1X CAP. ELEC 1UF 50V +/-10% 1 C220
25-GFB229-K1X CAP. ELEC 2.2UF 50V +/-10% 1 C305
26-AIC102-KBX CAP. CER 1000 PF 500V +/-10% B 1 C401
26-AIC332-KBX CAP. CER 3300 PF 500V +/-10% B 1 C405
26-AIC391-KBX CAP. CER 390 PF 500V +/-10% B 1 C407
26-AIC391-KBX CAP. CER 390 PF 500V +/-10% B 1 C412
26-AIC391-KBX CAP. CER 390 PF 500V +/-10% B 1 C414
26-AMK221-JZX CAP. CER 220pF 2KV +/-5% SL 1 C402
26-EBP100-JCX CAP. CER 10PF 50V +/-5% CH 1 C201
