Installation Instructions

IMPORTANT SAFETY INSTRUCTIONS
This product requires a three-prong grounded
outlet. The installer must perform a ground continuity
check on the power outlet box before beginning the
installation to insure that the outlet box is properly
grounded. If not properly grounded, or if the
outlet box does not meet electrical requirements
noted (under ELECTRICAL REQUIREMENTS),
a qualified electrician should be employed to
correct any deficiencies.
CAUTION: For personal
safety, remove house fuse
or open circuit breaker
before beginning installation
to avoid severe or fatal
shock injury.
CAUTION: For personal safety, the mounting surface
must be capable of supporting the cabinet load, in
addition to the added weight of this 63-85 pound
product, plus additional oven loads of up to 50 pounds
or a total weight of 113-135 pounds.
CAUTION: For personal safety, this product cannot
be installed in cabinet arrangements such as an island or
a peninsula. It must be mounted to BOTH a top cabinet
AND a wall.
NOTE: For easier installation and personal safety, it is
recommended that two people install this product.
IMPORTANT—PLEASE READ CAREFULLY. FOR
PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED TO AVOID SEVERE OR
FATAL SHOCK.
The power cord of this appliance is equipped with
a three-prong (grounding)
plug which mates with
a standard three-prong
(grounding) wall receptacle
to minimize the possibility
of electric shock hazard
from this appliance.
You should have the wall receptacle and circuit checked
by a qualified electrician to make sure the receptacle is
properly grounded.
Where a standard two-prong wall receptacle is
encountered, it is very important to have it replaced
with a properly grounded three-prong wall receptacle,
installed by a qualified electrician.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT,
DEFORM, OR REMOVE ANY OF THE PRONGS
FROM THE POWER CORD. DO NOT USE WITH
AN EXTENSION CORD.
3
ELECTRICAL
REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz, 15 amps, and
1.70 kilowatts. This product must be connected to
a supply circuit of the proper voltage and frequency.
Wire size must conform to the requirements of the
National Electrical Code or the prevailing local code
for this kilowatt rating. The power supply cord and
plug should be brought to a separate 15 to 20 ampere
branch circuit single grounded outlet. The outlet box
should be located in the cabinet above the oven. The
outlet box and supply circuit should be installed by
a qualified electrician and conform to the National
Electrical Code or the prevailing local code.
Insure proper
ground exists
before use
Installation Instructions

4
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH x USED = LENGTH
Roof Cap 24 Ft. x (1) = 24 Ft.
12 Ft. Straight Duct 12 Ft. x (1) = 12 Ft.
(6″Round)
Rectangular-to-Round 5 Ft. x (1) = 5 Ft.
Transition Adaptor*
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood. Total Length = 41 Ft.

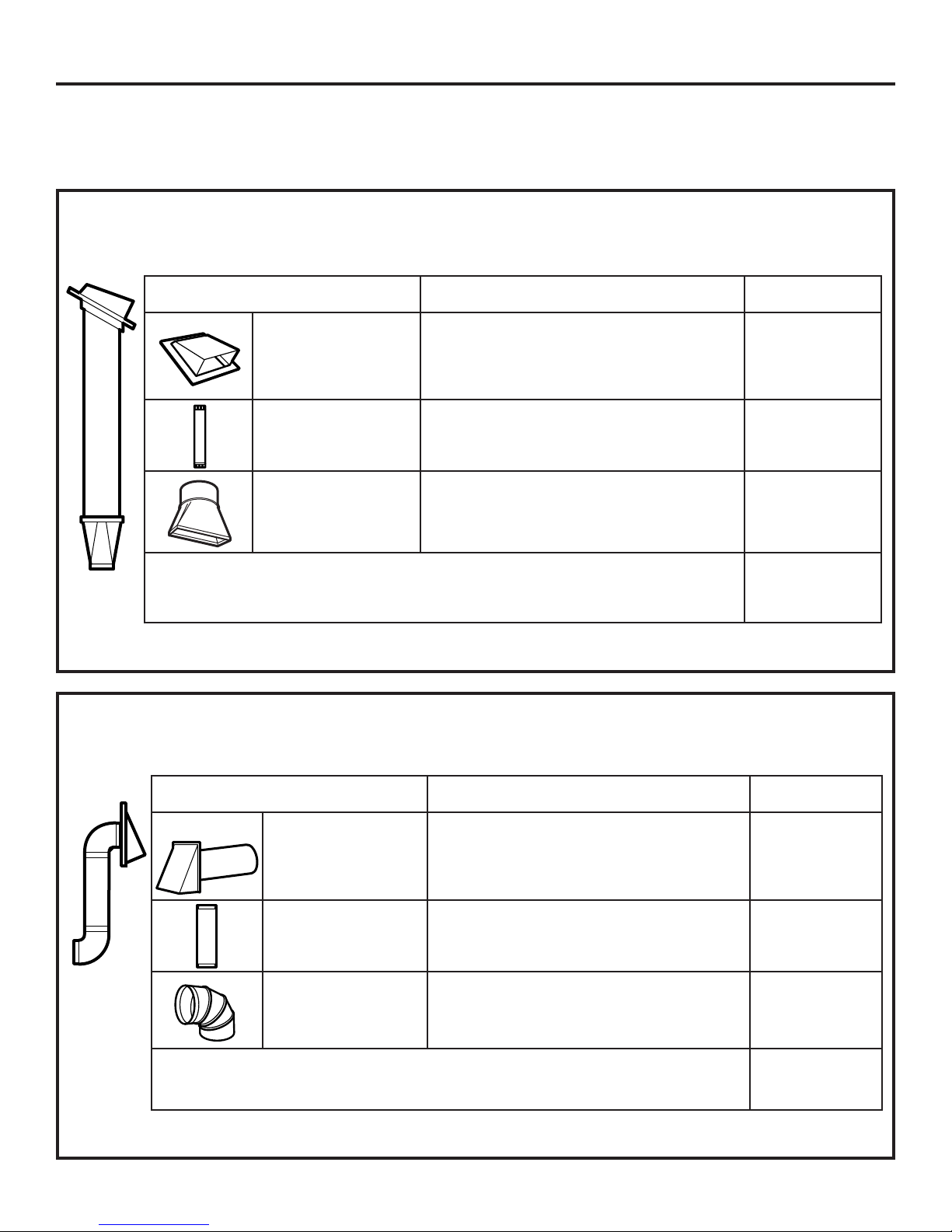

HOOD EXHAUST

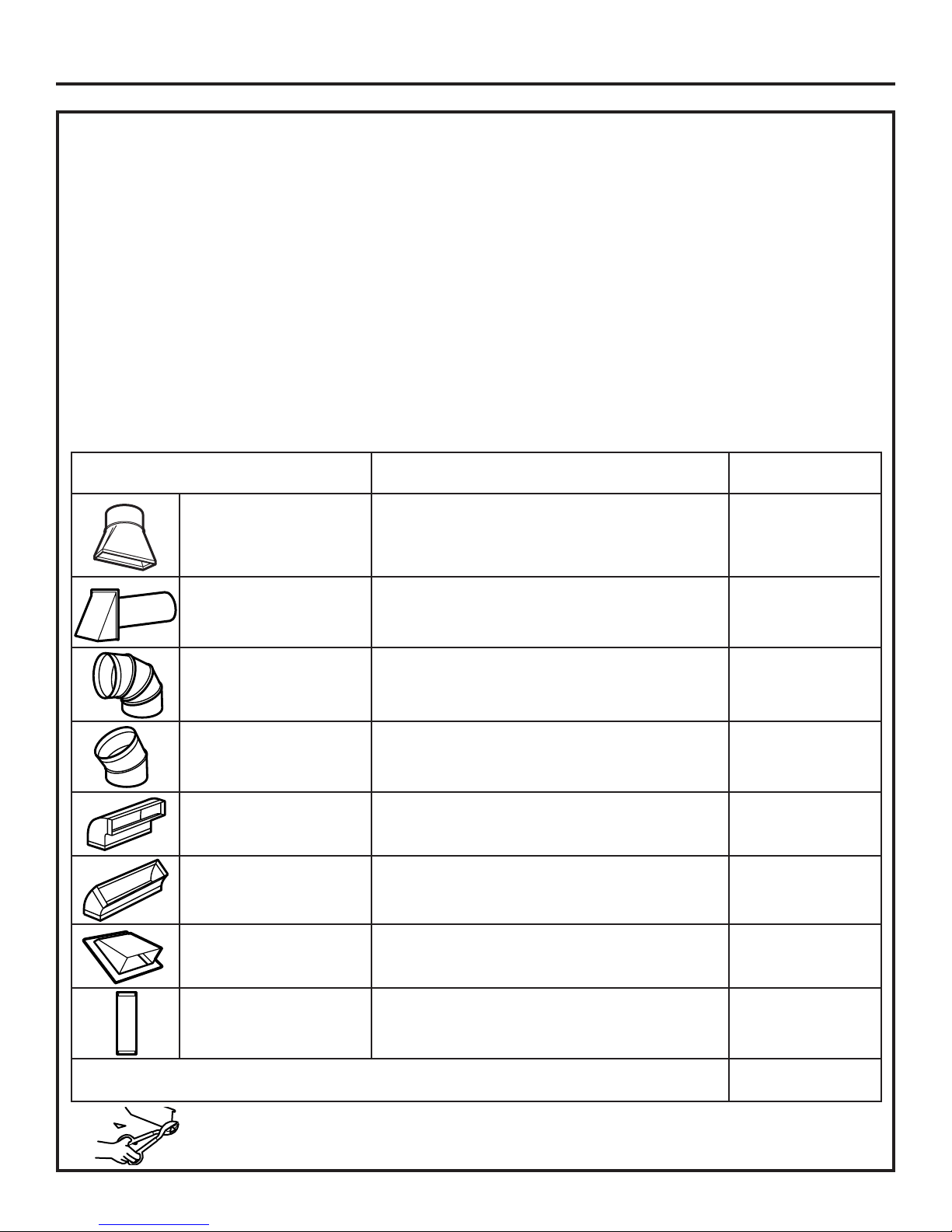

The following chart describes an example of one possible
ductwork installation.
NOTE: Read these next two pages only if you plan to vent your exhaust to the outside.
If you plan to recirculate the air back into the room, proceed to page 6.
OUTSIDE TOP EXHAUST (EXAMPLE ONLY)
NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared
at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.
*IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper
will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.
The following chart describes an example of one possible
ductwork installation.
Installation Instructions
OUTSIDE BACK EXHAUST (EXAMPLE ONLY)
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH* x USED = LENGTH
Wall Cap 40 Ft. x (1) = 40 Ft.
3 Ft. Straight Duct 3 Ft. x (1) = 3 Ft.
(31⁄4″x 10″Rectangular)
90° Elbow 10 Ft. x (2) = 20 Ft.
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood.

EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH x USED = LENGTH
Rectangular-to-Round 5 Ft. x ( ) = Ft.
Transition Adaptor*
Wall Cap 40 Ft. x ( ) = Ft.
90° Elbow 10 Ft. x ( ) = Ft.
45° Elbow 5 Ft. x ( ) = Ft.
90° Elbow 25 Ft. x ( ) = Ft.
45° Elbow 5 Ft. x ( ) = Ft.
Roof Cap 24 Ft. x ( ) = Ft.
Straight Duct 6″Round or 1 Ft. x ( ) = Ft.
31⁄4″x 10″Rectangular
Total Ductwork = Ft.
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any
vent hood.
* IMPORTANT: If a rectangular-to-round transition
adaptor is used, the bottom corners of the damper
will have to be cut to fit, using the tin snips, in
order to allow free movement of the damper .
NOTE: If you need to install ducts, note that the total
duct length of 31⁄4″x 10″rectangular or 6″diameter
round duct should not exceed 140 equivalent feet.
Outside ventilation requires a HOOD EXHAUST DUCT.
Read the following carefully.
NOTE: It is important that venting be installed using
the most direct route and with as few elbows as possible.
This ensures clear venting of exhaust and helps prevent
blockages. Also, make sure dampers swing freely and
nothing is blocking the ducts.
Exhaust connection:
The hood exhaust has been designed to mate with
a standard 31⁄4″x 10″rectangular duct.
If a round duct is required, a rectangular-to-round
transition adaptor must be used. Do not use less than
a 6″diameter duct.
Maximum duct length:
For satisfactory air movement, the total duct length of
31⁄4″x 10″rectangular or 6″diameter round duct should
not exceed 140 equivalent feet.
Elbows, transitions, wall and roof caps, etc.,
present additional resistance to airflow and are equivalent
to a section of straight duct which is longer than their
actual physical size. When calculating the total duct
length, add the equivalent lengths of all transitions and
adaptors plus the length of all straight duct sections.
The chart below shows you how to calculate total
equivalent ductwork length using the approximate feet
of equivalent length of some typical ducts.
5
Installation Instructions

PART QUANTITY
Top Cabinet 1
Template
Rear Wall 1
Template
Installation 1
Instructions
Separately 2
Packed
Grease
Filters
6
•If the unit is damaged in shipment, return the
unit to the store in which it was bought for repair
or replacement.
•If the unit is damaged by the customer, repair or
replacement is the responsibility of the customer.
•If the unit is damaged by the installer (if other
than the customer), repair or replacement must
be made by arrangement between customer and
installer.
DAMAGE – SHIPMENT/
INSTALLATION PARTS INCLUDED
ADDITIONAL PARTS
Installation Instructions
PART QUANTITY
Wood Screws 2
(1⁄4″x 2″)
Toggle Bolts (and 4
wing nuts) (1⁄4″x 3″)
Self-aligning Machine 3
Screws (1⁄4″-28 x 31⁄4″) 2 (JVM1790 only)
Self-aligning Machine
1 (JVM1790 only)
Screw (1⁄4″-28 x 25⁄8″)
Nylon Grommet 2
(for metal cabinets)
Exhaust Adaptor 1
Damper 1
Metal Screws 1 black
(1⁄8″x 1⁄2″) 2 bronze
Power Cord Strap 1
(plastic)
PARTS INCLUDED
You will find the installation hardware contained in
a packet with the unit. Check to make sure you have
all these parts.
NOTE: Some extra parts are included.
HARDWARE PACKET
12″
4″
REAR WALLTEMPLATE

1/4″ TOEDGE
F. CUT OUT FOR HORIZONTAL
OUTSIDE EXHAUST

7
TOOLS YOU WILL NEED
# 1 and #2 Phillips screwdriver Pencil
Ruler or tape measure
and straight edge Carpenter square
(optional)
Tin snips (for cutting
damper, if required)
Electric drill with 3⁄16″, 7⁄16″,
1⁄2″and 5⁄8″drill bits
Hammer (optional)
Stud finder or
Filler blocks or scrap
wood pieces, if needed
for top cabinet spacing
(used on recessed bottom
cabinet installations only)
Gloves
Saw (saber, hole or keyhole)
Level Duct and masking tape
MOUNTING SPACE
NOTES:
•The space between the cabinets must be 30″wide
and free of obstructions.
•If the space between the cabinets is greater
than 30″, a Filler Panel Kit may be used to fill
in the gap between the oven and the cabinets.
Your Owner’s Manual contains the kit number
for your model.
•This oven is for installation over ranges up to
36″wide.
•If you are going to vent your oven to the outside,
see Hood Exhaust Section for exhaust duct
preparation.
•When installing the oven beneath smooth, flat
cabinets, be careful to follow the instructions
on the top cabinet template for power cord
clearance.
•The depth of the opening cannot be more than
13-1/2″.
Backsplash
66″or more
from the floor
to the top of
the oven
30″
2″
30″
min.
16-1⁄4″
Bottom edge of
cabinet needs to
be 30″or more
from the cooking
surface
Installation Instructions
Scissors
(to cut template, if necessary)
Safety goggles

8
Find the studs, using one of the following
methods:
A. Stud finder—a magnetic device which
locates nails. OR
B. Use a hammer to tap lightly across the
mounting surface to find a solid sound.
This will indicate a stud location.
After locating the stud(s), find the center by
probing the wall with a small nail to find the
edges of the stud. Then place a mark halfway
between the edges. The center of any adjacent
studs should be 16"or 24 ″from this mark.
Draw a line down the center of the studs.
THE OVEN MUST BE CONNECTED TO AT LEAST
ONE WALL STUD.
1

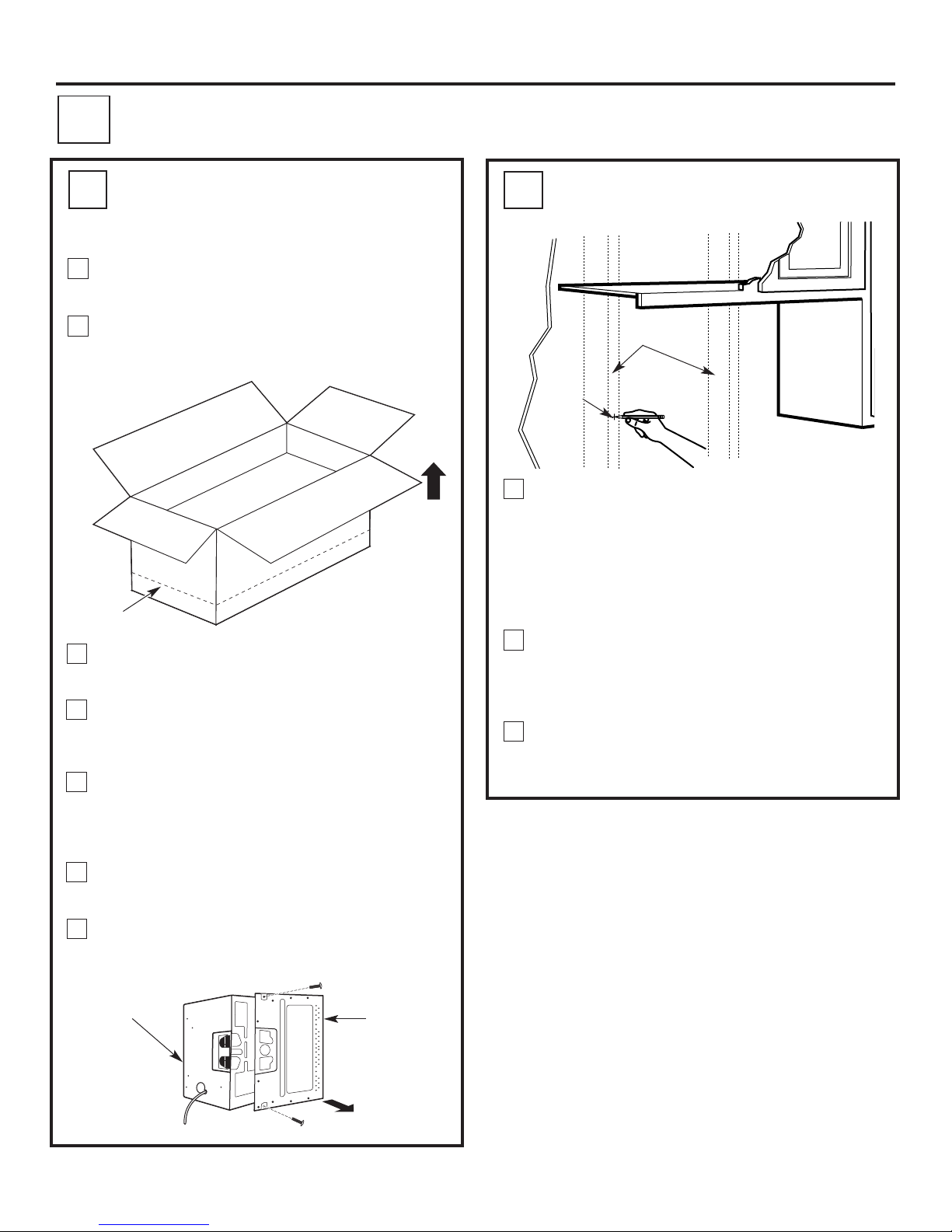

Open top of box and remove Styrofoam pack
containing installation instructions, filters, exhaust
adaptor, damper, and the small hardware bag.
Locate cut line at the bottom of the box and
carefully cut along the indicated dotted line.
Then pull the carton up and off the unit.
REMOVING THE OVEN FROM
THE CARTON/REMOVING THE
MOUNTING PLATE
FINDING THE WALL STUDS
B.
A.
2
PLACEMENT OF THE MOUNTING PLATE
1
Wall
Studs
Center
3
Cut Line
Remove the styrofoam protecting the front
of the oven. Open the oven door and remove
any contents from inside.
Using a portion of the carton or other material
to protect the outer casing from damage, stand
the oven on its side so the control panel is nearest
to the ground.
The mounting plate is attached to the back
of the oven. Remove the two screws holding
the plate to the oven. The plate will serve
as the rear wall template and provide the support
to mount the oven to the wall.
Once the plate has been removed, set the oven
upright. Remove and properly discard the plastic
bags and Styrofoam.
Check to ensure that all adhesive tape has been
removed from exhaust adapters, grease filters, and
the power supply cord.
2
Installation Instructions
3
6
5
1
4
Control Panel Side Mounting Plate
7

9
DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET
C.
Your cabinets may have decorative trim that interferes
with the oven installation. Remove the decorative trim
to install the oven properly and to make it level.
THE OVEN MUST BE LEVEL.
Use a level to make sure the cabinet bottom is level.
If the cabinets have a front overhang only, with no
back or side frame, install the mounting plate down
the same distance as the front overhang depth. This
will keep the oven level.
Measure the inside depth of the front overhang.
Draw a horizontal line on the back wall an equal
distance below the cabinet bottom as the inside
depth of the front overhang.
For this type of installation with front overhang only,
align the mounting tabs with this horizontal line, not
touching the cabinet bottom as described in Step D.
Plate position – beneath flat bottom
cabinet
Plate position – beneath recessed bottom
cabinet with front overhang
Mounting Plate Tabs
Touching the Cabinet Bottom
Mounting Plate with
Tabs Below Cabinet
Bottom the Same
Distance as the Front
Overhang Depth
At least 30″, up to 36″
Plate position – beneath framed recessed
cabinet bottom
Mounting Plate Tabs
Touching the Back
Frame
Installation Instructions
30″to Cooktop
30″to Cooktop
1
2
3

10

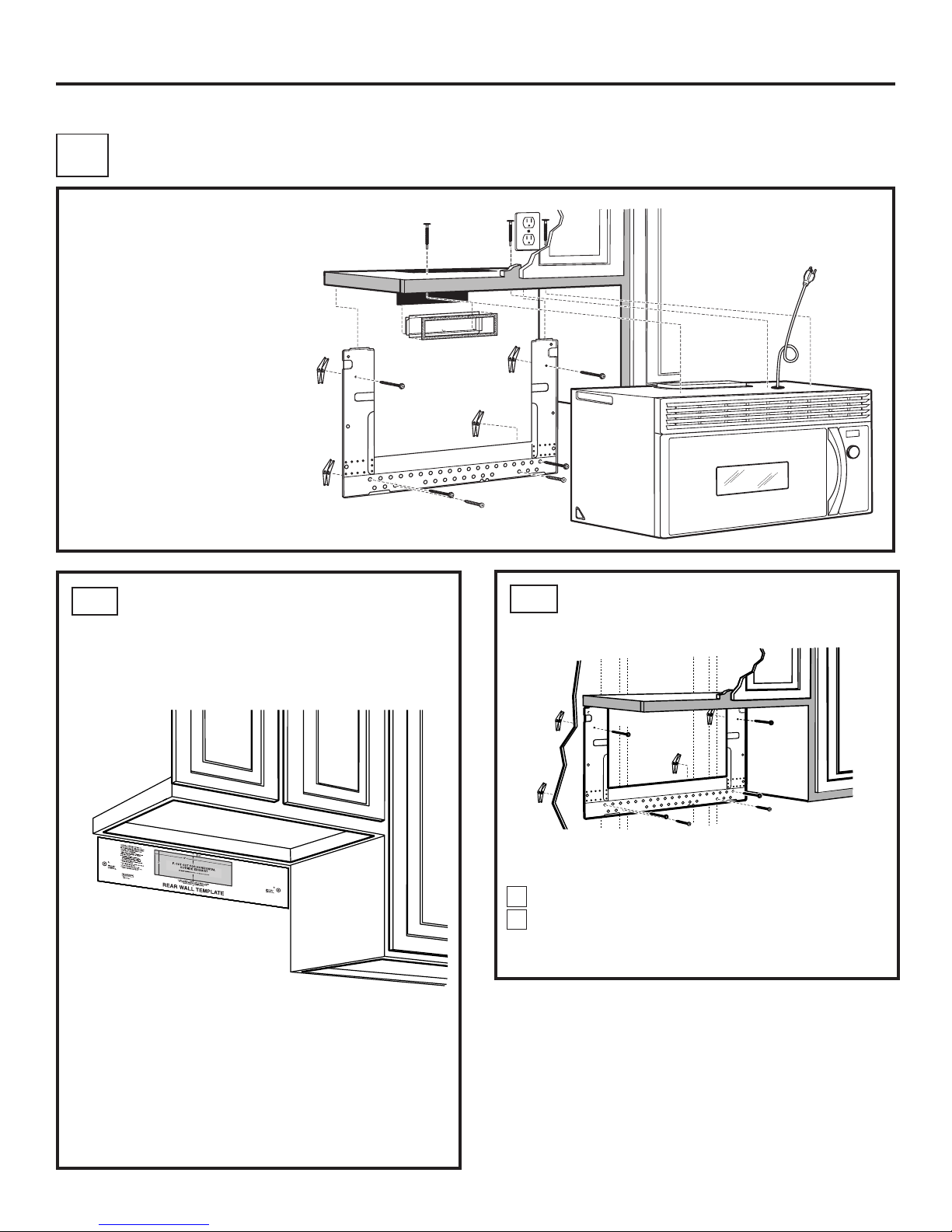

ALIGNING THE WALL PLATE
Draw a vertical line on the wall at the center of the
30″wide space.
Use the mounting plate as the template for the rear
wall. Place the mounting plate on the wall, making
sure that the tabs are touching the bottom of the
cabinet or the level line drawn in Step C for cabinets
with front overhang. Line up the notch and center line
on the mounting plate to the center line on the wall.
While holding the mounting plate with one hand,
draw circles on the wall at holes A, B, C and D (see
illustration above/actual plate marked with arrows).
Four holes must be used for mounting.
NOTE: Holes C and D are inside area E. If neither
C nor D is in a stud, find a stud somewhere in area E
and draw a fifth circle to line up with the stud. It is
important to use at least one wood screw mounted
firmly in a stud to support the weight of the oven.
Set the mounting plate aside.
Drill holes on the circles. If there is a stud, drill a 3⁄16″
hole for wood screws. For holes that don’t line up with
a stud, drill a 5⁄8″hole for toggle bolts.
NOTE: DO NOT MOUNT THE PLATE AT THIS TIME.
2
3
4
Draw a Vertical
Line on Wall
from Center of
Top Cabinet
Area E
Hole A
Hole B
Hole D
Hole C
D.

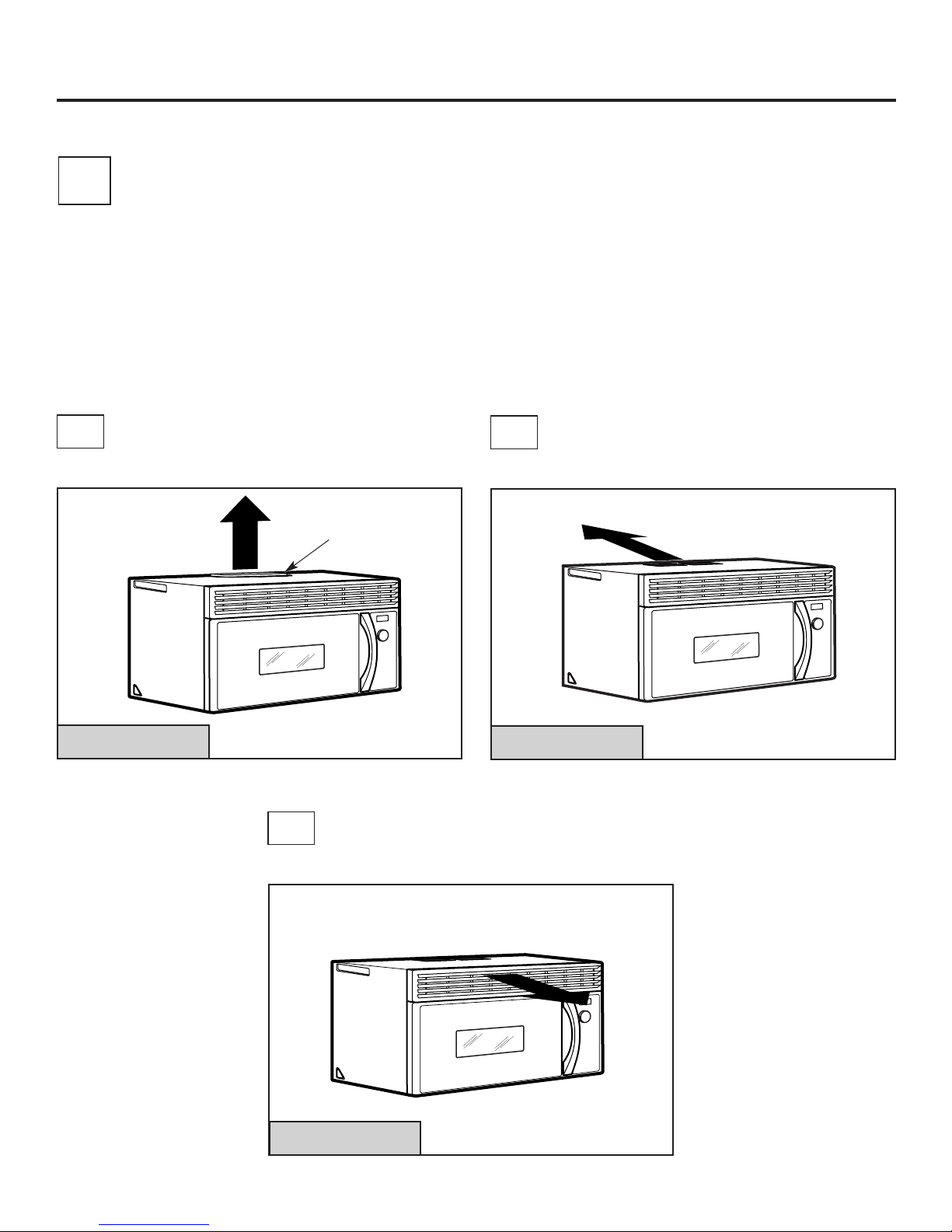

Installation Instructions
CAUTION: Wear gloves
to avoid cutting fingers on
sharp edges.
1
