Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com
READ CAREFU Y.
KEEPTHESE INSTRUCTIONS.
Installation Over the Range
Instructions Microwave Oven
Read these instructions completely and carefully.
•IMP RTANT – Save these
instructions for local inspector’s use.
•IMP RTANT – Observe all
governing codes and ordinances.
•Note to Installer – Be sure to leave these
instructions with the Consumer.
BEFORE YOU BEGIN
•Note to Consumer – Keep these
instructions for future reference.
•Skill level – Installation of this appliance requires
basic mechanical and electrical skills.
•Proper installation is the responsibility of the installer.
•Product failure due to improper installation is not
covered under the Warranty.

2
Recirculating ........................................ 19–22
Attach ounting Plate to Wall ............19
Preparation of Top Cabinet ................19
Adapting icrowave Blower
for Recirculation ..........................20, 21
ount the icrowave Oven ..........21, 22
Installing the Charcoal Filter ..............22
Before You Use Your Microwave .......................... 23
CONTENTS
General information
Important Safety Instructions .................................. 3
Electrical Requirements .......................................... 3
Hood Exhaust ...................................................... 4, 5
Damage – Shipment/Installation.............................. 6
Parts Included.......................................................... 6
Tools You Will Need ................................................ 7
Mounting Space ...................................................... 7
Step-by-step installation guide
Placement of Mounting Plate ............................ 8–10
Removing the ounting Plate ...................... 8
Finding the Wall Studs .................................. 8
Determining Wall Plate Location .................. 9
Aligning the Wall Plate................................ 10
Installation Types.............................................. 11–22
Outside Top Exhaust ............................ 12–14
Attach ounting Plate to Wall ............12
Preparation of Top Cabinet ................13
Check for Proper Damper
Operation............................................13
ount the icrowave Oven ..........13, 14
Adjust the Exhaust Adaptor ................14
Connecting Ductwork..........................14
Outside Back Exhaust............................ 15–18
Preparing Rear Wall for
Outside Back Exhaust..........................15
Attach ounting Plate to Wall ......15, 16
Preparation of Top Cabinet ................16
Adapting icrowave Blower
for Outside Back Exhaust................16, 17
ount the icrowave Oven ................18
A
B
C
Installation Instructions

IMPORTANT SAFETY INSTRUCTIONS
3
Installation Instructions
A qualified electrician must perform a ground continuity
check on the wall receptacle before beginning the
installation to ensure that the outlet box is properly
grounded. If not properly grounded, or if the wall
receptacle does not meet electrical requirements noted
(under ELECTRICAL REQUIRE ENTS), a qualified
electrician should be employed to correct any
deficiencies.
WARNING:
Risk of Electric Shock.
Can cause injury or death:
Remove house fuse or
open circuit breaker before
beginning installation to avoid
severe or fatal shock injury.
WARNING: Risk of Electric Shock.
Can cause injury or death: THIS APPLIANCE MUST BE
PR PERLY GR UNDED to avoid severe or fatal shock.
The power cord of this
appliance is equipped with
a three-prong (grounding)
plug which mates with
a standard three-prong
(grounding) wall receptacle
to minimize the possibility
of electric shock hazard
from this appliance.
Where a standard two-prong wall receptacle is
encountered, it must be replaced with a properly
grounded three-prong wall receptacle, installed
by a qualified electrician.
WARNING: Risk of Electric Shock.
Can cause injury or death: D N T, under any
circumstances, cut, deform or remove any of the prongs
from the power cord. Do not use with an extension cord.
Failure to comply may cause fire.
Ensure proper
ground exists
before use
CAUTI N: For personal safety,
the mounting surface must be capable of supporting
the cabinet load, in addition to the added weight of this
63–85 pound product, plus additional oven loads of up
to 50 pounds or a total weight of 113–135 pounds.
CAUTI N: For personal safety, this
product cannot be installed in cabinet arrangements such
as an island or a peninsula. It must be mounted to
B TH a top cabinet AND a wall.
CAUTI N: To avoid the risk of personal
injury (back injury or other injuries due to excessive
weight of the microwave oven) or property damage,
you will need two people to install this microwave oven.
E ECTRICA
REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz, 13.5 amps and
1.58 kilowatts. This product must be connected to a
supply circuit of the proper voltage and frequency.
Wire size must conform to the requirements of the
National Electrical Code or the prevailing local
code for this kilowatt rating. The power supply
cord and plug should be brought to a separate
15- to 20-ampere branch circuit single grounded
outlet. The outlet box should be located in the
cabinet above the microwave oven. The outlet box
and supply circuit should be installed by a qualified
electrician and conform to the National Electrical
Code or the prevailing local code.

4
HOOD EXHAUST
The following chart describes an example of one possible
ductwork installation.
NTE: Read these next two pages only if you plan to vent your exhaust to the
outside. If you plan to recirculate the air back into the room, proceed to page 6.
OUTSIDE TOP EXHAUST (EXAMP E ON Y)
N TE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared
at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.
* IMP RTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper
will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.
The following chart describes an example of one possible
ductwork installation.
Installation Instructions
OUTSIDE BACK EXHAUST (EXAMP E ON Y)
EQUIVA ENT NUMBER EQUIVA ENT
DUCT PIECES ENGTH x USED = ENGTH
Roof Cap 24 Ft. x (1) = 24 Ft.
12 Ft. Straight Duct 12 Ft. x (1) = 12 Ft.
(6″Round)
Rectangular-to-Round 5 Ft. x (1) = 5 Ft.
Transition Adaptor*
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood. Total ength = 41 Ft.
EQUIVA ENT NUMBER EQUIVA ENT
DUCT PIECES ENGTH* x USED = ENGTH
Wall Cap 40 Ft. x (1) = 40 Ft.
3 Ft. Straight Duct 3 Ft. x (1) = 3 Ft.
(31⁄4″x 10″Rectangular)
90° Elbow 10 Ft. x (2) = 20 Ft.
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood. Total ength = 63 Ft.

EQUIVA ENT NUMBER EQUIVA ENT
DUCT PIECES ENGTH x USED = ENGTH
Rectangular-to-Round 5 Ft. x ( ) = Ft.
Transition Adaptor*
Wall Cap 40 Ft. x ( ) = Ft.
90° Elbow 10 Ft. x ( ) = Ft.
45° Elbow 5 Ft. x ( ) = Ft.
90° Elbow 25 Ft. x ( ) = Ft.
45° Elbow 5 Ft. x ( ) = Ft.
Roof Cap 24 Ft. x ( ) = Ft.
Straight Duct 6″Round or 1 Ft. x ( ) = Ft.
31⁄4″x 10″Rectangular
Total Ductwork = Ft.
Equivalent lengths of duct pieces are based on actual tests
and reflect requirements for good venting performance with
any vent hood.
* IMP RTANT: If a rectangular-to-round transition
adaptor is used, the bottom corners of the damper
will have to be cut to fit, using the tin snips, in order
to allow free movement of the damper .
N TE: If you need to install ducts, note that the total
duct length of 31⁄4″x 10″rectangular or 6″diameter
round duct should not exceed 140 equivalent feet.
Outside ventilation requires a HOOD EXHAUST DUCT.
Read the following carefully.
N TE: It is important that venting be installed using
the most direct route and with as few elbows as possible.
This ensures clear venting of exhaust and helps prevent
blockages. Also, make sure dampers swing freely and
nothing is blocking the ducts.
Exhaust connection:
The hood exhaust has been designed to mate with
a standard 31⁄4″x 10″rectangular duct.
If a round duct is required, a rectangular-to-round
transition adaptor must be used. Do not use less than
a 6″diameter duct.
Maximum duct length:
For satisfactory air movement, the total duct length of
31⁄4″x 10″rectangular or 6″diameter round duct should
not exceed 140 equivalent feet.
Elbows, transitions, wall and roof caps,
etc., present additional resistance to airflow and are
equivalent to a section of straight duct which is longer
than their actual physical size. When calculating the total
duct length, add the equivalent lengths of all transitions
and adaptors plus the length of all straight duct sections.
The chart below shows you how to calculate total
equivalent ductwork length using the approximate feet
of equivalent length of some typical ducts.
5
Installation Instructions

PART QUANTITY
Top Cabinet 1
Template
Rear Wall 1
Template
Installation 1
Instructions
Separately 1
acked
Grease
Filter
6
PART QUANTITY
Wood Screws 2
(1⁄4″x 2″)
Toggle Bolts (and 4
wing nuts) (3⁄16″x 3″)
Self-Aligning Machine 3
Screws (1⁄4″-28 x 31⁄4″)
Nylon Grommet 2
(for metal cabinets)
•If the unit is damaged in shipment, return the unit
to the store in which it was bought for repair or
replacement.
•If the unit is damaged by the customer, repair or
replacement is the responsibility of the customer.
•If the unit is damaged by the installer (if other
than the customer), repair or replacement must
be made by arrangement between customer
and installer.
DAMAGE – SHIPMENT/
INSTA ATION
PARTS INC UDED
You will find the installation hardware contained in
a packet with the unit. Check to make sure you have
all these parts.
N TE: Some extra parts are included.
HARDWARE PACKET
ADDITIONA PARTS
Installation Instructions

7
TOO S YOU WI NEED
# 1 and #2 hillips screwdriver encil
Ruler or tape measure and
straight edge Carpenter square
(optional)
Tin snips (for cutting
damper, if required)
Electric drill with 3⁄16″,1⁄2″and 5⁄8″
drill bits
Hammer (optional)
Stud finder or
Filler blocks or scrap
wood pieces, if needed
for top cabinet spacing
(used on recessed bottom
cabinet installations only)
Gloves
Saw (saber, hole or keyhole)
Level Duct and masking tape

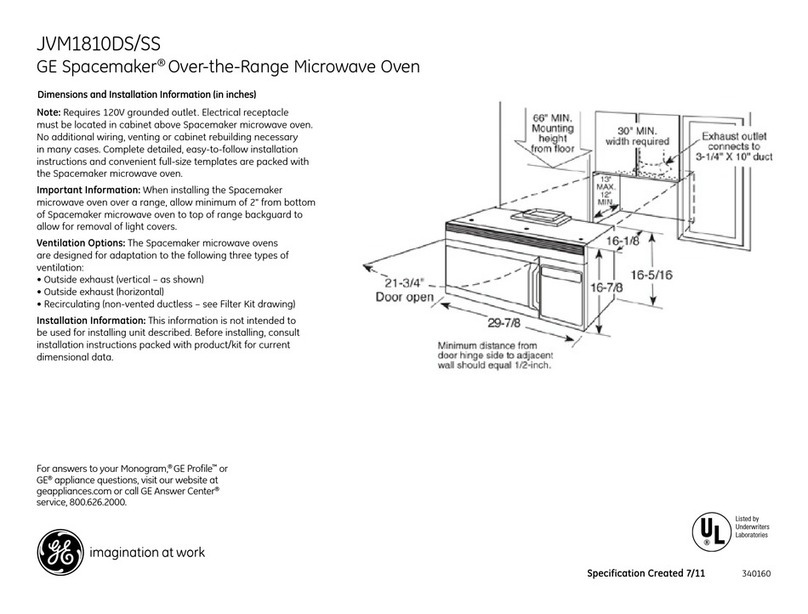

MOUNTING SPACE
N TES:
•The space between the cabinets must be
30″wide and free of obstructions.
•If the space between the cabinets is greater
than 30″, a Filler Panel Kit may be used to fill
in the gap between the microwave oven and
the cabinets. Your Owner’s anual contains
the kit number for your model.
•This microwave oven is for installation over
ranges up to 36″wide.
•If you are going to vent your microwave oven
to the outside, see Hood Exhaust Section for
exhaust duct preparation.
•When installing the microwave oven beneath
smooth, flat cabinets, be careful to follow the
instructions on the top cabinet template for
power cord clearance.
•Models with top venting grilles: Do not allow
cabinetry or other objects to block the airflow
of the vent.
Backsplash
66″or More
from the Floor
to the Top of
the Microwave
30″
2″
30″
min.
161⁄2″
Bottom Edge of
Cabinet Needs to
be 30″or More
from the Cooking
Surface
Installation Instructions
Scissors
(to cut template, if necessary)
Safety goggles
13″
max.

8
Find the studs, using one of the following
methods:
A. Stud finder – a magnetic device which
locates nails.
R
B. Use a hammer to tap lightly across the
mounting surface to find a solid sound.
This will indicate a stud location.
After locating the stud(s), find the center by
probing the wall with a small nail to find the edges
of the stud. Then place a mark halfway between
the edges. The center of any adjacent studs should
be 16″or 24″from this mark.
Draw a line down the center of the studs.
THE MICR WAVE MUST BE C NNECTED T
AT LEAST NE WALL STUD.
1
Remove the installation instructions, filters, glass
tray and the small hardware bag. Do not remove
the Styrofoam protecting the front of the oven.
Fold back all 4 carton flaps fully against carton
sides. Then carefully roll the oven and carton over
onto the top side. The oven should be resting in
the Styrofoam.
REMOVING THE MICROWAVE
OVEN FROM THE CARTON/
REMOVING THE MOUNTING
P ATE
FINDING THE WA STUDS
B.
A.
2
P ACEMENT OF THE MOUNTING P ATE
1
Wall
Studs
Center
3
Carton
Pull the carton up and off the oven.
Remove the 2 screws from the mounting plate.
This plate will be used as the rear wall template
and for mounting. You may discard these screws.
Mounting
late
Screws
2
Styrofoam
Installation Instructions
3
5
Remove and properly discard plastic bags.
4
1

9
DETERMINING WA P ATE OCATION UNDER YOUR CABINET
C.
Your cabinets may have decorative trim that interferes
with the microwave installation. Remove the decorative
trim to install the microwave properly and to make it
level.
THE MICR WAVE MUST BE LEVEL.
Use a level to make sure the cabinet bottom is level.
If the cabinets have a front overhang only, with no
back or side frame, install the mounting plate down
the same distance as the front overhang depth. This
will keep the microwave level.
easure the inside depth of the front overhang.
Draw a horizontal line on the back wall an equal
distance below the cabinet bottom as the inside
depth of the front overhang.
For this type of installation with front overhang only,
align the mounting tabs with this horizontal line, not
touching the cabinet bottom as described in Step D.
Plate position – beneath flat bottom
cabinet
Plate position – beneath recessed bottom
cabinet with front overhang
Mounting late Tabs
Touching the Cabinet Bottom
Mounting late with
Tabs Below Cabinet
Bottom the Same
Distance as the Front
Overhang Depth
At least30″, upto36″
Plate position – beneath framed recessed
cabinet bottom
Mounting late Tabs
Touching the Back
Frame
Installation Instructions
30″to Cooktop
30″to Cooktop
1
2
3

10
A IGNING THE WA P ATE
Draw a vertical line on the wall at the center of the
30″wide space.
Use the mounting plate as the template for the rear
wall. Place the mounting plate on the wall, making
sure that the tabs are touching the bottom of the
cabinet or the level line drawn in Step C for cabinets
with front overhang. Line up the notch and centerline
on the bottom of the mounting plate to the centerline
on the wall.
While holding the mounting plate with one hand,
draw circles on the wall at holes A, B, C and D
(see illustration above/actual plate marked with
arrows). Four holes must be used for mounting.
N TE: Holes C and D are inside area E. If neither
C nor D is in a stud, find a stud somewhere in area E
and draw a fifth circle to line up with the stud. It is
important to use at least one wood screw mounted
firmly in a stud to support the weight of the microwave.
Set the mounting plate aside.
WARNING: Risk of electric shock. Can
cause injury or death. Take care to not drill into electrical
wiring inside walls or cabinets.
Drill holes on the circles. If there is a stud, drill a 3⁄16″
hole for wood screws. For holes that don’t line up with
a stud, drill a 5⁄8″hole for toggle bolts.
N TE: D N T M UNT THE PLATE AT THIS
TIME.
1
2
3
4
Draw a Vertical
Line on Wall
from Center of
Top Cabinet
Area E
Hole A Hole B
Hole D
Hole C
D.
Installation Instructions
CAUTI N:
Wear gloves to avoid cutting
fingers on sharp edges.
Centerline
Notches

A
INSTA ATION TYPES (Choose A, B or C)
This microwave oven is designed for adaptation to
the following three types of ventilation:
A. utside Top Exhaust (Vertical Duct)
B. utside Back Exhaust (Horizontal Duct)
C. Recirculating (Non-Vented Ductless)
NTE: This microwave is shipped assembled for Outside
Top Exhaust (except for non-vented models). Select the
type of ventilation required for your installation and
proceed to that section.
OUTSIDE TOP EXHAUST
(VERTICA DUCT)
OUTSIDE BACK EXHAUST
(HORIZONTA DUCT)
RECIRCU ATING
(NON-VENTED DUCT ESS)
See page 12 See page 15
See page 19
A Charcoal Filter Accessory
Kit is required for the non-
vented exhaust. (See your
Owner’s anual for the kit
number.)
Adaptor in lace for
Outside Top Exhaust
Installation Instructions
2
B
C
11

Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
N TE: Before tightening toggle bolts and wood
screw, make sure the tabs on the mounting plate
touch the bottom of the cabinet when pushed
flush against the wall and that the plate is properly
centered under the cabinet.
CAUTI N: Be careful to avoid
pinching fingers between the back of the mounting
plate and the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
3
A
4
ATTACH THE MOUNTING
P ATE TO THE WA
A1.
12
OUTSIDE TOP EXHAUST (Vertical Duct)
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach
the plate to a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate
through the holes designated to go into drywall
and reattach the toggle wings to 3⁄4″onto each bolt.
1
INSTA ATION OVERVIEW
A1. Attach ounting Plate to Wall
A2. Prepare Top Cabinet
A3. Check Damper Operation
A4. ount icrowave Oven
A5. Adjust Exhaust Adaptor
A6. Connect Ductwork
Wall
Mounting
late
Spacing for Toggles
More Than Wall
Thickness
Bolt End
Toggle
Bolt
Toggle Wings
To use toggle bolts:
Installation Instructions
2

13
3
MOUNT THE MICROWAVE
OVEN
A4.
CHECK FOR PROPER
DAMPER OPERATION
A3.
USE TOP CABINET TEMP ATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws, a
hole large enough for the power cord to fit through,
and a cutout large enough for the exhaust adaptor.
A2.
CAUTI N: F R EASIER
INSTALLATI N AND PERS NAL SAFETY, WE
REC MMEND THAT TW PE PLE INSTALL
THIS MICR WAVE VEN.
IMP RTANT: Do not grip or use handle
during installation.
N TE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
N TE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shelf.
IMP RTANT: If filler blocks are
not used, case damage may occur from
overtightening screws.
Insert a self-aligning screw through top center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after the
threads have engaged.(It will be completely
tightened later.) Be sure to keep power cord
tight. Be careful not to pinch the cord, especially
when mounting flush to bottom of cabinet.
N TE: When mounting
the microwave oven,
thread power cord
through hole in bottom of
top cabinet. Keep it tight
throughout Steps 1–3. Do
not pinch cord or lift
oven by pulling cord.
Lift microwave, tilt it
forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting
plate.
Exhaust Adaptor
Blower late
Damper
Back of
Microwave
Oven
•Read the instructions on the TOP CABINET
TE PLATE.
•Tape it underneath the top cabinet.
•Drill the holes, following the instructions on the
TOP CABINET TE PLATE.
CAUTI N: Wear safety goggles
when drilling holes in the cabinet bottom.
Installation Instructions
•Place the microwave in its upright position, with the
top of the unit facing up.
•Make sure tape securing damper is removed and
damper pivots easily before mounting microwave.
•Slide the damper into place. ake sure it catches
in the retaining hooks to secure.
•You will need to make adjustments to assure proper
alignment with your house exhaust duct after the
microwave is installed.
1
2Rotate front of oven
up against cabinet
bottom.
Retaining Hooks

14
4Attach the microwave oven to the top cabinet.
8
7
6
Cabinet Front
Cabinet Bottom Shelf
Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
Filler Block
Microwave Oven Top
Equivalent
to Depth
of Cabinet
Recess
Insert 2 self-aligning screws
through outer top cabinet
holes. Turn two full turns on
each screw.
Tighten center
screw completely.
Install grease filter. See the Owner’s anual
packed with the microwave.
Installation Instructions
ADJUST THE EXHAUST
ADAPTOR
A5.
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Back of
Microwave
Oven
For Side-to-Side Adjustment,
Slide the Exhaust Adaptor
as Needed
Damper
CONNECTING DUCTWORK
1
2
Extend the house duct down to connect to
the exhaust adaptor.
Seal exhaust duct joints using duct tape.
A6.
House Duct
Self-Aligning Screw
5
MOUNT THE MICROWAVE
OVEN (cont.)
A4.

OUTSIDE BACK EXHAUST (Horizontal Duct)
INSTA ATION OVERVIEW
B1. Prepare Rear Wall
B2. Attach ounting Plate to Wall
B3. Prepare Top Cabinet
B4. Adapt Blower
B5. ount the icrowave Oven
Installation Instructions
B
PREPARING THE REAR WA
FOR OUTSIDE BACK EXHAUST
B1.
You need to cut an opening in the rear wall for
outside exhaust.
•Read the instructions on the REAR WALL
TE PLATE.
•Tape it to the rear wall, lining up with the holes
previously drilled for holes A and B in the wall
plate.
•Cut the opening, following the instructions of the
REAR WALL TE PLATE.
ATTACH THE MOUNTING
P ATE TO THE WA
B2.
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach
the plate to a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to 3⁄4″onto each bolt.
1
2
15

16
USE TOP CABINET TEMP ATE
FOR PREPARATION OF TOP
CABINET
B3.
•Read the instructions on the TOP CABINET
TE PLATE.
•Tape it underneath the top cabinet.
•Drill the holes, following the instructions on the
TOP CABINET TE PLATE.
CAUTI N: Wear safety goggles when
drilling holes in the cabinet bottom.
Wall
Mounting
late
Spacing for Toggles More
Than Wall Thickness
Toggle
Bolt
Toggle Wings
To use toggle bolts:
Bolt End
Installation Instructions
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
N TE: Before tightening toggle bolts and wood
screw, make sure the tabs on the mounting plate
touch the bottom of the cabinet when pushed flush
against the wall and that the plate is properly
centered under the cabinet.
CAUTI N: Be careful to avoid
pinching fingers between the back of the mounting
plate and the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
3
4
BEFORE: Fan Blade
Openings Facing Up
3
1
ADAPTING MICROWAVE
B OWER FOR OUTSIDE
BACK EXHAUST
B4.
End B
End A
Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust the
blower unit.
2Open the blower door by lifting it up at the back
of the microwave oven. Remove and save the
blower retaining screw.
Blower Retaining
Screw
Remove and save the screw that holds the blower
motor door closed on the back and the blower
retaining screw on the top of the door.
Back of
Microwave
Oven
Blower Motor
Door Retaining
Screw
Blower
Blower
Retaining
Screw

AFTER: Fan Blade
Openings Facing Back
7Place the blower unit back into the opening.
Roll the blower unit 90° so that fan blade
openings are facing out the back of the
microwave.
5
4
ADAPTING MICROWAVE
B OWER FOR OUTSIDE
BACK EXHAUST (cont.)
B4.
17
Rotate blower unit counterclockwise 180°.
Before Rotation After Rotation
Gently remove the wires from the grooves.
Reroute the wires through grooves on other side
of the blower unit.
Before Rerouting After Rerouting
Wires Routed Through Right Side Wires Routed Through Left Side
Back of
Microwave
Oven
Back of
Microwave
Oven
Before Rolling After Rolling
End A
End B
Back of
Microwave
Oven
Back of
Microwave
Oven
CAUTI N: Do not pull or
stretch the blower unit wiring. Make sure the
wires are not pinched.
N TE: The blower unit exhaust
openings should match exhaust
openings on rear of microwave oven.
Installation Instructions
6Slide the exhaust adaptor onto the back
of the microwave oven, securing it into the
lower locking tabs. Take care to ensure that
the damper hinge is installed so that it is at
the top and that the damper swings freely.
Reinstall the upper blower motor screw
through the adaptor and the blower door
and into the back of the microwave oven.
Close the blower door and secure it using
the screw from Step 1.
8Secure the blower to the microwave oven
using the retaining screw from Step 2.
9
Guide
Guide
Adaptor Locking Tabs
(not shown)
Back of
Microwave Oven
Blower Motor
Door Retaining
Screw
Back of
Microwave
Oven
Blower
Blower
Retaining Screw
Blower
Retaining
Screw

Attach the microwave oven to the top cabinet.
18
Installation Instructions
3
MOUNT THE MICROWAVE
OVEN
B5.
CAUTI N: F R EASIER
INSTALLATI N AND PERS NAL SAFETY, WE
REC MMEND THAT TW PE PLE INSTALL
THIS MICR WAVE VEN.
IMP RTANT: Do not grip or use handle
during installation.
N TE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
N TE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shelf.
IMP RTANT: If filler blocks are
not used, case damage may occur from
overtightening screws.
Insert a self-aligning screw through top center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after the
threads have engaged.(It will be completely
tightened later.) Be sure to keep power cord
tight. Be careful not to pinch the cord, especially
when mounting flush to bottom of cabinet.
N TE: When mounting
the microwave oven,
thread power cord
through hole in bottom of
top cabinet. Keep it tight
throughout Steps 1–3. Do
not pinch cord or lift
oven by pulling cord.
Lift microwave, tilt it
forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting
plate.
8
7
5
Cabinet Front
Cabinet Bottom Shelf
Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
Filler Block
Microwave Oven Top
Equivalent
to Depth
of Cabinet
Recess
Insert 2 self-aligning screws
through outer top cabinet
holes. Turn two full turns on
each screw.
Tighten center
screw completely.
Install grease filter. See the Owner’s anual
packed with the microwave.
Self-Aligning Screw
6
4
1
2Rotate front of oven
up against cabinet
bottom.

USE TOP CABINET TEMP ATE
FOR PREPARATION OF TOP
CABINET
C2.
19
RECIRCU ATING (Non-Vented Ductless)
INSTA ATION OVERVIEW
C1. Attach ounting Plate to Wall
C2. Prepare Top Cabinet
C3. Adapt Blower
C4. ount the icrowave Oven
C5. Install Charcoal Filter
•Read the instructions on the TOP CABINET
TE PLATE.
•Tape it underneath the top cabinet.
•Drill the holes, following the instructions on the
TOP CABINET TE PLATE.
CAUTI N: Wear safety goggles
when drilling holes in the cabinet bottom.
Installation Instructions
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
C
Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
N TE: Before tightening toggle bolts and wood
screw, make sure the tabs on the mounting plate
touch the bottom of the cabinet when pushed flush
against the wall and that the plate is properly
centered under the cabinet.
CAUTI N: Be careful to avoid
pinching fingers between the back of the mounting
plate and the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
4
3
ATTACH THE MOUNTING
P ATE TO THE WA
C1.
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach
the plate to a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and
reattach the toggle wings to 3⁄4″onto each bolt.
1
Wall
Mounting
late
Spacing for Toggles
More Than Wall
Thickness
Bolt End
Toggle
Bolt
Toggle Wings
To use toggle bolts:
2

AFTER: Fan Blade
Openings Facing
Forward
4
20
Roll the blower unit 90° so that fan blade openings
are facing toward the front of the microwave.
Roll
N TE: ake sure wires remain routed in the
grooves of the motor frame.
Installation Instructions
BEFORE: Fan Blade
Openings Facing Up
ADAPTING MICROWAVE
B OWER FOR RECIRCU ATION
C3.
1
2Open the blower door by lifting it up at the back
of the microwave oven. Remove and save the
blower retaining screw.
3Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust the
blower unit.
Blower Retaining
Screw
Remove and save the screw that holds the blower
motor door closed on the back and the blower
retaining screw on the top of the door.
Back of
Microwave
Oven
Blower Motor
Door Retaining
Screw
Blower
Blower
Retaining
Screw
