GE JTP55SM Manual

JTP55SM
GE®30" Built-In Double Wall Oven
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 1/07 320138
21" minimum
Door Opening
Allowance
B
B
A
A
Cutout height
51-13/16" MIN.
51-15/16" MAX.
Minimum cutout location
12" from the floor.
Cutout depth
23-1/2" MIN
5
47" to
bottom of
junction box
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
21
Cabinet
width 30"
C
E
D
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.
Conduit
(72"
long)
Junction box
location
C
L2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
(must support 325 lbs.)
Cabinet 30"
A – Overlap of oven over side of edges of cutout 11/16"-3/4"
B – Overlap of oven at top and bottom of cutout 1"
Oven
C – Overall depth* 23-1/2"
D – Overall height with trim 53-3/8"
Overall height without trim 52-7/8"
E –Overall width 29-3/4"
*Depth including door handle is approximately 26-6/10" min. to
26-9/10" max.
Note: Cabinets installed adjacent to wall ovens
must have an adhesion spec of at least a 194°F
temperature rating.
Note: If marks, blemishes or the cutout opening is
visible above the installed oven, it may be necessary
to add wood shims under the runners and front trim
until the marks or openings are covered.
Door handle protrudes 3" from door face. Cabinets
and drawers on adjacent 45° and 90° walls should
be placed to avoid interference with the handle.
Installation Information: Before installing, consult
installation instructions packed with product for
current dimensional data.
KW Rating
240V 9.0
208V 6.8
Breaker Size
240V 40 Amps
208V 40 Amps
Electric wall ovens are not approved for installation
with a plug and receptacle. They must be hard wired in
accordance with installation instructions.
21" minimum
Door Opening
Allowance
B
B
A
A
Cutout height
51-13/16" MIN.
51-15/16" MAX.
Minimum cutout location
12" from the floor.
Cutout depth
23-1/2" MIN
5
47" to
bottom of
junction box
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
21
Cabinet
width 30"
C
E
D
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.
Conduit
(72"
long)
Junction box
location
C
L2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
(must support 325 lbs.)
Cabinet 30"
A – Overlap of oven over side of edges of cutout 11/16"-3/4"
B – Overlap of oven at top and bottom of cutout 1"
Oven
C – Overall depth* 23-1/2"
D – Overall height with trim 53-3/8"
Overall height without trim 52-7/8"
E –Overall width 29-3/4"
*Depth including door handle is approximately 26-6/10" min. to
26-9/10" max.

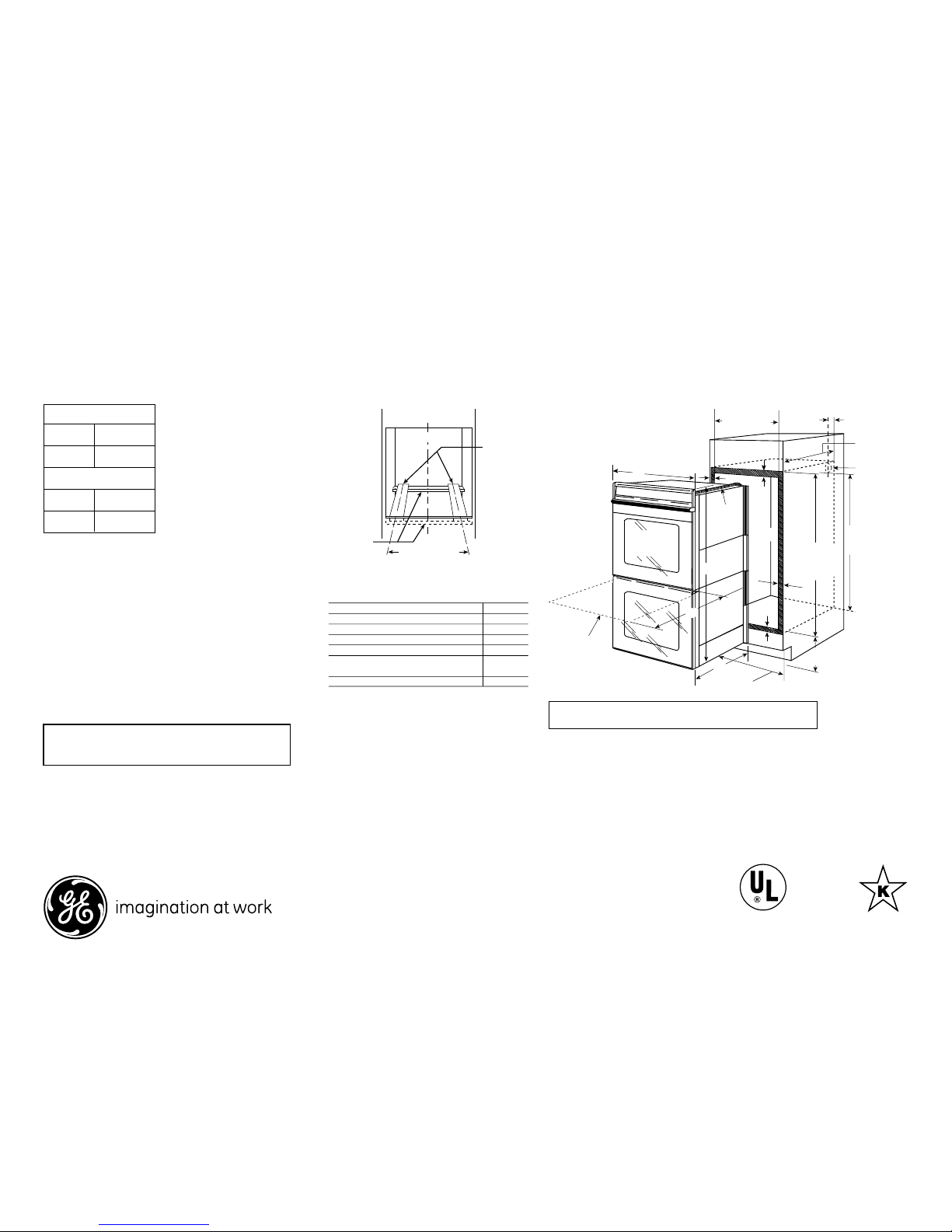

Dimensions and Installation Information (in inches)

JTP55SM
GE®30" Built-In Double Wall Oven
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 1/07 320138
JTP55SM
Features and Benefits
• Extra-Large Oven Capacity - Provides a large oven interior ideal for cooking
more items at once
• Self Clean Oven - Conveniently cleans the oven cavity without need of scrubbing
• TrueTemp™System - Delivers even heat distribution and maximum
oven control
• Improved Lighting - Positions lamps diagonally across the top of the oven to
promote better viewing
• Eight-Pass Bake Element - A powerful, continuous heating element loops
throughout the oven, delivering evenly cooked foods
• Six-Pass Broil Element - Provides a more even coverage of the food on the
broiler pan
• Hidden Bake Oven Interior - Hides previously exposed bottom element to
deliver a clean interior appearance
• Heavy-Duty Oven Racks - Provides extra support
• Electronic Oven Controls - One-touch electronic pads are easy-to-use and
allow for simple oven operation
• Two Oven Racks - Feature a durable construction to help accommodate any
size or type of cookware
• Model JTP55SMSS – Stainless steel
