GE Profile Advantium PSB9100DFBB User instructions

Advantium wall oven/GE Profile™Series cooking tower
dimensions and cabinet installation information (in inches)
Note: Cabinets
installed adjacent
to wall ovens must
have an adhesion
spec of at least a
194°F temperature
rating.
Note: 2" minimum
between cutouts
when installed
above warming
drawer or single
wall oven.
Installation
Information:
Before installing,
consult installation
instructions packed
with product for current
dimensional data.
Specification Revised 7/13
For answers to your Monogram® or GE®
appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000. 240408
Listed by
Underwriters
Laboratories
PSB9100DF
GE Profile™Series Advantium® 120V - 27 in. Wall Oven
1" Min. above toekick or adjust
to oven installation height
2" MIN between cutouts
3" MIN between cutouts
recommended—2" MIN required
9-1/4" cutout height
28-1/2" cutout width
Junction box location
AB
ABConstruct Solid Bottom
MIN 3/8" Plywood Supported by
2 x 4 or 1 x 2 Runners, all Four Sides.
(Must Support 150 lbs. for Advantium)
(Must Support 200 lbs. for Wall Oven)
4-3/16"
21-1/2"
To back
of Control
19-1/8"
26-3/4"
Conduit
(46" long)
Cabinet width
(240-volt models only)
C
L
(Must support 130 lbs.)
2x4’s or
equivalent
solid floor
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
25-1/4"
Cutout width
cabinet
width
Required
cutout location
36-3/4"
minimum
from floor
Junction box
location
(240-volt
models only)
A=Allow 1" overlap of oven over bottom edge of cutout.
B=Allow 11/16"-3/4" for overlap of oven over side edges of cutout.
4-3/16"
21-1/2"
To Back of Control
17-1/2"
Cutout height
AB
23-1/2"
Cutout depth

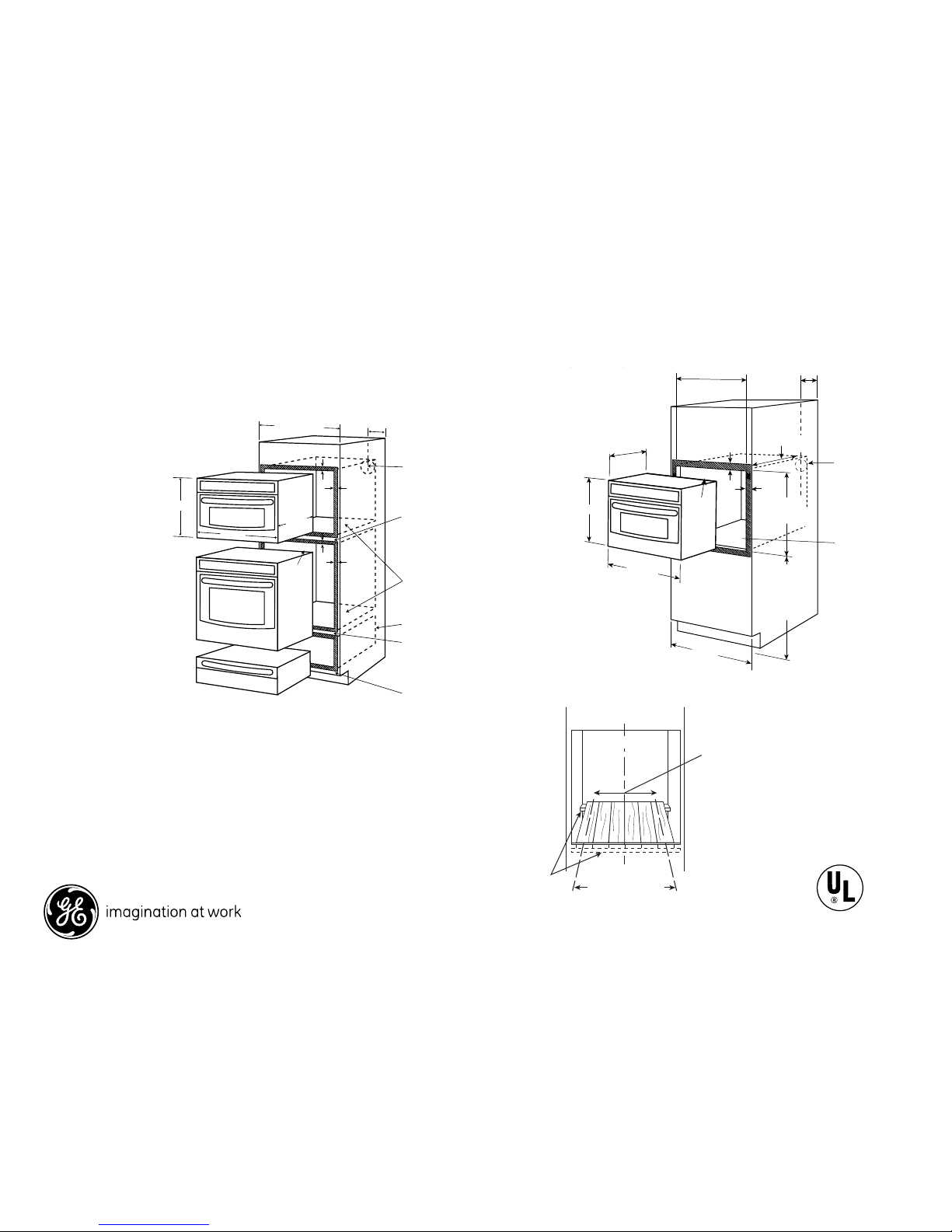

Advantium Wall Oven Dimensions (in inches)and
Cabinet Installation (in inches)
Note: Cabinets installed adjacent
to wall ovens must have an adhesion
spec of at least 194° F temperature rating.
Construct Solid
Bottom Min.
3/8" Plywood
Supported by
2 x 4 or 1 x 2
Runners, all
Four Sides.
(Must Support
150 lbs.)
Conduit
(48-1/2"
long)
19-1/8"
26-3/4"
1" Min. above toekick or adjust
to oven installation height
2" MIN between cutouts
3" MIN between cutouts
recommended—2" MIN required
9-1/4" cutout height
28-1/2" cutout width
Junction box location
AB
ABConstruct Solid Bottom
MIN 3/8" Plywood Supported by
2 x 4 or 1 x 2 Runners, all Four Sides.
(Must Support 150 lbs. for Advantium)
(Must Support 200 lbs. for Wall Oven)
4-3/16"
21-1/2"
To back
of Control
19-1/8"
26-3/4"
Conduit
(46" long)
Cabinet width
(240-volt models only)
C
L
(Must support 130 lbs.)
2x4’s or
equivalent
solid floor
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
25-1/4"
Cutout width
cabinet
width
Required
cutout location
36-3/4"
minimum
from floor
Junction box
location
(240-volt
models only)
A=Allow 1" overlap of oven over bottom edge of cutout.
B=Allow 11/16"-3/4" for overlap of oven over side edges of cutout.
4-3/16"
21-1/2"
To Back of Control
17-1/2"
Cutout height
AB
23-1/2"
Cutout depth
Advantium Wall Oven Dimensions (in inches)and
Cabinet Installation (in inches)
Note: Cabinets installed adjacent
to wall ovens must have an adhesion
spec of at least 194° F temperature rating.
Construct Solid
Bottom Min.
3/8" Plywood
Supported by
2 x 4 or 1 x 2
Runners, all
Four Sides.
(Must Support
150 lbs.)
Conduit
(48-1/2"
long)
19-1/8"
26-3/4"
1" Min. above toekick or adjust
to oven installation height
2" MIN between cutouts
3" MIN between cutouts
recommended—2" MIN required
9-1/4" cutout height
28-1/2" cutout width
Junction box location
AB
ABConstruct Solid Bottom
MIN 3/8" Plywood Supported by
2 x 4 or 1 x 2 Runners, all Four Sides.
(Must Support 150 lbs. for Advantium)
(Must Support 200 lbs. for Wall Oven)
4-3/16"
21-1/2"
To back
of Control
19-1/8"
26-3/4"
Conduit
(46" long)
Cabinet width
(240-volt models only)
C
L
(Must support 130 lbs.)
2x4’s or
equivalent
solid floor
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
25-1/4"
Cutout width
cabinet
width
Required
cutout location
36-3/4"
minimum
from floor
Junction box
location
(240-volt
models only)
A=Allow 1" overlap of oven over bottom edge of cutout.
B=Allow 11/16"-3/4" for overlap of oven over side edges of cutout.
4-3/16"
21-1/2"
To Back of Control
17-1/2"
Cutout height
AB
23-1/2"
Cutout depth
Advantium Wall Oven Dimensions (in inches)and
Cabinet Installation (in inches)
Note: Cabinets installed adjacent
to wall ovens must have an adhesion
spec of at least 194° F temperature rating.
Construct Solid
Bottom Min.
3/8" Plywood
Supported by
2 x 4 or 1 x 2
Runners, all
Four Sides.
(Must Support
150 lbs.)
Conduit
(48-1/2"
long)
19-1/8"
26-3/4"
Note: Advantium wallovens can be installed below GE/GE Profile Series non-down-
draft gas and electric cooktops. It CANNOT be installed below induction or
Monogram (2GU3841385) gas cooktops.
Note: Advantium wall oven comes with two lower trim pieces. One is for use above
36-inch height installations and one is for use below 36-inch installations. Use of
the accessory drawer will replace the bottom trim piece for applicable installations.
Please see installation instructions for full details.

PSB9100DF
GE Profile™Series Advantium® 120V - 27 in. Wall Oven
Specification Revised 7/13 240408
Features and Benefits
• Speedcook Technology (120) - Enjoy oven-quality results two to four
times faster than a conventional oven
• 4 Ovens-In-1 - Expand your cooking versatility with four ovens in one
• Halogen Heat - Skip the preheating with nearly instantaneous
halogen heat
• Over 175 Preprogrammed Recipes - Preprogrammed recipes make
meals easy
• Custom Recipe Saver - Conveniently store cooking instructions for up
to 30 different recipes
• Model PSB9100DFWW - White on white
• Model PSB9100DFBB - Black on black
PSB9100
