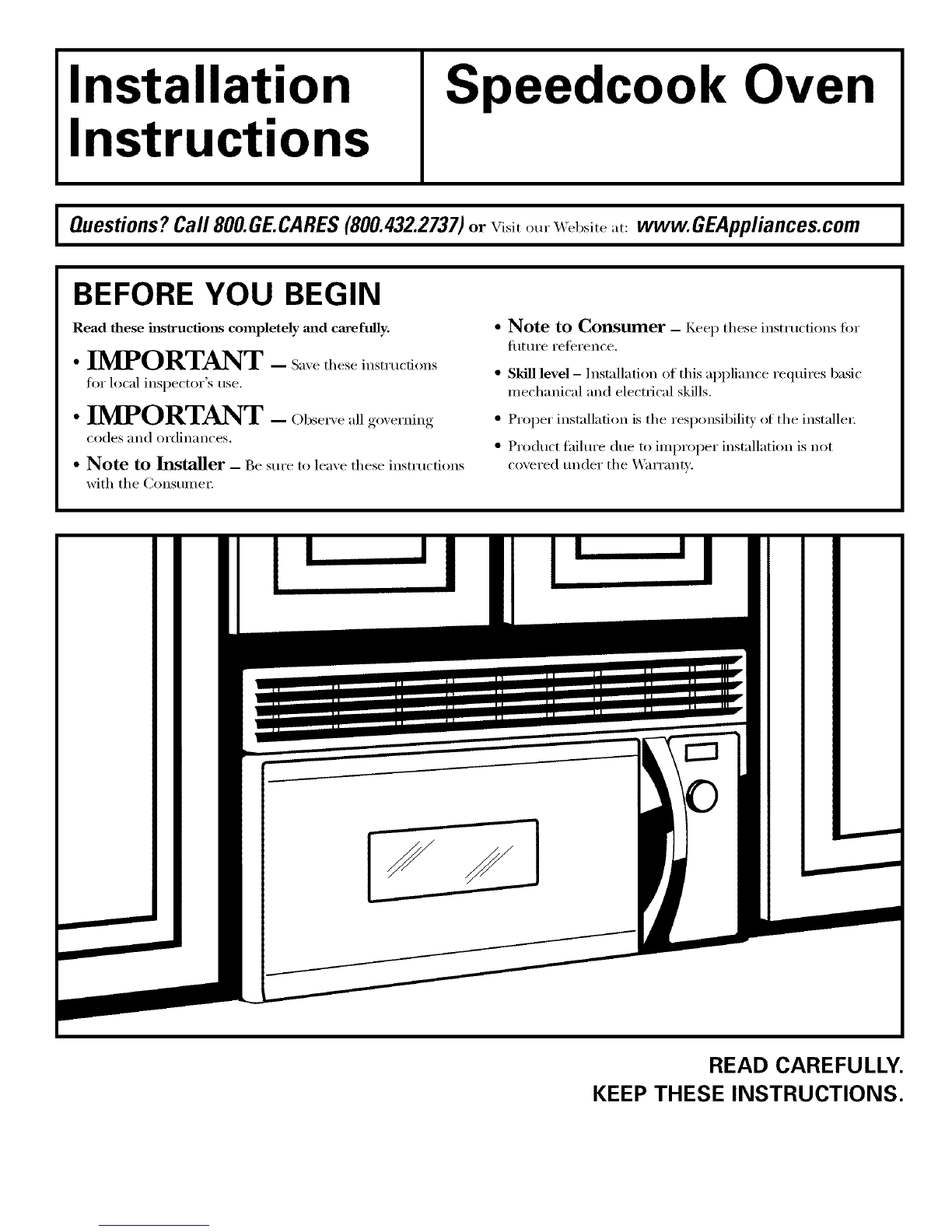

GE Profile advantium SCB1000 User manual

Installation
Instructions Speedcook Oven
Questions?Call 800.GE.CARES(800.432.2737)or Visit,,,H-x_ebsite_,t:www.GEAppliances.com I
BEFORE YOU BEGIN
Read these hlstructions completely mid ca_refully.
•IMPORTANT - S_,,etheseinstructions
lot local inspector's use.
•IMPORTANT -Obse,,e_,ll_o,eH,in_
codes and ordinances.
•Note to Installer - Be sure to leaxe these instructions
with the Consume_:
• Note to Consumer - Kee I) these instructions fi_r
fllttu'e reterence.
• Sldll level - Installation of this appliance requires basic
mechanical and electrical skills.
• Proper installation is the responsibilit} of the installe_:
• Product thiltu'e due to improper installation is not
coxered trader the _n'rant_.
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.

Installation Instructions
CONTENTS
General information
lmporta_t Safety h_structions ........................................ 3
Electrical Requirements .................................................. 3
Hood Exhattst ............................................................ 4, 5
Dmnage_hipment/h_staJlation .................................... 6
Parts Included ................................................................ 6
Tools You Will Need ...................................................... 7
Mounting Space .............................................................. 7
Step-by-step installation guide
Placement of Momlthag Plate .................................. 8-10
I_em_wing the Mounting Plate ........................ 8
Finding the _Mdl Studs ...................................... 8
Detemfining Wall Plate I,ocation .................... 9
_Migning the Wall Plate .................................. 10
Installation Types .................................................... 11-22
_] Outside Top Exhaust ................................ 12-14
Attach Mounting Plate to Wall .............. 12
Preparation of Top Cabinet .................. 13
Assemble and Install Adaptor. ............... 13
Mount the Oven .............................. 13, 14
At!just the Exhaust Adaptor .................. 14
Connecting Ductwork ............................ 14
_] Outside Back Exhaust .............................. 15-18
Preparing Rear _4hll fin.
Outside Back Exhaust ............................ 15
Attach Mounting Plate to X_hll .............. 16
Preparation of Top Cabinet .................. 16
Adapting Blower fin" Outside
Back Exhaust .................................... 16, 17
Mount the Oven .............................. 17, 18
[] Recirculafing ............................................ 19-22
Attach Mounting Plate to Wall .............. 19
Preparation of Top Cabinet .................. 19
Adapting Blower fl)r
Recirculation .................................... 20, 21
Mount the Oven .............................. 21, 22
Installing the Charcoal [qlter ................ 22
Before You Use Your Oven ........................................ 23
2

Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS
This product requires a 4-i)ron_*_grounded outlet. The
installer must perlimn a ground continui_, check on the
power outlet box before beginning the installation to
insure that the outlet box is properl) grounded. If not
properl} grounded, or if the outlet box does not ineet
electrical requirements noted (under EI,ECTRICAI,
REQUIREMENTS), a qualified electrician should be
emplo} ed to correct any deficiencies.
I 1//11/ l
f
For personal safety, remove
house fuse or open circuit
breaker before beghl_fing
hlstallation to avoid severe
or fatal shock injury.
CAUTION: Vorpe onaJsafety, the mom,th,g
surface must be capable of supporthlg the cabinet load,
in addition to the added weight of this 70-85 pound
product, plus additional oven loads of up to 50 pounds
or a total weight of 120-135 pounds.
CAUTION: Forpe onaJsafety, this product
cmmot be h_stalled in cabinet axrmlgements such as an
islmld or a pe_finsuia. It must be mounted to BOTH a
top cabinet AND a wall
NOTE: For easier installation m_d personal safety, it is
recommended that two people install this product.
IMPORTANT PLEASE READ CAP&:FULLY. FOR
PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED TO AVOID SEVFI_: OR
FATAL SHOCK.
NEMA14-30R
Wall Receptacle
groundexists
beforeuse.
The wall outlet receptacle
recommended for this
applim_ce is NEMA #
14-30R m_d accepts the
4-prong grounded plug
of this applimlce.
You should have the wall receptacle mad circuit checked
by a qualified electricim_ to make sure the receptacle is
properly grounded.
Where a standard 3-prong wall receptacle is encountered,
it is very hnportaalt to have it replaced with a properly
grounded NEMA # 14-30R wall receptacle, installed by
a qualified electriciml.
DO NOT, UNDER ANY CIRCUMSTANCILS, CUT,
DI?_'ORM, OR REMOVE ANY OF THE PRONGS
FROM TFIE POWER CORD. DO NOT USE WITH
AN EXTENSION CORD.
ELECTRICAL
REQUIREMENTS
Product rating is 240/208 w_lts AC, 60 Hertz, 30 amps
and 6.5 kilowatts. This product must be connected to an
individual properly grounded branch circuit, protected
b)' circuit breake_ or time delay fllses. _,\]re size must
confimn to the requirements of the National Electrical
Code or the pre\;filing local code fin" this kilowatt rating.
The outlet box should be located in the cabinet above
the oven. The outlet box and supply circuit should be
installed by a qualified electrician and cont0nn to the
National Electrical Code or the pre\;filing local code.
3

Installation Instructions

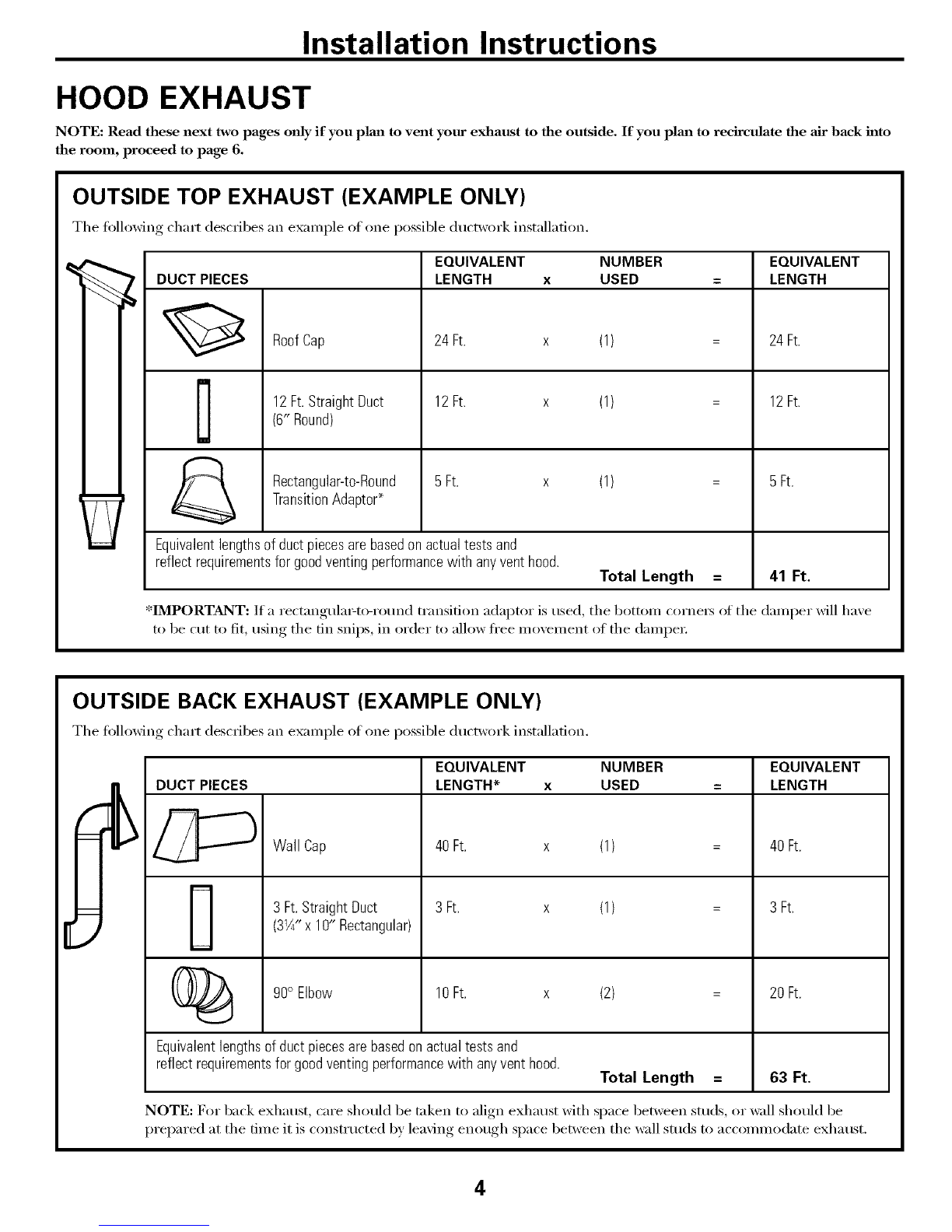

HOOD EXHAUST
NOTE: Read these next two pages only if you plml to vent your exhaust to the outside. If you plma to recirculate the air back into
the room, proceed to page 6.
OUTSIDE TOP EXHAUST (EXAMPLE ONLY)
The fi>llowing chart describes an example of one possible ductwork installation.
DUCT PIECES EQUIVALENT NUMBER LENGTH x USED
RoofCap 24 Ft. x
12Ft.StraightDuct 12Ft. x
(6" Round)
Rectangular-to-Round 5 Ft. x
TransitionAdaptor*
Equivalentlengthsofductpiecesare basedon actualtestsand
reflectrequirementsfor goodventingperformancewith anyventhood.
(1)
(1)
(1)
EQUIVALENT
LENGTH
24 Ft.
12Ft.
5Ft.
Total Length = 41 Ft.
*IMPORTANT: If a rectangtflm_to-rom_d transition adaptor is used, the bottom corners of the damper will have
to be cut to fit, usino._the fin snips, in order to allow fl'ee moxement of the dampe_;
OUTSIDE BACK EXHAUST (EXAMPLE ONLY)
The following chart describes an example ot one possible dtu'twork installation.
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH* x USED = LENGTH
_) Wall Cap 40Ft. x (1) = 40Ft.
3 Ft.StraightDuct 3 R. x (1) = 3 Ft.
(3W'x 10"Rectangular)
(_ 90° Elbow 10Ft. x (2) = 20Ft.
Equivalentlengthsof ductpiecesare basedonactualtests and
reflectrequirementsforgoodventingperformancewith anyvent hood. Total Length = 63 Ft.
NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be
prepared at the time it is constructed by, leaving, enouoh_ space between the wall studs to accommodate exhaust.
4

Installation Instructions
NOTE: If wm need to install ducts, note that the total duct
length of 3¼" x ] 0" rectangular or 6" dianmter round duct
should not exceed 140 equivalent feet.
Outside ventilation requires a HOOD EXHAUST DUCT.
Read the following careflflly.
NOTE: It is important that venting be installed using
the most direct route and with as tew elbows as possible.
This ensures clear venting of exhaust and helps prevent
blockages. Also, lllaJ_e sure dmnpers swing freely and
nothing is blocking the ducts,
Exhaust connection:
The hood exhaust has been designed to mate with
a standard 3¼"x 10" rectangular duct,
If a r(mnd duct is required, a rectangula>to-rom_d
transition adaptor must be used. Do not use less thml
a 6" diameter duct.
Maximum duct length:
For satisfi_ctory air movement, the total duct length of
3/(' x ] 0" rectangular or 6" diameter round duct should not
exceed 140 equivalent feet.
Elbows, transitions, wall and roof caps, etc.,
present additional resistance to airflow and are equi\_flent
to a section ol straight duct which is longer than their actual
ph):sical size. When calculating the total duct length, add
the equivalent lengths of all transitions and adapt(n_ plus
the length ot all straight duct sections. The chart below
sho_vs you how to calculate total equi\;flent ductwork length
using the approximate teet ol equivalent length ol some
Q'pical ducts.
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH x USED = LENGTH
Rectangular-to-Round 5Ft. x ( ) = Ft.
TransitionAdaptor*
Wall Cap 40 Ft. x ( ) = Ft.
G)_ 90° Elbow 10Ft. x ( ) = Ft.
(_ 45° Elbow 5Ft. x ( ) = Ft.
90° Elbow 25 Ft. x ( ) = Ft.
45° Elbow 5Ft. x ( ) = Ft.
RoofCap 24 Ft. x ( ) = Ft.
StraightDuct6" Roundor 1Ft. x () = Ft.
3W' x 10" Rectangular
Total Ductwork = Ft.
* IMPORTANT: If'a rectangular-to-round transition adaI)mr
is used, the bottom comers of the dami)er will ha_e to be
cut to fit, using Ihe tin snips, in order to allow fi-ee moxenlent
of the damper.
Equivalent lengths of duct pi< c<s at< based on actual t<sts
and r( flect re(luir( merits for good venting l)( rlormance with
_]I]V V(}llt hoo([.
5

Installation Instructions

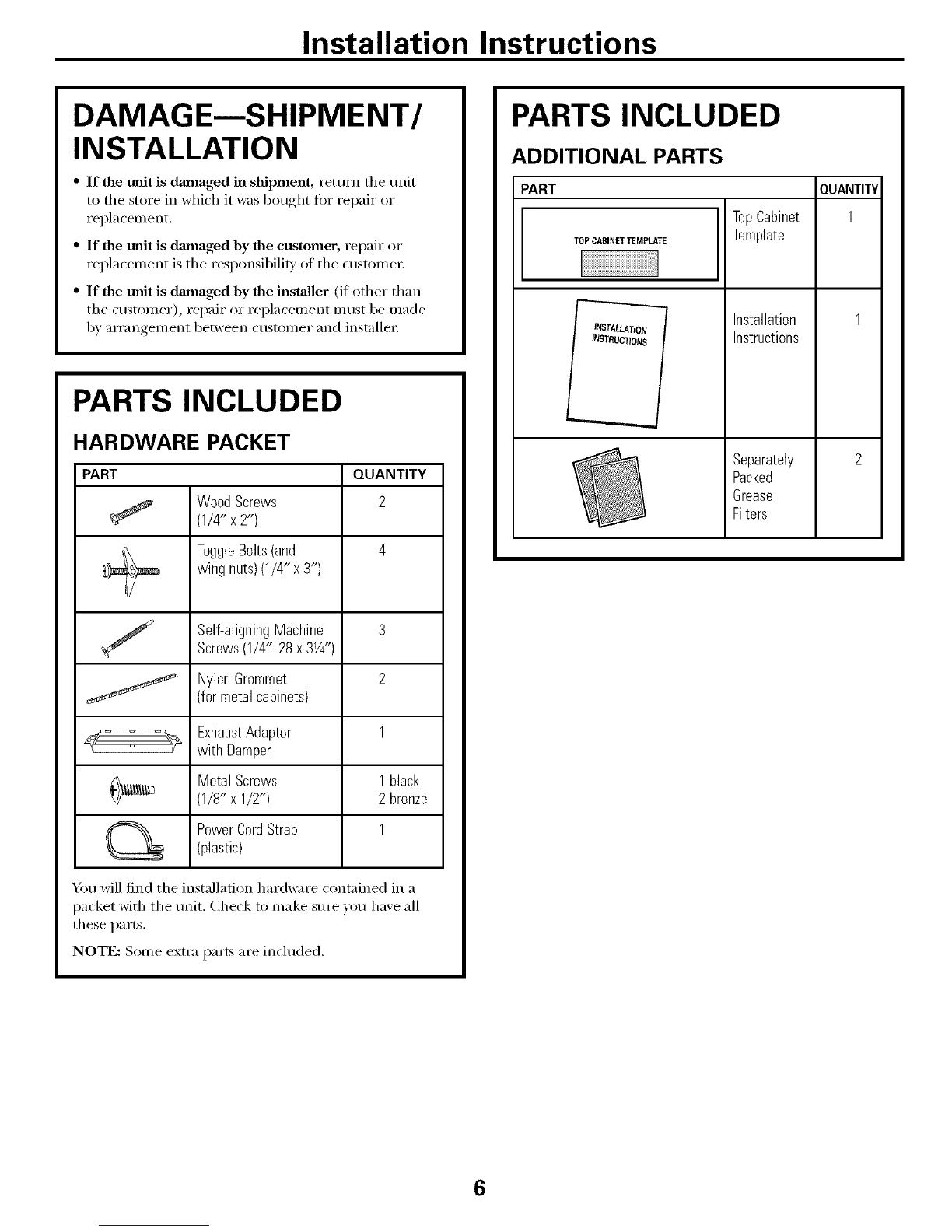

DAMAGE--SHIPMENT/
INSTALLATION
* If the unit is dmnaged in shipment, return the unit
to the store in which it was bought fin" repair or
replacement.
•If the refit is dmnaged by the customer, repair or
replacenmnt is the responsibility of the customer;
• If the unit is dmnaged by the installer (if other than
the customer), repair or replacement must be made
by arrangement between customer and installe_:
PARTS INCLUDED
HARDWARE PACKET
PART QUANTITY
WoodScrews 2
(1/4"x2")
ToggleBolts(and 4
wing nuts)(1/4" x3")
Self-aligningMachine
Screws(1/4"-28 x 3Y4")
NylonGrommet
(formetalcabinets)
ExhaustAdaptor
with Damper
Metal Screws
} (1/8" x 1/2")
PowerCordStrap
(plastic)
3
2
1
1 black
2 bronze
1
You will find the installation hardware contained in a
packet with the trait. Check to make sure w)u have all
these parts.
NOTE: Some extra parts are included.
PARTS INCLUDED
ADDITIONAL PARTS
PART
TOPCABINETTEMPLATE
TopCabinet
Template
Installation
Instructions
Separately
Packed
Grease
Filters
QUANTITY
1
6

Installation Instructions

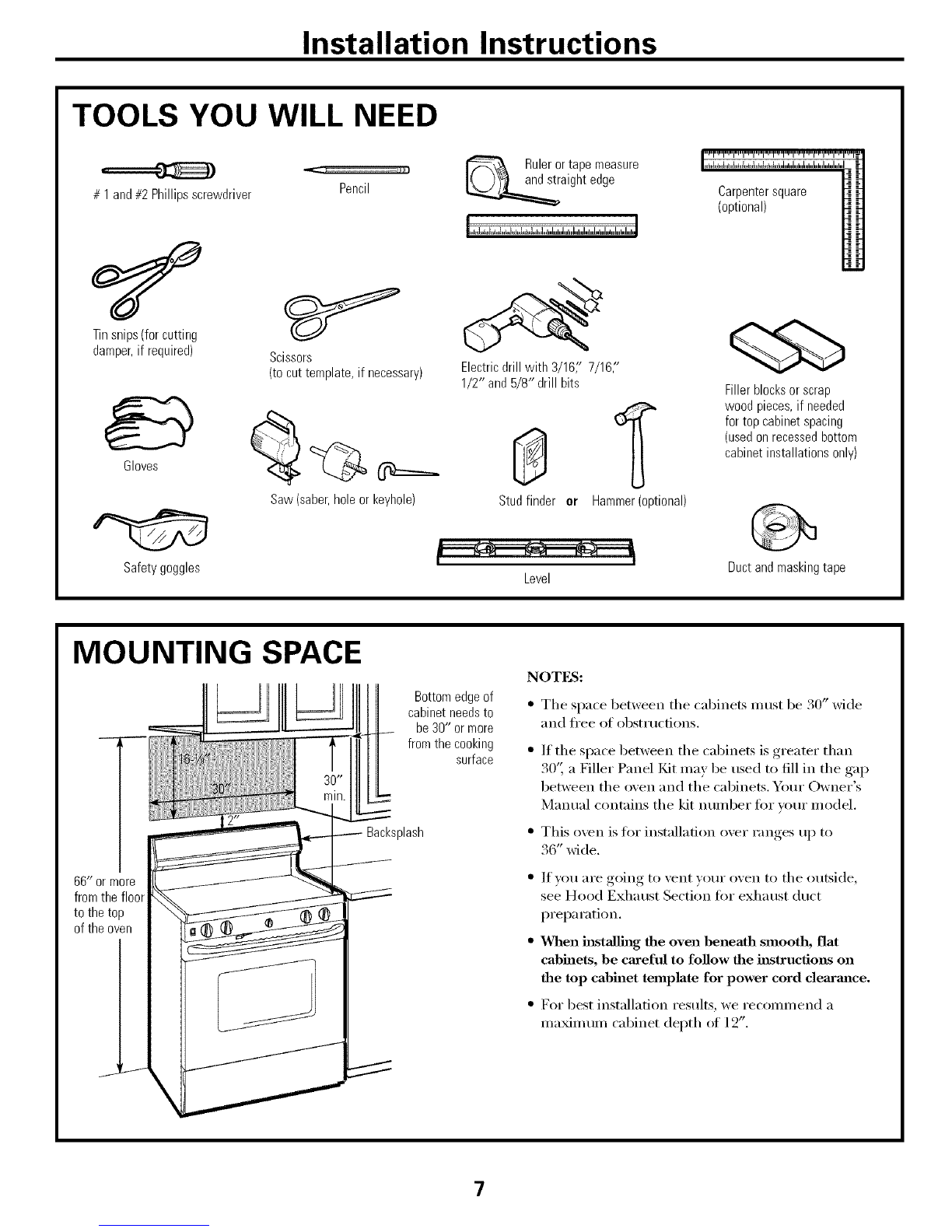

TOOLS YOU WILL NEED
# 1and#2Phillipsscrewdriver
Tinsnips(for cutting
damper,if required)
Pencil
Scissors
(to cut template, if necessary)
Ruler ortape measure
aight edge
LEd.,E&,_&,_d,J._.,I.,_d.,b,h,,h,l,,,h._,,h,,l,,h,,h,h,,I,,d,,,I,,,l,,I,,,iJ
Electric drill with 3/167 7/16,"
1/2" and 5/8" drill bits
Gloves
Safety goggles
Saw (saber, hole or keyhole) 0 Stud finder or Hammer (optional)
Level
Carpentersquare
(optional)
Filler blocks or scrap
wood pieces, if needed
for top cabinet spacing
(used on recessed bottom
cabinet installations only)
Duct and masking tape
MOUNTING SPACE
66" or more
fromthe floor
to thetop
of theoven
Bottomedgeof
cabinetneedsto
be30" ormore
fromthe cooking
surface
Backsplash
NOTFS:
• The space between the cabinets must be 30" wide
and fl'ee of obstructions.
If the space between the cabinets is greater than
30'_ a Filler Panel Vdt may be used to fill in the gap
between the oven and the cabinets. Your Owner's
Manual contains the kit nmnber fi)r vom" model.
• This oven is for installation oxer ranges up to
_tt• r) wide,
" lfw)u are going to vent yore" oven to the outside,
see Hood Exhaust Section ti)r exhaust duct
preparation.
•When h_stallh_g the oven beneath smooth, flat
cabinets, be careful to follow the h_structions on
the top cabinet template for power cord dem'mlce.
• For best installation results, we recolnmend a
maxim um cabinet depth ot 12".
7

Installation Instructions
PLACEMENT OF THE MOUNTING PLATE
I-A--1REMOVING THE OVEN FROM
THE CARTON/REMOVING THE
MOUNTING PLATE
_ Remoxe the box containing the instnllation
instructions, filte_, exhaust adaptor and the
small hardware bag.
_] Stnnd the oxen on its control panel side. Use a portion
ot the carton or some other material to protect the
outer case fl'om being dama ,ed
e:=..... HI Ili Mounting
IID: lllI1:!1
0@ii :!
ControlPanelSide
_]The motmting plate is attached to the back of the
oven. Remove the 2 screws holding it to the oven.
The plate will be used as the rear wall template and
fiw motmting the oven to the wall.
_] Set the oxen uptight. Remoxe and properly discard
plastic bags and Styrofl_am. Remove an) adhesixe tape
(if there is any) on the exhaust adaptor; the grease
filte_ and the power supply cord.
] (-)pen the ox, en dooi" _111(1reliloxe _lny accessolJes
fl'om inside the oxen.
I-_ FINDING THE WALL STUDS J
_Find the studs, using one otthe fi_llowing methods:
A. Stud finde_a magnetic device which locates nails.
OR
B. Use a hammer to trip lightly across the motmting
sudime to find a solid sound. This will indicate a
stud location.
•[
[_ _Mter locating the stud(s), find the center by )robing
the wall with a small nail to find the edges of the stud.
Then place a mark halfway between the edges. The
center of any ac!iacent studs shouM be 16" or 24" fi'om
this mark.
[3] Draw a line down the center oI the studs.
THE OVEN MUST BE CONNECTED TO AT LI_ST
ONE WALL STUD.
8

Installation Instructions

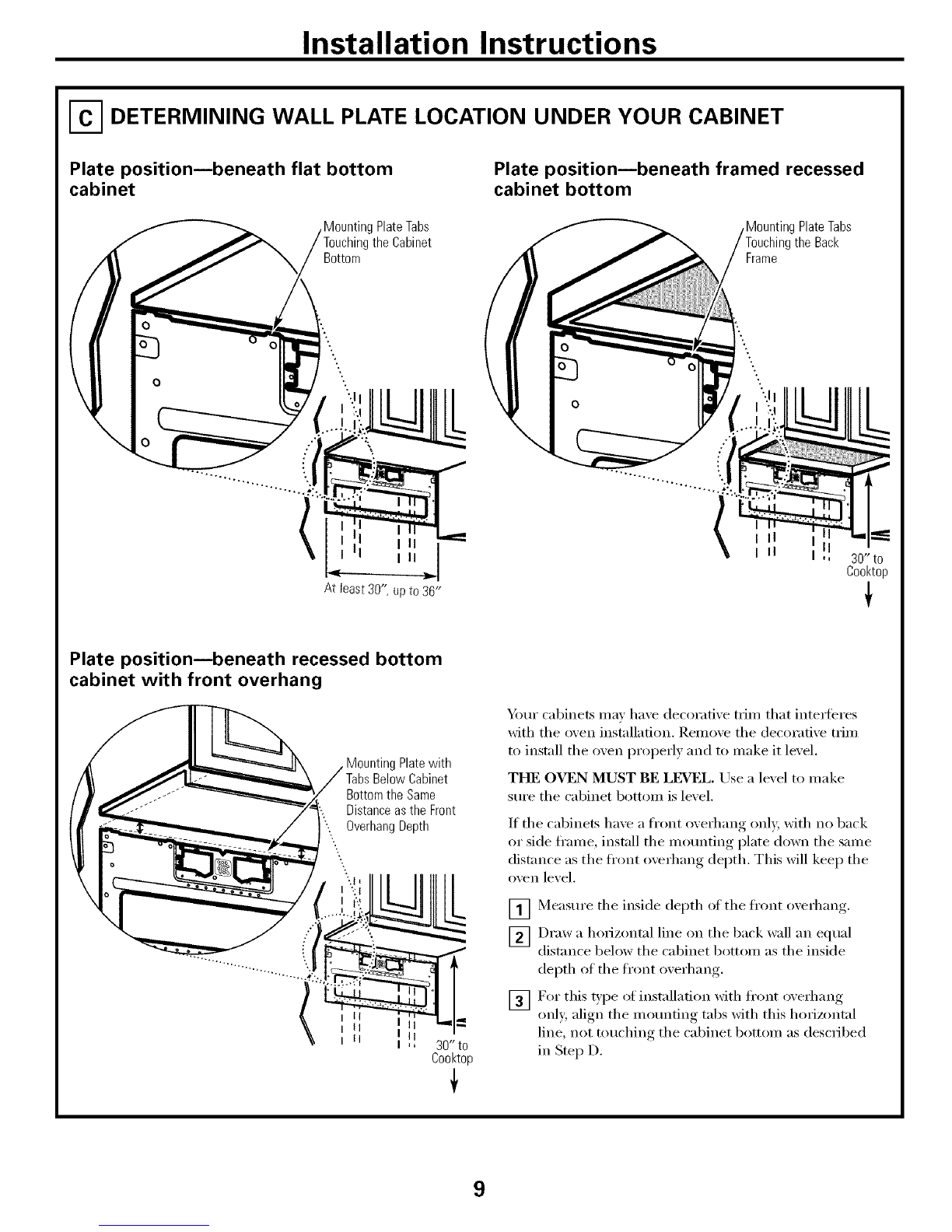

_--] DETERIVIINING WALL PLATE LOCATION UNDER YOUR CABINET
Plate positionmbeneath flat bottom
cabinet Plate positionmbeneath framed recessed cabinet bottom
Bottom
PlateTabs
i the Cabinet Mounting Plate Tabs the Back
Frame
At least 30", up to 36"
30" to
Cooktop
Plate position_beneath recessed bottom
cabinet with front overhang
Plate with
TabsBelow Cabinet
Bottom the Same
Distance as the Front
Overhang Depth
II
II
II 30"to
Cooktop
_4mr cabinets may have decorative trim that intetteres
with the oven installation. Remove the decorative trim
to install the oven properly and to make it level.
TI_ OVEN MUST BE LEYEL Use a level to make
sm'e the cabinet bottom is level.
If the cabinets have a fl'ont overhang onl); with no back
or side fl'ame, install the motmting plate down the same
distance as the fl'ont overhang depth. This will kee I) the
oven level.
[_ Measm'e the inside depth of the fl'ont overhang.
[] Draw a horizontal line on the back wall an equal
distance below the cabinet bottom as the inside
depth of the fl'ont overhang.
_]For this bpe of installation with front oxerhang
only; align the mortaring tabs with this horizontal
line, not touching the cabinet bottom as described
in Step D,
9

Installation Instructions
i--_ ALIGNING THE WALL PLATE
I/
HoleA-[
HoleC/
CAUTION:
on shaq) edges.
_j_ Draw a xertical line on the wall at the center of the
50" wide space.
_]Use the mounting plate as the template for the rear
wall. Place tile mo/mfing plate on tile wall, making sm'e
that tile tabs are touching the bottom of the cabinet or
the level line dxawn in Step C for cabinets with front
overhm_g. Line up the notch and center line on the
momlthag plate to the center line on the wall,
[] _qfile holding tile molmfing plate with one hand,
draw circles on the wall at holes A, B, C and D (see
illustration above/actual plate marked with arro_vs).
Four holes must he used for mom_thlg,
[]
NOTE: Holes C and D are inside area E. If neither
C nor D is ill a stud, find a stud SOlnewhere ill area E
and draw a fifth drcle to line up with tile stud. It is
important to use at least one wood screw motmted
firmly in a stud to support tile weight of tile oxen.
Set the mom_thag plate aside.
Drill holes on the circles. If there is a stud, drill a :_A(_"
hole for wood screws. For holes that don't line up with
a stud, drill a %" hole fin" toggle bolts.
NOTE: DO NOT MOUNT THE PLATE AT THIS TIME.
10
