GE JB905 User manual

@vvvvw.GEAppliances.com
Safety I_ ............. 2-5
Opemang I_
Clock, Timer and Oven Lockout ...18
Convection Oven ............. 20-24
Roasting Guide ................ 24
Timed Features ............. 22, 23
Cookware ....................... 7
Oven ....................... 14, 15
Broiling Guide ................. 15
Oven Controls ............... 12, 13
Probe .......................... 17
Proofing Feature ................ 25
Range Lockout .................. 18
Sabbath Feature ................. 31
Self-Cleaning ................. 26, 27
Special Features .............. 28-30
Surface Units ................. 6-11
Knob-C_ntrolled Models ..... 10, 11
Touch Pad-Controlled Models ...8, 9
Thermostat Adjustxnent--
Do It Yourself ................... 19
Timed Baking and
Roasling Features ................ 16
Warming Feature ................ 25
Care and G-"/ea_g .......... 32-37
Troubleshooting Tips ........ 38--41
Ao_ .................... 46
Consumer Support
Consumer Support ...... Back Cover
Product Registration .......... 43, 44
Warranty ...................... 47
JB905
JB968
JB988
Write the model and serial
numbers here:
Model #
Serial #
You can find them on a label
behind the storage drawer
on the range frame. 164D4290P320 49-80164 04-03JR

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
AWARNING!
Foryoursafe_, the informationin this manualmustbe followed tominimizethe risk offire, electric
shock, or topreventproperty damage,personal injury,or loss offife.
AWARNINGANTI-TIPDEVICE
All ranges can tip and injury could resulL
Toprevent accidental tipping ofthe range, attach it to the waftand floor byinstallingtheAnti-tip
device supplied.
If the Anti-Np device suppliedwith the range does not fitthisapplication, usethe universalAnti-tip
device WB2X7909.
Tocheck if the device is installed and engagedproperly,remove the storage drawer and inspect
the rear leveling leg. Make sure it fits securely into the slot
If you pull the range out from the wall for any reason, make sure the device is properly engaged when
you push the range back against the wall. If it is not, there is a possible risk of the range tipping over
and causing injury if you or a child stand, sit or lean on an open door.
Please refer to the Anti-Tip device information in this manual. Failure to take this precaution could
result in tipping of the range and injury.
IMPORTANTSAFELYNOTICE
The CalrfomiaSafe Drinking Water and Toxic Enforcement Act requires the Govemorof Califomiato
publish a list of substances known to the state to cause cancer, birth defecta or other repreductive
harm, and requires businesses to wam customers of potential exposure to such substances.
The fiberglass insulation in serf-clean ovensgives off a very smaflamount of carbon monoxideduring
the cleaning cycle. Exposure can be minimized by vendng with an open window or using a ven#7ation
fan or hood.
SAFELYPRECAUTIONS
When usingelectrical appliances,basicsafeb/preca_'ons should be followed, including the following:
RUse this appliance only for its intended
purpose as described in this Owner's Manual.
iBe sure your appliance is properly installed and
grounded by a qualified installer in accordance
with the provided installation instructions.
I Have the installer show you the location of
the circuit breaker or fuse. Mark it for easy
reference.
IDo not attempt to repair or replace any
part of your range unless it is specifically
recommended in this manual. All other
servicing should be referred to a qualified
technician.
Ill Before performing any service, disconnect
the range power supply at the household
distribution panel by removing the fuse or
switching off the circuit breaker.
I Do not leave children alone---children should
not be left alone or unattended in an area
where an appliance is in use. They should
never be allowed to sit or stand on any part
of the appliance.
I Do not allow anyone to climb, stand or hang
on the door, storage drawer or cooktop. They
could damage the range and even tip it over,
causing severe personal injury.
2

wvvw.GEAppliances.oom
AWARNING!
SAFETYPRECAUTIONS
Do not operate the oven or cooktopcontrols if the glass is broken.Food splatter or cleaning solution
may penetrate a broken controlpanel or cooktop and create a risk of electrical shock.Contacta
qualified technician immediately should Fourglass control panel or cooktop become broken.
iDo not store flammable materials in an oven
or near the cooktop.
iCAUTION: ofinteres,to
should not be stored in cab'mets above a range
or on the back of a range---children climbing
on the range to reach items could be seriously
injured.
iNever wear loose-fitting or hanging garments
while using the appliance. Be careful when
reaching for items stored over the range.
Flammable material could be ignited if
brought in contact with hot surface units or
heating elements and may cause severe burns.
•Use only dry pot holders---moist or damp
pot holders on hot surfaces may result in
burns from steam. Do not let pot holders
touch hot surface units or heating elements.
Do not use a towel or other bulky doth in
place of pot holders.
[] Do not use water on grease fires. Never pick
up a flaming pan. Turn the controls off.
Smother a flaming pan on a surface unit
by coveting the pan completely with
a well-fitting lid, cookie sheet or flat tray.
Use a multi-purpose dry chemical or
foam-type fire extinguisher.
Flaming grease outside a pan can be put
out by coveting it with baking soda or, if
available, by using a muld-purpuse dry
chemical or foam-type fire extinguisher.
Flame in the oven can be smothered
completely by dos'mg the oven door and
turning the oven offor by using a multi-
purpose dry chemical or foam-type fire
exdnguisher.
[] For your safety, never use your appliance
for warming or heating the room.
[] Do not let cooking grease or other flammable
materials accumulate in or near the range.
[] Do not touch the surface units, the heating
dements or the interior surface of the oven.
These surfaces may be hot enough to burn
even though they are dark in color. During and
after use, do not touch, or let clothing or other
flammable materials contact the surface units,
areas nearby the surface units or any interior
area of the oven; allow sufficient time for
cooling first.
Potentially hot surfaces indude the cooktop,
areas facing the cooktop, oven vent opening,
surfaces near the opening, crevices around the
oven door.
REMEMBER:The inside surface of the oven
may be hot when the door is opened.
iDo not store or use combustible materials,
gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
•Keep the hood and grease filters dean
to maintain good venting and to avoid
grease fires.
[] Teach children not to play with the controls
or any other part of the range.
[] Always keep dish towels, dish cloths, pot
holders and other linens a safe distance
from your range.
[] Alwayskeep wooden and plastic utens'tis and
canned food asafe distance from your range.
It Alwayskeep combustible wall coverings,
cttr_ns or drapes asafe d_mnce from
your range.
COOKMEATANOPOULTRYTHOROUGHLY...
Cookmeat andpoultry thoroughly---meat toat least an INTERNALtemperatureof 160°Fandpoultry to at least
an INTERNALtemperatureof 180°ECookingto thesetemperaturesusuallyprotectsagainst foodborneillness.
3

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
RADIANTSURFACEUNITS
Useproper pan size--select cookware havingflat bottoms large enough to cover the surface unit
heating element The usa of undersized cookware willexpose apardon of the surface unit to direct
contact and may resultin ignitionof clothing.Proper relationshipof oookware to surface unit will
also improve efficiency.
II Never leave the surface units unattended at
high heat settings. Boilovers cause smoking
and greasy sp'dlovers that may catch on fire.
• Only certain types of glass, glass/ceramic,
earthenware or other glazed containers are
suitable for cooktop service; others may break
became of the sudden change in temperature.
• To minimize the posfib'_ of burns, ignidon
of flammable materials and spillage, the handle
of a container should be mined toward the
center of the range without extending over
nearby surface units.
• Always turn the surface units offbefore
removing cookware.
• When preparing flaming foods under the
hood, turn the fan on.
[] Use care when touching the cooktop.
The glass surface of the cooktop will retain
heat after the controls have been turned off.
• Keep an eye on foods being fried at high or
medium high heat settings.
• Foods for frying should be as dry as possible.
Frost on frozen foods or moisture on fresh
foods can cause hot fat to bubble up and
over the sides of the pan.
[] Use tittle fat for effective shallow or deep
fat frying. Filling the pan too full of fat can
cause spillovers when food is added.
•Ira combination of o'ds or fats will be used
in frying, stir together before heating, or
as fats melt slowly.
[] Always heat fat slowly, and watch as it heats.
[] Use a deep fat thermometer whenever
possible to prevent overheating fat beyond
the smoking point.
[] Avoid scratching the glass cooktop. The
cooktop can be scratched with items such
as sharp instruments, rings or other jewelry,
and rivets on clothing.
•Iarge scratches or impacts to glass doors or
cooktops can lead to broken or shattered glass.
• Do not operate the radiant surface units if the
glass is broken. Spillovers or cleaning solution
may penetrate a broken cooktop and create a
risk of electrical shock. Contact a qualified
technician immediately should your glass
cooktop become broken.
• Never use the glass cooktop surface as a
cutting board.
•Do not place or store items that can melt or
catch fire on the glass cooktop, even when it
is not being used.
•Be careful when placing spoons or other
stirring utensils on glass cooktop surface when
it is in use. They may become hot and could
cause burns.
•Clean the cooktop with caution. If a wet
sponge or cloth is used to wipe spills on a hot
surface unit, be careful to avoid steam burns.
Some cleaners can produce noxious fumes if
applied to a hot surface.
NOTE:We recommend that you avoid wiping
any surface unit areas until they have cooled
and the indicator light has gone off. Sugar
sp'dls axe the e-xc_pdun to this. Please see the
Cleaning the glass ceoktop section.
• When the cooktop is cool, use only the
CERAMA BRYI'E®Ceramic Cooktop Cleaner
and the CERAMA BRYIE Ceramic Cooktop
Cleaning Pad to clean the cooktop.
• To avoid possible damage to the cooking
surface, do not apply cleaning cream to
the glass surface when it is hot.
• After cleaning, use a dry cloth or paper towel
to remove all cleaning cream residue.
• Read and follow all instructions and warnings
on the cleaning cream labels.
• Do not use plastic wrap to cover food. Plastic
may melt onto the surface and be very difficult
to remove.
4

wvv_.GEAppliances.com
WARNING!
OVEN
Stand away from the range when opening theoven door.Hot air or steam which escapes can cause
burnsto hands, face and/oreyes.
mDo not heat unopened food containers.
Pressure could build up and the container
could burst, causing an injury.
lit Keep the oven vent unobstructed.
Ill Keep the oven free from grease buildup.

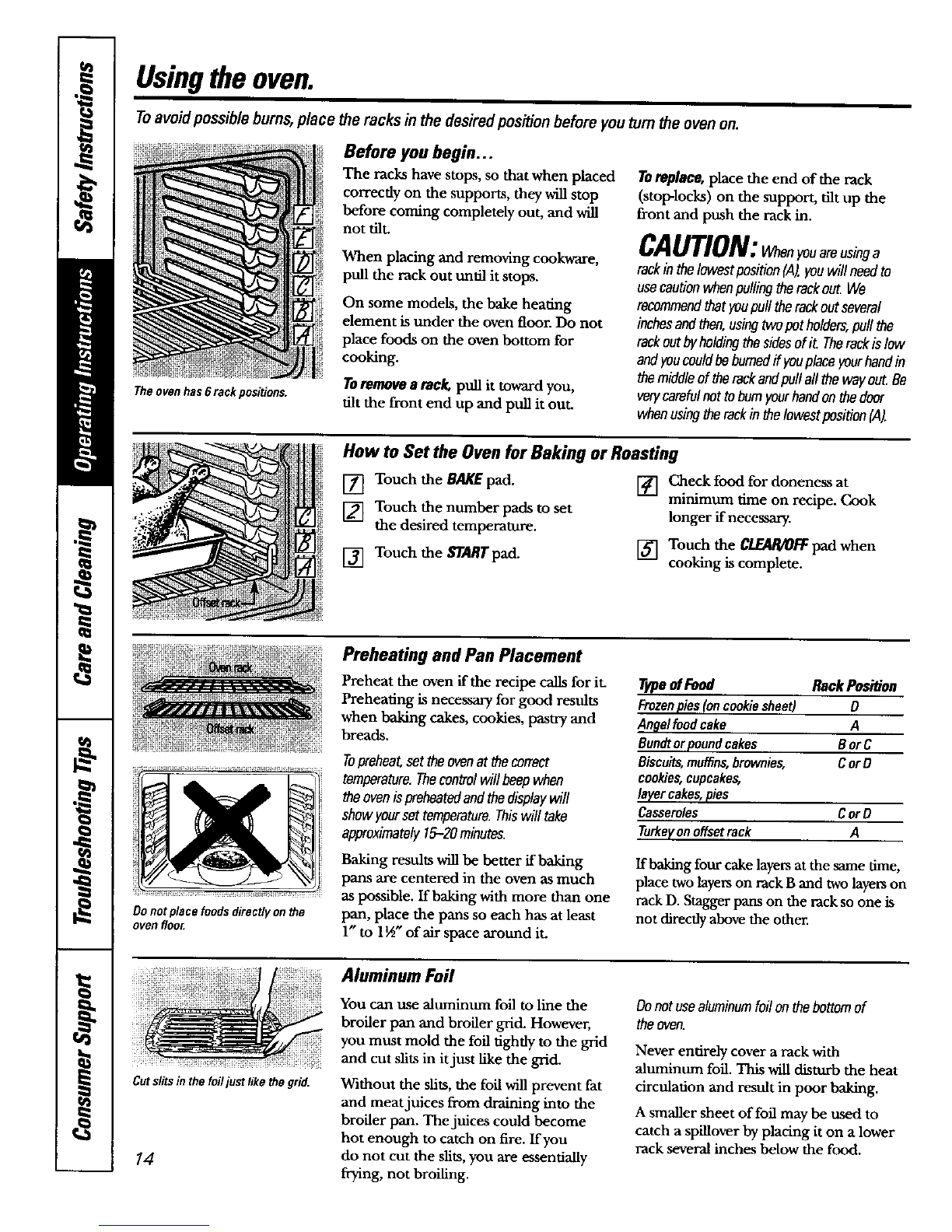

INPlace the oven rack in the desired position
while the oven is cool. If racks must be handled
when hot, do not let pot holder contact the
heating elements.
IIWhen using cooking or roasting hags in the
oven, follow the manufacturer's directions,
J Do not use the oven to dry newspapers.
If overheated, they can catch on fire.
[] Do not use the oven for a storage area. Items
stored in an oven can ignite.
JDo not leave paper products, cooking utensils
or food in the oven when not in use.
II Do not use aluminum foll to line oven bottoms,
except as suggested in this manual. Improper
installation of ahiminmn foil may result in a
risk of electric shock or fire.
mPulling out the rack to the stop-lock isa
convenience in lifting heavy foods. It is also
a precaution against burns from touching
hot surfaces of the door or oven walls.
SELF-CLEANINGOVEN
Do not use oven cleaners. No commercial oven cleaner or oven linerprotective coating ofanykind
should be used in or aroundanypart of the oven. Residuefrom oven cleaners willdamage the inside
of theoven when the self-clean cycle isused.
[] Do not clean the door gasket. The door gasket
is essential for a good seal. Care should be
taken not to rub, damage or move the gasket.
m Before self-cleaning the oven, remove the
convection roasting rack, bixfder pan, grid
and other cookware.
[] Shiny, silver-colored oven racks (on some
models) should be removed from the over,
before beginning the self<lean cycle.
[] Gray porcelain-coated oven racks (on some
models) may be cleaned in the oven during
the self-clean cycle.
[] Be sure to wipe up excess spillage before
starting the self-cleaning operation.
[] If the self<leaning mode malfunctions, turn
the oven offand disconnect the power supply.
Have it serviced by a qualified technician.
[] Clean only parts listed in this Owner's Manual.
REAL?ANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY
SAVETHESEINSTRUCTIONS
5

Abouttheradiantsurfaceunits.
NOff: Throughoutthis manual,featuresandappearancemayvaryfromyourmodel.
Never cookdirecgy on the glass.
Always usecookware.
Alwaysplace the pan in the centerof
the surface unityou are cookingon.
About the radiant surlace units
Donot slidecookwareacross the
controlorcooktop surfacebecause it
canscratch the glass.Theglass is
scratch-resistan_notscratchproof
The radiant cooktop features heating
units beneath a smooth glass surface.
Cooktop temperatures increase with
the number of surface units that are
on. With 3or 4 units turned on, surface
temperatures are high. Always use
caution when touching the cooktop.
An indicator light will come on when the
surface unit is mined on.
The appropriate HOTSURFACEindicator
light will glow when its corresponding
radiant element is turned on and will
remain on until the surface has cooled
below 150°E
NOTE"
Hot surface indicator light will:
mComeonwhenthesurfaceunitis
turnedon.
[] Stayonevenaftertheunitisturnedoff
[] Glowbrightlyuntiltheunithascooled
below150°E
NOTE:A slightodorisnormalwhenanew
cooktopisusedforthefirsttime.It iscausedby
theheatingofnewpartsandinsulatingmaterials
andwilldisappearina shorttime.
NOTE"Onmodelswithlight-coloredglass
cooktops,it isnormalforthecookingzonesto
changecolorwhenhotorcoolingdown.Thisis
tempareffandwilldisappearastheglasscools
toroomtemperature.
It is safe to place hot cookware from the
oven or surface on the glass cooktop
when the surface is cool.
Even after the surface units are turned
off, the glass cooktop retains enough
heat to continue cooking. To avoid
overcooking, remove pans from the
surface units when the food is cooked.
Avoid placing anything on the surface
unit until it has cooled completely.
[] Waterstains(mineraldeposits)areremovable
usingthecleaningcreamorfoilstrengthwhite
vinega_
[] Useofwindowcleanermayleaveaniridescent
filmonthecooktop.Thecleaningcreamwill
removethisdiscoloration.
[] Don'tstoreheavyitemsabovethecooktop.
ff theydropontothecooktop,theycancause
damaga
[] Donotusethesurfaceasa cuttingboard
Temperature Limiter
Everyradiam surfaceunit hasa
temperature limiter.
The temperature limiter protects the
glass cooktop from getting too hot.
The temperature limiter may cycle the
units offfor a time if:
[] Thepanboilsdry
[] Thepanbettomisnotflat.
[] Thepanisoffcente_
• Thereisnopanontheunit.
6

www.GEApplianee_com
The following informationwillhelp youchoose cookware which will givegood performance on glass cooktops.
Checkpans for flat bottomsbyusing
a straightedge.
Stainless Steel:
recommended
Aluminum:
heavyweightrecommended
Good conductivity. Aluminum residues
sometimes appear as scratches on the
cooktop, but can be removed if cleaned
immediately. Because of its low melting
point, thin weight aluminum should not
be used.
Porcelain Enamel Covered Cast Iron:
recommended
As long as the cookware is covered
completely with porcelain enamel, this
cookware is recommended. Caution is
recommended for cast iron cookware
that is not completely covered with
smooth porcelain enamel, as it may
scmtch the glass ceramic cooktop.
Glass-ceramic:
usable,butnotrecommended
CopperBottom:
recommended
Poor performance. May scratch the
surface.
Copper may leave residues which can
appear as scratches. The residues can
be removed, as long as the cooktop is
cleaned immediately. However, do not let
these pots boil dry. Overheated metal can
bond to glass cooktops. An overheated
copper bottom pot will leave a residue
that will permanendy stain the cooktop
if not removed immediately.
Stoneware:
usable,butnotrecommended
Poor performance. May scratch the
surface.
Panswith rounded, curved,ridged
or warped bottomsare not
recommended.
Use onlyflat-bottomed woks.
Home Canningtips
Be sure the canner is centered over the
surface unit
Make sure the canner is flat on the
bottom.
To prevent bums from steam or heat,
use caution when canning.
Use recipes and procedures from
reputable sources. These are available
from manufacturers such as Ball* and
Kerr* and the Department of Agriculture
Extension Service.
Flat-bottomed canners are recommended.
Use of water bath canners with rippled
bottoms may extend the time required to
bring the water to a boil.
WokCooking
Werecommendthatyouuseonlya flat-bottomed
welt Theyareavailableat yourlocalretailstore.
Do not use woks that have support rings.
Do not use round-bottom woes. You
could be seriously burned if the wok
tipped over. 7

Usingthesurfaceunits--Touchpad-controlledmodels.
Surface Unit Cook Settings
The controls for the radiant surface
units allow for 10 different heat settings:
LO, 2-9 and HI. The heating element
may not visibly glow at low heat settings.
NOllE Whenchangingfroma highheatsettingto
alowerheatsetting,thesurfaceunitmaystop
glowing.Thisisnormal.Theunitisstillonandhot.
NOTE:Thiscea/tophasarapidheat-upfeature.
ff theceaktopiscoolwhentumndon,it willglow
redforashortperiodof timeuntilthedesired
powersetUngisreachod
Single Surface Unit--Cook Settings
To turn on a single surface unit:
[] Touch the 0N/0FF"pad, then touch
the (+l/(-) pad.
[] Use the (+)/(-)pad to choose the
desired power setting.
To turn off a single surface unit, touch
the 0N/0FF pad again,
Tri-Ring Burner
To use the multi-size burner:
[] Touch the 0N/0FF pad for the front
right surface uniL
[] Use the I+)//-) pad to set the desired
power setting.
[] Touch the BURNER S/ZEpad as
needed to select the desired burner
size. When first selected, the 9" size
is on. Touch again for the 7_and
again for the 5".
The fight next to the BURNERSIZEpad
indicates which size surface unit is on.
To turn the surface unit off, touch the
ON/0FF pad.
Using Heat Settings
IAt high or medium-high settings, never
leave food unattended. Boilovers cause
smoking;, greasy spillovers may catch
on fire.
m It is safe to place hot cookware
from the oven or surface units on the
glass-ceramic surface when it is cool.
NOTE:Coo/aoptemperaturesincreasewith the
numberofsurfaceunitsthatareon.With3or
moreunitstumodon,surfacetemperaturesare
high,sobecarefulwhentouchingthecnoktop.
Thehotsurfaceindicatorlights)willremainlit
afterthesurfaceunitisoffuntilthesurfacehas
cooledbelow150°E
8

vvw_.GEApplianoos.oom
Agsingle burnersmaybe used for
eitherregular cookingorprecise
warming.
Precise Warm Feature
To turn on the precise warm feature:
[] Touch the ON/OFFpad, then
touch the PRECISEWARMpad.
The surface unit will turn on to
warmer setting W3 (medium setting).
[] Use the (+)/(-)pad to choose
additional settings between
W1 (lowest setting) and W5
(highest setting).
To change from the warmer settings
to regular cooking settings, press the
PRECISEWARMpad again. The surface
trait will be on power setting LO. The
surface unit may then be set to the
desired regular cooking setting using the
{+}/{-)pads. To turn off the surface mait,
whether using regular cooking settings or
warmer settings, touch the ON/OFFpad.
FoodType ControlSetting
Breads/Pastries WI
Vegetables W2
Sauces W3
Soups(cream) W3
Stews W4
HotBeverages W5
Soups(liquid) W5
Thechartaboveshows initial suggestedserdngsonig
Thetemperature,typeandamountof food,typeofpan
andthe timeheldwillaffectthe qualityofthe food.
CAUTION:Donot ona
PRECISEWARMsurfaceunitsettingformore
than2hours.
DOnetuseplasticwraptocoverfoodPlastic
maymeltontothesurfaceandbeverydifficult
toremove.
Useonlycookwarerecommendedfor
tel>of-rangecooking.
CAUTION: with
hotfoodDonotusetoheatcoldfoorL
Placinguncookedorcoldfoodona
precisewarmsettingcouldresultin
foodborneillness.
For best results, all food on PRECISE
WARMshouldbe covered with alid or
ahuninum foil.
Always use pot holders or oven mitts
when removing food from aprecise warm
surface unit as cookware will be hot.
Ahot surface indicator light will glow
when the glass surface ishot and will
remain on until the surface has cooled
below 150°E
9

Usingthesurfaceunits--Knob-controlledmodels.
Be sureyou turn the control knob to
OFFwhen you finishcooking.
How to Set
Push the knob in and turn in either
direction to the setting you want.
At both OFFand HI the control
clicksinto position. You may hear
slight clickingsounds during cooking,
indicating the control is keeping the
power level you set.
AHOTSURFACEindicator light, on the
cooktop, will glow when any radiant
element is turned on. It _ remain
on until the surface is cooled to
approximately 150°E
Hotsurfaceindicatorlight will:
•comeonwhentheunitishottothetouch.
•stayonevenaftertheunitisturnedoff
•glowuntiltheunitiscooledtoapproximately
150°E
Using the Bridge Burner (onsomemodels)
To use the bridge burner, turn the
left front control knob to the BRIDGE
BURNERsettings.
For full bridge surface unit operation,
also turn on the left rear surface unit.
To use only the front surface unit, turn
the control knob to the RtONTRURNER
settings.
Dual Surface Unit Control Knob(onsomemodels)
Therightfrontsurfaceunithas2cookingsizes
toselectfromsoyoucanmatchthesizeofthe
unittothesizeof thecookwamyouareusing.
To use the small (6") surface unit, turn
the control knob to the SMALLBURNER
settings.
To use the large (9') surface unit, turn
the control knob to the lARGEBURNER
settings.
10

www.GEAppliances.com
Using the Warming Zone (onsomemodels)
The WARMINGZONEislocated in the
back center of the glass surface. Always
start with hot food. Do not use to heat
cold food. Placing uncooked or cold food
on the WARMINGZONEcould result in
foodbome illness.
Push and turn the control knob to any
desired setting.
For best results, all foods on the
WARMINGZONEshould be covered with
a lid or aluminum foil.
Food Type Control Setting
Sauces LO
Soups(cream) Medium
Stews Medium
Vegetables Medium
HotBevereges HI
Soups(otherthancream) H/
Breads/Pastries LO
Thechart aboveshowsinitialsuggestedsettingsoni_.
Thetemperature,WPeandamountof food,type ofpan
and thetimeheldwillaffectthequalityof thefood.
Always use pot holders or oven mitts
when removing food from the
WARMING ZONE, ascookware will be hot-
AHOTsurface indicator light will glow
when the glass surface is hot and will
remain on until the surface is cool
enough to touch. Lower settings may
not heat the glass surface enough to
cause the tlOTsurface indicator fight
CAUTlON: notleaveonthe
WARMINGZONEformorethan2hours.
IDonotuseplasticwraptocoverfood.Plastic
maymeltontothesurfaceandbe verydifficult
toclean.
==Useonlycookwararecommendedfor
top-of-rangecooking.
to come on,
AWARMINGZONEindicatorlight will
glow when the unit is on.
NOTE."TheWARMINGZONEwillnotglowred
likethecookingelements.
11

Usingtheovencontrols.
NOTE."Throughoutthis manual,featuresandappearancemayvaryfromyourmodel.
mayFeatureSvargand appearance 0_models)(°nsome
Onsomemodels
12
OvenControlClockandtimerFeaturesandSettings
BAKEPad
Touch to select the bake function. OVENLIGHTON/OFFPad
Touch to turn the oven light on or off.
BROILHI/LO Pad 0
Touch to select the broil function.
CONVECTIONBAKEPad
Touch to select baking with the convection
function.
CONVECTIONROASTPad
Touch to select roasting with the
convection function.
O
OPROOFPad
Touch to select a warm environment useful
for rising yeast-leavened products. O
STARTPad
Must be touched to start any cooking or
cleaning function. O
O
0Oisplay
Shows the time of day, oven temperature,
whether the oven is in the bake, broil or
self-cleaning mode and the times set for
the timer or automatic oven operations.
If'F- anda numberorletter"flashin thedisplayand
theovencontrolsignals,this indicatesa func_on
errorcode.TouchtheCLEAR/OFFpad.Allowtheovento
coolforonehour.Puttheovenbeckintooperation,ff the
functionerrorcoderepeats,disconnectthepowertothe
ovenandcallforservice.
Ifyourovenwassetfora timedovenoperation
andapoweroutageoccurred,theclockandall
programmedfunctionsmustbereseL
Thetimeofdaywill flashinthe displaywhenthere
hasbeenapoweroutage.
Q
0
0
SELFCLEANSTD/LOPad 0
Touch to select self-cleaning function. See
the Usingtheself-cleaningovensection.
DELAYSTARTPad
Use along with COOKINGI1ME or
SELFCLEANSTD/LOpads toset the oven
to start and stop automatically at a thne
you set.
COOKINGTIME Pad
Touch and then touch the number pads to
set the amount of time you want your food
to cook. The oven will shut offwhen the
cooking time has run out.
CLEAR/OFFPad
Touch to cancel/ILL oven operations
except the clock and timer.
CLOCKPad
Touch before setting the clock.
Number Pads
Use to set any function requiring numbers
such as the time of day on the dock, the
timer, the oven temperature, the internal
food temperature, the start time and
length of operation for timed baking
and self-cleaning.
KITCHEN TIMER ON/OFFPad
Touch to select the timer feature.
PROBEPad
Touch when using the probe to cook food.
WARM Pad
Touch to keep cooked foods warm. See the
HowtoSetthe Ovenfor Warmingsection.
OVENor RANGE LOCKOUTPad
Touch, then touch STARTtolock/unlock
the range touch pad controls.

Featuresand appearance
mayva_,.
Onsomemode_
7
00
!
www.GF_Appliances,com
OvenControlClockandtimerFeaturesandSettings
BAKEPad
Touch to select the bake function.
BROIL HI/I.O Pad
Touch to select the broil function.
OVENLOCKOUTPad
Touch, then touch $TA/_'to lock/tmlock
the range touch pad controls.
00isplay
Shows the time of day, oven temperature,
whether the oven is in the bake, broil or
self-cleaning mode and the times set for
the timer or automatic oven operations.
If "F--anda numberorletter"flashin thedisplayand
theovencontrolsignals,this indicatesa [unction
errorcode.TouchtheCLEAR/OFFpad.Allow theovento
coo/furonehour.Puttheovenbackintooperation.If the
functionerrorcoderepeats,disconnectthepowertothe
ovenandcallforservice
If your oven was set for a timed ovenoperation
and apower outage occurred, the clockand all
programmedfunctions mustbe raseL
The time of day will flash in the display when there
has been a power outage.
0
STARTPad
Must be touched to start any cooking or
cleaning function.
COOKINGTIME Pad
Touch and then touch the number pads to
set the amount of time you want your food
to cook. The oven will shut offwhen the
cooking time has rim out.
DELAYSTARTPad
Use along with COOMNGTIMEor
SELFCLEANSTD/LOpads to set the oven
to start and stop automatically at a time
you set.
0
0
0
0
0
0
0
OVENLIGHT ON/OFFPad
Touch to turn the oventight on or off.
SELFCLEAN STD/LOPad
Touch to select self-cleaning ftmcfion. See
the Usingtheself-cleaningovensection.
WARM Pad
Touch to keep cooked foods warm. See the
How to Set the Oven for Warming section.
Number Pads
Use to set any fimction requiring numbers
such as the dine of day on the dock, the
diner, the oven temperature, the internal
food temperature, the start time and
length of operation for timed baking
and self-cleaning.
CLEAR/OFFPad
Touch to cancel ALLoven operations
except the clock and timer.
KITCHEN TIMER ON/OFFPad
Touch to select the timer feature.
CLOCKPad
Touch before setting the clock.
13

Usingtheoven.
Toavoidpossiblebums,place the racks in the desiredposition before you turn the ovenon.
The ovenhas 6rack positions.
Do not place foodsdirectly on the
oven floor.
Cut s/itsin the foiljust likethe grid.
Before you begin...
The racks have stops, so that when placed
correctly on the supports, they will stop
before coming completely out, and will
not tilt.
When placing and removing cookware,
pull the rack out tmtil it stops.
On some models, the bake heating
element is under the oven floor. Do not
place foods on the oven bottom for
cooking.
Toremote a reck, pull it toward you,
tilt the front end up and pull it out.
Toreplace,place the end of the rack
(stop-locks) on the support, tilt up the
front and push the rack in.
CAUTION:enyouareosinga
rackin thelowestposition(,4),youwillneedto
usecautionwhenpullingtherackout.We
recommendthatyoupulltherackoutseveral
inchesandthen,usingtwoputholders,puffthe
rackoutbybe/dingthesidesofit. Therackislow
andyoucee/dbeburnedif youplaceyourhandin
themiddleof therackandpullallthewayout.Be
verycarefulnottobumyourhandonthedeer
whenusingtherackin thelowestposition(,4).
How to Set the Oven for Baking or Roasting
[] Touch the BAKEpad.
[] Touch the number pads to set
the desired temperature.
[] Touch the STARTpad.
[] Check food for doneness at
minimum time on recipe. Cook
longer if necessary.
[] Touch the CLEAR/OFFpad when
cooking is complete.
14
Preheating and Pan Placement
Preheat the oven if the recipe calls for iL
Preheating is necessary for good results
when baking cakes, cookies, pastry and
breads.
Topreheatsettheovenatthecorrect
temperature.Thecontrolwillbeepwhen
theovenispreheatedandthedisplaywill
showyoursettemperature.Thiswill take
approximately15-20minutes.
Baking results will be better if baking
pans are centered in the oven as much
as possible. If baking with more than one
pan, place the pans so each has at least
1" to 1_" of air space around it.
TypeofFood Rack Position
Frozenpies(oncookiesheet) O
Angelfood cake A
Bundtorpoundcakes BorC
Biscuits,muffins,brownies, CorD
cookies,cupcakes,
layercakes,pies
Casseroles CorD
Turkeyonoffsetrack A
ff baking four cake layers at the same time,
place two layers on rack B and two layers on
rack D. Stagger pans on the rack so one is
not clirecilyabove the other.
Aluminum Foil
You can use aluminum foil to line the
broiler pan and broiler grid. However,
you must mold the foil tightly to the grid
and cut slits in it just like the grid.
Without the slits, the foil will prevent fat
and meat juices from draining into the
broiler pan. The jnices could become
hot enough to catch on fire. If you
do not cut the slits, you are essentially
frying, not broiling.
Donotusealuminumfoilonthebottomof
theoven.
Never entirely cover a rack with
aluminum foil. This will disturb the heat
circulation and result in poor baking.
A smaller sheet of foil may be used to
catch a spillover by placing it on a lower
rack several inches below the food.

vvw_.GEAppliance_com
ff yourrangeis connectedto208volts,
raresteaksmaybe broiledbypreheating
thebroilerandpositioning theovenrack
oneposition higher.
How to Set the Oven for Broiling
Leavethedooropentothebroilstopposition.
Thedoorstaysopenbyitself,yettheproper
temperatureismaintainedin theoven.
[] Place the meat or fish on the broiler
grid in the broiler pan.
[] Follow suggested rack positions in
the Broiling Guide.
[] Touch the BROILHI/LOpad once for
HI Broil.
To change to LOBroil, touch the
BROILHI/tO pad again.
Use LOBroil to cook foods such as
poultry or thick cuts of meat thoroughly
without over-browning them.
[] Touch the STARTpad.
[] When broiling is finished, touch the
C/.EA/I/O/:Fpad.
NOTE:Broilandself-cleansettingswillnotwork
if thetemperatureprobeispluggedin.
The size, weight, thickness,
starting temperature
and your preference
of doneness will affect
broiling times. This guide
is based on meats at
refrigerator temperature.
Broiling Guide
Food
GroundBeef
Well Done
Beef Steaks
Rarer
Medium
Well Done
tThe U.& Department ofag,_ltu_
says =Ra_ beefis popular, but you
slu_dd know that cooking it to only Ramt
14O°F means somefood poisoning Medium
or_nL_w_may _." (_rce: WellDone
Safe Food B_ok. Your Kitdlert Chicken
Gu_. USDA P,_v.June 1985.)
LobsterTails
FishFillets
HamSlices
(precooked)
Pork Chops
Well Done
LambChops
Medium
Well Done
Medium
Well Done
Salmon Steaks
Quantityand/
or Thickness
1lb. (4patties)
1/2to 3/4" thick
1"thick
1to 1_ Ibs.
1_" thick
2to2_ Ibs.
1wholecutup
2to 2½ Ibs.,
splitlengthwise
2Breasts
2-4
10to 12oz.each
1/4to 1!2"thick
1/2"thick
2(1/2"thick)
2 (1"thick)aboutIlb.
2 (I" thick)about10
to 12oz.
J2 (1½" thick)about1lb.
2(1"thick)
4(l"thick)abeutllb.
Sheff
Poskien
F
E
E
D
D
O
C
D
E
D
E
E
E
E
D
O
FirstSide
"lime(rain,)
9
11
7
9
11
14
18
22
25
25
18-20
10
15
8
10
14
17
10
12
SecondSide
"time(rain.)
6
10
5
6-7
8-9
11
14-16
2O
lO
10-15
Donot
turn
ovec
to
15
7-8
9-10
12
12-t4
7-8
10
Comments
Spaceevenly.Upto8
pattiestakeaboutthe
sametime.
Steakslessthan1"
thickcookthreugh
beforebrowning.Pan
fryingis recornmende(
Slashfat.
Broilskin-side-down
first.
Cutthroughbackof
shell.Spreadopen.
Brushwithmelted
betterbeforebroiling
andafterhalfof
broilingtime.
Handleandturnvery
carefully.Brushwith
lemonbutter before
andduringcooking,
ifdesired.
Increasetime5to 10
minutespersidefor
1½" thickorhome-
curedham.
Slashfat.
Slashfat.
Greasepan.Brush
steakswith melted
butter,
15

Usingthetimedbakingandmastingfeatures.
NOTE: Foodsthat spoileasily--such as milk, eggs,fish,stuffings,poultryandpork---should not be allowed to sit for
more than I hour before or after cooking.Roomtemperature promotes the growth ofharmfol bacteria. Be sure that
the oven light is offbecause heat from the bulbwill speed harmful bacteria growth.
How to Set an Immediate Start and Automatic Stop
Theovenwill tomonimmediatelyandcookfor
aselectedlengthoftime.At theendofthe
cookingtimetheovenwill tomoff automaticallg
[] Touch the BAKEpad.
[] Touch the number pads to set the
desired oven temperature.
[] Touch the COOKINGTIMEpad.
NOTE."If yourreciperequirespreheating,youmay
needtoaddadditionaltimetothelengthofthe
cookingtime.
[] Touch the number pads to set the
desired length of cooking time. The
minimum cooking time you can set
is 1 minute.
The oven temperature that you set
and the cooking time that you
entered will be in the display.
[] Touch the STARTpad.
NOTE:Anattontiontonewillsoundff youamusing
timedbakinganddooottoechthesTaRTpac_
The oven will turn ON,and the display will
show the cooking time countdown and the
changing temperature starting at 100°E
(The temperature display will start to
change once the oven temperature reaches
100°E) When the oven reaches the
temperature you set, 3 beeps will sound.
The oven will continue to cook for
the set amount of dme, then mm off
automatically, unless the WARM feature
w-asset- See the HowtoSettheOvenfor
Warmingsection.
[] Touch the C/EAR/OFFpad to clear
the display if necessary. Remove the
food from the oven. Remember,
even though the oven turns off
automatically, food left in the oven
will condnue cooking after the oven
turns off.
16
How to Set a Delayed Start and Automatic Stop
Theovenwill turnonatthetimeofdayyouset,
cookforaspecificlengthoftimeandthentomoff
automatically.
Make sure the clock shows the correct
dine of day.
[] Touch the BAKEpad.
[] Touch the number pads to set the
desired oven temperature.
[] Touch the COOKINGTIMEpad.
NOTE:ff yourreciperequirespreheating,youmay
needtoaddadditionaltimetothelengthof the
cookingtime.
[] Touch the number pads to set the
desired length of cooking time. The
minimum cooking time you can set
is 1minute.
The oven temperature that you set
and the cooking time that you
entered will be in the display.
[] Touch the DEI.AYSTARTpad.
[] Touch the number pads to set the
time of day you want the oven to
turn on and start cooking.
[] Touch the STAffrpad.
NOT_Anattentiontonewillsoundifyouareusing
timedbakinganddonottouchtheSTARTpad.
NOTE:ffyouwouldliketo checkthetimes
youhaveset,touchtheDELAYSTARTpadto
checkthestarttimeyouhavesetor touchthe
COOKINGTIMEpadtocheckthelength
ofcookingtimeyouhaveset.
When the oven turns ONat the time
of day you set, the display will show the
cooking time countdown and the
changing temperature starting at 100°E
(The temperature display will start to
change once the oven temperature
reaches 100°E) When the oven reaches
the tempemtttre you set, beeps will sound.
The oven will condnue to cook for
the set amount of dine, then turn off
automatically, unless the WARM feature
was set- See the How to Set the Ovenfor
Warmingsecdon.
[] Touch the CLF.AR/OFFpad to clear
the display if necessary. Remove the
food from the oven. Remember,
even though the oven u.tms off
automatically, food left in the oven
will continue cooking after the oven
turns off.

Usingtheprobe.(o,somemode/sJ
Formany foods,especially masts and poultry,internal food temperature is thebest test for doneness.The
temperature probe takes the guesswork out ofmasting by cooking foodstothe exact donenessyou want.
The temperatureprobe hasa
skewer-likeprobe at one end and
aplug at the other end that goes
intothe outletin the oven.
Use of probes other than the one
provided with this product may result in
damage to the probe or oven control.
Use the handles of the probe and plug
when inserting and removing them from
the food and outlet.
zz Toavoiddamagingyourprobe,donotuse
tongstopull onthecablewhenremovingit.
IToavoidbreakingtheprobe,makesurefood
iscompletelydefrostedbeforeinserting.
After preparing the meat and placing it
on a trivet or on the broiler pan grid,
follow these directions for proper probe
placement.
Insert the probe completely into the
meat. It should not touch bone, fat
or grJ_e.
NOTE:Failuretofullyinserttheprobeintothe
meatmayresultin poorcookingperformance
becausetheprobewillsensetheovenairvs.
thefoodtemperetom.
mNeverleaveyourprobeinsidetheovenduring
a self-cleaningorbroilcycle.
mDonotstoretheprobeintheoven.
CAUTION:roventpossiblebums,
donotunplugtheprobefromtheovenoutletuntil
theovenhascoolec(
For roasts with no bone, insert the probe
into the meatiest part of the roast. For
bone-in ham or lamb, insert the probe
into the center of the lowest large muscle.
Insert the probe into the center of dishes
such as meat loaf or casseroles.
Insert the probe into the meatiest part of
the inner thigh from below and parallel
to the leg of a whole turkey.
NOTE;Self-deanandBroilsettingswillnotwork
if thetemperatureprobeispluggedinl
How to Set _e Oven For Baking/_oasling When Using the Probe (onsamemodels/
[]
[] Insert the probe fully into the food.
Plug the probe into the outlet in the
oven. Make sure it's pushed all the
way in. Close the oven door. Make
sure the probe cable is not touching
the broil element.
[] Touch the PROBE pad.
[] Touch the number pads to set the
desired intemal food or meat
temperature. The maximum
internal temperature for the food
that you can set is 200°E
[] Touch the BAKEpad.
[] Touch the number pads to set the
desired oven temperature.
[] Touch the STARTpad.
Thedisplaywill flashif theprobeisinserted
intotheoutletandyouhavenotsetaprobe
temperatureandtouchedtheSTARTpad
After the internal temperature of the
food reaches IO0°F, the changing internal
tempem_re will be showrt in the display,
[] When the internal temperature of
the food reaches the number you
have set, the probe and the oven
turn off and the oven control signals.
To stop the signal, touch the
CLEAR/OFFpad.Use hot pads to
remove the probe from the food.
Do not use tongs to pull on it--they
might damage it.
IIf theprobeisremovedfromtheovenwhile
probecooking,theovenwill notautomatically
turnoff
To change the oven temperature during
the Bake/Roast cycle, touch the BAKE
pad and then the number pads to set the
new temperature.
mYoucanusetheKitchen"timereventhough
youcannotusetimedovenoperationswhile
usingtheprobe. 17

Usingtheclock,kitchentimerandcontrollockout.
Make surethe clock isset to the
correct time of day.
ToSet the Clock
The clock must be set to the correct free
of day for the automatic oven timing
functions to work properly. The time of
day cannot be changed during a timed
baking or self-cleaning cycle.
[] Touch the CLOCKpad.
[] Touch the number pads.
[] Touch the STARTpad.
The/6tchenT_er is an'.inutothneron_
TheKitchen Timerdoesnot control
ovenoperations,Themaximum
settingon the KitchenTimeris9hours
and 59minutes.
ToSet the Kitchen Txmer
[]
[]
Touch the KITCHENTIMER
ON/OFFpad.
Touch the number pads until the
amount of time you want shows
in the display. For example, m set
2 hours and 45 minutes, touch 2, 4
and 5in that order. If you make a
mistake touch the KITCHENTIMER
0/Ig0FFpad and begin again.
[] Touch the STARTpad.
AftertouchingtheSTARTpad,SETdisappaars;
thistellsyouthetimeiscountingdown,although
thedisplaydoesnotchangeuntiloneminutehas
passed.Secondswillnotbeshownin thedisplay
untilthelastminuteiscountingdown.
[] When the Kitchen Timer reaches .'_,
the control will beep Btimes followed
by one beep every 6 seconds until
the KITCHENTIMERON/OFFpad
is touched.
The6-secondtonecanbecanceledbyfollowing
thestepsin theSpecialfeaturesofyouroven
controlsectionunderTonesattheEndofa
TtmedC_le.
ToReset the Kitchen 7imer
ffthe display is still showing the time
remaining, you may change it by
touching the KITCHENTIMERON/OFFpad,
then touch the number pads until the
time you want appears in the display.
If the remaining time is not in the display
(clock, delay start or cooking time are in
the display), recall the remaining time by
touching the KITCHEN TIMER ON/OFF pad
and then touch'rag the number pads to
enter the new time you want.
ToCancel the Kitchen 7"tmer
Touch the IOTCHENTIMERON/OFF
pad twice.
18
Oven or Range Lockout (dependingon model)
Yourcontrolwillallowyoutolockoutthetouch
padssotheycannotbeactivatedwhenpressed.
To lock/unlock the touch pad controls:
[] Touch the OVENLOCKOUTorBAltlGE
LOCKOIfrpad, then touch the STAR'/"
pad.
The surface unit displays (on models
so equipped) will show LCand the
oven display will show _ Onfor
several seconds, then they will go
blank until a cooking pad is touched.
If the range control is locked and a
cooking pad is touched, the appropriate
surface display (on models so equipped)
or the oven display will show that the
control is locked.
1=Onmodelswith OVENLOCKOUTonly,the
ovenwillbe/eckedout.Theknob-controlled
surfaceunitswillstill haactive.
mTheRANGELOCKOUTmndeaffectsall
touchpads.Notouchpadswillworkwhen
thisfeatureisactivated
]To unlock the control, touch the
OVENLOCKOUTor RANGE LOCKOUT
pad, then touch the ,ffTARTpad.

Adjust the oventhermostat--Do it yourself!
Youmay findthat yournew oven cooks differenUythan the one it replaced. Use yournew oven for a few weeks to
become more familiarwi_ it/fyou stillthinkyournew ovenis toohot or too cold,you can adjustthe thermostat
yourself.
Do not use thermometers, such as those found in grocery stores,to check the temperature settingofyouroven.
These thermometers may vary 20-40 degrees.
NOTE:Thisadjustmentwill onlyaffect bakingand masting temperatures;it will not affect broiling,convectionor
self-cleaning temperatures. The adjustmentwill be retained in memory after a power failure.
To Adjust the Thermostat
[] Touch the BROILHVLOand BAKE
pads at the same time for 3seconds
until the display shows SE
[] Touch the BAKEpad. A two digit
number shows in the display.
Touch BAKE again to alternate
between increasing and decreasing
the oven temperature.
] The oven temperature can be
adjusted up to (+) 35°F hotter or (-)
35°F cooler. Touch the number pads
the same way you read them. For
example, to change the oven
temperature 15°17,touch land 5.
[] When you have made the
adjustment, touchthe STARTpad to
go back to the time of day display.
Use your oven asyou would normally.
Thetypeofmargarinewill affectbakingperformance!
Most recipes for bakinghave been developedusinghigh fat productssuch as butter or margarine (80% fat). If you
decrease the fat the recipe may not give the same resultsas with a higherfat producL
Recipe failure can resultif cakes, pies,pastries, cookies or candies are made with low fat spreads. Thelower the
fat content of a spreadproduct the more noticeable these differences become.
Federal standards require products labeled "margarine" to contain at least 80% fat by weight. Low fat spreads, on the
other hand, contain less fat and more water. The high moisture content of these spreads affects the texture and flavor
of baked goods. For best results with your old favorite recipes, use margarine, butter or stick spreads containing at least
70% vegetable oil.
19

Usingtheconvectionoven.(onsome models)
Straightrack
Mula-rackposiOon.
20
Convection Fan Operation
Ina convectionoven,a fancirculateshotairover,
underandaroundthefood
Thiscirculatinghotairisevenlydistributed
throughouttheevencavilyAsa msul_foodsare
evenlycookedandbrowned-_ften inlesstime
withconvectionheat.
NOTE:To maximize cooking evenness,
the fan is designed to rotate in both
direcdous, with a pause in between.
This is normal.
The convection fan shuts offwhen the
oven door is opened. DONOTleave the
door open for long periods of time while
using convection cooking or you may
shorten the life of the convection heating
element.
Introduction
The convection oven comes with two
convection baking modes started by
touching the CONVECTION BAKEMULTI/
I RACKpad once or twice, depending
on your cooking need:
MULTI--for convection cooking on more
than one rock. Touch the CONVECTION
BAKEMULTUIRACKpad once.See the
Mural-RackConvectionBakingsection below.
IRACK---for convection cooking on one
rack only. Touch the CONVECTIONBAKE
MULTU1RACgpad twice. See the l-Rack
ConvectionBakingsection below.
Multi-Rack Convection Baking
Because heated air is circulated evenly
throughout the oven, foods can be
baked with excellent results using
multiple races.
Multi-rack baking may increase cook
times slightly for some foods but the
overall result is time saved. Cookies,
muffins, biscuits and other quickbreads
give very good results with multi-rack
baking.
To cook food on more than one rack in
convection bake, use CONVECTIONBAKE
MULTI.
When baking on Braces, place one offset
rack in the third (C) position, the straight
rack in the fourth (D) position and one
offset rack in the sixth (F) position.
For two-rack baking, place one offset rack
in the second (B) rack position. Place
the straight rack in the fourth (D) rack
position.
1-Rack Convection Baking
WhenconvectionbakingwithonlyI rack,use
CONVECTIONBAKE1RACKandfollowthe
rackpositionsrecommendedin theUsingthe
ovensection.
==Idealforbakedfeedscookedon I rack.
Adapting Recipes...
You can use your favorite recipes in the
convection oven.
When convection baking, the Auto
Redpe" Conversion feature automatically
reduces the set regular baking temperature
by the recommended 25°E See Auto
RecipeT" Conversion in the Special
Features section.
mUsepansizerecommended
mSomepackageinstructionsforfrozen
casserolesormaindisheshavebeen
developedusingcommercialconvectionovens.
Forbestresultsinthisoven,preheattheoven
andusethetemperatureonthepackage.
