GE Interlogix KTD-125 User manual

KTD-125/125-24
KTD-125P/125P-24
KTD-127/127W
PTZ Receivers

© 2003 Kalatel, a GE Interlogix company
All Rights Reserved.
This equipment has been tested and
found to comply with the limits for a
Class A digital device, pursuant to part
15 of the FCC Rules. These limits are
designed to provide reasonable
protection against harmful interference
when the equipment is operated in a
commercial environment. This
equipment generates, uses, and can
radiate radio frequency energy and, if
not installed and used in accordance
with the instruction manual, may cause
harmful interference to radio
communications.
You are cautioned that any changes or
modifications not expressly approved
by the party responsible for compliance
could void the user's authority to
operate the equipment.
Any GE Interlogix, Kalatel division, software
supplied with GE Interlogix, Kalatel division,
products is proprietary and furnished under
license and can be used or copied only in
accordance with the terms of such license.
This document contains proprietary
information that is protected by copyright. No
part of this document may be reproduced or
transmitted in any form or by any means
without the prior written permission of GE
Interlogix, Kalatel division.
The information contained in this document is
subject to change without notice. GE
Interlogix, Kalatel division, in keeping pace
with technological advances, is a company of
product innovation. Therefore, it is difficult to
ensure that all information provided is entirely
accurate and up-to-date. GE Interlogix, Kalatel
division, accepts no responsibility for
inaccuracies or omissions and specifically
disclaims any liabilities, losses, or risks,
personal or otherwise, incurred as a
consequence, directly or indirectly, of the
use or application of any of the contents of
this document.
For the latest product specifications, visit
GE Interlogix, Kalatel division, online at
www.GE-Interlogix.com or contact your
Kalatel sales representative.
For technical support before and after installation, call 800-469-1676.
Technical support is available 24 hours a day, 7 days a week.
Call: Tech Support 800-469-1676 (6 A.M. – 5 P.M. PST Monday through Friday)
Tech Support 541-740-3589 (all other times)
Main 800-343-3358 or 541-754-9133
Fax: Tech Support 541-752-9096 (available 24 hours a day)
Main 541-754-7162
Web: www.GE-Interlogix.com
1040823A / June 2003

KTD-125/127 PTZ Receivers User Manual Table of Contents
1040823A / June 2003 3
TABLE OF CONTENTS
BEFORE YOU BEGIN................................................................4
1INTRODUCTION ..................................................................5
2SETTING THE AUTOPAN JUMPER ........................................6
3INSTALLING KTD-125 UNITS .............................................8
3.1 MOUNTING THE UNIT .................................................8
3.2 MAKING CABLE CONNECTIONS .................................11
3.2.1 KTD-125P Preset Positioning.....................................16
4INSTALLING THE KTD-127...............................................18
4.1 MOUNTING THE UNIT ...............................................18
4.2 MAKING CABLE CONNECTIONS .................................20
5INSTALLING THE KTD-127W............................................23
5.1 MOUNTING THE UNIT ...............................................23
5.2 MAKING CABLE CONNECTIONS .................................26
6COMPLETING THE INSTALLATION (ALL UNITS) ...................29
7PROGRAMMING THE UNITS ...............................................30
7.1 ASSIGNING A SITE ADDRESS ....................................32
7.2 TERMINATION..........................................................32
APPENDIX A. DETERMINING THE TYPE OF PAN/TILT DRIVE.......33
APPENDIX B. USING ON-SITE TOGGLE SWITCHES ...................33
APPENDIX C. AUXILIARY POWER OUTLET (KTD-125/125P) ....34
APPENDIX D: ASSIGNING DIP SWITCH VALUES.......................34
TROUBLESHOOTING...............................................................36

Before You Begin KTD-125/127 PTZ Receivers User Manual
BEFORE YOU BEGIN
Read these instructions before installing or operating this product.
Note: This installation should be made by a qualified service person and should conform to
local codes.
This manual provides installation and operation information. To use this
document, you must have the following minimum qualifications:
• A basic knowledge of CCTV systems and components
• A basic knowledge of electrical wiring and low-voltage electrical
hookups
Use this product only for the purpose for which it was designed.
Customer Support
For assistance in installing, operating, maintaining, and troubleshooting
this product, refer to this document and any other documentation
provided. If you still have questions, contact Kalatel Technical Support:
GE Interlogix, Kalatel division
Call: 800-469-1676
Fax: [phone]
Note: You should be at the equipment, ready with details before calling Technical Support.
Conventions Used in this Manual
Boldface or button icons highlight command entries. The following
WARNING, CAUTION, and Note statements identify potential hazards:
* WARNING:
Improper use of this equipment can cause severe bodily injury or
equipment damage.
** CAUTION:
Improper use of this equipment can cause equipment damage.
Note: Notes contain important information about a product or procedure.
* This symbol indicates electrical warnings and cautions.
** This symbol indicates general warnings and cautions.
4 1040823A / June 2003

KTD-125/127 PTZ Receivers User Manual Introduction
1 INTRODUCTION
Use a KTD-125/127 PTZ receiver and a Kalatel keypad to interface with
equipment from other manufacturers and simplify common security
system functions. See Table 1 for an overview of KTD-125 and KTD-127
PTZ receiver features. See Figure 1 for a typical system diagram.
Table 1. Receiver descriptions and housing types
Receiver Description Housing Type
KTD-125 Drives a medium- or heavy-duty
115 VAC PTZ Weatherproof
KTD-125-24
Drives a medium- or heavy-duty 24 VAC PTZ Weatherproof
KTD-125P The KTD-125 with a preset option that
allows up to 10 programmed presets Weatherproof
KTD-125P-24 The KTD-125-24 with a preset option
that allows up to 10 programmed
presets
Weatherproof
KTD-127 Drives a light-duty 24 VAC PTZ
requiring less than one amp Indoor only
KTD-127W The KTD-127 in a weatherproof housing Weatherproof
PTZ units
(2)
Receivers
(2)
RS422
Keypad
Additional
receivers

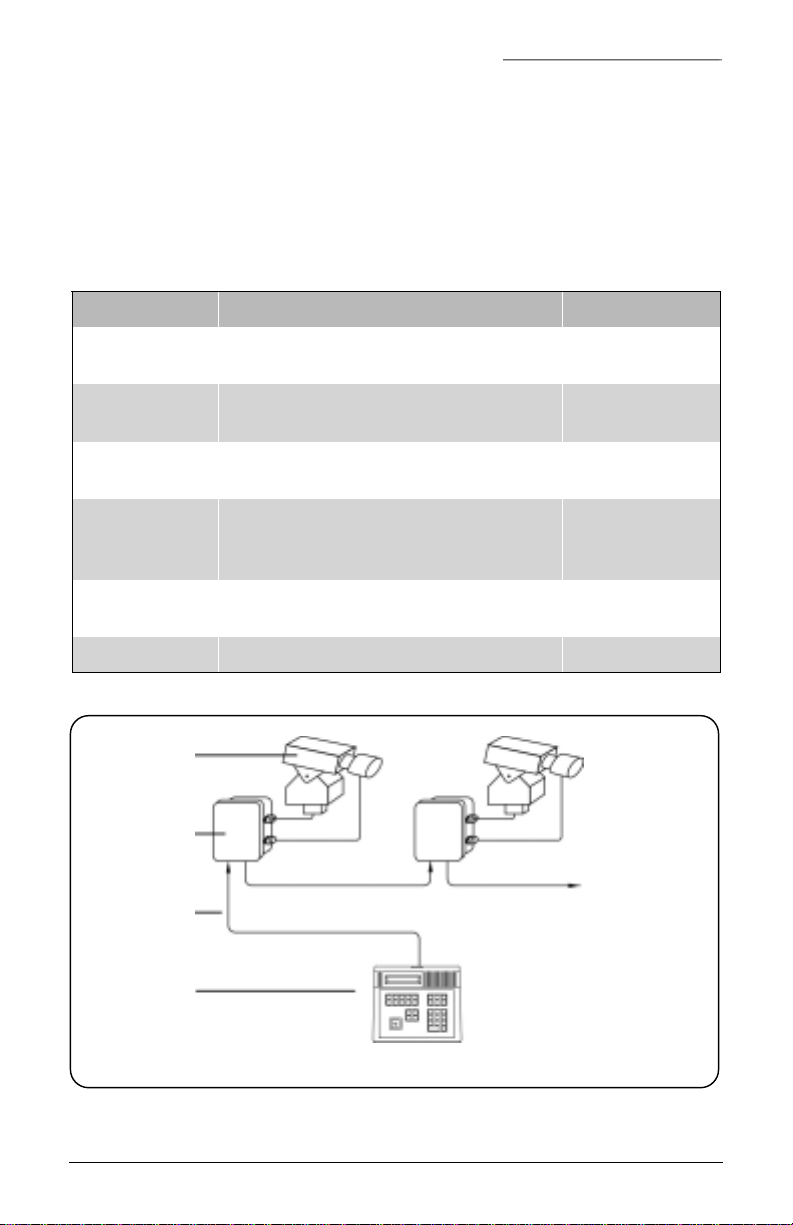

Figure 1. KTD-125/127 receiver typical system diagram
1040823A / June 2003 5

Setting the Autopan Jumper KTD-125/127 PTZ Receivers User Manual
2 SETTING THE AUTOPAN JUMPER
Note: Make the autopan jumper selection before you supply power to the unit.
1) Determine whether or not your pan/tilt drive has an internal
reversing switch. (See Appendix A, Determining the Type of
Pan/Tilt Drive.)
2) Locate the autopan jumper. For KTD-125 units see Figure 2; for
KTD-127 units see Figure 3.
Figure 2. KTD-125 autopan jumper location
Figure 3. KTD-127 autopan jumper location
6 1040823A / June 2003

KTD-125/127 PTZ Receivers User Manual Setting the Autopan Jumper

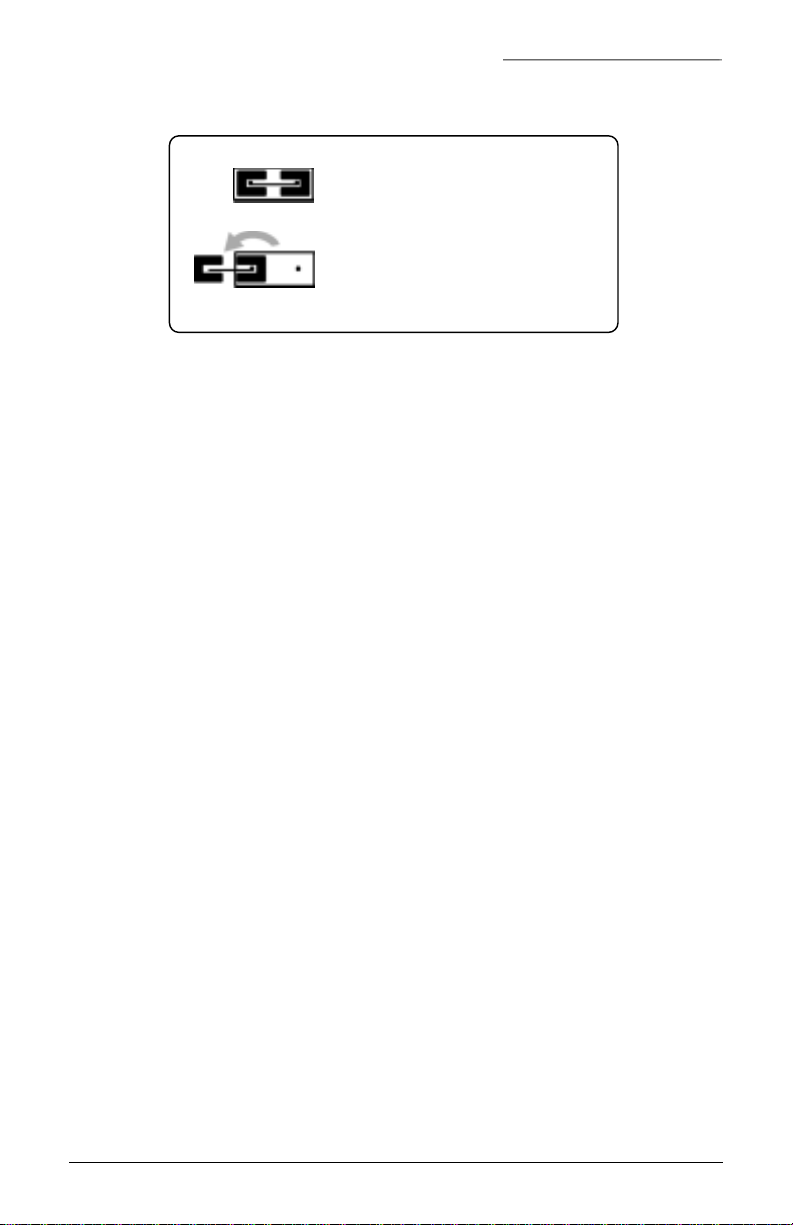

3) See Figure 4 to set the autopan jumper.
Connect for pan/tilt units without
an internal reversing switch
Disconnect for pan/tilt with an
internal reversing switch
Figure 4. Selecting the autopan jumper setting
Note: If the pan/tilt drive has an internal reversing switch, connect the pant/tilt drive’s
AUTO output to the receiver when making cable connections.
Note: If the pan/tilt units does not have an internal reversing switch, the left and right limit
switches will determine the points where the unit will reverse during autopan.
1040823A / June 2003 7

Installing KTD-125 Units KTD-125/127 PTZ Receivers User Manual
3 INSTALLING KTD-125 UNITS
CAUTION:
Complete all instruction steps before supplying power to the unit.
3.1 MOUNTING THE UNIT
To mount the unit see Figure 5, Figure 6, and Figure 7 and perform the
following.
1) Disconnect the power cable connector from the power input on the
main relay board.
Note: In most cases, it is easier to mount the unit with the main relay board
removed.
2) Remove the main relay board from the housing.

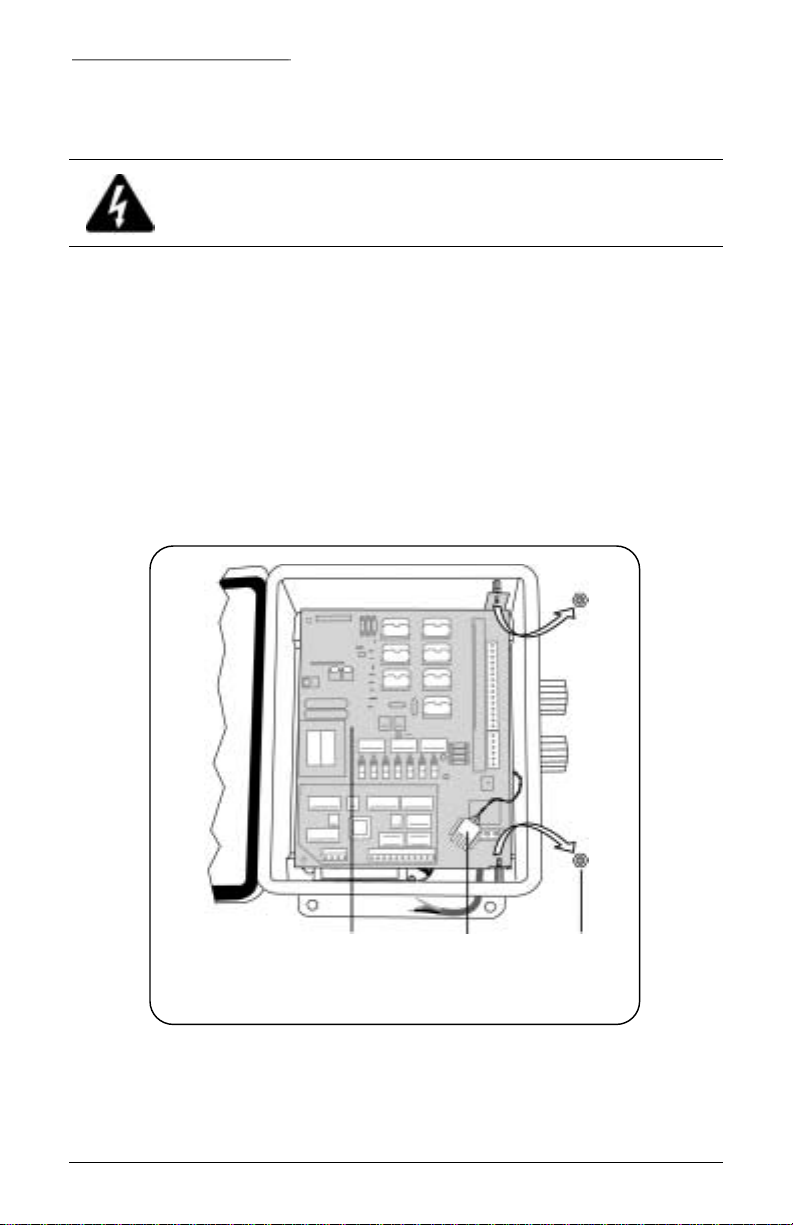

Main relay
board Power cable connector Finger nuts
Figure 5. Removing the finger nuts (KTD-125P-24 shown)
8 1040823A / June 2003

KTD-125/127 PTZ Receivers User Manual Installing KTD-125 Units

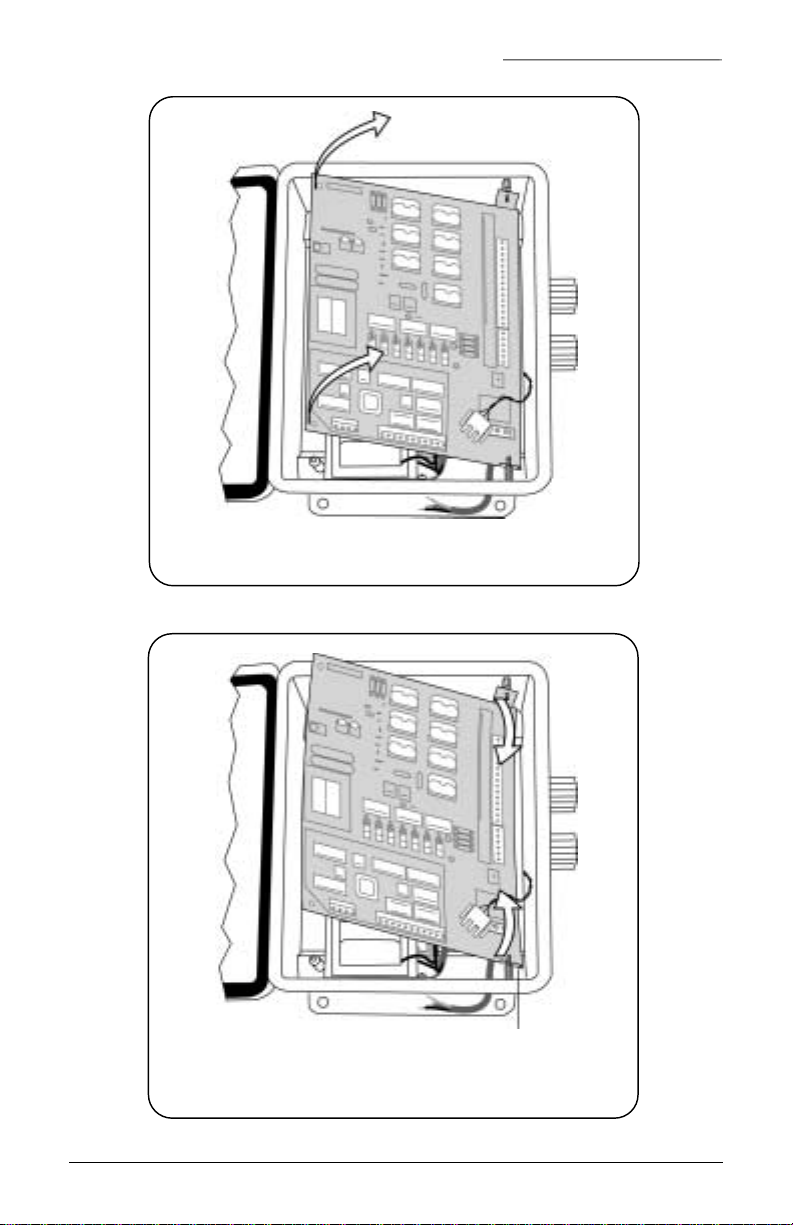

Figure 6. Pulling the main relay board away from the standoffs
(KTD-125P-24 shown)
Note: You may need to bend the board slightly to remove it from the housing.
Board brackets (2)
Figure 7. Pushing the board brackets inward to free the board
from the housing. (KTD-125P-24 shown)
1040823A / June 2003 9

Installing KTD-125 Units KTD-125/127 PTZ Receivers User Manual
3) To mount the housing use installer-provided fasteners and the four
mounting holes in the mounting flanges (Figure 8).
Note: Install the housing so that it is level and the door opens to the left.
Mounting
holes (4)
Figure 8. Holes in the housing’s mounting flanges (KTD-125P-24
shown)
Note: Do not reinstall the main relay board until instructed to do so in section 6, Completing
and Testing the Installation.
10 1040823A / June 2003

KTD-125/127 PTZ Receivers User Manual Installing KTD-125 Units
3.2 MAKING CABLE CONNECTIONS
For the following procedures, see Figure 9 for KTD-125/125P units and
Figure 10 for KTD-125-24/125P-24 units.

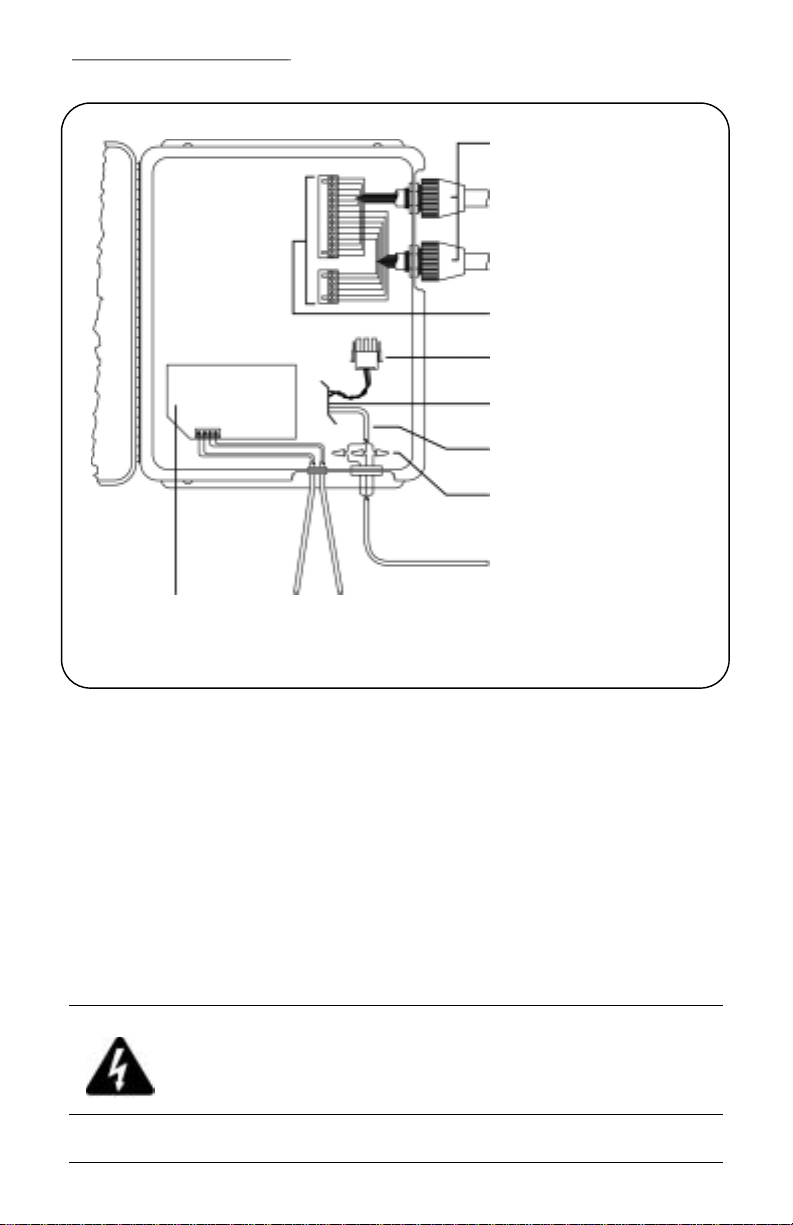

Watertight cable openings
Camera power/zoom lens
Pan/tilt
Removable terminal strips
24 VAC power connector
24 VAC power pigtail
Wire nut connections to the
power pigtail
24 VAC power in
Receiver
card RS422 control in RS422 control out
Figure 9. KTD-125/125P Cable routing
1040823A / June 2003 11

Installing KTD-125 Units KTD-125/127 PTZ Receivers User Manual
Watertight cable openings
Camera power/zoom lens
Pan/tilt
Removable terminal strips
24 VAC power connector
To power transformer
110 VAC power pigtail
Wire nut connections to the
110 VAC power pigtail
110 VAC power in
Receiver
card RS422 control in RS422 control out
Figure 10. KTD-125-24/125P-24 cable routing
To prepare the cables for connection perform the following.
1) Route the cables into the housing.
2) Remove 6 inches of the outer casing of the camera/lens, pan/tilt,
and power cables.
3) Tie a knot in the RS422 cable(s) six inches from the end on the
inside of the housing to act as a strain relief.
4) Remove the outer casing from the end of the RS422 cable(s).
To make the cable connections perform the following.
CAUTION:
For the KTD-125-24 and KTD-125P-24 units, connect only
110 VAC input to the power cable pigtail.
12 1040823A / June 2003

KTD-125/127 PTZ Receivers User Manual Installing KTD-125 Units
CAUTION:
For the KTD-125 and KTD-125P units, connect only
24 VAC input to the power cable pigtail.
1) Use wire nuts to connect the power cable conductors to the power
cable pigtail. (See Table 2.)
Table 2. Power cable pigtail connectors
Connector color Description
Black = Hot
White = Neutral
Green = Ground
2) Remove the terminal strip(s) from the main relay board.

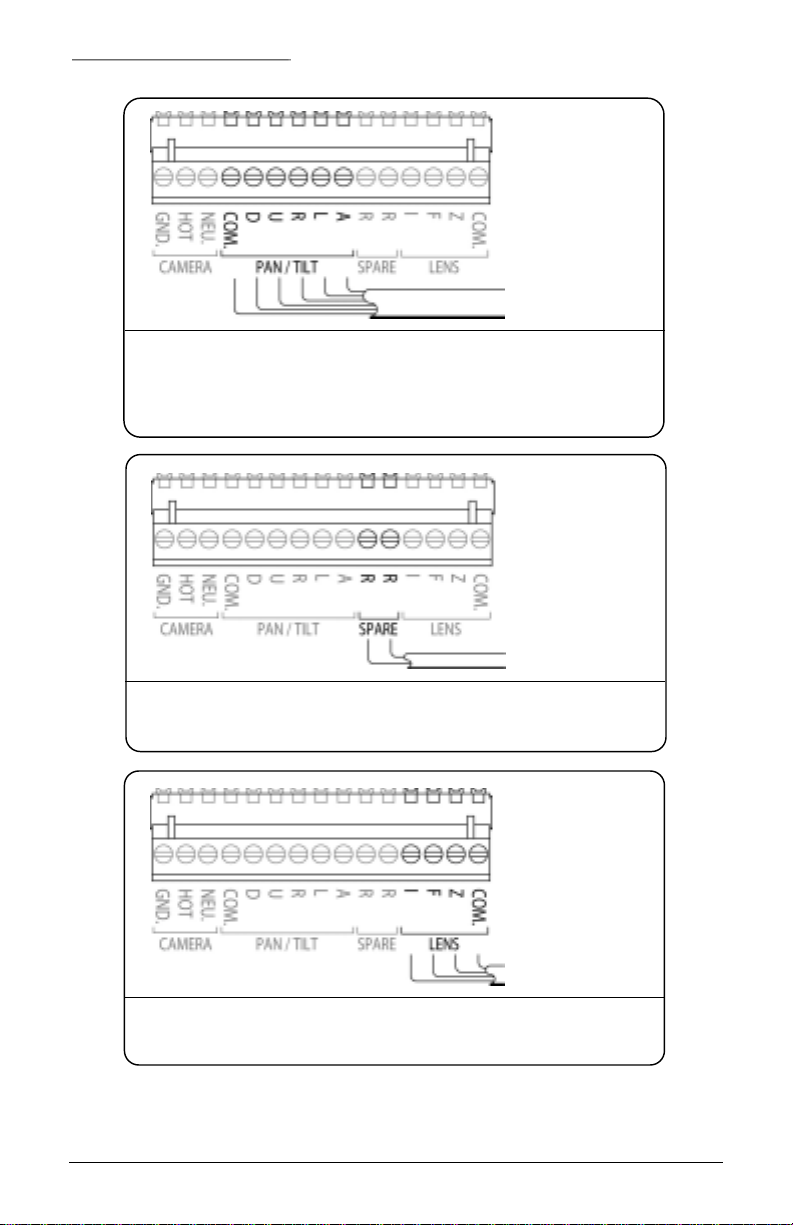

3) Make the remaining cable connections as shown in Figure 11
through Figure 14.
Camera power
GND. = Ground HOT = Hot NEU. = Neutral
Figure 11.KTD-125 Camera Power Connections
1040823A / June 2003 13

PTZ Receivers User ManualInstalling KTD-125 Units KTD-125/127
Pan/tilt control
cable
COM. = Common U= Up L= Left
D= Down R= Right A= Auto
Figure 12.KTD-125 Pan/Tilt Connections
Spare relay
contact
R= Relay Contact
Figure 13.KTD-125 Spare Relay Connections
Lens control
cable
I= Iris F= Focus Z = Zoom COM. = Common
Figure 14.KTD-125 Zoom Lens Connections
14 1040823A / June 2003

KTD-125/127 PTZ Receivers User Manual Installing KTD-125 Units
4) Remove the four-connection terminal strip from the receiver card
on the main relay board.
Note: Observe polarity when you connect the RS422 control cables.
5) Connect the RS422 control cable(s) as shown in Figure 15.
RS422 control in RS422 control out

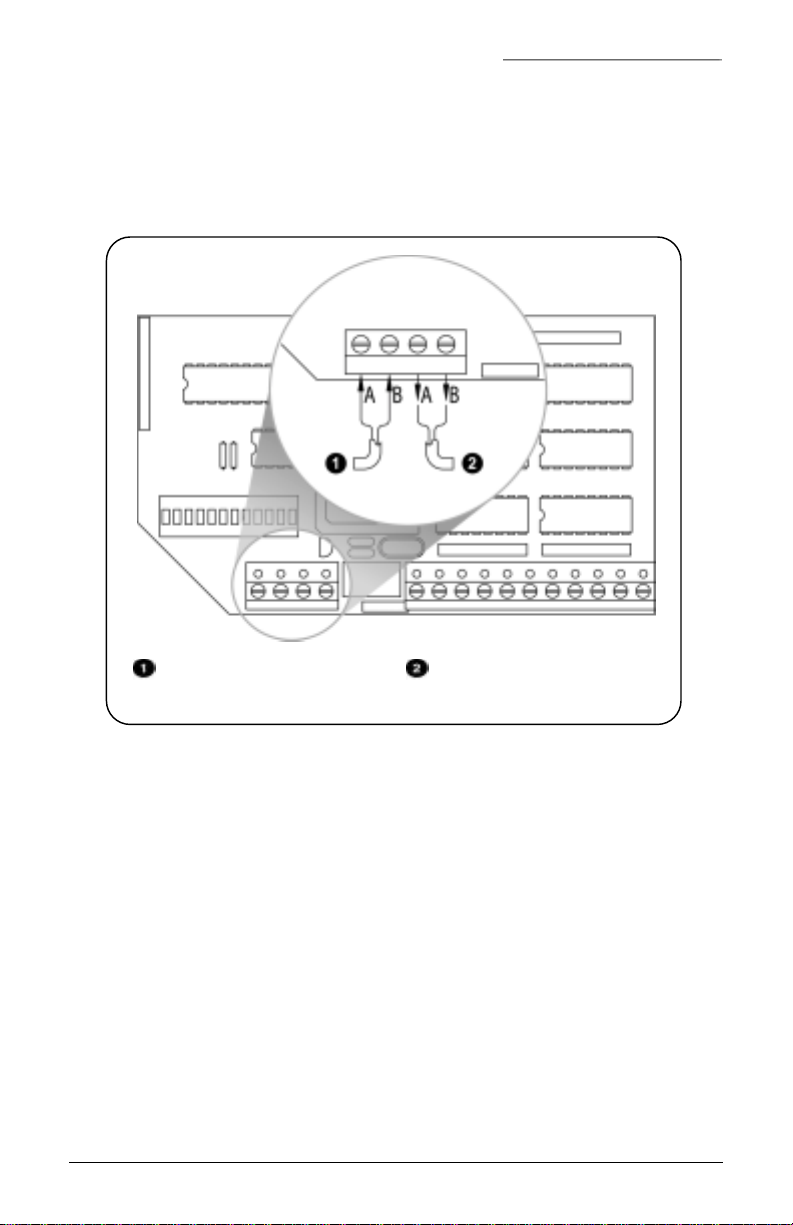

Figure 15. KTD-125 RS422 control cable connections to the receiver card
6) For the programming preset positions with the KTD-125P, see
section 3.2.1, KTD-125P Preset Positioning.
For final installation steps see section 6, Completing and Testing the
Installation (All Units).
1040823A / June 2003 15

Installing KTD-125 Units KTD-125/127 PTZ Receivers User Manual
3.2.1 KTD-125P PRESET POSITIONING
The KTD-125P/125P-24 receivers can find up to 10 preset positions if
the camera lens and pan/tilt drive are equipped with feedback
potentiometers. If you program the 10 positions from the controller
keypad, you can find a maximum of eight through contact closures into
the receiver’s KTD-125C receiver card.
Note: You can also find the preset positions using the controller keypad keys, through
contact closures into the KTD-463 Alarm Interface, and through commands issued from an
external computer through the KTD-312 Interface Module.
The KTD-125P/125P-24 receivers include a relay that activates when
one or more preset alarm contacts are closed. This allows switching of
the alarmed site’s video to the monitor screen while the camera moves to
the alarmed preset position.
To find preset positions using contact closures into the receiver card see
Figure 16 and Figure 17 and perform the following.
1) Connect the preset positioning input cable to the removable
terminal strip from the main relay board.
Preset positioning input cable
COM. = preset common T.P. = tilt position F.P. = focus position
5V = +5 Volts DC P.P. = pan position Z.P. = zoom position
Figure 16. Preset contact connections
2) Make the preset alarm contact connections to the preset
connection terminal strip on the receiver card.
3) To connect the output relay to an alarm interface unit.
16 1040823A / June 2003

KTD-125/127 PTZ Receivers User Manual Installing KTD-125 Units
Relay output Preset alarm input contacts
Figure 17. Preset and output relay contact connections
1040823A / June 2003 17

Installing the KTD-127 KTD-125/127 PTZ Receivers User Manual
4 INSTALLING THE KTD-127
CAUTION:
Complete all instruction steps before supplying power to the unit.
4.1 MOUNTING THE UNIT
Note: In most cases, it is easier to mount the unit with the main relay board removed.
1) Remove the main relay board from the housing as shown in
Figure 18 and Figure 19.

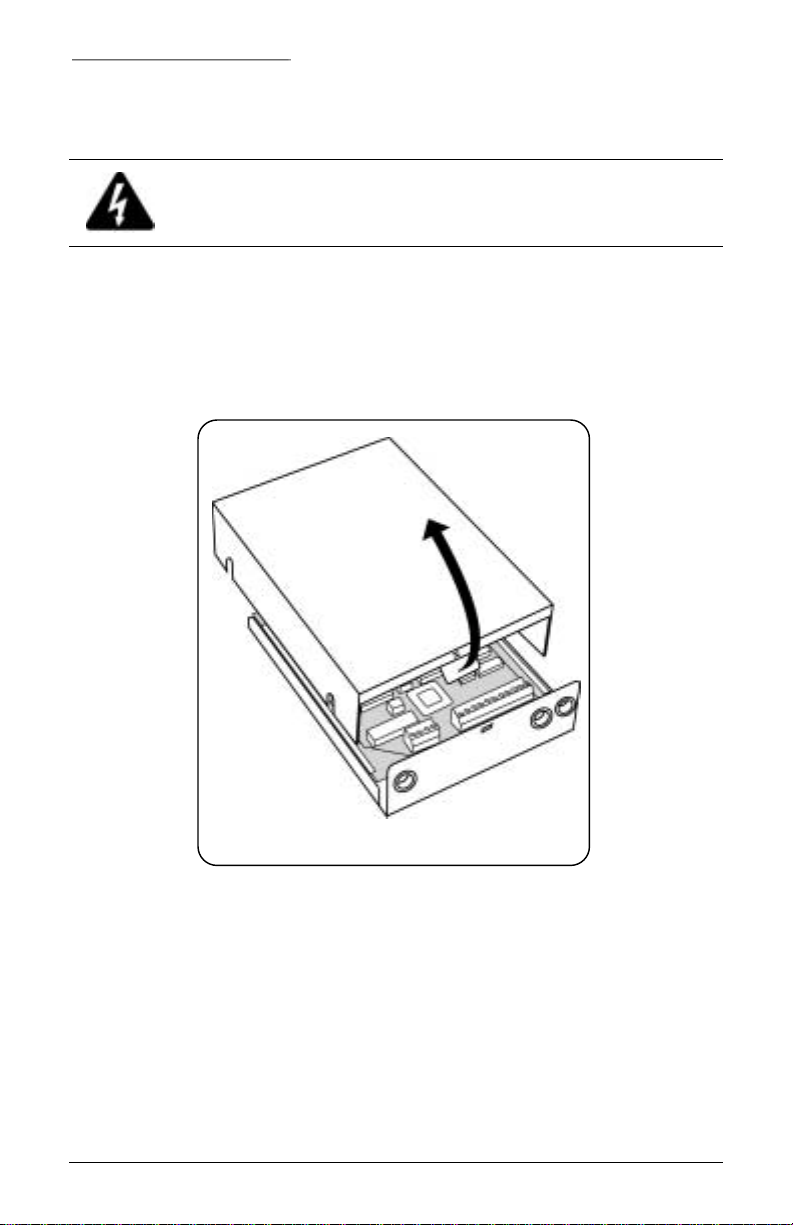

Figure 18. Removing the KTD-127 cover
18 1040823A / June 2003

KTD-125/127 PTZ Receivers User Manual Installing the KTD-127
Figure 19. Sliding out the KTD-127 card
2) To mount the housing use the two mounting holes in the housing
(Figure 20) and installer-provided fasteners.
Mounting
holes (2)
Figure 20. Mounting holes in KTD-127 housing
Note: Do not reinstall the main relay board until instructed to do so in section 6, Completing
and Testing the Installation (All Units).
1040823A / June 2003 19

Installing the KTD-127 KTD-125/127 PTZ Receivers User Manual
4.2 MAKING CABLE CONNECTIONS
See Figure 21 for the following procedures.
Removable terminal strip
Receiver card
Camera power/zoom lens
Pan/tilt
24 VAC power
RS422 control out
RS422 control out

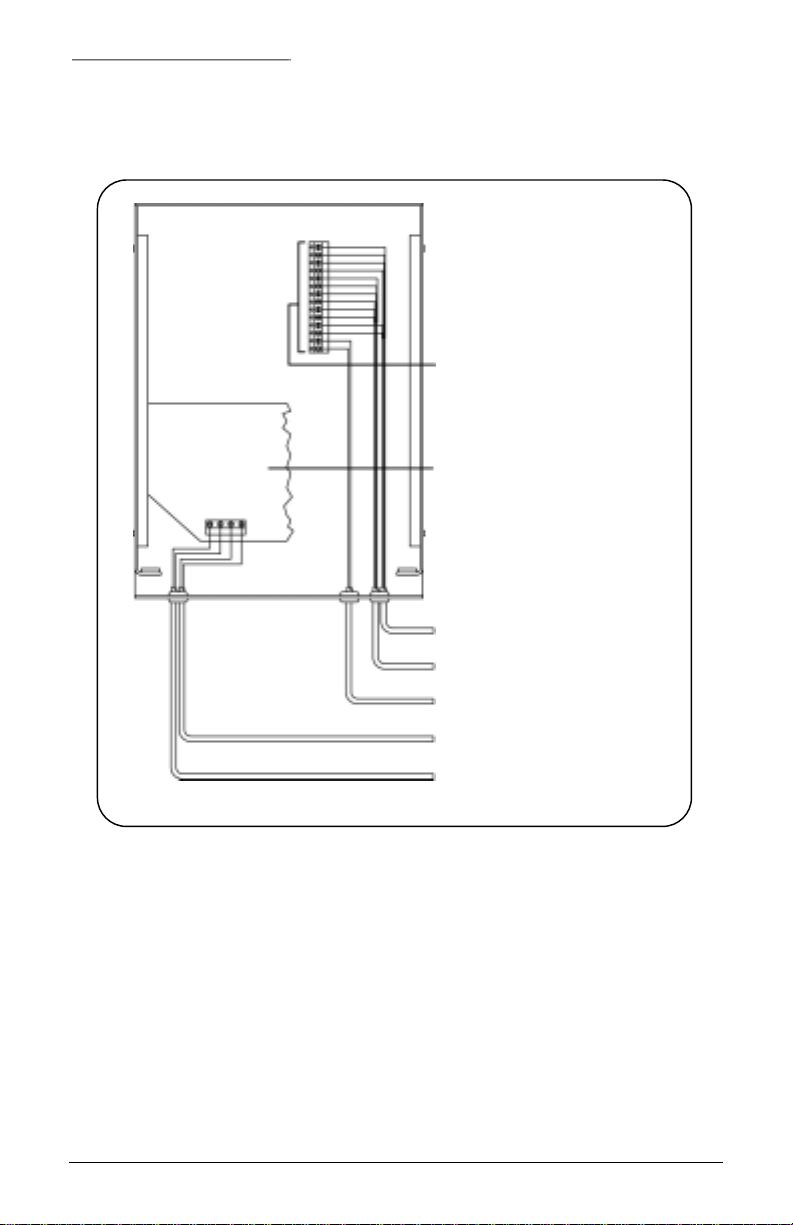

Figure 21. KTD-127 cable connections
To prepare the cables for connection perform the following.
1) Route the cables into the housing.
2) Remove 6 inches of the outer casing from the camera/lens, pan/tilt,
and 24 VAC power cables.
3) Remove the outer casing from the end of the RS422 cable(s).
To make the cable connections perform the following.
1) Remove the terminal strip from the main relay board.
2) Make connections as shown in Figure 22 through Figure 24.
20 1040823A / June 2003
