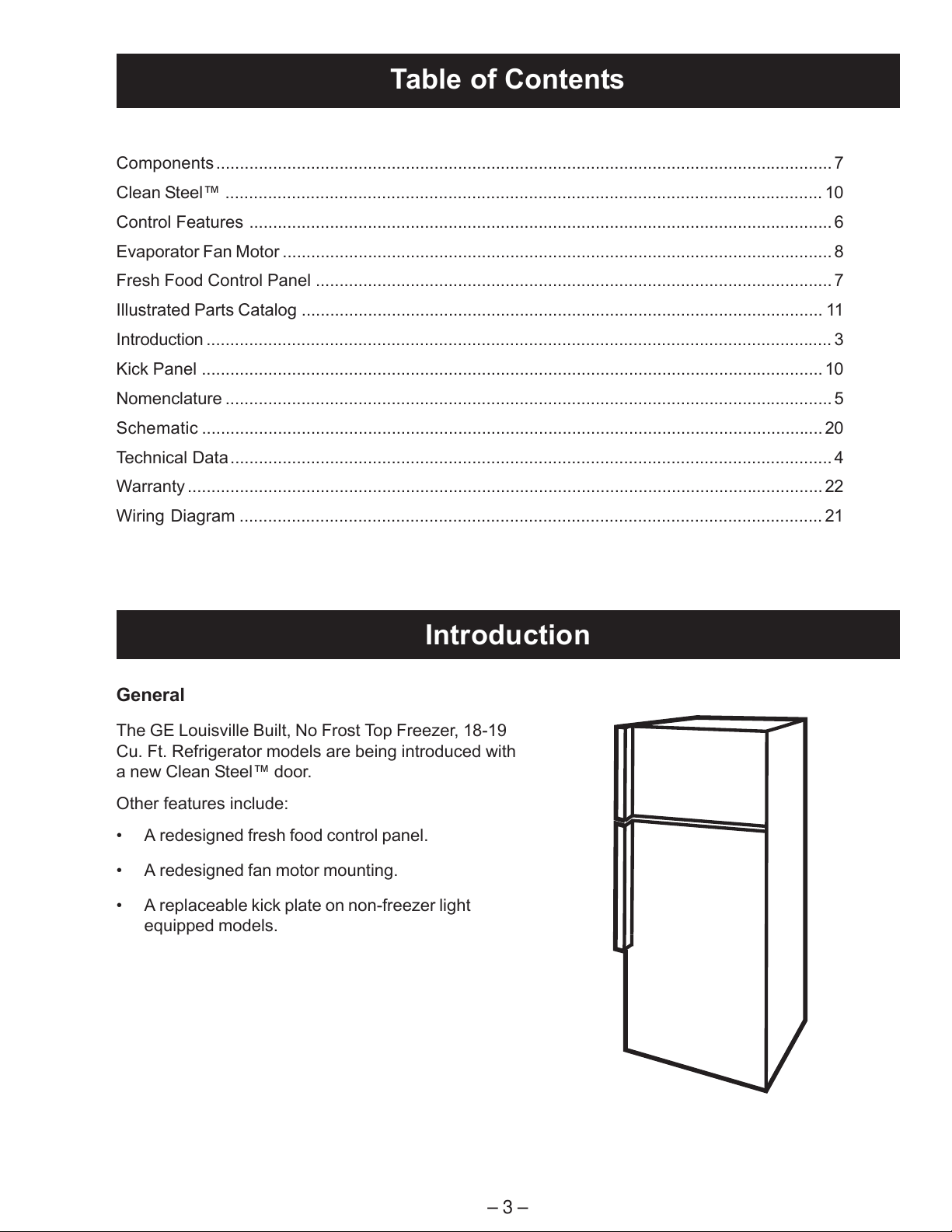

– 3 –
‘lk;lkm;lkm;/
General
The GE Louisville Built, No Frost Top Freezer, 18-19
Cu. Ft. Refrigerator models are being introduced with
a new Clean Steel™ door.
Other features include:
• A redesigned fresh food control panel.
• A redesigned fan motor mounting.
• A replaceable kick plate on non-freezer light
equipped models.
Introduction
Components.................................................................................................................................. 7
Clean Steel™ .............................................................................................................................. 10
Control Features ........................................................................................................................... 6
Evaporator Fan Motor .................................................................................................................... 8
Fresh Food Control Panel ............................................................................................................. 7
Illustrated Parts Catalog .............................................................................................................. 11
Introduction .................................................................................................................................... 3
Kick Panel ................................................................................................................................... 10
Nomenclature ................................................................................................................................ 5
Schematic ................................................................................................................................... 20
Technical Data ............................................................................................................................... 4
Warranty ...................................................................................................................................... 22
Wiring Diagram ........................................................................................................................... 21
Table of Contents
https://appliancetechmanuals.com
– 4 –

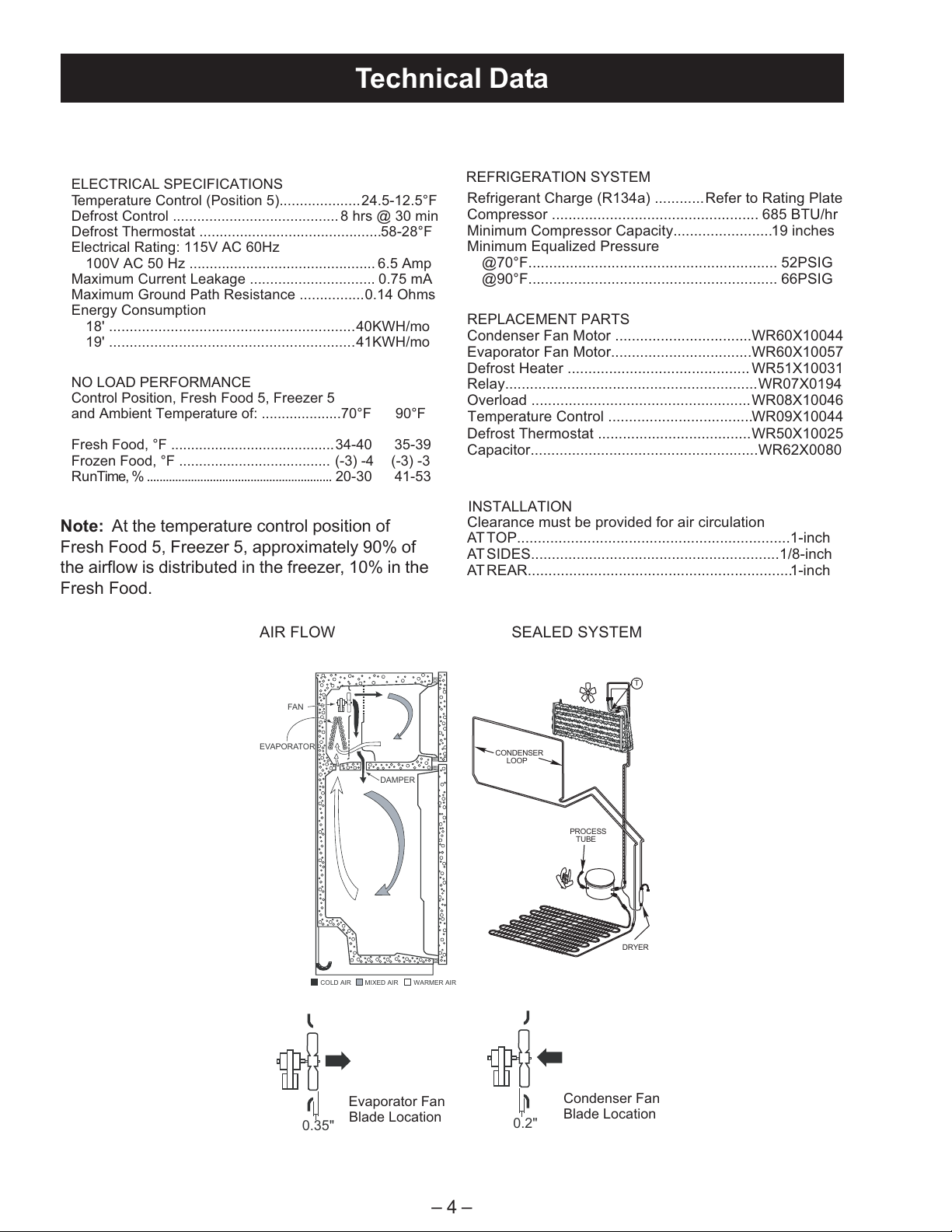

Technical Data
Note: At the temperature control position of
Fresh Food 5, Freezer 5, approximately 90% of
the airflow is distributed in the freezer, 10% in the
Fresh Food.
ELECTRICAL SPECIFICATIONS
Temperature Control (Position 5)....................24.5-12.5°F
Defrost Control ......................................... 8 hrs @ 30 min
Defrost Thermostat .............................................58-28°F
Electrical Rating: 115V AC 60Hz
100V AC 50 Hz .............................................. 6.5 Amp
Maximum Current Leakage ............................... 0.75 mA
Maximum Ground Path Resistance ................0.14 Ohms
Energy Consumption
18' ............................................................40KWH/mo
19' ............................................................41KWH/mo
NO LOAD PERFORMANCE
Control Position, Fresh Food 5, Freezer 5
and Ambient Temperature of: ....................70°F 90°F
Fresh Food, °F .........................................34-40 35-39
Frozen Food, °F ...................................... (-3) -4 (-3) -3
RunTime, % ........................................................... 20-30 41-53
REFRIGERATION SYSTEM
Refrigerant Charge (R134a) ............Refer to Rating Plate
Compressor .................................................. 685 BTU/hr
Minimum Compressor Capacity........................19 inches
Minimum Equalized Pressure
@70°F............................................................ 52PSIG
@90°F............................................................ 66PSIG
REPLACEMENT PARTS
Condenser Fan Motor .................................WR60X10044
Evaporator Fan Motor..................................WR60X10057
Defrost Heater ............................................ WR51X10031
Relay.............................................................WR07X0194
Overload .....................................................WR08X10046
Temperature Control ...................................WR09X10044
Defrost Thermostat .....................................WR50X10025
Capacitor.......................................................WR62X0080
INSTALLATION
Clearance must be provided for air circulation
AT TOP..................................................................1-inch
AT SIDES............................................................1/8-inch
AT REAR................................................................1-inch
CONDENSER
LOOP
PROCESS
TUBE
DRYER
103-02A
T
AIR FLOW SEALED SYSTEM
Evaporator Fan
Blade Location
Condenser Fan
Blade Location
WARMER AIRMIXED AIR
COLD AIR
DAMPER
FAN
EVAPORATOR
0.35"
0.2"
https://appliancetechmanuals.com
– 5 –
Nomenclature
G T H 1 8 K B P A R W W
BRAND/
PRODUCT
G = GE
H = HOTPOINT
P = PROFILE (GE)
E = ETERNA (GE)
S = SELECT (GE)T
DEPTH/POWER
C = CUSTOM STYLE
F = HIGH GLOSS
SMOOTH FINISH
H = ENERGY STAR
I = CUSTOM STYLE W/
INSTALLED TRIM
L = CLEAN STEEL™
R = RECESSED HANDLE
S = STANDARD
W = FULL WRAP STAINLESS
Z = STAINLESS INTERIOR
INTERIOR/SHELVES
A = LEADER WIRE
B = STANDARD WIRE
C = UPGRADE WIRE
D = DELUXE WIRE
E = PREMIUM WIRE
F = SUPERIOR WIRE
G = STANDARD GLASS
H = UPGRADE GLASS
I = DELUXE GLASS
J = SPILL-PROOF GLASS
K = SPILL-PROOF GLASS
L = SPILL-PROOF SLIDE-OUT GLASS
M = SPILL-PROOF/SLIDE-OUT GLASS
N = SPILL-PROOF/SLIDE-OUT
CUSTOM COOL GLASS
S = STAINLESS STEEL DOORS
ICEMAKER/EXTERIOR
A = NOT ICE MAKER READY
B = ICE MAKER READY
C = FACTORY ICE MAKER
D = CUBED ICE/WATER
E = CUBED/CRUSHED ICE/WATER
F = 6 MO. FILTER/CUBED/CRUSHED ICE
G = 1 YR. FILTER/CUBED/CRUSHED ICE
I = IN-LINE FILTER/INDICATOR & C/C/W
J = IN-LINE FILTER/REFRESHMENT CTR
S = STAINLESS STEEL
EXTERIOR COLOR
AA = ALMOND/ALMOND
AD = ALMOND BLACK
BB = BLACK/BLACK
BS = STAINLESS/BLACK
CC = BISQUE/BISQUE
CT = BISQUE/BLACK
SS = STAINLESS/STAINLESS
WH = WHITE/BLACK
WS - STAINLESS/WHITE
WW = WHITE/WHITET
CONFIGURATION
A = SINGLE DOOR DEFROST
C = CUSTOM STYLE
EXPORT
E = COMBI CYCLE DEFROST
G = COMBI NO-FROST
I = CUSTOM STYLE W/TRIM
EXPORT
Q = MULTI-DOOR
S = SIDE-BY-SIDE CUBIC FEET
MODELYEAR
P = 2003
ENGINEERING
NOMENCLATURE
K = CONVERSION KIT
DOORTYPE
F = FLAT DOOR (G-LINE)
(SPACE = FLAT DOOR (S- & T-LINE
K = RETROFIT DOOR
2003 Upgrade, Louisville Built, No Frost Top Freezer, 18-19 Cu. Ft. Refrigerator
Mini-Manual Location
(Taped to lower back
panel of the refrigerator.)
https://appliancetechmanuals.com
– 6 –
Control Features

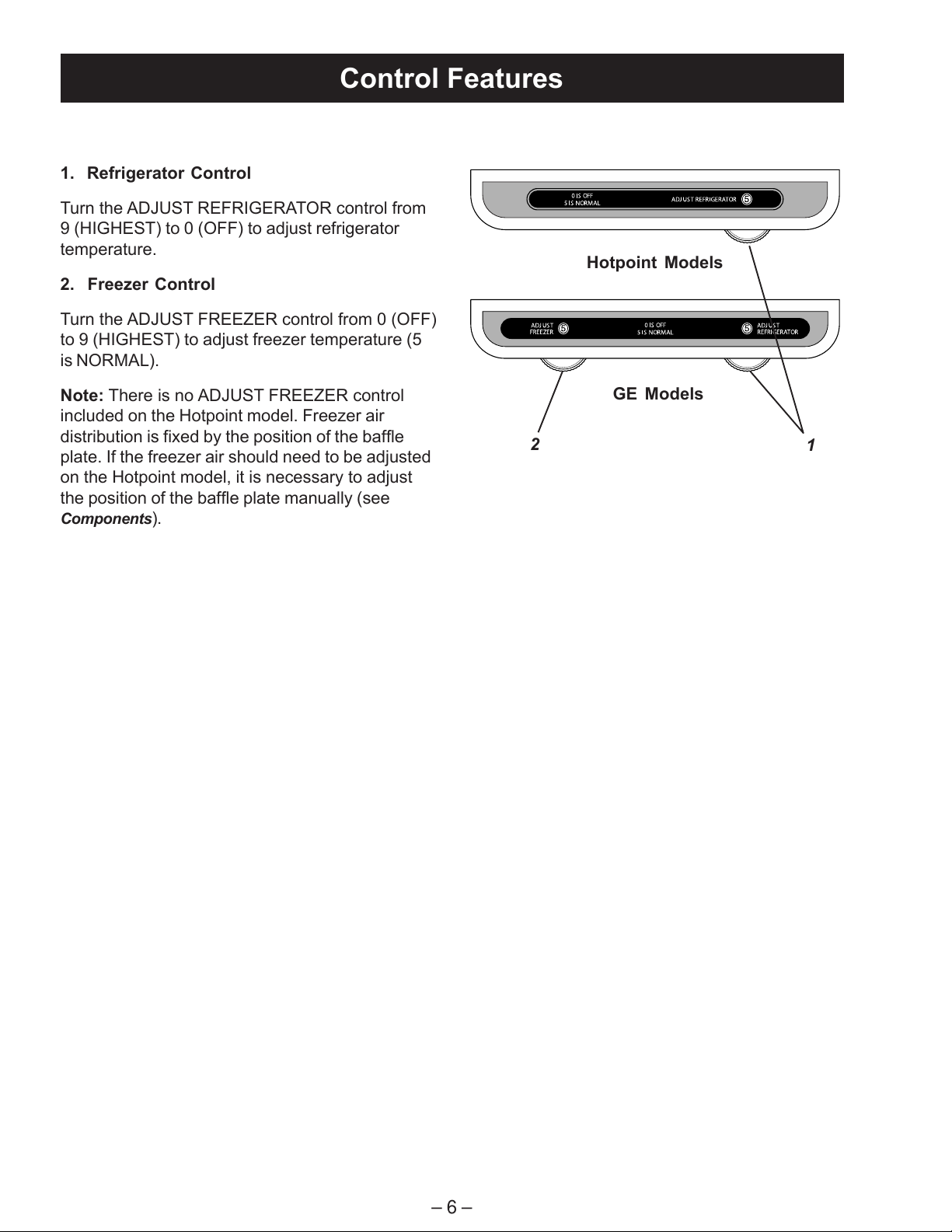

1. Refrigerator Control
Turn the ADJUST REFRIGERATOR control from
9 (HIGHEST) to 0 (OFF) to adjust refrigerator
temperature.
2. Freezer Control
Turn the ADJUST FREEZER control from 0 (OFF)
to 9 (HIGHEST) to adjust freezer temperature (5
is NORMAL).
Note: There is no ADJUST FREEZER control
included on the Hotpoint model. Freezer air
distribution is fixed by the position of the baffle
plate. If the freezer air should need to be adjusted
on the Hotpoint model, it is necessary to adjust
the position of the baffle plate manually (see
Components).
1
2
GE Models
Hotpoint Models
https://appliancetechmanuals.com
– 7 –
Components
2. Remove the two screws from the rear of the
control panel housing.
3. Remove the screw from the front center of the
control panel housing.
4. Lower the control panel housing, disconnect
the electrical connector, and remove the
housing.
Hotpoint Models
GE Models
5. Remove the baffle.
Note: There is no ADJUST FREEZER control
included on the Hotpoint model. Freezer air flow is
fixed by the position of the baffle plate. If the
freezer air should need to be adjusted on Hotpoint
models, perform steps 12 through 14.
6. Press back the rear retaining clip and lift up
the shaft.
7. Pull the shaft end from the shaft retaining
hole.
8. Press back the forward retaining clip and lift
up the control rod shaft.
9. Remove the control rod shaft and knob.
10. Remove the thermostat retaining block.
Screw
Screw
Screw
Connector
Baffle
Freezer Control
(Continued next page)

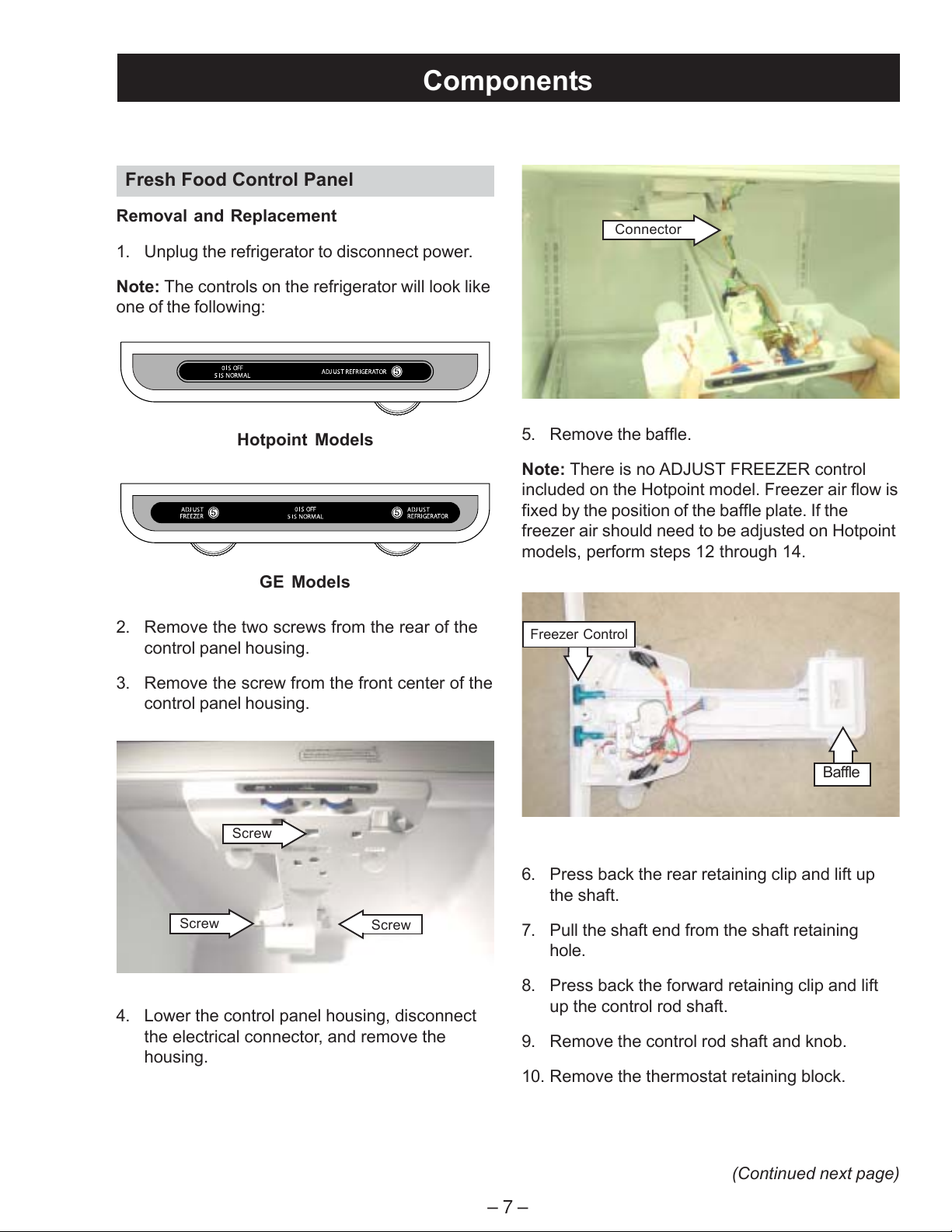

Fresh Food Control Panel
Removal and Replacement
1. Unplug the refrigerator to disconnect power.
Note: The controls on the refrigerator will look like
one of the following:
https://appliancetechmanuals.com
– 8 –
Note: There is no ADJUST FREEZER control
included on the Hotpoint model. Freezer air
distribution is fixed by the position of the baffle
plate. If the freezer air should need to be adjusted
on Hotpoint models, perform steps 12 through 14.
(Steps 12 through 14 should only be used if all
other temperature checks have been performed
and a temperature problem still exists.)

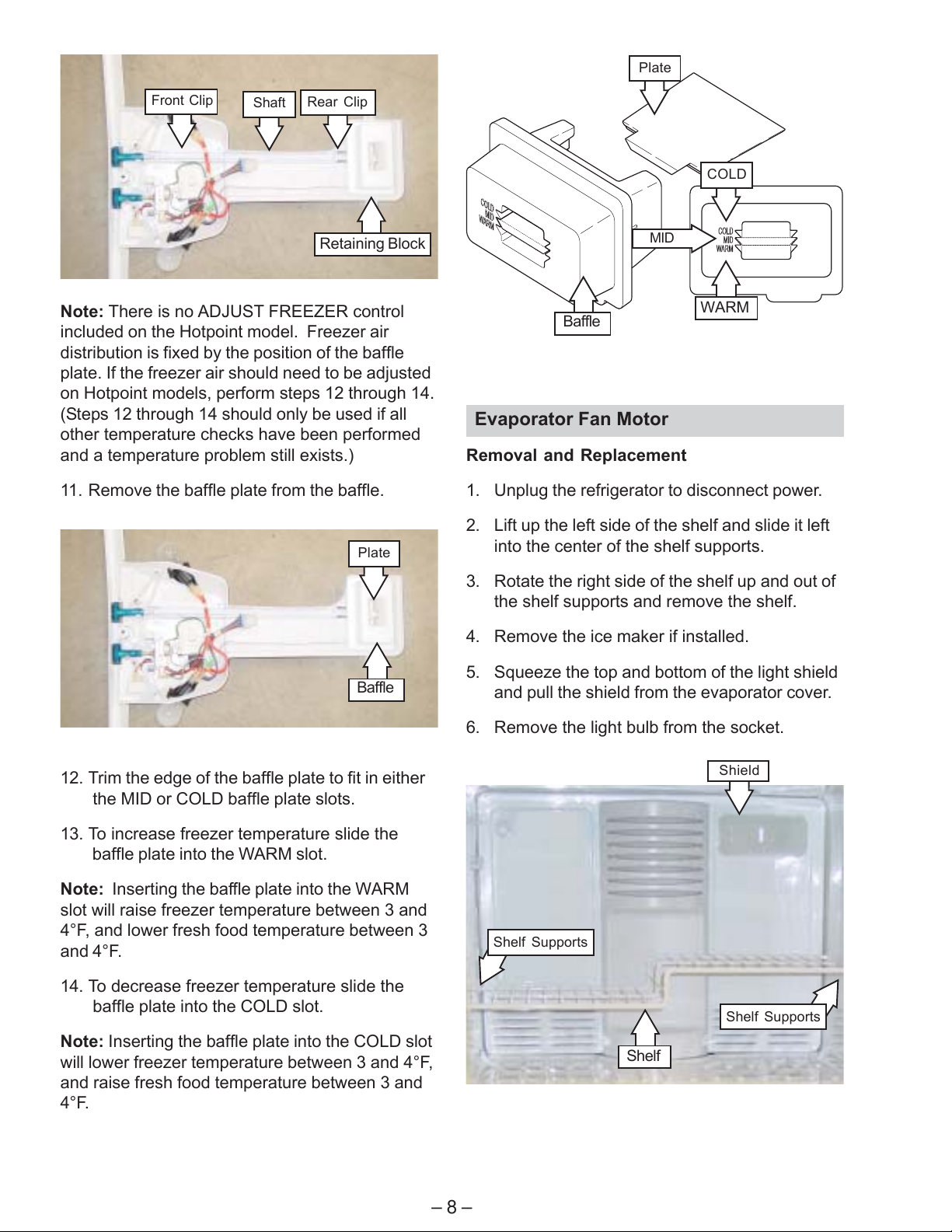

11. Remove the baffle plate from the baffle.
12. Trim the edge of the baffle plate to fit in either
the MID or COLD baffle plate slots.
13. To increase freezer temperature slide the
baffle plate into the WARM slot.
Note: Inserting the baffle plate into the WARM
slot will raise freezer temperature between 3 and
4°F, and lower fresh food temperature between 3
and 4°F.
14. To decrease freezer temperature slide the
baffle plate into the COLD slot.
Note: Inserting the baffle plate into the COLD slot
will lower freezer temperature between 3 and 4°F,
and raise fresh food temperature between 3 and
4°F.
Retaining Block
Front Clip Shaft Rear Clip
Plate
Baffle
COLD
WARM
MID
Baffle
Plate
Shelf
Shield
Shelf Supports
Shelf Supports
Evaporator Fan Motor
Removal and Replacement
1. Unplug the refrigerator to disconnect power.
2. Lift up the left side of the shelf and slide it left
into the center of the shelf supports.
3. Rotate the right side of the shelf up and out of
the shelf supports and remove the shelf.
4. Remove the ice maker if installed.
5. Squeeze the top and bottom of the light shield
and pull the shield from the evaporator cover.
6. Remove the light bulb from the socket.
https://appliancetechmanuals.com
– 9 –

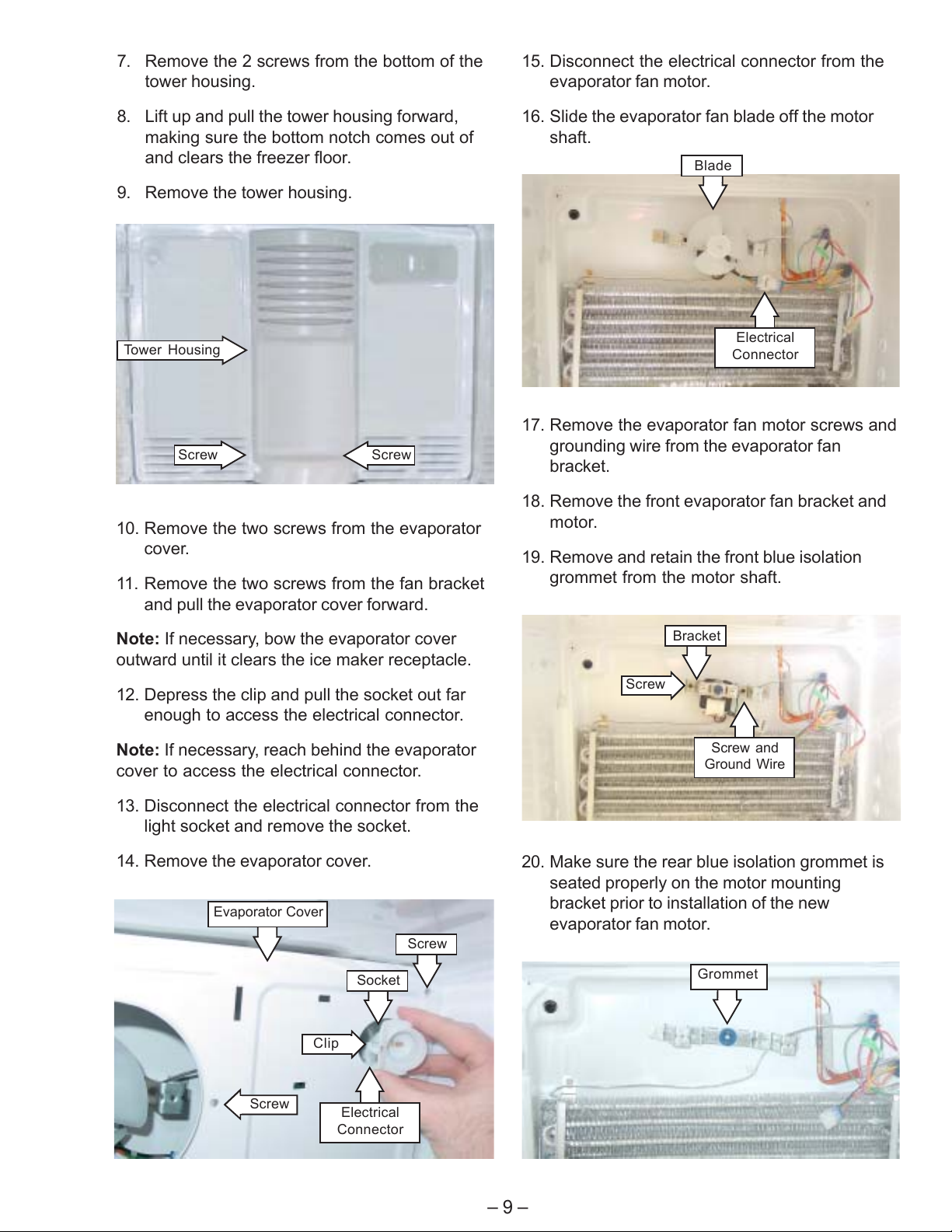

10. Remove the two screws from the evaporator
cover.
11. Remove the two screws from the fan bracket
and pull the evaporator cover forward.
Note: If necessary, bow the evaporator cover
outward until it clears the ice maker receptacle.
12. Depress the clip and pull the socket out far
enough to access the electrical connector.
Note: If necessary, reach behind the evaporator
cover to access the electrical connector.
13. Disconnect the electrical connector from the
light socket and remove the socket.
14. Remove the evaporator cover.
15. Disconnect the electrical connector from the
evaporator fan motor.
16. Slide the evaporator fan blade off the motor
shaft.
20. Make sure the rear blue isolation grommet is
seated properly on the motor mounting
bracket prior to installation of the new
evaporator fan motor.
17. Remove the evaporator fan motor screws and
grounding wire from the evaporator fan
bracket.
18. Remove the front evaporator fan bracket and
motor.
19. Remove and retain the front blue isolation
grommet from the motor shaft.
Screw Screw
7. Remove the 2 screws from the bottom of the
tower housing.
8. Lift up and pull the tower housing forward,
making sure the bottom notch comes out of
and clears the freezer floor.
9. Remove the tower housing.
Tower Housing
Screw
Socket
Clip
Screw Electrical
Connector
Evaporator Cover
Blade
Electrical
Connector
Bracket
Screw
Screw and
Ground Wire
Grommet
https://appliancetechmanuals.com
– 10 –
6. Reverse the above procedure to reinstall.
7. Remove the 3 screws and right mobility
assembly.
8. Remove the 3 screws and left mobility
assembly.
9. Slide out and remove the kick panel.
Note: When installing the kick panel screws, use
of an electric screwdriver will aid in the
installation.
Note: If necessary, adjust the mobility screw to
remove the mobility assembly in steps 7 and 8.
Hinge Screws
Top Screw
Kick Panel
Level Adjustment Screw
Kick Panel
The kick panel on models with no-freezer light is
replaceable.
Note: The kick panel on models with a freezer
light is replaceable, but not currently cataloged.
Removal and Replacement
Note: This procedure should be performed by two
people.
1. Unplug the refrigerator to disconnect power.
2. Remove shelving from the refrigerator and
freezer.
3. Lay the refrigerator on it's back.
4. Remove the 2 hinge screws, hinge, and fresh
food door from the refrigerator.
5. Remove the top screw from the same side.
6. Remove the 3 screws from the opposite side
of the kick panel.
Clean Steel™
Clean Steel™ is a vinyl-laminated steel similar in
appearance to true stainless steel. Clean Steel™
is easier to clean than stainless steel and does
not show fingerprints. The material has better
scratch resistance and has a galvanized steel
substrate to prevent red rust should a scratch
occur. Doors are shipped with a protective
polyethylene coating to help eliminate/reduce any
damage in shipping and delivery to the customer.
A touch-up paint is being developed for noncritical
areas, but there is currently no appearance repair
method for the front face of the door.
A Clean Steel™ surface is cleaned the same way
as our current painted surfaces. Use a clean
cloth lightly dampened with appliance polish or
mild household detergent. Then, use another
clean cloth to dry and polish the cleaned surfaces.
Caution: On all painted appliance surfaces, do
not use a kitchen towel that has been previously
used for kitchen cleaning without first being
washed. Bacteria from the previously used towel
will be deposited on the surface of the appliance
and will deteriorate the finish.
Screw
Screw
Screw
Mobility Assembly
https://appliancetechmanuals.com

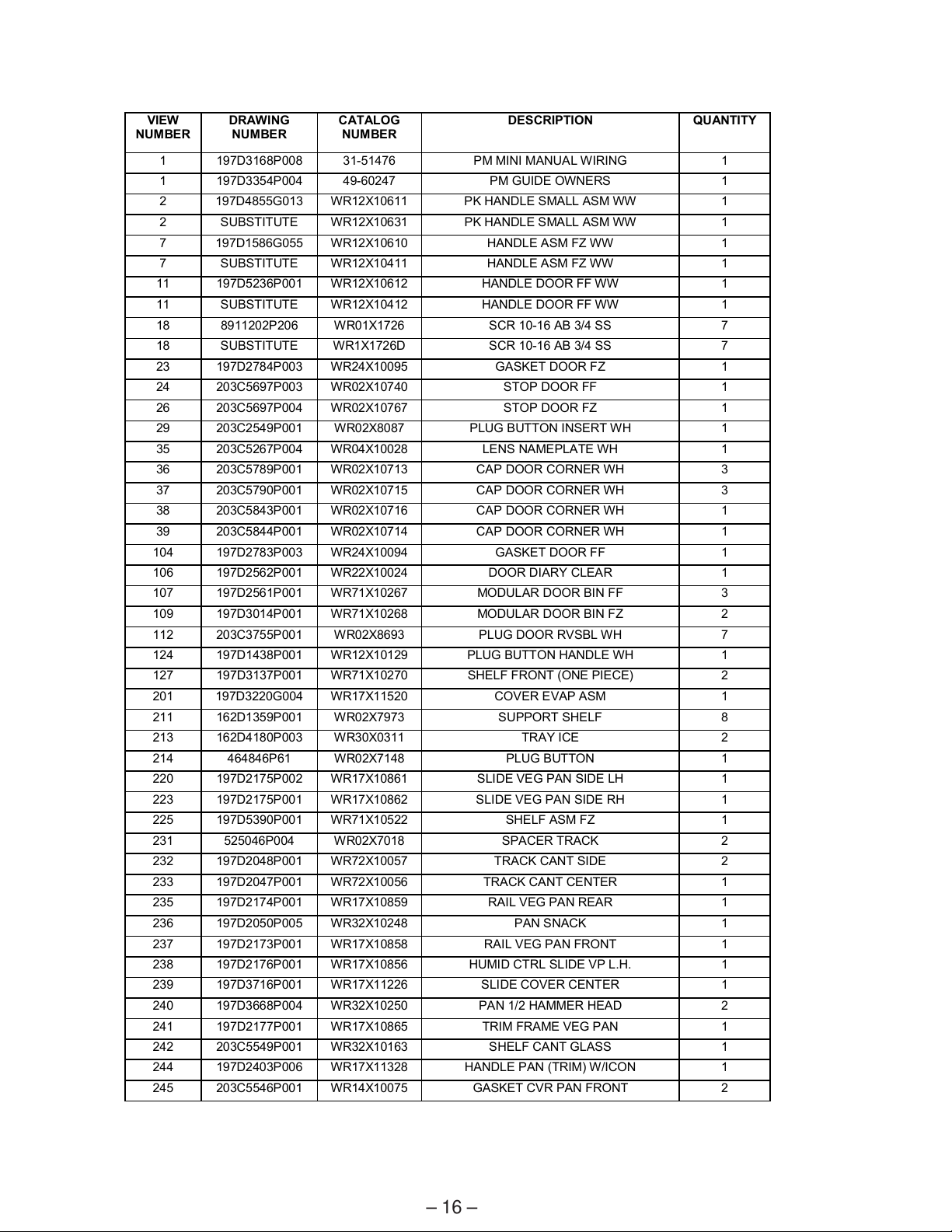

– 16 –
VIEW
NUMBER
DRAWING
NUMBER
CATALOG
NUMBER
DESCRIPTION QUANTITY
1 197D3168P008 31-51476 PM MINI MANUAL WIRING 1
1 197D3354P004 49-60247 PM GUIDE OWNERS 1
2 197D4855G013 WR12X10611 PK HANDLE SMALL ASM WW 1
2 SUBSTITUTE WR12X10631 PK HANDLE SMALL ASM WW 1
7 197D1586G055 WR12X10610 HANDLE ASM FZ WW 1
7 SUBSTITUTE WR12X10411 HANDLE ASM FZ WW 1
11 197D5236P001 WR12X10612 HANDLE DOOR FF WW 1
11 SUBSTITUTE WR12X10412 HANDLE DOOR FF WW 1
18 8911202P206 WR01X1726 SCR 10-16 AB 3/4 SS 7
18 SUBSTITUTE WR1X1726D SCR 10-16 AB 3/4 SS 7
23 197D2784P003 WR24X10095 GASKET DOOR FZ 1
24 203C5697P003 WR02X10740 STOP DOOR FF 1
26 203C5697P004 WR02X10767 STOP DOOR FZ 1
29 203C2549P001 WR02X8087 PLUG BUTTON INSERT WH 1
35 203C5267P004 WR04X10028 LENS NAMEPLATE WH 1
36 203C5789P001 WR02X10713 CAP DOOR CORNER WH 3
37 203C5790P001 WR02X10715 CAP DOOR CORNER WH 3
38 203C5843P001 WR02X10716 CAP DOOR CORNER WH 1
39 203C5844P001 WR02X10714 CAP DOOR CORNER WH 1
104 197D2783P003 WR24X10094 GASKET DOOR FF 1
106 197D2562P001 WR22X10024 DOOR DIARY CLEAR 1
107 197D2561P001 WR71X10267 MODULAR DOOR BIN FF 3
109 197D3014P001 WR71X10268 MODULAR DOOR BIN FZ 2
112 203C3755P001 WR02X8693 PLUG DOOR RVSBL WH 7
124 197D1438P001 WR12X10129 PLUG BUTTON HANDLE WH 1
127 197D3137P001 WR71X10270 SHELF FRONT (ONE PIECE) 2
201 197D3220G004 WR17X11520 COVER EVAP ASM 1
211 162D1359P001 WR02X7973 SUPPORT SHELF 8
213 162D4180P003 WR30X0311 TRAY ICE 2
214 464846P61 WR02X7148 PLUG BUTTON 1
220 197D2175P002 WR17X10861 SLIDE VEG PAN SIDE LH 1
223 197D2175P001 WR17X10862 SLIDE VEG PAN SIDE RH 1
225 197D5390P001 WR71X10522 SHELF ASM FZ 1
231 525046P004 WR02X7018 SPACER TRACK 2
232 197D2048P001 WR72X10057 TRACK CANT SIDE 2
233 197D2047P001 WR72X10056 TRACK CANT CENTER 1
235 197D2174P001 WR17X10859 RAIL VEG PAN REAR 1
236 197D2050P005 WR32X10248 PAN SNACK 1
237 197D2173P001 WR17X10858 RAIL VEG PAN FRONT 1
238 197D2176P001 WR17X10856 HUMID CTRL SLIDE VP L.H. 1
239 197D3716P001 WR17X11226 SLIDE COVER CENTER 1
240 197D3668P004 WR32X10250 PAN 1/2 HAMMER HEAD 2
241 197D2177P001 WR17X10865 TRIM FRAME VEG PAN 1
242 203C5549P001 WR32X10163 SHELF CANT GLASS 1
244 197D2403P006 WR17X11328 HANDLE PAN (TRIM) W/ICON 1
245 203C5546P001 WR14X10075 GASKET CVR PAN FRONT 2
https://appliancetechmanuals.com
– 17 –
VIEW
NUMBER
DRAWING
NUMBER
CATALOG
NUMBER
DESCRIPTION QUANTITY
246 197D2403P001 WR17X10904 HANDLE PAN (TRIM) 2
249 203C5936P001 WR02X10736 SUPPORT TWIST VP 2
255 197D2176P002 WR17X10857 HUMID CTRL SLIDE VP R.H. 1
261 197D4093G001 WR02X10804 GROMMET WATER FILL ASM 1
262 203C1086P001 WR02X10137 WHEEL MOBILITY BRACKET 4
263 203C5547P001 WR14X10076 GASKET CVR PAN REAR 1
265 203C5384P002 WR01X10039 AXLE WHEEL 2
267 197D2210G004 WR82X10085 COVER ACCESS ASM 1
268 203C6021P001 WR01X10219 SCREW MOBILITY 2
269 243B1814P001 WR01X1803 KEY PIVOT 2
269 SUBSTITUTE WR01X1733 KEY PIVOT 2
270 464846P48 WR02X8247 PLUG BUTTON WATER FILL 1
271 197D3710G001 WR02X10718 HOOD DUCT FF ASM L/SIDE 1
272 197D3710G002 WR02X10719 HOOD DUCT FF ASM R/SIDE 1
273 197D3738P001 WR14X10077 GASKET HOOD 2
275 197D1972G014 WR13X10101 HINGE TOP & ASM 1
276 197D2422G001 WR13X10139 HINGE CENTER ASM WH 1
279 203C1080P001 WR13X0587 PIN HINGE CTR 1
280 197D2334P001 WR02X10703 CAP CORNER OC WH 2
281 203C2032P010 WR01X10146 WASHER HINGE BROWN 2
282 197D2825G001 WR13X10138 HINGE BTM & PIN ASM WH 1
286 203C2185P002 WR01X1815 LEVELING NUT 2
287 197D3779G001 WR02X10722 MOBILITY ASM 2
288 197D2951P001 WR74X10068 GRILLE BASE WH 1
289 200D2209P001 WR02X10738 CLIP GRILLE 2
290 197D3390P001 WR02X10711 CAP GRILLE BASE WH 1
291 8911201P297 WR01X10221 SCR 8-10 PL PNP 1/2 S 3
294 197D5243P001 WR02X11568 SHIELD LIGHT FZ 1
297 197D5365P001 WR02X11587 KNOB THUMB CONTROL FF 1
297 SUBSTITUTE WR02X11591 KNOB THUMB CONTROL FF 1
300 197D2495P003 WR09X10110 CONTROL TEMP 1
300 SUBSTITUTE WR09X10073 CONTROL TEMP 1
301 197D5364P001 WR02X11586 KNOB THUMB CONTROL FZ 1
301 SUBSTITUTE WR02X11595 KNOB THUMB CONTROL FZ 1
304 197D2942P001 WR02X10723 NOZZLE CONTROL FOAM 1
305 197D5263P001 WR02X11583 WHEEL DAMPER 1
311 197D2943P001 WR02X10709 BLOCK FOAM CONTROL 1
315 197D3754P002 WR02X11006 SLEEVE VINYL 1
318 197D5276G001 WR23X10335 HARNESS CONTROL MODULE 1
319 197D2430P001 WR02X10727 SHAFT DAMPER 1
320 243B2550P001 WR01X10220 SPRING KNOB 2
321 197D5360P001 WR02X11584 SHIELD REFLECTOR FF 1
400 197D2052P001 WR32X10162 SHELF CANT FRAME ASM 3
401 197D2051G001 WR32X10164 SHELF ENCAP SNAP ON 3
433 238C1401P001 WR02X10732 SOCKET STRAIGHT LIGHT FF 1
434 197D3796G001 WR02X10591 SOCKET & TERMINAL 1
https://appliancetechmanuals.com

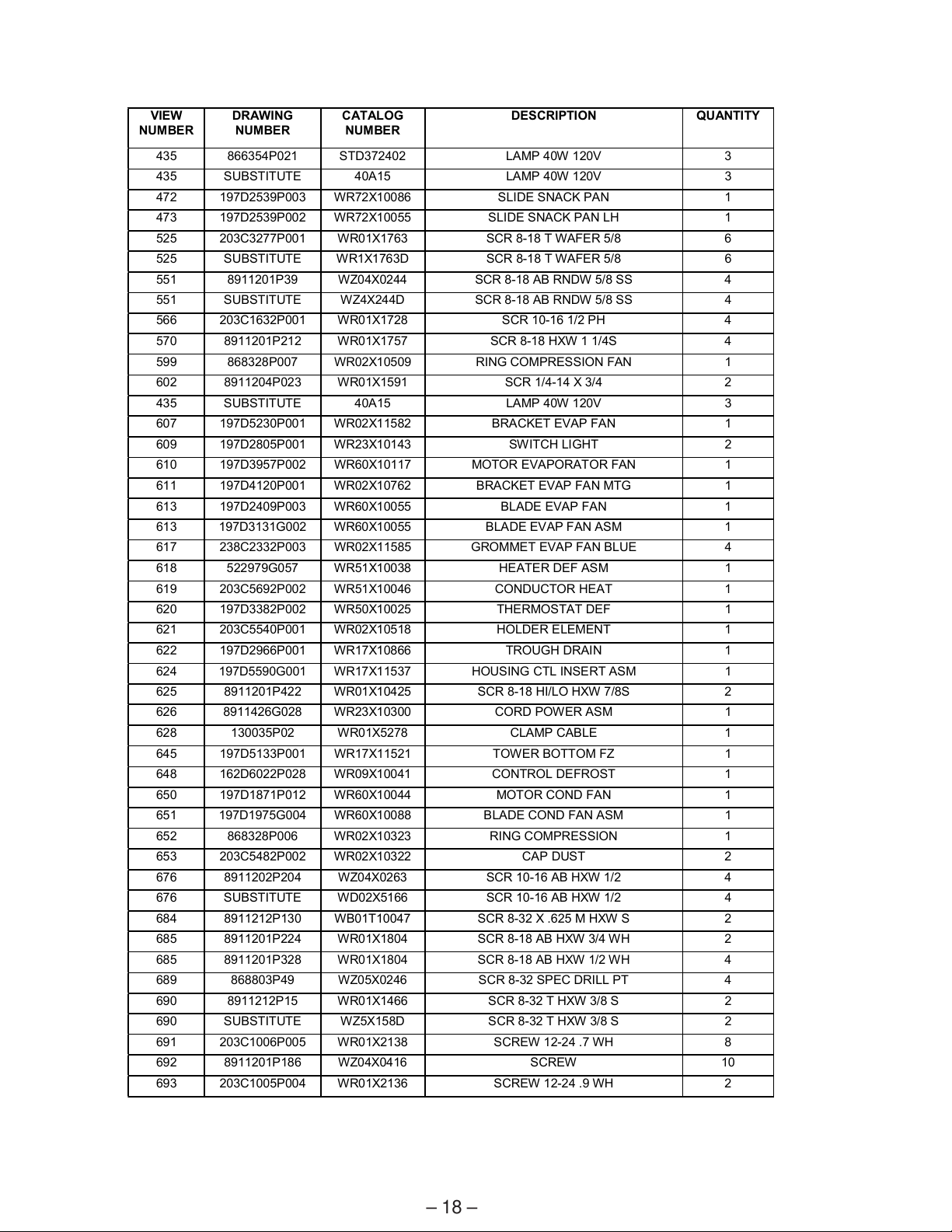

– 18 –
VIEW
NUMBER
DRAWING
NUMBER
CATALOG
NUMBER
DESCRIPTION QUANTITY
435 866354P021 STD372402 LAMP 40W 120V 3
435 SUBSTITUTE 40A15 LAMP 40W 120V 3
472 197D2539P003 WR72X10086 SLIDE SNACK PAN 1
473 197D2539P002 WR72X10055 SLIDE SNACK PAN LH 1
525 203C3277P001 WR01X1763 SCR 8-18 T WAFER 5/8 6
525 SUBSTITUTE WR1X1763D SCR 8-18 T WAFER 5/8 6
551 8911201P39 WZ04X0244 SCR 8-18 AB RNDW 5/8 SS 4
551 SUBSTITUTE WZ4X244D SCR 8-18 AB RNDW 5/8 SS 4
566 203C1632P001 WR01X1728 SCR 10-16 1/2 PH 4
570 8911201P212 WR01X1757 SCR 8-18 HXW 1 1/4S 4
599 868328P007 WR02X10509 RING COMPRESSION FAN 1
602 8911204P023 WR01X1591 SCR 1/4-14 X 3/4 2
435 SUBSTITUTE 40A15 LAMP 40W 120V 3
607 197D5230P001 WR02X11582 BRACKET EVAP FAN 1
609 197D2805P001 WR23X10143 SWITCH LIGHT 2
610 197D3957P002 WR60X10117 MOTOR EVAPORATOR FAN 1
611 197D4120P001 WR02X10762 BRACKET EVAP FAN MTG 1
613 197D2409P003 WR60X10055 BLADE EVAP FAN 1
613 197D3131G002 WR60X10055 BLADE EVAP FAN ASM 1
617 238C2332P003 WR02X11585 GROMMET EVAP FAN BLUE 4
618 522979G057 WR51X10038 HEATER DEF ASM 1
619 203C5692P002 WR51X10046 CONDUCTOR HEAT 1
620 197D3382P002 WR50X10025 THERMOSTAT DEF 1
621 203C5540P001 WR02X10518 HOLDER ELEMENT 1
622 197D2966P001 WR17X10866 TROUGH DRAIN 1
624 197D5590G001 WR17X11537 HOUSING CTL INSERT ASM 1
625 8911201P422 WR01X10425 SCR 8-18 HI/LO HXW 7/8S 2
626 8911426G028 WR23X10300 CORD POWER ASM 1
628 130035P02 WR01X5278 CLAMP CABLE 1
645 197D5133P001 WR17X11521 TOWER BOTTOM FZ 1
648 162D6022P028 WR09X10041 CONTROL DEFROST 1
650 197D1871P012 WR60X10044 MOTOR COND FAN 1
651 197D1975G004 WR60X10088 BLADE COND FAN ASM 1
652 868328P006 WR02X10323 RING COMPRESSION 1
653 203C5482P002 WR02X10322 CAP DUST 2
676 8911202P204 WZ04X0263 SCR 10-16 AB HXW 1/2 4
676 SUBSTITUTE WD02X5166 SCR 10-16 AB HXW 1/2 4
684 8911212P130 WB01T10047 SCR 8-32 X .625 M HXW S 2
685 8911201P224 WR01X1804 SCR 8-18 AB HXW 3/4 WH 2
685 8911201P328 WR01X1804 SCR 8-18 AB HXW 1/2 WH 4
689 868803P49 WZ05X0246 SCR 8-32 SPEC DRILL PT 4
690 8911212P15 WR01X1466 SCR 8-32 T HXW 3/8 S 2
690 SUBSTITUTE WZ5X158D SCR 8-32 T HXW 3/8 S 2
691 203C1006P005 WR01X2138 SCREW 12-24 .7 WH 8
692 8911201P186 WZ04X0416 SCREW 10
693 203C1005P004 WR01X2136 SCREW 12-24 .9 WH 2
https://appliancetechmanuals.com
– 19 –
VIEW
NUMBER
DRAWING
NUMBER
CATALOG
NUMBER
DESCRIPTION QUANTITY
695 8911214P018 WR01X10218 SCR 12-24 TT BHT 20 .73S 6
725 197D4821G001 WR87X10043 COMPRESSOR REPL KIT 1
725 SUBSTITUTE WR87X10095 COMPRESSOR REPL KIT 1
726 197D2148G002 WR85X10024 LOW SIDE ASM 1
726 SUBSTITUTE WR85X10037 LOW SIDE ASM 1
729 203C2799P005 WR62X0080 CAPACITOR 1
730 197D1209G006 WR84X10052 CONDENSER ASM S/L 3/16 1
733 203C2386P001 WR07X0194 RELAY 1
734 197D4823P001 WR02X11436 COVER RELAY SNAP EMBRACO 1
735 203C2385P075 WR08X10046 OVERLOAD 1
736 132264P02 WR02X8583 CLIP COMP MTNG 4
737 650019P02 WR02X7238 GROMMET COMP MTG 4
740 162D9086P006 WR86X0096 DRYER BIFURCATED XH9 1
741 203C3269P001 WR01X1779 STUD MTG COMPR 4
750 243B1499P002 WR01X1786 SCR 10-32 TR 1/2 4
751 197D3388G002 WR17X11527 BPLATE STUD & WHEEL ASSY 1
752 203C5249P001 WR17X10317 SUPPORT HIGH SIDE 2
753 197D1328P003 WR02X10321 BRACKET EVAP FAN 1
754 197D3438P001 WR17X10847 BAFFLE COND LH 1
755 197D3437P001 WR17X10848 BAFFLE COND RH 1
756 197D3380P002 WR17X10854 HOUSING COND FAN 1
757 203C4510P001 WR01X2035 FASTENER PUSH 1
758 8911212P159 WD02X0323 SCREW 8-32 X 3/8 SPH 4
760 870963P167 WR14X10081 FOAM STRIP SE ADH 1
767 203C4354P003 WR02X10712 CLIP COND (DL) 1

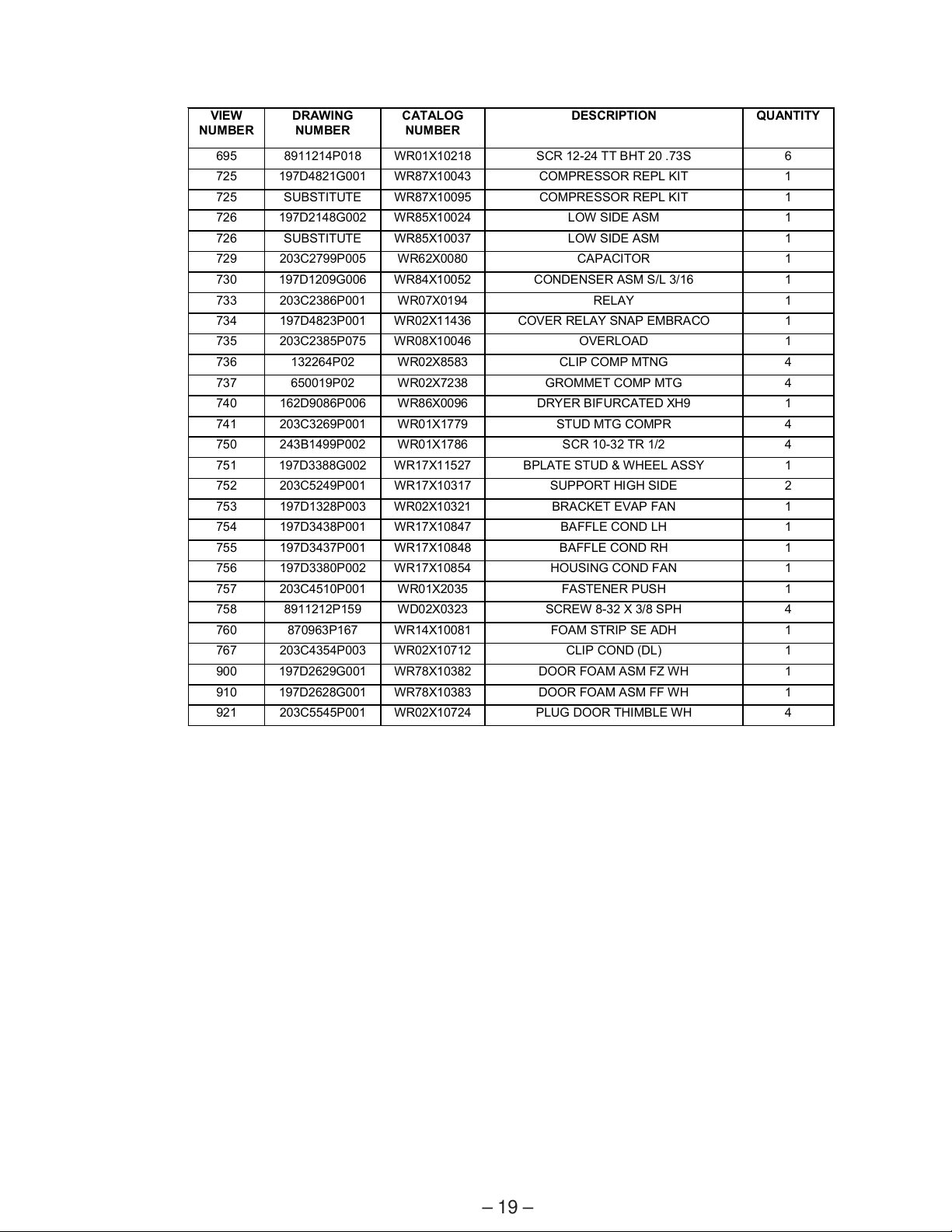

900 197D2629G001 WR78X10382 DOOR FOAM ASM FZ WH 1
910 197D2628G001 WR78X10383 DOOR FOAM ASM FF WH 1
921 203C5545P001 WR02X10724 PLUG DOOR THIMBLE WH 4
https://appliancetechmanuals.com
– 20 –
Schematic
FRESH FOOD LIGHT(S)
ORANGE
WHITE
WATER VALVE
(WHEN USED)
3
BROWN
ICEMAKER (WHEN USED)
OVERLOAD
CR
S
COMPRESSOR
5
6
25
T
P.T.C.
RELAY
ORANGE
ORANGE ORANGE
ORANGE
DEFROST
TIMER
1
3
TEMPERATURE
CONTROL
GRAY
BROWN
BROWN BROWN
ORANGE
ORANGE
ORANGE
RED
FREEZER LIGHT
(WHEN USED)
BROWN ORANGE
RED
ORANGE
BLACK BLACK
CONDENSER FAN
BLACK
BLACK
5
EVAPORATOR FAN
6
ORANGE
4
2
1
5
2
BLUE
DEFROST
HEATER
YELLOWPINK
DEFROST
THERMOSTATS
DEFROST
THERMOSTAT
36
(SEE DIAGRAM INSIDE ICEMAKER COVER)
4
6
78
100
190
ORANGE
3
https://appliancetechmanuals.com
This manual suits for next models
6
Table of contents
Other GE Refrigerator manuals
GE
GE Bottom Mount Built-In Refrigerators User manual
GE
GE GTE21GTHWWGE Owner's manual
GE
GE Monogram ZFSB25DXSS User manual
GE
GE GTQ095PANR User manual
GE
GE Profile PSHW6YGZSS Assembly instructions
GE
GE 20 User manual
GE
GE GTH18KBXBRCC and Operating instructions
GE
GE PFSS6SMXSS - Profile 25.8 cu. Ft.... Operating instructions
GE
GE Monogram ZIRS360NX User manual
GE
GE 197D4618P002 Operating instructions
GE
GE Monogram ZIR360NX Manual
GE
GE Profile PFSF6PKW Manual
GE
GE GTH21SBWSS Manual
GE
GE ZlS360N User manual
GE
GE 200D2600P043 Safety guide
GE
GE Profile 42 Operating instructions
GE
GE Monogram ZICS36NA User instructions
GE
GE Profile PSS23LGS Manual
GE
GE Profile PSW26PSWSS User manual
GE
GE Monogram ZIPS360NHSS How to use
