GE Monogram ZIC30GNZAII User manual

Owner's
Manual See content section page 2
30" Built-In
Bottom-Freezer
2-Drawer
Refrigerator
Congelateur inferieur
R6frigerateurs
La section francaise commence a la page 25
Congelador inferior
Refrigeradores
La seccion en espahol empieza en la pagina 49
monogram.com

introduction
Consumer information
30" Bottom-Freezer
Your new Monogram Refrigerator makes an eloquent statement of style, convenience and kitchen
planning flexibility. Whether you chose it for its purity of design or the assiduous details, you will find
that your Monogram Refrigerator's superior blend of form and function will delight you for years to
come.
The information on the following pages will help you operate and maintain your Refrigerator properly.
If you have any other questions, visit our Website at: monogram.com In Canada: monogram.ca
Contents Consumer Services
Important Phone Numbers ..................... 23
Model and Serial Numbers ....................... 3
Performance Data Sheet ....................... 19
Problem Solver ............................. 17, 18
Safety Instructions ............................ 4, 5
State of California Water
Treatment Device Certificate ................... 20
Warranty .............................. Back Cover
Care and Cleaning
Cleaning--Outside and Inside .................. 14
Light Bulb Replacement ....................... 15
Vacation ....................................... 15
Operating Instructions
Features ........................................ 6
Automatic Icemaker ............................. 8
Customizable Drawer .......................... 11
Door Bins ...................................... 11
External Moisture Control ...................... 12
LED Display Lighting ............................ 12
Sabbath Mode ................................. 13
Shelves ........................................ 10
Temperature Controls ........................... 7
Vegetable Pan ................................. 10
Water Filter ...................................... 9
Wine/Beverage Rack ........................... 11
Preparation
Clearances ..................................... 16
Location ....................................... 16
Before
using
your
refrigerator
Read this manual carefully. It is intended
to help you operate and maintain your new
refrigerator properly.
Keep it handy for answers to your questions.
If you don't understand something or
need more help, there is a list of toll-free
consumer service numbers included in
the back section of this manual.
OR
Visit our Website at: monogram,corn
In Canada: monogram.ca

Consumer Information
30" Bottom-Freezer
Write
down the
mode/&
seria/
numbers
You'll see them on a label inside the fresh food
compartment, below the vegetable pan, Before sending in this card, please write these
numbers here:
Model Number
Serial Number
Use these numbers in any correspondence or
service calls concerning your refrigerator,
ff you
received a
damaged
refrigerator
The warranty does not cover damage caused
after delivery, Immediately contact the dealer (or builder) that sold you the refrigerator,
Save time
& money Before you request service, check the Problem
Solver in the back of this manual, It lists causes of minor operating problems that
you can correct yourself,
/f you
need
service
To obtain service, see the Consumer Services
page in the back of this manual,
We're proud of our service and want you to be
pleased, If for some reason you are not happy
with the service you receive, here are steps to
follow for further help,
FIRST,contact the people who serviced your
appliance, Explain whyyou are not pleased,
In most cases, this will solve the problem,
NEXT,if you are still not pleased, write all
the details--including your phone number--to:
Manager, Customer Relations
GEAppliances
Appliance Park
Louisville, KY40225
In Canada:
Director, Consumer Relations
MC Commercial Inc
Suite 310, 1 Factory Lane
Moncton, N,B,
E1C 9M3

IMPORTANTSAFETYINSTRUCTIONS
READAND SAVE THESEINSTRUCT/ONS
WARNING-whenusing this
appliance, always exercise basic safety precautions,
including the following:
• Use this appliance only for its intended purpose
as described in this Owner's Manual.
• This refrigerator must be properly installed in
accordance with the Installation Instructions
before it is used.
Do not allow children to climb, stand or hang
on the door bins in the refrigerator. They could
damage the refrigerator and seriously injure
themselves.
Do not touch the cold surfaces in the freezer
compartment when hands are damp or wet.
Skin may adhere to these extremely cold surfaces.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
Your freezer has an automatic icemaker
in the freezer drawer--avoid contact with the
moving parts of the ejector mechanism, or with
the heating element located on the bottom
of the icemaker. Do not place fingers or hands on
the automatic icemaking mechanism while the
freezer is plugged in.
Turn off the circuit breaker to disconnect power
when cleaning or making repairs. Repairs should
be made by a qualified service technician.
Do not try to replace a burned-out LED light.
An authorized technician will need to replace the
LEDlights.
Do not refreeze frozen foods which have thawed
completely.
DANGER:RISKOFCHILDENTRAPMENT
Child entrapment and suffocation are not
problems of the past. Junked or abandoned
refrigerators are still dangerous...even if they will sit
for 'lust a few days." Ifyou are getting rid of your old
refrigerator, please follow these instructions to help
prevent accidents.
Before You Throw Away Your Old Refrigerator:
* Take offthe door/drawers.
, Leave the shelves in place so that children may
not easily climb inside.
REFRIGERANTS
All refrigeration products contain refrigerants, which
under federal law must be removed prior
to product disposal. If you are getting rid of an old
refrigeration product, check with the company
handling the disposal about what to do.
& WARNING-R600aRefrigerant
Warning: This appliance contains isobutane refrigerant,
R600a, anatural gas with high environmental
compatibility. However it is also combustible. Please
adhere to the warnings beJow:
1) When handling, installing and operating the appliance,
care should be taken to avoid
damage to the refrigerant tubing.
2) Servicing shall be performed by factory-authorized
service personnel and component parts shall be
replaced with manufacturer-authorized replacement
components.
3) Refrigeration products contain refrigerants, which
under federal law must be removed prior
to product disposal.
4) Keep ventilation openings in the appliance enclosures or
in the built-in structure clear of obstruction.
5) Do not use mechanical devices or other means
to accelerate the defrosting process.
6) Do not damage refrigerant circuit.
7) Do not use electrical appliances inside the
food storage compartment of the appliance.

IMPORTANTSAFETYINSTRUCTIONS
HOW TOCO/V/VECT£LECTR/C/TY
Do not, under any circumstances,
cut or remove the third (ground) prong
from the power cord. For personal safety,
this appliance must be properly grounded.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall outlet
to minimize the possibility of electric shock
hazard from this appliance,
Have the wall outlet and circuit checked by
a qualified electrician to make sure the outlet
is properly grounded,
Where a standard 2-prong wall outlet is
encountered, it is your personal responsibility
and obligation to have it replaced with a properly
grounded 3-prong wall outlet,
The refrigerator should always be plugged into
its own individual electrical outlet which has a
voltage rating that matches the rating plate,
DO NOTUSEANADAPTERPLUGTOCONNECT
THEREFRIGERATORTOA 2-PRONGOUTLET.
DO NOT USEAN EXTENSIONCORDWITH
THISAPPLIANCE.
This provides the best performance and also
prevents overloading house wiring circuits, which
could cause a fire hazard from overheated wires,
Never unplug your refrigerator by pulling on
the power cord, Always grip plug firmly and pull
straight out from the outlet,
Repair or replace immediately all power
cords that have become frayed or otherwise
damaged, Do not use a cord that shows cracks
or abrasion damage along its length or at
either end,
When moving the refrigerator away from
the wall, be careful not to roll over or damage
the power cord,
SAVETHESE
INSTRUCTIONS

Features
30" Bottom-Freezer
Wine rack
FreshFood
Section
FreshFood
Shelves
Icemaker
i\
FreezerDrawer
FreshFood
DoorBins
Vegetable Pan
CustomizableDrawer

Temperature Controls
30" Bottom-Freezer
FreshFood- Solid Door Unit
i.
UpperDrawer- Freezer i
121r37'- .............z_.E k
FreshFood- GlassDoor Unit
U==2GHJ_S }Lower Drawer -Customizabie
Tempera ture
controls The temperature display shows the actual
temperature of the fresh-food compartment,
freezer drawer or customizable drawer when
each one is selected by toggling the Zone
indicator, The actual temperature will vary from
the set temperature based on factors such as
frequency of door openings, amount of food,
defrost cycling and room temperature,
NOTE: Frequent door openings or doors left open
for periods of time may increase the internal
temperature of the compartments temporarily,
To turn off the cooling system, toggle the ZONE
indicator to the fresh-food mode, Press the plus
(+) pad until the display shows OFF,
To turn the cooling system on, toggle the ZONE
indicator to the fresh-food mode and press
the minus (-) pad until the desired temperature is
displayed, The preset temperature of 0°F for the
freezer or 37°F for the fresh-food unit will appear
in the display,
To check the current temperature setting for a
compartment, press the plus (+) or minus (-) pad
once, After 5 seconds, the display will return to
the actual temperature,
To change the temperature settings, press
the plus (+) or minus (-) pad for each increment
to the desired temperature set point, Allow
24 hours for the unit to reach the temperature
you have set,
Temperature Ranges
Fresh Food
Low High
34°F 46°F
1°C 8°C
Freezer -6°F
Drawer -21 °C +6°F
-14°C
Customizable Drawer Temperature Ranges
Freezer
Chill
Wine
Low High
_6°F +6°F
_21°C _14°C
34°F 46°F
1°C 8°C
40°F 55°F
4°C 13°C
NOTE: Setting the controls to OFF stops cooling,
but does not shut off electrical power to the unit,
All readings in °C will be rounded,
Changing
display
temperatures
from °F to °C
To change the temperature display between
Fahrenheit and Celsius, press both the plus (+)
and minus (-) pads for 5 seconds,
Alarm To turn the Alarm feature on, press and hold
the ALARM button for 3 seconds, ALARM will
be underlined when active, To turn off, press
and hold the ALARM button for 3 seconds,
The underline will disappear,
When the ALARM
is active, the alarm ...............
will flash and beep
if you keep the door
open for more than 2 minutes,

Automatic Icemaker (freezer models)
30" Bottom-Freezer
Automatic
icemaker
A newly installed refrigerator may take 12-24
hours to begin making ice. The refrigerator
is shipped with the icemaker set to ON,
The icemaker will produce seven cubes per
cycle--approximately 15 cycles in a 24-hour
period, depending on freezer compartment
temperature, room temperature, number of
door openings and other use conditions,
If the refrigerator is operated before the water
connection is made to the icemaker, set the
icemaker to OFF, To set the icemaker to OFF,
press the ZONE indicator on the control pad
twice to select the freezer drawer, Press the ICE
icon to the right, The line under ICE will
disappear and the word OFF will show under ICE,
Throw away the first full bucket of ice,
Besure nothing interferes with the sweep
of the feeler arm,
When the bin fills to the level of the feeler arm,
the icemaker will stop producing ice,
It is normal for several cubes to be joined
together,
If ice is not used frequently, old ice cubes
will become cloudy, taste stale and shrink,
Icemaker
FeelerArm
After the icemaker has been turned on again,
there will be a delay of about 45 minutes before
the icemaker resumes operations,
NOTE: In homes with lower-than-average
water pressure, you may hear the icemaker
water valve cycle on several times when
making one batch of ice,
NOTE: Icemaker works best between
40 and 120 PSI home water pressure,
Accessing
the icemaker
and freezer
drawer
The icemaker is located on the ceiling of the
freezer drawer and to the left rear, There is
an LED strip in the freezer drawer ceiling, The
freezer drawer contains 1 ice bin,

Water Filter
30" Bottom-Freezer
Water filter
cartridge
The water filter cartridge is located below the
customizable drawer on the lower-right side of the
appliance.
% WaterFilter
ridge
To Replace the Filter:
While the filter cartridge may last up to 1 year,
replacement frenquency will depend on ice usage.
There is a replacement indicator light for the water
filter cartridge on the control panel. The filter
cartridge should be replaced when the word
REPLACEappears beneath FILTER on the control
panel.
HOLD3 SIC
ALARM FILTER LOCK
REPLACE
To Reset the Filter Status Light:
Press and hold the FILTERbutton for 3 seconds.
Filter Bypass Plug:
You must use the filter bypass plug if:
a) you have a household reverse osmosis water
system and/or another form of home water
filtration system.
b) a replacement filter is not available.
The icemaker will not operate without the filter or
filter bypass plug installed.
The bypass plug and mini manual are located
in the bottom machine compartment.
Replacement filters:
To order additional filter cartridges, visit our
Website at monogram.corn, or call GEParts and
Accessories, 800.626.2002.
Filter Model Number GSWF
IMPORTANT NOTE: Remove the water filter
to immediately stop any water leak from the
icemaker.
Installing the Filter Cartridge:
1. Open the customizable drawer to gain access to
the water filter cartridge.
2. Remove the old cartridge by twisting
counterclockwise. Pullforward on the filter
to remove,
3. Insert the new filter into the compartment and
twist clockwise until the cartridge stops.
Child control
lockout This child control lockout feature prevents
unwanted changes to your temperature settings. After the desired temperature is set, the temperature can be locked. To lock, press and
hold the LOCK button for 3 seconds. To unlock,
press and hold the LOCK button for 3 seconds.

Vegetable Pan/Shelves
30" Bottom-Freezer
Vegetable pan The Vegetable Pan in the fresh-food section
of the refrigerator has LED strip lighting above
the drawer,
There are adjustable dividers with several
different position options, The divider is held in
place by a tab located under the handle, a slot
located on the back wall and a stabilizing rib on
the bottom of the drawer for each position,
To change the divider position:
1. Pull up on the back of the divider to release
it from the slot in the back and off of the tab
in the front,
.
.
Slide the divider into a new location, making
sure it seats into the rib on the bottom of
the drawer,
Pull up on the back of the divider to locate
the front under the tab at the new location,
Fr0r
4. Push down on the back of the divider to seat
it into the slot at the new location,
Lighted
vegetable
dra wet shelf
The lighted vegetable drawer shelf provides
lighting for the lower compartments, The lights
are recessed into the shelf to illuminate the
drawers below,
To remove the shelf:
1. Lift the shelf and carefully pull forward to
expose the wires,
2. Unplug the shelf and carefully remove it from
the refrigerator,
To replace the shelf:
1. Carefully set the shelf onto the side rails,
leaving the plug exposed,
2. Plug the shelf into the refrigerator,
3. Carefully slide the shelf into place,
LEDlightsare located
undertheshelfatthefront
LightedVegetable
DrawerShelf
Adjustable
shelves
10
Tempered glass shelves in the fresh food section
enable you to make efficient shelf arrangements
to fit your family's food storage needs,
To adjust shelves: Tilt the shelf up at the front
and slide it up or down along the back wall to the
placement you want,
Handle glass shelves carefully. Rough handling
of tempered glass can cause it to shatter.
To remove shelves:
NOTE: To remove a shelf, all shelves under it must
first be removed,
1. Remove any food from the shelf
2. Remove covers at the bottom of each track,
3. Tilt the first shelf up at the front,
4. Slide the shelf down along the back wall until
you reach the bottom where the notch is
located, Slide the shelf through the notch,
5. Repeat for removing the other shelves,
To replace shelves:
Replace shelves by perform steps 1 through 4
in reverse,

Bins/Rack/Customizable Drawer
30" Bottom-Freezer
Door
bins
The door bins are removable. Lift bin out of the
bin bracket to remove.
The bin brackets are adjustable and can move
up and down to meet your storage needs.
Do this by tilting the bin up at the front and
sliding it up or down along the door to the
placement you desire.
BinBracket
Wine/
beverage rack The wine/beverage rack fits onto one of the glass
shelves in the fresh-food compartment. The rubber
coating on the portions of the rack that sit on top of
the shelf keeps the rack from slipping or scratching
the shelf. The wine/beverage rack will hold 2-liter
bottles, wine bottles and champagne bottles.
Customizab/e
drawer The customizable drawer can be used as
a freezer, as a fresh-food refrigerator or as
a wine/beverage drawer.
To customize your drawer:
Press the ZONE indicator on the control pad to
select the customizable drawer.
Recommended Temperatures for Customizable
Drawer:
Button
Chill
Freeze
Wine
Function
Fresh Food
Freezer
Wine Storage
Temperature
37°F/3°C
0°F/_18°C
55°F/13°C
This drawer has LED strip lighting above it. There
is also one adjustable divider that can be placed
in different positions and a bin that can slide left
or right in the drawer.
To change the divider position:
1. Pull in the tabs at the top of the divider to
release it from the tab holes at the front and
back of the drawer.
2. Lift the divider off of the raised tabs at the
bottom of the drawer.
3. Move the divider to its new location and slide it
onto the raised tabs.
,Pull in the tabs at the top of the divider and
position the divider so the tabs will fit into the
tab holes. Release the tabs so they lock into
place.
Removableslidingbin
Tab TabHole
Divider
11

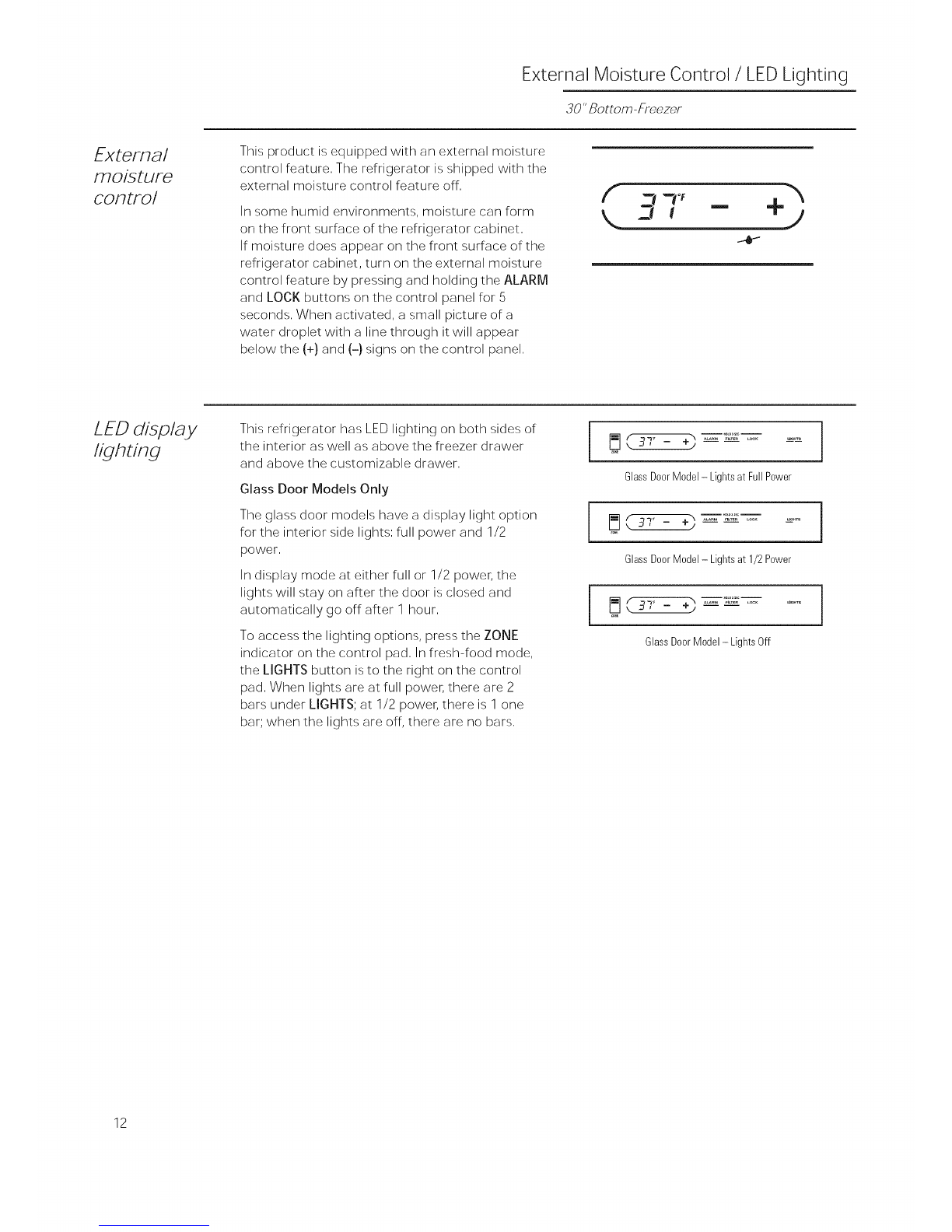

External Moisture Control/LED Lighting
30" Bottom-Freezer
External
moisture
control
This product is equipped with an external moisture
control feature, The refrigerator is shipped with the
external moisture control feature off,
In some humid environments, moisture can form
on the front surface of the refrigerator cabinet,
If moisture does appear on the front surface of the
refrigerator cabinet, turn on the external moisture
control feature by pressing and holding the ALARM
and LOCK buttons on the control panel for 5
seconds, When activated, a small picture of a
water droplet with a line through it will appear
below the (+) and (-) signs on the control panel,
J ! m T
LED display
lighting This refrigerator has LED lighting on both sides of
the interior as well as above the freezer drawer
and above the customizable drawer,
Glass Door Models Only
The glass door models have a display light option
for the interior side lights: full power and 1/2
power,
In display mode at either full or 1/2 power, the
lights will stay on after the door is closed and
automatically go off after 1 hour,
To access the lighting options, press the ZONE
indicator on the control pad, In fresh-food mode,
the LIGHTS button is to the right on the control
pad, When lights are at full power, there are 2
bars under LIGHTS; at 1/2 power, there is 1 one
bar; when the lights are off, there are no bars,
GlassDoorModel- LightsatFullPower
GlassDoorModel-Lightsat 1/2Power
GlassDoorModel- LightsOff
12

Sabbath Mode
30" l_ottom-Freezer
Sabbath
Mode The Sabbath Mode was designed for use on the
Jewish Sabbath and Holidays, The Sabbath Mode
feature makes it possible for observant Jews to
refrigerate and freeze food during the duration
of the holiday,
The Sabbath Mode feature can be set to override
typical reactions caused by your interaction with
the refrigerator, While in the Sabbath Mode, your
refrigerator will still operate, However, the
refrigerator will not respond to your actions,
While in the Sabbath Mode, you may notice
the fan running when the door is opened,
however, this is not a result of your actions,
The fan will operate at predetermined times,
The defrost heater will continue to defrost
the refrigerator and freezer and will be activated
on a timer, The defrost heater will not defrost
as a result of door openings or any consumer
actions,
ON/OFF--To activate the Sabbath Mode, hold
down the ALARM button and (+) pad on the
control panel for 5 seconds, SAB will be displayed
on the control, SAB will remain in the display and
the (+) pad and alarm button will remain lit until
the Sabbath mode is deactivated, Controls and
lights do not work until the ALARM button and
(+) pad are held again for 5 seconds,
DISPLAYS, ALARMS and LIGHTS--The main
temperature control displays will be deactivated,
therefore they will not be lit, sound a tone or
operate when touched, Door alarms and lights
will be disabled,
ICEMAKER--The icemaker will continue
to operate, The icemaker can be disabled by
turning the icemaker OFF prior to the Sabbath
(see Automatic/cemake_,
13

Care and Cleaning
30" Bottom-Freezer
C/eaning
outside
Door handles and trim--Clean with a cloth
dampened with soapy water, Dry with a soft cloth,
Keep the outside clean. Wipe with a clean
cloth lightly dampened with mild liquid dish
detergent, Dry with a clean, soft cloth,
Do not wipe the refrigerator with a soiled dish cloth
or wet towel, These may leave a residue that can
damage the finish, Do not use scouring pads,
powdered cleaners, bleach or cleaners containing
bleach because these products can scratch and
damage the finish,
Stainless steel--Regularly clean and polish
the Stainless Steel Door Panels and Handles
(on some models) with a commercially available
stainless steel cleaner such as Stainless Steel Magic TM
to preserve and protect the fine finish, Stainless Steel
Magic is available through GEParts and Accessories,
800,626,2002, or GEAppliances,com, Order part
number WXl0X15,
In Canada, please call 1,800,661,1616
Do not use appliance wax or polish on the stainless
steel,
Custom Wood Panels - please contact your custom
panel supplier for direction on cleaning and care,
C/eaning
inside Turn off power at the circuit breaker or fuse box
before cleaning. Ifthis is not practical, wring excess
moisture out of sponge or cloth when cleaning
around switches, lights or controls,
Use warm water and baking soda solution-- about
a tablespoon (15 ml) of baking soda to a quart (1
liter) of water, This both cleans and neutralizes
odors, Thoroughly rinse and wipe dry,
Other parts of the refrigerator--including door
gaskets, vegetable drawer, ice storage bins and all
plastic parts--can be cleaned the same way, After
cleaning the door gaskets, apply a thin layer of
petroleum jelly to the door gaskets at the hinge side,
This helps keep the gaskets from sticking and
bending out of shape,
Avoid cleaning cold glass shelves with hot water
because the extreme temperature difference
may cause them to break. Handle glass shelves
carefully. Rough handling of tempered glass can
cause it to shatter,
Do not wash any plastic parts in the dishwasher.
14

Care and Cleaning
30" Bottom-Freezer
Preparing
for vaca t/on For long vacations or absences, remove food
from the refrigerator, Adjust the temperature up
(+) until the unit turns off, Clean the interior with
a baking soda solution of one tablespoon (15 ml)
of baking soda to one quart (1 liter) of water,
Leave the door open,
For shorter vacations, remove perishable foods
and leave the control at the regular setting,
However, if the room temperature is expected
to drop below 60°F (16°C), follow the same
instructions as for extended vacations,
Turn off the icemaker and shut off the water
supply to the freezer,
/nterior Light
replacement Do not try to replace a burned-out LED light.
An authorized technician will need to replace
the LED lights,
15

Preparation
30" Bottom-Freezer
Refrigerator
location Do not install the refrigerator where
temperatures will be below 60°F (16°C) because
it will not maintain proper temperatures, and the
refrigerator couldl develop high internal
humidity,
For proper installation, the refrigerator must
be placed on a level surface of hard material
the same height as the rest of the flooring.
This surface should be strong enough to
support a fully loaded refrigerator,
or approximately 1,200 Ibs. each. See
the Installation Instructions for complete
directions.
Clearances Allow 15" minimum clearance between the door
and wall for a full 11 5° door swing, Allow 5" min,
clearance to a wall for a 90 ° door swing for
Monogram Stainless Steel (European) models,
Minimum
115° DoorSwing
iI [
115° >
90° Door Swing
L._ _i_i
J
I 32"
x i
90°,¸ i
' ....... i _.
4" distance to Wall.
16

Questions?
Use this
prob/em
so/ver/
The Problem Solver
30" Bottom-Freezer
PROBLEM POSSIBLECAUSE
REFRIGERATORSYSTEM
DOESNOTOPERATE , May be in defrost cycle when refrigerating system does not operate for about 45 minutes,
REFRIGERATING SYSTEM
OPERATES FOR LONG
PERIODS OR CYCLES ON
FREQUENTLY
(Modern refrigerators
and freezers with more
storage space and a
larger freezer require
more operating time.
They start and stop
often to maintain
even temperatures.)
, Temperature control in the OFF position.
, If interior light is not on, refrigerator may not be plugged in at wall
outlet.
, The house fuse is blown/house circuit breaker is tripped. Replace fuse
or reset the breaker.
, Turn offthe Sabbath Mode.
, Ifyour control panel says SHO, then your showroom mode
was enabled, To turn this off, hold the ALARM button and (-) pad
simultaneously for 5 seconds,
, Normal when refrigerator is first plugged in, Wait 24 hours
for the refrigerator to completely cool down,
, Often occurs when large amounts of food are placed in refrigerator,
This is normal,
, Door left open or package holding door open.
, Hot weather or frequent door openings. This is normal.
, Temperature control set at the coldest setting. See Temperature
Control.
VIBRATION OR RATTLING , Refrigerator may not be properly installed.
(Slight vibration - Anti-tip bracket may be loose.
is normal.) - Unit may not be level.
THUMPING SOUND , This is a normal operating sound.
WHEN CLOSING DOOR , Closing the door slowly will minimize the sound.
OPERATING
SOUNDS , The variable speed compressor.
, Normal fan air flow--multiple fans blow cold air through the fresh-food
and freezer compartments--other fans cool the compressor.
, The fans change speeds in order to provide optimal cooling and
energy savings.
, These NORMAL sounds will also be heard from time to time:
- You may hear a whooshing or gurgling sound when the door closes.
This is due to pressure equalizing within the refrigerator.
- A water dripping sound may occur during the defrost cycle as ice
melts from the evaporator and flows into the drain pan.
- The flow of refrigerant through the freezer cooling coils may make a
gurgling sound like boiling water.
- Water dropping on the defrost heater can cause a sizzling, popping
or buzzing sound during the defrost cycle.
- You may hear cracking or popping sounds when the refrigerator is
first plugged in or during/after the defrost cycle. This happens as the
refrigerator cools to the correct temperature.
- The compressor may cause a clicking or chirping sound when
attempting to restart (this could take up to 5 minutes).
- The electronic control board may cause a clicking sound when relays
activate to control refrigerator components.
- Ice cubes dropping into the bin and water running in pipes as
icemaker refills.
- The icemaker water valve will buzz when the icemaker fills with
water.
17

The Problem Solver
30" Bottom-Freezer
PROBLEM POSSIBLECAUSE
DOORNOT CLOSING
PROPERLY
REFRIGERATOR
TOO WARM
ACTUALTEMPERATURE
NOT EQUALTO SET
TEMPERATURE
FROSTOR ICE
CRYSTALSON
FROZENFOOD
(Frost within package
is normal)
SLOWICECUBE
FREEZING
ICECUBESHAVE
ODOR/TASTE
AUTOMATIC
ICEMAKER
DOESNOT WORK
MOISTUREFORMS
ON OUTSIDEOF
REFRIGERATOR
MOISTURE
COLLECTSINSIDE
REFRIGERATOR
HASODOR
INTERIORLIGHTS
DO NOT WORK
DOOR DIFFICULTTO
REOPENIMMEDIATELY
AFTERCLOSING
, Package or bottle may be holding door open,
, Check the door gasket; it may be out of position
, Refrigerator is not level, See/nst_]ll_]tion/nstructions,
, Hinge springs deactived, See/nstall_tion/nstructions,
, Temperature control not set cold enough, See Temperature Control,
, Hot weather or frequent door openings,
, Door left open for long time,
, Package may be holding door open,
, Refrigerator just plugged in, Allow 24 hours for system to stabilize,
, Door open for too long, Allow 24 hours for system to stabilize,
, Warm food added to refrigerator, Allow 24 hours for system to stabilize,
, Defrost cycle is in process, Allow 24 hours for system to stabilize,
, Drawer left open or package holding door open,
, Too frequent or too long door openings,
, Drawer may have been left open,
, Ice cubes or some other object may be stuck behind the drawer,
, Drawer may have been left open,
, Turn temperature control to a colder setting,
, Package may be holding drawer open,
, Old cubes need to be discarded,
, Ice storage bin needs to be emptied and washed,
, Unsealed packages in freezer may be transmitting odor/taste
to ice cubes,
, Interior of freezer needs cleaning, See Care and Cleaning,
, Poor-tasting incoming water, Change the water filter,
, Icemaker is turned off,
, Water supply turned off or not connected,
, Freezer too warm,
, Piled up cubes in storage bin may cause icemaker to shut off
too soon, Level cubes by hand,
, Ice bin is not in position
, Clogged water filter
, Not unusual during periods of high humidity, Wipe surface dry,
, Turn on the External Moisture Control feature,
, Too frequent or too long door openings,
, In humid weather, air carries moisture into refrigerator when doors
are opened,
, Lower drawer switched from (freezer) to chill or wine,
, Foods with strong odors should be tightly covered,
, Check for spoiled food,
, Interior needs cleaning, See Care and Cleaning,
, No power at outlet,
, LEDs need replacing, See Consumer Service Section,
, The Sabbath Mode may be operating, Turn off Sabbath Mode,
, Tight door seal is due to pressure equalizing within the refrigerator,
After closing the door, wait 5-30 seconds to reopen,
18

Performance Data Sheet
SmartWater Filtration System
GSWF Cartridge
This system has been tested according to NSF/ANS142/53 for reduction of the substances listed below.
The concentration of the indicated substances in water entering the system was reduced to aconcentration
less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANS142/53. *
_700% safety f_ctors built in for unmetered usage)
Parameter USEPA Influent % Rec uction Min. Required
MCL Average Average Minimum Reduction
Chlorine -- 1.845 mg/L > 97.29% 96.43% _>50%
T&O .....
Particulate** -- 143,333 #/mL 99.98% 99.91% _>85%
2:Aesthetic Effects
Efflu ;nt
Average Maximum
< 0.05 mg/L 0.05 mg/L
29.83#/mL 140#/mL
Standard No.
[nfluent Challenge
Concentration
2.0 mg/L+l 0%
at least.10,000 part.ides/rot
Standard
Influent Challenge
Concentration
1+1NTU*_*
Minimum 50,000 L
0.15 mg/L_+lO%
0.15 mg/L_+lO%
0.002mg/L+l0%
0.009mg/L+_l 0%
o. 53: Health Effects
Parameter USEPA Influent Efflu_ _nt % RedL :tion Min. Required
MCL Average Average Maximum Average Minimum Reduction
Turbidity 1 NTU*** 10.3 NTU*** 0.106 NTU 0.14 NTU 98.97% 98.61% 0.5 NTU
Cysts 99.95% Reduction 200,000 #/L 0 0 > 99.99% > 99.99% > 99.95%
Lead at pH 6.5 0.015 mg/L 0.15 mg/L < 0.001 mg/L < 0.001 mg/L > 99.33% > 99.33% 0.010 mg/L
Lead at pH 8.5 0.015 mg/L 0.14 mg/L 0.001 mg/L 0.003 mg/L > 99.29% 97.86% 0.010 mg/L
Lindane 0.0002 mg/L 0.0216 mg/L < 0.00002 mg/L < 0.00002 mg/L 99.07% 98.75% 0.0002 mg/L
Atrazine 0.003 mg/L 0.008 mg/L < 0.002 mg/L < 0.002 mg/L > 76.12% > 66.67% 0.003 mg/L
Tested using aflow rate of L_5 gpm; pressure of 60 psLq; p H of Z5 + O,5; temp, of 68 _"+ 5_F (20 _"+ 3_'C)
**Measurement in P_lrticles/ml, P_lrticles used were O,5- 7microns
***NTU Nephelometric Turbidity units
Opera ting Specifica tions
[] Capacity: certified for up to 750 gallons (2,838I);up to six months
[] Pressure requirement: 40-120 psi (2,8-8,2 bar)
[] Temperature: 33-100°F (0,6-38°C)
[] Flow Fate:0,5 gpm (1,9Ipm)
General Instaflation/Operation/Maintenance Requirements
[] Flush new cartridge at full flow for 3 minutes to purge out trapped air,
[] Replace cartridge when flow becomes too slow,
Special Notices
[] Installation instructions, parts and service availability, and standard warranty are included with the product when shipped,
[] This drinking water system must be maintained according to manufacturer's instructions, including replacement of filter
cartridges,
[] Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after
the system, Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts,
[] The contaminants or other substances removed or reduced by this water treatment system are not necessarily in your water,
[] Check for compliance with the state and local laws and regulations,
[] Note that while the testing was performed under standard laboratory conditions, actual performance may vary, Systems
must be installed and operated in accordance with manufacturer's recommended procedures and guidelines,
System tested and certified by NSF International against Standard 42 for the reduction of
chlorine, taste and odor, particulate Class I and Standard 53 for the reduction of cyst, lead,
Lindane, Atrazine and turbidity,
Manufactured for: General Electric Company, Louisville, KY 40225 ]
19

State of California
Department of Health Services
Water Treatment Device
Certificate Number
03- 1559
Date Issued: April 28, 2003
Trademark/Model Designation ...... ...........::: ': ::;:;: ..........Repi_cement Elements
GE GSWF
Manufacturer: General E!ec_ric C;+su_er Pi:0at,'
The water treatme
116830 of the He:
Microbiolo
>,, to Section
6nants
Cysts
Organic
Atrazi_;
Lindane ........
2 .....
Rated Service Capacity: 750 gal Ratea Service Flow: 0.5 gpm
Conditions of Certlficatibm ....
Do not use where water is microbiologica!ly unsafe or with water of u_nown quality, except that systems certified for
cyst reduction may be used on disinfected waters that may contain filterable cysts.
2O
