GE MONOGRAM ZISP480DXSS User manual

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
110198
Specification Created 3/08
Listed by
Underwriters
Laboratories

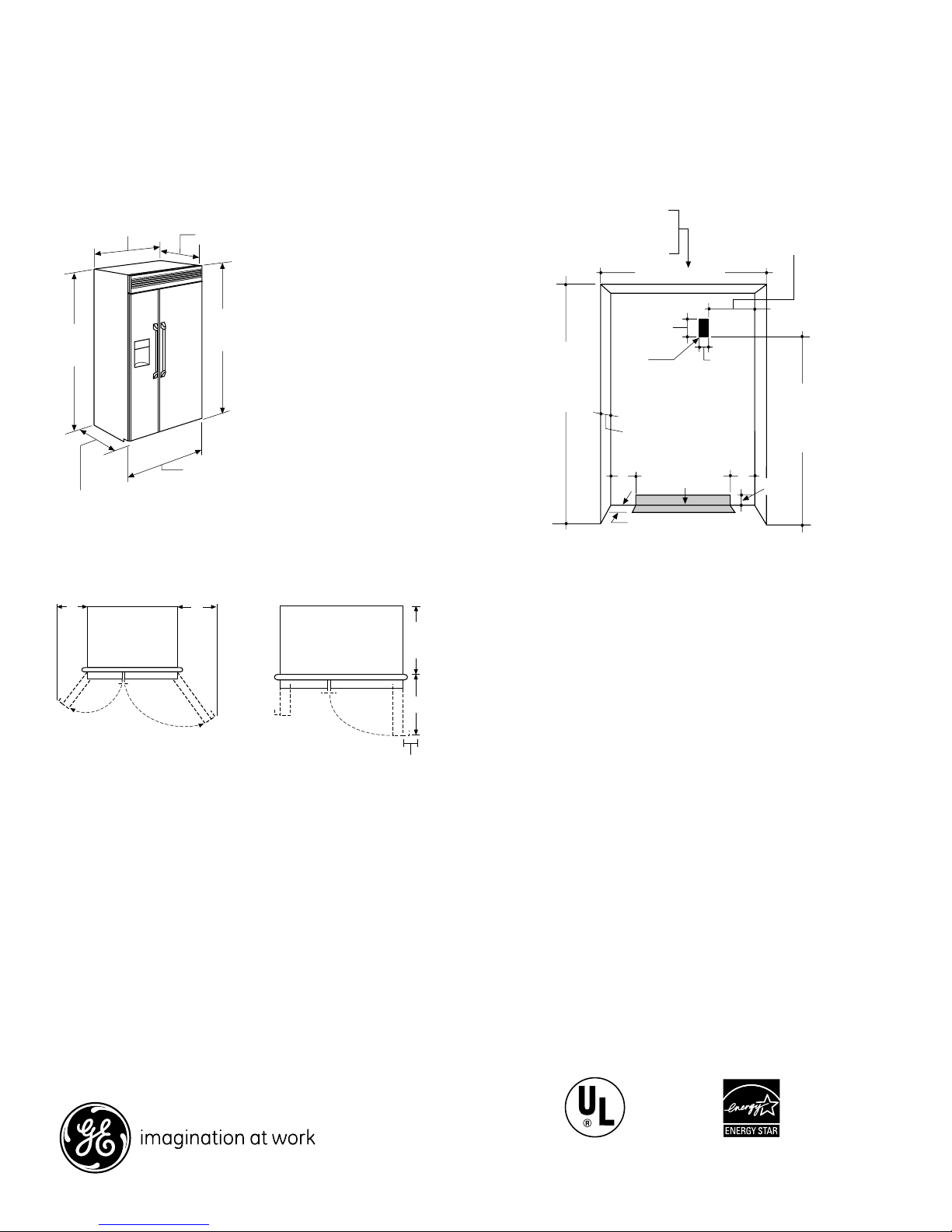

Dimensions and Installation Information (in inches)
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
Water and electrical locations
The opening must be prepared with the electrical and water
supply located as shown.
The cutout depth must be 24".
The refrigerator will project forward, slightly beyond
adjacent cabinetry, depending on your installation.
The cutout depth beneath a soffit:
When installed beneath a soffit, the soffit cannot exceed the
24" installation depth shown. The top case trim overlaps the
bottom of the soffit.
Frameless cabinets:
The case trim overlaps cabinets at the top and sides.
Therefore, frameless cabinets may require filler strips to
prevent interference with cabinet door swing. The opening
must allow for filler strips.
Additional Specifications
• A 115 volt 60Hz., 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded 3-
prong electrical receptacle recessed into the back wall.
Electrical must be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
• Water line can enter the opening through the floor or back
wall. The water line should be 1/4" O.D. copper tubing or
GE SmartConnect™kit between the cold water line and
water connection location, long enough to extend to the
front of the refrigerator. Installation of an easily accessible
shut off valve in the water line is recommended.
The Installation Space
* Shipping height.
The refrigerator
can be adjusted to
fit into a cutout that
is 83-1/2" min. to
84-1/2” max. height.
Note that the top
case trim at the
front is 1/2" higher
and will overlap
upper cabinetry or
soffit. Use leveling
legs and wheels
for a maximum 1"
height adjustment.
* Shipping height. The
refrigerator can be adjusted
to fit into a cutout that is
83-1/2" min. to 84-1/2" max.
height. Note that the top
case trim at the front is
1/2" higher and will overlap
upper cabinetry or sofit.
Use leveling legs and wheels
for a maximum 1" height
adjustment.
25-3/4" Case Depth
28-11/16" Depth Including Handles
47"
Case Width
*84" from
Floor to
Top Frame
48" Frame to
Frame Width
*83-1/2"
at
Rear
Product Clearances
These refrigerators are equipped with a 2 position door stop.
The factory set 130° door swing can be adjusted to 90° if
clearance to adjacent cabinets or walls is restricted.
20"
130°Door Swing
15"
Allow minimum clearances for freezer door and fresh food
door for a full 130° door swing and to allow for pan removal.
5" minimum clearance is required when door swing is
adjusted to 90°. If the 90° door stop position is used, pan
access is maintained, but pan removal is restricted.
Installation Information: Before installing, consult
installation instructions packed with product, or online
at Monogram.com, for current dimensional data.
23-7/8"
Behind
Frame
90° Door Swing
5" Min.
to Wall
26-5/8"
ZISP480DXSS
GE Monogram® 48" Built-In Professional Side-by-Side Refrigerator
with Dispenser and Water Filter
*Finished Width
6"
5"
Electrical
Area
84-1/2" max
83-1/2" min
Finished
Opening 75" From Floor
to Bottom
of Electrical
Area
24"
5" 5" 3-1/2"
Water Supply
3-1/2"
36" Models 12"
42" Models 18"
48" Models 20"
35-1/2" for 36" models
41-1/2" for 42" models
47-1/2" for 48" models
696Dia15

For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
110198
Specification Created 3/08
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
Features and Benefits
• Halogen Light Columns - Located in the freezer and fresh
food compartments, extend the full length of the interior
compartments providing brilliant, all-level illumination
• LED Lighting - Located at the top of the fresh food
compartment, and inside the high-humidity and climate-
control drawers, illuminates contents without
compromising space
• Advanced Temperature Management System with
Multi-Shelf Air Tower - Provides even distribution of air
throughout the refrigerator
• Climate-Control Drawer - Allows you to express-chill
beverages, express-thaw meats and select specific
temperatures for perishable foods
• Dispenser with Proximity Sensor - Designed to
accommodate glassware of all sizes, from pitchers to
tumblers; control graphics light up as you approach and
automatically switch off when you walk away
• Humidity-Controlled Vegetable Drawer - Helps preserve the
freshness of foods
• Gallon-Size Door Bin - Holds milk containers, two-liter
bottles and pitchers
• Adjustable Spillproof Glass Shelves - Easily accommodate
party trays and platters
• Drop-Down Shelf - Provides additional space for a
casserole dish or pizza box
• Adjustable Deli Drawer on Full-Extension Slides - Keeps
meats, cheeses and other everyday foods within easy reach
• Dairy Bin with Center Divider - Has a unique magnetic seal
that locks in freshness
• Model ZISP480DXSS – Stainless steel wrapped doors
ZISP480DTSS
CONTROL
LOCK
DOOR
ALARM
ZISP480DXSS
GE Monogram® 48" Built-In Professional Side-by-Side Refrigerator
with Dispenser and Water Filter
