GE PFSF6PKWBWW and Operating instructions

ge.com
N
(D
ii
0
0
Safety Instructions ........... 2,3
Operating Instructions
Automatic Icemaker ............... 11
Care and Cleaning ............. 12, 13
Controls ............................ 4
Dispenser ........................... 5
Freezer ............................ 10
Replacing the Light Bulbs .......... 14
Fresh Food Storage Options ....... 7-9
Water Filter ......................... 6
Installation Instructions
Installing the Refrigerator ....... 16-23
Installing the Water Line ........ 24-26
Preparing to Install
the Refrigerator .................... 15
Troubleshooting Tips ...... 27-30
Normal Operating Sounds .......... 27
Consumer Support
Consumer Support ........ Back Cover
Performance Data Sheet ........... 39
Product Registration
for Canadian Customers ........ 55, 56
Product Registration
for U.S. Customers ............. 33, 34
State of California Water
Treatment Device Certificate ....... 40
Warrantg for Canadian
Customers ......................... 38
Warrantg for U.S.Customers ....... 37
GE Model 26
Cong_lateur inf_rieur
R =frig =rateurs
La section frangaise commence _la page 41
Congelador inferior
Refrigeradores
...........................fiiii_H_.................................................................................................................................................................................
La secci6n en espahol empieza en la pSgina 75
Write the model and serial
numbers here:
Model #
Serial #
Find these numbers on (] label
on the left side, near the middle
of the refrigerator compartment.
197D 7926P001 49-60551-1 02-08 JR

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
Use this appliance only for its intended purpose as described in this Owner's Manual.
SAFETYPRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
_u_Thisrefrigerator must be properlu installed
and located in accordance with the Installation
Instructions before it isused.
:€;Donot allow childrento climb,stand or hang
on the shelvesin the refrigeratoEThey could
damage the refrigerator and seriousluinjure
themselves.
::_:_Donot touch the cold surfaces in the freezer
compartment when hands are damp or wet.
Skinmag stick to these extremelu cold surfaces.
f,:Donot store or usegasolineor other flammable
vapors and liquidsin the vicinity of this or any other
appliance.
Keepfingers out of the "pinch point" areas;
clearances between the doors and between
the doors and cabinet are necessarilusmall.
Becareful closing doorswhen children are
in the area.
:_:_Inrefrigerators with automatic icemakers,
avoidcontact with the moving parts of the
ejector mechanism, or with the heating element
that releasesthe cubes.Do not place fingers or
hands on the automatic icemaking mechanism
while the refrigerator isplugged in.
i:_Unplugthe refrigerator before cleaning and making
repairs.
NOTE:Westrongly recommend that anb!servicing
beperformed b_laqualifiedindividual.
:_:_Donot refreezefrozen foods which have
thawed completelu.
DANGER! RISK OF CHILD ENTRAPMENT
PROPERDISPOSAL OF THE REFRIGERATOR
Childentrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are
still dangerous_.evenif they will sit for 'just a few
days."If Uouare getting rid of uour old refrigerator,
pleasefollow the instructions below to help prevent
accidents.
Before You ThrowAway Your Old
Refrigerator or Freezer:
i;:_:Takeoff the doors.
i_:Leavethe shelvesin place sothat children ma9 not
easiluclimb inside.
Refrigerants
All refrigeration products contain refrigerants,
which under federal law must be removed prior
to product disposal. If gou are getting rid of an old
refrigeration product, check with the compang
handling the disposal about what to do.
USEOFEXTENSIONCORDS
Because of potential safety hazards under certain conditions, we strongly recommend against
the use of an extension cord.
However,if Uoumust use an extension cord, it isabsolutely necessary that it be a UL-listed(inthe United States)
or a CSAcertified (inCanada),3-wire grounding tgpe appliance extension cord having a grounding tgpe plug
and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120volts.

ge.com
WARNING!
HOW TOCONNECT ELECTRICITY
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
For personal safety, this appliance must be properly grounded.
The power cord ofthis appliance isequipped
with a 3-prong (grounding)plug which mates
with a standard 3-prong (grounding)wall outlet
to minimizethe possibilitg of electric shock hazard
from this appliance.
Have the wall outlet and circuit checked bg a qualified
electrician to make surethe outlet isproperlg
grounded.
Where a standard 2-prong wall outlet isencountered,
it is gour personalresponsibilitgand obligation to
have it replaced with a properlg grounded 3-prong
wall outlet.
The refrigerator should alwags be plugged into its
own individual electricaloutlet which hasa voltage
rating that matches the rating plate.
Thisprovides the best performance and alsoprevents
overloading house wiring circuits which could cause
a fire hazard from overheated wires.
Never unplug gour refrigerator bg pulling
on the power cord. Alwags grip plug firmlg
and pull straight out from the outlet.
Repair or replace immediatelg all power cords that
have become fraged or otherwise damaged. Do not
use a cord that shows cracks or abrasion damage
along its length or at either end.
When moving the refrigerator awag from the wall,
be careful not to roll over or damage the power cord.
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY
SAVETHESEINSTRUCTIONS

About the controls with temperature settings.
Not all features are on all models. Your controls will look like one of the following:
4
f
IiEs'.=]
III/
Cubed Crushed water
[%_i']
Adjust
_HoldSsec
to Lo_k Co_ltoJ}
Location of Dispenser Controls
Location of Internal Controls
Dispenser Models
Internal Control Models
NOTE:Therefrigerator is shippedwith protective film covering the temperature
controls, tf this film was not removed during installation, remove it no_z
Thetemperature controls are preset in the factory at 38°F for the refrigerator
compartment and -2°F for the freezer compartment. Allow 24 hours for
the temperature to stabilize to the preset recommended settings.
Thetemperature controls can displag both the SETtemperature as well as
the actual temperature in the refrigerator and freezer. Theactual temperature
mag var_tslightlg from the SETtemperature based on usage and operating
environment.
FAdjustS/
reezerJ
rigerat_
Changing the Temperature
Dispenser models:
Tochange the temperature, press and release
the Adjust Freezeror Adjust Refrigerator pad,
Thedisplagwill show the actual temperature,
Tapeither the Adjust Freezeror Adjust Refrigerator
pad until the desiredtemperature isdisplaged.
Oncethe desiredtemperature has been set,
the temperature display will returnto the actual
refrigerator and freezer temperatures after
10seconds.Severaladjustments mag be required.
Eachtime gou adjust controls,allow 24 hours
for the refrigerator to reach the temperature gou
have set.
Internal control models:
Tochange the temperature, pressand release
the Freezeror Fridge pad.Thedisplag will show
the actual temperature. Tapeither the Freezeror
Fridge pad until the desiredtemperature isdisplaged.
Once the desired temperature has been set,
the temperature displag will return to the actual
refrigerator and freezer temperatures after
10 seconds. Several adjustments mag be required.
Each time you adjust controls, allow 24 hours
for the refrigerator to reach the temperature
you have set.
4

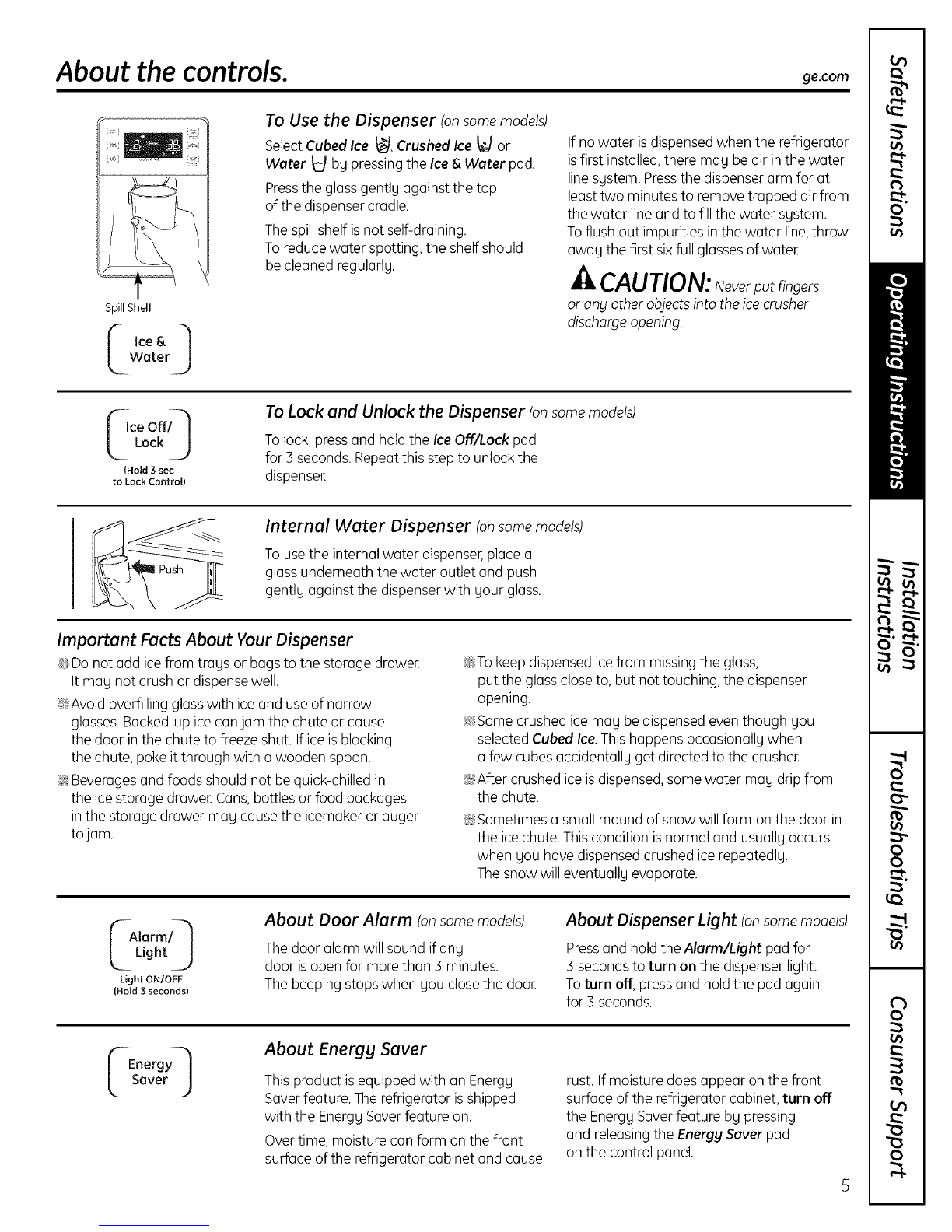

About the controls, ge.com
Spill Shelf
Water J
To Use the Dispenser (onsomemodels)
SelectCubed Ice _, Crushed Ice _) or
Water _ by pressingthe Ice &Water pad,
Pressthe glassgently against the top
of the dispenser cradle.
Thespillshelf isnot self-draining.
Toreducewater spotting, the shelfshould
becleaned regularly.
If no water is dispensedwhen the refrigerator
isfirst installed,there mag be air in the water
linesystem. Pressthe dispenser arm for at
leasttwo minutes to remove trapped air from
the water line and to fill the water system.
Toflush out impurities in the water line,throw
awag the first six full glassesof wateE
CAUTlON: Neverputfingers
or any other objectsinto the icecrusher
discharge opening.
;oooffFi
Lock J
(Hold 3 sec
to Lock Centre))
To Lock and Unlock the Dispenser (onsomemodels)
Tolock,pressand hold the Ice Off/Lock pad
for 3 seconds.Repeatthis step to unlock the
dispenseE
Internal Water Dispenser (onsome models)
Tousethe internal water dispenser,placea
glass underneath the water outlet and push
gently against the dispenserwith your glass.
Important Facts About Vour Dispenser
_,'_Donot add icefrom trays or bags to the storage drawee
It mag not crush or dispensewell.
;_;Avoid overfilling glass with ice and use of narrow
glasses.Backed-up ice canjam the chute or cause
the door in the chute to freeze shut. If iceis blocking
the chute, pokeit through with a wooden spoon.
i_ Beveragesand foods should not bequick-chilled in
the icestorage drawee Cans,bottles or food packages
in the storage drawer mag cause the icemaker or auger
tojam.
_:_Tokeep dispensedicefrom missingthe glass,
put the glass closeto, but not touching, the dispenser
opening.
i:_Somecrushed ice mag be dispensed eventhough gou
selectedCubedIce.This happens occasionally when
a few cubes accidentally get directed to the crusher.
Y}tAfter crushed ice isdispensed,some water mag drip from
the chute.
_;}tSometimesa small mound of snow willform on the door in
the icechute.This condition isnormal and usually occurs
when you have dispensedcrushed icerepeatedly.
Thesnow will eventually evaporate.
_AlormF]
Light J
Light ON/OFF
)Hold 3 seconds)
About Door Alarm (onsomemodels)
The door alarm will sound if ang
door isopen for more than 3 minutes.
The beeping stops when you closethe door.
About Dispenser Light (onsome models)
Pressand hold the Alarm/Light pad for
5 secondsto turn on the dispenserlight.
Toturn off,press and hold the pad again
for 3 seconds.
Energy]
SaverJ
About Energy Saver
This product is equipped with an Energy
Saverfeature. The refrigerator isshipped
with the EnergySaverfeature on.
Overtime, moisture can form on the front
surface of the refrigerator cabinet and cause
rust, If moisture does appear on the front
surface of the refrigerator cabinet, turn off
the Energy Saver feature by pressing
and releasing the 5nergg Sever pad
on the control panel.

About the water filter.
Cartrid(
Holder
Filter_'__
Bypass
Plug
Water Filter Cartridge
Thewater filter cartridge islocated
in the back upper right corner
ofthe refrigerator compartment.
When to Replace the Filter
Thefilter cartridge shouldbe replaced
evergsix months or ifthe flow of water
to the dispenser or icemaker decreases
Installing the Filter Cartridge
0 If gou are replacing the cartridge, first
remove the old one bg slowlg turning
it counterclockwise. A small amount
of water mag drip down.
CAUTION:Ifairhosbeen
trapped in the sgstem,thefilter cartridge mag
be ejectedasit isremoved.Usecaution when
removing
0 Removethe protective foilfrom the end
of the cartridge
Liningup the arrow on the cartridge
and the cartridge holder,place the top
of the new cartridge up insidethe holdec
Donot push it up into the holdecSlowlg
rotate the cartridge clockwiseuntil it
stops As gou turn the cartridge, it will
automaticallg raise itselfinto position
Cartridge will rotate about 1/4 turn
Do not overtighten.
Runwater from the dispenserfor
3 minutes (about 1V2gallons)to clear
the sgstem and prevent sputtering
SeeToUsethe Dispensersection
NOTE:A newlg installed water filter
cartridge may cause water to spurt
from the dispensec
Filter Bgpass Plug
Youmust usethe filter bgpass plug when a
replacement filter cartridge is not available.
The icemaker will not operate without
the filter or filter bgpass plug.
Replacement Filters:
Toorder additional filter cartridges
in the United States, visit our Website,
ge.cam or call GEParts and Accessories,
800.626.2002.
Filter ModelMWF
Customersin Canada should consult
the gellow pagesfor the nearest Mabe
ServiceCentec
6

About fresh food storage options, gecom
Rearranging the Shelves
Shelvesin the refrigerator compartment are adjustable.
Toremove:
0 Removeall itemsfrom the shelf.
0 Tilt the shelf up at the front.
0 Liftthe shelf up at the back and
bring the shelf out.
Toreplace:
While tilting the shelf up,insert the top
hook at the back of the shelf in a slot
on the track.
Lowerthe front of the shelf until
the bottom of the shelf locksinto place.
i 0 Spillproof Shelves
Spillproofshelveshavespecial edgesto
help prevent spillsfrom dripping to lower
shelves.
Floating snack pan
The location of the snack pan isadjustable
and can be changed likethe other shelves.
Toremove:
Pullthe snack pan out to the stop
position.
Lift the pan up and past the stop.

About fresh food storage options.
Non-AdJustable Dairy Bin
Toremove: Lift the dairy bin straight up,then
pullout. Toreplace: Engagethe bin in the molded door supports and push down. Thebin will
lock in place.
AdJustable Bins on the Door
Adjustable bins can easilgbe carried from
refrigerator to work area.
Toremove: Lift bin straight up,then
pullout.
Toreplace or relocate: Slidein the binjust
above the molded door supports, and push
down. Thebin will lock in place.
NOTE:On models without a full-width pantrg,
the location of the bottom door bin is not
adjustable.
Non-AdJustable Bins on the Door (onsomemodels)
Toremove: Lift the bin straight up,then
pull out.
Toreplace: Engagethe bin in the molded
supports on the door and push down.
It will lock in place.
8

Fruit Veg
Fruit and Vegetable Crisper
Keep fruits and vegetables organized
in separate compartments for easg access.
Excess water that mag accumulate
in the bottom of the drawers or under
the drawers should be wiped drg.
ge.com
_J _J
Produce
Drawer
®
@
Deli Drawer
Adjust- /
ettingJ
The control is located on the right
side ofthe drawee
Adjustable Dell/Produce Drawer tonsomemodels)
TheAdjustable Dell/ProduceDrawer
isa full-width drawer with adjustable
temperature control.This drawer can
be usedfor large miscellaneous items.
Thereis a temperature control which can
adjust the amount of cold air allowed into
the drawer
Control
When Produce Drawer isselected,
the temperature of the drawer can be kept
around 38°F(3°C).Thisfeature also helps
keepfood fresh for a long time.
When Dell Drawer isselected,
the temperature of the drawer can be kept
around 34°F(1°C).Thisfeature also helps
keep meat or fish fresh for a longer time.
NOTE:Fruits and vegetables may be
damaged using the Deli Drawer setting.
Do not store lettuce or other leafy produce
in this drawer
CAUTION: notstoregloss
bottlesin this drawer If they are frozen,
they can break and cause personal injury.
To remove:
0 Pullthe drawer out to the stop position.
0 Liftthe front of the drawer up and out.
How to Remove and Replace the Adjustable Dell/Produce Drawer
Toreplace:
Lift the cover up.
Engage the pantrg rollersinto the side
rails.
Pushthe drawer inward {untilit is
tnplace).
L
How to Remove and Replace Drawer Divider
To remove:
Pullthe drawer out to the stop position.
Raise the front side of the divider
to unhook it from the rear wall of
the drawer
Toreplace:
Hook the back of the divider over the rear
wall of the drawer
Pushthe divider down.

About the freezer.
........................0 ::_...................................I
IIIIIIIIIIIIIIIIII
0
Freezer Basket and Drawer
0 Basket.
0 Drawee
Basket Removal
To remove:
Remove Freezer Bin. (Seebelow.)
Pull basket out to the stop position.
Tilt up the rear of the bin.
Lift it out to remove.
Basket Divider Removal
To remove:
Pull basket out to the stop position.
Tilt up the rear of the bin.
Lift it out to remove.
Toreplace:
Placethe basket into the rail assembly.
To replace:
Hook the top corners of the divider over
the hole of the basket.
Drawer Removal
To remove:
Pullthe drawer out to the stop position.
Remove both side knobs with a flat-head
screwdriver {as shown at left).
Tilt up the rear of the drawer and lift
drawer up and out.
Toreplace:
Pullboth rails out to the stop position.
Placethe drawer onto the railsand hook
the support into the slotslocated on
the sideof the drawer
Replace the side knobs and push
the drawer back into place.
WARNING: notlosetheside
knobs during disassembly since they may
present a choking hazard to children.
Non-Adjustable Bin in the Freezer
Toremove: Pull the brackets upward until
Uou hear a clicking sound and remove
the bin.
Toreplace: Hook the ends of the bin into
both brackets and push down until the bin
locks into place.
10

About the automatic icemaker, ge.com
A newly installed refrigerator may take 12 to 24 hours to begin making ice.
Automatic Icemaker
icoo.i-1
Lock J
Theicemaker will produce sevencubes
per cycle-approximately 100-130cubes
in a 24-hour period,depending on freezer
compartment temperature, room
temperature, number of door openings
and other useconditions.
If the refrigerator is operated before the
water connection ismade to the icemaker,
pressand releasethe Ice Off/Lock or Ice Off
pad on the control panel to disengage the
icemaker
When the refrigerator has been connected
to the water supply,press and releasethe
Ice Off/Lock or Ice Off pad on the control
panel to engage the icemaker
A newly installed refrigerator may take
12 to 24 hours to begin making icecubes.
Youwill hear a buzzing sound each time
the icemaker fillswith water
Throw away the first few batches of ice to
allow the water line to clear
Besure nothing interfereswith the sweep
of the feeler arm.
When the bin fills to the levelof the feeler
arm, the icemakerwill stop producing ice.
It is normal for several cubes to bejoined
together
If ice isnot usedfrequently, old icecubes
will become cloudy,taste stale and shrink.
NOTE:Inhomes with lower-than-average
water pressure,gou mag hear the icemaker
cyde multiple timeswhen making one batch
of ice.
NOTE:Turn on the Ice Off feature
if thewater supply isshut off
11

Careand cleaning of the refrigerator.
Cleaning the Outside
Thedoor handlesand trim. Cleanwith
a cloth dampened with soapy water. Dry
with a soft cloth.Do not usewax on the door
handles and trim.
Keepthe outside cleon. Wipewith
a clean cloth lightly dampened with kitchen
appliance wax or mild liquid dishdetergent.
Dry and polishwith a cleon,soft cloth.
Do not wipe the refrigerator with o soiled
dish cloth or wet towel. These may leave
o residue that con erode the point. Do not
use scouring pods, powdered cleaners,
bleach or cleaners containing bleach
because these products con scratch
and weaken the point finish.
Thestainless steel panels and door
handles. Stainlesssteel (onsome models)
can be cleanedwith a commercially
available stainlesssteel cleaner.A spray-on
stainlesssteel cleaner works best.
Do not use appliancewax or polish
on the stainlesssteel.
Silver-accented plastic ports. Wash parts
with soap or other mild detergents.Wipe
clean with a sponge,damp cloth or paper
towel.
Do not scrub with steel-wool pads or other
abrasive cleaners.
Cleaning the Inside
Tohelp prevent odors,leave an open box
of baking soda in the refrigerator and freezer
compartments.
Unplug the refrigerator before cleaning.
If this is not practical, wring excessmoisture
out of sponge or cloth when cleaning around
switches, lights or controls.
Usean appliance wax polishon the inside
surface between the doors.
Usewarm water and baking sodasolution-
about a tablespoon (15ml)of baking sodato
a quart (1liter)of water.Thisboth cleans and
neutralizesodors Rinseand wipe drg
After cleaning the door gaskets,apply a thin
lager of petroleumjelly to the door gaskets
at the hinge side.Thishelpskeep the gaskets
from sticking and bending out of shape
Avoid cleaning cold gloss shelves with hot
water because the extreme temperature
difference mo_l cause them to break.
Handle gloss shelves carefully. Bumping
tempered gloss con cause it to shatter.
Do not wash ang plastic refrigerator
parts in the dishwasher.
Silver-accented plastic parts. Wash parts
with soapg water.Wipe clean with a sponge,
damp cloth or paper towel
Do not scrub with steel-wool pads or other
abrasive cleaners.
12

ge.com
Behind the Refrigerator
Becareful when moving the refrigerator
away from the wall.All types of floor
coveringscan be damaged, particularlu
cushioned coverings and those with
embossedsurfaces.
Raisethe leveling legslocated
at the bottom front of the refrigeratoE
SeeLevelthe Refrigeratorin the Installation
Instructionsfor levelingleg details.
Pullthe refrigerator straight out and return it
to position by pushing it straight in.Moving
the refrigerator in a sidedirection mau result
in damage to the floor covering or
refrigeratoE
Lower the levelinglegs untilthey touch
the flooE
When pushing the refrigerator back, make
sure you don't roll over the power cord
or icemaker supply line (on some models)
and ensure the anti-tip bracket is engaged
(if equipped).
-Ice Off/_
Lock J
Preparing for Vacation
Forlong vacations or absences,remove
food and unplug the refrigeratoEClean
the interior with a baking soda solution of
one tablespoon (15ml)of baking sodato one
quart 11liter)ofwateE Leavethe doors open.
Pressand releasethe Ice Off/Lock or Ice Off
pad on the control panel to disengagethe
icemake_
If the temperature can drop below freezing,
have a qualified servicer drain the water
supply system (on some models)to prevent
serious property damage due to flooding.
Preparing to Move
Secureall looseitems such as basegrille,
shelvesand drawers by taping them
securelu in placeto prevent damage.
When using a hand truck to move the
refrigerator,do not rest the front or back
of the refrigerator against the hand truck.
This could damage the refrigeratoEHandle
onlu from the sidesof the refrigeratoE
Be sure the refrigerator stays in an upright
position during moving.
13

Replacingthe light bulbs.
Refrigerator Lights
0 Unplug the power cord from
the outlet.
0 Rotate the shield down while depressing
the two tubs on the buck side of
the cover to remove it.
Turn the bulb counterclockwise.
Reploce with on opplionce bulb
of the some or lower wattage.
Replace the shield.
Plug the refrigerotor bock in.
NOTE: Reveal¢appliance bulbs may be
ordered from GEPorts and Accessories,
800.626.2002.
Freezer Light
ik CAUTION: Lightbulbs
be hot.
Unplug the power cord from the outlet.
Pull drower out to the stop position.
Rotete the shield down while pushing
it backwards to remove it.
Turnthe bulb counterclockwise,
0 Replacewith an appliance bulb
of the same or lowerwattage.
Replacethe shield.
Plugthe refrigerator back in.
NOTE:Reveal®appliancebulbsmobtbe
ordered from GEPartsand Accessories,
800.626.2002.
14

Installation
Instructions Refrigerator
GE Model 26
IQuestions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com
In Canada, call 1.800.561.3344 or Visit our Website at: www.geappliances.ca I
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT- Savetheseinstructionsforlocal
inspector's use.
•IMPORTANT- Observeall governing codes and
ordinances.
• Note to Installer- Besureto leavethese instructionswith
the Consumer.
• Note to Consumer- Keepthese instructionsfor future
reference.
• Skilllevel - Installation ofthis appliance requiresbasic
mechanical skills.
•Completion time- RefrigeratorInstallation
20 minutes
Water LineInstallation
30 minutes
• Properinstallation isthe responsibilityof the installer.
• Product failure due to improper installation is notcovered
under the Warrantg.
PREPARATION
MOVING THE REFRIGERATOR INDOORS
If the refrigerator will not fit through a doorwag,
the refrigerator doors and freezer drawer can be removed.
• Toremove the refrigerator door,seethe Installing
the Refrigeratorsection.
• Toremove the freezerdrawer,seethe Removing
the FreezerDrawer section.
WATER SUPPLYTO THE ICEMAKER AND DISPENSER
If the refrigerator has an icemaker,itwill have to be
connected to a coldwater line.AGEwater supply kit
(containing tubing, shutoff valve,fittings and instructions)
isavailable at extra cost from your dealer,bg visitingour
Websiteat ge.com (inCanadaat www.geappliances.ca)
or from Partsand Accessories,800.626.2002
(InCanada 1,888,261,3055),
TOOLS YOU MAY NEED
Adjustable Wrench
o@
/t
1/4 Outer D,ameter
Compression Nut
and Ferrule {sleeve)
i0 mm Socket
Ratchet!DriVer
Phillips-Head Screwdriver
3/32", 1/8/', 3/16" and
4 mm Allen Wrenches
1/8" Drill Bit and
Electric or Hand Drill
Pencil
Flat-Head Screwdriver
TapeMeasure
1/4" Nut Driver
Pliers Level
DIMENSIONS
Heightfrom
floorto hinge
covertop 68Ys"
Additional Dimensions

Installation Instructions
INSTALLING THE REFRIGERATOR
REFRIGERATOR LOCATION
• Donot install the refrigeratorwhere the temperature will
go below 60°F(16°C)because it will not run often enough
to maintain proper temperatures.
• Donot install the refrigeratorwhere the temperature will
go above 100°F(37°C)because itwill not perform properlU.
• Installit on a floor strong enough to support it fullUloaded.
CLEARANCES
Allowthe following clearancesfor easeofinstallation, proper
air circulationand plumbing and electricalconnections.
Sides 1/8" (3 mm)
Top 1" (25ram)
Back 1" (25mm)
[] REMOVE THE FRESH FOOD
DOOR HANDLE
Stainless steel and plastic handles:
REMOVING THE DOOR
HANDLE: Loosen
the set screws
with the 1/8"
Allen wrench
and remove
the handle.
NOTE: If the handle
mounting fasteners
need to be tightened
or removed, use
aPhillips-head Hounting/
screwd river. Fasteners 1
J
REMOVINGTHE REFRIGERATORDOORS
• IMPORTANTNOTE:This refrigerator is 35.6" deep. Doors
and passagewags leading to the installation location
must be at least 36" wide in order to leave the doors and
handles attached to the refrigerator while transporting it
into the installation location. If passagewags are less than
36",the refrigerator doors and handles can easilg be
scratched and damaged. Thetop cap and doors can be
removed to allow the refrigerator to be safelg moved
indoors. Start with Step 1.
• If it is not necessarg to remove doors, skip to Step 9. Leave
tape and all packaging on doors until the refrigerator isin
the final location.
• NOTE:Usea padded hand truck to move this refrigerator.
Placethe refrigerator on the hand truck with a side
against the truck. We stronglg recommend that TWO
PEOPLEmove and complete this installation.
[] REMOVE THE FREEZER DOOR HANDLE
Stainless steel and plastic handles:
@ Loosen the set screws located on the underside
of the handle with the 1/8" Allen wrench and
remove the handle.
NOTE: If the handle mounting fasteners need
to be tightened or removed, use a Phillips-head
screwdriver.
16

Installation Instructions
[] ATTACH THE FRESH FOOD
DOOR HANDLE
Stainless steel and plastic handles:
@ Attach the handle
to the handle
mounting fasteners
and tighten the set
screws with a 1/8"
Allen wrench. Mounting
Fasteners
l.
[] ATTACH THE FREEZERDOOR HANDLE
Stainless steel and plastic handles:
@ Attach the handle firmly to the mounting
fasteners and tighten the set screws on
the bottom of the handle with a 1/8" Allen
wrench.
[] REMOVE THE REFRIGERATOR DOORS
[] Open the refrigerator doors,
[] Removethe two rectangular caps with a flat-head
screwdriver,
[] REMOVETHE REFRIGERATORDOORS(cont.)
[] Removethe three screwson top with a Phillips-head
screwdriver,
[] Disengagethe two electricalconnectors,
_Tt /./
[] Todisconnect the water coupling, push in on the grag
colorof the coupling and pull out the tubing,
[] Removethe two grounding cableswith a Phillips-head
screwdriver,
[] Removethree 10 mm hex-head bolts (right and left),
i
-& CAUTION:When the bolts are removed,the
door may fall and cause personalinjurg and/or damage
to the door itself,
17

Installation Instructions
INSTALLING THE REFRIGERATOR(cont.)
[] REMOVETHEREFRIGERATORDOORS(cont.)
[] Liftthe door straight up to remove.
[] Remove the two bolts using a 3/16" Allenwrench
and two Phillips-head screws from the center hinge.
Set the hinge, bolts and screw aside.
[] REPLACINGTHE REFRIGERATORDOORS
[] Installthe center hinge on eachside.
[] Lowerthe refrigerator door onto the center hinge pin.
Ensurethat the plastichinge pin thimble ison the center
hingepin or insidedoor hinge pinhole located in the
bottom ofthe door.
[] SecurelUtape the door shut with maskingtape
or have a second personsupport the door.
18
[] REPLACING THE REFRIGERATOR DOORS
(cont.)
[] Insertthe top hingepin into the hinge holeon top
ofthe refrigerator door.Hake surethe door isaligned
with the cabinet and opposite door.Attach the hingeto
the top of the cabinet. Do nottighten bolts completelU.
[] Onleft-hand doors, passthe wires and water line
through the top hinge pin.Thenconnect the water line
and two connectors.
[] Attach the ground wire with a Phillips-headscrewdriver
atthe right and left hinge.
[] Hake surethe gasket on the door isflush against the
cabinet and is not folded. Hake surethe door isstraight
and the gap between the doors iseven acrossthe front.
While holding the aligned door in place,tighten the top
hinge bolts.
[] Reconnectthe two connectors at eachsideof the top
cap and reattach the three Phillips-headscrews on top.
[] Reinstall the rectangular caps removed in Step 5.

Installation Instructions
[] REMOVE THE FREEZER DOOR
[] Pullthe freezer door open to full extension.
[] Removethe freezerbin bu pulling both brackets upward
at the same time.(Seepage 10.}
[] Takeout the lower basketby lifting the basketup from
the rail sgstem.{Seepage 10.)
[] Removethe two 10mm hex-head boltsfrom the right
and left side.
[] REMOVE THE FREEZERDOOR lcont.)
[] Usethe tip of a screwdriver to separate the railfrom
the rail cover.Tiltthe front end up and lift the entiredoor.
[] Setthe door front on a nonscratching surface.
[] Pushthe rail assembliesback into the cabinet.
CAUTION:Pushboth sidesof the rail
assembliesback at the same time.
[] REPLACING THE FREEZER DOOR
Two people mag be requiredto complete this procedure.
ATTACH AND SECURE THE DRAWER FRONT TO
THE SLIDES
[] Pullout the rail assembliesto the full length on each side
ofthe cabinet.
.ii CAUTION: Makesureto pull out the side
railsevenlg.
19

Installation Instructions
INSTALLING THE REFRIGERATOR(cont.)
[] REPLACINGTHE FREEZERDOOR (cont.)
[] Hangthe freezer door front onto open slots
on the sides.
Slot
[] Tighten screws completely.(Thereare four 10 mm
hex-headbolts.)
REPLACE THE FREEZER BASKET
Replacethe freezerbasket bg lowering it into the frame.
[] REPLACINGTHE FREEZERDOOR (cont.)
REPLACE THE FREEZER BIN
Hook the endsof the freezer bin into both brackets,
and push down until they lock into place.(Seepage 10.)
[] CONNECTING THE REFRIGERATOR
TO THE HOUSE WATER LINE
[]
A coldwater supply is requiredfor automatic icemaker
operation. If there isnot a coldwater supply,you will
need to provide one.SeeInstallingthe Water Line
section.
NOTE:Beforemaking the connection to the refrigerator,
be surethe refrigerator power cordis not plugged
into the wall outlet.
If gou are using copper tubing, place
a compression nut and ferrule (sleeve) onto
the end of the tubing coming from the house
cold water supplg.
If gou are using the GE SmartConnect TM
tubing, the nuts are already assembled
to the tubing.
2O
