Consumer Information
Built-In Refrigerators
Contents Consumer Services
Important Phone Numbers ................. 28
Model and Serial Numbers .................... 3
Problem Solver.......................... 25-26
Product Registration ......................... 3
Safety Instructions ........................ 4-7
Smurtwuter Filter Performance
Data Sheet................................. 27
Warranty ......................... Back Cover
Care and Cleaning
Cleaning-Outside and Inside ............... 19
Light Bulb Replacement ................ 20-21
Moving and Vacation ....................... 22
Master Light Switch ........................ 21
Operating Instructions
Automatic Icemuker ........................ 12
Climate Control Drawer .............. 13, 1/4,16
Control Lock ............................... 1/4
Ice and Water Dispenser ................ !0, !!
Shelves and Bins........................ 17, 18
Storage Puns ........................... 15, 16
Temperature Controls ........................ 8
Water Filter Cartridge ........................ 9
Sabbath Mode Product Kit, ZSAB!........... 18

Consumer Information
Built-In Refrigerators
Before
using your
refrigerator
Read this manual carefully. It is intended
to help you operate and maintain your new
refrigerator properly.
Keep it handy for answers to your questions.
Ifyou don't understand something or need more
help, there isa list of toll-free consumer service
numbers included in the buck section of this
manual.
OR
Visit our website at: monogram.cam
write
down the
model
& serial
numbers
You'll see them on a label inthe lower right hand
side of the fresh food compartment beneath
the climate control drawer.
Before sending in the Product Registration
card, please write these numbers here:
Model Number
Serial Number
Usethese numbers in any correspondence or
service calls concerning your refrigerator.
If you
received a
damaged
refrigerator
Immediately contact the dealer (or builder) that
sold you the refrigerator.
Savetime
&money Before you request service, check the
Problem Solver in the back of this manual. It lists causes of minor operating problems that
you can correct yourself.
If you
need
service
To obtain service, see the Consumer Services
page in the back of this manual.
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are steps to
follow for further help.
For customers in the USA:
FIRST,contact the people who serviced your
appliance. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT,if you are still not pleased, write all the
details-including your phone number-to:
Manager, Customer Relations
GEAppliances
Appliance Park
Louisville, KY40225
For customers in Canada:
FIRST,contact the people who serviced your
appliance. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT,ifyou are still not pleased, write all
the details-including your phone number to:
Manager, Consumer Relations
Mabe Canada Inc.
1 Factory Lane,Suite 3!0
Moncton, N.B.E1C9M3

IMPORTANT SAFETY INSTRUCTIONS
GEAppliances Website
For more information on your refrigerator's operation, visit www.GEAppliences, com or
call 800.GECARES (800.432.2737). In Canada visit GEAppliences.ce or call 800.561.3344.
REFRIGERATOR SAFETY INFORMATION
_This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety
messages will follow the safety alert symbol and the word "DANGER","WARNING",or "CAUTION".Thesewords are defined as:
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
_ Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, explosion, electric shock, or injury when using your
refrigerator, follow these basic safety precautions:
Thisrefrigerator must be properly installed and located in
accordance with the Installation Instructions before it isused.
Replaceall parts and panels before operating.
Do not store or usegasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
Becauseof potential safety hazards under certain conditions,
we strongly recommend against the use of an extension cord.
However, ifyou must usean extension cord, it isabsolutely
necessarythat it be a UL-listed(inthe United States)or a CSA
certified (in Canada),3-wire grounding type appliance extension
cord having a grounding type plug and outlet and that the
electrical rating of the cord be !B amperes (minimum)and 120
volts.
Toprevent suffocation and entrapment hazards to children,
remove the fresh food and freezer doors from any refrigerator
before disposing of it or discontinuing its use.
Do not allow children to climb, stand or hang on the door handles
or the shelvesin the refrigerator. Theycould seriouslyinjure
themselves.
iiiiiiiiiUnplugthe refrigerator :
• To disconnect power to the refrigerator. It cannot be turned off
byany setting on the control panel.
To clean, replace a burned out light bulb, or make repairs.
Note: Repairsmust be performed by aqualified Service
Professional.
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of injury when using your refrigerator, follow these basic
precautions.
Inrefrigerators with automatic ice makers, avoid contact with
the moving parts of the ejector mechanism, or with the heating
element that releasesthe cubes.Do not place fingers or hands
on the automatic icemaking mechanism while the refrigerator is
plugged in.
Do not clean glass shelvesor coverswith warm water when they
are cold. Glassshelves and covers may break ifexposed to sudden
temperature changes or impact, such as bumping or dropping.
Tempered glass isdesigned to shatter into many small pieces if it
breaks.
Keepfingers out of the "pinch point" areas; clearances between the
doors and between the doors and cabinet are necessarily small.Be
careful closing doors when children are inthe area.
Do not touch the cold surfaces in the freezer compartment when
hands are damp or wet, skin may stick to these extremely cold
surfaces.
Do not refreeze frozen foods which have thawed completely.
INSTALLATION
Explosion Hazard.
Keep flammable materials and vapors, such as gasoline, away from freezer.
n fire, explosion, or death.
4
Failure to do so can result

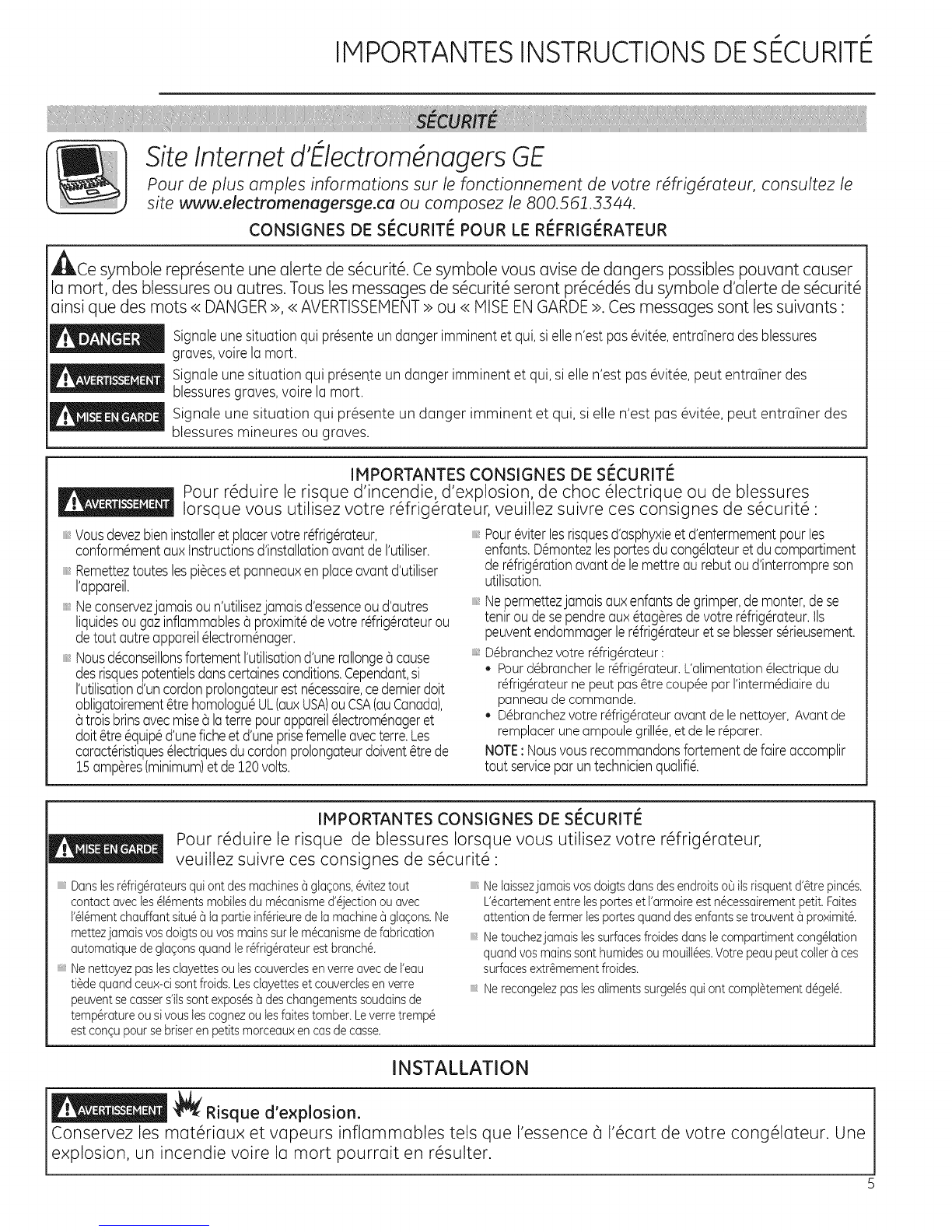

IMPORTANTESINSTRUCTIONSDESI'CURITI"
f s
Site Intemet d'Electromenagers GE
Pour de plus amples informations sur le fonctionnement de votre rdfrigdrateur, consultez le
site www.electromenugersge.cu ou composez le 800.561.3344.
CONSIGNESDES CURIT POURLER FRIG RATEUR
A
,Jl_Ce symbole repr@sente une alerte de s@curit6. Ce symbole vous avise de dangers possibles pouvant causer
la mort, des blessures ou autres. Tousles messages de s@curit@seront precedes du symbole d'alerte de s@curit@
ainsi que des mots <<DANGER >>,<<AVERTISSEMENT >>ou <<MISE EN GARDE >>.Ces messages sont les suivants :
I_ ignaleune situationqui pr@senteun dangerimminentet qui,siellen'est pas@vitae,entraTneradesblessures
graves,voirela mort.
I_ ignale une situation qui pr@senteun danger imminent et qui,si ellen'est pas@vit@e,peut entraTnerdes
blessuresgraves,voire la mort.
Signale une situation qui pr_sente un danger imminent et qui, si elle n'est pas 6vit6e, peut entra?ner des
blessures mineures ou graves.
IIPORTANTES CONSIGNES DE SI_CURITI_
Pour r6duire le risque d'incendie, d'explosion, de choc _lectrique ou de blessures
Iorsque vous utilisez votre r_frig@ateur, veuillez suivre ces consignes de s_curit6 •
Vousdevezbieninstalleretplacervotrerdrig@ateur,
conform@mentauxinstructionsd'installationavantdeI'utiliser.
Remetteztouteslespiecesetpanneauxen placeavantd'utiliser
I'appareil.
Neconservezjamaisoun'utilisezjamaisd'essenceoud'autres
liquidesou gazinflammables@proximit@devotre rdrig@rateurou
de tout autreappareil@lectrom@nager.
Nousd@conseillonsfortementI'utilisationd'unerallonge@cause
desrisquespotentielsdanscertainesconditions.Cependant,si
I'utilisationd'uncordonprolongateurestn@cessaire,cedernierdolt
obligatoirement@trehomologu@UL(auxUSA)ouCSA(auCanada),
troisbrinsavecmise@laterrepourappareil@lectrom@nageret
dolt@tre@quip@d'uneficheetd'uneprisefemelleavecterre.Les
caract@ristiques@lectriquesducordonprolongateurdoivent@trede
15amperes(minimum)etde120volts.
Poureviterlesrisquesd'asphyxieetd'enfermementpourles
enfants.D@montezlesportesdu cong@lateuretducompartiment
de rdrig@ationavantde lemettreau rebutoud'interrompreson
utilisation.
Nepermettezjamaisauxenfantsdegrimper,demonter,de se
teniroudesependreaux@tageresdevotre rdrig@ateur,tls
peuventendommagerlerdrig@ateuretseblessers@ieusement.
D@branchezvotrer@frig@ateur:
• Pourd@brancherler@frig@ateur.L'alimentation@lectriquedu
r@frig@ateurnepeutpas@recoup@eparI'interm@diairedu
panneaudecommande.
D@branchezvotrer@frig@ateuravantdelenettoyer,Avantde
remplaceruneampoulegrill@e,etdeler@parer.
NOTE: Nousvousrecommandonsfortementdefaireaccomplir
tout serviceparuntechnicienqualifi@.
IIPORTANTES CONSIGNES DES(--CURITI:-
Pour r@duire le risque de blessures Iorsque vous utilisez votre r@frig@rateur,
veuillez suivre ces consignes de s@curit@•
Dans tes rdrig@ateurs qui ont des machines (_glagons, @itez tout
contact avec les@I@mentsmobiles du m@canismed'@jectionou avec
I'@t@mentchauffant situ@(_la partie inf@ieure de la machine (_glagons. Ne
mettezjamais vos doigts ou vos mains sur le m@canismede fabrication
automatique de glagons quand le rdrig@ateur est branch@.
Nenettoyez pas les dayettes ou les couverdes en verre avec de I'eau
tilde quand ceux-ci sont froids. Lesclayettes et couvercies en verre
peuvent se casser s'itssont exposes (_des changements soudains de
temp@ature ou si vous lescognez ou lesfaites tomber. Leverre tremp@
est congu pour se briser en petits morceaux en cas de casse.
Nelaissezjamaisvosdoigtsdansdesendroitso0 itsrisquentd'@trepinc_s.
L'_cartemententre lesportesetI'armoireestn_cessairementpetit.Faites
attentiondefermerlesportesquanddesenfantssetrouvent(_proximitY.
, Netouchezjamaislessurfacesfroidesdans lecompartimentcong_tation
quandvosmainssont humidesoumouitt@s.Votrepeaupeutcotter(_ces
surfacesextr@mementfroides.
Nerecongelezpaslesalimentssurget@squiontcompl_tementd_gel@.
INSTALLATION
_' Risque d'explosJon.
Conservez les mat@iaux et vapeurs inflammables tels que I'essence 5 I'#cart de votre cong#lateur. Une
explosion, un incendie voire la mort pourrait en r#sulter.

IMPORTANT SAFETY INSTRUCTIONS
CONNECTING ELECTRICITY
_ Electrical Shock Hazard.
Plug into a grounded 3-prong outlet
Do not remove the ground prong
Do not use an adapter
Failure to follow these instructions can result in death, fire, or electrical shock.
Do not, under any circumstances, cut or remove the third (ground} prong from the power cord.
For personal safety, this appliance must be properly grounded.
The power cord ofthis appliance isequipped with a 3-prong
(grounding) plug which motes with a standard 3-prong
(grounding)wall outlet to minimize the possibility of electric
shock hazardfrom thisappliance.
Hove the wall outlet and circuit checked by oqualified
electrician to make surethe outlet isproperly grounded.
Where a standard 2-prong wall outlet isencountered, it is
your personal responsibility and obligation to have it replaced
with aproperly grounded 3-prong wall outlet. Do not useon
adopter.
The refrigerator should always be plugged into its own
individual electrical outlet which has o voltage rating that
matches the rating plate.This provides the best performance
and also prevents overloading house wiring circuits which
could cause o fire hazard from overheated wires.
Never unplug your refrigerator by pulling on the power cord.
Always grip plug firmly and pullstraight out from the outlet.
Repairor replace immediately all power cords that hove
become frayed or otherwise damaged. Do not useo cord that
shows crocks or abrasion damage along its length or at either
end.
When moving the refrigerator away from the wall, be careful
not to rollover or damage the power cord.
USE OF EXTENSION CORDS
Becauseof potential safety hazards under certain conditions, we strongly recommend against the useof an
extension cord.
However, ifyou must use an extension cord, it isabsolutely necessarythat it be a UL-listed(inthe United States)or
a CSA-listed(in Canada),3-wire grounding type appliance extensioncord having a grounding type plug and outlet
and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.
PROPER DISPOSAL OF YOUR OLD REFRIGERATOR
Suffocation and child entrapment hazard.
Remove fresh-food and freezer doors from the refrigerator, prior to disposal. Failure to do so can result
in child entrapment which can lead to death or brain damage.
IMPORTANT: Childentrapmentandsuffocationarenotproblemsofthepast.
Junkedor abandonedrefrigeratorsarestilldangerousevenif
theywillsitfor'lustafew days."Ifyouaregettingridofyourold
refrigerator,pleasefollowtheinstructionsbelowto helpprevent
accidents.
Before You Throw Away Your Old Refrigerator or
Freezer:.
, Takeoffthefreshfoodandfreezerdoors.
, Leavetheshelvesinplacesothatchildrenmaynoteasily
climb inside.
Refrigerants
Allrefrigerationproductscontain refrigerants,whichunder
federallaw must beremoved priorto product disposal.If you
aregetting rid of anold refrigerationproduct,checkwith the
companyhandlingthe disposalabout what to do.
READAND FOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS

IMPORTANTESINSTRUCTIONSDESI'CURITI"
BRANCHEMENTS ELECTRIQUES
Risquede choc _lectrique.
BranchezI'appareildans uneprisetripleavecterre.
Ne retirez pas la broche de terre.
INutilisez pas d adaptateur.
Le non-respect de ces instructions peut entratner
des risques d'incendies, des chocs 61ectriques ou la
mort.
Ne coupez pas ou n'enlevez pas, sous aucun pr_texte, la troisi_me broche de mise 6la terre du cordon
d'alimentation. Pour des raisons de s_curit6, cet appareil doit 6tre correctement mis 6la terre.
Lecordond'alimentationdecetappareilest6quip6d'unefiche
5 troisbroches(pourunemise5 laterre)quis'adapte@la prise
de courantstandard@3 broches(pourunemise@laterre)pour
minimiserlesrisquesdechocs61ectriquesparcetappareil.
Faitesv6rifierla prisemuraleet lecircuit61ectriquepar
un61ectricienqualifi6pours'assurerquelesyst@meest
correctementmis@laterre.
un fusible de 15 ou 20 amp@es et une mise5 laterre est
n6cessaire.Ceci permet d'obtenir un meilleur rendement et
6vite de surcharger les circuits 61ectriquesdu domicile qui risque
d'occasionner un incendie en surchauffant.
Ne d6branchezjamais le r6frig6rateur en tirant sur le cordon
d'alimentation. Preneztoujours fermement la fiche en main et
tirez pour la sortir de la prise.
R6parez ou remplacez imm6diatement tout cordon 61ectrique
us6 ou endommag6. N'utilisezpas un cordon fissur6 ou
pr6sentant desdommages dus aux frottements soit sur sa
Iongueur ou aux extr6mit6s.
Lorsque vous 61oignezvotre r6frig6rateur du mur,faites
attention 5 ne pas le faire rouler sur lecordon d'alimentation
afin de ne pas I'endommager.
Dansle cas d'une prise biphas6e, I'installateura la responsabilit6
et I'obligation de la remplacer par une prise triphas6e
correctement mise5 la terre. N'utilisez pas d'adaptateur.
Ler6frig6rateur doit toujours @re branch6 @sa propre prise
61ectriqued'une tension nominale correspondant 5 celle
indiqu6e sur sa plaque signal6tique.
Unealimentation 61ectrique5 115volts CA,60 Hz,avec
UTILISATION DE RALLONGES I_LECTRIQUES
Nous vous recommandons fortement de ne pas utiliser de rallonge dlectrique, 6 cause d'un danger de risques possibles
de sdcuritddanscertainesconditions.
Cependant,sivous devez absolument utiliser un cordon rallonge _lectrique,il est absolument requisque vous utilisiez
un cordon rallonge trifilaire,avec mise (3la terre, certifi_ UL(auxEtats-Unis)ou ACNOR(auCanada),avec priseet fiche (3
trois conducteurs, et (3notation 61ectriquede 15 amp@es (minimum)et 120 volts.
MISE AU REBUT APPROPRII_E DE VOTRE ANCIEN RE_FRIGI_RATEUR
Un enfant risque de suffoquer ou d'y @tre emprisonn&
D6montez les portes du compartiment de r6frig6ration et du compartiment de cong61ation du
r6frig6rateur, avant mettre celui-ci au rebut. Le non-respect de cette recommandation peut entraTner
I'enfermement d'un enfant qui peut entraTner la mort ou des 16sions c6r6brales.
IMPORTANT: Lesenfants pris au pi@geou marts d'asphyxie sont
toujours d'actualit& Lesr6frig6rateursjet6s ou abandonn6s
restent dangereux m@mesivous ne leslaissezau rebut
quepour <<quelquesjours >>.Sivous voulezjeter votre
ancien r6frig6rateur,suivezles instructions suivantes pour
emp@cherlesaccidents.
Avant de jeter votre anden r6frig6mteur ou
cong61ateur:
D6montez lesportes du compartiment de r6frig6ration
et du compartiment de cong61ation.
Laissezles clayettes en place,pour 6viter quedesenfants
puissentfacilement grimper dans votre r6frig6rateur.
Fluides frigorig_nes
Lesappareils r6frig6rants contiennent des fluides
frigorig_nes qui conform6ment 5 la 16gislation f6d6rale
doivent _tre retir6s avant la mise au rebut de I'appareil.
Si vous mettez au rebut un ancien r6frig6rateur
contenant des fluides frigorig_nes, v6rifiez la proc6dure
suivre aupr_s de la compagnie responsable de
1'61imination.
s i
LISEZETSUIVEZSOIGNEUSEIENT CESMESURESDESECURITE
CONSERVEZCESINSTRUCTIONS

Temperoture Controls
Built-In Refrigerators
DISPLAY
MODE
°C[] I[] _F
FREEZER _ "_
Non-DispenserModels
REFRIGERATOR RESET
! FILTER
[]
HOLD 3 SEC
DOOR
ALARM
[]
DISPLAY
MODE
°c [] [] °F
FREEZER _ "_
Dispenser Hodels
Preset Settings:
Allow 2/4hours to reach these preset temperatures.
RESET
REFRIGERATOR FILTER
[]
HOLD 3 SEC
Temperature
controls
The temperature display shows the actual
temperature of the freezer and fresh food
compartments. The actual temperature will vary
from the set temperature based on factors such
as door opening, amount of food, defrost cycling
and room temperature.
NOTE:Frequent door openings or door left open
for periods of time may increase the internal
temperature of the freezer and fresh food
compartments temporarily.
To turn off the cooling system in both the
freezer and fresh food compartments, press
either (+)pad until both displays show OFF.
To turn the cooling system on, press either (-)
pad. The preset temperatures of 0°F and 37°F
will appear in the display.
To check the current temperature setting
for the fresh food or freezer compartment,
press the (+)or (-) pad once. After 5 seconds, the
display will return to the actual temperature.
To change the temperature settings, press the
(+)or (-) pads to desired temperature set point for
fresh food and freezer separately. Allow 2/4hours
for the refrigerator to reach the temperature you
have set.
Temperature Ranges
Low High
34OF 42OF
1oc 5oc
-6OF +4OF
-2!°C -!5°C
Fresh Food
Freezer
NOTE:Setting the controls to OFFstops cooling,
but does not shut off electrical power to the
refrigerator.
Changing
display
temperatures
from °F to °C
To change the temperature display between
Fahrenheit and Celsius, press Display Mode °C/°F. DISPLAY
MODE
°CI I°F
DOOr
alarm To turn the Door Alarm feature on, press
DOOR ALARM once. The ACTIVE light will come
on. To turn it off, press it again.
On models with a dispenser, the Door Alarm
feature is located on the dispenser panel on the
front of the freezer door.
When the DOORALARM is active, the alarm will
flash and beep if you keep the door open for
more than 2 minutes.
DOOR
ALARM
[]

Water Filter Cartridge
Built-In Refrigerators
water filter
cartridge Water filter cartridge
Thewater filter cartridge islocated behind the top
access panel.
When to replace the filter
On dispenser models, there is u replacement
indicator light for the water filter cartridge
on the dispenser. On non-dispenser models,
the replacement indicator is located on the
temperature control panel. This light will turn
orange to tell you that you need to replace the filter
soon.
The filter cartridge should be replaced when the
replacement indicator light turns red or if the flow
of water to the dispenser or ice maker decreases.
Removing the filter cartridge
Ifyou are replacing the cartridge, first remove the old
one by slowlyturning itto the left. Donot pull down on
the cartridge.A small amount of water may drip down.
NOTE:To reduce the risk associated with property
damage due to water leakage, read and follow
instructions before installation and use of this
system. Installation and use MUSTcomply with all
state and local plumbing codes.
Installing the filter cartridge
_li Fillthe replacement cartridge with water from the
tap to allow for better flow from the dispenser
immediately after installation.
L,noupthoorrowon
the cartridge and the
cartridge holder. Place
the top of the new
cartridge up inside the
holder. Do not push it up
into the holder.
H Slowly turn it to the right until the filter cartridge
stops. DO NOT OVERTIGHTEN.Asyou turn the
cartridge, it will automatically raise itself into
position. The cartridge will move about 1/2 turn.
I_ On dispenser models, run water from the
dispenser for 1-1/2 gallons (about :3minutes) to
clear the system and prevent sputtering.
[] Pressand hold the RESETWATERFILTERpad,
located on the dispenser or temperature control
panel depending on the model, for three seconds
to clear the red or amber light.
NOTE:A newly installed water filter cartridge may
cause water to spurt into the ice maker.
Filter bypass plug
You must use the filter bypass plug when a
replacement filter cartridge isnot available. The ice
maker will not operate without the filter or filter bypass
plug.
Filter B_
Plug
SmartWoter
Forthe maximum benefit of your filtration system, GErecommends the use of GE-branded filters only.
Using GE-branded filters in GE,Hotpoint® and Monogram refrigerators provides optimal performance
and reliability. GEfilters meet rigorous industry NSFstandards for safety and quality that are important for
products that are filtering your water. GEhas not qualified non-GE-branded filters for use in GEand Hot-
point refrigerators and there is no assurance that non-GE-branded filters meet GE'sstandards for quality,
performance and reliability.
If you heve questions, or to order edditionel filter certridges, visit our website et www.geweterfilters.
cam or cell GE Perts end Accessories, 800.626.2002.
Customers in Canada should consult the yellow pages for the nearest Camco Service Center.

Ice & Water Dispenser Ion some models)
Built-In Refrigerators
Dispenser
with
glass-touch
controls
How it Works
The electronic controls on the dispenser are truly
interactive. The control panel is equipped with u
proximity sensor that causes the panel to light
up as you approach the dispenser (approx. 2
inches).To make u selection, simply touch the
graphic for the feature you want, and the halo
for that feature will light up.When you walk
away from the refrigerator, the lighted graphics
switch off automatically.
Spill Shelf
How to Use ,:,:,:
Todispensewater or ice:selectWATER_, CUBED
ICE_/or CRUSHEDICED. Then press the glass
gently against the top of the dispenser cradle.
The spill shelf is not self-draining. To reduce
water spotting, the shelf and its grille should be
cleaned regularly.
If no water isdispensed when the refrigerator is
first installed, there may be air in the water line
system. Pressthe dispenser cradle for at least
two minutes to remove trapped air from the
water line and to fill the water system. Toflush
out impurities in the water line, throw away the
first gallon of water.
Never put fingers or any
other objects into the ice crusher discharge
opening.
Locking the Dispenser:
Touch CONTROL LOCK for
3 seconds to lock the dispenser
and control pad. To unlock, touch
it again for 3 seconds.
Dispenser Light:
This feature turns the light on and
off. The light also comes
on when the dispenser cradle is
pressed. If this light burns out,
contact factory service.
Door Alarm:
To turn the Door Alarm feature on, touch
DOORALARM once. To turn it off, press it again.
When the DOORALARM is active,
the alarm will flash and beep if you
keep the door open for more than
2 minutes.
10

Ice & Water Dispenser Ion some models)
Built-In Refrigerators
Ice storage
bin To remove:
Lift up the access door to reach the icemaker.
Set the icemaker power switch to the OFF
position. With the access door closed, support
the storage bin at the bottom while slightly
lifting. Pull bin straight out.
To replace:
Slide the bin back until the tab on the bin locks
into the slot on the shelf. If the bin does not go
all the way back, remove it and rotate the drive
mechanism 1/4 turn. Then push the bin back
again.
Rotate
Drive
Mechanism
Important
facts about
your ice
&water
dispenser
Donot add ice from trays or bags to the
storage bin. It may not crush or dispense well.
Avoid overfilling glass with ice and use of
narrow or extra-tall glasses. Backed-up ice
can jam the chute or cause the door in the
chute to freeze shut. If ice is blocking the
chute, push it through with a wooden spoon.
Beverages and foods should not be quick-
chilled in the ice storage bin. Cans, bottles or
food packages in the storage bin may cause
the icemaker or auger to jam.
To keep dispensed ice from missing the glass,
put the glass close to, but not touching, the
dispenser opening.
Some crushed ice may be dispensed even
though you selected CUBES.This happens
occasionally when a few cubes accidentally
get directed to the crusher.
After crushed ice is dispensed, some water
may drip from the chute as small particles of
ice melt.
Sometimes a mound of ice chips will form
on the door in the ice chute. This condition
is normal and usually occurs when you have
dispensed crushed ice repeatedly. The ice
chips will eventually evaporate.
Dispensed water is not ice cold. For colder
water, simply add crushed ice or cubes before
dispensing water.
The first glass of water dispensed may be
warmer than the following ones. This is
normal.
To eliminate drips on the spill shelf, tilt the
glass in slightly when dispensing water.
!1

Automatic Icemaker
Built-In Refrigerators
Automatic
icemaker Avoid contact with the moving
parts of the ejector mechanism, or with the heating
element (located on the bottom of the ice maker)
that releasesthe cubes. Donot place fingers or
hands on the automatic icemaking mechanism
while the refrigerator is plugged in.
Eviteztout contact avec les
pisces mobiles du mScanisme d'Sjection ou
I'SISmentchauffant (situsdans le basde la
machine (_gla¢ons)qui lib@eles cubes.Ne placez
pas lesdoigts ou les mains sur le mScanisme de
production de glace automatique Iorsque le
rSfrig@ateurest branchS dans la priseSlectrique.
A newly-installed refrigerator may take 12-24
hours to begin making ice.
The icemaker will produce seven cubes per
cycle-approximately 15 cycles in a 24-hour
period, depending on freezer compartment
temperature, room temperature, number of door
openings and other use conditions.
If the refrigerator is operated before the water
connection is made to the icemaker, set the
power switch to OFF.
Icemaker
Switch FeelerArm
When the refrigerator has been connected to the
water supply, set the power switch to ON.
Throw away the first full bucket of ice.
Besure nothing interferes with the sweep of the
feeler arm.
When the bin fills to the level of the feeler arm,
the icemaker will stop producing ice.
It is normal for several cubes to be joined
together.
If ice is not used frequently, old ice cubes will
become cloudy, taste stale and shrink.
NOTE:Icemaker works best between/40 and 120
PSIhome water pressure.
12

Climate Control Drawer
Built-In Refrigerators
C/imote
Contro/
drawer
How it Works
TheClimate Control feature isa system of
dumpers, a fan, a temperature thermistor, and a
heater. TheClimate Control drawer can be usedto
chill items quickly,thaw foods quicklyor store items
at their optimum temperatures.
Thedrawer is tightly sealedto prevent the drawer's
temperature from causing temperature fluctuations
in the rest of the refrigerator.
SELECT TEMP--Use this feature to store items
at their optimum temperatures. The CITRUS
setting will maintain a drawer temperature of
39-47% by cycling a small heater off and on us
needed. The PRODUCE setting will maintain the
drawer temperature at 31-38% by drawing in
additional cold air as needed. The HEAT setting
will maintain the drawer temperature at 27-37%
by drawing in additional cold air as needed.
EXPRESSCHILL--This feature can be used
to cool items in minutes, rather than hours.
Extra cool air is circulated throughout the
drawer. Once the cycle is complete, the drawer
will revert to the pre-set fresh food temperature.
EXPRESSTHAW--This feature thaws items
in hours rather than days. Food is gently
thawed in a cool environment by circulating
air throughout the drawer. Temperature is
maintained in the drawer by cycling a small
heater off and on as needed. Once the thaw
cycle is complete, the pan will automatically
adjust to a temperature of 27-37°F to store
the food at its optimum temperature.
NOTE:Byturning the controls on the Climate
Control drawer off, the drawer can be used as
a standard sealed produce pan.
CLIMATE CONTROL DRAWER
__-- ( ITF{US [] 15 MIN [] 0 LBS [] --
CONTROL SELECT EXPRESS EXPRESS
[] LOCK PRODUCE [] TEMP 3o MIN [] CHILL 15 BS [] THAW
How to Use
:1 Empty the drawer. Placethe items in
the drawer.
Select the Express Thaw,TM Express ChillTM
or Select Temp TM pad. The display will come
on. Pressthe pad until the light appears next
to the desired setting. Usethe chart on
the next page to determine the best setting.
, To stop a feature before it isfinished,
press that feature's pad until no options
are selected and the display is off.
. During Express ThawTM and Express Chill,TM
the display on the controls will count down
the time remaining in the cycle.
After the Express Thaw TM cycle is complete,
the drawer will reset to the NEAT setting
(27-37%) to help preserve thawed items
until they are used.
The displayed actual temperature of
the Climate Control drawer may vary slightly
from the SETtemperature based on usage
and operation environment.
NOTE:Forfood safety reasons, it is
recommended that foods be wrapped in
plastic wrap when using Express Thaw.TM
This will help contain meat juices and
improve thawing performance.
ExpressThawTM ExpressChillTM
13

Climate Control Drawer
Built-In Refrigerators
Climate
Control
chart
NOTE: Results may vary depending on packaging, starting temperature and other food traits.
CITRUS [] 15 MIN [] 0.5 LBS []
SELECT EXPRESS EXPRESS
PRODUCE [] TEMP 3O MIN [] CHILL 1.s LBS [] THAW
MEAT [] 45 MIN [] 3 LBS []
Citrus Settinq {39-47°F)
Oranges, Lemons,Limes,
Pineapple,Cantaloupe
Beans,Cucumbers,Tomatoes,
Peppers,Eggplant,Squash
Produce Settinq {31-38°F)
Strawberries, Raspberries,
Kiwifruit, Pears,Cherries,
Blackberries,Grapes,Plums,
Nectarines,Apples
Asparagus,Broccoli,Corn,
Mushrooms, Spinach,
Cauliflower, Kale,Green
Onions,Beets,Onions
Meat Settinq {27-37°F)
Raw Meat, Fish and Poultry
e
e
15 Minutes
i BeverageCan (12oz)
2 SmallJuice Boxes
(6-8 ozeach)
30 Minutes
, Wine (750 ml bottle)
, 2 to 6 BeverageCans
(12ozeach)
2 Plastic20 oz Bottles
of Beverage
/4to 6 Small Juice Boxes
(6-8 ozeach)
3 FoilJuice Packets
45 Minutes
, 2 Literof Beverage
, 1/2 Gallon of Juice
,Gelatin-1 package
0.5 Lbs.(4 hours}
,IndividuallyWrapped
FiletMignon (0.5Ib)
Hamburger Patties(0.5Ib)
1.5Lbs.(8 hours}
, Chicken Breasts(1.5Ibs)
, Ground Beef(1.5 Ibs)
,Steak(1.5 Ibs)
3.0 Lbs.(12 hours}
,Chicken Breasts(3.0Ibs)
Ground Beef(3.0Ibs)
,Steak (3.01bs)
Control
lock Control Lock
Press and hold this pad for :3seconds to lock
the settings for the Climate Control drawer.
To unlock, press and hold for another 3 seconds.
CONTROL
[] LOCK
14

Storage Pans and Climate Control Drawer
Built-In Refrigerators
Sealed
deli pan
Use the Sealed Dell Pan for the convenient
storage of lunch meats and cheese, hors
d'oeuvres, spreads and snacks. The pan and
shelf to which it is attached can be adjusted
to any height.
Excess water that may accumulate in the
bottom of the drawers should be emptied and
the drawers wiped dry.
Sealed
produce
pans
Thetop pan is designed to provide constant high
humidity levels.
Make sure the drawers are closed completely
to maintain the correct humidity level.
Excess water that may accumulate in the
bottom of the drawers should be emptied and
the drawers wiped dry.
Drawer
and pan
removal
To remove a drawer or pan:
1. Pullthe pan out to the stop position.
2. Lift the front of the pan up and out of
the wire holder.
3. Lift the back of the pan up and out.
To replace a pan:
1. Placethe back of the pan in the wire
holder, making sure the wire holder fits
into the grooves on the back of the pan.
.
3.
Lower the front of the pan into the wire holder.
Pressfirmly on the top of the pan to snap it
into the wire holder.
15

Drop Down Shelf and Lighted Drawer Cover
Built-In Refrigerators
Drop down
shelf The drop-down shelf gives you the use of
another full-size shelf when you need extra
storage. It conveniently folds back out of the way
when not in use, giving you room for storage of
larger items.
To use drop down shelf:
1. Pullforward and down to drop the shelf into
place.
2. Pullforward while lifting up to place the shelf out
of the way.
Lighted
vegetable
drawer
shelf
The lighted vegetable drawer shelf provides
lighting for the lower compartments. The lights
are recessed into the shelf to illuminate the
drawers below.
To remove shelf."
1. Remove the top drawer (seeDrawer and pan
removal section).
.
.
Pushdown gently on the back center of the
climate control drawer top surface to release
the bottom of the water tank cover. Pullout
and down to remove the water tank cover and
expose the wire harness.
Liftthe shelf and carefully pull forward to expose
the wires.
4. Unplugthe shelf and carefully remove itfrom
the refrigerator.
To replace shelf."
1. Carefully set the shelf onto the side rails, leaving
the plug exposed.
.
3.
4.
Plugthe shelf into the refrigerator.
Carefully slidethe shelf into place.
Insert the water tank cover top first so that
it goes up behind the gasket hanging down
from the vegetable drawer shelf. Gently push
the bottom of the water tank cover until the
bottom snaps into the the top of the Climate
Control Drawer cover.
E Replacethe drawer (seeDrawer and pan
removal section).
Water Tank
Cover
Water Tank Cover
Climate Control
Drawer Top
Surface
Lighted
Vegetable
Drawer Shelf
16

Shelves and Bins
Built-In Refrigerators
How to
rearrange
your shelves
Tempered glass shelves in the fresh food
compartment and wire shelves in the freezer
compartment are adjustable, enabling you to
make efficient shelf arrangements to fit your
family's food storage needs.
To remove shelves:
Tilt shelf up at front, then lift it up and out
of trucks on rear well of refrigerator.
I I
To replace shelves:
Select desired shelf height. With shelf front
raised slightly, engage top lugs in tracks at rear
of cabinet. Then lower front of shelf until it locks
into position.
Do not clean glass shelvesor
coverswith warm water when they are cold. Glass
shelves and covers may break if exposed to sudden
temperature changes or impact, such as bumping or
dropping. Tempered glass isdesigned to shatter into
many small pieces if it breaks.
nettoyez pas les clayettes ou les
couvercles en verre avec de I'eau ti@dequand ceux-ci
sont froids. Lesclayettes et couvercles en verre peuvent
secasser s'ils sont expos@s_ des changements soudains
de temp@ature ou sivous lescognez ou lesfaites
tomber. Leverre tremp@est conqu pour se briser en
petits morceaux en cas de casse.
Door bins All door bins, except for the deep gallon door bin,
are adjustable using one of 2 tabs on each end
of the bin. They can be moved up and down to
many different positions to meet your storage
needs. The deep gallon door bin can be removed
for cleaning.
To remove any bin:
Lift the bin up and slide it toward you.
Adj
Door Bin
17

Shelves and Bins
Built-In Refrigerators
Freezer
baskets Wire slide-out freezer baskets can be pulled out
for easy access to frozen foods.
To remove:
Pull basket out. Lift the front of the basket up
and then take it out.
Sabbath
Mode
Product Kit
(available at
extra cost)
The Sabbath Mode Product Kit was designed
for use on the Jewish Sabbath and Holidays.
The Sabbath Mode feature makes it possible for
observant Jews to refrigerate and freeze food
during the duration of the holiday.
The Sabbath Mode feature can be set to override
typical reactions to actions in your refrigerator.
While in the Sabbath Mode, your refrigerator will
still operate normally. However, the refrigerator
will not respond to your actions.
While in the Sabbath Mode, you may notice the
fun running when the door is opened; however,
this is not u result of your actions. Thefun will
operate at random times. The defrost heater
will continue to defrost the refrigerator and
freezer and will be activated on a timer. The
defrost heater will not defrost as a result of door
openings or any consumer actions.
ON/OFF--To activate, raise the top grille panel
and set the Sabbath Mode switch to the ON
position. A green LEDlight will be visible below
the Sabbath Mode Kit switch. The light will be
visible when the grille isclosed between the grille
door and compartment doors.
DISPLAYS,ALARMSend LIGHTS--The main
temperature control and Express Chill displays
will be deactivated; therefore they will not be lit,
sound a tone or operate when touched. Door
alarms and lights will be disabled.
ICEend WATERDISPENSER--Theproximity
sensor and dispenser touch sensor icons will
not operate. Ice or water cannot be retrieved
from the dispenser.
ICEMAKER--Theicemaker will continue to
operate. The icemaker can be disabled by
opening the freezer, opening the ice storage bin
door and setting the icemaker power switch to
the OFF position (seeAutomatic Icemaker). To
obtain ice, open the freezer door and remove the
cubed ice from the ice bin.
This Sabbath Mode Product Kitcan be purchased
from your local appliance dealer. TheZSAB1Kit is
designed for use with all Monogram Built-In Side-
by-Side Refrigerators manufactured after 2008.
To locate your nearest dealer, visit our web site
monogram.cam or call1.800.626.2000.In Canada,
call 1.800.561.3344. Order Kit# ZSAB1.
NOTE:The Sabbath Mode Product Kit must be
installed by a qualified service technician.
18

Care and Cleaning
Built-In Refrigerators
Cleaning
outside The dispenser spill shelf
and the area beneath
it should be cleaned
periodically with a mild
liquid dish detergent.
/f .......\ J-----_ \
0000000
0000000
OOO0000
Dispenser cradle--Before cleaning, lock the
dispenser by touching CONTROLLOCKfor
3 seconds to prevent activating the dispenser.
Clean with warm water and a mild liquid dish
detergent. Rinse thoroughly and wipe dry. Unlock
the dispenser by touching CONTROL LOCKfor 3
seconds.
Do not use chemical cleaners to clean
the dispenser or any part of the dispenser.
Door handles and trim-Clean with a cloth
dampened with soapy water. Dry with a soft
cloth.
Keep the outside clean. Wipe with a clean cloth
lightly dampened with mild liquid dish detergent.
Dry with a clean, soft cloth.
Do not wipe the refrigerator with a soiled dish
cloth or wet towel. These may leave a residue
that can damage the finish. Do not use scouring
pads, powdered cleaners, bleach or cleaners
containing bleach because these products can
scratch and damage the finish.
Stainless steel--Regularly clean and polish the
stainless steel door panels and handles (on some
models) with a commercially available stainless
steel cleaner such as Stainless Steel MagicTM to
preserve and protect the fine finish. Stainless
Steel Magic and the Monogram polishing cloth
are available through GE Parts and Accessories,
800.626.2002,or monogram.com. For Stainless
Steel Magic, order part number WX10X15. For
Monogram polishing cloth, order part number
WX72X10001.
Do not use appliance wax or polish on the
stainless steel.
Cleaning
inside To help prevent odors, leave
an open box of baking soda in
the unit.
Turn off power at the circuit
breaker or fuse box before
cleaning. If this is not practical,
wring excess moisture out of
sponge or cloth when cleaning around switches,
lights or controls.
Use warm water and baking soda solution-
about a tablespoon (15 ml) of baking soda to
a quart (1 liter) of water. This both cleans and
neutralizes odors. Thoroughly rinse and wipe dry.
Other parts of the refrigerator-including
door gaskets, meat and vegetable drawers, ice
storage bin and all plastic parts-can be cleaned
the same way. After cleaning the door gaskets,
apply a thin layer of petroleum jelly to the door
gaskets sealing surface on the hinge side.
This helps keep the gaskets from sticking and
bending out of shape.
Do not wash any plastic refrigerator parts
in the dishwasher.
Avoid cleaning cold glass shelves with hot
water because the extreme temperature
difference may cause them to break. Handle
glass shelves carefully. Rough handling of
tempered glass can cause it to shatter.
NOTE:Interior lights may get too hot and turn off
automatically if the refrigerator door is left open
too long. This is normal and they will turn back
on when they cool down.
19

Care and Cleaning
Built-In Refrigerators
Light bulb
replacement Halogen lights generate
intense heat. Be certain power is off and lamps
have sufficient time to cool before attempting
to replace.
Power to the lamps can be turned off at
the Master Light switch located behind
the grille panel at the top of the refrigerator.
There isa switch for the freezer and a switch
for the fresh food compartment.
Turning the temperature control to OFF
does NOT remove power to the light circuits.
Les ampoules halog@nesproduisent une chaleur
intense. Assurez-vous de bien couper le courant
et de laisser suffisamment de temps aux
ampoules pour leur permettre de se refroidir
avant d'essayer de les remplacer.
Vous pouvez couper le courant en utilisant
le commutateur de lumi@e principale situ6
derri@e le panneau grillag6 en haut du
r6frig@ateur. IIy a un commutateur pour le
compartiment cong61ateur et un commutateur
pour le compartiment r6frig@ateur.
Vous NE COUPEZPASI'alimentation 61ectrique
du r6frig@ateur des circuits de lumi@es en
mettant le bouton de contr61e de temp@ature
en position OFF (arr_t).
The refrigerator uses a halogen bulb:
The columns along the back wall
of the fresh food and freezer compartments
are lit up by lamps located behind the top pan
in the fresh food compartment and the bottom
basket in the freezer compartment.
These bulbs have a life expectancy of
about 2000 hours. However, if the bulbs
do need to be replaced, they can be
purchased at hardware, general retail
and home improvement stores or through
GEParts and Accessories, 800.626.2002.
Light
Columns
Bulbs
This is a SSwatt, 12 volt,
Type MRll bulb.
If ordering through
GEParts and Accessories,
order part WR02Xll183.
20
This manual suits for next models
11
Table of contents
Other GE Refrigerator manuals

GE
GE ETS18XBPFRBB and Operating instructions

GE
GE Monogram ZIRS360NNLH User manual

GE
GE TBXE18D Installation instructions

GE
GE GTJ18CBDSA Manual

GE
GE Profile ENERGY STAR PDS22MFW Manual

GE
GE Energy Star GDS18SBR User manual

GE
GE cafe Operating instructions

GE
GE PSHS6YGXSS - Profile 26' Dispenser... User manual

GE
GE Profile PCF25PGT Manual

GE
GE GNE26GSDSS Manual
