31-9281

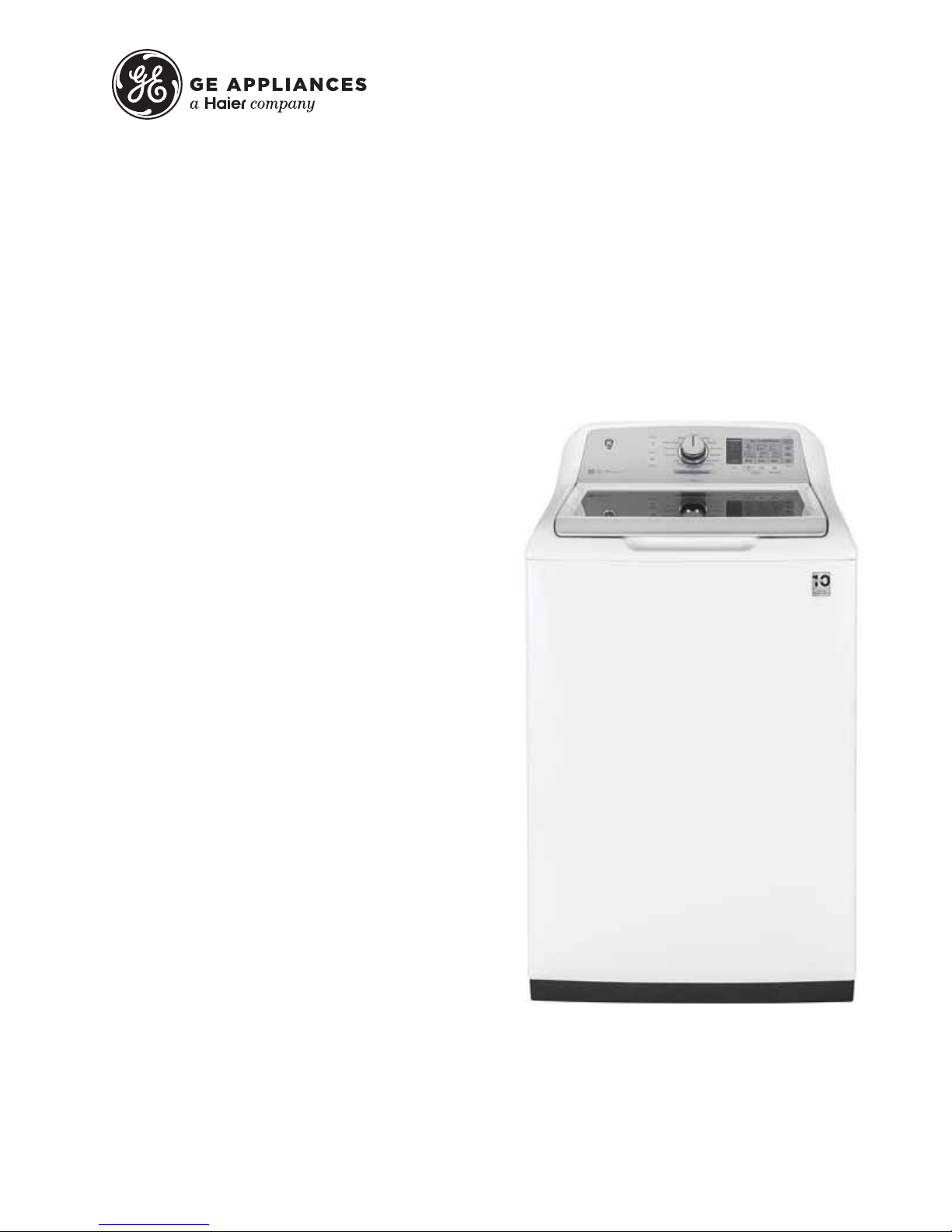

Technical Service Guide
GE 27 Inch Top Load Washer
January 2018
GTW750CPLDG
GTW750CSLWS

– 2 –
Safety Information
IMPORTANT SAFETY NOTICE
The information in this service guide is intended for use by
individuals possessing adequate backgrounds of electrical,
electronic, and mechanical experience. Any attempt to repair a
major appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible for the
interpretation of this information, nor can it assume any liability in
connection with its use.
WARNING
To avoid personal injury, disconnect power before servicing
this product. If electrical power is required for diagnosis or test
purposes, disconnect the power immediately after performing the
necessary checks.
RECONNECT ALL GROUNDING DEVICES
If grounding wires, screws, straps, clips, nuts, or washers used to
complete a path to ground are removed for service, they must be
returned to their original position and properly fastened.
GE Appliances, a Haier Company
Technical Service Guide
Copyright © 2018
All rights reserved. This service guide may not be
reproduced in whole or in part in any form without written
permission from GE Appliances, a Haier Company.

– 3 –
Table of Contents
Safety Information ........................................................................................................................2
Table of Contents..........................................................................................................................3
Safety Requirements ....................................................................................................................5
Nomenclature ...............................................................................................................................6
Introduction ...................................................................................................................................7
Control Features ...........................................................................................................................8
3URGXFW6SHFL¿FDWLRQV ..................................................................................................................18
Water Levels .........................................................................................................................18
Component Locator Views ...........................................................................................................19
Underside Top Cover 750 Model ..........................................................................................19

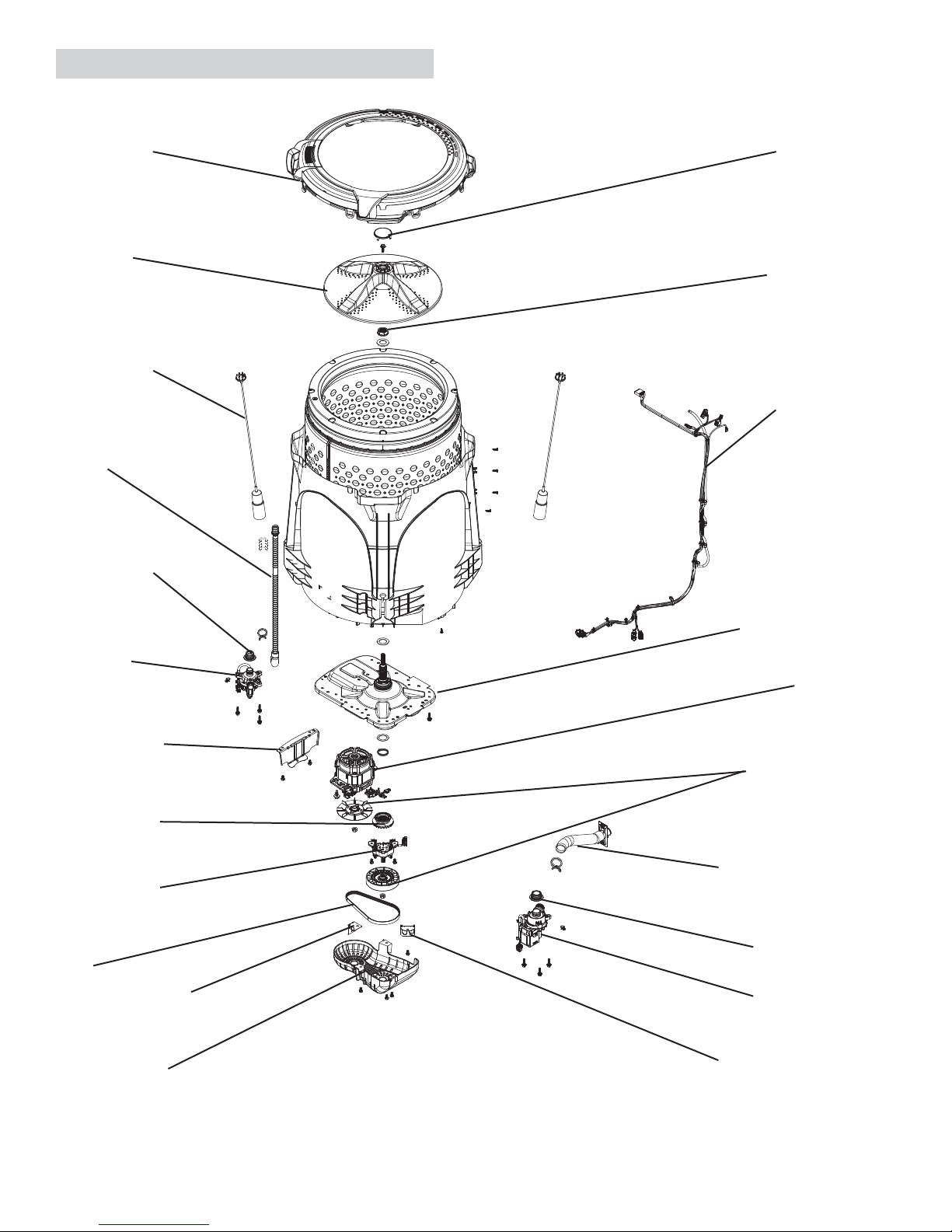

Tub Assembly 750 Model .....................................................................................................20
Backsplash Assembly Electronic 750 Model ........................................................................21
Control Board Electronic 750 Models ...................................................................................21
Bottom View .........................................................................................................................22
Diagnostics ...................................................................................................................................23
Consumer Error Mode (CEM) ...............................................................................................23
Field Service Mode ...............................................................................................................23
Service Mode Tests ..............................................................................................................24
Fault Codes ..........................................................................................................................27
Personality ID .......................................................................................................................34
Cabinet and Structure...................................................................................................................35
Backsplash ..........................................................................................................................35
Glass Lid Assembly ..............................................................................................................36
Metal Lid Assembly ..............................................................................................................36
Lid Latch ..............................................................................................................................36
Lid Switch/Lock Assembly ....................................................................................................37
Lid Hinge ..............................................................................................................................38
Impeller ................................................................................................................................38
Top Cover .............................................................................................................................39
Basket Assembly ..................................................................................................................39
(Continued next page)

– 4 –
Cabinet/Apron Assembly ......................................................................................................40
Leveling Legs .......................................................................................................................40
Fill System ....................................................................................................................................41
Water Valve ..........................................................................................................................41
Thermistor.............................................................................................................................42
Bleach/Bulk Tank Funnel .....................................................................................................42
Dispensers ............................................................................................................................43
Bulk Detergent Tank .............................................................................................................46
Aspirator ...............................................................................................................................47
Water Levels .........................................................................................................................48
Pressure Sensor ...................................................................................................................49
Wash System ...............................................................................................................................50
Recirculation Pump ..............................................................................................................50
Drain System ................................................................................................................................51
Drain Pump ...........................................................................................................................51
Drain Hose External .............................................................................................................52
Drain Hose Internal ...............................................................................................................52
Drive System ................................................................................................................................53
Drive Belt ..............................................................................................................................53
Drive/Transmission Pulleys ..................................................................................................53
Speed/Hall Sensor ................................................................................................................54
Drive Motor ...........................................................................................................................55
Mode Shifter .........................................................................................................................56
Platform/Transmission Assembly ..........................................................................................57
Main Harness Assembly .......................................................................................................58
Riser .....................................................................................................................................59
Schematics / Wiring Diagrams .....................................................................................................60
Index .............................................................................................................................................62
Table of Contents (continued)

– 5 –
GE Factory Service Employees are required to use safety glasses with side shields, safety gloves and
steel toe shoes for all repairs.
Prior to disassembly of the washer to access components, GE
Factory Service technicians are REQUIRED to follow the Lockout /
Tagout (LOTO) 6 Step Process:
Safety Requirements
Steel Toed Work Boot Electrically Rated Glove and
Dyneema® Cut Resistant
Glove Keeper
Dyneema®Cut Resistant
Glove
Plano Type Safety Glasses
Prescription Safety Glasses
Safety Glasses must be ANSI
Z87.1-2003 compliant
Brazing Glasses
Cut Resistant Sleeve(s)
Step 1
Plan and Prepare
Step 4
Apply LOTO device and lock
Step 2
Shut down the appliance
Step 5
Control (discharge) stored
energy
Step 3
Isolate the appliance
Step 6
“Try It” verify that the appliance
is
locked out

– 6 –
Series 1: 1 - 9
Series 2: 1 - 9
4 = 24" Unitized
7 = 27" Unitized
Series 3: 1 - 9 Washer Only
Platform
W: Washer
D: Vented Dryer - Std
V: Vented Dryer - Long
C: Condenser Dryer
H: Heat Pump
Z: Flat Back Dryer - Long
X: Flat Back Dryer - Std
&RQ¿JXUDWLRQ
F: Front Load
T: Top Load - Rear Control
N: Top Load - Front Control
U: Unitized

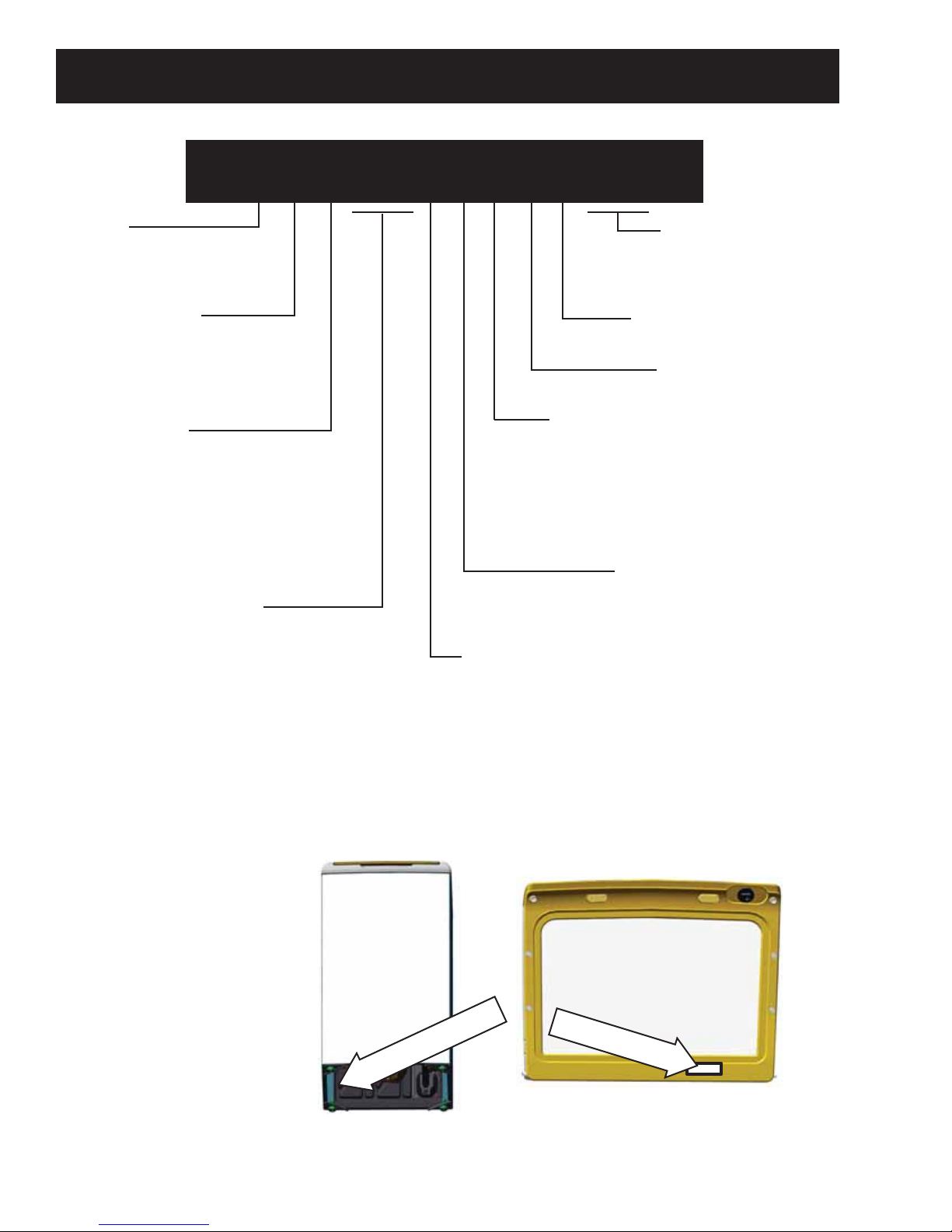

Nomenclature
The model tag is located at the right bottom edge of the lid.
The mini manual is in a storage bag on the inside bottom left of the cabinet.
Mini (Maxi) Manual
Model Number
Brand
G: GE
H: Hot Point
M0RႇDWW
Partner Type:
P: Premium Cost (color)
H: Home Depot
L: Lowes
S: Standard
C: Contract (Hoses)
M: Mabe
(QJLQHHULQJ'LJLW
0 - 99
0RGHO<HDU
L: 2018
Color
WS: White with Silver
WW: White with White
DG: Diamond Grey
Product Type:
R: Riser
A: 2" Cover Top Load
B: 4" Cover Top Load
C: 4" Cover with Rise
S: Standard/Stationary
P: Portable
Fuel Type Dryer
E: Electric
G: Gas
P: Propane
The nomenclature breaks down and explains what the letters and numbers mean in the model number.
Serial Number
7KH¿UVWWZRFKDUDFWHUVRIWKHVHULDOQXPEHULGHQWLI\WKHPRQWKDQG\HDURIPDQXIDFWXUH
Example: LA123456S = June, 2013. The letter designating the year repeats every 12 years.
A – JAN
D – FEB
F – MAR
G – APR
H – MAY
L – JUN
M – JUL
R – AUG
S – SEP
T – OCT
V – NOV
Z – DEC
2024 – Z
2023 – V
2022 – T
2021 – S
2020 – R
2019 – M
2018 – L
2017 – H
2016 – G
2015 – F
2014 – D
2013 – A
G T W 7 5 0 C S L 0 W S
Model ID Tag

– 7 –
GE Appliances Top Load Washer Features
The GE Appliances 27 Inch Top Load Washer includes many requested features. With so many sought
after features, this product delivers on washability that the consumer has been looking for.
Features include:
 'HHS)LOO Option to add more water for larger loads.
 'HHS5LQVH Removes any leftover soap residue.
 :DUP5LQVHOption to select between a warm or cold rinse.
 $XWR6RDN Loosens stains by soaking up to 2 hours.
 6SHHG:DVKProvides a quick wash for lightly soiled items that are needed in a hurry.
 :L)L&RQQHFWControl and monitor laundry from anywhere with a smart device or Amazon
Alexa.
 :DWHU6WDWLRQPre-wash clothes easily with a faucet inside the washer that dispenses water and
detergent.
 6PDUW'LVSHQVH7HFKQRORJ\Holds up to 75 oz. of detergent and automatically dispenses the
right amount for each load.
 6DQLWL]HZLWK2[L Removes 99.9% of bacteria with a dedicated cycle that uses an Oxi additive to
boost detergent cleaning power, while keeping fabrics looking their best.
 6RIW&ORVH*ODVV/LGEngineered to close gently every time.
Introduction

– 8 –
Throughout this manual, features and appearance may vary by model.

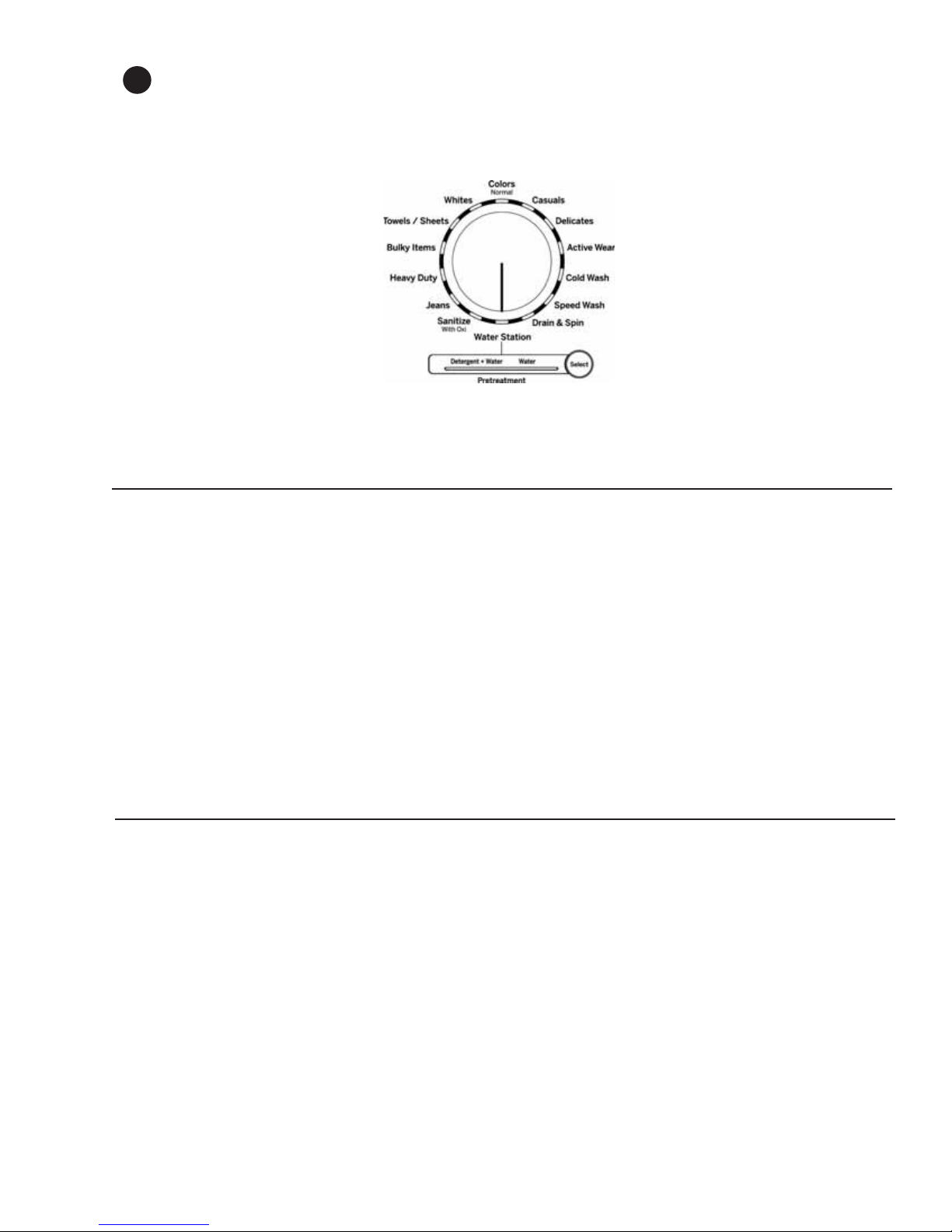

Control Features
(Continued next page)
APower
Press Power to wake up the display. If the display is active, press Power to put the washer into
idle mode.
NOTE: Pressing Power does not disconnect the appliance from the power supply.
BStart/Pause
Press Start to begin the cycle.
NOTE: Unless the Bulky Items cycle is selected, the lid must be closed for the washer to start a
cycle.
If the lid is open, “LId” will scroll across the display. During the load sensing portion of the cycle,
the lid will lock and “SEnSing” will scroll across the display. When load sensing is complete, the
lid will unlock. Pressing Pause will unlock the lid (if locked at that time), pause the cycle and
the Start indicator light will blink. To continue the cycle, press Start again. If water remains in
the machine, select the Drain & Spin cycle to drain the basket and spin water out of the washer
basket.
NOTE: The machine will automatically cancel and drain when water is present and the lid is left
open for 15 minutes or the unit is left in a paused state for 24 hours with the lid closed. Select
Cycle and press Start to begin new cycle.
Pressing Pause will unlock the lid (if locked at that time), pause the cycle and the Start indicator
light will blink.
To continue the cycle, press Start again. If the machine is paused more than 24 hours, the cycle
will be cancelled. If water remains in the machine, select the Drain & Spin cycle to drain the
basket and spin water out of the washer basket.
GTW750 Models

– 9 –
C'LVSOD\DQG6WDWXV/LJKWV
Display: The display shows the approximate time remaining until the end of the cycle.
NOTE7KHF\FOHWLPHLVDႇHFWHGE\KRZORQJLWWDNHVWKHZDVKHUWR¿OO7KLVGHSHQGVRQWKH
ZDWHUSUHVVXUHLQWKHKRPH7KHVL]HRIWKHORDGEHLQJZDVKHGDOVRVLJQL¿FDQWO\LPSDFWVF\FOH
time, with larger loads taking longer.
In addition, this display will, “scroll” the washer status:
 E$/$Q&,1J Start of rebalancing cycle to redistribute clothes. Stops after rebalancing is
complete.
 dELAY When Delay Wash is initiated. Replaced with estimated time when cycle
starts.
 End End of current cycle.
 FILL )RUWKH¿UVWVHFRQGVRID¿OOWKHHVWLPDWHGHQGRIF\FOHWLPHLVGLVSOD\HG
)RUWKHUHVWRIWKH¿OOWLPH³),//´LVVFUROOHGXQWLOWKH¿OOFRPSOHWHV
 H2O
SUPPLY
&DQQRWVHQVHZDWHUOHYHOYDOYHVSRVVLEO\WXUQHGRႇ
 LId Cycle stopped because lid is open. Close the lid.
 6(Q6,QJ 6HQVLQJORDGVL]HDQGW\SHEHIRUHDQGGXULQJ¿OOQRUPDO
 PAUSE Cycle paused because the Start/Pause button was pressed and the washer
was set to Pause. Press the Start button again to restart the cycle.
&\FOHVWDWXVOLJKWV: Shows whether the washer is in the Delay, Fill, Soak, Wash, Rinse or Spin
portion of the cycle.
If an out-of-balance condition is detected by the washer, the Spin light will blink during the
remaining portion of the cycle and will stay illuminated for a short time after cycle completion.
When this occurs, the washer is taking actions to correct the out-of-balance condition and
complete the cycle normally. In some cases, the washer may not be able to balance the load
and spin up to full speed. If the load is more wet than normal at the end of the cycle, redistribute
the load evenly in the wash basket and run a Drain & Spin cycle.
)HDWXUHVWDWXVOLJKWVLQGLFDWH (see sections F and G for more details):
Pause Will display when the washer is paused between cycles.
Controls The washer is locked; will blink once if any button is pressed or the cycle
knob is rotated.
Lid Lock The lid is locked.
WiFi (on
some
models)
Will display when connected via Wi-Fi. Will blink when attempting to
connect to device or to the home Wi-Fi.
Spin Stop Indicates wash basket is coasting to a stop following spin. Lid will not un-
lock until the basket has come to a full stop.
(Continued Next Page)

– 10 –
Items to Wash Cycle Wash
Temp Soil Level Spin Selection Options Available Cycle Details
Cycle for
normal, regular,
or typical use
for washing up
to a full load of
normally soiled
cotton clothing.
Colors Hot
Warm
Colors
Cool
Cold
Tap Cold
Ex. Heavy
Heavy
Normal
Light
Max
More
Normal
No Spin
Stain Removal
Guide
Warm Rinse
Auto Soak
Deep Rinse
Delay Wash
Extra Rinse
Cycle for normal, regular or typical
use for washing up to a full load
of normally soiled cotton clothing.
Choose the Heavy or Extra Heavy
soil level selection and Warm or
Hot water temperature selection
as appropriate for the clothes load
for a higher degree of cleaning.
,QFRUSRUDWHVPXOWLVWDJH¿OOVDQG
wash periods to provide optimal
fabric care.
Casual clothes,
lightly soiled
RႈFHZHDU
Casuals Hot
Warm
Colors
Cool
Cold
Tap Cold
Ex. Heavy
Heavy
Normal
Light
Max
More
Normal
No Spin
Stain Removal
Guide
Deep Fill
Warm Rinse
Auto Soak
Deep Rinse
Delay Wash
Extra Rinse
Wash cycle tailored to care for
FDVXDOFORWKHVDQGRႈFHZHDU
items.
Lingerie and
special care
fabrics with
light soil.
Water-resistant,
bedding and
bulky items,
such as large
coats, mattress
pads, and bath
mats.
Delicates Hot
Warm
Colors
Cool
Cold
Tap Cold
Ex. Heavy
Heavy
Normal
Light
Max
More
Normal
No Spin
Stain Removal
Guide
Deep Fill
Warm Rinse
Auto Soak
Deep Rinse
Delay Wash
Extra Rinse
Utilizes a unique "tri-pulse" extra
JHQWOHDJLWDWHSUR¿OHWRSURYLGH
special care to delicate fabrics. It
is recommended to place small or
ultra-delicate items in mesh bags
before washing.
Medium to
lightly soiled
athletic
wear items
of technical
or synthetic
fabrics.
Active-
wear
Hot
Warm
Colors
Cool
Cold
Tap Cold
Ex. Heavy
Heavy
Normal
Light
Max
More
Normal
No Spin
Stain Removal
Guide
Deep Fill
Warm Rinse
Auto Soak
Deep Rinse
Delay Wash
Extra Rinse
Cycle designed for care of
medium to lightly soiled active
wear, athletic wear, and technical
fabrics. Incorporates a dual
stage wash period with soak to
HႇHFWLYHO\WUHDWERG\VRLOVDQG
odors. Use the Heavy Duty cycle
for heavily soiled sports clothing
constructed of sturdy fabric.
Dark colored
cottons, linens,
and mixed
loads.
Cold
Wash
Hot
Warm
Colors
Cool
Cold
Tap
Cold
Ex. Heavy
Heavy
Normal
Light
Max
More
Normal
No Spin
Stain Removal
Guide
Deep Fill
Auto Soak
Deep Rinse
Delay Wash
Extra Rinse
Cycle combines multiple wash
agitation periods with soak
periods to provide enhanced
cleaning performance and energy
HႈFLHQF\ZLWKFROGHUZDWHU
temperatures.
DWash Cycles-Cycle Selector Knob
The wash cycle controls the type of washing process. The cycle selector knob can be turned
in either direction. Turning the knob after starting a cycle will stop the washer and change the
cycle options to the new selection. Press Start to begin the new cycle selection.
The chart below will help match the items to be washed with the best wash cycle settings. For
optimal performance, select the cycle that most closely matches the items being washed.
Selections and options shown in bold are default settings for that cycle.
Some cycles and options may not be available on some models.

– 11 – (Continued next page)
Items to Wash Cycle Wash
Temp Soil Level Spin Selection Options Available Cycle Details
Small loads of
lightly soiled
items that are
needed in a
hurry. Examples
include one
casual wear
RXW¿WRU
three soccer
uniforms.
Speed
Wash
Hot
Warm
Colors
Cool
Cold
Tap Cold
Ex. Heavy
Heavy
Normal
Light
Max
More
Normal
No Spin
Stain Removal
Guide
Deep Fill
Warm Rinse
Auto Soak
Deep Rinse
Delay Wash
Extra Rinse
Utilizes more intense agitation
SUR¿OHH[SHGLWHGZDVKSHULRG
and time saving continuous spray
rinse to clean small lightly soiled
loads in the fastest time possible.
Wet load of
items. For items
that need only
to be rinsed,
use this cycle
with the Deep
Rinse option.
Drain &
Spin
Max
More
Normal
No Spin
Deep Rinse
Extra Rinse
Utilizes a high speed spin to
extract water from wet items. For
items that need to be rinsed,
select the Deep Rinse option
ZKHQXVLQJWKLVF\FOH
Cleaning
the basket
of residue
and odor. No
clothes to be
washed using
this cycle.
Basket
Clean
Hot ([
Heavy
Normal Deep Fill
Deep Rinse
Recommended use of at least
once per month. Never load
laundry when using this cycle,
laundry may become damaged or
contaminated. Cycle incorporates
a hot deep wash, intense
agitation action, a dispenser
purge (on some models), and a
deep rinse.
Heavily soiled
colorfast items.
Sanitize
with Oxi*
Hot ([
Heavy
Max
More
Warm Rinse
Auto Soak
Deep Rinse
Delay Wash
Extra Rinse
Cycle uses an initial lower water
¿OOIRUVXSHUFRQFHQWUDWHG
high temperature sanitization
followed by a heavy wash
step. A pump purge and deep
rinse is incorporated to remove
contaminants. See additional
GHWDLOVDQGFHUWL¿FDWLRQVLQWKH
Sanitize With Oxi section. Smart
Dispense not available on this
cycle.
Jeans with
medium to light
soil. For heavily
soiled work
jeans, use the
Heavy Duty
Cycle.
Jeans Hot
Warm
Colors
Cool
Cold
Tap Cold
Ex. Heavy
Heavy
Normal
Light
Max
More
Normal
No Spin
Stain Removal
Guide
Deep Fill
Warm Rinse
Auto Soak
Deep Rinse
Delay Wash
Extra Rinse
Combines higher water levels
a, specially designed agitation
SUR¿OHDQGPXOWLVWHSZDVKDQG
soak periods to care for jeans
with medium to light soil. Use
the Heavy Duty cycle for heavily
soiled work jeans.
Sturdy fabrics
with heavy to
medium soil.
Heavy
Duty
Hot
Warm
Colors
Cool
Cold
Tap Cold
Ex. Heavy
Heavy
Normal
Light
Max
More
Normal
No Spin
Stain Removal
Guide
Deep Fill
Warm Rinse
Auto Soak
Deep Rinse
Delay Wash
Extra Rinse
Incorporates multi-step wash
and soak periods combined
with extended wash periods
WRHႇHFWLYHO\FOHDQKHDYLO\WR
medium soiled sturdy fabrics.
DWash Cycles-Cycle Selector Knob - Continued

– 12 –
Sanitize with Oxi
The Sanitize with Oxi cycle, when using an Oxi additive along with the detergent, is designed to
remove 99.9% of bacteria found in home laundry. Measure the detergent and the Oxi products
carefully. Using the amounts appropriate for a large heavily soiled load, follow the detergent and the Oxi
product label instructions. The detergent should be added using the dispenser instructions as shown
on page 9 of the Use and Care book. Place the Oxi product directly in the bottom of the wash basket,
before adding the clothes. The washer hot water supply connection must provide a minimum of 120°F
WRHQVXUHWKHHႇHFWLYHQHVVRIWKLVF\FOH
NOTE: The default Sanitize With Oxi cycle water temperature can NOT be changed.
The Sanitize With OxiF\FOHLVFHUWL¿HGE\16),QWHUQDWLRQDODQLQGHSHQGHQWWKLUGSDUW\WHVWLQJDQG
FHUWL¿FDWLRQRUJDQL]DWLRQ7KHFHUWL¿FDWLRQYHUL¿HGWKDWWKHF\FOHUHGXFHGRIEDFWHULDW\SLFDOO\
IRXQGLQUHVLGHQWLDOODXQGU\DQGWKDWQRVLJQL¿FDQWFRQWDPLQDWLRQLVWUDQVIHUUHGWRVXEVHTXHQWZDVKHU
loads. Only the Sanitize With Oxi cycle has been designed to meet the requirements of NSF Protocol
3IRUVDQLWL]LQJHႇHFWLYHQHVV
DWash Cycles-Cycle Selector Knob - Continued
NSF Protocol P172
Sanitization Performance of Residential and
Commercial, Family-Sized Clothes Washers
(Continued next page)
CAUTION: Failure to follow these instructions may result in injury or property damage. For Waterproof,
Water-Resistant, or Bulky Items:
 Only use the Bulky Items (or Delicates) cycle. NOTE: Some models only have a Delicates cycle.
 Using other cycles can cause excessive vibration and may result in injury or damage to the
ZDVKHUZDOOVRUÀRRU
 Do not mix waterproof and non-waterproof items.
 Read the Use and Care book or Owner’s Manual for wash cycle details.
Items to Wash Cycle Wash
Temp Soil Level Spin Selection Options Available Cycle Details
Water-resistant,
bedding and
bulky items,
such as large
coats, mattress
pads, and bath
mats
Bulky
Items
Hot
Warm
Colors
Cool
Cold
Tap Cold
Ex. Heavy
Heavy
Normal
Light
Max
More
Normal
No Spin
Stain Removal
Guide
Deep Fill
Warm Rinse
Auto Soak
Deep Rinse
Delay Wash
Extra Rinse
Provides a Deep Fill/Max Fill
wash water level to wash bulky
and waterproof items. Also
incorporates a Deep Fill rinse to
HႇHFWLYHO\ULQVHEXON\LWHPVDQG
a low spin speed appropriate for
these items. Only use this cycle
IRUZDWHUUHVLVWDQWEHGGLQJRU
EXON\LWHPV
Towels
Sheets
Towels /
Sheets
Hot
Warm
Colors
Cool
Cold
Tap Cold
Ex. Heavy
Heavy
Normal
Light
Max
More
Normal
No Spin
Stain Removal
Guide
Deep Fill
Warm Rinse
Auto Soak
Deep Rinse
Delay Wash
Extra Rinse
Cycle designed washing towels
or sheets, using a higher water
level and a soak period to
HႇHFWLYHO\FOHDQWKHVHLWHPV,W
is recommended that towels and
sheets be washed separately
for best care and washing
performance. For waterproof bed
covers use the Bulky Items cycle.
Whites and
household
linens
Whites Hot
Warm
Colors
Cool
Cold
Tap Cold
Ex. Heavy
Heavy
Normal
Light
Max
More
Normal
No Spin
Stain Removal
Guide
Deep Fill
Warm Rinse
Auto Soak
Deep Rinse
Delay Wash
Extra Rinse
Cycle tailored to clean and
brighten whites.

– 13 – (Continued next page)
E3UHWUHDWLQJRU6RDNLQJ8VLQJWater Station (on some models)
This feature is for the pretreating
of garments only and not intended
to serve as an actual wash cycle.
When selected, the washer will
supply either fresh water or wa-
ter mixed with detergent from the
SmartDispense system for gar-
ment hand pre-washing or pre-
treating use.
The pretreating water will be
dispensed from the area located
in the back of the main opening of
the washer. When selected, any
water dispensed into the wash tub
during the pretreat will be drained
from the machine before any sub-
sequently selected wash cycle can
begin.
:DWHU6WDWLRQ2QO\6HOHFWWKLVIHDWXUH
1. Rotate the cycle selection knob to Water Sta-
tion.
2. Push the Select button until the LED below
Water is illuminated.
3. Select the desired water temperature using
the Temp button.
4. Press the Start button to initiate the feature. If
the lid is not already open, raise the lid of the
ZDVKHUWRVWDUWWKHÀRZRIIUHVKZDWHUIURP
the dispensing area. Water will continue to be
dispensed until the lid is closed or the water
level in the tub reaches the maximum level.
If the lid is closed before the maximum level in
the tub is reached, additional water can be dis-
pensed by opening the lid again. Once the lid
is closed, water dispensed using the water on
demand feature will remain in the tub until the
cycle selection knob is rotated to an actual wash
cycle, or the Start button is held in for 3 seconds,
at which point the water in the tub will be drained
out of the machine.
If the lid is not closed, the water in the tub will
automatically be drained after 15 minutes. With
the lid closed, if the cycle selection knob is not ro-
tated to an actual wash cycle, or the Start button
is not held in for 3 seconds, the water in the tub
will automatically be drained after 24 hours.
:DWHU6WDWLRQZLWK'HWHUJHQW6HOHFWWKLVIHD-
ture:
1. Rotating the cycle selection knob to the Water
Station.
2. Push the Select button until the LED below
Detergent + Water is illuminated.
3. Select the desired water temperature using
the Temp button.
4. Press the Start button to initiate the detergent
feature. If the lid is not already open, raise
WKHOLGRIWKHZDVKHUWRVWDUWWKHÀRZRIVRDS\
water from the dispensing area. Soapy water
will continue to be dispensed until the lid is
closed or the water level in the tub reaches
the maximum level.
Alternatively, use this feature to
soak garments in the pretreated
water for up to 24 hours with the lid
closed and the cycle knob remain-
ing on Water Station.
In order to use this feature to soak,
keep the dial on Water Station and
close the lid. Soak can be left for up
to 24 hours before the water in the
tub will be automatically drained.
Rotating the dial, holding the Start
button for 3 seconds or leaving the
lid open for more than 15 minutes
will all automatically drain the water
from the tub.
If the lid is closed before the maximum level in the
tub is reached, additional soapy water can be dis-
pensed by simply opening the lid again. Once the
lid is closed, soapy water dispensed will remain in
the tub until the cycle selection knob is rotated to
an actual wash cycle, or the Start button is held in
for 3 seconds, at which point the soapy water in
the tub will be drained out of the machine.
If the lid is not closed, the soapy water in the tub
will automatically be drained after 15 minutes.
With the lid closed, if the cycle selection knob is
not rotated to an actual wash cycle, or the Start
button is not held in for 3 seconds, the soapy
water in the tub will automatically be drained after
24 hours.

– 14 – (Continued next page)
6HWWLQJV
Individual settings for agitation (Soil), water temperature (Temp), and spin (Spin) can be set
from the minimum (lowest in column) to maximum (highest in column). In general, the higher
up the column, the more washer energy will be used.
127( Longer spin times typically reduce dryer time/energy usage (i.e.: reduces total
energy when using both a washer and a dryer).
Cycle Options
Deep Fill
Select the Deep Fill feature for loads where extra water is needed. The Deep Fill feature is
recommended for special caseloads only, not for typical use.
Press the Deep Fill button once before starting the cycle to add an incremental amount of
water to the wash load. Holding the Deep Fill button for 3 seconds will provide the deepest
¿OOOHYHOSRVVLEOHWKLVZLOOLQFUHDVHF\FOHWLPHGXHWRWKHDGGLWLRQDOWLPHLWWDNHVWR¿OOWKH
washer.
To cancel the option if desired, press the Deep Fill button again.
127( The 'HHS)LOOEXWWRQFDQDOVREHSUHVVHGDIWHUWKHZDVKHUKDVFRPSOHWHG¿OOLQJDQG
LVLQWKHZDVKSKDVHLIDGGLWLRQDOZDWHULVGHVLUHG7RVWRSWKHH[WUD¿OOSUHVVWKHDeep Fill
button again and the water will stop.
Warm Rinse
3URYLGHVDZDUPULQVHWRWKHZDVKORDG1RWHWKDWULQVLQJRSHUDWLRQVPD\EHGLႇHUHQWZLWK
WKLVRSHUDWLRQVHOHFWHGLQRUGHUWRHႇHFWLYHO\DSSO\WKHZDUPULQVHZDWHUWRWKHORDG
Auto Soak
7KLVRSWLRQEHJLQVZLWKDEULHIDJLWDWLRQVRDNVIRUDVSHFL¿HGSHULRGRIWLPHWKHQPRYHV
through the rest of the cycle automatically. Repeated pressing of the Soak button will scroll
through 15 minute, 30 minute, 1 hour and 2 hour selections and then return back to 0 soak
minutes.
Deep Rinse
Set this option to provide a deep rinse or when using fabric softener. It may change other
settings (e.g.: Spin may go to a higher setting) to maximize performance.
Delay Wash
When the Delay Wash button is repeatedly pressed, the delay time is set from 1 (01H) to
9 (09H) hours and back to clear (00H) hours. Press and hold the Delay Wash button for 3
seconds to immediately reset.
Extra Rinse
When using extra detergent or bleach to clean heavily soiled clothes, use the Extra Rinse
option to better remove additional residues. NOTE: This option is not allowed for some
cycles.
G
H

– 15 –
I
Additional Options
0\&\FOH6HWWLQJV
As the cycle selector knob is turned, the Temp, Soil and Spin settings change to automatic
SUHVHWGHIDXOWVHWWLQJVIRUHDFKF\FOH,IWKHXVHUGHVLUHVGLႇHUHQWGHIDXOWVHWWLQJVVHOHFWWKH
desired options or changes to the cycle settings, then press and hold the My Cycle button
for 3 seconds to store them. The My Cycle button will light when active. In the future, when
the user turns the selector knob to that cycle, the settings will be automatically recalled. To
restore the factory defaults temporarily (i.e.: for this load), press the My Cycle button for 1/2
DVHFRQG7KH0\&\FOHOLJKWZLOOWXUQRႇDQGWKHIDFWRU\GHIDXOWVZLOOORDG+RZHYHUWKHQH[W
time the user selects this cycle, My Cycle settings will load. If the user wishes to permanently
restore the factory default settings for the cycle; when the My Cycle is active (button light
on) press and hold the My Cycle button for 3 seconds. The factory defaults will load for the
VHOHFWHGF\FOHDQGWKH0\&\FOHOLJKWZLOOWXUQRႇ7KHGHIDXOWVHWWLQJVZLOOORDGZKHQWKLV
F\FOHLVVHOHFWHGLQWKHIXWXUHDQGWKH0\&\FOHOLJKWZLOOUHPDLQRႇNOTE: My Cycle saves
the following options: Temp, Soil, Spin, Extra Rinse, Deep Fill, Warm Rinse, Auto Soak and
Deep Rinse.
Control Lock
Use the control lock before or during a cycle to prevent any selections from being made.
To lock/unlock the washer controls, press and hold the Warm Rinse and Auto Soak buttons
for 3 seconds. The control lock icon will light up when it is on. NOTE: The Power button can
still be used when the machine is locked.
(Continued next page)

– 16 –
J
SmartDispense™ (GTW750 model only)
When selected, this feature will automatically add detergent to the wash, eliminating the need to
add detergent for each load. The tank will hold approximately 75 ounces of liquid detergent. This
LVHQRXJKIRUDERXWDYHUDJHODXQGU\ORDGVZKHQ¿OOHGWRWKHPD[LPXPOHYHO
7KHGHWHUJHQWDPRXQWVHOHFWLRQRQWKHFRQWUROSDQHOZLOOGHIDXOWWR$872ZKHQ¿UVWSRZHULQJXS
the washing machine. When AUTO is selected, the amount of detergent needed for each laundry
load will automatically be determined based on the size of the load the machine senses.
If it is desired to manually select the amount of detergent for a given load, this can be done by
pressing the Detergent Dispense button on the control panel to select detergent for a Small, Nor-
mal or Large load. Small will provide less detergent than average, Normal will provide an aver-
age amount of detergent and Large will provide more detergent than average.
7KHVPDUWGLVSHQVHIHDWXUHFDQEHGLVDEOHGE\SUHVVLQJWKH'HWHUJHQW'LVSHQVHEXWWRQXQWLO2ႇ
is selected.
NOTE: Not all cycles will allow the use of the SmartDispense feature. If the light is illuminated
EHORZWKH2ႇSRVLWLRQDQGSUHVVLQJWKH'HWHUJHQW'LVSHQVHEXWWRQUHVXOWVLQDEHHSLQJWRQH
then SmartDispense is not allowed for the cycle that has been selected. Detergent will need to
be added directly to the wash basket for these cycles.
This model does not have a dispenser drawer for detergent since it has a bulk detergent dispens-
ing system.
127( If it is desired to manually add detergent for a load, that detergent will need to be added
directly to the basket, and the smart dispense set to OFF for that particular load.
127( The right side of the dispensing area in the rear of the washer opening does NOT pull
RXW,WLVDVSRXWRQO\IRUZDWHUDQGGHWHUJHQWWRÀRZIURPWKHVPDUWGLVSHQVHV\VWHP
127(,ILWLVGHVLUHGWRFKDQJHGHWHUJHQWW\SHLQWKHGHWHUJHQWWDQNLWLVQRWUHTXLUHGWRÀXVKWKH
VPDUWGLVSHQVHV\VWHP7KHQHZGHWHUJHQWW\SHFDQEHDGGHGWRDSDUWLDOO\¿OOHGWDQNKRZHYHU
it will not be immediately dispensed until the original detergent is completely dispensed from the
system.
127(In the event that excessive chlorine bleach is accidentally spilled or otherwise gets into
the detergent tank, please follow the Detergent Tank Clean-Out instructions in the Care and
Cleaning section in order to minimize the possibility for clothing damage. If only a few drops of
EOHDFKDUHVSLOOHGLQWRWKHGHWHUJHQWWDQNWKHUHLVQRQHHGWRÀXVKWKHWDQN
Bulk Dispensing
Spout Only
DO NOT PULL
(Continued next page)

– 17 –
Consumer Help Indicator
The washer is equipped with Consumer Help Indicator (CHI). CHI communicates a simple remedy for
some situations that can be performed without the need to call for service. The chart below describes
the helpful messages that may scroll on the display when returning to start another load. These
messages will provide simple remedies that can be quickly performed.
Redistribution
,IDQRXWRIEDODQFHFRQGLWLRQRFFXUVGXULQJ¿QDOVSLQWKHZDVKHUZLOOWU\WRUHGLVWULEXWHWKHFORWKHV
HYHQO\WRDFKLHYH¿QDOVSLQVSHHG7KHZDVKHUZLOORQO\DWWHPSWWRUHGLVWULEXWHWKHFORWKHVRQHWLPH
The washer will try to spin up three times (one initial try and two retries before going into redistribution).
7KHUHGLVWULEXWLRQVHTXHQFHLVWKHZDVKHUZLOO¿OOZLWKJDOORQVRIZDWHUDJLWDWHGUDLQDQGWKHQ
attempt to spin up to full spin speed. If the washer cannot balance the load past 140 RPM, it will cancel
the cycle. If it passes the 140 RPM dwell and cannot spin past 450 RPM, the washer will attempt to
reach 450 RPM two more times. If the washer cannot maintain the 450 RPM, the drain pump will turn
on, coast to a stop and cancel the cycle. If the redistribution occurs, approximately 15 minutes will be
added to the cycle time.
6SLQOLJKWEOLQNLQJ If an out-of-balance condition is detected by the washer, the Spin light will blink during the
remaining portion of the cycle and will stay illuminated for a short time after cycle completion. When
this occurs, the washer is taking actions to correct the out-of-balance condition and complete the
cycle normally. In some cases, the washer may not be able to balance the load and spin up to full
speed. If the load is more wet than normal at the end of the cycle, redistribute the load evenly in the
wash basket and run a Drain & Spin cycle.
“H2O SUPPLY”
:DWHUQRWHQWHULQJ
washer)
Check the house water supply. Did the user forget to turn on one or both supply valves after
installation or coming back from vacation? As soon as the message starts to scroll, the washer will
initiate a 4-minute lock-out period. The washer controls won’t respond/change during this time. After
the 4 minutes, the user can begin the cycle again. If the user tries to bypass the lock-out period by
unplugging the washer, the 4-minute timer will start over again.
“CAnCELEd” “CAnCELEd” may scroll on the display if the machine was paused for longer than 12 hours or if
the machine has stopped itself before the cycle completed due to certain errors. As soon as the
message starts to scroll, the washer will initiate a 4-minute lock-out period. The washer controls
won’t respond/change during this time. After the 4-minute period, begin the cycle again. If the user
tries to bypass the lock-out period by unplugging the washer, the 4-minute timer will start over
again. If the problem persists, call 800.GE.CARES (800.432.2737) for service.
“LId” “LId” will be shown on display if 3 cycles have been started without opening the lid. The washer will
not start another cycle until the lid is opened. Try opening, then closing the lid and starting a new
cycle. If the problem persists, call 800.GE.CARES (800.432.2737) for service.

– 18 –
3URGXFW6SHFL¿FDWLRQV
$&9ROWDJH
 Main Board: 120 VAC to the J101
 Recirculation Pump: Should read
approximately 31.7 ohms - 120 VAC
 Drain Pump: Should read approximately
13.2 ohms - 120 VAC
 Mode Shifter Motor: Should read
approximately 5.7k ohms - 120 VAC
 Water Valves: Should read approximately
1.3k ohms – 120 VAC
 Lid Lock Position Locked: Locked pin 3 to
pin 1 approximately 70 ohms - 120 VAC
 /LG6ZLWFK3RVLWLRQ&ORVHGContinuity is
checked between pins 1 and 2 with the lid
closed
Water Levels
)25(/(&75267$7,&6EHVXUHWRPDNHDQHDUWKJURXQGFRQQHF-
WLRQEHIRUHUHSODFLQJDQ\HOHFWURQLFFRPSRQHQWVWRSUHYHQWHOHF-
WURVWDWLFGDPDJHWRWKHP7KLVLVGRQHE\WRXFKLQJDJRRGHDUWK
JURXQGRQWKHDSSOLDQFHEHLQJUHSDLUHG
Approximate Minimum Water Levels
Impeller: 7 gallons or 3 in. deep from the bottom
of the basket.
Approximate Maximum Water Levels
Impeller: 26 gallons or 13-1/2 in. deep from the
bottom of the basket. Press and hold the Deep
Fill button for 3 seconds to achieve.
Impeller Bulky setting water level is 26 gallons or
12-3/4 in. deep from the bottom of the basket.
'&9ROWDJH
 8,/RJLF%RDUG: 12 VDC / 7.5 VDC
 Hall Sensor: 9 VDC pin 3 to pin 2
 Pressure Sensor: (See Pressure Sensor
in the Fill System section of this service
guide.)

– 19 –
Component Locator Views
Lid Switch/
Lock Assembly
Location
Lid Hinges
Dispenser Box
Assembly
Bleach Cup
Bulk Tank
Underside Top Cover 750 Model

– 20 –
Tub Cover
Belt
Impeller
Mode Shifter
Clutch
Motor Shield
Internal Drain
Hose and Clamp
Mode Shifter
Recirculation
Tube
Rod and Spring
Assembly
Recirculation
Pump
Belt Protector
Motor
Motor and
Transmission
Belt Pulleys
Platform/
Transmission
with Tub Seal
Recirculation
Pump Seal
Main
Harness
Hub Nut and
Belleville
Washer
Impeller Cap
and Bolt
Drain Pump
Seal
Drain Pump
Harness Bracket
Harness Bracket
Tub Assembly 750 Model
