GEAppliances PVM1790 User manual

Installation
Instructions
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com
Read these instructions completely and carefully.
•IMPORTANT –Save these
instructions for local inspector’s use.
•IMPORTANT –Observe all
governing codes and ordinances.
• Note to Installer –Be sure to leave these
instructions with the Consumer.
BEFORE YOU BEGIN
• Note to Consumer –Keep these instructions
for future reference.
• Skill level – Installation of this appliance requires basic
mechanical and electrical skills.
•Proper installation is the responsibility of the installer.
•Product failure due to improper installation is not
covered under the Warranty.
Above the
Cooktop Oven
PVM1790 CVM1750
CVM1790
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
LA SECCIÓN EN ESPAÑOL
EMPIEZA EN LA PÁGINA 25.
49-40724 06-14 GE
MFL06244904

2
Recirculating................................................. 19–22
Attach Mounting Plate to Wall ................19
Preparation of Top Cabinet......................19
Adapting Blower
for Recirculation..................................20, 21
Mount the Oven...................................21, 22
Installing the Charcoal Filter....................22
Before You Use Your Oven .......................................... 23
Sección en Español ................................................. 25–47
CONTENTS
General information
Important Safety Instructions........................................ 3
Electrical Requirements.................................................. 3
Hood Exhaust ................................................................ 4, 5
Damage – Shipment/Installation .................................. 6
Parts Included ................................................................... 6
Tools You Will Need ......................................................... 7
Mounting Space................................................................ 7
Step-by-step installation guide
Placement of Mounting Plate.................................. 8–10
Removing the Mounting Plate............................. 8
Finding the Wall Studs.......................................... 8
Determining Wall Plate Location ........................ 9
Aligning the Wall Plate ....................................... 10
Installation Types.................................................... 11–22
Outside Top Exhaust.................................... 12–14
Attach Mounting Plate to Wall .................12
Preparation of Top Cabinet.......................13
Assemble and Install Adaptor ..................13
Mount the Oven................................... 13, 14
Adjust the Exhaust Adaptor......................14
Connecting Ductwork................................14
Outside Back Exhaust.................................. 15–18
Preparing Rear Wall for
Outside Back Exhaust................................15
Attach Mounting Plate to Wall .......... 15, 16
Preparation of Top Cabinet.......................16
Adapting Blower for Outside
Back Exhaust.......................................... 16, 17
Mount the Oven..........................................18
A
B
C
Installation Instructions

3
Installation Instructions

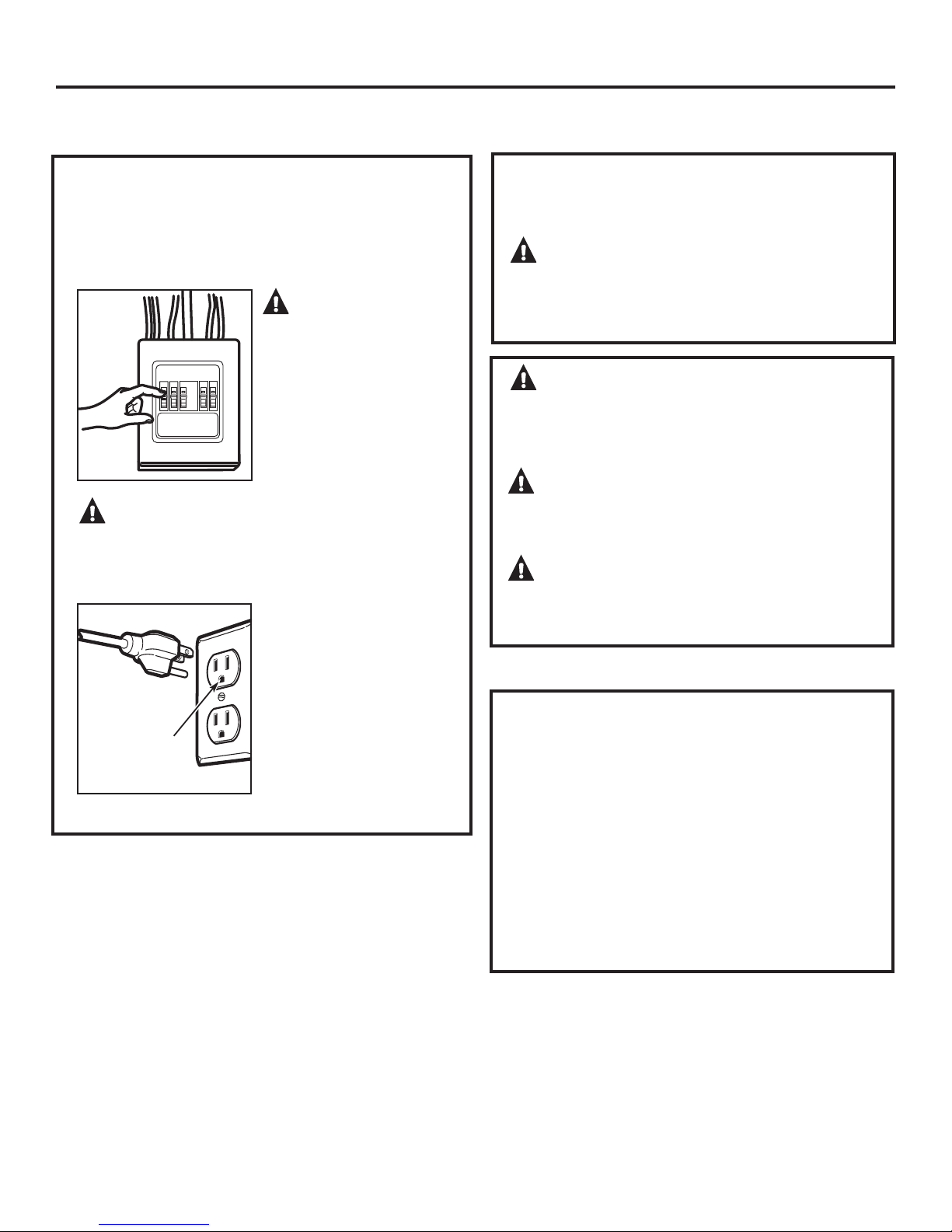

A qualified electrician must perform a ground continuity
check on the wall receptacle before beginning the
installation to ensure that the outlet box is properly
grounded. If not properly grounded, or if the wall
receptacle does not meet electrical requirements noted
(under ELECTRICAL REQUIREMENTS), a qualified electrician
should be employed to correct any deficiencies.
WARNING:
Risk of Electric Shock.
Can cause injury or death:
Remove house fuse or
open circuit breaker before
beginning installation to avoid
severe or fatal shock injury.
WARNING:Risk of Electric Shock.
Can cause injury or death: THIS APPLIANCE MUST BE
PROPERLY GROUNDED to avoid severe or fatal shock.
120 V Models
The power cord of this
appliance is equipped with
a three-prong (grounding)
plug which mates with
a standard three-prong
(grounding) wall receptacle
to minimize the possibility
of electric shock hazard
from this appliance.
IMPORTANT SAFETY INSTRUCTIONS
ELECTRICAL REQUIREMENTS
Ensure proper
ground exists
before use
CAUTION:For personal safety, the
mounting surface must be capable of supporting the
cabinet load, in addition to the added weight of this
63–85 pound product, plus additional oven loads of up
to 50 pounds or a total weight of 113–135 pounds.
CAUTION:For personal safety, this product
cannot be installed in cabinet arrangements such as an
island or a peninsula. It must be mounted to BOTH a top
cabinet AND a wall.
CAUTION:To avoid the risk of personal
injury (back injury or other injuries due to excessive
weight of the microwave oven) or property damage, you
will need two people to install this microwave oven.
Where a standard two-prong wall receptacle is
encountered, it must be replaced with a properly
grounded three-prong wall receptacle, installed by a
qualified electrician.
WARNING:Risk of Electric Shock.
Can cause injury or death: DO NOT, under any
circumstances, cut, deform or remove any of the prongs
from the power cord. Do not use with an extension cord.
Failure to comply may cause fire.
120 V Models
This product requires a three-prong grounded outlet.
Product rating is 120 volts AC, 60 Hertz, 15 amps,
and 1.70 kilowatts. This product must be connected
to a supply circuit of the proper voltage and frequency.
Wire size must conform to the requirements of the
National Electrical Code or the prevailing local code
for this kilowatt rating. The power supply cord and
plug should be brought to a separate 15 to 20 ampere
branch circuit single grounded outlet. The outlet box
should be located in the cabinet above the oven and away
from any potential microwave oven ducting.The outlet
box and supply circuit should be installed by a qualified
electrician and conform to the National Electrical Code or
the prevailing local code.

4
Installation Instructions
HOOD EXHAUST
NOTE: Read these next two pages only if you plan to vent your exhaust to the outside.
If you plan to recirculate the air back into the room, proceed to page 6.
OUTSIDE TOP EXHAUST (EXAMPLE ONLY)

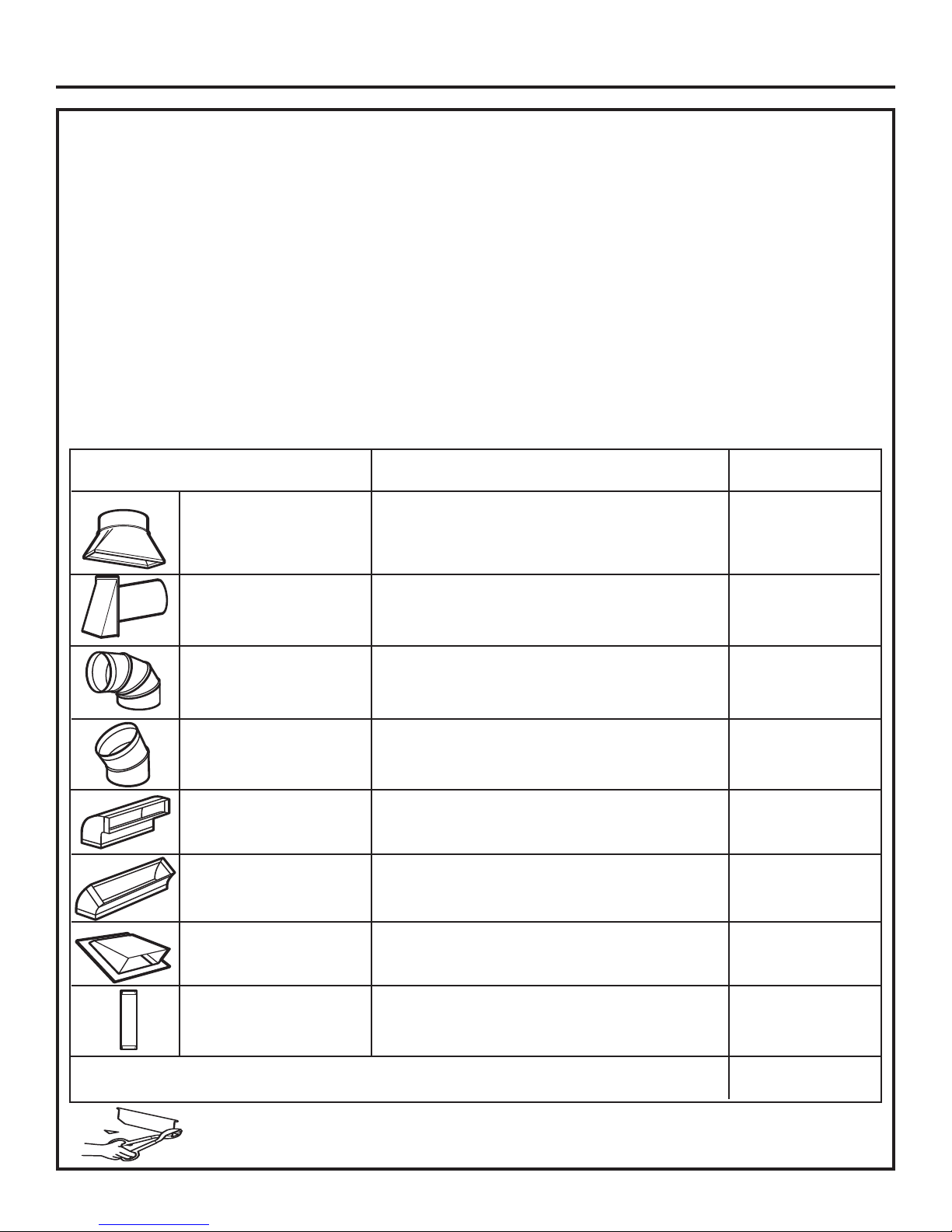

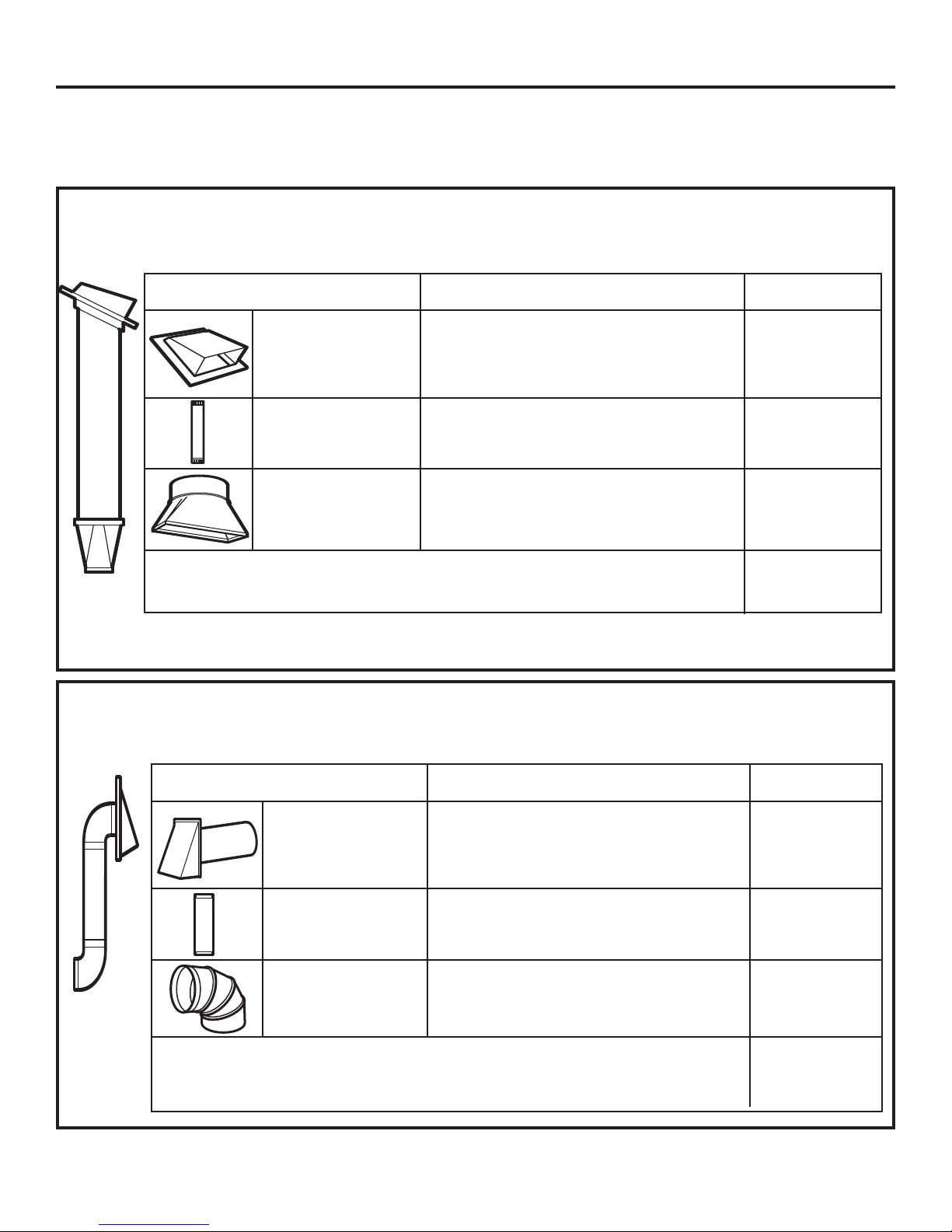

EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH x USED = LENGTH
Roof Cap 24 Ft. x (1) = 24 Ft.
12 Ft. Straight Duct 12 Ft. x (1) = 12 Ft.
(6sRound)
Rectangular-to-Round 5 Ft. x (1) = 5 Ft.
Transition Adaptor*
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood.
Total Length = 41 Ft.
*IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will
have to be cut to fit, using the tin snips, in order to allow free movement of the damper.
The following chart describes an example of one possible
ductwork installation.
The following chart describes an example of one possible
ductwork installation.
NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared
at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.
OUTSIDE BACK EXHAUST (EXAMPLE ONLY)
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH* x USED = LENGTH
Wall Cap 40 Ft. x (1) = 40 Ft.
3 Ft. Straight Duct 3 Ft. x (1) = 3 Ft.
(31ø4sx 10sRectangular)
90° Elbow 10 Ft. x (2) = 20 Ft.
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood.
Total Length = 63 Ft.

5
Installation Instructions
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH x USED = LENGTH
Rectangular-to-Round 5 Ft. x ( ) = Ft.
Transition Adaptor*
Wall Cap 40 Ft. x ( ) = Ft.
90° Elbow 10 Ft. x ( ) = Ft.
45° Elbow 5 Ft. x ( ) = Ft.
90° Elbow 25 Ft. x ( ) = Ft.
45° Elbow 5 Ft. x ( ) = Ft.
Roof Cap 24 Ft. x ( ) = Ft.
Straight Duct 6sRound or 1 Ft. x ( ) = Ft.
3
1ø4sx 10sRectangular
Total Ductwork = Ft.
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent
hood.
* IMPORTANT: If a rectangular-to-round transition
adaptor is used, the bottom corners of the damper
will have to be cut to fit, using the tin snips, in order
to allow free movement of the damper .
NOTE: If you need to install ducts, note that the total duct
length of 31ø4sx 10srectangular or 6sdiameter round duct
should not exceed 140 equivalent feet.
Outside ventilation requires a HOOD EXHAUST DUCT.
Read the following carefully.
NOTE: It is important that venting be installed using
the most direct route and with as few elbows as possible.
This ensures clear venting of exhaust and helps prevent
blockages. Also, make sure dampers swing freely and
nothing is blocking the ducts.
Exhaust connection:
The hood exhaust has been designed to mate with
a standard 31ø4sx 10srectangular duct.
If a round duct is required, a rectangular-to-round
transition adaptor must be used. Do not use less than
a 6sdiameter duct.
Maximum duct length:
For satisfactory air movement, the total duct length of
31ø4sx 10srectangular or 6sdiameter round duct should
not exceed 140 equivalent feet.
Elbows, transitions, wall and roof caps, etc.,
present additional resistance to airflow and are equivalent
to a section of straight duct which is longer than their actual
physical size. When calculating the total duct length, add the
equivalent lengths of all transitions and adaptors plus the
length of all straight duct sections. The chart below shows
you how to calculate total equivalent ductwork length using
the approximate feet of equivalent length
of some typical ducts.

6
Installation Instructions

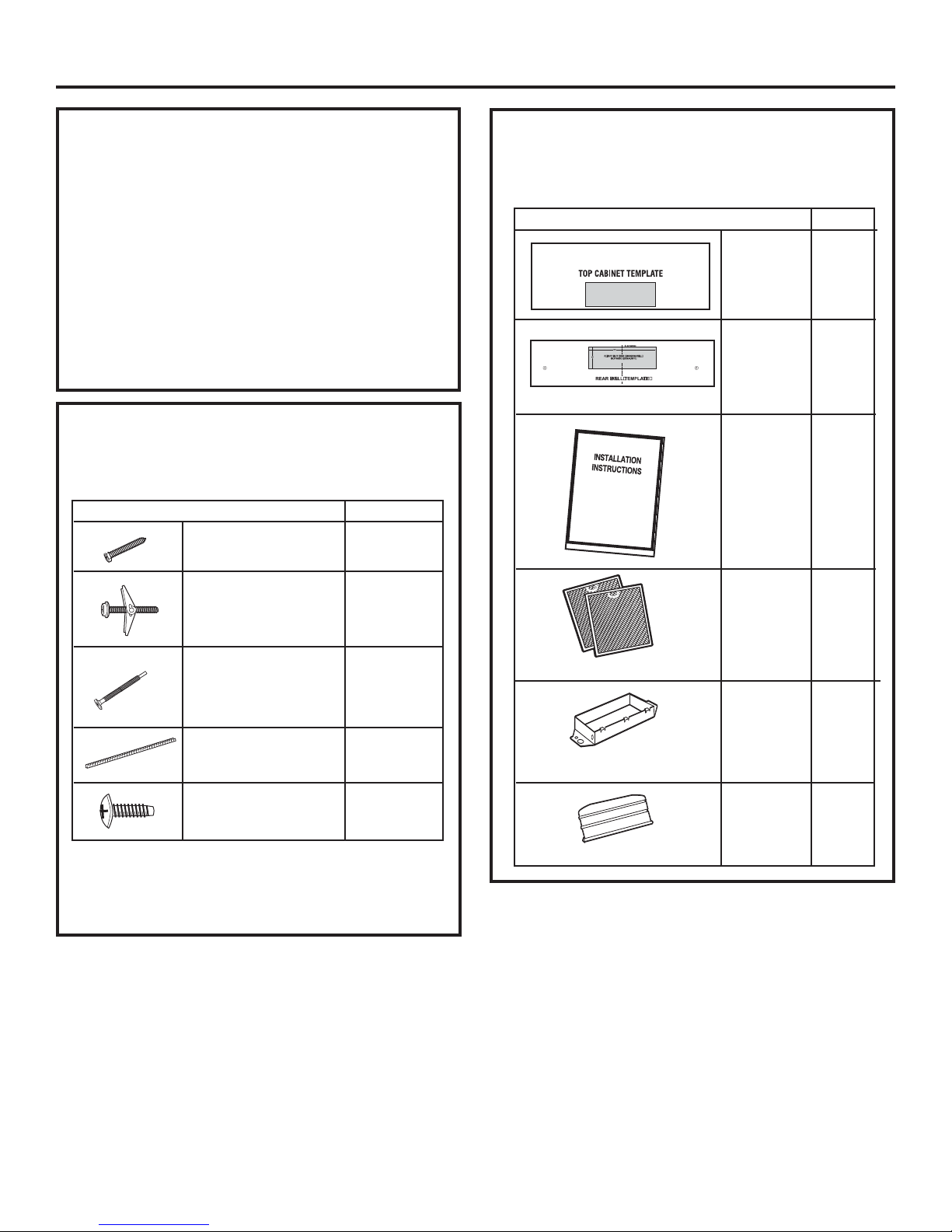

PART QUANTITY
Top Cabinet 1
Template
Rear Wall 1
Template
Installation 1
Instructions
Separately 2
Packed
Grease
Filters
Exhaust 1
Adaptor
Damper 1
•If the unit is damaged in shipment, return
the unit to the store in which it was bought for
repair or replacement.
•If the unit is damaged by the customer, repair or
replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other than
the customer), repair or replacement must
be made by arrangement between customer
and installer.
DAMAGE – SHIPMENT/
INSTALLATION PARTS INCLUDED
ADDITIONAL PARTS
PART QUANTITY
Wood Screws 2
(
1ø4sx 2s)
Toggle Bolts (and 4
wing nuts) (1ø4sx 3s)
Self-aligning Machine 3
Screw (1ø4s-28 x 25ø8s)
Nylon Grommet 2
(for metal cabinets)
Metal Screws 1 black
(
1ø8sx 1ø2s) 2 bronze
PARTS INCLUDED
You will find the installation hardware contained
in a packet with the unit. Check to make sure you
have all these parts.
NOTE: Some extra parts are included.
HARDWARE PACKET
≤
≤
≤

7
Installation Instructions
TOOLS YOU WILL NEED
# 1 and #2 Phillips screwdriver Pencil
Ruler or tape measure
and straight edge Carpenter square
(optional)
Tin snips (for cutting
damper, if required)
Electric drill with 3ø16s, 7ø16s,
1ø2sand 5ø8sdrill bits
Hammer (optional)
Stud finder or
Filler blocks or scrap wood
pieces, if needed
for top cabinet spacing
(used on recessed bottom
cabinet installations only)
Gloves
Saw (saber, hole or keyhole)
Level Duct and masking tape
MOUNTING SPACE NOTES:
•The space between the cabinets must be 30swide
and free of obstructions.
•If the space between the cabinets is greater than
30s, a Filler Panel Kit may be used to fill in the gap
between the oven and the cabinets. Your Owner’s
Manual contains the kit number for your model.
•This oven is for installation over ranges up to
36swide.
•If you are going to vent your oven to the outside,
see Hood Exhaust Section for exhaust duct
preparation.
• When installing the oven beneath smooth, flat
cabinets, be careful to follow the instructions
on the top cabinet template for power cord
clearance.
• Maximum cabinet depth above and beside the unit
is 13s.
• For models with top venting holes: Do not allow
cabinetry or other objects to block the airflow of the
vent.
• The product should not be installed over any
cooktop or range with a combined BTU greater
than 60000 BTU.
Backsplash
66sor more
from the floor
to the top of
the oven
30s
2s
30s
min.
16-1ø4s
Bottom edge of
cabinet needs to
be 30sor more
from the cooking
surface
Scissors
(to cut template,
if necessary)
Safety goggles
13smax.

8
Installation Instructions
Find the studs, using one of the following methods:
A. Stud finder – a magnetic device which locates nails.
OR
B. Use a hammer to tap lightly across the mounting
surface to find a solid sound. This will indicate
a stud location.
After locating the stud(s), find the center by probing
the wall with a small nail to find the edges of the stud.
Then place a mark halfway between the edges.
The center of any adjacent studs should be 16sor 24s
from this mark.
Draw a line down the center of the studs.
IMPORTANT: The microwave oven must be connected to
at least one wall stud.

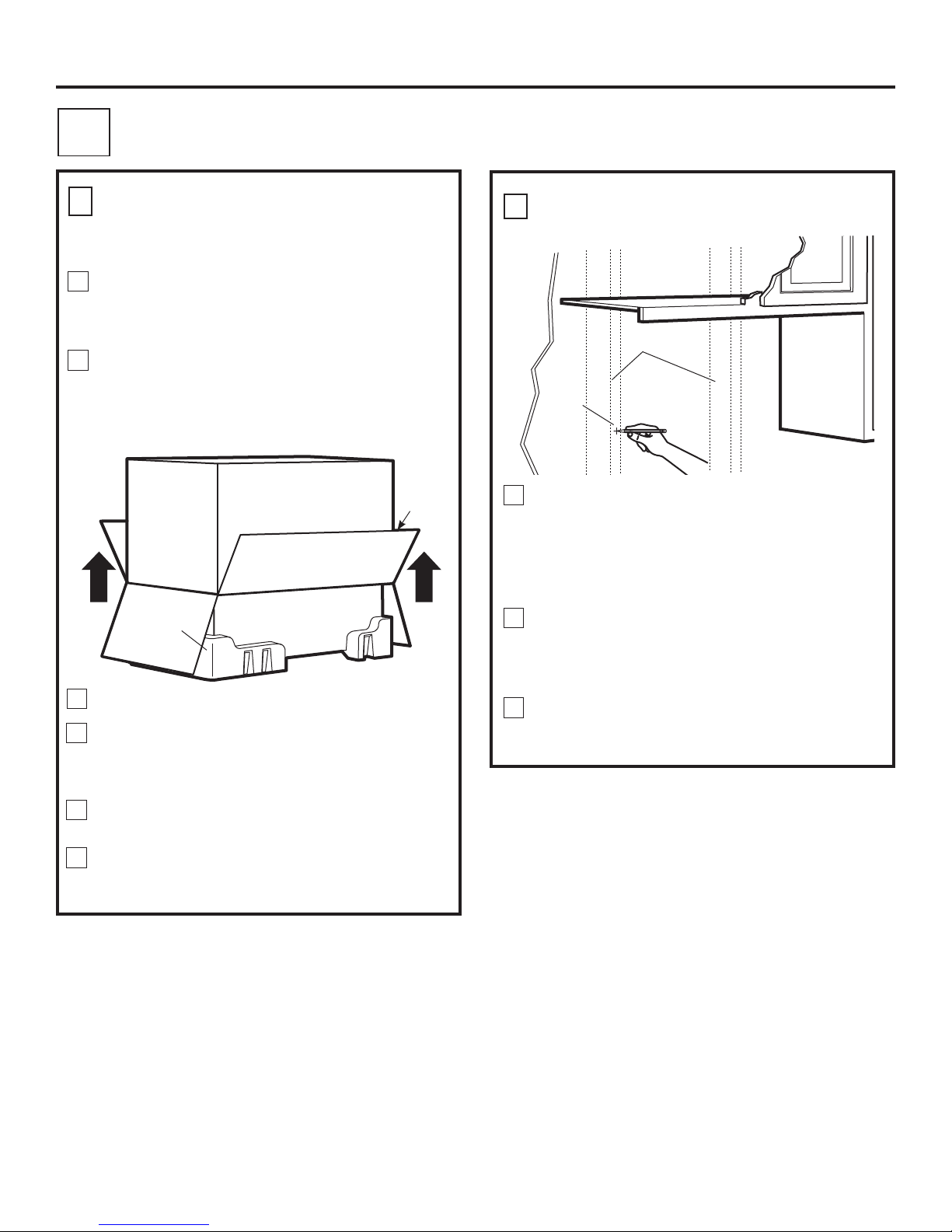

1
Remove the box containing the installation
instructions, filters, exhaust adaptor, damper
and the small hardware bag. Do not remove
the Styrofoam protecting the front of the oven.
Fold back all 4 carton flaps fully against carton sides.
Then carefully roll the oven and carton over onto
the top side. The oven should be resting in the
Styrofoam.
REMOVING THE OVEN FROM
THE CARTON/REMOVING
THE MOUNTING PLATE
FINDING THE WALL STUDS
B
A
2
PLACEMENT OF THE MOUNTING PLATE
1
Wall
Studs
Center
3
Carton
Pull the carton up and off the oven.
Open the oven door and remove the styrofoam
pack from inside the oven. Remove the tape
covering the turntable hub.
Styrofoam
2
3
6
Set the oven upright. Remove and properly discard
plastic bags and Styrofoam.
1
The mounting plate is attached to the back of the
oven. Remove the two screws holding it to the oven.
The plate will be used as the rear wall template and
for mounting the oven to the wall.
4
5

9
Installation Instructions

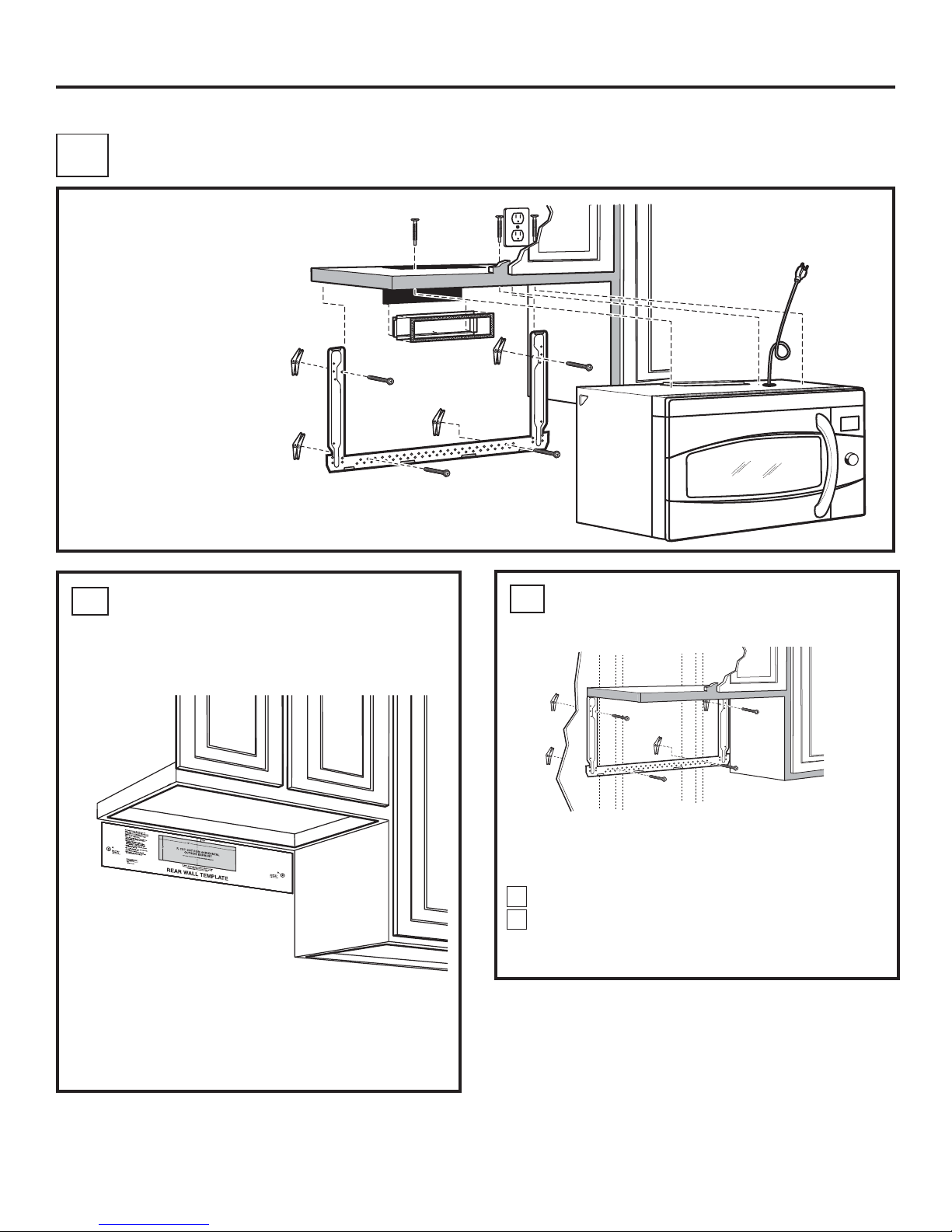

DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET
C
Your cabinets may have decorative trim that interferes
with the oven installation. Remove the decorative trim
to install the oven properly and to make it level.
THE OVEN MUST BE LEVEL.
Use a level to make sure the cabinet bottom is level.
If the cabinets have a front overhang only, with no back
or side frame, install the mounting plate down the same
distance as the front overhang depth. This will keep
the oven level.
Measure the inside depth of the front overhang.
Draw a horizontal line on the back wall an equal
distance below the cabinet bottom as the inside depth
of the front overhang.
For this type of installation with front overhang only,
align the mounting tabs with this horizontal line, not
touching the cabinet bottom as described in Step D.
Plate position – beneath flat bottom
cabinet
Plate position – beneath recessed bottom
cabinet with front overhang
Mounting Plate Tabs
Touching the Cabinet
Bottom
Mounting Plate
with Tabs Below
Cabinet Bottom
the Same Distance
as the Front
Overhang Depth
Plate position – beneath framed recessed
cabinet bottom
Mounting Plate Tabs
Touching the Back
Frame
30sto Cooktop
30sto Cooktop
1
2
3
At least 30s, up to 36s

10
Installation Instructions
ALIGNING THE WALL PLATE
Draw a vertical line on the wall at the center of the 30s
wide space.
Use the mounting plate as the template for the rear wall.
Place the mounting plate on the wall, making sure that
the tabs are touching the bottom of the cabinet or
the level line drawn in Step C for cabinets with front
overhang. Line up the notch and center line on
the mounting plate to the center line on the wall.
While holding the mounting plate with one hand, draw
circles on the wall at holes A, B, C and D (see illustration
above/actual plate marked with arrows). Four holes
must be used for mounting.
NOTE: Holes C and D are inside area E. If neither C nor D
is in a stud, find a stud somewhere in area E and draw a
fifth circle to line up with the stud. It is important to use
at least one wood screw mounted firmly in a stud
to support the weight of the oven.
Set the mounting plate aside.
WARNING:Risk of electric shock. Can cause
injury or death. Take care to not drill into electrical wiring
inside walls or cabinets.
Drill holes on the circles. If there is a stud, drill a 3ø16shole
for wood screws. For holes that don’t line up with a stud,
drill a 5ø8shole for toggle bolts.
NOTE: DO NOT MOUNT THE PLATE AT THIS TIME.
2
3
4
Draw a Vertical
Line on Wall
from Center of
Top Cabinet
Area E
Hole A
Hole B
Hole D
Hole C
D
CAUTION:
Wear gloves to avoid cutting
fingers on sharp edges.
1

Installation Instructions
11
A

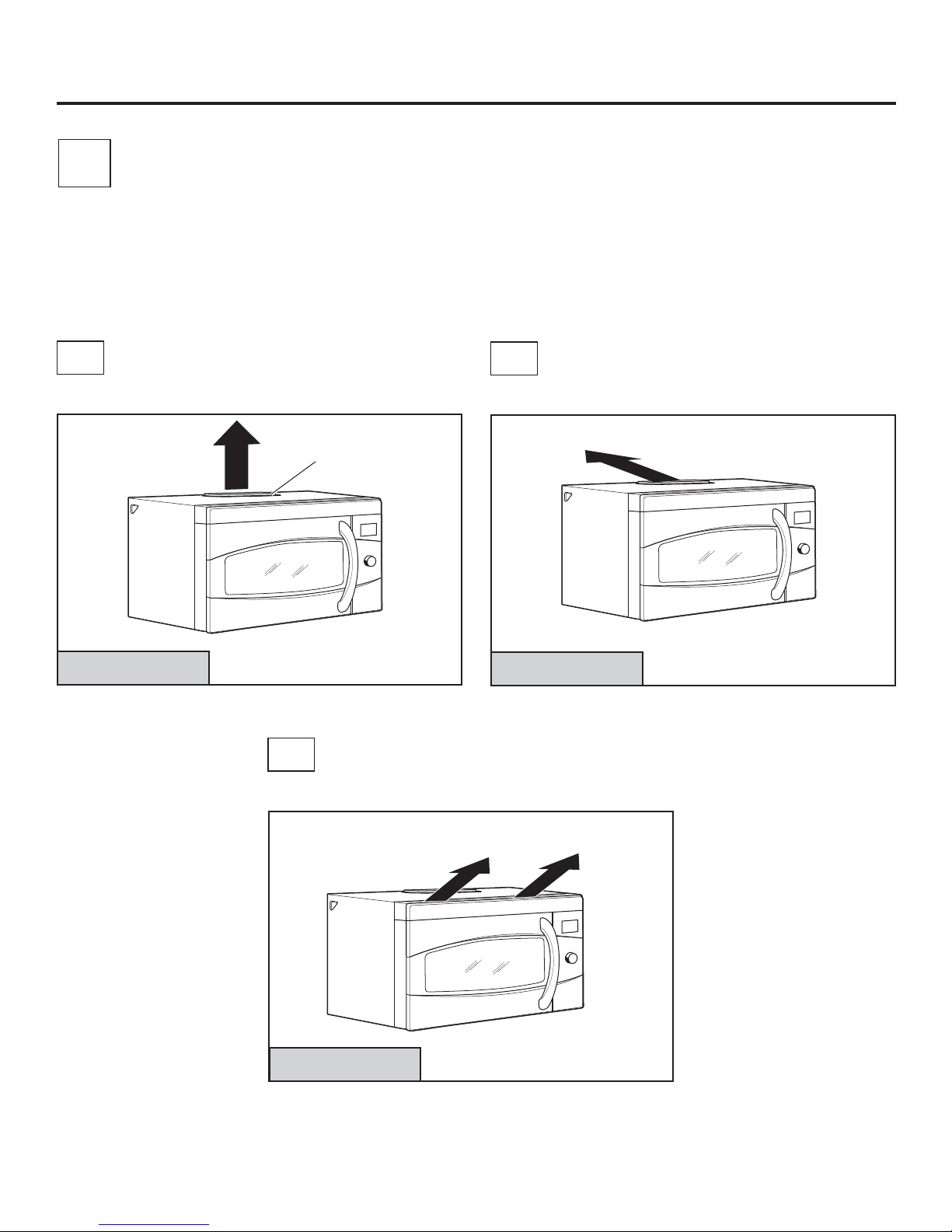

This oven is designed for adaptation to the following
3 types of ventilation:
A. Outside Top Exhaust (Vertical Duct)
B. Outside Back Exhaust (Horizontal Duct)
C. Recirculating (Non-Vented Ductless)
NOTE: This oven is shipped assembled for Outside Top
Exhaust. Select the type of ventilation required for your
installation and proceed to that section.
OUTSIDE TOP EXHAUST
(VERTICAL DUCT) OUTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
RECIRCULATING
(NON-VENTED DUCTLESS)
See page 12 See page 15
See page 19
A Charcoal Filter Accessory Kit
is required for the non-vented
exhaust. (See your Owner’s
Manual for the kit number.)
Adaptor in Place
for Outside Top
Exhaust
2
B
C
INSTALLATION TYPES (Choose A, B or C)

12
Installation Instructions
Place the mounting plate against the wall and insert
the toggle wings into the holes in the wall to mount
the plate.
NOTE: Before tightening toggle bolts and wood screw,
make sure the tabs on the mounting plate touch
the bottom of the cabinet when pushed flush against
the wall and that the plate is properly centered under
the cabinet.
CAUTION: Be careful to avoid pinching
fingers between the back of the mounting plate and
the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
3
A
4

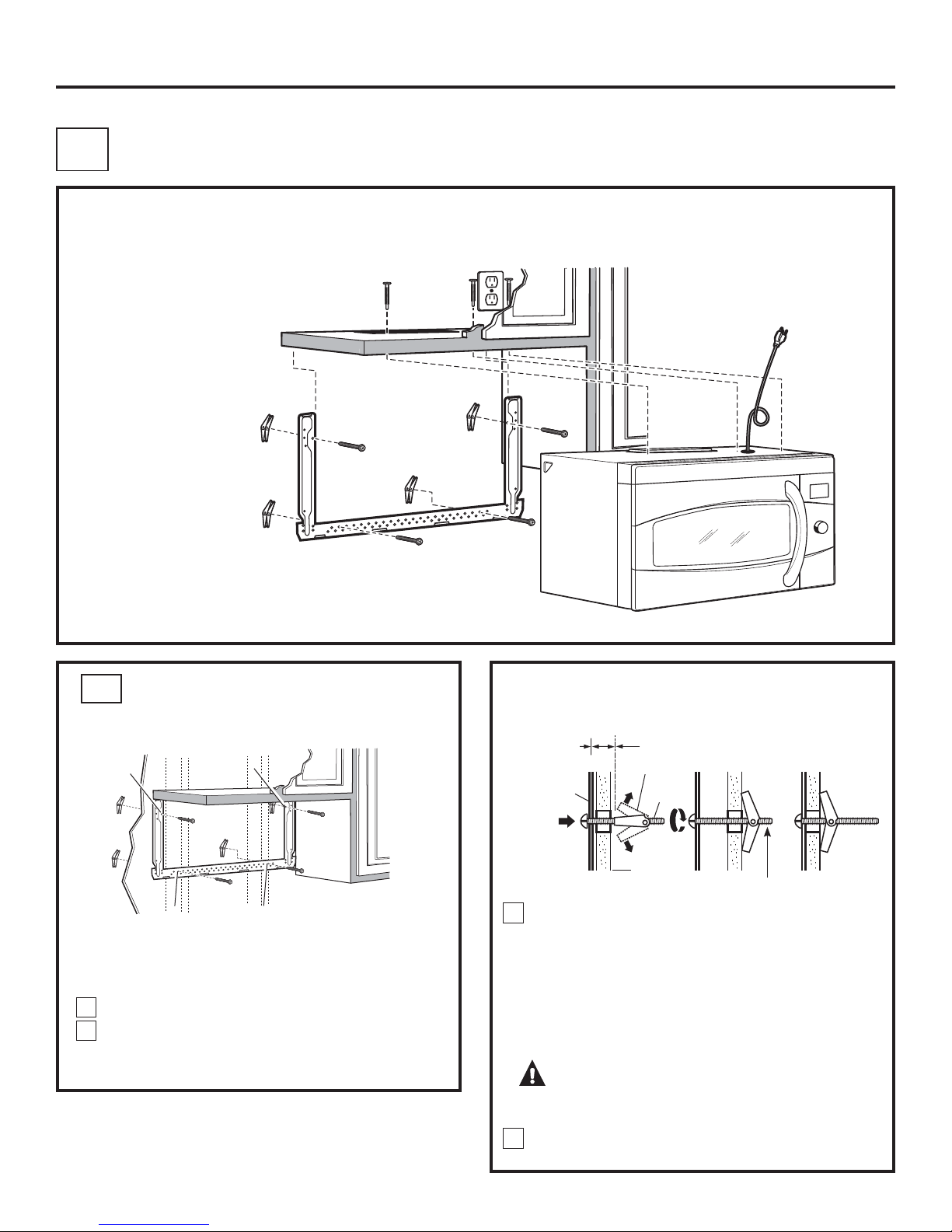

ATTACH THE MOUNTING PLATE
TO THE WALL
A1
OUTSIDE TOP EXHAUST (Vertical Duct)
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud. Recommended locations on the mounting
plate are indicated by A, B, C and D.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to 3ø4sonto each bolt.
1
INSTALLATION OVERVIEW
A1. Attach Mounting Plate to Wall
A2. Prepare Top Cabinet
A3. Install Adaptor
A4. Mount Oven
A5. Adjust Exhaust Adaptor
A6. Connect Ductwork
Wall
Mounting
Plate
Spacing for
Toggles More Than
Wall Thickness
Bolt End
Toggle
Bolt
Toggle Wings
To use toggle bolts:
2
AB
CD

13
Installation Instructions
MOUNT THE OVEN
A4

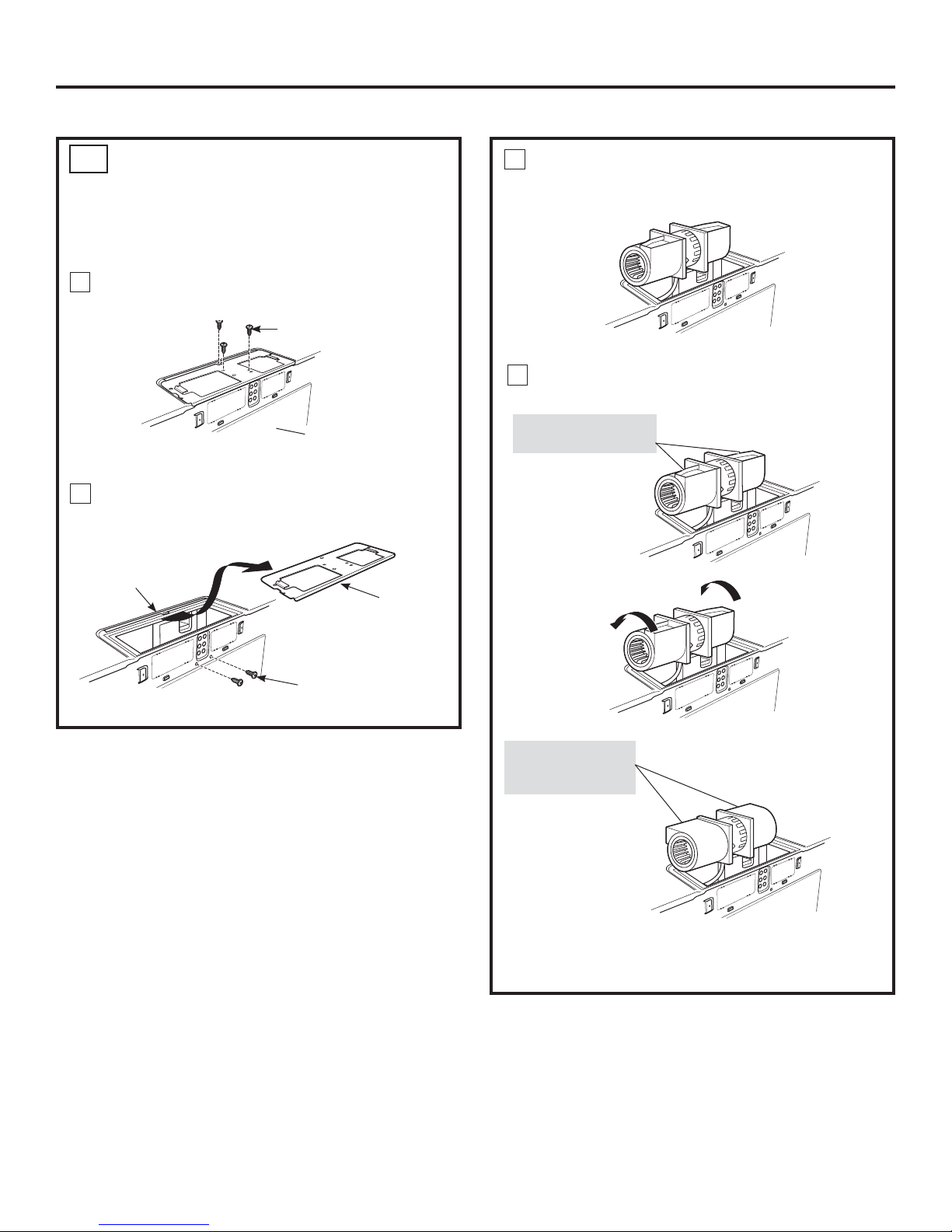

ASSEMBLE AND INSTALL ADAPTOR
A3
USE TOP CABINET TEMPLATE FOR
PREPARATION OF TOP CABINET
You need to drill holes for the top support screws,
a hole large enough for the power cord to fit through,
and a cutout large enough for the exhaust adaptor.
A2
Damper
Back of
Oven
•Read the instructions on the TOP CABINET TEMPLATE.
•Tape it underneath the top cabinet.
•Drill the holes, following the instructions on the TOP
CABINET TEMPLATE.
CAUTION:Wear safety goggles when
drilling holes in the cabinet bottom.
Place the oven in its upright position, with the top
of the unit facing up.
Insert the tabs on each side of the damper into
the holes at the inside rear of the adaptor.
Attach the exhaust adaptor to the blower plate with
the two bronze metal screws provided.
Make sure that the damper pivots easily before
mounting oven.
You will need to make adjustments to assure proper
alignment with your house exhaust duct after the
oven is installed.
Exhaust
Adaptor
1
2
Blower Plate
3
CAUTION:To avoid the risk of personal
injury (back injury or other injuries due to excessive
weight of the microwave oven) or property damage,
you will need two people to install this microwave
oven.
IMPORTANT: Do not grip or use handle during
installation.
WARNING:Risk of Electric Shock. Can
cause injury or death: If installing unit with metal
countertops, cover the edge of the power supply
cord hole with the power supply cord bushing.
IMPORTANT: If filler blocks are not used, case damage
may occur from overtightening screws.
Insert a self-aligning screw through top-center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after
the threads have engaged. (It will be completely
tightened later.)
3
NOTE: When mounting
the microwave oven,
thread power cord through
hole in bottom of top
cabinet. Keep it tight
throughout Steps 1–3. Do
not pinch cord or lift oven
by pulling cord.
Lift microwave oven,
tilt it forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting plate.
1
2Rotate front of oven up
against cabinet bottom.

14
Installation Instructions
CONNECTING DUCTWORK
3
Attach the oven to the top cabinet.
Cabinet Front
Cabinet Bottom Shelf
Filler Block
Oven Top
Equivalent
to depth
of cabinet
recess

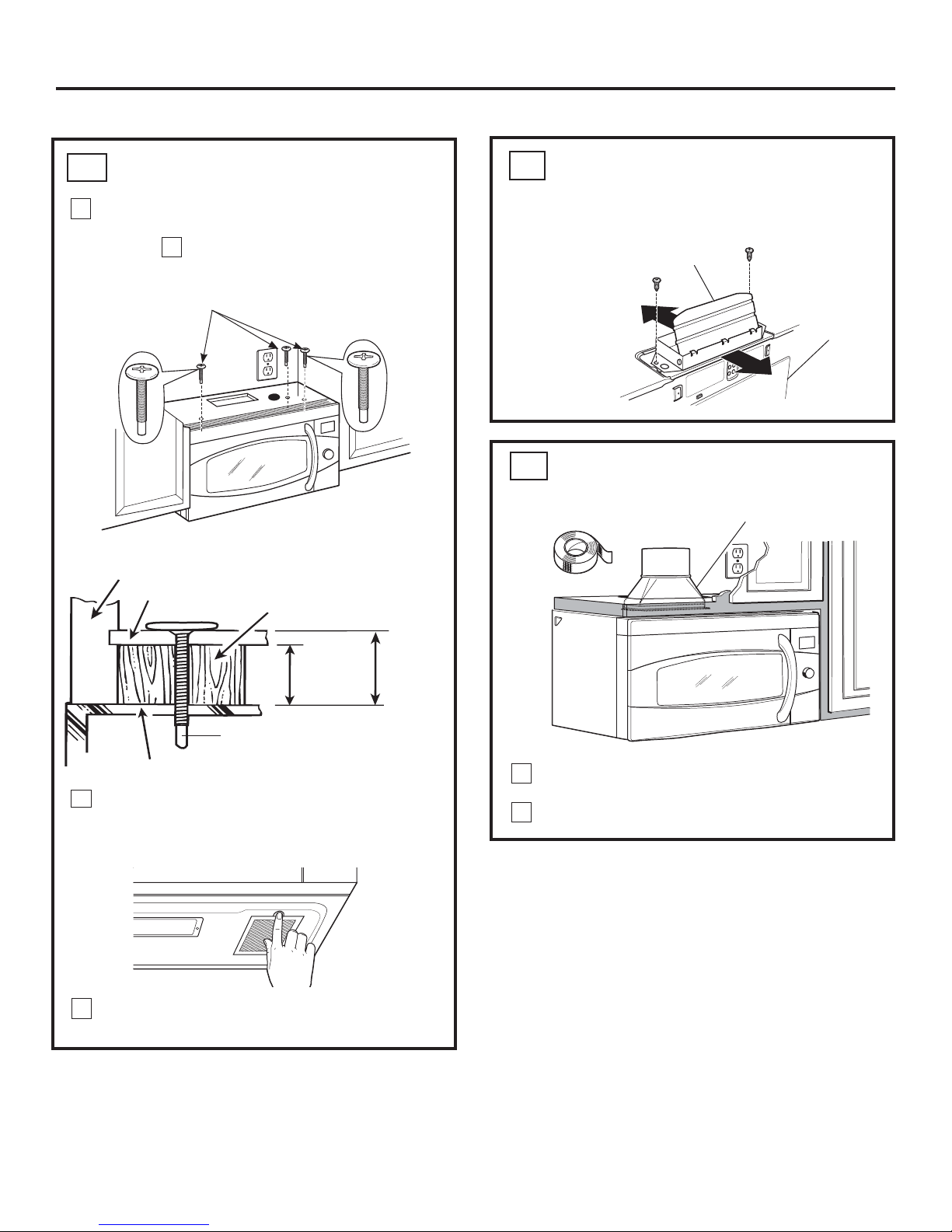

Insert 3 self-aligning screws
(1ø4s-28 x ȓs) through outer
top cabinet holes. Turn two full
turns on each screw.
Tighten the outer two screws to the top of the oven.
(While tightening screws, hold the oven in place
against the wall and the top cabinet.)
6
5
Install grease filters. See the Owner’s Manual
packed with the oven.
ADJUST THE EXHAUST ADAPTOR
A5
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Back of
Oven
Damper
1
2
Extend the house duct down to connect to
the exhaust adaptor.
Seal exhaust duct joints using duct tape.
House Duct
Self-Aligning Screw
4
MOUNT THE OVEN (continued)
A4
A6
This distance
can NOT
exceed 2” to
ensure proper
installation

Installation Instructions
15
OUTSIDE BACK EXHAUST (Horizontal Duct)
PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
B1
INSTALLATION OVERVIEW
B1. Prepare Rear Wall
B2. Attach Mounting Plate to Wall
B3. Prepare Top Cabinet
B4. Adjust Blower
B5. Mount the Oven
B
ATTACH THE MOUNTING PLATE
TO THE WALL
B2
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to 3ø4sonto each bolt.
1
2
You need to cut an opening in the rear wall for outside
exhaust.
•Read the instructions on the REAR WALL TEMPLATE.
•Tape it to the rear wall, lining up with the holes
previously drilled for holes A and B in the wall plate.
•Cut the opening, following the instructions of the
REAR WALL TEMPLATE.

16
Installation Instructions
BEFORE: Fan Blade
Openings Facing Up
4
3
2
1
Remove the three screws that hold the blower
plate to the oven. Slide blower plate from under
its retaining flange. Remove and save the screw
that holds blower motor to oven.
ADAPTING BLOWER FOR
OUTSIDE BACK EXHAUST
B4
End B
End A
Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust
the blower unit.
Rotate blower unit counterclockwise 180°.
Before Rotation After Rotation
Gently remove the wires from the grooves.
Reroute the wires through grooves on other side
of the blower unit.
Before Rerouting After Rerouting
Wires Routed Through Right
Side
Wires Routed Through Left
Side
Blower Plate
Back of
Oven
Back of
Oven
Blower
Motor Screw
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
B3
•Read the instructions on the TOP CABINET
TEMPLATE.
•Tape it underneath the top cabinet.
•Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION:Wear safety goggles when
drilling holes in the cabinet bottom.
Wall
Mounting
Plate
Spacing for Toggles More
Than Wall Thickness
Toggle
Bolt
Toggle Wings
To use toggle bolts:
Bolt End
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
Place the mounting plate against the wall and insert
the toggle wings into the holes in the wall to mount
the plate.
NOTE: Before tightening toggle bolts and wood screw,
make sure the tabs on the mounting plate touch
the bottom of the cabinet when pushed flush against
the wall and that the plate is properly centered under
the cabinet.
CAUTION:Be careful to avoid pinching
fingers between the back of the mounting
plate and the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
3
4
Retaining
Flange

17
Installation Instructions
Snip all 4 webs
on each knockout
panel and remove
the metal knockouts
for rear airflow.
Locate the two “knockout” plates, on the rear oven
panel, near the top of the oven.
Using tin snips, carefully cut the web area from the
two holes side-by-side (that secure the knockouts to
the oven). Cut all four webs on both rear knockouts;
this will allow the ventilation fan airflow to exhaust
out the rear of the oven.
CAUTION:Be sure to trim the sharp
edges from the openings after removing the
knockout plates.
AFTER: Fan Blade
Openings Facing
Back
7
Place the blower unit back into the opening.
9
Insert the tabs on each side of the damper
into the holes at the inside rear of the adaptor.
8
Roll the blower unit 90° so that fan blade openings
are facing out the back of the oven.
5
Blower Plate
Replace the blower plate in the same position
as before with the screws.
Before Rolling After Rolling
Back of Oven
End A
End B
Back of
Oven Back of
Oven
WARNING:Risk of electric shock
can cause injury or death. Do not pull or stretch
the blower unit wiring. make sure the wires are
not pinched..
NOTE: The blower unit exhaust openings should
match exhaust openings on rear of microwave oven.
Blower Plate Screws
Oven Rear Panel
6
Attach the exhaust adaptor to the rear of the oven
by sliding it into the guides at the top center of the
back of the oven.
10
Secure the exhaust adaptor to the oven with
the two bronze metal screws provided.
11
Push in securely until it is in the lower locking tabs.
Take care to assure the damper hinge is installed
so that it is at the top and that the damper swings
freely.
Slide exhaust
adaptor into
guides on
oven rear.
Exhaust Adaptor Damper
(hinge side up)
Locking
Tabs Guides
Back of Oven
Exhaust
Adaptor
Screws

18
Installation Instructions
Attach the oven to the top cabinet.
MOUNT THE OVEN
B5
7
5
Cabinet Front
6
Tighten the outer two screws to the top of the
oven. (While tightening screws, hold the oven
in place against the wall and the top cabinet.)
Insert 3 self-aligning screws
(1ø4s[ȓs) through outer
top cabinet holes. Turn two full
turns on each screw.
Install grease filters. See the Owner’s Manual
packed with the oven.
4
CAUTION:To avoid the risk of personal
injury (back injury or other injuries due to excessive
weight of the microwave oven) or property damage,
you will need two people to install this microwave
oven.
IMPORTANT: Do not grip or use handle during
installation.
WARNING:Risk of Electric Shock. Can
cause injury or death: If installing unit with metal
countertops, cover the edge of the power supply
cord hole with the power supply cord bushing.
IMPORTANT: If filler blocks are not used, case damage
may occur from overtightening screws.
Insert a self-aligning screw through top-center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after
the threads have engaged. (It will be completely
tightened later.)
NOTE: When mounting
the microwave oven,
thread power cord through
hole in bottom of top
cabinet. Keep it tight
throughout Steps 1–3. Do
not pinch cord or lift oven
by pulling cord.
Lift microwave oven,
tilt it forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting plate.
1
Rotate front of oven up
against cabinet bottom.
2
3
Cabinet Bottom Shelf
Filler Block
Oven Top
Equivalent
to depth
of cabinet
recess
Self-Aligning Screw
This distance
can NOT
exceed 2” to
ensure proper
installation

19
Installation Instructions
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP CABINET
C2
RECIRCULATING (Non-Vented Ductless)
INSTALLATION OVERVIEW
C1. Attach Mounting Plate to Wall
C2. Prepare Top Cabinet
C3. Adjust Blower
C4. Mount the Oven
C5. Install Charcoal Filter (not supplied)
•Read the instructions on the TOP CABINET
TEMPLATE.
•Tape it underneath the top cabinet.
•Drill the holes, following the instructions on the TOP
CABINET TEMPLATE.
CAUTION:Wear safety goggles when
drilling holes in the cabinet bottom.
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
C
Place the mounting plate against the wall and insert
the toggle wings into the holes in the wall to mount
the plate.
NOTE: Before tightening toggle bolts and wood screw,
make sure the tabs on the mounting plate touch the
bottom of the cabinet when pushed flush against the
wall and that the plate is properly centered under the
cabinet.
CAUTION:Be careful to avoid pinching
fingers between the back of the mounting plate and
the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
3
ATTACH THE MOUNTING PLATE
TO THE WALL
C1
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to 3ø4sonto each bolt.
1
4
Wall
Mounting
Plate
Spacing for
Toggles More Than
Wall Thickness
Bolt End
Toggle
Bolt
Toggle Wings
To use toggle bolts:
2

20
Installation Instructions
AFTER: Fan Blade
Openings Facing
Forward
3
2
4
ADAPTING BLOWER
FOR RECIRCULATION
C3
NOTE: The exhaust adaptor with damper is not
needed for recirculating models. You may want
to save them for possible future use.
Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust
the blower unit.
Roll the blower unit 90° so that fan blade openings
are facing toward the front of the oven.
Roll
Slide the blower plate from under its retaining
flange and lift it off. Remove and save screw that
holds the blower motor to oven.
Remove and save screws that hold blower plate
to the oven.
NOTE: Make sure wires remain routed in the grooves
of the motor frame.
BEFORE: Fan Blade
Openings Facing Up
1
Back of
Oven
Blower Plate Screws
Blower Plate
Blower
Motor Screw
Retaining
Flange
