GECMA CHALLENGER KBi-PS2 User manual

GECMA COMPONENTS GMBH WWW.GECMA.COM TEL. [phone] FAX. -99
MANUAL KBI_KMUI_B REV 1.5 EN.DOC 31.01.07 A.J. 1
Manual
CHALLENGER Keyboards:
KBi-PS2, KBi-PS2-B
Keyboard-Mouse-Units: KMUi-PS2,
KMUi-PS2-B

GECMA COMPONENTS GMBH WWW.GECMA.COM TEL. [phone] FAX. -99
MANUAL KBI_KMUI_B REV 1.5 EN.DOC 31.01.07 A.J. 2
List of contents
List of contents ....................................................................................... 2
Introduction ........................................................................................... 2
Available Challenger KB models ........................................................... 2
Assembly ............................................................................................... 3
Pin Connections .................................................................................... 3
Technical Data ...................................................................................... 4
Safety Instructions................................................................................... 6
General Instructions ............................................................................... 7
Introduction
The Challenger Keyboard is a intrinsically safe operating device for the application in
zone 0 / zone 1, zone 21, zone 22 (zone 21 and zone 22 when correctly mounted into
a min. IP6X certificated housing).
It is equipped with a PS/2 data interface for connection to an inrinsically safe data
interface.
The Challenger Keyboard PS2 consist of a Frontfoil with bottom mounted buttons and
controllerboard. A additional barrier can added before.
The Challenger KMUi-PS2/KMUi-PS2-B consist of a keyboard with integrated mouse. The
mouse PS2 consist of a silikonmat with bottom mounted buttons and controllerboard. A
additional barrier can added before.
The Challenger Keyboard PS2 will be supplyed via a intrinsically safe PS2 interface.
Available Challenger KB models

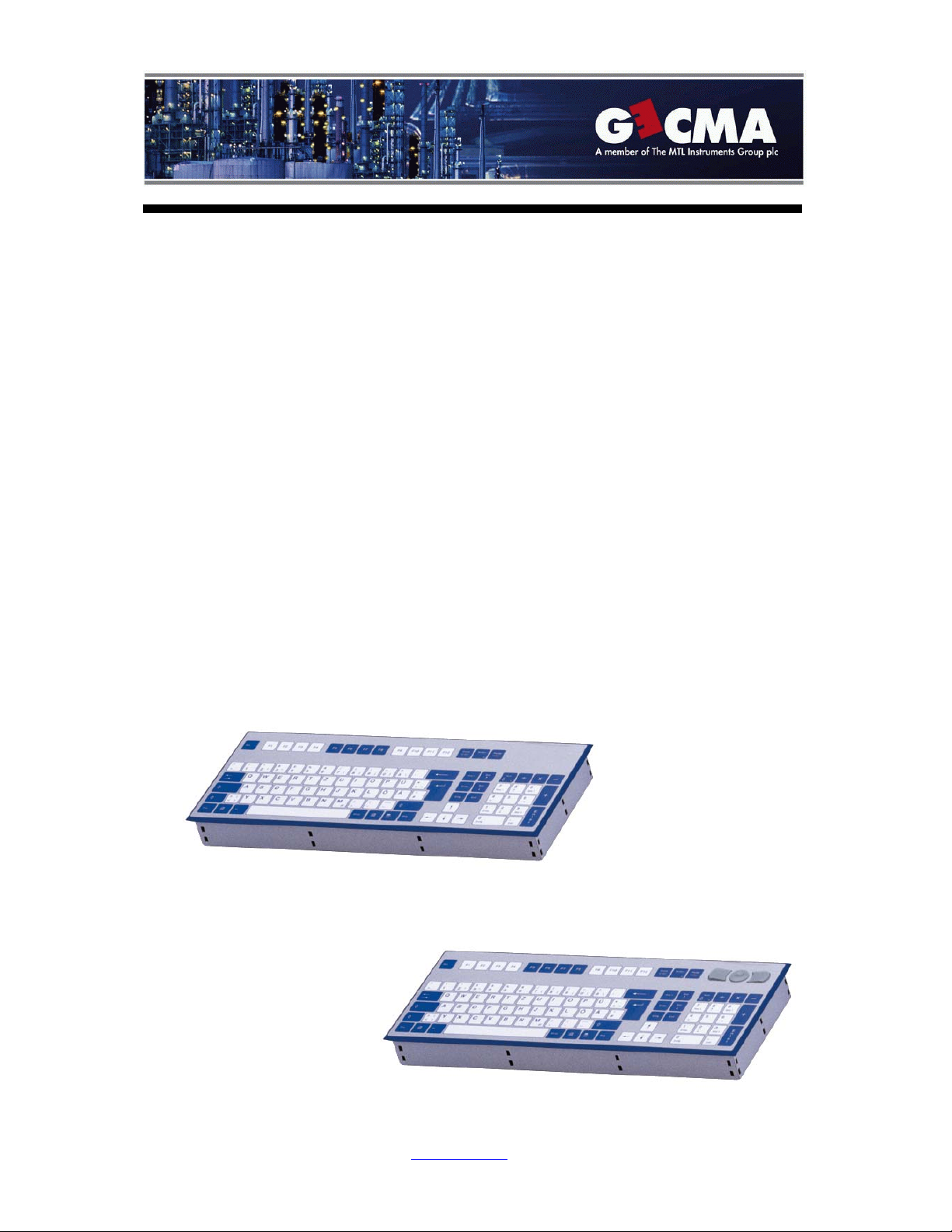

Various models of Challenger KB can be supplied:
KBi-PS2 Keyboard in min. IP20-housing
KBi-PS2-B Keyboard with integrated barrier in min. IP20-housing
KMUi-PS2 Keyboard and mouse unit in min. IP20-housing
KMUi-PS2-B Keyboard and mouse unit with integrated barrier in min. IP20-housing

GECMA COMPONENTS GMBH WWW.GECMA.COM TEL. [phone] FAX. -99
MANUAL KBI_KMUI_B REV 1.5 EN.DOC 31.01.07 A.J. 3
Assembly
To ensure the min. protection IP6X / NEMA 4X the keyboard module has to be
installed in a housing min. certified according to IP6X / NEMA 4X.
The keyboard module is inserted into the housing cut-out with its front side to the
exterior and fastened from the inside via mounting clips which are evenly distributed
over the external circumference of the keyboard housing in such a way that the
module is tight fitting.
Pin Connections
Pin connections at:
KBi-PS2; KMUi-PS2
KBi-PS2-B; KMUi-PS2-B
Connection KB Significance
K45-1 or brown or 1 Supply circuit +UB
K45-2 or white or 2 Supply / Data circuit GND
K45-3 or yellow or 3 Data
K45-4 or green or 4 Clock
Connection Mouse Significance
K46-1 or brown or 1 Supply circuit +UB
K46-2 or white or 2 Supply / Data circuit GND
K46-3 or yellow or 3 Data
K46-4 or green or 4 Clock
Please find the pin numbering in the pin identification plate which is attached near the pin.

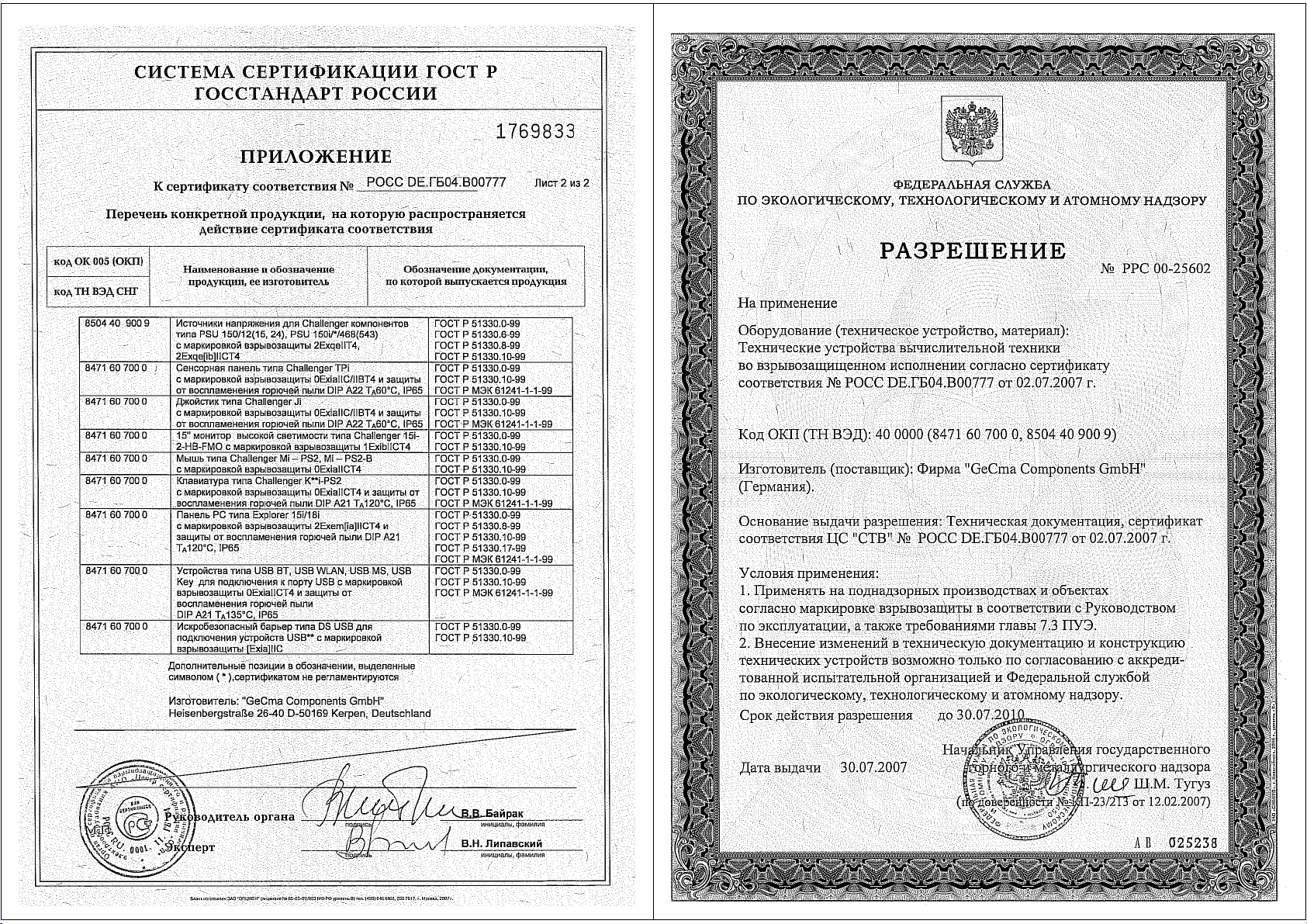

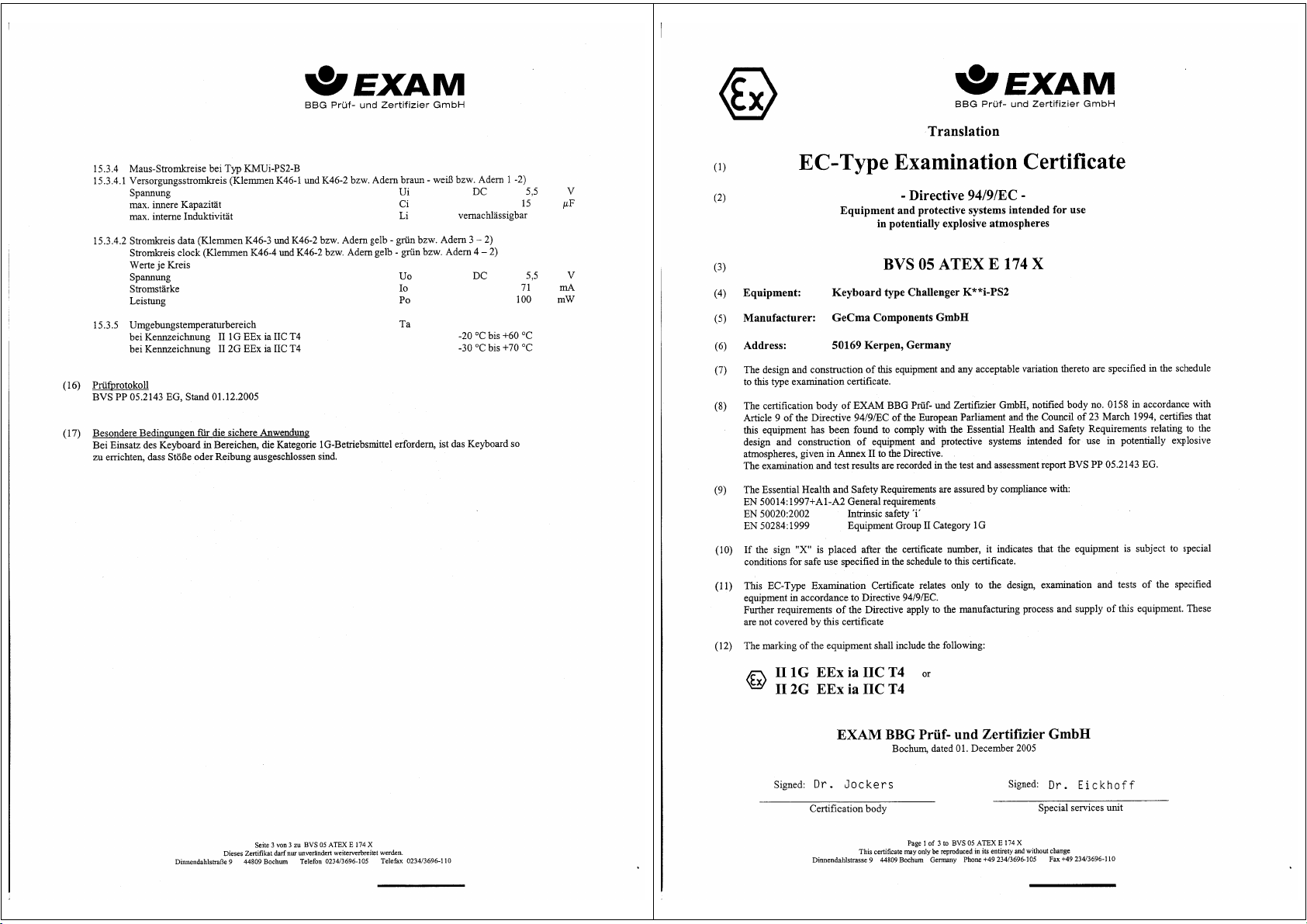

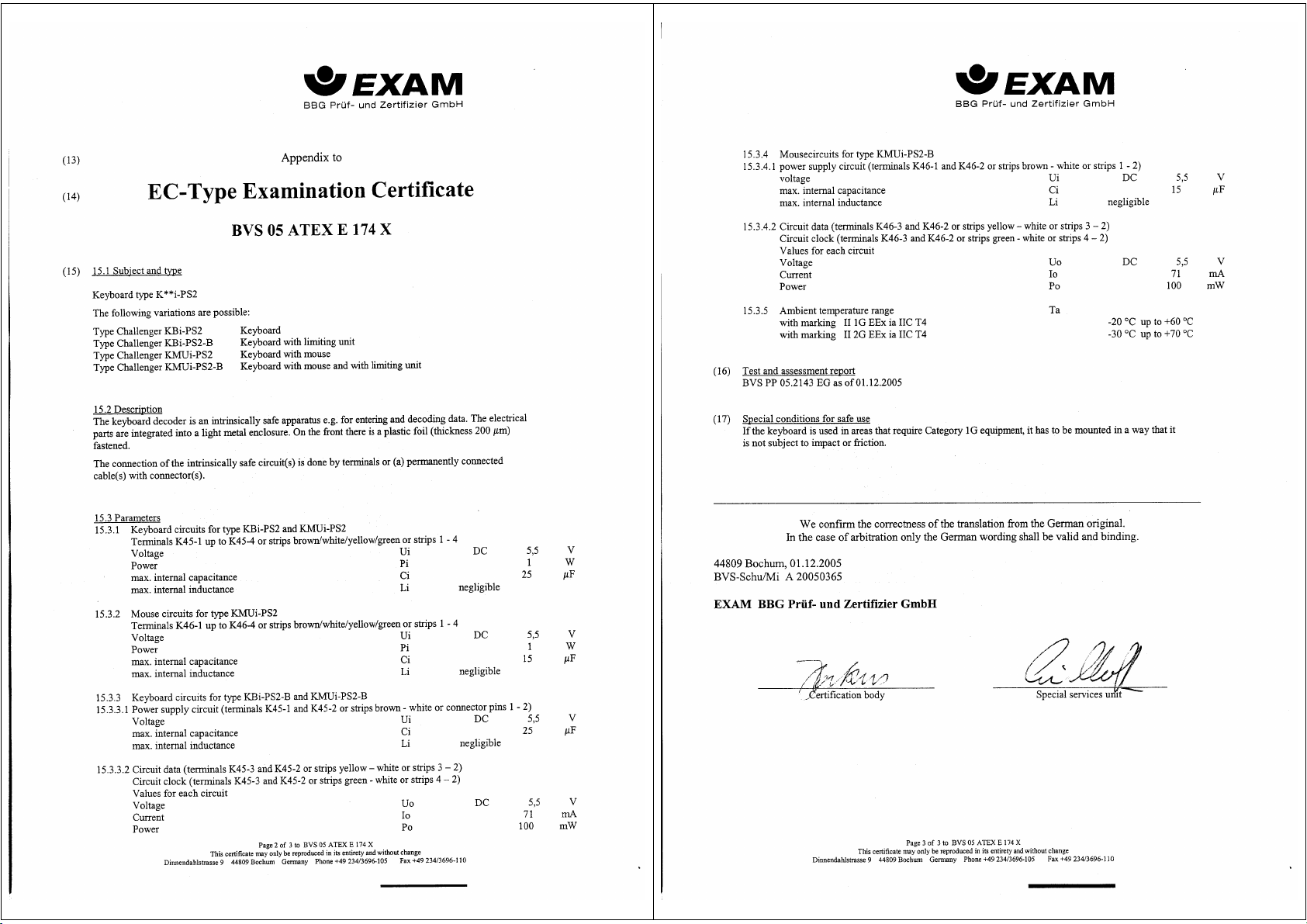

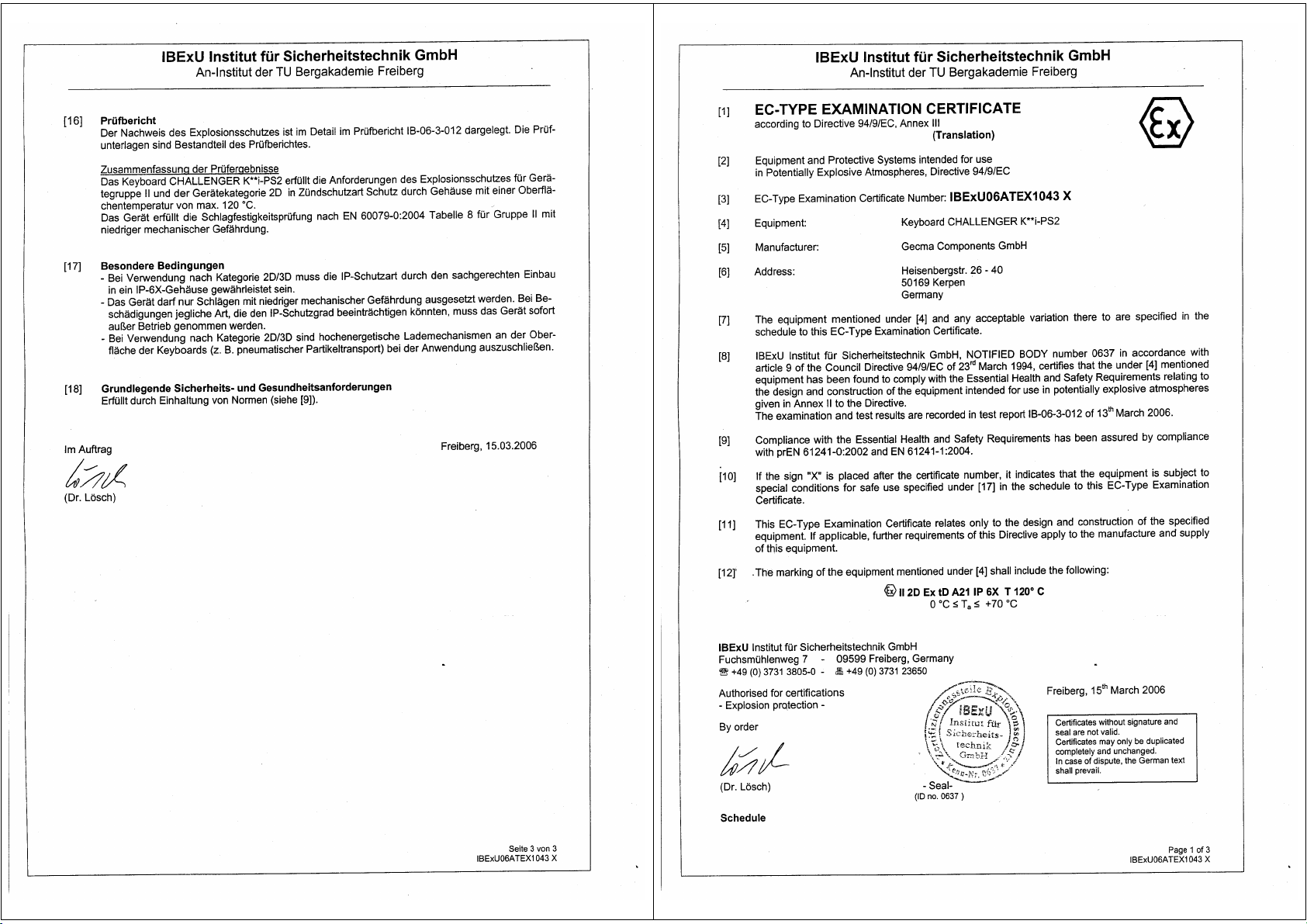

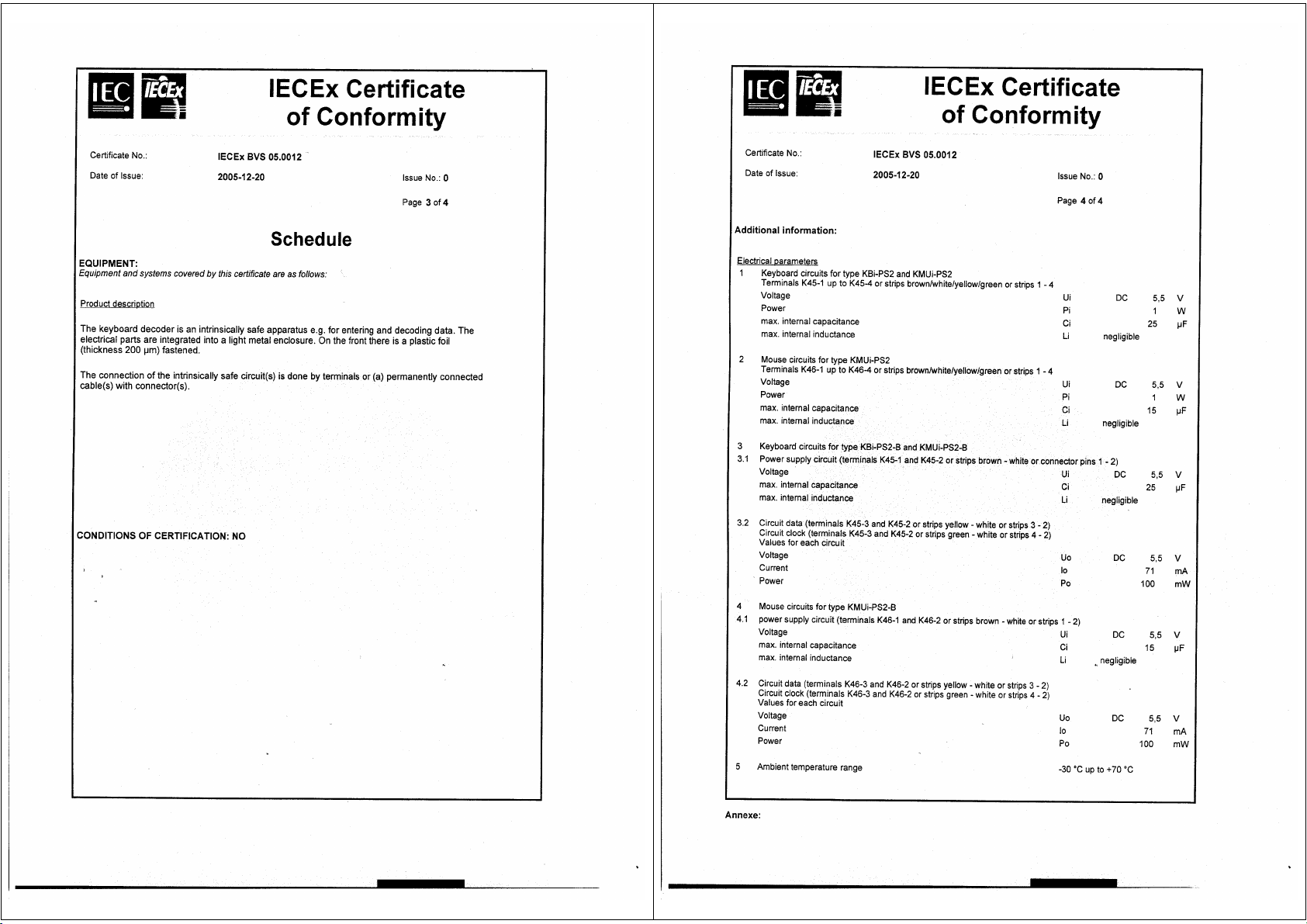

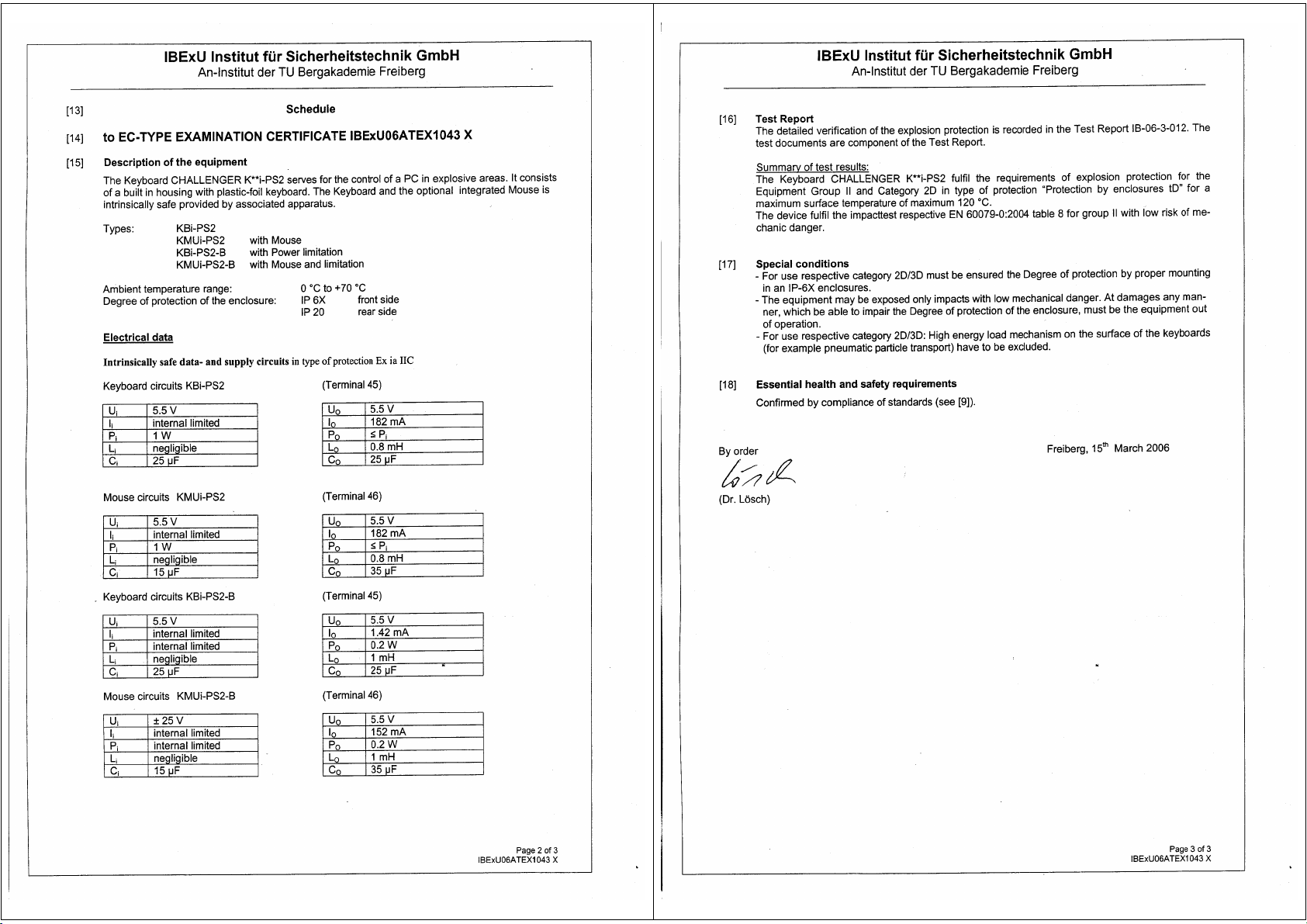

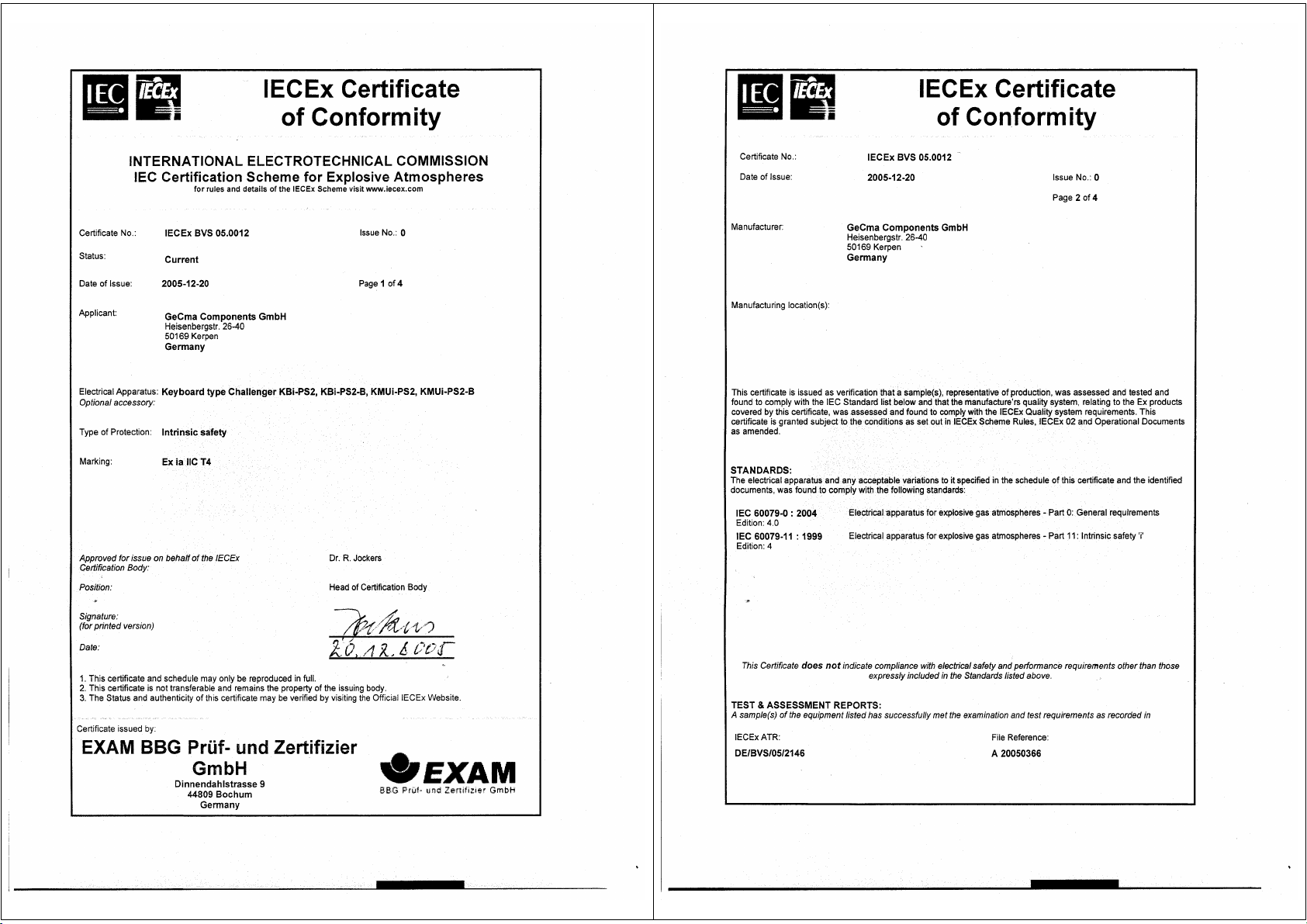

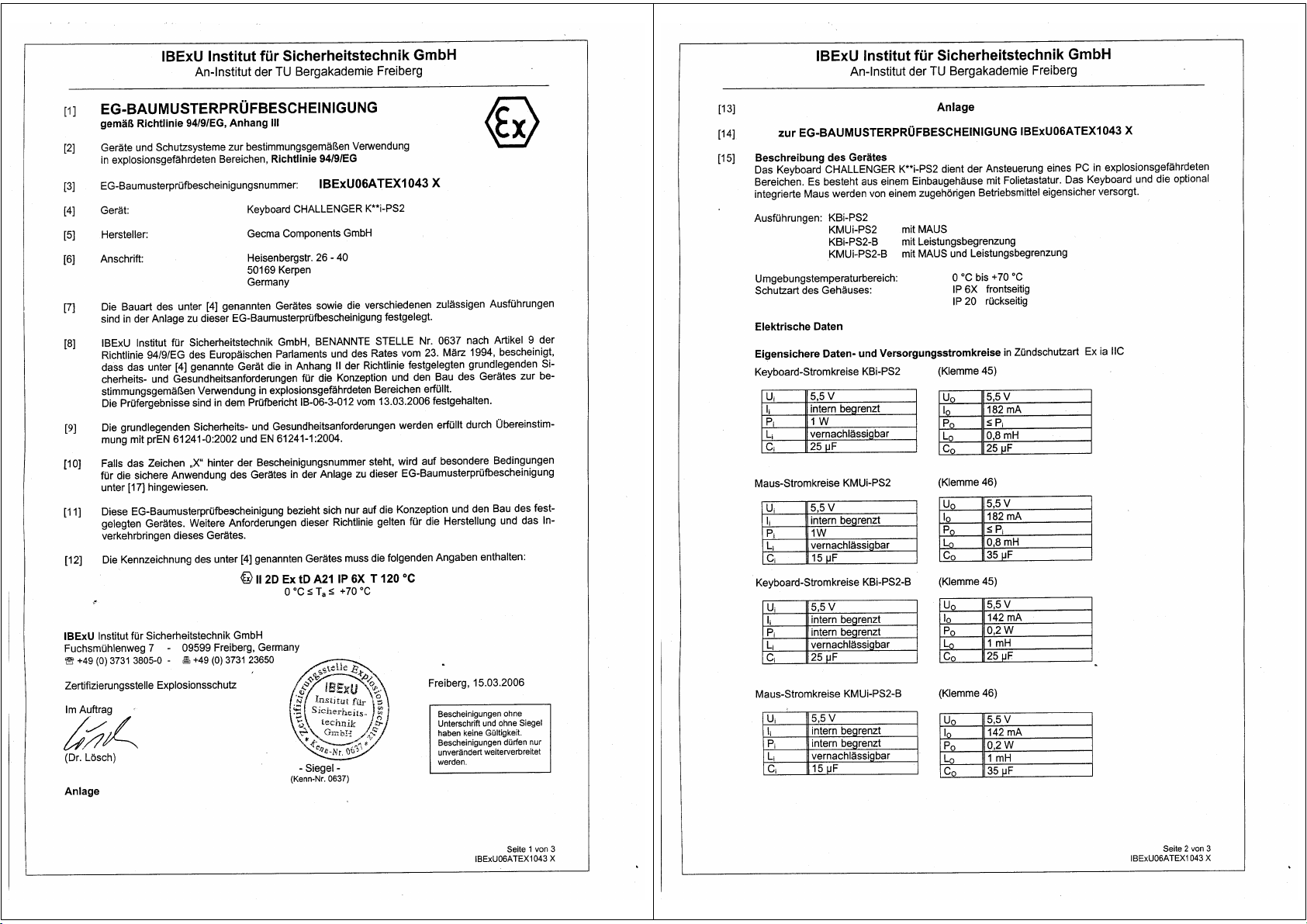

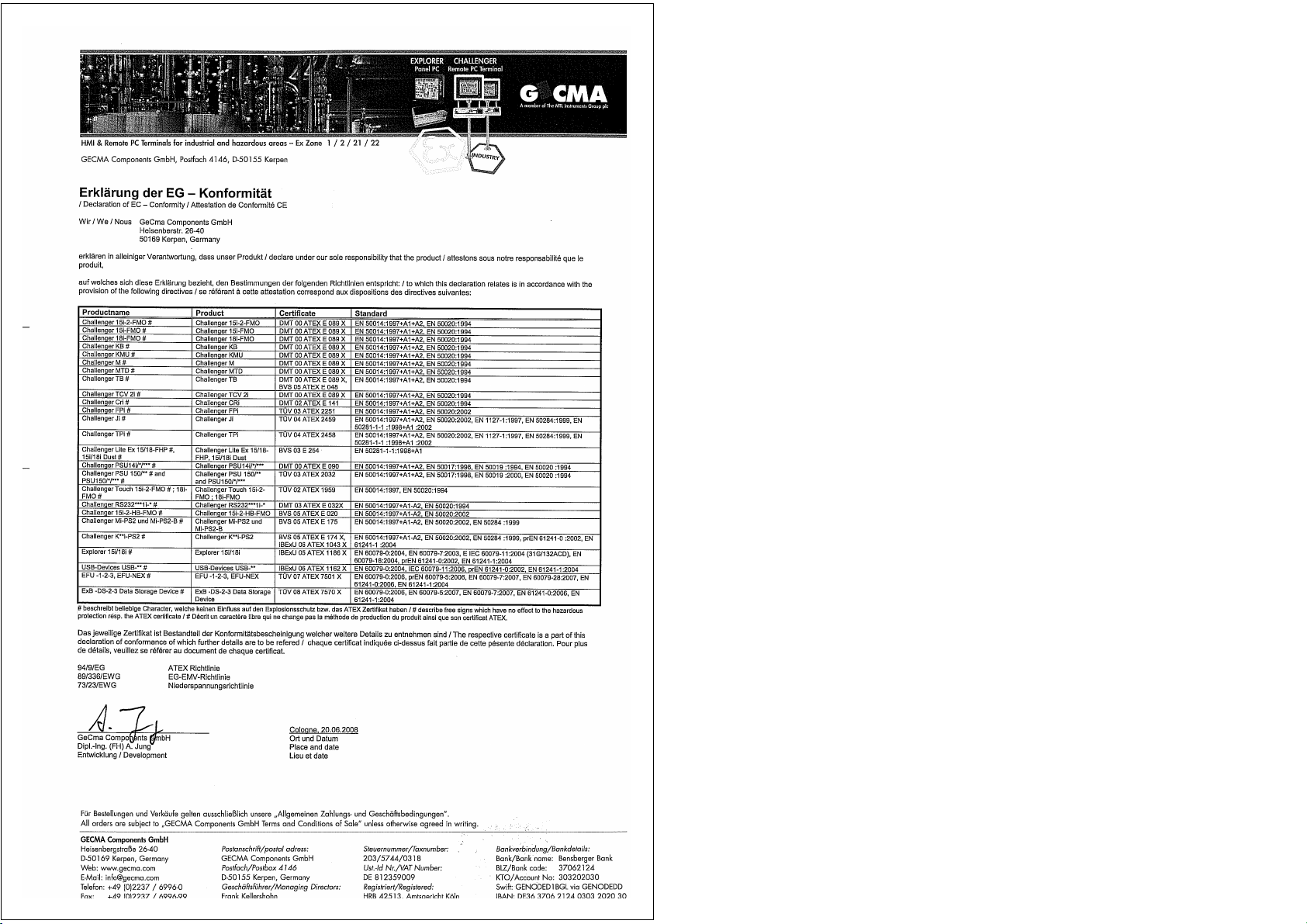

Please refer certificate for details

GECMA COMPONENTS GMBH WWW.GECMA.COM TEL. [phone] FAX. -99
MANUAL KBI_KMUI_B REV 1.5 EN.DOC 31.01.07 A.J. 4
Technical Data
Zone 0 Zone 1 Zone 21
International ignition
protection: II 1 G EEx ia IIC T4 II 2 G EEx ia IIC T4 II 2D Ex tD A21 IP 6X
T120°C
Ex ia IIC T4 Ex ia IIC T4
Operating temperature:
(10 to 90% rel. humidity,n.c.)
Ta: -20°C ... +60°C
(-4°F to 140°F)
Ta: -30°C ... +70°C
(-22°F to 158°F)
Ta: 0°C ... +70°C
(32°F to 158°F)
License: BVS 05 ATEX E 174 X BVS 05 ATEX E 174 X IBExU 06 ATEX 1043X
Housing material: Sheet steel / aluminum / Stainless Steel
Housing dimensions: see drawings
International protection encl.: Front side IP66 / NEMA 4X with expert installation.
Connection KBi-PS2 / KBi-PS2-B: Terminal K45 4 x (0,5-2,5)mm² rigid / flexible
or connecting line
Connection KMUi-PS2 / KMUi-PS2-B:
Keyboard: K45 4 x (0,5-2,5)mm² rigid / flexible
or connecting line
Mouse: K46 4 x (0,5-2,5)mm² rigid / flexible
or connecting line
Storage temperature: -40°C - +70°C (-40°F to 158°F), 10 to 90% rel. hum., n. cond.
KBi-PS2 and KMUi-PS2:
Keyboard:
⇒U
i KB max ≤5,5V
⇒I
i KB max ≤not important
⇒P
i KB max ≤1000mW
⇒C
i KB max ≤25uF
⇒L
i KB max ≤negligible
⇒U
o KB max ≤5,5V
⇒I
o KB max ≤182mA
⇒P
o KB max ≤Pi KB max
⇒C
o KB max ≤25uF
⇒L
o KB max ≤0,8mH

GECMA COMPONENTS GMBH WWW.GECMA.COM TEL. [phone] FAX. -99
MANUAL KBI_KMUI_B REV 1.5 EN.DOC 31.01.07 A.J. 5
Mouse at KMU:
⇒U
i M max ≤5,5V
⇒I
i M max ≤not important
⇒P
i M max ≤1000mW
⇒C
i M max ≤15uF
⇒L
i M max ≤negligible
⇒U
o M max ≤5,5V
⇒I
o M max ≤182mA
⇒P
o M max ≤Pi M max
⇒C
o M max ≤35uF
⇒L
o M max ≤0,8mH
KBi-PS2-B and KMUi-PS2-B:
Keyboard:
⇒U
i KB max ≤5,5V
⇒I
i KB max ≤not important
⇒P
i KB max ≤not important
⇒C
i KB max ≤25uF
⇒L
i KB max ≤negligible
⇒U
o KB max ≤Ui KB max
⇒I
o KB max ≤142mA
⇒P
o KB max ≤200mW
⇒C
o KB max ≤25uF
⇒L
o KB max ≤1mH
Mouse at KMU:
⇒U
i M max ≤5,5V
⇒I
i M max ≤not important
⇒P
i M max ≤not important
⇒C
i M max ≤15uF
⇒L
i M max ≤negligible
⇒U
o M max ≤Ui KB max
⇒I
o M max ≤142mA
⇒P
o KB max ≤200mW
⇒C
o M max ≤35uF
⇒L
o M max ≤1mH
Further details can be found in the license.

GECMA COMPONENTS GMBH WWW.GECMA.COM TEL. [phone] FAX. -99
MANUAL KBI_KMUI_B REV 1.5 EN.DOC 31.01.07 A.J. 6
Safety Instructions
General Safety Instructions
The instructions stated in this chapter are to be followed accurately to ensure a safe and reliable
operation.
The license and the special conditions included in it are to be observed.
Follow the national safety regulations and the accident prevention regulations.
The installation is only to be performed by specialists. These specialist must be familiar with the
characteristics of explosion-endangered facilities.
Incorrect or inadmissible application as well as non-observance of the instructions of this operating manual
make the guarantee void.
Only use this device for the approved purpose.
Conversions and modifications to the device are inadmissible.
The housing is only to be opened by the company Gecma Components GmbH.
Assembly
The national assembly and installation regulations are to be observed.
The generally accepted rules of engineering are to be observed.
The entire equipment is to be connected and operated correctly and properly according to the
applicable standards, guidelines and installation instructions.
The housing is to be grounded via grounding equipment. Grounding must be effected with a core cross section
of at least 4mm².
The device is only to be connected in a de-energized condition.
The intrinsically safe line system with supply and signal lines has to be effected in such a way that no error must be
considered between the individual circuits, see IEC 600-79-14, 12.2.2.8.
If the device has to be replaced in a dust atmosphere, the unit and/or the housing, in which the device is
installed, is to be de-energized first and if necessary cooled according to the regulations. Before opening the
device and/or housing and during the period in which the device and/or the housing is open, the environment of
the device and/or housing has to be kept dust-free to such an extent that no dust can enter the interior of the
housing. When installing a new device observe that all seals are in a flawless condition and function properly.
Before putting the device into operation make sure that the device has been installed as prescribed and
that the device and its wiring are not damaged.
If the power supply of the device is not intrinsically safe, the license will become void and it must not be
operated as an intrinsically safe device. If the device was operated intrinsically safely with a low level of
international protection (e.g. ib), it must not be operated afterwards in applications for a higher level of
international protection (e.g. ia).
Operation
The device is only to be operated in an undamaged and clean condition. When installed in dust
hazardous areas 2D/3D only clean the device with a wet cloth.
If the device has suffered any damages which might affect the international protection (e.g. cracks, holes
or broken components) it must be taken out of service immediately. The device can only be put into
operation again after the defect components have been exchanged.
When the keyboard is damaged, do not touch it any longer! Risk of injury!
If the device is to be used in a dust atmosphere dust layers >5mm have to be removed.
The devices (modules) may not be suspended impacts and/or frictions. High-energy load mechanisms at
the control surface of the equipment (e.g. pneumatic particle transport) are to be excluded with the use.
Only use the device for possible impacts with low risk of mechanic danger.
In the event of non-observance & non-compliance the stipulated explosion protection cannot be
guaranteed and/or the guarantee will become void!
Modifications require the written approval by the company GeCma Components GmbH.

GECMA COMPONENTS GMBH WWW.GECMA.COM TEL. [phone] FAX. -99
MANUAL KBI_KMUI_B REV 1.5 EN.DOC 31.01.07 A.J. 7
General Instructions
Before starting the assembly read the entire operating manual!
In cases of doubt (in the form of mistranslation) the German operating manual is to be
applied. We do not assume liability for misprints and errors in this operating manual.
Should you have any questions or suggestions please feel free to contact us any time:
GeCma Components GmbH
Heisenbergstraße 26 – 40
D-50169 Kerpen
Tel.: [phone] / 69 96 0
Fax: [phone] / 69 96 99
mailto:[email protected]
http://www.gecma.com
Technical progress
The manufacturer reserves the right to adjust all technical data without special
announcement according to the technical progress.
Repair work, hazardous material
The description of the respective fault(s) is in any case to be included with the devices which
are sent to GeCma Components GmbH for repair.
The following measures are to be taken before sending a device in for repair:
Please remove the entire adhering medium residue. Pay special attention to sealing grooves
and gaps which might contain medium residue. We have to ask you to refrain from sending
the device back if it is impossible for you to definitely guarantee that all health-endangering
material has completely been removed.
Costs which arise due to inadequate cleaning of the device for a potential disposal or for
personal injury (cauterisation, etc.) will be charged to the proprietor of the device.
Used trademarks
AT, IBM and PS/2 are registered trademarks of the International Business Machines Corporation.
Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation.
All other trademarks mentioned and depicted in the text are trademarks of the respective
owners and are recognized as registered.
