Gefen SDI-2-DVI User manual

Technical Support:
Telephone [phone]
[phone]
Fax [phone]
Technical Support Hours:
8:00 AM to 5:00 PM Monday through Friday PST.
Write To:
Gefen Inc.
c/o Customer Service
20600 Nordhoff Street
Chatsworth CA 91311
[email protected]
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
The SDI to DVI Adapter is a trademark of Gefen Inc.
© 2003 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE

TABLE OF CONTENTS
Introduction
Operation Notes
The SDI to DVI Adapter Supported Output Resolution
Infrared Remote Functions
RS422 Port
Wiring of the RS422-RS232 Cable
Recommended LCD Monitors
The SDI to DVI Adapter Firmware Update Procedure
Specications
Warranty
1
2
3
4
5
6
7
8
9
10

INTRODUCTION
Description
the SDI to DVI Adapter is a compact digital video interface that converts serial digital video
(SDI and HDSDI) to DVI (digital RGB). It automatically detects the input scan rate and
supports a wide variety of video formats including PAL, NTSC, 720p, 1080p and 1080i.
The SDI to DVI Adapter can be connected to computer LCD monitors, HDTV Televisions
with DVI input, video projectors and displays (Plasma, DLP, D-ILA etc.). It supports both
DVI-HDTV Televisions (no scaling) and DVI-LCD monitors (automatic scaling).
CONTENTS
The SDI to DVI Adapter consists of:
--- (1) SDI to DVI Adapter
--- (1) 12VDC Power Supply
--- (1) User Manual
1

OPERATION NOTES
2
On power up, the SDI to DVI Adapter will automatically detect the input format of the
SDI video and will send a message to the monitor connected via DVI requesting its
EDID. The EDID parameters of the connected monitor will be used by the SDI to DVI
Adapter to determine its output resolution.
The SDI to DVI Adapter can operate in two modes. Auto Mode (default) and Pass
Through Mode. In all output modes, the SDI to DVI Adapter will always keep the aspect
ratio of the input. If you notice a change in the aspect ratio, it would be caused by the
monitor and not by the SDI to DVI Adapter. Both output modes are described in detail
below.
Auto Mode
1. EDID reports 1024x768, 1280x720, 1280x768, 1280x800 or 1280x1024: In this case,
the output of the SDI to DVI Adapter will be set to match the resolution reported by EDID
2. EDID reports 1920x1200: The output will be set to 1280x800
3. EDID reports 1920x540 (common for HDTV): The output will be set to 1280x720
4. EDID reports none of the above resolutions: The output will be set to 1280x1024
5. EDID message not received (some special cables): The output will be set to
1280x1024
The SDI to DVI Adapter output can be forced out of Auto mode to a specic resolution
using the “1” button on a Sony infrared remote control. Pressing the “1” button will jump
through the following modes of operation:
Pass Through Mode
This mode can be invoked by pressing the RECALL or JUMP button on a standard Sony
infrared remote control. This mode is only available when the input format is: 1080p (24/
25/30), 1080i (48/50/60) and 720p (60). Using this mode for a PAL input will switch to
50Hz for NTSC there will be no effect.
In Pass Through Mode, the SDI to DVI Adapter-10 will output an the SDI to DVI Adapter
signal at the same resolution as the input format. For example, if the input is 1080i, the
DVI output will be set to 1920x540.
The advantages of Pass Through mode are:
1. No Delay: Since the SDI to DVI Adapter-10 does not perform any scaling the
conversion delay is minimal. When the SDI to DVI Adapter scales, the delay is 1 frame.
2. Pixel to Pixel: On monitors that have a resolution above 1920x1080 and support
1920x1080 HD formats, the input can be viewed pixel to pixel without any scaling.

The SDI to DVI Adapter works with all DVI monitors that support any of the following
resolutions:
Automatic Scaling: 1024x768, 1280x720, 1280x768, 1280x800, 1280x1024 all at 60Hz.
No Scaling: 1080p (1920x1080 @24/25/30), 1080i (1920x540 @48/50/60) and 720p
(1280x720 @60).
To save the output resolution to the SDI to DVI Adapter ash EPROM, press ENT,1,2,3
on your Sony infrared monitor. When you reboot the SDI to DVI Adapter, it will restore the
output mode from ash. The default output mode is Auto Mode.
If the input signal is PAL, you can force the output to 50Hz using the RECALL button on
your Sony infrared remote control.
THE SDI TO DVI ADAPTER SUPPORTED OUTPUT RESOLUTIONS
3

INFRARED REMOTE FUNCTIONS
4
Starting with version 0.96, the infrared remote functions are disabled at boot time. You
must press ENT,4,5,6 to enable them. This is a list of all the functions that are available
on the HDVI-10 using a standard Sony Infrared Remote Control:
· Input Select “TV/VIDEO”: Switches between SDI input A and input B. This feature is
available only with the dual-input HDVI-10-2.
· Set Pass Through Mode “RECALL” or “JUMP”: Toggles the HDVI-10 to Pass Through
ON, Frame Rate Only and OFF. Default is OFF.
· Set Color Mode “0”: Toggles the color mode between RGB 0-255, RGB 16-235, Blue
only and Blue only Bright. The default is RGB 0-255.
· Set Output Mode “1”: Toggles the output mode between: Auto, 1024x768, 1280x720,
1280x768, 1280x800 and 1280x1024.
· Save Current Settings to Flash “ENT,1,2,3”: Saves the current settings to ash.
When you press ENT, the HDVI-10 will not accept any of the remote commands
described above until you press 3 more buttons. If the combination you press is different
than 1,2,3, the save operation to ash memory will be aborted.
When you are done using the remote, you can disable its functionality by pressing
“ENT, 4,5,6"

The SDI to DVI Adapter has an RS422 port that can be used to view the current settings
of the unit. To connect the RS422 port to a PC you need a special RS422-RS232 cable
that can be purchased from Gefen by contacting [email protected] You can also
make the cable using the wiring diagram shown at the end of this document.
• Connect COM1 of the PC to the SDI to DVI Adapter using the RS422-RS232 cable
• Run HyperTerminal on your PC and make a direct connection on COM1
• Connection Properties should be set to: 38400 Bauds, 8 Data Bits, Odd Parity, 1 Stop
Bit, and None Flow Control.
When you power up the SDI to DVI Adapter, plug or unplug the SDI input or DVI output.
Messages will be displayed in the HyperTerminal window indicating the input and output
formats as well as the native monitor resolution reported by the EDID message.
Since the SDI to DVI Adapter does not have OSD capabilities, this is the only way to
verify the SDI to DVI Adapter's current settings.
Auto Mode shows the input format in the message, other modes don’t (see example
below)
• A “A” or “B” after the input format designates the input channel.
• A “p” after the output format designates a progressive output mode.
• A “PT” after the output format designates a pass through mode.
Typical output in Auto Mode (1280x1024
LCD)
Typical output in Non Auto Mode
(1280x1024LCD)
IN 480iA; OUT 1280x1024p; SC
1280x1024
OUT 1280x1024p; SC 1280x1024
pix_clk : 10800 pix_clk : 10800
activ_h : 1280 activ_h : 1280
blank_h : 408 blank_h : 408
activ_v : 1024 activ_v : 1024
blank_v : 42 blank_v : 42
RS422 PORT
5

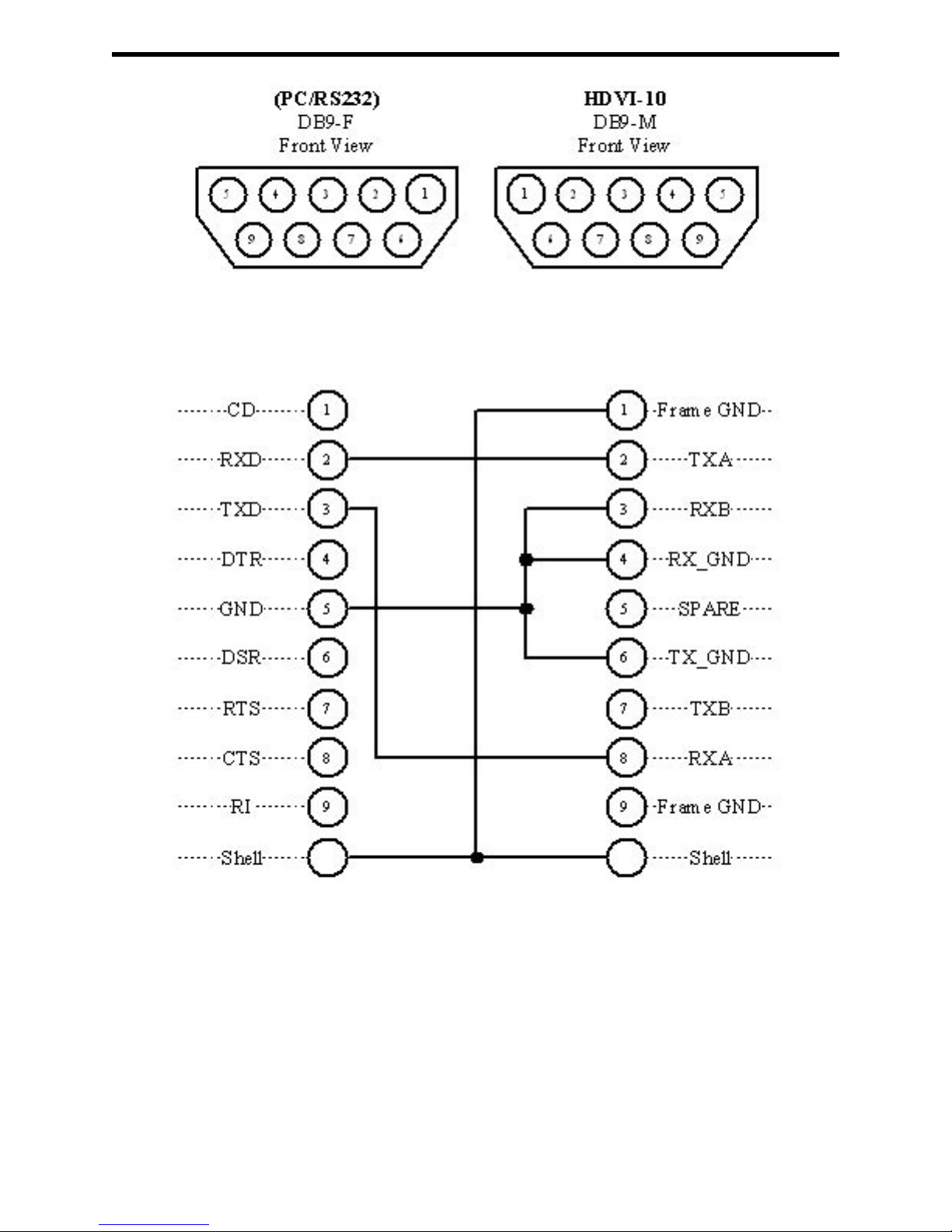

Wiring List: HDVI (1) to HDVI Shell to PC Shell
HDVI (2) to PC (2)
HDVI (8) to PC (3)
HDVI (3 + 4 + 6) to PC (5)
Note: For a true RS422 connection, you can use an adapter made by KK Systems (Part
Number K422-99). This adapter connects to the RS232 port on the PC and provides an
RS422 connection on the other side. To connect the K422-99 to the SDI to DVI Adapter,
use a standard RS422 cable (Male DB9 to Male DB9 pin to pin). A true RS422 connec-
tion allows for a better connection and longer cables.
WIRING OF THE RS422-RS232 CABLE
6

All LCD monitors that support the resolutions listed in this document would work prop-
erly with the SDI to DVI Adapter. Based on our tests and experience, we recommend
the following LCD monitors:
Samsung 172W (17”), NEC LCD1960SX (19”) and Samsung 240T (24”)
If your application uses 16x9 aspect ratio, select the Samsung 172W or 240T
If your application uses 4x3 aspect ratio, select the NEC LCD1960SX or LCD1980SX
For HDTVs and Projectors there is a large selection and Gefen has no specic recom-
mendations.
Note about the Viewsonic VP2290b
The VP2290b is a 3840x2400 monitor that supports all formats generated by the SDI
to DVI Adapter. In 1080p (24/25/30) pass through mode, this monitor shows the image
pixel to pixel. In addition this monitor is pre-adjusted according to ITU-709 to be used
as a high def. reference monitor. The combination of the SDI to DVI Adapter with the
VP2290b makes a low cost reference monitor that competes with CRT reference moni-
tors that are priced above $30,000 US Dollars.
Note about the Samsung 240T
The 240T is a 1920x1200 LCD monitor that supports all formats generated by the SDI
to DVI Adapter except 1080p. For 1080i @60 applications we recommend the Samsung
240T over the Sony SDM-P232 because the 240T can display 1080i @60 pixel to pixel.
Note about the Sony SDM-P232W
The SDM-P232 is a 1920x1200 LCD monitor that supports all formats generated by the
SDI to DVI Adapter except 1080i and 1080p.
Note about the Apple Cinema Displays
The Apple Cinema Displays 20” only supports a DVI signal at 1680x1050. The Apple
HD Cinema Displays 23” only supports a DVI signal at 1920x1200. Since the SDI to DVI
Adapter cannot output these resolutions, the Apple 20” and 23” monitors will not work
with the SDI to DVI Adapter.
Gefen Inc. plans to have a new version of the HDVI converter specically for the Apple
Cinema Displays available in the 2nd quarter of 2004. Current owners of the HDVI con-
verter can add this Cinema Display functionality by purchasing the upgrade.
RECOMMENDED LCD MONITORS
7

To update the rmware on the HDVI you will need the following les:
hdvi_set_ash_mode.exe, HDVI_ash.exe, HDVI_update.bat and the HDVI_090.bin
rmware le.
Setup
1. Use only a PC running Windows 2000 or Windows XP.
2. All four les listed above should reside in the directory where the command
prompt goes to by default. THIS IS VERY IMPORTANT. Open a Command Prompt Win-
dow and see what directory is listed and copy all four les into that same directory.
3. Connect COM-1 of your PC to the RS422 port of the HDVI using the RS422-
RS232 cable described in this document.
4. Connect your HDVI to a valid SDI source and monitor its output on a DVI moni-
tor.
Update using the HDVI_update.bat batch le
We created the HDVI_update.bat batch le to simplify the rmware update procedure.
1. Open a command prompt window.
2. Type HDVI_update and hit Enter (DO NOT RUN THE UPDATE BY DOUBLE
CLICKING ON THE HDVI_update.bat FILE)
3. Enter the COM port number and hit Enter. The monitor should lose its display
indicating that the HDVI has entered ash mode. If the monitor does not lose its display,
YOU SHOULD NOT CONTINUE. Contact [email protected].
4. Type “f HDVI090.bin” (note the space after f) or any other bin le you are upgrad-
ing to then hit Enter.
5. The upgrade process will start by erasing the existing ash and installing the new
one. When done the unit will return a “---- DONE ----” message.
6. Type: “r” then hit Enter to reset the HDVI and quit the application.
It is important to type “r” to reset and quit, otherwise you have to disconnect power from
the HDVI and then connect it back.
THE SDI TO DVI ADAPTER FIRMWARE UPDATE PROCEDURE
8

INPUT
SMPTE 259M-C (270Mbps) and SMPTE 292M (1.485, 1.485/1.001 Gbps)
NTSC, PAL,
720p @ 60, 59.94, 50, 30, 29.97 and 25Hz
1080p @ 30, 29.97, 25, 24 & 23.98Hz,
1080i @ 60, 59.94, 50, 48 & 47.95Hz
OUTPUT
DVI (Digital RGB) and DVI-HDTV (Digital RGB with HDTV resolution/frame rate)
Connector: DVI-D, Female, compliant to DVI 1.0
SUPPORTED MONITORS
Depending on your DVI monitor’s resolution, the HDVI will either scale the video to t
your screen, or output the video without scaling.
GENERAL
Size: Prox. 1 1/8th x 3  x 5  (28mm x 95mm x 14mm)
Power: External Power Adapter with a locking power connector
SPECIFICATIONS
9

Gefen Inc. warrants the equipment it manufactures to be free from defects in material
and workmanship.
If equipment fails because of such defects and Gefen Inc. is notied within one (1)
year from the date of shipment, Gefen System will, at its option, repair or replace the
equipment, provided that the equipment has not been subjected to mechanical, electrical
or other abuse or modications.
Equipment that fails under conditions other than those covered will be repaired at the
current price of parts and labor in effect at the time of repair. Such repairs are warranted
for ninety (90) days from the day of shipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or tness for any particular purpose, all
of which are expressly disclaimed.
The information in this manual has been carefully checked and is believed to be accurate.
However, Gefen Inc. assumes no responsibility for any inaccuracies that may be contained
in this manual. In no event will Gefen Inc., be liable for direct, indirect, special, incidental,
or consequential damages resulting from any defect or omission in this manual, even if
advised of the possibility of such damages. The technical information contained herein
regarding the SDI to DVI Adapter features and specications is subject to change without
notice.
WARRANTY
10
