3GSDI Audio Embedder
• The 1:8 Splitter for HDMI 4K x 2K has advanced EDID management features to
ensure complete compatibility with all sources and display devices.
See Setting the EDID Mode for more information.
• The 1:8 Splitter for HDMI 4K x 2K automatically detects the presence of Deep Color.
This feature will be disabled if any of the connected sink devices (displays, etc.) do not
support this feature. This behavior ensures compatibility among all output devices in a
mixed-device environment. This feature cannot be disabled.
Operating Notes
1:8 Splitter for HDMI 4K x 2K

vi
Features
• Simultaneously displays an Ultra Hi-Def source on up to eight Ultra HD displays
• Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and
1080p Full HD
• Supports 12-bit Deep Color
• 3DTV pass-through
• Lip Sync pass-through
• FST Technology speeds up HDCP authentication process
• Fast and Slow FST Modes
• Advanced EDID Management for rapid integration of source and displays
• Supports LPCM 7.1, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD Master
Audio™
• Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters
(not included)
• Field-upgradeable rmware using Mini-USB port
• Locking Power Supply
• Surface-mountable
• Available in Black or White
Packing List
The 1:8 Splitter for HDMI 4K x 2K ships with the items listed below. If any of these items are
not present in your box when you rst open it, immediately contact your dealer or Gefen.
• 1 x 1:8 Splitter for HDMI 4K x 2K
• 1 x 6 ft. HDMI cable (M-M)
• 1 x 5V DC locking power supply
• 1 x Quick-Start Guide
1:8 Splitter for HDMI 4K x 2K
Features and Packing List
1080P
®
7.1
Audio
F
AST
S
WITCHING
T
ECHNOLOGY

3GSDI Audio Embedder1:8 Splitter for HDMI 4K x 2K
Table of Contents
viii
01 Getting Started
Panel Layout ......................................................................................................... 2
Installation ............................................................................................................. 4
Connecting the 1:8 Splitter for HDMI 4K x 2K............................................... 4
Sample Wiring Diagram ................................................................................ 4
02 Operating the
1:8 Splitter for HDMI 4K x 2K
Setting the Switching Mode................................................................................... 8
What is Fast Switching Technology? ............................................................ 8
Using Fast Mode ........................................................................................... 8
Using Slow Mode .......................................................................................... 9
Setting the Audio Channel Mode......................................................................... 10
Using 2-Channel Audio ............................................................................... 10
Using Multichannel Audio............................................................................ 11
Setting the EDID Mode........................................................................................ 12
Using the Internal EDID .............................................................................. 12
Using the External EDID ............................................................................. 13
03 Appendix
Wall Mounting Instructions .................................................................................. 16
Firmware Upgrade Procedure............................................................................. 17
Specications ...................................................................................................... 18

18
SOURCE DISPLAYS
:Splitter for
HDMI with Ultra HD
4K x 2K support
01 Getting Started
Panel Layout ......................................................................................................... 2
Installation ............................................................................................................. 4
Connecting the 1:8 Splitter for HDMI 4K x 2K............................................... 4
Sample Wiring Diagram ................................................................................ 4

page | 2
(Black nish shown)
Getting Started
Panel Layout
1
2
3
4
5
8
6 7

page | 3
Getting Started
Panel Layout
ID Name Description
1 Out 1 - Out 8 Connect an Ultra HD display to each of
these ports using HDMI cables.
2FST (Fast / Slow) Use this slider switcher to switch between
Fast and Slow FST (Fast Switching
Technology) modes. See Setting the
Switching Mode for more information on
using FST mode.
3Audio (2ch / Multi-ch) Use this slider switcher to switch between
2CH and Multichannel audio on the output.
See Setting the Audio Channel Mode for
more information on using this feature.
4EDID (Int / Ext) Use this slider switch to switch between
internal (Int) and external (Ext) EDID
modes. See Setting the EDID Mode for
more information.
5 In Connect the included HDMI cable from the
Ultra Hi-Def source to this HDMI port.
6USB Used for upgrading the rmware.
See Firmware Upgrade Procedure for more
information.
7 5V DC Connect the included 5V DC power supply to
this locking power receptacle.
8 Power This LED indicator will glow bright blue
when the included 5V DC power supply
is connected between the splitter and an
available electrical outlet.

Page Title
page | 4
Getting Started
Installation
Connecting the 1:8 Splitter for HDMI 4K x 2K
1. Use the included HDMI cable to connect the Ultra Hi-Def source to the In port on the
splitter.
2. Connect up to eight Ultra Hi-Def displays to the Out (1 - 8) ports on the splitter.
3. Connect the included 5V DC locking power supply to the power receptacle on the
splitter. Do not overtighten the locking power connector.
4. Connect the included AC power cord from the power supply to an available electrical
outlet.
Sample Wiring Diagram
GTB-HD4K2K-148
HDMI CABLE
Gefen
Ultra HD
Source
Ultra HD
Display
Ultra HD
Display
Ultra HD
Display
Ultra HD
Display
Ultra HD
Display
Ultra HD
Display
Ultra HD
Display
Ultra HD
Display
Ultra HD
Splitter for HDMI

18
SOURCE DISPLAYS
:Splitter for
HDMI with Ultra HD
4K x 2K support
02 Operating the
1:8 Splitter for HDMI 4K x 2K
Setting the Switching Mode................................................................................... 8
What is Fast Switching Technology? ............................................................ 8
Using Fast Mode ........................................................................................... 8
Using Slow Mode .......................................................................................... 9
Setting the Audio Channel Mode......................................................................... 10
Using 2-Channel Audio ............................................................................... 10
Using Multichannel Audio............................................................................ 11
Setting the EDID Mode........................................................................................ 12
Using the Internal EDID .............................................................................. 12
Using the External EDID ............................................................................. 13

page | 8

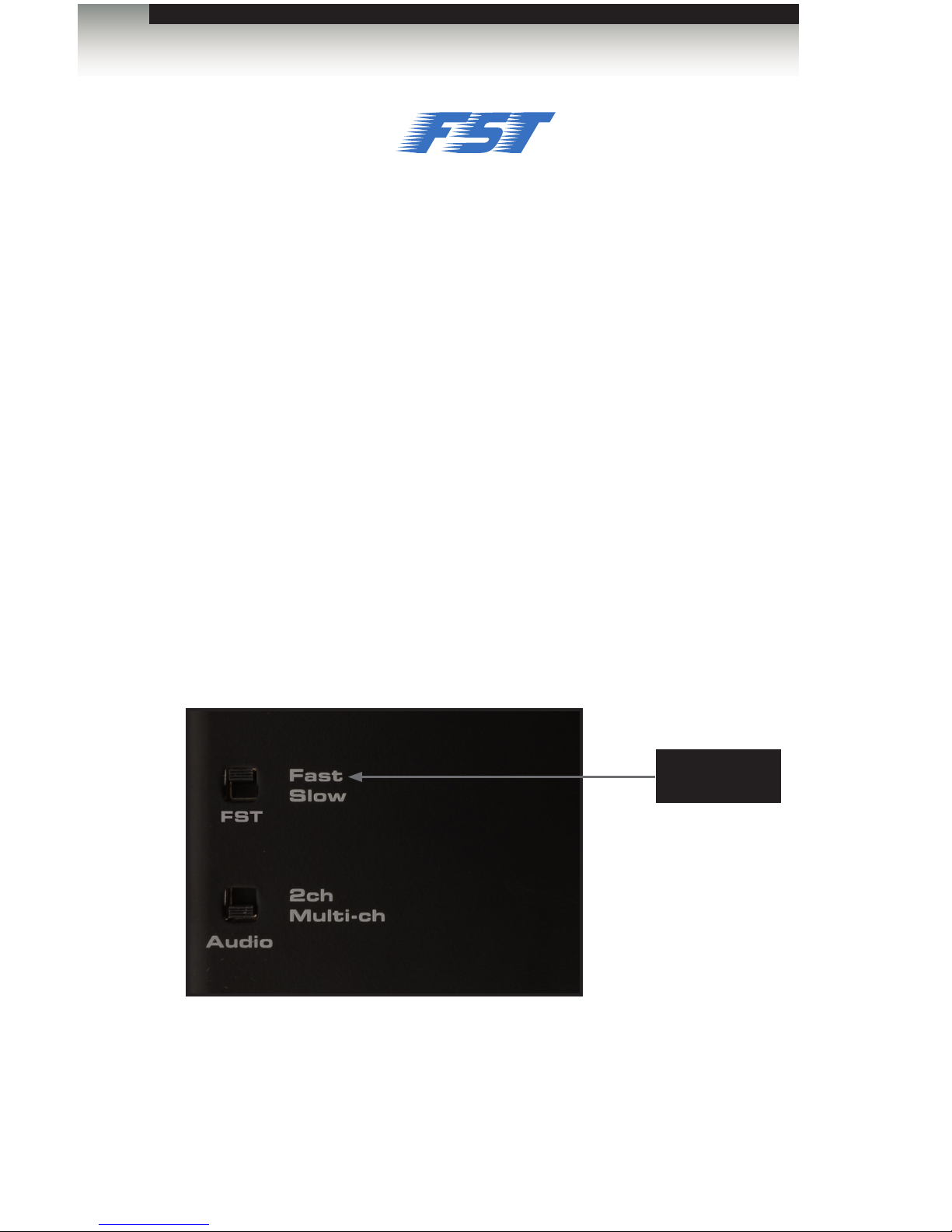

What is Fast Switching Technology?
Fast Switching Technology (FST) is a Gefen software implementation for HDMI products.
FST was created to improve the lengthy HDMI authentication process, based on the HDMI
and HDCP specications.
FST provides quicker audio/video source switching and greatly improves the overall audio/
video system behavior and performance when more than one HDTV display is used in the
system setup.
FST allows connecting / disconnecting or turning ON / OFF of HDTV displays without
having these activities affect other Hi-Def sources routed to any other HDTV display in the
same system.
Using Fast Mode
Use fast switching mode to improve performance when connecting / disconnecting Hi-Def
sources, and powering ON / OFF HDTV displays.
1. Disconnect the power supply from the 1:8 Splitter for HDMI 4K x 2K.
2. Set the FST switch to the Fast position.
3. Reconnect the power supply to the splitter.
If the FST switch is moved from the Slow position to the Fast position while the
splitter is powered, then power-cycle the splitter by disconnecting and reconnecting
the power supply in order for the change to take effect.
FAST SWITCHING TECHNOLOGY
Operating the 1:8 Splitter for HDMI 4K x 2K
Setting the Switching Mode
Set to the
Fast position

page | 9
Using Slow Mode
When set to slow switching mode, the 1:8 Splitter for HDMI 4K x 2K will follow the standard
authentication process, based on the HDMI and HDCP specications. Slow mode is
recommended when the source does not support multiple devices.
1. Disconnect the power supply from the splitter.
2. Set the FST switch to the Slow position.
3. Reconnect the power supply to the splitter.
If the FST switch is moved from the Fast position to the Slow position while the
splitter is powered, then power-cycle the splitter by disconnecting and reconnecting
the power supply in order for the change to take effect.
Operating the 1:8 Splitter for HDMI 4K x 2K
Set to the
Slow position
Setting the Switching Mode

page | 10
The 1:8 Splitter for HDMI 4K x 2K features a switch that will switch between 2-channel and
multichannel audio output.
Using 2-Channel Audio
Use this audio mode when all displays (and/or other sink devices) support only 2-channel
LPCM audio.
1. Disconnect the power supply from the splitter.
2. Set the EDID switch to the Int position.
3. Set the Audio switch to the 2ch position.
4. Reconnect the power supply to the splitter
If the Audio switch is moved from the Multi-ch position to the 2ch position while the
splitter is powered, then power-cycle the splitter by disconnecting and reconnecting
the power supply in order for the change to take effect.
5. The internal EDID will restrict the audio output to the following format, regardless of
the audio input format:
Audio Format Speaker Allocation
LPCM 2CH FL / FR
Operating the 1:8 Splitter for HDMI 4K x 2K
Setting the Audio Channel Mode
NOTE: In order for the audio channel mode to be selected, the
EDID switch must be set to the Int position. If the EDID switch is
set to the Ext position, then the Audio switch will have no effect
on the audio output signal. See Setting the EDID Mode for more
information on using the EDID.
Set to the 2ch
position
