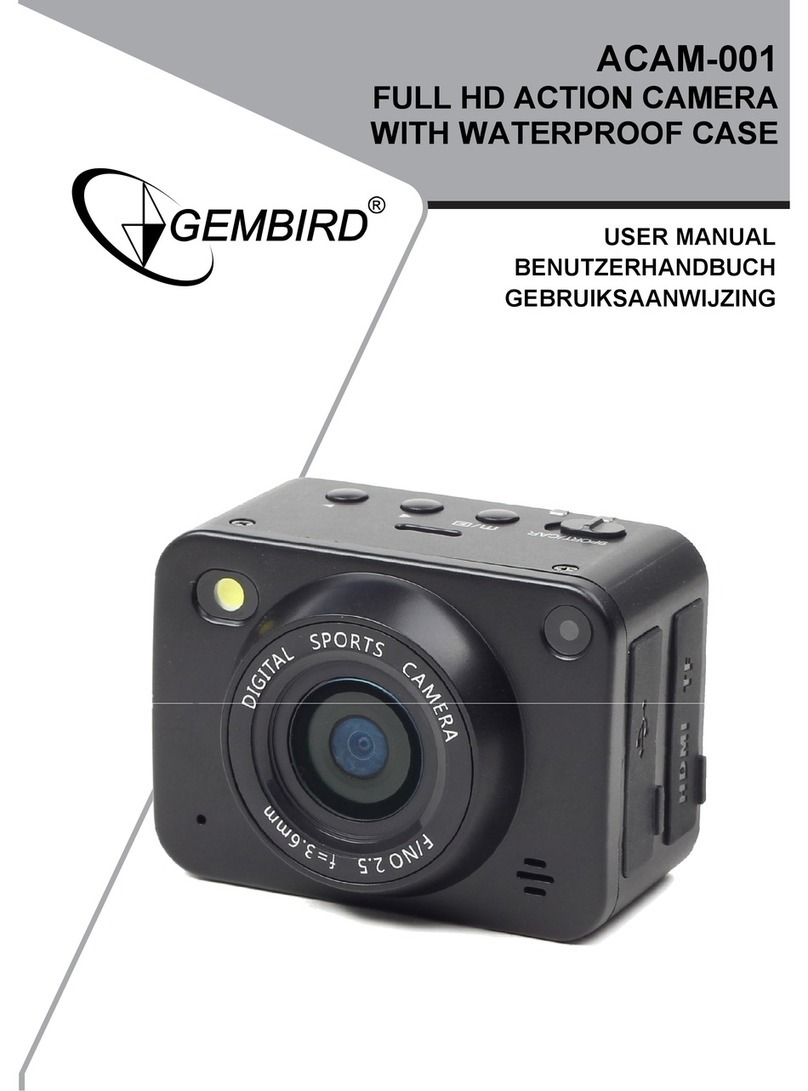

Gembird ACAM-1 User manual

QUICK INSTALLATION GUIDE
KURZANLEITUNG
HANDLEIDING VOOR SNELLE INSTALLATIE
GUIDE D'UTILISATION RAPIDE
КРАТКОЕ РУКОВОДСТВО ПО УСТАНОВКЕ
КОРОТКИЙ ПОСІБНИК З ВСТАНОВЛЕННЯ
FULL HD ACTION CAMERA WITH WATERPROOF CASE
FULL HD ACTION CAM MIT WASSERFESTEM GEHÄUSE
WATERDICHTE FULL HD ACTION CAMERA
CAMERA FULL HD TYPE WATERPROOF
КАМЕРА ВЫСОКОЙ ЧЕТКОСТИ ДЛЯ АКТИВНОЙ СЪЕМКИ, С
ВОДОНЕПРОНИЦАЕМЫМ ЧЕХЛОМ
КАМЕРА ВИСОКОЇ ЧІТКОСТІ ДЛЯ АКТИВНОЇ ЗЙОМКИ, З
ВОДОНЕПРОНИКАЮЧИМ ЧОХЛОМ
ACAM-001

2
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
ACAM-001
FULL HD ACTION CAMERA WITH WATERPROOF CASE
Features
Full HD 1080p action camera with built-in microphone and speaker
140 degrees ultra wide angle lens with 4X digital zoom
Includes professional waterproof case (up to 30 m)
Integrated laser pointer for precise and easy targeting
Smooth operation under lower illumination (Night mode)
Automatically starts recording when the car is started (Car mode)
Stores hours of video material on removable Micro-SD card (not
included)
Built-in 1.5” color LCD screen
Uninterrupted seamless cycle recording (Car mode)
Supports single-, triple- and serial shooting and interval recording
Practical instant snapshot button
Complete set with multiple accessories
Specifications
Interfaces: USB 2.0, HDMI
Wireless remote control (optional): 433.92 MHz, sensitivity: transmitting
-60 dB, receiving: -108 dB
LCD: 1.5'' TFT
Image sensor: CMOS 5 Mega pixels, 3.6 mm lens system

3
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
ACAM-001
FULL HD ACTION CAMERA WITH WATERPROOF CASE
Video resolution: 1920 x 1080 (30 FPS), 1280 x 720 (30 FPS), 848 x
480 (60 FPS), 50 MB/minute
Video output: HDMI CTS1.2, color coding NTSC/PAL
Photo resolution: 12 / 8 / 5 / 3 Megapixel
Focus: 1 m ~ infinity, 4x digital zoom
Electronic shutter speed: 1/2 - 1/1000 seconds
Memory: Supports TF/Micro SD Cards ( Speed class 10, max. 32 GB)
Output: HDMI & USB
Battery: built-in 800 mA Lithium battery
Charging time: 2.5 hours
Car charger: 12/24 V DC input, 5 V DC output up to 1.5 A
Color: black
Dimensions: 60 x 44 x 39.5 mm
Weight: 55 g
Operating conditions: -10 - 60 ℃ at 10-80% humidity

4
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
ACAM-001
FULL HD ACTION CAMERA WITH WATERPROOF CASE
Menu

5
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
ACAM-001
FULL HD ACTION CAMERA WITH WATERPROOF CASE
+

6
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
ACAM-001
FULL HD ACTION CAMERA WITH WATERPROOF CASE
a
b
c

7
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
ACAM-001
FULL HD ACTION CAMERA WITH WATERPROOF CASE

8
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
ACAM-001
FULL HD ACTION CAMERA WITH WATERPROOF CASE

9
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
ACAM-001
FULL HD ACTION CAMERA WITH WATERPROOF CASE
a
b

10
GEMBIRD EUROPE B.V. http://www.gembird.eu
All brands and logos are registered trademarks of their respective owners
ACAM-001
FULL HD ACTION CAMERA WITH WATERPROOF CASE
Menu
MODE
Menu
Menu settings
Note
Audio
√/×
√:Record ×:Record a
scene video
Loop video
Sport/car
Switch on/off
Motion detecting
ON/OFF
ON：Images were
observed changes then
automatically recording.
Loop video cycle
OFF/1min/ 3min/ 5min
ON: automatically deleted
the earliest files while the
card full
Gravity induction
intensity
Stair/two stage/three level/band
four/OFF
Level 4 is the most
sensitive
The white
balance
automatic/sunshine/cloudy/fluorescent
lamp/ tungsten wire
Image resolution
1920*1080/1280*720/848*480（60
the special
effects
Color/Black and White/Sepia
Night shoot
mode
ON/OFF
Recording
Pour screen
√/×
White balance
automatic/sunshine/cloudy/fluorescent
lamp/ tungsten wire
Image resolution
12M/8M/5M/3M
Special efficiency
Color/Black and White/Sepia
Camera
Night shoot
ON/OFF
