geminox MERITE ZEM 2-17 C Owner's manual

T
E
C
H
N
I
C
A
L
High technology heating
I
N
S
T
R
U
C
T
I
O
N
S
T30.37902.03
SERVICING
Gas conversion
Maintenance
Operating faults
Options
Parts lists
Merite
ZEM 2-17 C
ZEM 5-25 C / ZEM 5-25 SEP

- 2 -
CONTENT
I - GAS CONVERSION .............................................................................................................................. 3
1 - GAS CHANGE ....................................................................................................................................... 3
1.1 - Conversion from natural gas to propane (option) ...................................................................... 3
2 - GAS/CO2/CO/NOX FLOW CONTROL AND SERVICE PRESSURE CONTROL ................................. 4
2.1 - Surveillance procedure .............................................................................................................. 5
2.2 - Setting table ............................................................................................................................... 6
II - MAINTENANCE .................................................................................................................................... 7
1 - SERVICING THE FAN AND THE BURNER.......................................................................................... 7
2 - SERVICING THE HEAT EXCHANGER OF THE BOILER SHELL........................................................ 9
3 - SERVICING THE PLATE EXCHANGER............................................................................................... 9
4 - CHECKING ACCESSORIES ................................................................................................................. 9
5 - EXPANSION VESSEL PRE-INFLATION PRESSURE CHECK .......................................................... 10
6 - FLAME SETTING ................................................................................................................................ 10
7 - COMBUSTION PRODUCT CONDUITS .............................................................................................. 10
8 - DRAINING ........................................................................................................................................... 11
9 - SENSOR RESISTANCES ................................................................................................................... 11
III - OPERATING FAULTS ........................................................................................................................ 12
1 - OPERATING FAULTS LIST ................................................................................................................ 12
IV - OPTIONS ............................................................................................................................................. 13
1 - REGULATION OF ROOM TEMPERATURE ....................................................................................... 13
1.1 - Room thermostat (REG 50) ..................................................................................................... 13
1.2 - Room thermostat (REG 151) ................................................................................................... 13
1.3 - QAA 53 room unit kit (REG 54) ............................................................................................... 13
1.4 - QAA 73 room terminal kit (REG 74) ........................................................................................ 13
2 - SELECTOR VALVE KIT FOR CONNECTING ZEM..C/BS.................................................................. 14
3 - EXTERNAL SELECTOR VALVE KIT FOR CONNECTING ZEM..C/BS.............................................. 14
4 - UNDERFLOOR HEATING SAFETY THERMOSTAT .......................................................................... 14
5 - BS TYPE DOMESTIC HOT WATER PRODUCTION SYSTEM .......................................................... 15

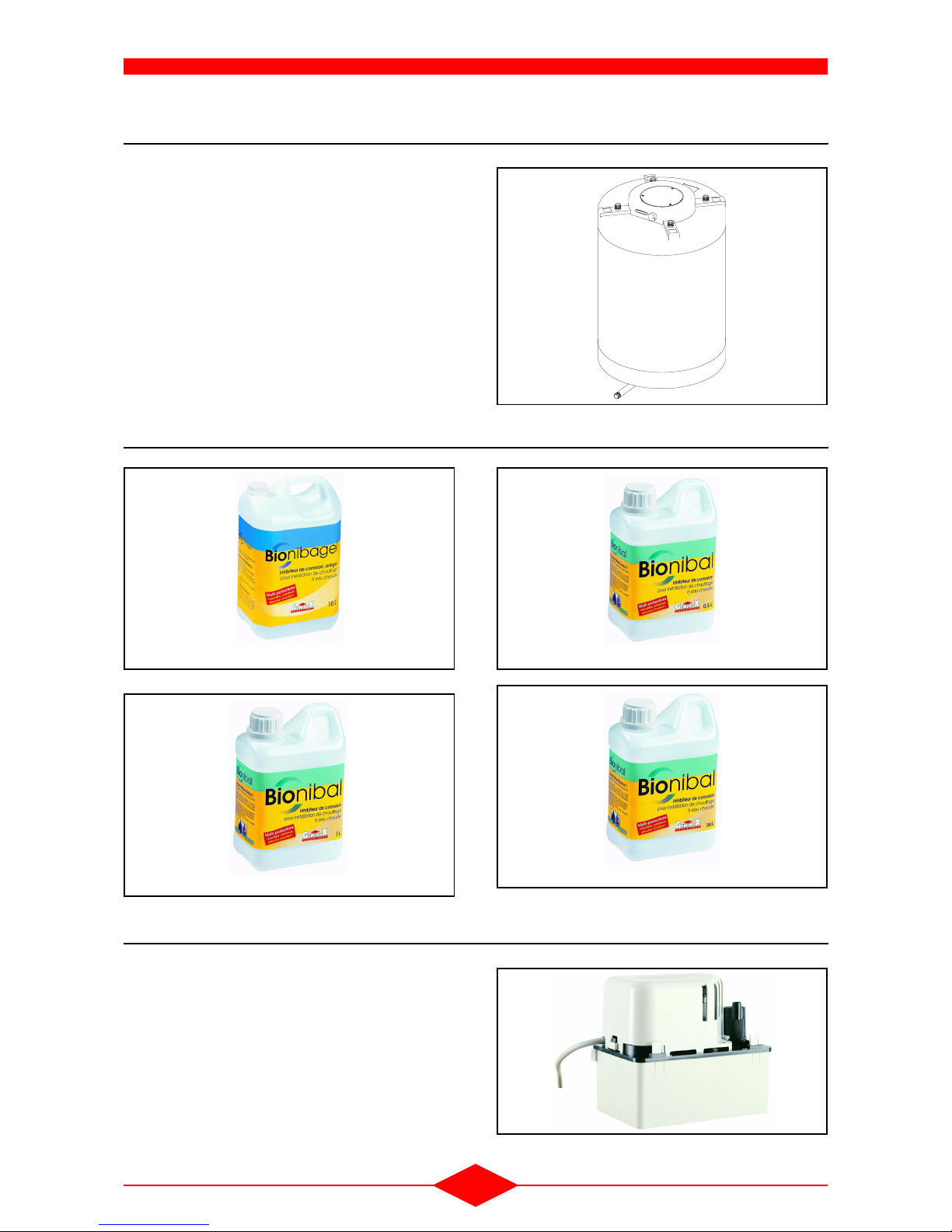

6 - BIONIBAL/BIONIBAGEL...................................................................................................................... 15
7 - CONDENSATE LIFT PUMP ................................................................................................................ 15
V - PARTS LIST ........................................................................................................................................ 16

- 3 -
I - GAS CONVERSION
Check that the boiler is properly adapted to the gas
used, otherwise change the gas.
1 - GAS CHANGE
This operation must be carried out by
a qualified person equipped with a cal-
ibrated combustion analyser.
Prior to any servicing cut the electrical and gas sup-
plies.
The boiler is equipped to operate on natural gas H
(G20), 20 mbar.
When changing the gas, the “gas setting” label that
is in the burner kit must be fixed on the inside of the
boiler so as to indicate the new setting.
Check the gas circuit for leak tightness after each in-
tervention on the boiler.
To obtain the conversion from natural gas H to pro-
pane, order the gas conversion kit and follow the in-
structions given in the explanatory guide of the kit
(ref.: V09.36620).
!
2
1
4
5
7
89
10
6
3
ZEM-28-0
11

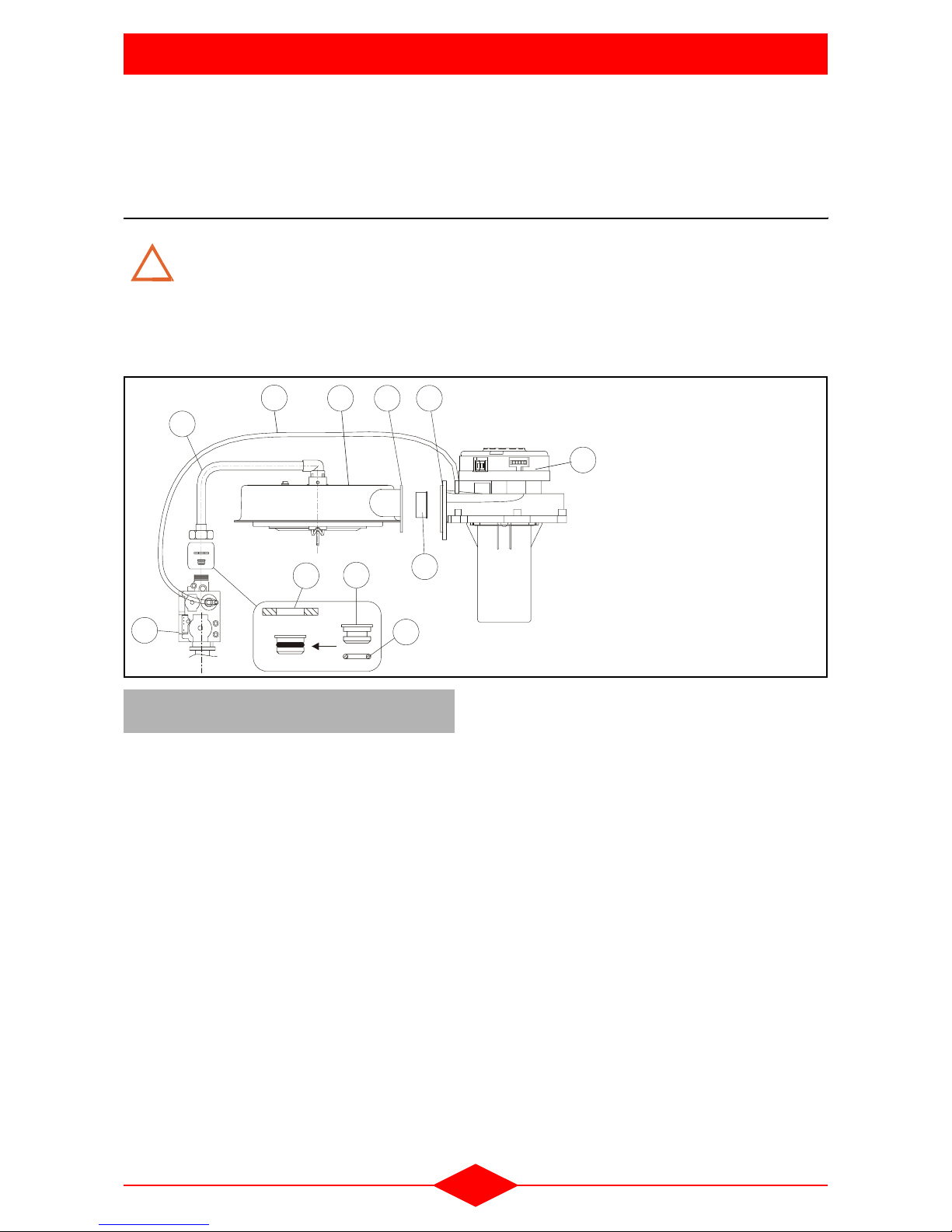

Fig. 1
1) Gas unit
2) Gas pipe
3) Flange Burner
4) Burner
5) Air/Gas servo-control
6) Brass air reducer (Propan only)
7) Fan
8) Flat seal
9) Gas reducer
10) Gas reducer o-ring
11) Burner air sleeve
1.1 - Conversion from natural gas to
propane (option)

- 4 -
GAS CONVERSION
2- GAS/CO
2/CO/NOXFLOW CONTROL AND SERVICE PRESSURE CONTROL
Po V
Pi
K
PL
ZEM-54-0
1
PL
2
P_OUT
P_IN
P_IN =Network gas pressure
Natural gas H (G20): 20 mbar,
Propane (G31): 37 mbar.
P_OUT = Outlet gas pressure to the burner.
PL = Air pressure control (Fan-Gas valve)
1 = Adjust the slope of the characteristic of the air/gas ratio only
when the burner is at high rate. This setting is carried out in
the factory for natural gas type H (G20). This means that the
pressure “P_OUT” can be changed to obtain the required gas
flow (section 2.2 - page 6 - chapter I - GAS CONVERSION -
SERVICING MANUAL).
Screw to decrease the gas flow
2 = Adjust the parallel shift of the characteristic of the air/gas ratio
only when the burner is at low rate.This screw is pre-set in
the factory. Its setting must not be normally modified even for
changing gas. If however an adjustment is required, it may be
carried out with a low scale pressure gauge 0-10 mmCE, and
a CO2, CO analyser
To modify the setting, if it is required, take off the protection
screw, and screw to increase the gas flow. When the ad-
justments are realized, reset the protection screw.
!
Fig. 2 Pi= Network gas pressure
Natural gas H (G20): 20 mbar,
Propane (G31): 37 mbar.
Po= Outlet gas pressure to the burner.
PL = Air pressure control (Fan-Gas valve)
V = Adjust the slope of the characteristic of the air/gas ratio only
when the burner is at high rate. This setting is carried out in
the factory for natural gas type H (G20). This means that the
pressure Po can be changed to obtain the required gas flow
(section 2.2 - page 6 - chapter I - GAS CONVERSION -
SERVICING MANUAL).
Screw to increase the gas flow
K = Adjust the parallel shift of the characteristic of the air/gas ratio
only when the burner is at low rate. This screw is pre-set in
the factory. Its setting must not be normally modified even for
changing gas. If however an adjustment is required, it may be
carried out with a low scale pressure gauge 0-10 mmCE, and
a CO2, CO analyser. Screw to increase the gas flow
GAS VALVE
SIEMENS/LANDIS
ref: VGU87A0236
GAS VALVE
SIT
ref : 848 SIGMA
!

- 5 -
GAS CONVERSION
Combustion control is carried out through the open-
ing (23) provided for this purpose after the cap is re-
moved. This opening must be closed again after
checking.
- To carry out the surveillance procedure:
• activate the shutdown function of the regulator
by means of the safety test function
(section 2.5 - page 13 - chapter III - OPERA-
TION - INSTALLATION MANUAL).
- move the heating setting button to obtain maxi-
mum power:
• the burner switches to max. rate,
- Gradually move the V or 1 adjustment screw of
the gas unit (fig. 2 - page 4 - chapter I - GAS
CONVERSION - SERVICING MANUAL).
-ChecktheCO
2/CO ratio (see setting table
section 2.2 - page 6 - chapter I - GAS CONVER-
SION - SERVICING MANUAL),
- move the heating setting button to obtain maxi-
mum power:
• the burner switches to the minimum rate,
-ChecktheCO
2/CO ratio (see setting table
section 2.2 - page 6 - chapter I - GAS CONVER-
SION - SERVICING MANUAL),
- If necessary:
•adjustscrewK or 2 (fig. 2 - page 4 - chapter I
- GAS CONVERSION - SERVICING MANU-
AL) (tightening and untightening increases and
decreases gas flow).
Before starting the minimum rate set-
ting (V or 1 and K or 2 screws), wait for
a stable CO2/CO analyser read-out. Re-
peat switching from the minimum rate
to the maximum rate several times to
ensure that the setting has been done
properly.
- return to normal operation by deactivating the
regulator shutdown function (refer to
section 2.5.3 - page 13 - chapter III - OPERA-
TION - INSTALLATION MANUAL).
Note:
- Remember to reposition the d.h.w. setting button
to return to the required d.h.w. setting chosen by
the customer.
2.1 - Surveillance procedure
23
ZEM-36-0
23

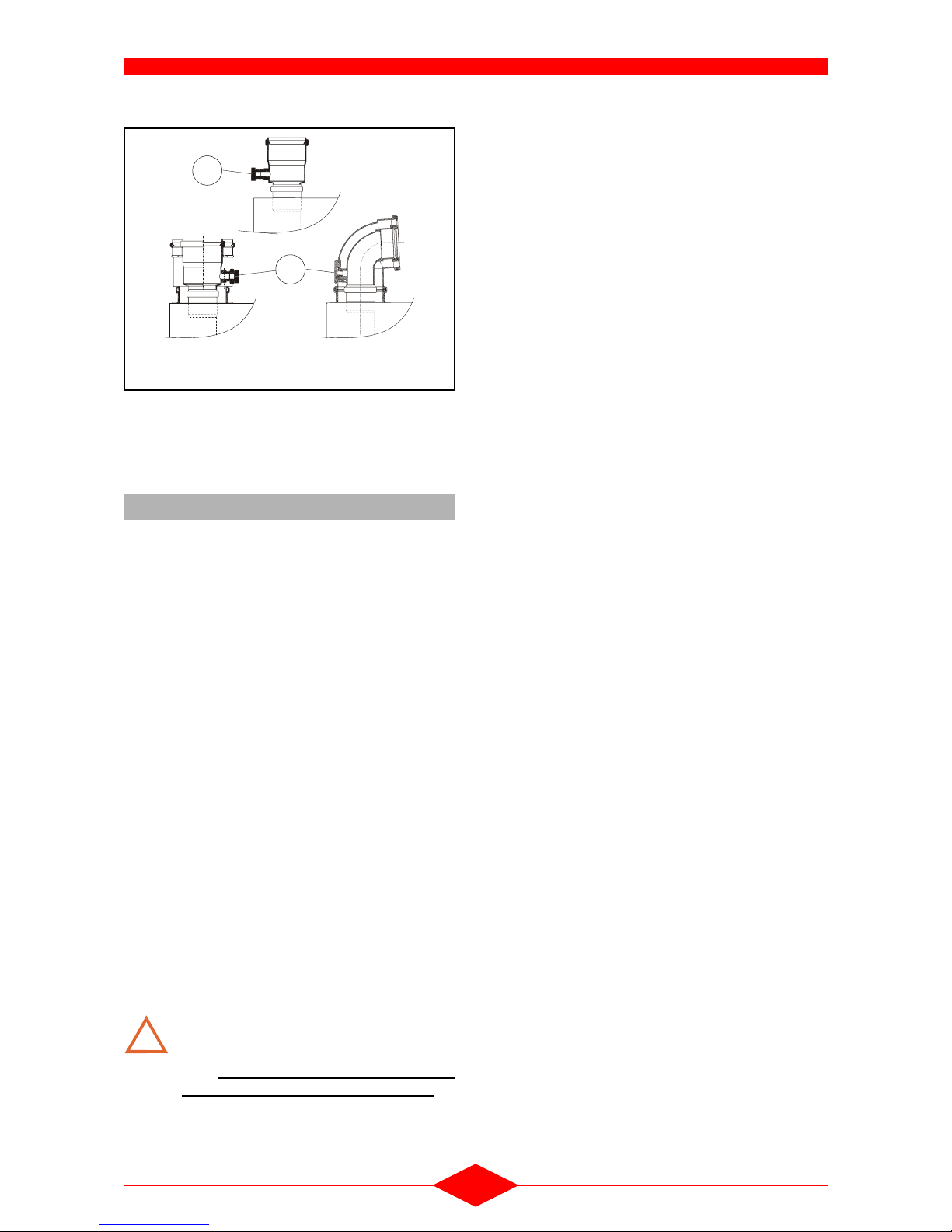

Fig. 3
Vertical
balanced flue
Horizontal
balanced flue
Chimney flue
!

- 6 -
GAS CONVERSION
- Combustion product evacuation outlet back pres-
sure: 0 mmCE.
-Po/ P_OUT = Gas pressure at the gas valve reg-
ulator outlet.
-PL = Servo-system air pressure (fan - gas unit).
- The Po/ P_OUT and PL values may be more or
less high according to whether back pressure is
greater or smaller.
2.2 - Setting table
Models ZEM 2-17 C ZEM 5-25
Heat output (Heating) 30/50 °C
60/80 °C
kW
kW
2.7/18,8
2.3/17.3
5.6/27.4
5.0/25.2
Heat input Heating DHW Heating DHW
kW 2.5/17.6 5.2/25.6 5.2/29.0
∅Gas reducer Nat Gas H
Propane
mm
mm
4.20
-
6.20
4.65
∅Air reducer Nat Gas H
Propane
mm
mm
18.2
-
-
29
Gas flow (15 °C 1013 mbar) Heating DHW Heating DHW
Nat Gas H
Propane
m3/h
kg/h
0,26/1,86
-
0.55/2.71
0.40/1.99
0.55/3.07
0.40/2.25
Gas pressure Po/ P_OUT (gas unit to
burner Nat Gas H mbar 0.35/ 7.0
Servo-system air pressure (PL) Pa 40/750
CO2 Emission Nat Gas H
Propane
%
%
7.5/9.1
-
8.0/9.2
10.2 / 11.2
CO Emission Nat Gas H
Propane
ppm
ppm
5/20
-
5/20
5/80

- 7 -
II - MAINTENANCE
The annual inspection of the boiler and of the com-
bustion product outlet is compulsory and validates
warranty. It must be carried out by a qualified per-
son.
Spare parts must be ordered by using the referenc-
es listed in chapter V - PARTS LIST - page 16 -
SERVICING MANUAL while specifying the type and
serial number of each part.
Before any servicing, cut the power
supply. Close the gas inlet of the boiler
and the isolation valves if required.
If the boiler is removed, provide a cap at
the end of the gas piping.
Remove the front panel (item G) from
the boiler and disconnect the earth wire
(item O).
1 - SERVICING THE FAN AND THE BURNER
Check the state of the ventilator and the burner and
clean them if necessary (following their service in-
structions).
!
!
G
O
A
38
35
34
33
32
32
37
36
17
F
BE
3
12
11
D
C
G
B
C
D
14
ZEM-29-0-C-SEP
14
Fig. 4

- 8 -
MAINTENANCE
Disassembling the burner/fan unit:
- Disconnect the electrical connections of the burn-
er/fan unit:
• remove the 2 terminals (item A) of the cables
connecting the ignition electrode to the ignition
transformer,
• removal at the back of the control panel
(item 14):
. X501 terminal:
of the cable terminal (item B) from the ioni-
zation electrode,
• removal at the fan:
. of the 3-pin connector of the power cable
(item C) from the fan - X2 terminal - at
the rear of the control panel,
. of the 4-pin connector of the PWM signal
(item D) from the fan - X401 terminal
- at the rear of the control panel,
- disconnect the air/gas control (item G) from the
gas valve
- unscrew the nut (item 38),
- disassemble the clamp supporting (item 32) the
burner (item 3) on the boiler shell (item 12):
• remove the safety ring (item 33) from the
clamping rod (item 34),
• loosen the nut of the clamping rod (item 34),
• unhook the clamping rod item (34) from its fas-
tening tab by pressing vertically on the front of
the clamp (item 32).
• remove the clamp (item 32) after removing it
from the rod securing (item 35) it to the boiler.
- remove the burner/fan unit.
Disassembling the fan:
- Unscrew the four screws (item E) fixing the fan
(item 11) to the burner’s air sleeve (item 3),
- unscrew the three screws (item F) securing the
silencer (item 17) to the fan (item 11),
• clean it gently if necessary and check the con-
dition of the membrane air non-return valve
(item 36)
- Clean the fan (item 11) using a domestic vacuum
cleaner by placing the suction device over the air
inlet and outlet successively.
Cleaning the burner:
- Clean the burner (item 3) using a domestic vacu-
um cleaner by placing the suction device over the
air inlet and the gas inlet successively,
- Check the ignition electrodes (item 39, fig. 5) and
the ionization electrodes (item 40, fig. 5).
When reassembling the burner/fan unit:
- Replace the seal at the nut (item 38) and check
that there are no gas leaks,
- remember to position the air non-return valve
(item 36) and its seal (item 37) before refitting the
silencer (item 17) on the fan (item 11),
- when refitting the fan on the burner:
• check the correct positioning of the fan/burner
gasket,
• check the airtightness of the gasket and re-
place it if necessary.
• reposition the safety ring (item 33) on the
clamping rod (item 34).
- check airtightness at the burner (item 3) and boil-
er shell levels (item 12) - replace the seal if nec-
essary.
ZEM-30-0
ZEM-30-0
ZEM-30-0
40
39
≈
20
3,5
2.25
ZEM-31-0
ZEM 2-17
ZEM 5-25
Fig. 5

- 9 -
MAINTENANCE
2 - SERVICING THE HEAT EXCHANGER OF THE BOILER SHELL
The heat exchanger must be cleaned once the burn-
er has been disassembled (section 1 - page 7 -
chapter II - MAINTENANCE - SERVICING MANU-
AL).
- Remove the combustion chamber pipe including
the insulator,
- Sprinkle the heat exchanger with water. The wa-
ter is evacuated through the condensate evacua-
tion siphon,
- refit the combustion chamber pipe with its insula-
tor,
- refit the burner to the boiler shell,
• check the correct positioning of the sealing
rope and change it.
Ensure that the combustion chamber
pipe is fitted back in its initial position
before starting up the boiler again:
the combustion products may overheat
and destroy the combustion product
outlet at the level of the boiler shell.
3 - SERVICING THE PLATE EXCHANGER
If the plate exchanger (item 25) must be replaced:
- close all the stop valves of the boiler,
- drain the boiler (refer to section 8 - page 11 -
chapter II - MAINTENANCE - SERVICING MAN-
UAL)
- remove the DHW sensor (item 28),
- remove the 4 screws (item e) securing the plate
exchanger to the primary and DHW flow/return
tubes of the boiler,
- fit the DHW sensor to the new plate exchanger,
- refit the plate exchanger,
Clean the filter (item c) and replace the
flat seals (item d) if necessary. Fit the
flow limiter (item a), the edge ring
(item b), filter (item c) and seals (item d)
as shown (fig. 6) on the DHW cold water
inlet (item 27) of the plate exchanger
(item 25).
4 - CHECKING ACCESSORIES
- Check that the safety and control devices (3 bar
safety valve, air bleed, safety control box, etc.)
are operating properly.
- Clean the condensate drain siphon and then fill it
with water.
- Also check that neither the installation nor the
boiler present any water or fuel leaks (leaks may
produce a risk for safety and shorten the
lifespan).
- When it is frequently necessary to add water to
maintain pressure in the installation, even though
no leaks have been discovered, perform an ex-
pansion vessel check (section 5 - page 10 -
chapter II - MAINTENANCE - SERVICING MAN-
UAL).
!
!
d
d
d
e
e
e
dd
b
a
c
ZEM-60-0
25
28
27
Fig. 6

- 10 -
MAINTENANCE
5 - EXPANSION VESSEL PRE-INFLATION PRESSURE CHECK
- Drop the pressure in the heating installation by
opening the drain cock or the safety valve (pres-
sure gauge reading under 0.5 bar).
- Check the pressure in the expansion vessel and
if necessary bring it back up to pressure, or re-
place it if the membrane is punctured (water
present in the inflating valve).
- To optimise the efficiency of the vessel:
• adjust its pre-inflation pressure in line with the
installation. It must correspond to the static
height of the installation (H) expressed in bars
(height between the highest point of the instal-
lation and the expansion vessel, with 10 me-
tres = 1 bar),
- adjust the filling pressure of the installation to a
value of over 0.2 bar above the pre-inflation pres-
sure of the vessel (after totally bleeding the air
from the installation).
6 - FLAME SETTING
- After switching the boiler on:
- Check the flame control by disconnecting the ion-
izing electrode:
- The boiler goes into safety mode after two ignition
attempts (display and )
7 - COMBUSTION PRODUCT CONDUITS
- Check the combustion product evacuation con-
duit and the air inlet conduit at least once a year
(airtightness of the parts that may be disassem-
bled - conduits not obstructed).

- 11 -
MAINTENANCE
8 - DRAINING
- Cut the power supply,
- turn off the gas cock,
- turn off the heating flow/return valves (if they are
fitted),
- connect the drain valve (item. 18) to the sewage
system,
- open the drain valve.
Ensure that the air bleed (item. 16) is
open, as soon as the pressure gauge in-
dicates a zero pressure to allow air to
enter the boiler shell.
9 - SENSOR RESISTANCES
The resistance of the sensors must be measured af-
ter they have been disconnected from the control
panel.
!
18
16
ZEM-22-0
Fig. 7
Resistance values of the sensors
Temperature
Heating outlet sensor
Domestic hot water sensor
Flue gas sensor
0.00 °C 32624
10.00 °C 19897
15.00 °C 15711
20.00 °C 12493
25.00 °C 10000
30.00 °C 8056
40.00 °C 5324
50.00 °C 3599
60.00 °C 2483
70.00 °C 1748
80.00 °C 1252
90.00 °C 912
Resistance values of the sensors
Temperature Outside sensor
-20.00 °C 7578
-15.00 °C 5861
-10.00 °C 4574
-5.00 °C 3600
0.00 °C 2857
5.00 °C 2284
10.00 °C 1840
15.00 °C 1492
20.00 °C 1218
25.00 °C 1000
30.00 °C 826,8
35.00 °C 687,5

- 12 -
III - OPERATING FAULTS
1 - OPERATING FAULTS LIST
Note:
- The last 5 working faults are accessible through
the QAA 73, lines 728 / 729 / 730 / 731 / 732. The
last saved fault code is displayed at line 728.
Display A0 Description Solution
Outside sensor fault Check that the sensor is correctly fitted and
connected
Boiler sensor fault Check that the sensor is correctly fitted and
connected
Flue gas detector fault Check that the sensor is correctly fitted and
connected
Flow sensor 1 fault Check that the sensor is correctly fitted and
connected
Flow sensor 2 fault (plate exchanger
sensor/DHW stratification tank)
Check that the sensor is correctly fitted and
connected
Faulty room unit Check the connections on the unit
Violation of the plausibility criteria
(STB related criteria)
Check that the water flow of the system is
correct (circulating pump, isolation valve, etc.)
Triggering of the underfloor heating
safety thermostat
Reset the safety thermostat.
Check that the water flow of the system is
correct (circulating pump, isolation valve, etc.)
Maximum flue gas temperature too
high
Check whether the boiler is not on thermal
overload or that the exchanger is not clogged
Burner locks Position the selector on RESET for at least 1
second.
No flame formed after the safety time
period
Check that the gas reaches the boiler (Pi),
check the condition of the gas valve, if there is
a major adjustment fault on the gas valve,
check the condition of the transformer, cables,
ignition electrode, ionisation current value.
Position the selector on RESET for at least 1
second.
LMU internal error Check the A6 code
LMU setting error Check the A6 code
The minimum speed threshold of the
fan is not reached
Check the wiring of the fan and LMU, ensure
that the fan is turning correctly
The maximum speed threshold of the
fan is exceeded
Check the mains supply and the fan cable
connections
Communication problem with the
regulator
Position the mode selector (1, fig. 46 - page 40
- chapter VI - COMMISSIONING -
INSTALLATION MANUAL) to RESET for at
least 1 second. If the fault persists, replace the
LMU.
The service function is active -
The regulator shut-down function is
active
-

- 13 -
IV - OPTIONS
1 - REGULATION OF ROOM TEMPERATURE
1.1 - Room thermostat (REG 50)
The FAMOSO TYPE 850 is a room thermostat with
a weekly programme, displaying the time and room
temperature continuously.
This thermostat is used to control the heating by act-
ing on the boiler.
1.2 - Room thermostat (REG 151)
The REG 151 is a digital room thermostat with a
weekly programme for controlling a heating system.
It continually displays the time and room tempera-
ture.
It communicates by radio signals with the receiver
connected to the installation.
1.3 - QAA 53 room unit kit (REG 54)
The room unit kit includes a digital room sensor with
a daily programme for controlling a heating system.
1.4 - QAA 73 room terminal kit (REG 74)
The room terminal kit includes a multifunction digital
room sensor for controlling a heating system and
domestic hot water circuit, and parameter settings.
Refer to the kit installation instructions.
Fig. 8
Fig. 9 ZEB-21-0
transmitter receiver
ZEM-32-0
Fig. 10
ZEM-33-0
Fig. 11

- 14 -
OPTIONS
2 - SELECTOR VALVE KIT FOR CONNECTING ZEM..C/BS
The selector valve kit allows the connection of a
central heating only type boiler to a domestic hot
water heater.
Refer to kit installation instructions.
3 - EXTERNAL SELECTOR VALVE KIT FOR CONNECTING ZEM..C/BS
The external selector valve kit allows the connection
of a central heating only type boiler to a domestic
hot water heater.
Refer to kit installation instructions.
4 - UNDERFLOOR HEATING SAFETY THERMOSTAT
The underfloor heating safety thermostat must be
installed on the system flow side to prevent the floor
from overheating if the boiler regulation becomes
faulty.
THI-37-0
Fig. 12
ZEM-104-0
Fig. 13
ZEM-96-0
Fig. 14

- 15 -
OPTIONS
5 - BS TYPE DOMESTIC HOT WATER PRODUCTION SYSTEM
BS domestic hot water production systems can pro-
duce hot water when the installation contains a boil-
er that only operates for heating.
The capacity of the BS systems varies with the mod-
el chosen.
- BS 100: 100 litres / BS 200: 200 litres
- BS 150: 150 litres / BS 300: 300 litres
Note:
- The selector valve kit is necessary for connecting
BS systems to ZEM..C boilers.
6 - BIONIBAL/BIONIBAGEL
7 - CONDENSATE LIFT PUMP
The condensate lift pump is used to raise the con-
densate extraction level for a direct outlet to the ex-
terior. It is used for boilers installed in a basement.
B
S
Fig. 15
Fig. 16
BIONIBAGEL 10 litres
Fig. 17
BIONIBAL 1 litre
Fig. 18
BIONIBAL 0.5 litres
Fig. 19
BIONIBAL 30 litres
Fig. 20

- 16 -
V - PARTS LIST
ZEM 2-17 C

- 17 -
PARTS LIST
Rep.Reference Description
1 U09.34386 WELDED GAS PIPE
2 E20.03890 SEALING AFM34 D 24X17X3
3 I20.17832 UNION REDUCER D.12 D. 4,20
4 E00.03424 NITRILE O’RING D. 8 X 2 80 SHORE
5 V90.37482 VGU 87 GAS VALVE SET + TRANSFORMER (SIEMENS)
5 V90.37483 SIT GAS VALVE SET + TRANSFORMER (SIT)
6 C90.35865 IGNITION TRANSFORMER
6 C90.37027 IGNITION TRANSFORMER SIT 504NAC-0504.024
7 L10.10607 HONEYWELL O’RING 22 X 2,5
8 U09.35929 GAS SUPPLY PIPE ; GREY
9 V00.21491 PROTECTING RING 1
10 I20.21452 MESSING LOCK NUT 1
11 E20.03889 SEALING AFM34D 30X21X3
12 L20.35866 FLUE SENSOR
13 T40.34153 CIRCLIPS ; ZINC
14 B59.34154 STAINLESS STEEL WASHER D.21,6X18X0,25
15 T20.34155 PORTHOLE PYREX D.21X5
16 E20.35981 FLANGE RING ; ADAPTOR EPDM 120°C
17 L72.35500 BI-METALLIC THERMOSTAT
18 V09.37150 FLUE OUTLET
19 E20.37100 PEROXIDE RING D.60 GREY
20 B00.35984 FLANGE FOR PIPE D.60
21 N40.34215 PP-TL PIPE D.60 LG 500
22 L00.35606 IGNITION PROBE + WIRING
23 V09.36741 FIXING ROD ; WELDED
24 B49.34150 MESSING NUT
25 T40.36769 SECURITY RING FOR THE FIXING ROD
26 V09.34461 ASSEMBLED BURNER FLANGE
27 L00.36670 IONISATION PROBE
28 X09.36669 BURNER
29 E20.35446 RING FOR THE FAN
30 C50.36308 FAN RG128/1300-3612
31 E20.34837 O’RING FOR THE FAN’S SOUND ABSORBER
32 F20.34087 INSULATION FOR POT OF FIREBOX
33 V09.34838 FLAP SOUND ABSORBER
34 V09.34086 WELDED POT FOR FIREBOX
35 F00.34216 GLASS BRAID RING
36 Y09.35927 EQUIPPED CASING
37 Y09.34942 STAND FOR EXPANSION VESSEL; WHITE
38 V07.31962 WALL FASTENING ; C MODEL
39 I30.31973 STOP TECHNYL D.20X19
40 E20.23654 EXTENSIBLE SEALING D. 18 / RED SILICONE
41 C91.03071 WIRE CARRIER
42 L20.34068 SENSOR
43 U09.34361 FLOW PIPE
44 E20.03901 SEALING QUALITY AFM34 D.11X4X3
45 U09.34369 WELDED RETURN PIPE
46 A20.23655 SIPHONIC TRAP WITH PIPE 650 MM
47 V09.36667 ASSEMBLED BOILER SHELL
48 Y09.35900 WHITE CONTROL BOX
49 A90.27098 CABLE GRIP D=6,5 MM BLACK
50 C30.01145 FUSE 5X20 2,5 AMPERE
51 C30.12702 FUSE HOLDER WICKMANN REF 19820+19835
52 W09.37268 LMU
53 H20.36437 STAND FOR THE LIGHT

- 18 -
PARTS LIST
Rep.Reference Description
54 C20.35893 ROTATING SWITCH ; 3 POSITIONS
55 L60.32641 MANOMETER
56 E20.36436 TIGHTNESS O’RING MANOMETER
57 H20.36320 CONTROL PANEL
58 H20.35935 AXLE BUTTON
59 H20.35934 KNOB
60 W09.37045 WIRED BOX PROGRAMME ZEM 2-17 C
61 T25.31875 FIXING PART; UPPER COVER
62 A00.19059 PLASTIC STOPPER MAL 9 WHITE
63 E10.12503 EPDM STICKING SEAL PIPE 6/9 LENGTH 18
64 Y90.37579 ONE-PART COVER WHITE
65 E20.36410 TIGHTNESS O’RING FOR CONTROL PANEL
66 H20.35932 EQUIPPED FRONT PANEL
67 Y09.34460 COVER
68 L30.36692 CIRCULATING PUMP WILO RSL 15/7-3-KU CR 130 9
69 H30.24159 MESSING CAP 28X52 + 2 O’RING
70 L90.24178 SAFETY VALVE
71 U90.28983 HEATING RETURN UNIT
72 I20.13579 BRASS NIPPLE MAL3/4-MAL3/4(LONG)
73 I20.33459 CONNECTION 1’’ -3/4’’
74 V09.34469 FIXING PART
75 E20.25892 RING 3/8 AFM34 D.14,5 (+0,3-0,1)X9 EP : 3
76 O00.36107 FLEXIBLE PIPE
77 L90.36106 EXPANSION VESSEL 8L D.197
78 Y00.14139 FASTENING HOOK
79 I20.36470 AIR REDUCER D.18,2
80 L10.33774 FLANGE G 3/4" FOR SIT VALVE
81 W07.32303 OUTSIDE SENSOR .QAC34/101 THRI
82 C15.31513 LUMBERG. 2PTSSCREW PLUG 361102K35
83 K50.36084 GAS VALVE - SPHERE - NUT 1"-M3/4"
84 K20.37580 GAS SLEEVE
85 K50.37960 WATER VALVE F1"X22
* U09.37964 GAS+WATER VALVES SET
* W09.35517 WIRING S/T
* W09.36498 WIRING OUTER THE CONTROL PANEL
* W09.37876 CONNECTOR 3611.02K39 WITH SHUNG BLACK
* W09.37935 CONNECTOR 3611.02K03 WITH SHUNT RED
* W09.37936 CONNECTOR 3611.02K15 WITH RESISTANCE 1 KOHM
* W09.37937 SUPPLY FAN 230V
* W09.37938 SUPPLY CIRCULATING PUMP
* W09.37939 SUPPLY 230V+T
* W09.37940 PWM FAN ZEM
* W09.37941 WIRING ; FLOW SENSOR
* W09.37942 WIRING ; SAFETY THERMOSTAT
* W09.37946 LOW VOLTAGE WIRING; INTERNAL CONTROL PANEL
* W09.37947 INTERNAL WIRING 230V ZEM CONTROL PANEL C/SEP/B120

- 19 -
PARTS LIST
ZEM 5-25 C

- 20 -
PARTS LIST
Rep.Reference Description
1 U09.34386 WELDED GAS PIPE
2 E20.03890 SEALING AFM34 D 24X17X3
3 I20.12056 REDUCER D.12 D.4,60
3 I20.35244 GAS REDUCER D.6,20
4 E00.03424 NITRILE O’RING D. 8 X 2 80 SHORE
5 V90.37482 VGU 87 GAS VALVE SET + TRANSFORMER (SIEMENS)
5 V90.37483 SIT GAS VALVE SET + TRANSFORMER (SIT)
6 C90.35865 IGNITION TRANSFORMER
6 C90.37027 IGNITION TRANSFORMER SIT 504NAC-0504.024
7 L10.10607 HONEYWELL O’RING 22 X 2,5
8 U09.35929 GAS SUPPLY PIPE ; GREY
9 V00.21491 PROTECTING RING 1
10 I20.21452 MESSING LOCK NUT 1
11 I20.21441 MESSING SEALED CONNECTION "OLIVE" 22/1
12 L20.35866 FLUE SENSOR
13 T40.34153 CIRCLIPS ; ZINC
14 B59.34154 STAINLESS STEEL WASHER D.21,6X18X0,25
15 T20.34155 PORTHOLE PYREX D.21X5
16 E20.35981 FLANGE RING ; ADAPTOR EPDM 120°C
17 L72.35500 BI-METALLIC THERMOSTAT
18 V09.37150 FLUE OUTLET
19 E20.37100 PEROXIDE RING D.60 GREY
20 B00.35984 FLANGE FOR PIPE D.60
21 N40.34215 PP-TL PIPE D.60 LG 500
22 L00.35606 IGNITION PROBE + WIRING
23 V09.36741 FIXING ROD ; WELDED
24 B49.34150 MESSING NUT
25 T40.36769 SECURITY RING FOR THE FIXING ROD
26 V09.34461 ASSEMBLED BURNER FLANGE
27 L00.35607 IONISATION PROBE + WIRED
28 X09.34456 BURNER 5-28 GN
29 E20.35446 RING FOR THE FAN
30 C50.36308 FAN RG128/1300-3612
31 E20.34837 O’RING FOR THE FAN’S SOUND ABSORBER
32 F20.34087 INSULATION FOR POT OF FIREBOX
33 V09.34838 FLAP SOUND ABSORBER
34 V09.34086 WELDED POT FOR FIREBOX
35 F00.34216 GLASS BRAID RING
36 Y09.35927 EQUIPPED CASING
37 Y09.34942 STAND FOR EXPANSION VESSEL; WHITE
38 V07.31962 WALL FASTENING ; C MODEL
39 I30.31973 STOP TECHNYL D.20X19
40 E20.23654 EXTENSIBLE SEALING D. 18 / RED SILICONE
41 C91.03071 WIRE CARRIER
42 L20.34068 SENSOR
43 U09.34361 FLOW PIPE
44 E20.03901 SEALING QUALITY AFM34 D.11X4X3
45 U09.34369 WELDED RETURN PIPE
46 A20.23655 SIPHONIC TRAP WITH PIPE 650 MM
47 V09.34467 BOILER SHEEL ; ASSEMBLED
48 Y09.35900 WHITE CONTROL BOX
49 A90.27098 CABLE GRIP D=6,5 MM BLACK
50 C30.01145 FUSE 5X20 2,5 AMPERE
51 C30.12702 FUSE HOLDER WICKMANN REF 19820+19835
52 W09.37266 LMU
