Gentworks biodrier business 2 User manual
Business²
Hand dryer
High Speed
Operating Instructions and Parts Manual
Surface Mounted High Speed Hand Dryer

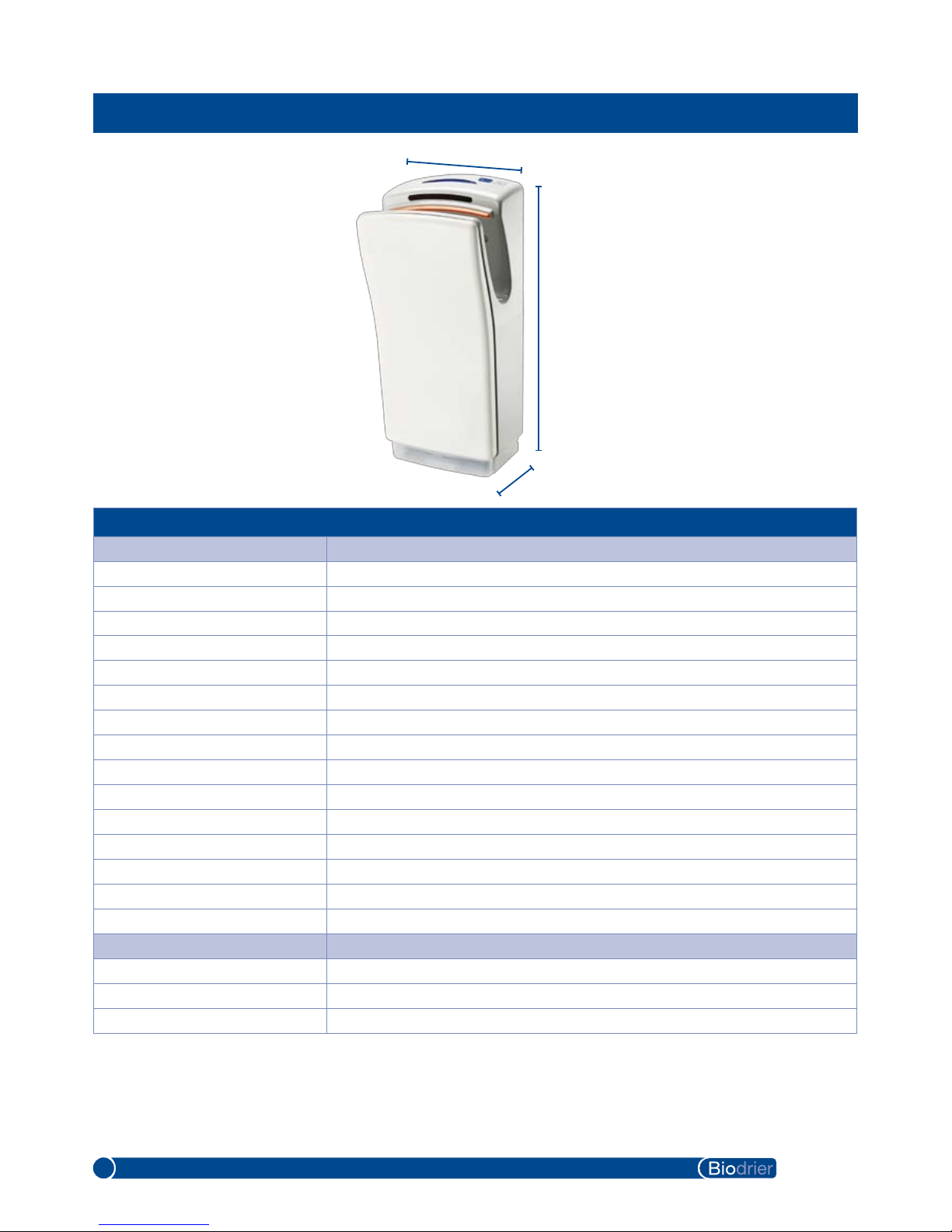

Technical Specications
Item Category Performance Data
Operating Voltage 220 - 240Vac, 50 Hz, 800 watts (heater o) 1600 watts (heater on)
Warm Air Speed Output 110 m/s
Display LED countdown
Motor Type 35,000 rpm, ICP Brushless DC
Motor Thermal Protection Auto Resetting Thermostat turns unit o, 240V at 221°F (105°C) - EURO Spec
Heater Element 0 - 800 WATTS
Heater Thermal Protection Auto resetting
Drying Time Less than 10 seconds
Circuit Operation Infared Automatic, self adjusting
Timing Protection 30 seconds auto shut o
Drip Proof IP22
Isolation CLASS I
Net Weight 8.5 kg
Shipping Weight 10 kg
Unit Size 300mm W x 608mm H x 250mm D
Item Code Cover Type/Finish
BB702W ABS White
BB702S ABS Metallic silver
BB702T ABS Silver/White two tone
Business
1
608mm
300mm
250mm
Operating Instructions and Parts Manual
Surface Mounted High Speed Hand Dryer
Business 2
General Safety Information
This product is intended for installation by a
qualied service person. Use AWAG No.16 solid
conductor for wiring.
Failure to properly ground unit could result in
electrical shock and/or death.
Disconnect power at the service breaker before
installing or servicing.
NOT FOR HOUSEHOLD USE - MAY CAUSE BURNS
“IMPROPRE A L’USAGE DOMESTIQUE - PUET
OCCASIONNER.”
All units must be supplied with a 2-wire service. The
ground wire must be connected with the dryers
back plate.
• WARNING NOTE: Do not install dryer over wash basin.
Type Y attachment
If the power supply cord is damaged, it must be
replaced by the manufacturer or its service agent or a
similar qualied person in order to avoid a hazard.
Means for disconnection must be incorporated in the
xed wiring in accordance with the wiring rules.
Installation
1. Make sure power supply breaker is switched o.
Installation must be carried out in accordance with the
current edition of the local wiring regulations code
having jurisdiction. Installation should be performed
only by a qualied electrician.
2. Place template against wall at desired height
(see mounting height recommendations) and mark
locations of 4 mounting holes and wire service entry at
knockout (KO) location.
NOTE: For two or more dryers, dryers should be no
closer than 24 inches (610 mm) on centre.
3. Remove and retain 2 cover screws.
4. Connect supply wires to terminal block where
indicated and connect ground wire to baseplate with
ground screw.
Connections:
a. Connect the live wire (coloured red or brown) to
the terminal block marked “L”.
b. Connect the neutral wire (coloured black or blue)
to the terminal block marked “N”.
Note that the colour of live and neutral wires depends
on voltage of supply service.
5. Replace cover screens. Do not over-tighten.
Operating Instructions and Parts Manual
Surface Mounted High Speed Hand Dryer
Business
3

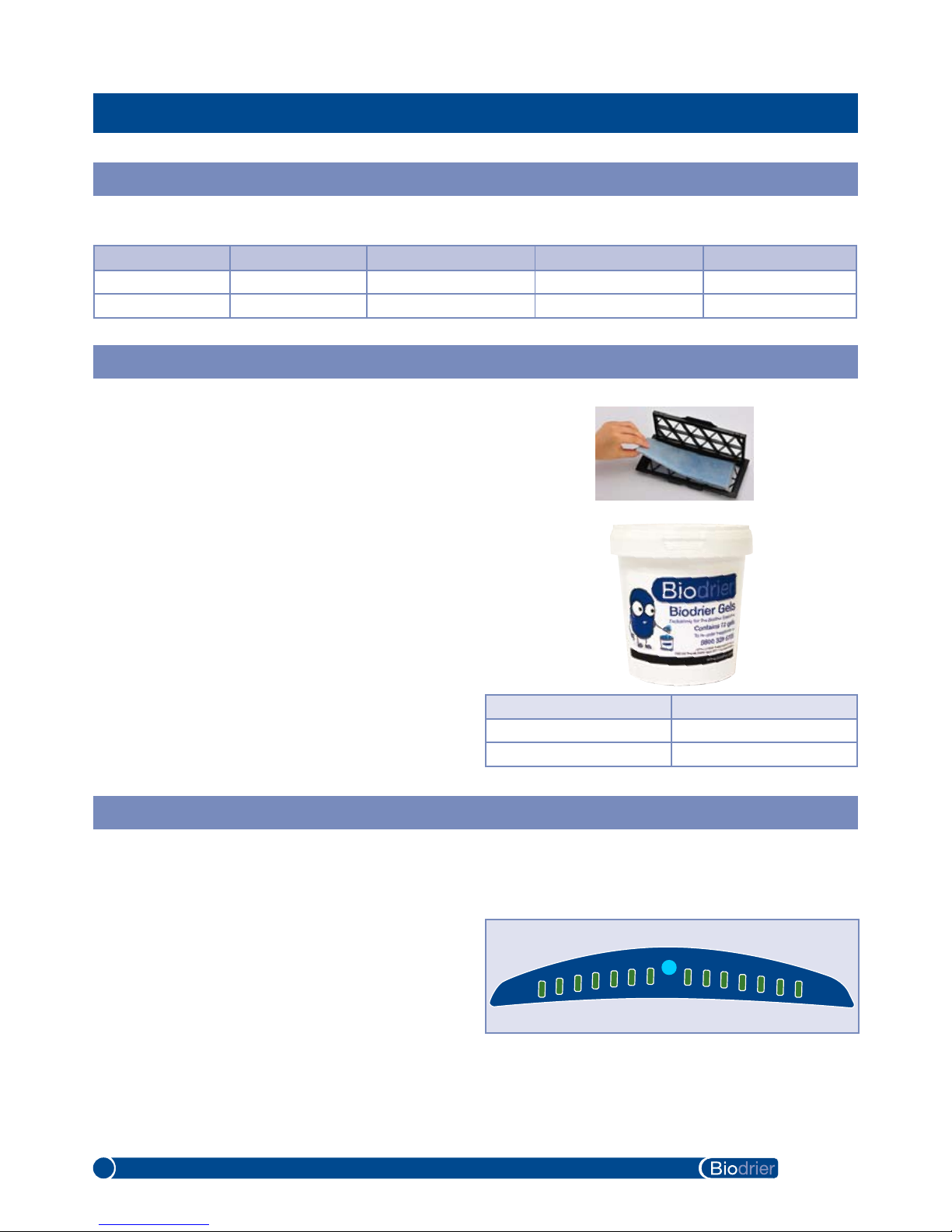

Recommended Mounting Heights
Consumables
Operation
• No touch operation.
• Shake excess water from hands.
• Place hands onto the aperture.
• Move hands up and down.
• Green LEDs count down drying time.
• Stops automatically after hands are removed.
Men’s Ladies Children, ages 11-17 Children, ages 3-10 Disabled
13” 11” 10” 6” 4”
350 mm 300 mm 250 mm 150 mm 100 mm
Product Order Code
Antibacterial HEPA lter HD-BUSI-HEPA-FILTER
Moisturising Gel BB70GELS
From oor to bottom of dryer.
Biodrier Anti Bacterial Filter
The Anti Bacterial Filter is tted to ensure dust and air-
borne bacterias are restricted from entering the internal
components and airow of the dryer. The lter should
be replaced every 3-6 months, depending on usage.
Biodrier Gels
Biodrier Gels are manufactured exclusively for Biodrier
and preforms 3 jobs in one:
1. Moisturise the hands.
2. Sanitise the product internally, and the users hands.
3. Fragrances the surrounding washroom area whilst in use.
The Gels are manufactured from natural sources and are
chemical free.
4. Clean lter casing by wiping with soft
damp cloth. Replace the antibacterial
lter every 3 months. Slide lter back
into place.
1. Pour a cup of water
down drain hole. Use
cleaning brush supplied
to clean drain hole.
2. Remove drain tank
and empty.
5. Disassemble drain tank and
rinse clean using a disinfectant,
then replace. Moisturising gels
should be replaced every month.
3. Remove lter.
6. Wipe down the external
surfaces of the Biodrier
Business hand dryer with a soft
cloth. Switch power back on
and test operation.
Operating Instructions and Parts Manual
Surface Mounted High Speed Hand Dryer
Business 4

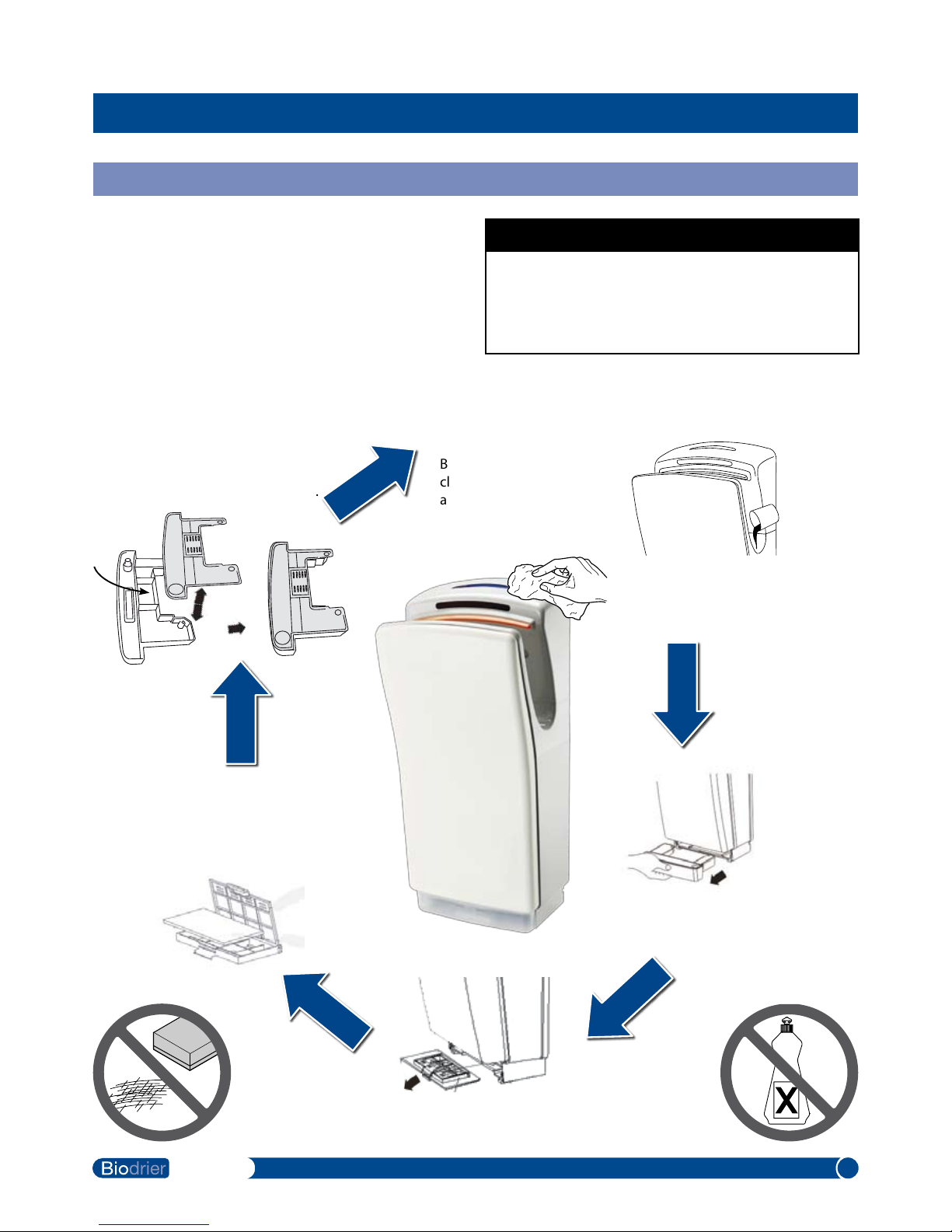

Cleaning and Maintenance Instructions
• WARNING
• Never spray water directly onto hand dryer
• Never use any abrasives or harsh chemicals
• Turn o electricity prior to cleaning the hand dryer
Periodic cleaning of the unit is recommended to
ensure optimum performance.
• Switch to service mode located on the top left side of
the dryer.
• Wipe the cover with a soft cloth and a mild cleaning
solution. Do not Soak. Never use abrasives to clean
the cover.
Place Gels
here
Operating Instructions and Parts Manual
Surface Mounted High Speed Hand Dryer

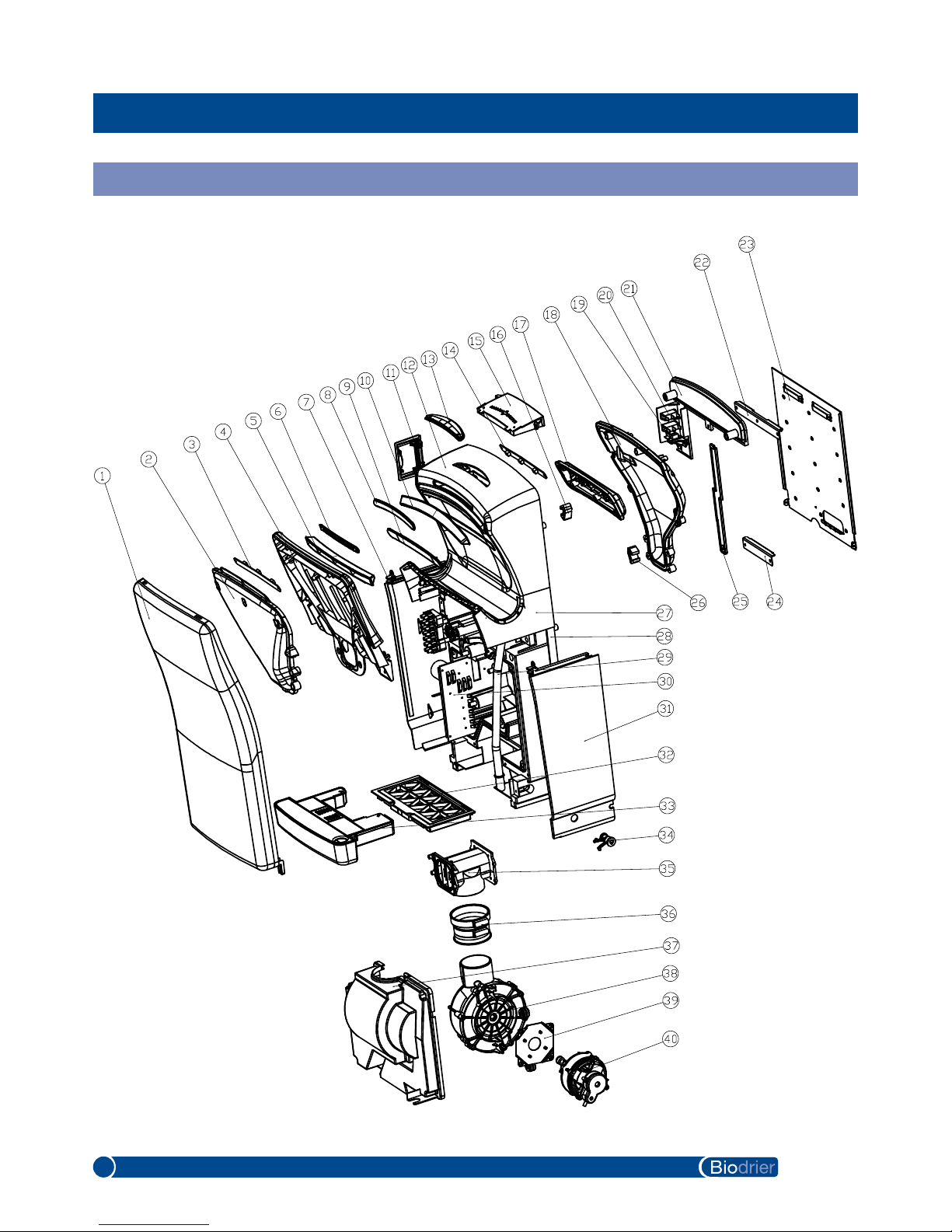

Diagram
Business
5
Operating Instructions and Parts Manual
Surface Mounted High Speed Hand Dryer
Parts List
Business 6
Key Description
1Cover
2Fan house cover
3LED light
4Fan house cover
5Air outlet
6Eradiating screen
7Left side board
8Incept screen
9Lighting screen
10 Air outlet
11 Door of power switch
12 Fan house cover
13 Display screen ornament
14 Sensor light PCB
15 Sensor PCB module
16 Left xer
17 Lighting PCB module
18 Fan house cover
19 Switch button
20 USB port
Key Description
21 Bracket
22 Big pothook
23 Fixing board
24 Small pothook
25 PP seal board
26 Right xer
27 Connector
28 Base plate
29 Hose
30 Motor PCB
31 Right side board
32 Filter
33 Water tank
34 Lock
35 Heater
36 Passage
37 Motor cover
38 Fan house module
39 Motor bracket
40 Motor module
