GGM gastro EGE40 User manual

1
Electric water direct grill
Kasap Tip Dik Buzdolapları
CONTENTS
A GENERAL INFORMATION Page 2
A1 PRODUCT DESCRIPTION Page 3
A2 TECHNICAL INFORMATION Page 3
A3 TRANSPORTATION Page 4
A4 UNPACKING Page 4
B INSTALLATION Page 4
C SAFETY INSTRUCTIONS Page 5
D OPERATION Page 6
E CLEANING & MAINTENANCE Page 7
F TROUBLESHOOTING Page 8
G SPARE PART LIST- EXPLODING DRAWING Page 9
H ELECTRIC CIRCUIT SCHEMA Page 15

2
Electric water direct grill
Kasap Tip Dik Buzdolapları
A GENERAL INFORMATION
Before installing the appliance, read operation and maintenance instructions
carefully.Wrong installation and part changing may damage the product or may cause
injury on people.These are not in our company’s responsibility to damage the
appliance intentionally,negligence,detriments because of disobeying instructions and
regulations,wrong connections.Unauthorized intervention to appliance invalidates the
warranty.
1. This instruction manual should be kept in a safe place for future reference.
2. Installation should be made in accordance with ordinances and security rules of
that country by a qualified service personnel.
3. This appliance has to be used by trained person.
4. Please turn off the appliance immediately in the event of malfunction or failure.The
appliance should be repaired only by authorized service personnel.Please demand
original spare part.

3
Kasap Tip Dik Buzdolapları
Electric water direct grill
A1 PRODUCT DESCRIPTION
*The Professional Electric Grills ,that provides high efficiency has been designed to be used
in industrial kitchens.
Product Code
Dimensions (mm)
Weight (kg)
Packaging
Dimensions (mm)
EGE40 400X730X285 45 460x960x570
EGE80 800X730X285 75 860x960x570
EGE120 1200x730x285 105 1280x970x570
A2 TECHNICAL INFORMATION
Product Code
Model
Electric Inlet
Cable
(mm²)
Power
(KW)
EGE40 Electric water
direct grill
400 V. AC 3N PE
5x2,5
3,75
EGE80 Electric water
direct grill
400 V. AC 3N PE
5x2,5
8,75
EGE120 Electric water
direct grill
400 V. AC 3N PE
5x2,5
13,75

4
Electric water direct grill
Kasap Tip Dik Buzdolapları
A3 TRANSPORTATION
*This appliance can not be moved by hand from area to area.It must be moved on pallet with
forklift truck.
A4 UNPACKING
*Please unpack the package according to the security codes and ordinances of current
country and get rid from the pack.Parts which contacts with food are produced by stainless
steel.All plastic parts are marked by material’s symbol.
*Please check that all the parts of appliance had come completely and if they are damaged or
not during the shipping.
B INSTALLATION
*Please place the product to straight and sturdy ground,please take necessary steps against
possibility of overturn.
*Technician who will serve for installation and service for the appliance must be professional
on this subject and must have installation and service licenses by the company.
*Connection to Electric Power Supply must be done by authorized person.
*Please be sure that the voltage connected to appliance must be equal with the voltage which
is on appliance’s label.
This appliance must be connected to an earthed outlet in accordance with safety rules
and standards.
*Appliance’s earthing must be connected to earthing line on panel which is nearest to
electric installation.
*Connection to the main fuse and leak current fuse must be done in accordance with the
current regulations.
*If the location where Electric Grills placed is covered with nonflammable heat insulation
material,the distance between them must be 5 cm.Otherwise it should be at least 20 cm.The
appliance shouldn’t be operated under chimney hood.
!

5
Kasap Tip Dik Buzdolapları
Electric water direct grill
C SAFETY INSTRUCTIONS
*Do not use the appliance in insufficient lighted place.
*Do not touch the moving attachments while the appliance operates.
*Do not install the appliance in the presence of flammable or explosive materials.
*Do not operate the appliance when the machine is empty.
*Do not load so less or more than appliance’s capacity.
*Do not attempt to use the appliance without suitable protective equipments.
*Because of any reason if there is a fire or flame flare where the appliance is
used,turn off all gas valves and electric contactor switch quickly and use fire
extinguisher .Never use water to extinguish the fire.
*All the damages because of not having earthing connection will not be on
warranty.
*Do not put watery materials on the grill.Otherwise oil splashes may cause serious
burn.

!
!
!
!
!

!
!

6
Kasap Tip Dik Buzdolapları
D OPERATION
*Control Panel; A:Temperature adjustment knob
B : Energy Warning Lamp
C: Oil drawer
D: Indicator light
*Operating;
•Plug in the grill.
•In order to operate the grill,switch (l) position.
•Operate the grill when it is empty fort he first use.Then it will be ready for use.
•In order to set the appliance’s temperature,switch the thermostat to desired temperature.
•When the thermostat switch is turned,the heaters start to operate.and indicator lamp on
switch signals as it operates.During the operation of heaters the thermostat steps in and
signal lamp becomes off if the grill is of.
•Put the materials that will be cooked on the grill,while it is being heated.
•While the cooking is going on at grill be sure that the used oil is accumulated at oil
drawer.
•After the operation is completed switch to (0) position.
Electric water direct grill

7
Kasap Tip Dik Buzdolapları
Electric water direct grill
E CLEANING & MAINTENANCE
➢CLEANING AND MAINTENANCE AFTER EVERY USE
•Always turn off the appliance and disconnect from the power supply before cleaning.
•Clean the outer surface of the appliance with a wet cloth and chrome shiner.
•Do not use abrasive cleaning chemicals as these can leave harmful residues.
•Do not clean the appliance by spraying water directly,otherwise electric motor may
get damaged.
•Clean the grill with suitable scraper after every use.
➢PERIODIC CLEANING AND MAINTENANCE
•Maintenance should be done by qualified person.
•Get the periodic maintenance of the appliance once in every 15 days.
•Clean the oil drawer in periodic times.For this fill the oil drawer with water and heat
it.This process will help to clean frozen and sticked oil.
•Maintenance of the appliance’s contactor should be done by compressed air
according to frequency of use.

8
Electric water direct grill
Kasap Tip Dik Buzdolapları
F TROUBLESHOOTING
THE APPLIANCE DOESN’T OPERATE
1. Check if the appliance is plugged in.
2. Check the electrical connections and
voltage.
3. Check the fuse if it is on or not.
THE APPLIANCE DOESN’T COOK WELL
1. Check if the appliance is operated at
suitable temperature or not.
THE APPLIANCE STOPPED
1. The appliance can stop due to low
voltage.In this situation check the
voltage.
•If cooking at electric grills is not done at suitable quality
•If any function of security doesn’t work
➢Do not use the appliance.
*If these problems are still going on,contact with our authorized services.

9
Electric water direct grill
Kasap Tip Dik Buzdolapları
G SPARE PART LIST-EXPLODING DRAWING
EGE40

10
Kasap Tip Dik Buzdolapları
Electric water direct grill
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE: EGE40
NO
PRODUCT NAME
P.CODE
1
BASE
Y.EGE40.001
2
FEET
Y.EGE40.002
3
OIL COLLECTOR
Y.EGE40.003
4
01 DLEM CONTACTOR
Y.EGE40.004
5
REGUATOR
Y.EGE40.005
6
FRONT PANEL SHEET
Y.EGE40.006
7
İNDİCATOR LAMP
Y.EGE40.007
8
BUTTON
Y.EGE40.008
9
WALLİNG PİN
Y.EGE40.009
10
SWİTCH
Y.EGE40.010
11
SWİTCH SHEET
Y.EGE40.011
12
HEATİNG ELEMENT CONECTOR
Y.EGE40.012
13
HEATİNG ELEMENT HANGİNG ASSY.
Y.EGE40.013
14
PRESSİNG PİN
Y.EGE40.014
15
HİNGE BUSHİNG
Y.EGE40.015
16
YELLOW NUT
Y.EGE40.016
17
HİNGE BUSHİNG LEFT
Y.EGE40.017
18
HEATER CLOSİNG SHEET
Y.EGE40.018
19
HEATİNG ELEMENT
Y.EGE40.019

11
Electric water direct grill
Kasap Tip Dik Buzdolapları

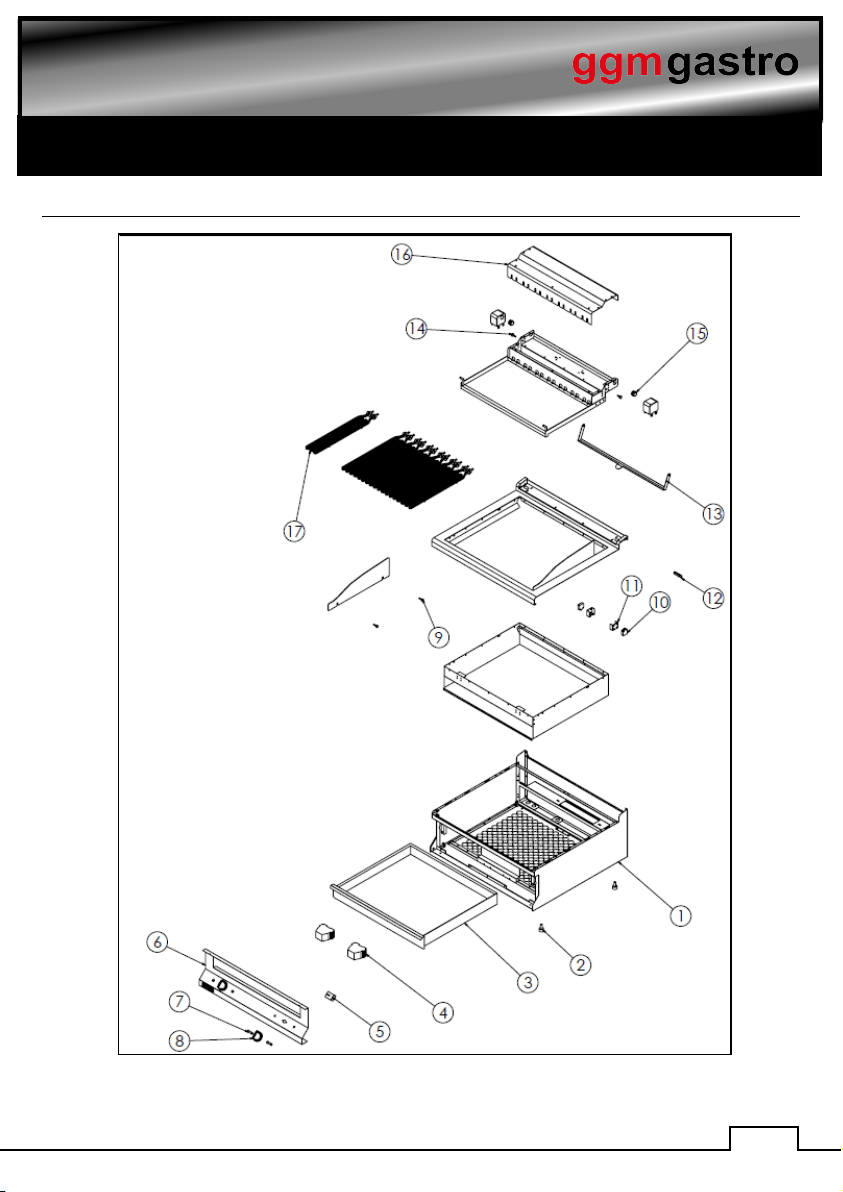

G SPARE PART LIST-EXPLODING DRAWING
EGE80

12
Kasap Tip Dik Buzdolapları
Electric water direct grill
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE : EGE80
NO
PRODUCT NAME
P.CODE
1
BASE
Y.EGE80.001
2
FEET
Y.EGE80.002
3
OIL COLLECTOR
Y.EGE80.003
4
01 DLEM CONTACTOR
Y.EGE80.004
5
REGUATOR
Y.EGE80.005
6
FRONT PANEL SHEET
Y.EGE80.006
7
İNDİCATOR LAMP
Y.EGE80.007
8
BUTTON
Y.EGE80.008
9
WALLİNG PİN
Y.EGE80.009
10
SWİTCH
Y.EGE80.010
11
SWİTCH SHEET
Y.EGE80.011
12
HEATİNG ELEMENT CONECTOR
Y.EGE80.012
13
HEATİNG ELEMENT HANGİNG ASSY.
Y.EGE80.013
14
PRESSİNG PİN
Y.EGE80.014
15
HİNGE BUSHİNG
Y.EGE80.015
16
HEATER CLOSİNG SHEET
Y.EGE80.016
17
HEATİNG ELEMENT
Y.EGE80.017

13
Electric water direct grill
Kasap Tip Dik Buzdolapları

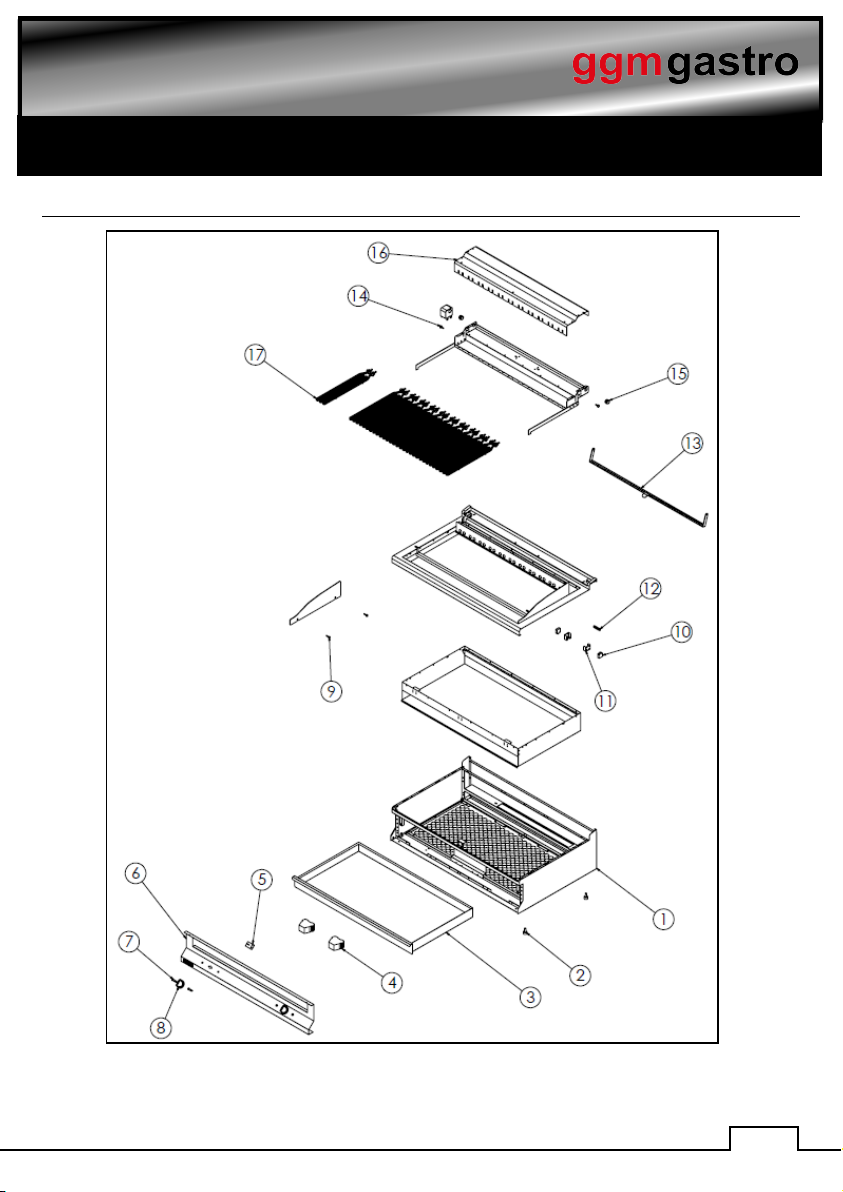

G SPARE PART LIST-EXPLODING DRAWING
EGE120

14
Kasap Tip Dik Buzdolapları
Electric water direct grill
G SPARE PART LIST-EXPLODING DRAWING
PRODUCT CODE : EGE120
NO
PRODUCT NAME
P.CODE
1
BASE
Y.EGE120.001
2
FEET
Y.EGE120.002
3
OIL COLLECTOR
Y.EGE120.003
4
01 DLEM CONTACTOR
Y.EGE120.004
5
REGUATOR
Y.EGE120.005
6
FRONT PANEL SHEET
Y.EGE120.006
7
İNDİCATOR LAMP
Y.EGE120.007
8
BUTTON
Y.EGE120.008
9
WALLİNG PİN
Y.EGE120.009
10
SWİTCH
Y.EGE120.010
11
SWİTCH SHEET
Y.EGE120.011
12
HEATİNG ELEMENT CONECTOR
Y.EGE120.012
13
HEATİNG ELEMENT HANGİNG ASSY.
Y.EGE120.013
14
PRESSİNG PİN
Y.EGE120.014
15
HİNGE BUSHİNG
Y.EGE120.015
16
HEATER CLOSİNG SHEET
Y.EGE120.016
17
HEATİNG ELEMENT
Y.EGE120.017

15
Electric water direct grill
Kasap Tip Dik Buzdolapları
H ELECTRIC CIRCUIT SCHEMA
EGE40
T1
LT
C1
L1
R1
Thermostat (50-
300ºC)
Limit thermostat
360º
Contactor
Thermostat
signal lamp
Resistance

16
Kasap Tip Dik Buzdolapları
Electric water direct grill
H ELECTRIC CIRCUIT SCHEMA
EGE80 - EGE120
T1.T2
LT1-LT2
C1.C2
L1.L2
R1.R2
Thermostat (50-
180ºC)
Limit thermostat
360º
Contactor
Thermostat
signal lamp
Resistance
