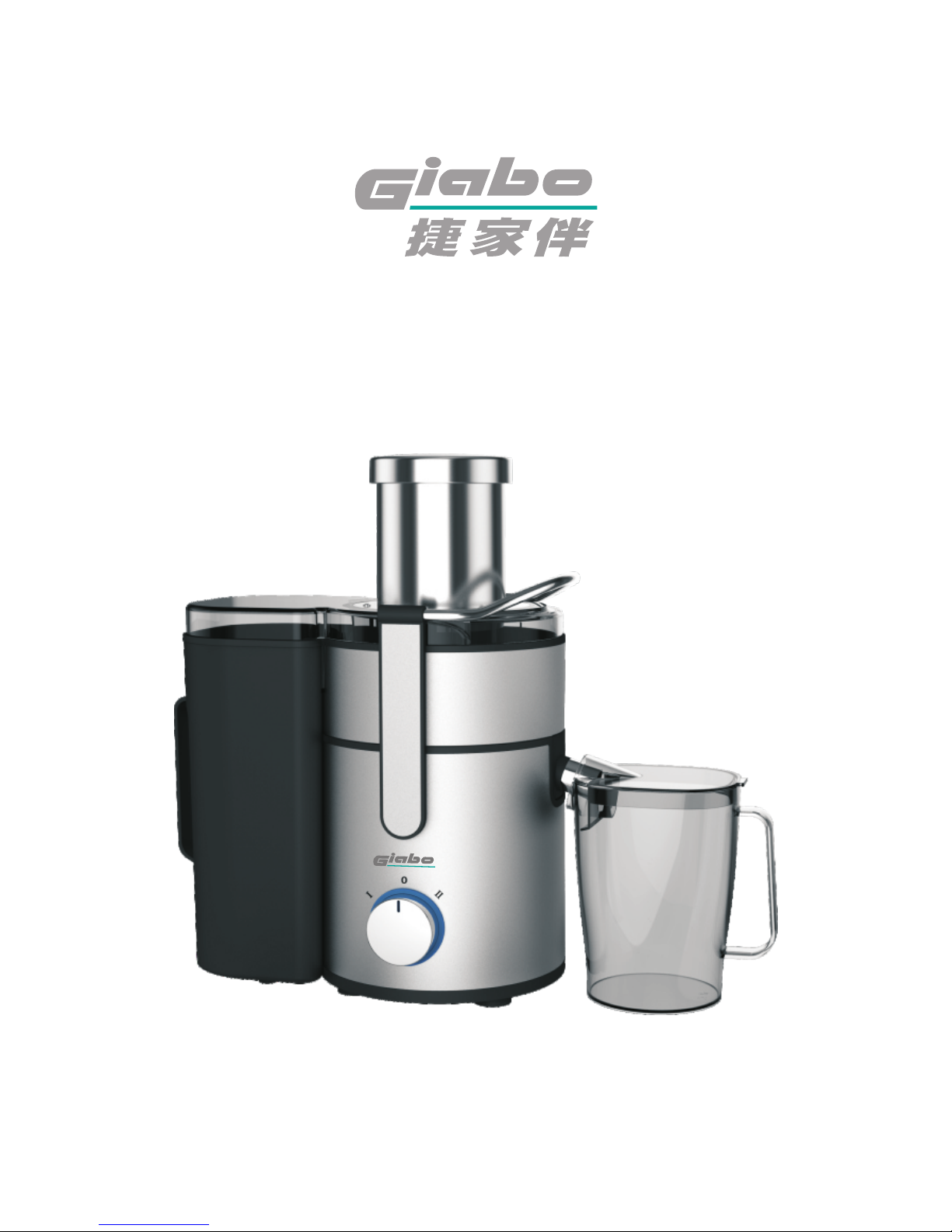

Giabo JE901 User manual

JUICE EXTRACTOR
Please read all instructions carefully before using
Model No.:JE901

Diagram of name and position of main components
1. Food pusher
2. Transparent cover
3. Filter basket
4. Middle ring
5. Handle
6. Pulp container
7. Main machine
8. Juicer jug
1
7
1
2
3
4
5
6
8

When using electrical appliances, hereunder the basic safety
precautions should always be followed:
1. Read all instructions before using.
2. This appliance is for household use and should be plugged into
any AC electrical outlet at ordinary household current. Do not
use any other electrical outlet.
3. Close supervision is necessary when the appliance is operated
near children. Do not allow children to use this appliance.
4. Always use the appliance on a dry & level surface. Do not
place on or near a hot gas or electric burner or any hot surface.
5. Handle the appliance carefully, if the unit is dropped or
bumped,it may cause the unit to malfunction.
6. Do not let cord hang over edge of table or touch hot surfaces or
being knotted.
7. To protect against electric shock, do not immerse cord, plug or
motor base in water or other liquid.
8. Do not operate any appliance with a damaged cord or plug or
after the appliance malfunctions or has been damaged in any
manner. Return the appliance to our service centre for
examination.
9. Always leave the appliance unplugged when not in use or
assembling. Connect the appliance only to properly wired wall
outlet. Do not use extension or multi socket & do not plug it into
the same outlet or use it on the same circuit with other
appliances. A circuit overload could occur.
Thank you for your purchase, we hope you enjoy the Giabo Juice Extractor.
Safety instructions
2
10. If your AC wall outlet becomes loose, it may get overheat.
Should this happen, consult a qualified technician.
11. The use of accessory attachments not recommended by the

appliance manufacturer may result in fire, electric shock or
injury to persons.
12. Always make sure the appliance is properly & completely
assembled before operating.
13. Do not push food into the Feed Chute with your fingers.
Always use the Food Pusher provided.
14. Do not touch the small cutting blades in the base of the
stainless steel filter basket.
15. The appliance is designed for extracting fruit or vegetables
only. Do not use for blending, chopping, mincing, pureeing,
slicing or shredding of any meat, nut, fruit or vegetable.
16. Do not continuously use the appliance more than 15 minutes.
17. Do not use the appliance if the stainless steel filter basket is
damage.
18. Do not use harsh abrasives, caustic cleaners or oven
cleaners when cleaning this appliance.
19. The appliance is for household use only. Do not use at
outdoors or for any commercial or industrial purpose.
3
Assembling Instructions
Step 1
Place middle ring on top of the main machine.
Step 2
Push the stainless steel filter basket inside the middle ring unit it
clicks into place. Be sure the filter basket is properly placed when
switching the appliance on. Beware of the small cutting blades at
the base of filter basket.
Step 3
Place the transparent cover over the middle ring, positioning the

4
Operating Instructions
feed chute over the stainless steel filter basket and lower into
position.
Step 4
Raise the safety locking handle up into the vertical position.
Locate the locking handle into the two grooves on both sides of
the transparent cover.
Note:Slide the food pusher down the feed chute by aligning the
groove in the food pusher with the small protrusion on the inside
of the top of the feed tube.
Step 5
Place the pulp container into position by tilting the pulp container
slightly.
Hint: For easy cleaning, place a small plastic bag into the pulp container to collect
the pulp.
The bag may also prevent pulp from spitting out of the pulp container.
Step 6
Place a juice jug under the spout on the right hand side of the
juice extractor.
1. Unpack and remove all packaging materials from carton.
2. When the appliance is used for the first time, it is normal for the
motor to give off a small amount of smoke and odor.
3. Always make sure the appliance is properly & completely
assembled before operating.

5
4. Wash the fruit or vegetables ready for juicing. When juicing
carrots, place the tip of the carrot in last.
5. Ensure to place a large jug or glass under the spout while
juicing.
6. Plug the power cord into a local power supply outlet, this
machine is designed with rotate switches of “0” for stop, “I” for
low speed and “II” for high speed of start operating.
7. With the motor running, place food down the feed chute. Using
the food pusher, gently guide food down the feed chute.
Note: (1) To extract the maximum amount of juice, always push
the food pusher down slowly.
(2) Never use hands or foreign objects to push food
down the feed chute or To clear the feed chute.
Always use the food pusher provided.
8. Juice will flow into the jug/glass and the separated pulp will
accumulate in the pulp container.
Noted: (1) Do not allow the pulp container to overfill as this
may damage the unit.
(2) Please switch off the appliance when empty the
pulp container.
(3) For easy cleaning, suggest place a plastic bag into
the pulp container to collect pulp.
9. To unload the juicing net, first remove the transparent cover
and the residue barrel. Then turn the middle ring at 30
degrees form the juicing nozzle. The juicing net can then be
easily released from the rotor.

Cautions
(
a click sound is heard. Turning the filter basket to see if the
filter basket is installed well.
(2) Do not use the appliance if the stainless steel filter basket is
damage.
(3) The appliance is designed for extracting fruit or vegetables
only. Do not use for blending, chopping, mincing, pureeing,
slicing or shredding of any meat, nut, fruit or vegetable.
(4) Do not continuously use the appliance more than 15 minutes.
1) Push the stainless steel filter basket inside the middle ring until
Helpful Hints
- For fruits with hard or inedible skins such as melons, mango
and kiwi fruit, always peels before juicing.
- All fruits with pits and seeds or stones such as nectarines,
peaches, apricots, plums and cherries must be pitted before
juicing.
- A small amount of lemon juice can be added to apple juice to
prohibit browning.
Care & Cleaning
1. Turn the power switch to '0' position and unplug the appliance
before cleaning.
2. Disassemble the appliance. Note: Lift off the filter base with the
stainless steel filter basket inside. Then, turn the filter base
upside down and carefully remove the filter basket.
3. Except the motor base, all detachable parts can be immersed
6

in water or any other liquid.
4. Wash with warm soapy water and a sponge or cloth. Do not
use harsh abrasives or caustic cleaners. Rinse with water
thoroughly & wipe dry with cloth.
5. For the stainless steel filter basket, wash under running water
& brush from the inside of the basket out with the nylon
cleaning brush provided. Always handle the filter basket with
care as it can be easily damaged.
6. Discoloration of the plastic may occur with strongly colored
fruits and vegetables.To help prevent this, wash the stained
parts immediately after use.
7. Wipe the motor base with a damp sponge of paper towel.
8. All part parts of the appliance are not recommended for
washing in the dishwasher.
9. For storage, make sure all the parts are dry enough and store
in a clean & dry place.
7
Limited Warranty
1. Please keep the original invoice for maintenance service.
2. If the appliance malfunctions or has been damaged in any
manner, do not try to repair it. Return the appliance to our
customer service centre for inspection or repair.
3. This warranty is valid for 12 months from the date of purchase.
During the validity of this warranty, our customer will be entitled
to free maintenance service. However, this warranty does not
cover the following conditions:
3.1 All damages caused by accident , negligence, abuse,
misuse, improper voltage, normal wear- and-tear or any
unauthorized repair or being tampered;

3.2 Commercial or industrial use. Or use for other than
intended use;
3.3 Use of unauthorized parts and / or replacement parts not
under warranty. Such repair will be charged at cost;
3.4 No valid sales invoice is presented. The invoice should
have the following information printed: name of dealer,
model number and purchase date;
4. The warranty is valid only in the HKSAR region.
8
Giabo Juice
Extractor
Shop Chop
Model No.
JE901
Serial No.
CustomerName
Purchase Date
Model No.
JE901
Voltage
220-240V~
Rate Frequency
50/60Hz
Rate Power
800W
Capacity
1.1L
Weight
4.5KG
Size
L32XW21XH39(cm)
Chiap Hua International Limited
Customer Service HotLine: [phone]
Adds: 4/F, 2 Dai Wang St, Tai Po Industrial Estate, Tai Po, N.T. H.K
E-Mail: [email protected]
Website: www.Giabo.com
