Giagni TDTF Troubleshooting guide

Owner’s Manual & Installation Guide
Traditional Faucets
Note: Read all instructions before proceeding with installation. All
specications are subject to change without notice.

Giagni

1
Giagni
Table of Contents:
Installing a Deckmount Faucet .....................................................................................................2
Installing a Floormount Faucet.....................................................................................................5
Installing a Wallmount Faucet.......................................................................................................8
NOTE: Due to the complexities of this installation a professional plumber is required.

2
Giagni

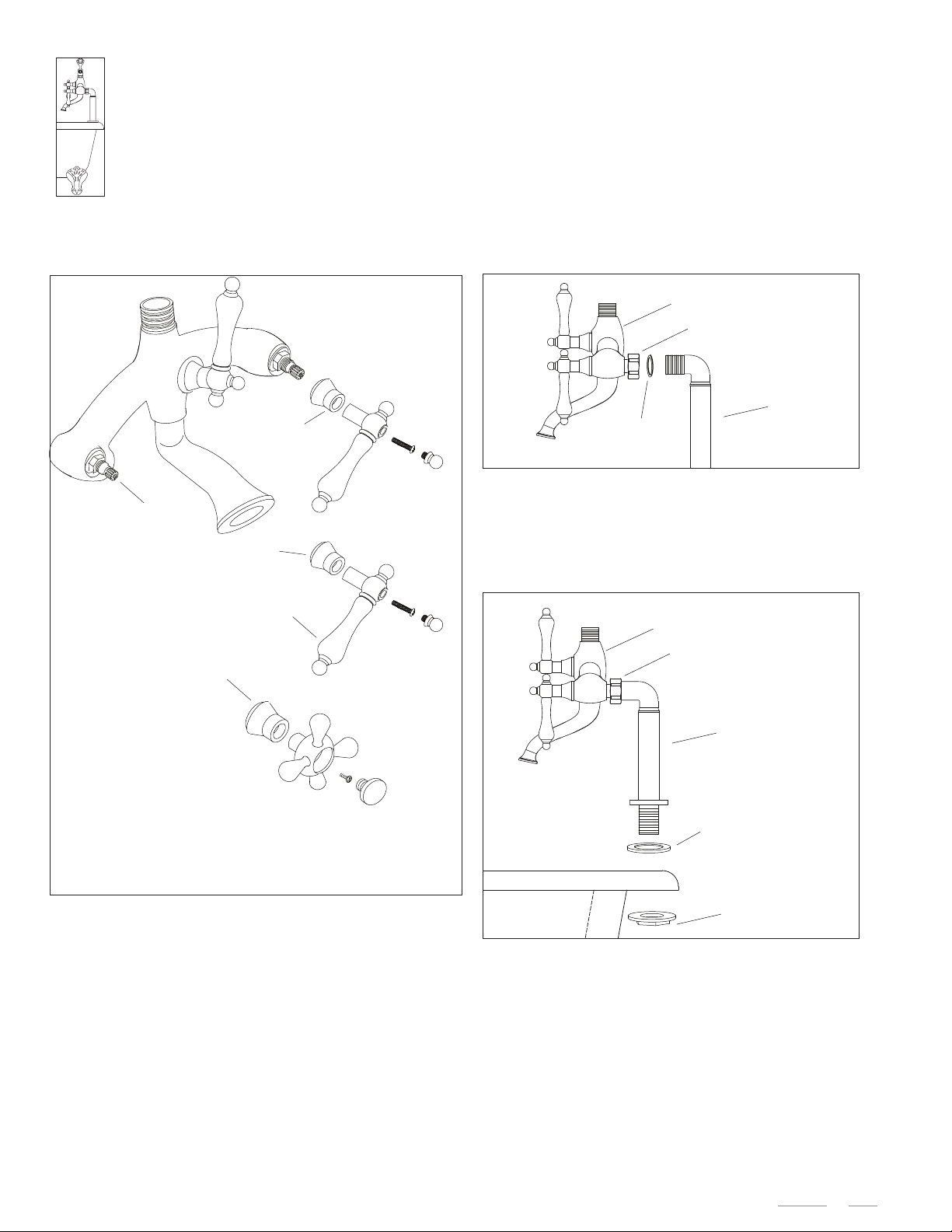

TRADITIONAL DECK MOUNT TUB FAUCET
T-HLVR
T-HPLV
T-HCRS
11
9
11
11
17
White Porcelain
Step 1
Screw #11 handle hub onto hot/cold cartridges
#9 and #17. Disassemble handle and install
onto cartridge by securing with screw included.
Reassemble handle.
Step 2
Attach T-DLBO deck elbows to union nuts on
back of faucet body using one #10 rubber gasket
on each elbow.
Step 3
Insert faucet through holes in tub rim with #20
seal washer above the deck and secure with #21
locknut. NOTE: If your tub does not have faucet
holes use a 1” hole saw and drill holes in deck
centered across the overow hole on 8” centers.
Notes:
1. Please ensure all local plumbing and building codes are observed when installing
these faucets.
2. Water supply lines must be roughed in on 8” centers.
1/2" Pipe Nipple (Not Supplied)
Cone Washer
Metal Washer
Nut
Esctcheon
Tub
Nut
Washer (10)
Lock Nut
Rubber Seal Washer
Cone Washer
Flange is at top of tube
T-DLBO
T-FB1
Union Nut
U-FSUP
NOTE: U-FSUP SUPPLY LINES CAN BE CUT
TO CORRECT HIEGHT. MAKE SURE TO CUT
FROM BOTTOM OF TUBE.
1/2" Pipe Nipple (Not Supplied)
Cone Washer
Metal Washer
Nut
Esctcheon
Tub
Nut
Lock Nut (21)
Rubber Seal
Washer (20)
Cone Washer
Flange is at top of tube
T-DLBO
T-FB1
Union Nut
U-FSUP
NOTE: U-FSUP SUPPLY LINES CAN BE CUT
TO CORRECT HIEGHT. MAKE SURE TO CUT
FROM BOTTOM OF TUBE.

3
Giagni

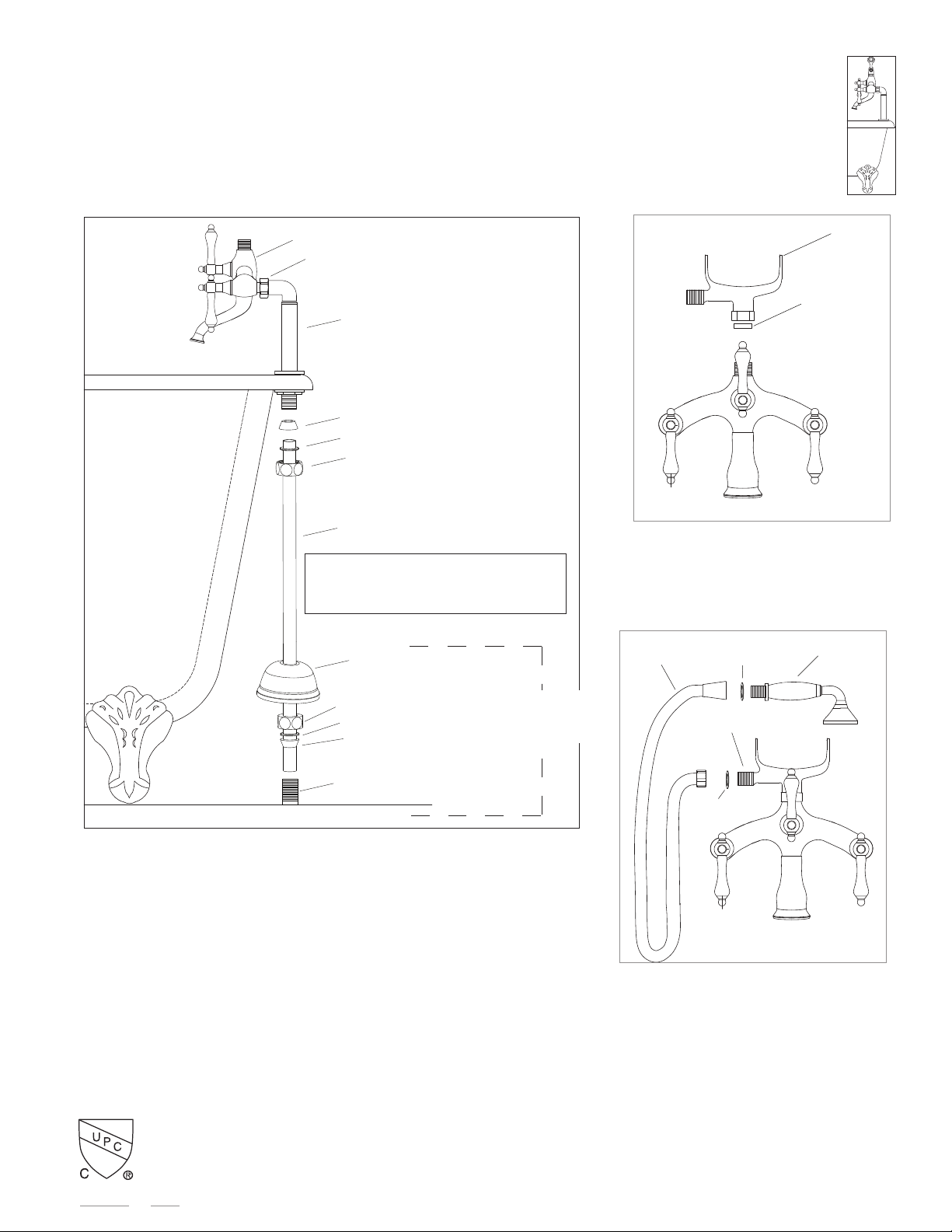

TRADITIONAL DECK MOUNT TUB FAUCET (cont.)
1/2" Pipe Nipple (Not Supplied)
Cone Washer
Metal Washer
Nut
Escutcheon
Tub
Nut
Cone Washer
Flange (top of tube)
T-DLBO
T-FB1
Union Nut
U-FSUP
NOTE: U-FSUP SUPPLY LINES CAN BE CUT
TO CORRECT HIEGHT. MAKE SURE TO CUT
FROM BOTTOM OF TUBE.
NSF /ANSI 61
For optional shut off
valve installation see
next page
Step 4
Cut U-FSUP supply lines to correct height for application
and attach to threaded shank of faucet. (NOTE: Supply
lines must be cut from bottom of tube) Connect preferred
½” pipe, supplied by installer, into female threaded nut at
bottom of supply line to make hot/cold water connections.
Step 5
Attach #1 handshower holder
with #2 rubber gasket to outlet
above diverter handle.
Step 6
Attach small end of #18 handshower
hose with #28 washer to outlet on
side of #1 handshower holder.
Step 7
Attach large end of #18 handshower
hose with #28 washer to #6
handshower and place in #1 holder.
Step 8
Turn on water and check all
connections for leaks.
2
1
18 6
small end
large end
1
28
28

4
Giagni

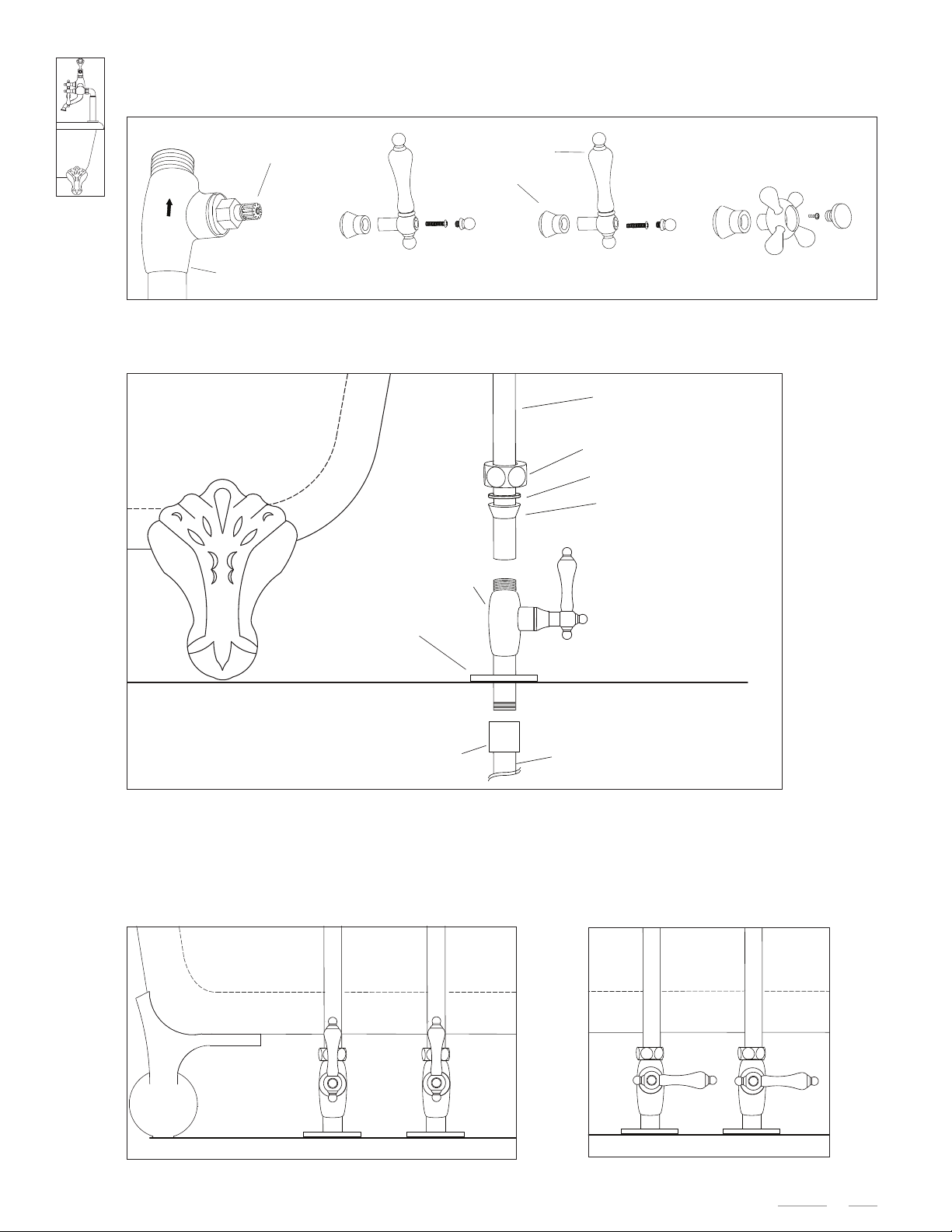

TRADITIONAL DECK MOUNT OPTIONAL SHUT OFF VALVE
Step 1 Screw handle hubs onto valve stems. Disassemble handle and install onto stem by securing
with screw included. Reassemble handle. NOTE: Rotate valve stem counter-clockwise until it stops to
open valve prior to installing handle. Handle must be installed pointing up.
Step 2 Slide decorative ange onto bottom of U-DVLV stop valve. (Note: Slide slowly to avoid
scratching nish) Connect stop valve to ½” coupling, supplied by installer, below the oor. Slide
decorative ange down to oor.
Step 3 Cut U-FSUP supply line to appropriate length and connect to stop valve with nut, metal
washer and cone washer. Proceed with Step 5 on page 3 to complete faucet installation.
Valves In Open Position Valves In Closed Position
White Porcelain
Handle Hub
T-HLVR T-HPLV T-HCRS
Cone Washer
Valve Stem
Metal Washer
Nut
U-DVLV
Cone Washer
U-FSUP
Supply Line
1/2" Pipe
1/2" Coupling
Metal Washer
Nut
U-DVLV
Stop Valve
Floor
Decorative Flange
NUT
WASHER
LOCK NUT
RUBBER SEAL WASHER
CONE WASHER
T-DLBO
T-FB1
U-FSUP
NOTE: U-FSUP SUPPLY LINES CAN
BE CUT TO CORRECT HIEGHT.
MAKE SURE TO CUT FROM
BOTTOM OF TUBE.
U-DVLV
U-DVLV

5
Giagni
TRADITIONAL FLOOR MOUNT TUB FAUCET
NSF /ANSI 61
T-HLVR
T-HPLV
T-HCRS
11
9
11
11
17
White Porcelain
Step 1
Screw #11 handle hub onto hot/cold cartridges
#9 and #17. Disassemble handle and install
onto cartridge by securing with screw included.
Reassemble handle.
Step 2
Attach hot and cold risers U-FRSR to union nuts
on back of faucet body using one #10 rubber
gasket on each riser.
1/2" Pipe Nipple (Not Supplied)
Cone Washer
Metal Washer
Nut
Esctcheon
Tub
Nut
Washer (10)
Lock Nut
Rubber Seal Washer
Cone Washer
Flange is at top of tube
U-FRSR
T-FB1
Union Nut
U-FSUP
NOTE: U-FSUP SUPPLY LINES CAN BE CUT
TO CORRECT HIEGHT. MAKE SURE TO CUT
FROM BOTTOM OF TUBE.
Step 3
Attach #1 handshower holder with
#2 rubber gasket to outlet above
diverter handle.
2
1
Notes:
1. Faucet is not for use on concrete oors.
2. Please ensure all local plumbing codes are observed during installation
3. Water supply lines must be roughed in on 8” centers.

6
Giagni

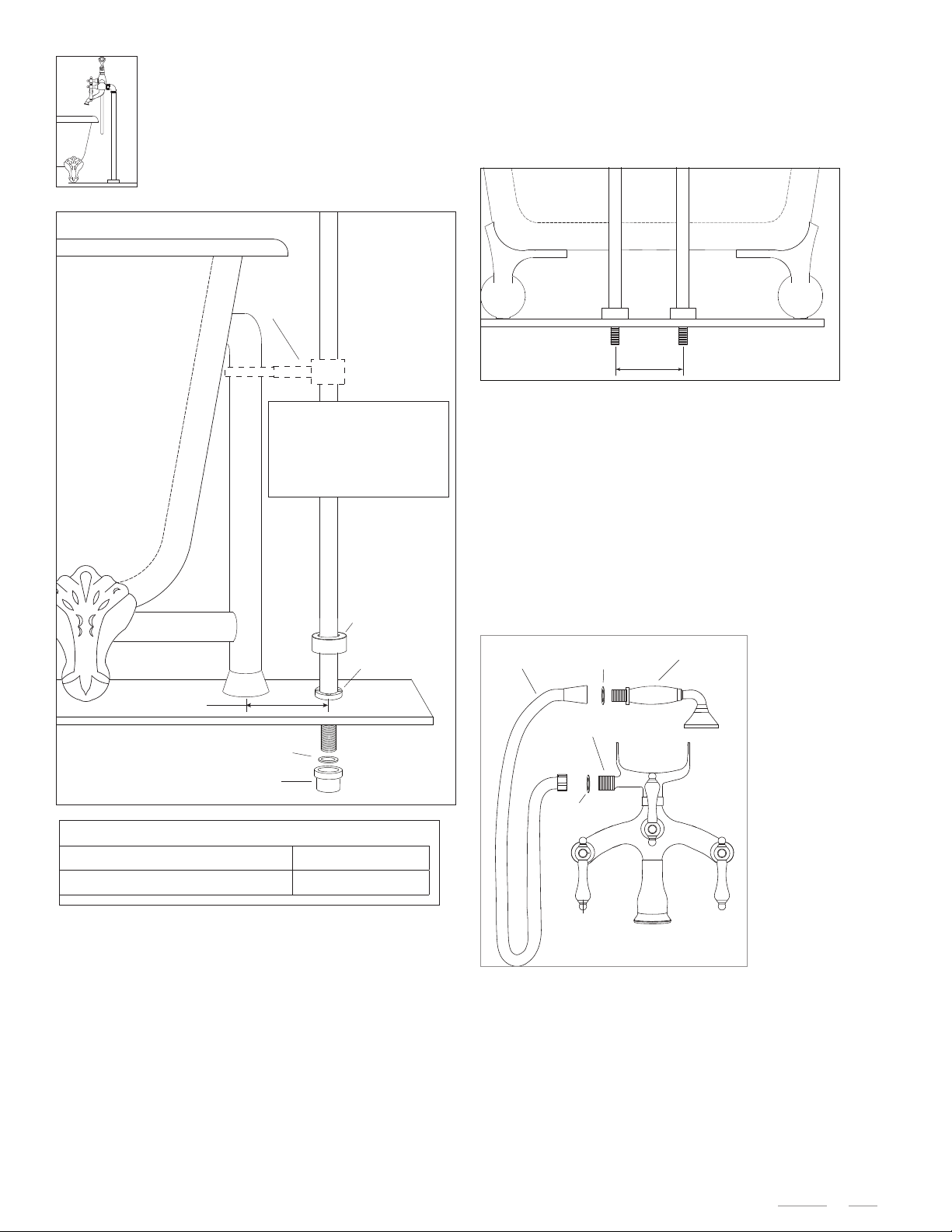

TRADITIONAL FLOOR MOUNT TUB FAUCET (cont.)
Tub
See Step 4
1/2" NPT Female Adapter
Washer
X
T-FB1
U-FRSR
U-SBRC
Floor Flange
(26)
Decorative
Flange (25)
Step 4 Drill (2) 1-1/8” holes into oor on 8”centers
for hot and cold water supplies. If using U-SBRC
support brace, water supply holes must be drilled
at 3-3/4” from drain outlet (center to center). If not
using support brace, holes should be drilled at
2-1/2” mimimum to 3-1/2” maximum from drain outlet
(center to center).
Step 5 If desired, attach U-SBRC support bracket
to risers. See page 7. (Tub model LCAT-167 does
not have an exposed drain so support brace will not
be used)
Step 6 Slide #25 decorative escutcheon onto
bottom of risers U-FRSR and push part way up.
Screw #26 oor ange onto threaded portion of
each riser until it stops.
Step 7 Insert risers into hole in oor and secure
oor anges with appropriate screws/bolts for your
ooring type. (Hardware not included)
Step 8 Slide decorative escutcheon down to cover
oor ange.
Step 9 Tighten optional support bracket to risers
and drain
Step 10 Attach small end of #18 handshower hose
with #28 washer to outlet on side of #1 handshower
holder.
Step 11 Attach large end of #18 handshower hose
with #28 washer to #6 handshower and place in #1
holder.
Step 12 Connect preferred ½” pipe (supplied by
installer) into female threaded riser U-FRSR from
under ooring. Make hot/cold water connections.
Turn on water and check all connections for leaks.
18 6
small end
large end
1
28
28
8"
Dimension X
If using support bracket 3-3/4”
If NOT using support bracket 2-1/2” TO 3-1/2”
NOTE: When using the
U-SBRC support brace
it must be installed onto
faucet risers prior to
securing to oor
Side View
End View

7
Giagni

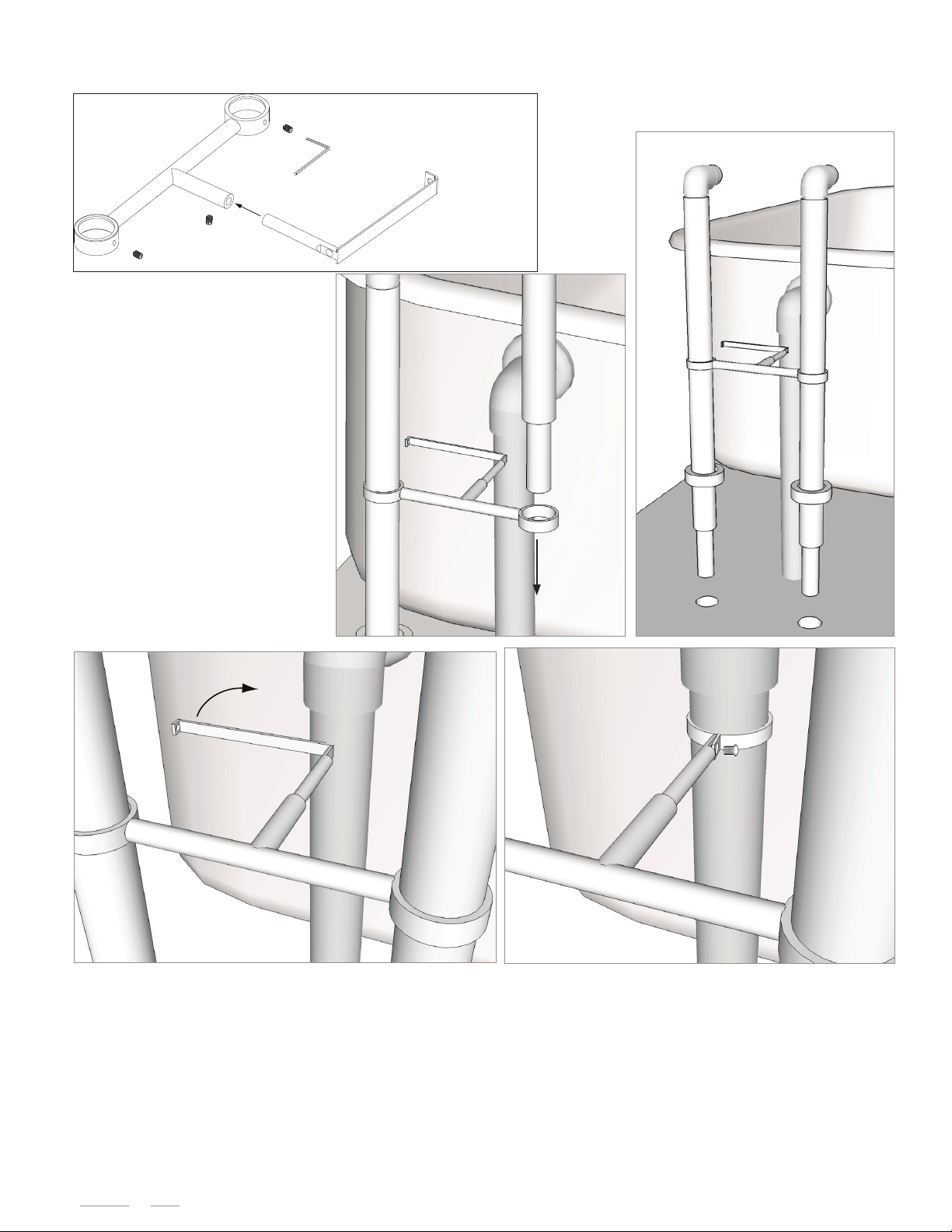

FIGURE 1 Bracket Assembly
FIGURE 2 & 3 Slide Bracket
FIGURE 4 Bend Strap FIGURE 5 Secure Strap
SUPPORT BRACKET INSTALLATION (for oormount faucets)
1. Assemble bracket as shown.
2. Slide support bracket onto risers before decorative escutcheons.
3. Bend metal strap around drain to create a clamp. Secure with screw provided.
Recommended height is just below drain overow.
4. Proceed with step 6 of faucet installation.
STEP 7
STEP 7
STEP 1

8
Giagni
TRADITIONAL WALL MOUNT TUB FAUCET
NSF /ANSI 61
Finished Wall
Pipe Nipple
Decorative Flange (22)
T-WLBO (23)
Washer (10)
T-FB1
Union Nut
3/8"-1/2"
Notes:
1. Please ensure all local plumbing and building codes are observed when installing
these faucets.
2. Mounting location depends on tub design and location. Be sure to identify tub height
when determining faucet location.
3. There must be a minimum of 2" gap between top of tub rim and bottom of the faucet
spout to comply with plumbing codes. (see g. 4)
4. Water supply lines must be roughed in on 8” centers.
T-HLVR
T-HPLV
T-HCRS
11
9
11
11
17
White Porcelain
Step 1
Screw #11 handle hub onto hot/cold cartridges
#9 and #17. Disassemble handle and install
onto cartridge by securing with screw included.
Reassemble handle.
Step 2 Rough-in #23 T-WLBO ush to nished
wall. Hot/Cold supplies should be roughed in on 8”
centers and 1/2” pipe (supplied by installer) should
extend 3/8” to 1/2” beyond the nished wall.
Step 3 Screw decorative ange #22 included with
T-WLBO onto rough portion #23.
Step 4 Attach faucet to wall by screwing union nuts
onto the T-WLBO wall elbows with #10 washer.
Finished Wall
Decorative
Flange
Pipe Nipple
TPN41-2/1
Rough-in T-WLBO
Flush to finished wall.
Pipe nipple should extend
3/8" - 1/2" beyond finished
wall.

9
Giagni
TRADITIONAL WALL MOUNT TUB FAUCET (cont.)
Tub
2" Minimum
Finished Wall
Step 5
Attach #1 handshower holder with
#2 rubber gasket to outlet above
diverter handle.
Step 6
Attach small end of #18 handshower hose with
#28 washer to outlet on side of #1 handshower
holder.
Step 7
Attach large end of #18 handshower hose with
#28 washer to #26 handshower and place in #1
holder.
Step 8
Turn water and check all connections for leaks.
2
1
18 6
small end
large end
1
28
28
Figure 4
