GIGA-BYTE TECHNOLOGY GA-IMB310N User manual

To reduce the impacts on global warming, the packaging materials of this product
are recyclable and reusable. GIGABYTE works with you to protect the environment.
For more product details, please visit GIGABYTE's website.
GA-IMB310N
User's Manual
Rev. 1001

Copyright
©2019 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.
No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or
by any means without GIGABYTE's prior written permission.
In order to assist in the use of this product, carefully read the User's Manual.
For product-related information, check on our website at: https://www.gigabyte.com
Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means
the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard
BIOS, drivers, or when looking for technical information.
Example:
Motherboard
GA-IMB310N
Dec. 21, 2018
Dec. 21, 2018
Motherboard
GA-IMB310N

- 3 -
Table of Contents
GA-IMB310N Motherboard Layout..................................................................................4
Chapter 1 Hardware Installation .....................................................................................5
1-1 Installation Precautions.................................................................................... 5
1-2 ProductSpecications...................................................................................... 6
1-3 Installing the CPU ............................................................................................ 9
1-4 Installing the Memory....................................................................................... 9
1-5 Installing an Expansion Card ......................................................................... 10
1-6 Back Panel Connectors.................................................................................. 10
1-7 Internal Connectors........................................................................................ 12
Chapter 2 BIOS Setup ..................................................................................................22
2-1 Main ............................................................................................................... 22
2-2 M.I.T. .............................................................................................................. 23
2-4 System ........................................................................................................... 28
2-5 BIOS............................................................................................................... 29
2-6 Peripherals..................................................................................................... 32
2-7 Chipset........................................................................................................... 35
2-8 Power............................................................................................................. 36
2-9 Save & Exit..................................................................................................... 38
Chapter 3 Appendix ......................................................................................................39
Drivers Installation..................................................................................................... 39
Regulatory Statements.............................................................................................. 40
Contact Us ................................................................................................................ 42

- 4 -

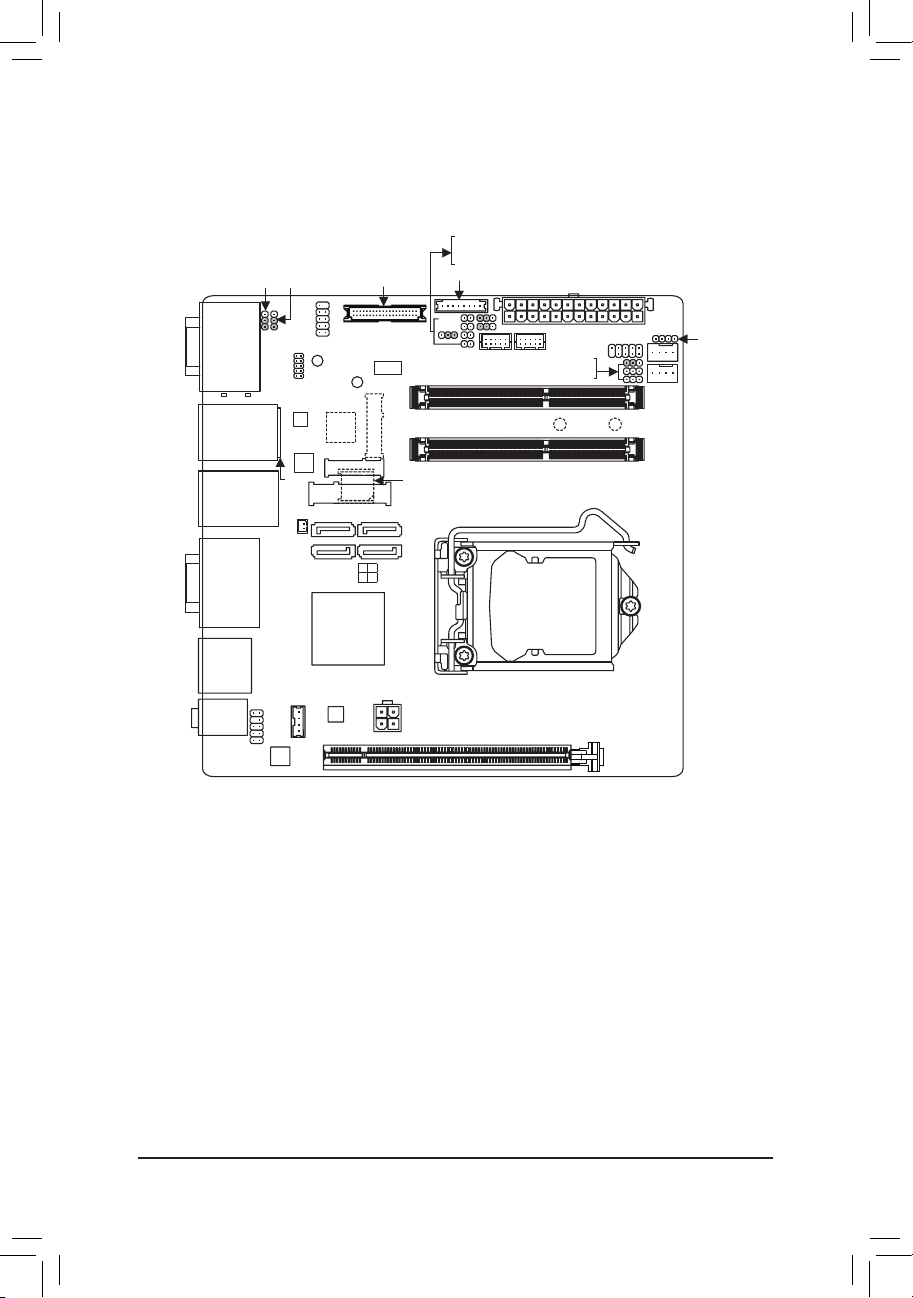

GA-IMB310N Motherboard Layout
* The box contents above are for reference only and the actual items shall depend on the product package you
obtain. The box contents are subject to change without notice.
Box Contents
5GA-IMB310N motherboard 5One COM port cable
5Motherboard driver disk 5Two SATA cables
5User's Manual 5I/O Shield
COMD
COMC
ATX_12V
8060
30 CPU_FAN
LGA1151
LVDS
COMD_PWCOMC_PW
COMA_PW
COMB_PW
BAT
PCIEX16
Intel®H310
M_BIOS
SYS_FAN
GA-IMB310N
AUDIO
LCD_VCC
COMA
ATX
CNVI
U_SIM (Note 1)
M.2 (Note 1)
SATA3 3 1
2 0
FPD
F_PANEL
MSATA_PCIE
DP_HDMI
F_AUDIO
CODEC
SPKR
BAT_CON
Intel®
GbE LAN
Intel®
GbE LAN
iTE®
Super I/O (Note 1)
F_USB
GPIO
TPM IC
DDR4_2
DDR4_1
SPEAKER
COMB
USB30_LAN1
USB30_LAN2
VGA
HDMI (Note 2)
BL_SW
MON_SW
CLR_CMOS
CI
I2C
SMBUS
AT_ATX
BOOT STB
(Note 1) This chip/connector is on the back of the motherboard.
(Note 2) Whether this feature is supported depends on the product being received.

Chapter 1 Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can become
damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's
manual and follow these procedures:
•Prior to installation, make sure the chassis is suitable for the motherboard.
•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
•Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
•When connecting hardware components to the internal connectors on the motherboard, make
sure they are connected tightly and securely.
•When handling the motherboard, avoid touching any metal leads or connectors.
•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.
•Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
•Before connecting or unplugging the power supply cable from the motherboard, make sure
the power supply has been turned off.
•Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
•Before using the product, please verify that all cables and power connectors of your hardware
components are connected.
•To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
•Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
•Do not place the computer system on an uneven surface.
•Do not place the computer system in a high-temperature or wet environment.
•Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
•If you are uncertain about any installation steps or have a problem related to the use of the
product,pleaseconsultacertiedcomputertechnician.
•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation
and/or grounding instructions.
- 5 -

1-2 ProductSpecications
CPU Support for 9th and 8th Generation Intel®Core™i9 processors/Intel®Core™i7
processors/Intel®Core™i5 processors/Intel®Core™i3 processors/Intel®Pentium®
processors/Intel®Celeron®processors in the LGA1151 package
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset Intel®H310 Express Chipset
Memory 2 x DDR4 SO-DIMM sockets supporting up to 32 GB of system memory
Support for DDR4 2400/2133 MHz memory modules
(Go to GIGABYTE's website for the latest supported memory speeds and memory
modules.)
Onboard
Graphics
Integrated Graphics Processor-Intel®HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz (Note)
* Support for HDMI 1.4 version and HDCP 2.2.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version, HDCP 2.2, and HDR.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
Support for up to 2 displays at the same time
Maximum shared memory of 1 GB
Audio Realtek®ALC887 codec
HighDenitionAudio
2/4/5.1-channel
LAN 2 x Intel®GbE LAN chips (10/100/1000 Mbit)
TPM Inneonchip,supportingTPM2.0
Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for an Intel®CNVi or PCIe wireless module (CNVI)
1 x full size Mini PCIe connector (MSATA_PCIE)
* The MSATA_PCIE slot shares bandwidth with the SATA3 2 connector. When an
MSATA SSD is populated, the SATA3 2 connector becomes unavailable.
* The MSATA_PCIE connector can also be used as an MSATA connector.
(The Mini PCI Express slot conforms to PCI Express 2.0 standard.)
Storage Interface Chipset:
- 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type
2260/2280 SATA and PCIe x2 SSD support)
- 4 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA
connectors.
(Note) Whether this feature is supported depends on the product being received.
- 6 -

USB Chipset:
- 4 x USB 3.0/2.0 ports on the back panel
- 2 x USB 2.0/1.1 ports available through the internal USB headers
Internal
Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector on the back of the motherboard
4 x SATA 6Gb/s connectors
1 x MSATA connector
1 x USIM connector on the back of the motherboard
1 x front panel header
1 x front panel audio header
1 x battery power cable connector
1 x USB 2.0/1.1 header
2 x serial port headers
4 x serial port power select jumpers
1 x AT/ATX mode switch jumper (AT_ATX)
1 x GPIO header
1 x LVDS header
1 x LVDS drive voltage jumper (LCD_VCC)
1 x backlight switch header (BL_SW)
1xatpaneldisplayswitchheader(MON_SW)
1xatpaneldisplayheader(FPD)
1 x speaker header (SPKR)
1 x buzzer header (SPEAKER)
1 x Clear CMOS jumper
1 x chassis intrusion header
1 x I2C jumper
1 x SMBUS jumper
Back Panel
Connectors
2 x serial ports
4 x USB 3.0/2.0 ports
2 x RJ-45 ports
1 x D-Sub port
2 x HDMI ports (Note)
1 x DisplayPort
2 x audio jacks
I/O Controller iTE®I/O Controller Chip
(Note) Whether this feature is supported depends on the product being received.
- 7 -

Hardware
Monitor
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you
install.
BIOS 1x128Mbitash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features Support for @BIOS
Support for Q-Flash
Bundled
Software Norton®Internet Security (OEM version)
Operating
System Support for Windows 10 64-bit
Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm
* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout
prior notice.
Please visit GIGABYTE's website
for support lists of CPU, memory
modules, SSDs, and M.2 devices.
Please visit the Support\Utility List
page on GIGABYTE's website to
download the latest version of apps.
- 8 -

1-3 Installing the CPU
Read the following guidelines before you begin to install the CPU:
•Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)
•Always turn off the computer and unplug the power cord from the power outlet before installing the
CPU to prevent hardware damage.
•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may
locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
•Apply an even and thin layer of thermal grease on the surface of the CPU.
•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage
of the CPU may occur.
•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended
thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics
card, memory, hard drive, etc.
Installing the CPU

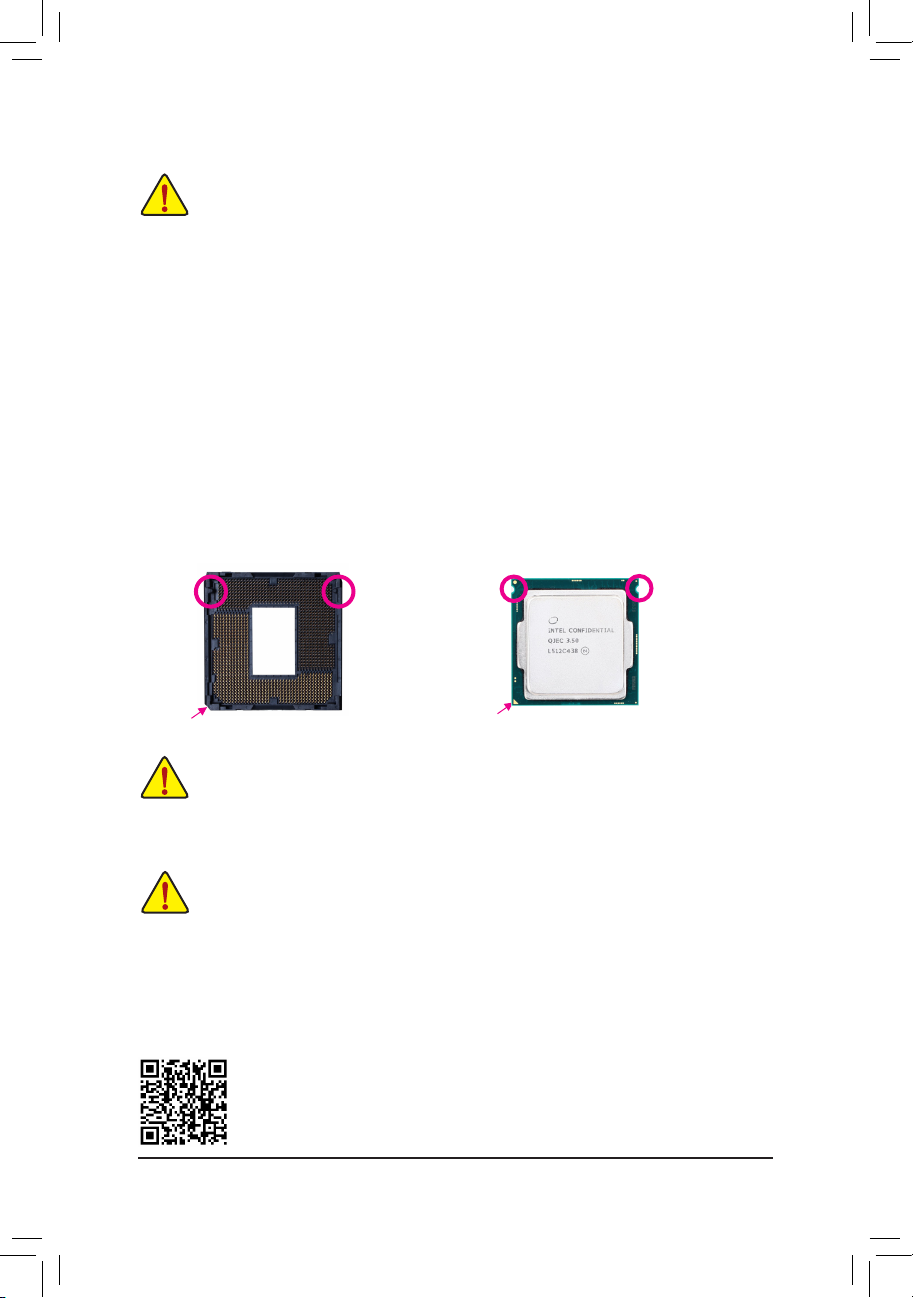

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load
plate automatically during the process of re-engaging the lever after you insert the CPU.
Alignment
Key
Alignment
Key
LGA1151 CPU Socket
Pin One Corner of the CPU Socket
LGA1151 CPU
Triangle Pin One Marking on the CPU
Notch
Notch
Please visit GIGABYTE's website for details on hardware installation.
1-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
•Make sure that the motherboard supports the memory. It is recommended that memory of the same
capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
•Always turn off the computer and unplug the power cord from the power outlet before installing the
memory to prevent hardware damage.
•Memory modules have a foolproof design. A memory module can be installed in only one direction.
If you are unable to insert the memory, switch the direction.
- 9 -

1-5 Installing an Expansion Card
Read the following guidelines before you begin to install an expansion card:
•Make sure the motherboard supports the expansion card. Carefully read the manual that came
with your expansion card.
•Always turn off the computer and unplug the power cord from the power outlet before installing an
expansion card to prevent hardware damage.
1-6 Back Panel Connectors
Serial Port
Use the serial port to connect devices such as a mouse, modem or other peripherals.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
Activity LED:Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
State Description
Blinking Data transmission or receiving is occurring
On No data transmission or receiving is occurring
USB 3.0/2.0 Port
TheUSB3.0/2.0portsupportstheUSB3.0specicationandiscompatibletotheUSB2.0specication.
Use this port for USB devices.
D-Sub Port
The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200@60 Hz
(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports
D-Sub connection to this port.
HDMI Port (Note)
The HDMI port is HDCP compliant and supports Dolby TrueHD and DTS HD
Master Audio formats. It also supports up to 192KHz/24bit 8-channel LPCM
audio output. You can use this port to connect your HDMI-supported monitor. The maximum supported
resolution is 4096x2160@30 Hz, but the actual resolutions supported are dependent on the monitor
being used.
(Note) Whether this feature is supported depends on the product being received.
Activity LED
Connection/
Speed LED
LAN Port
- 10 -

•Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour
device and then remove it from the motherboard.
•When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.
PleasevisitGIGABYTE'swebsitefordetailsonconguringtheaudiosoftware.
DisplayPort
DisplayPort delivers high quality digital imaging and audio, supporting bi-directional audio transmission.
DisplayPort can support both DPCP and HDCP 2.2 content protection mechanisms. It provides improved
visuals supporting Rec. 2020 (Wide Color Gamut) and High Dynamic Range (HDR) for Blu-ray UHD
playback. You can use this port to connect your DisplayPort-supported monitor. Note: The DisplayPort
Technology can support a maximum resolution of 4096x2304@60 Hz but the actual resolutions supported
depend on the monitor being used.
HDMI Port
The HDMI port supports HDCP 2.2 and Dolby TrueHD and DTS HD Master
Audio formats. It also supports up to 192KHz/16bit 8-channel LPCM audio
output. You can use this port to connect your HDMI-supported monitor. The maximum supported
resolution is 4096x2160@60 Hz, but the actual resolutions supported are dependent on the monitor
being used.
After installing the HDMI/DisplayPort device, make sure to set the default sound playback device
to HDMI/DisplayPort. (The item name may differ depending on your operating system.)
Line Out (Green)
The line out jack.
Mic In (Pink)
The Mic in jack.
- 11 -

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
•First make sure your devices are compliant with the connectors you wish to connect.
•Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
•After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1) ATX
2) ATX_12V
3) CPU_FAN
4) SYS_FAN
5) M.2 (Note)
6) U_SIM (Note)
7) SATA3 0/1/2/3
8) F_PANEL
9) F_AUDIO
10) BAT/BAT_CON
11) SPEAKER
12) COMA/COMB
13) LVDS
14) F_USB
15) FPD
16) COMA/B/C/D_PW
17) GPIO
18) AT_ ATX
19) I2C
20) SMBUS
21) SPKR
22) LCD_VCC
23) BL_SW
24) MON_SW
25) CLR_CMOS
26) CI
27) STB/BOOT
21 2
1
7
13 23
24 15
3
5
1622 1216
4
18
19
20
11
14
8
9
10
10
27
17
25
26
6
(Note) The connector is on the back of the motherboard.
- 12 -

DEBUG PORT
G.QBOFM
13
1
24
12 ATX
ATX:
Pin No. Denition Pin No. Denition
1 3.3V 13 3.3V
2 3.3V 14 -12V
3 GND 15 GND
4 +5V 16 PS_ON (soft On/Off)
5 GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 Power Good 20 NC
9 5VSB (stand by +5V) 21 +5V
10 +12V 22 +5V
11 +12V (Only for 2x12-pin
ATX)
23 +5V (Only for 2x12-pin ATX)
12 3.3V (Only for 2x12-pin
ATX)
24 GND (Only for 2x12-pin
ATX)

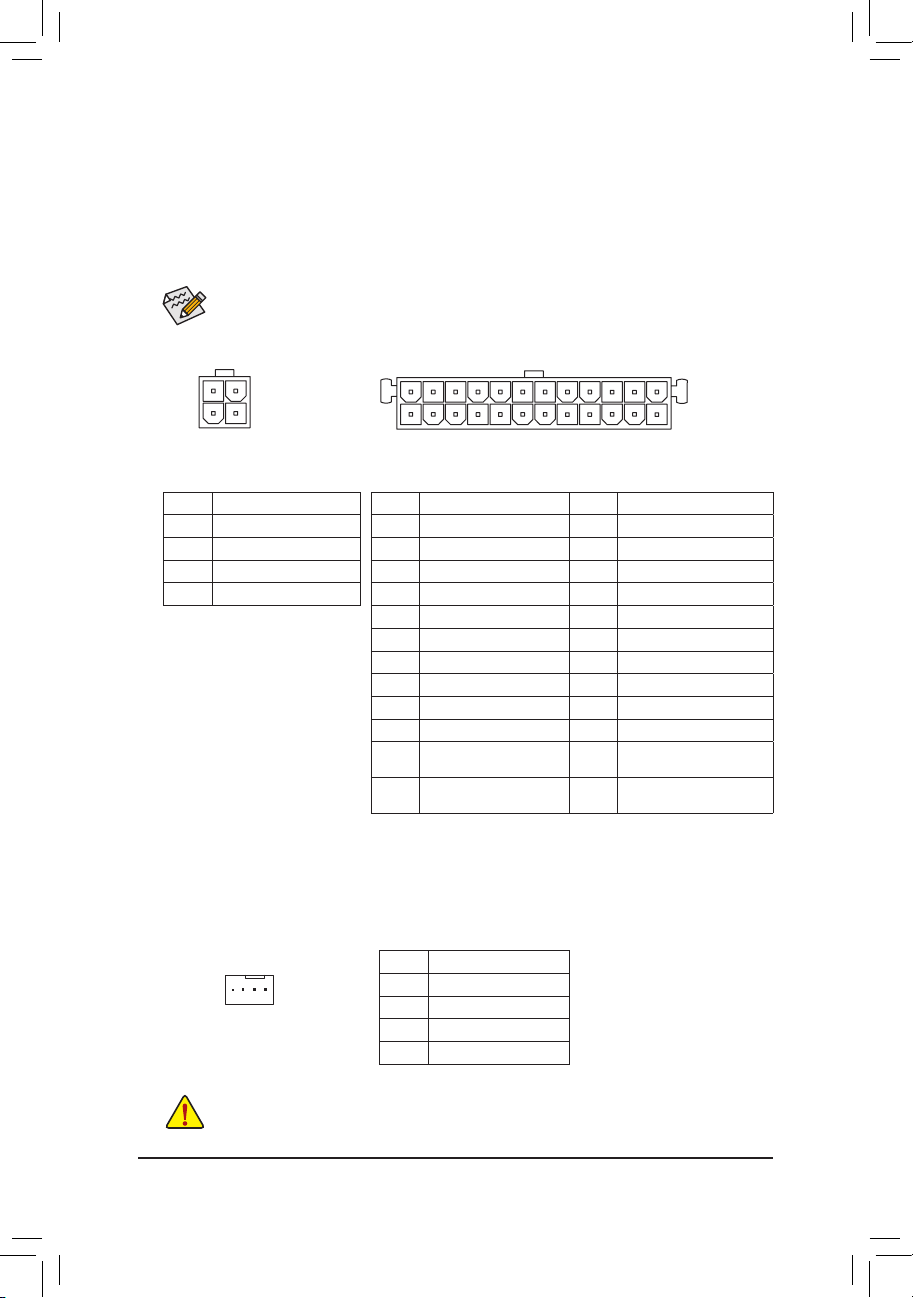

1/2) ATX/ATX_12V (2x2 12V Power Connector and 2x12 Main Power Connector)
With the use of the power connector, the power supply can supply enough stable power to all the components
onthemotherboard.Beforeconnectingthepowerconnector,rstmakesurethepowersupplyisturned
off and all devices are properly installed. The power connector possesses a foolproof design. Connect the
power supply cable to the power connector in the correct orientation.
The 12V power connector mainly supplies power to the CPU. If the 12V power connector is not connected,
the computer will not start.
To meet expansion requirements, it is recommended that a power supply that can withstand high power consumption
be used (500W or greater). If a power supply is used that does not provide the required power, the result can
lead to an unstable or unbootable system.
ATX_12V:
Pin No. Denition
1 GND
2 GND
3 +12V
4 +12V
ATX_12V
2
1
4
3

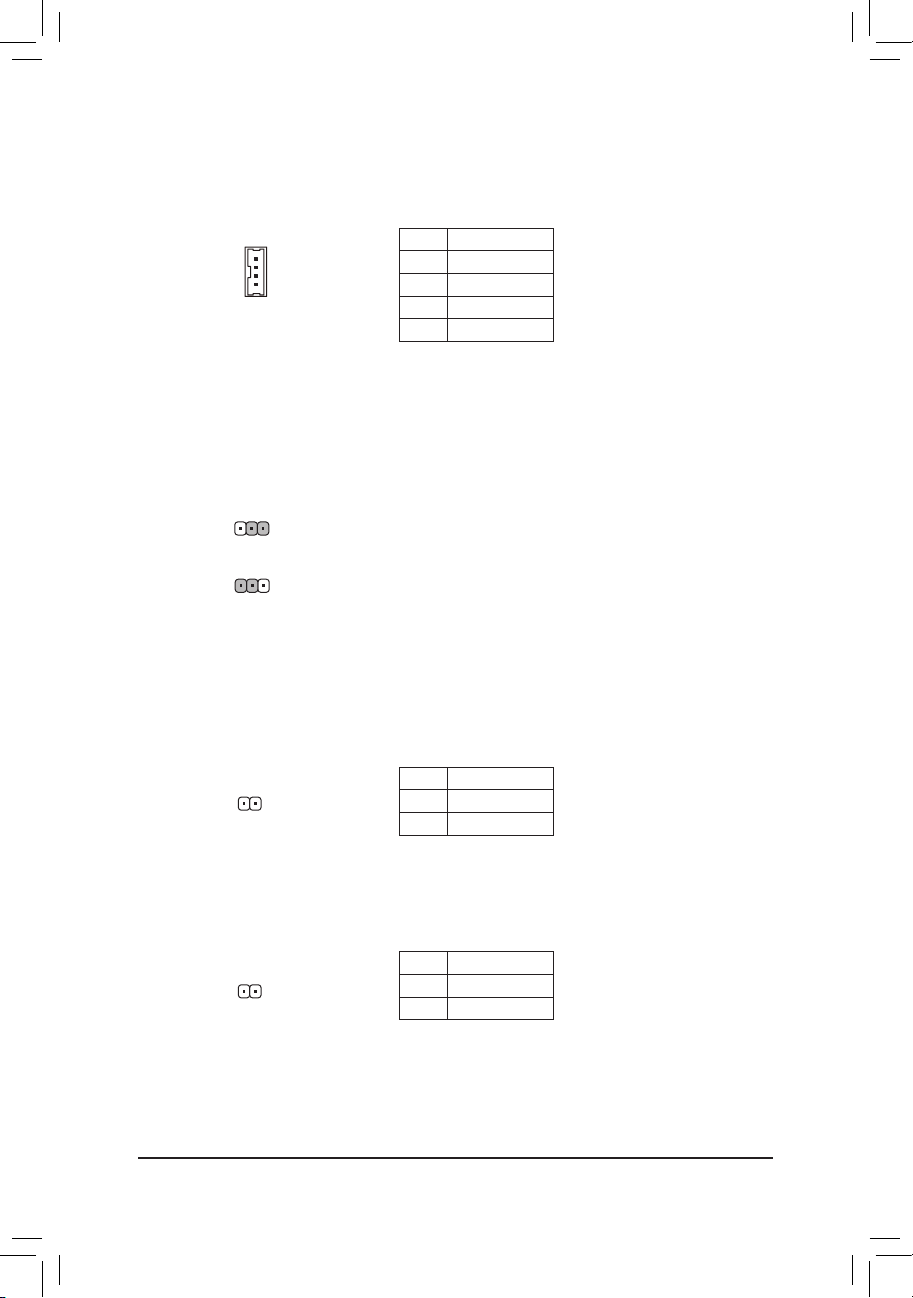

3/4) CPU_FAN/SYS_FAN (Fan Headers)
All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design.
When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is
the ground wire). The speed control function requires the use of a fan with fan speed control design. For
optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.
•Be sure to connect fan cables to the fan headers to prevent your CPU and system from
overheating. Overheating may result in damage to the CPU or the system may hang.
•Thesefanheadersarenotcongurationjumperblocks.Donotplaceajumpercapontheheaders.
Pin No. Denition
1 GND
2 Voltage Speed Control
3 Sense
4 PWM Speed Control
CPU_FAN/SYS_FAN
DEBUG PORT
G.QBOFM
1
- 13 -

Select the proper hole for the M.2 SSD to be installed and refasten the screw and standoff.

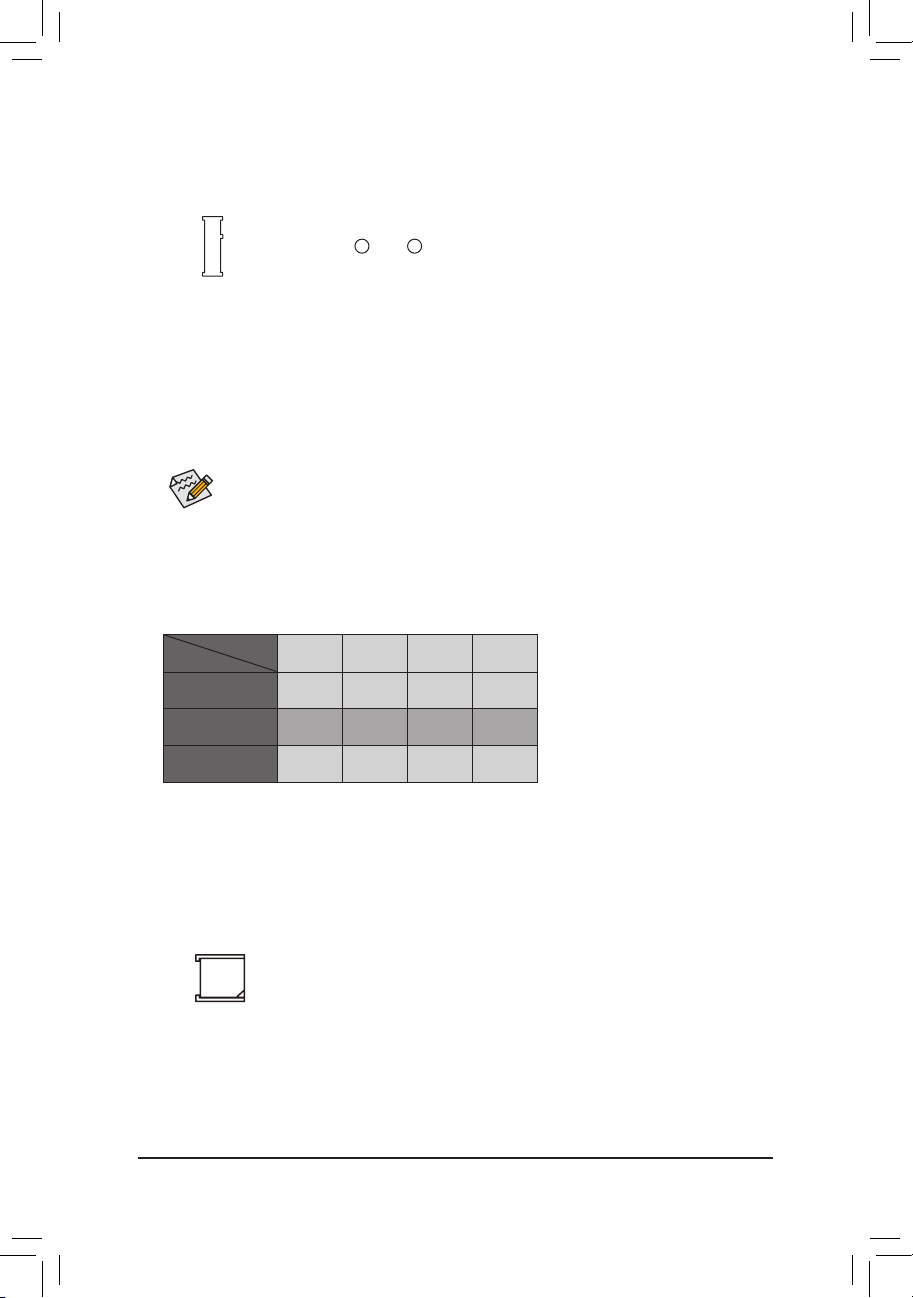

5) M.2 (M.2 Socket 3 Connector) (Note)
The M.2 connector supports M.2 SATA SSDs and M.2 PCIe SSDs.
Follow the steps below to correctly install an M.2 SSD in the M.2 connector.
Step 1:
Use a screw driver to unfasten the screw and standoff from the motherboard. Locate the proper mounting
holefortheM.2SSDtobeinstalledandthenscrewthestandoffrst.
Step 2:
Slide the M.2 SSD into the connector at an angle.
Step 3:
Press the M.2 SSD down and then secure it with the screw.
F_USB30 F_U
B_ 
F_  F_ 

_
B
BS_
B
SB_
B
_S

S_
_
B
_U
_
B


 
S  
 
123
 
123
 
123
 
123
1
1
1
1
BSS
S
_S 
SSU
 
1 2 3  
 S3 BSSS

U
 __ 3
F_USB3F
S  _
S  _
S  _
SF


B_
B_
F
_0
S
S
_0F
_F
_
_
__B


U
S  _S
_ SF_
B 
USB0_B
B_ F_USB3
 F_USB303

_

_3U
S_
8060
(Note) The connector is on the back of the motherboard.
6) U_SIM (USIM Connector) (Note)
This connector can be used to install a Micro Sim card to connect to a mini PCIe LAN card.
SATA3 0 SATA3 1 SATA3 2 SATA3 3
M.2 SATA SSD a a a r
M.2 PCIe x2 SSD
a a a a
No M.2 SSD Installed a a a a
a: Available, r: Not available
Connector
Type of
M.2 SSD
Installation Notices for the M.2 and SATA Connectors:
Due to the limited number of lanes provided by the Chipset, the availability of the SATA connectors may be
affected by the type of device installed in the M.2 connector. The M.2 connector shares bandwidth with the
SATA3 3 connector. Refer to the following table for details.
- 14 -

7) SATA3 0/1/2/3 (SATA 6Gb/s Connectors)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
1
1
7
7
8) F_PANEL (Front Panel Header)
Connect the power switch, reset switch, and system status indicator on the chassis to this header according
to the pin assignments below. Note the positive and negative pins before connecting the cables.
The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch,
power LED, hard drive activity LED and etc. When connecting your chassis front panel module to this header, make
sure the wire assignments and the pin assignments are matched correctly.
•PW (Power Switch, Red):
 Connectstothepowerswitchonthechassisfrontpanel.Youmaycongure
the way to turn off your system using the power switch (refer to Chapter 2,
"BIOS Setup," "Power," for more information).
•PLED (Power LED, Yellow):
System Status LED
S0 On
S3/S4/S5 Off
Connects to the power status indicator on the
chassis front panel. The LED is on when the
system is operating. The LED is off when the
system is in S3/S4 sleep state or powered off
(S5).
9
NC
PLED-
PW-
PLED+
PW+
HD- RES+
HD+ RES-
Power Switch
Hard Drive
Activity LED
Reset Switch
Power LED
10
1
2
•HD (Hard Drive Activity LED, Blue):
Connects to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive
is reading or writing data.
•RES (Reset Switch, Green):
Connects to the reset switch on the chassis front panel. Press the reset switch to restart the computer
if the computer freezes and fails to perform a normal restart.
•NC (Purple):
No connection.
- 15 -
SATA3 3 1
2 0

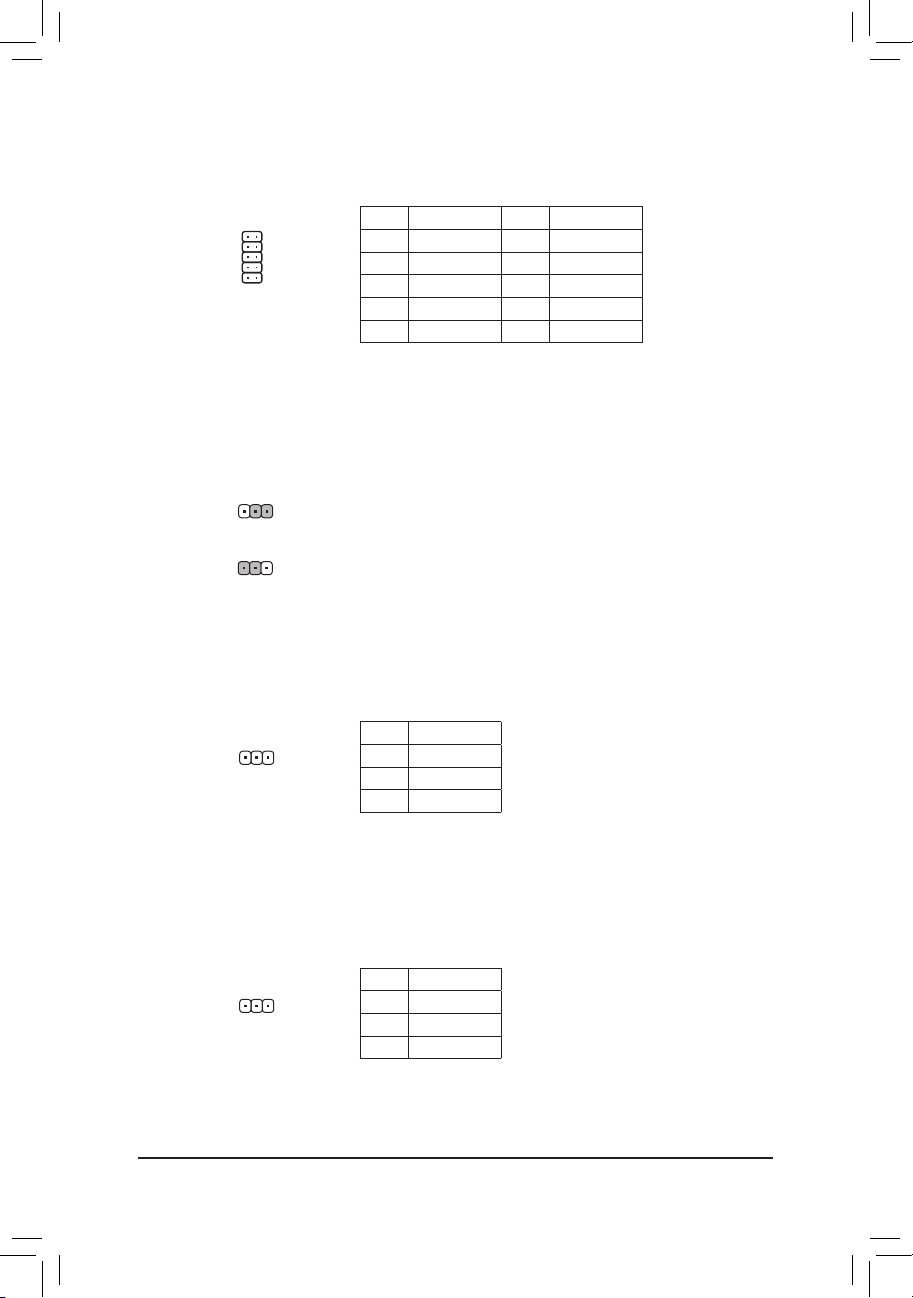

9) F_AUDIO (Front Panel Audio Header)
 ThefrontpanelaudioheadersupportsHighDenitionaudio(HD).Youmayconnectyourchassisfront
panel audio module to this header. Make sure the wire assignments of the module connector match the
pin assignments of the motherboard header. Incorrect connection between the module connector and the
motherboard header will make the device unable to work or even damage it.
Some chassis provide a front panel audio module that has separated connectors on each wire
instead of a single plug. For information about connecting the front panel audio module that has
different wire assignments, please contact the chassis manufacturer.
Pin No. Denition Pin No. Denition
1 MIC2_L 6 Sense
2 GND 7 FAUDIO_JD
3 MIC2_R 8 No Pin
4 -ACZ_DET 9 LINE2_L
5 LINE2_R 10 Sense
12
910
Pin No. Denition
1(+) RTC Power
2(-) GND
10) BAT/BAT_CON (Battery/Battery Power Cable Connector)
 Thebatteryprovidespowertokeepthevalues(suchasBIOScongurations,date,andtimeinformation)
in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low
level, or the CMOS values may not be accurate or may be lost.
You may clear the CMOS values by removing the battery cable:
1. Turn off your computer and unplug the power cord.
2. Unplug the the battery cable from the battery cable header and wait for one minute.
3. Plug in the battery cable.
4. Plug in the power cord and restart your computer.
•Always turn off your computer and unplug the power cord before replacing the battery.
•Replace the battery with an equivalent one. Damage to your devices may occur if the battery is replaced
with an incorrect model.
•Contact the place of purchase or local dealer if you are not able to replace the battery by yourself or uncertain
about the battery model.
•Used batteries must be handled in accordance with local environmental regulations.
F_USB30 F_U
B_ 
F_  F_ 

_
B
BS_
B
SB_
B
_S

S_
_
B
_U
_
B


 
S  
 
123
 
123
 
123
 
123
1
1
1
1
BSS
S
_S 
SSU
 
1 2 3  
 S3 BSSS

U
 __ 3
F_USB3F
S  _
S  _
S  _
SF


B_
B_
F
_0
S
S
_0F
_F
_
_
__B


U
S  _S
_ SF_
B 
USB0_B
B_ F_USB3
 F_USB303

_

_3U
S_
1(+)
2(-)
- 16 -

12) COMA/COMB (Serial Port Headers)
Each COM header can provide one serial port via an optional COM port cable. For purchasing the optional
COM port cable, please contact the local dealer.
Pin No. Denition Pin No. Denition
1 NDCD- 6 NCTS-
2 NDSR- 7 NDTR-
3 NSIN 8 12V_5V
4 NRTS- 9 GND
5 NSOUT 10 NC
10
9
2
1
11) SPEAKER (Buzzer Header)
Connects to the buzzer on the chassis front panel. The system reports system startup status by issuing a
beep code. One single short beep will be heard if no problem is detected at system startup.
Pin No. Denition
1 VCC
2 NC
3 NC
4 SPK-
DEBUG
PORT
G.QBOFM
1
13) LVDS (LVDS Header)
LVDS stands for Low-voltage differential signaling, which uses high-speed analog circuit techniques to
provide multigigabit data transfers on copper interconnects and is a generic interface standard for high-
speed data transmission.
(Note) Connects to Pin 25 and the ground pin of the LVDS.
Pin No. Denition Pin No. Denition Pin No. Denition
1 LCD_VCC 15 -RXO3_C 29 CABLE_DET (Note)
2 LCD_VCC 16 +RXO3_C 30 -RXE3_C
3 VCC3 17 GND 31 +RXE3_C
4 NC 18 -RXECLKO_C 32 GND
5 NC 19 +RXECLKO_C 33 -RXECLKE_C
6 -RXO0_C 20 GND 34 +RXECLKE_C
7 +RXO0_C 21 -RXE0_C 35 GND
8 GND 22 +RXE0_C 36 SC_BKLT_EN
9 -RXO1_C 23 GND 37 SC_BKLT_CTL
10 +RXO1_C 24 -RXE1_C 38 FPD_PWR
11 GND 25 +RXE1_C 39 FPD_PWR
12 -RXO2_C 26 GND 40 FPD_PWR
13 +RXO2_C 27 -RXE2_C
14 GND 28 +RXE2_C
2
1
40
39
- 17 -

15) FPD (Flat Panel Display Header)
The FPD is a high-speed interface connecting the output of a video controller in a laptop computer, computer
monitor or LCD television set to the display panel. Most laptops, LCD computer monitors and LCD TVs use
thisinterfaceinternally.TheheaderconformstoFPDspecication.
18
Pin No. Denition
1 BKLT_EN
2 BKLT_PWM
3 BKLT_PWR (FPD_PWR)
4 BKLT_PWR (FPD_PWR)
5 BKLT_GND/Brightness_GND
6 BKLT_GND/Brightness_GND
7 Brightness_Up
8 Brightness_Down
16) COMA_PW/COMB_PW/COMC_PW/COMD_PW (Serial Port Header Power Select Jumpers)
The power select jumpers are used to select serial port power.
1-2 Close: Set to 12V. 1-2 Close: Set to 12V.
2-3 Close: Set to 5V. (Default) 2-3 Close: Set to 5V. (Default)
14) F_USB (USB 2.0/1.1 Header)
 TheheaderconformstoUSB2.0/1.1specication.EachUSBheadercanprovidetwoUSBportsviaan
optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.
Pin No. Denition Pin No. Denition
1 Power (5V) 6 USB DY+
2 Power (5V) 7 GND
3 USB DX- 8 GND
4 USB DY- 9 No Pin
5 USB DX+ 10 NC
•Do not plug the IEEE 1394 bracket (2x5-pin) cable into the USB 2.0/1.1 header.
•Prior to installing the USB bracket, be sure to turn off your computer and unplug the power cord
from the power outlet to prevent damage to the USB bracket.
12
10 9
11
11
COMA_PW/COMB_PW COMC_PW/COMD_PW
- 18 -

19) I2C (Inter-Integrated Circuit)
Pin No. Denition
1 I2C_SCL
2 I2C_SDA
3 GND
1
20) SMBUS (System Management Bus)
Pin No. Denition
1 SMB_CLK
2 SMB_DATA
3 GND
1
17) GPIO (GPIO Header)
Use this jumper to set the GPIO status of the LPT_GPIO header to HIGH or LOW.
18) AT_ATX (AT/ATX Mode Switch Jumper)
This jumper allows you to select AT or ATX power mode.
1-2 Close: AT mode.
2-3 Close: ATX mode. (Default)
Pin No. Denition Pin No. Denition
1 IO_GP70 6 IO_GP75
2 IO_GP71 7 IO_GP76
3 IO_GP72 8 IO_GP77
4 IO_GP73 9 GP_IN_OUT
5 IO_GP74 10 GND
10 9
2 1
1
1
- 19 -

22) LCD_VCC (LVDS Drive Voltage Jumper)
This jumper can be used to provide different screen voltage settings.
1
1
1-2 Close: Set to 3V. (Default)
2-3 Close: Set to 5V.
23) BL_SW (Back Light Switch)
The Back Light switch provides the function for screen back light adjustment.
1
1
Pin No. Denition
1 BL_DOWN
2 BL_UP
21) SPKR (Speaker Header)
This speaker header is connected to a L/R audio pins from the board to support the 3W (4ohm) stereo
speaker on your AIO chassis.
1
4Pin No. Denition
1 Speaker OUT R-
2 Speaker OUT R+
3 Speaker OUT L-
4 Speaker OUT L+
24) MON_SW (Flat Panel Display Switch Header)
This header allows you to connect an on/off switch for the display.
Pin No. Denition
1 Mon_SW
2 GND
- 20 -
