GIGA Q90 Parts list manual

IS560 ECN 3731
IT
IT
IT
Istruzioni per installazione, uso e manutenzione
Instructions pour l’installation, l’utilisation et l’entretien
Instructions for installation, use and maintenance
Instrucciones para la instalación, uso y mantenimento
Aufstellungs- Bedienungs und Wartungsanleitung Aanwijzingen
voor de installatie het gebruik en onderhoud
08/2014
IT
FR
GB
ES
DE
NL
GRILL SALAMANDRA ELETTRICO
SALAMANDER GRILL ELECTRIC
SALAMANDRE ELECTRIC
SALAMANDRA PARRILLA ELÉCTRICA
SALAMANDER ELEKTROGRILL
SALAMANDER GRILL ELECTRIC
QSE

IS560 ECN 3731 Page 2 of 10
INDEX
SAFETY INSTRUCTIONS
3
Warnings
INSTALLATION
3
Location of installation
Assembly
Connecting appliances
Connecting to an electricity supply
Earth and equipotential connections
PREPARING FOR OPERATION
4
Inspection of the electrical supply
Inspection of the rated thermal output
POTENTIAL TROUBLESHOOTING AND SOLUTIONS
4
Failure of radiant heating element
Switch options failure
Failure of plate detection
Timer not working
Neon failure
REPLACING COMPONENTS WITH SPARE PARTS
5
Radiant heating element
Control switch
Micro switch
Mechanical timer
Neon
Glass
INSTRUCTIONS FOR USE AND MAINTENANCE
5-6
Warnings
Operation
Switching options and functions
CARE AND MAINTENANCE
6
Cleaning
SPARE PARTS LIST
6
EU DIRECTIVE 2002/96/EC (WEEE)
6
WALL MOUNTED
7
SERVICE INFORMATION
8
APPENDIX
9
ENG

IS560 ECN 3731 Page 3 of 10
SAFETY INSTRUCTIONS
Installation, commissioning and servicing must only be carried out by qualified personnel in compliance with
national and local regulations in force in the country of installation.
Warning
The manufacturer assumes no liability resulting from failure to follow the instructions in this booklet.
INSTALLATION
Location of installation
Technical data, dimensions, and connections are provided in the Appendix.
The appliance must be installed at least 300mm from any potential side walls, 500mm between the
working surface and any ceilings and 100mm from any potential back walls.
Remove the two transportation screws from the rear of the unit.
Ensure all vents are unobstructed.
If the appliance must be fitted near walls, partitions, kitchen furniture, decorative elements etc, we
recommend they are made from non-inflammable material; otherwise they should be covered with a
suitable heat resistant material. We recommend full attention is paid to fire regulations.
Install this appliance beneath an extraction canopy.
Assembly
Before connecting the appliance, all protective covers must be removed. Clean the work area and
external parts carefully with a solvent to remove any traces of glue.
Check with a spirit level. Levelling can be achieved by adjusting the legs.
Connecting appliances (Fig 1)
Place the appliances together and adjust them to the same level using the adjustable feet.
Connect the appliances using the holes situated on the side at the front and back of the hob.
Connecting to an electricity supply
Before connecting the appliance, check that the mains voltage corresponds to the value shown on the
data plate.
The appliance must be powered by a separate electric cable which is properly specified (see Table T1)
The cable type should be at least H 07 RN-F.
Fixed wiring insulation must be protected by insulated sleeving having a temperature rating of at least 60
Deg C.
Ensure plug/socket is accessible at all times.
Connect the cable to the terminal board following the instructions on the electrical diagrams on the
appliance.
Terminal block is found behind the control panel.
When using a 3 Phase power supply removal of the terminal link between 1 and 2 is required.
Ensure the earth cable is longer than the other cables, so that in the event that the cable clamp breaks, it
is the last lead to disconnect.
For a direct connection to a power supply, a device which guarantees disconnection from the power
supply is required, with a minimum contact separation of 3mm to ensure complete disconnection in case
of overvoltage in category III, in compliance with installation instructions.
Earth and equipotential connection
The appliance must be connected to an equipotential system –the terminal is situated near the entry point
of the electrical supply cable and is marked by the symbol
The appliance must be earthed. Connect the earth cable to the terminal near the terminal block marked
by the symbol
Fig 1
ENG

IS560 ECN 3731 Page 4 of 10
PREPARING FOR OPERATION
Inspection of the electrical supply
Start the appliance following the operating instructions and ensure that it is working correctly.
Operate the QSE following the operating instructions. Check the condition of control devices and
elements, trying all modes of heating.
Inspection of the rated thermal output
When the installation, conversion and adjustment operations are complete or after maintenance, please
verify the condition of the appliance and check the rated thermal output and supply voltage indicated in
table T1.
Attention: If the electrical supply values are not within the limits indicated in table T1, switch off the
appliance and contact your electrical supply company.
POTENTIAL TROUBLESHOOTING AND SOLUTIONS
Even during correct use of the appliance, malfunctions and breakdowns may occur. Common situations are listed
below, and checks an installer should make before contacting the technical support centre are indicated.
If after checking, the problem remains, switch the appliance off immediately and disconnect it from the power
supply. Contact the technical support centre.
Failure of radiant heating elements
Check fuses.
Check the main power supply is inserted correctly.
Insufficient voltage or failed electrical connection to the appliance.
Defective switch.
Defective thermostat temperature regulation.
Defective, badly connected or burnt out heating elements.
Switch options failure
Defective switch.
Defective thermostat temperature regulation.
Defective, badly connected or burnt out heating elements.
Insufficient voltage.
Failure of plate detection
Defective switch.
Plunger assembly not correctly set.
Defective thermostat temperature regulation.
Insufficient voltage.
Timer not working
Defective timer.
Neon failure
Defective neon.
Insufficient voltage.
ENG

IS560 ECN 3731 Page 5 of 10
REPLACING COMPONENTS WITH SPARES
ATTENTION: This section exclusively concerns technical assistance personnel.
IMPORTANT: Before making any repairs, switch off at the mains switch and disconnect the appliance from the
power supply.
Do not touch sealed components.
Radiant heating element
Remove top cover panel and insulation. Remove element support bars. Disconnect the faulty heating
element and remove. Replace the element and reassemble in the reverse order.
Control switch
Remove control knobs and control panel. Unscrew the switch fixing screws. Swap cables to new switch
and replace. Reassemble in reverse order.
Micro switch
Remove control panel. Unscrew the switch fixing screws. Swap cables to new switch and replace.
Reassemble in reverse order.
Mechanical timer
Remove the control knob and control panel. Unscrew the timer fixing screws and replace. Reassemble in
reverse order.
Neon
Remove the control panel. Disconnect wires remove and replace neon. Reassemble in reverse order.
Glass
Remove top cover panel and insulation. Remove element support bars. Remove element to access glass
and replace. Reassemble in the reverse order.
INSTRUCTIONS FOR USE AND MAINTENANCE
ATTENTION: This appliance is intended for professional use and therefore must be used by qualified or trained
personnel. It is essential to monitor the appliance during use. During operation, parts may become hot –avoid
accidental contact. Be aware of the surfaces in the region of the reflectors are hot
Installation and conversion to different voltages must be carried out by qualified and authorised installers. In the
event of problems or malfunction, switch off the appliance at the mains. In the event of a damaged supply cord, it
must be replaced by the manufacturer, its service agent or similarly qualified person.
For repairs, refer only to the authorised assistance centre and use only genuine replacement parts
Before using the appliance, read this manual and keep it for future reference.
Clean all surfaces before first use.
Never leave the cooking surface on when not in use.
The manufacturer assumes no liability resulting from any failure to observe the instructions in this manual.
Operation
Note:
The HiLight elements have built-in temperature monitoring. Due to this temperature monitoring the maximum
temperature is limited to 250deg. During continuous use the elements will automatically turn on/off to prevent
damage to the element if this temperature is reached.
ENG

IS560 ECN 3731 Page 6 of 10
The selector control knob shows the following symbols:
LH & RH heating LH side heating RH side heating Standby mode
(Keep warm)
MANUAL
The heating is switched according to the setting of the selector switch immediately.
AUTO
The heating is switched on and off according to the setting of the selector switch by the placing of a plate.
Switching on the grill
Select heating mode by turning the control knob to the desired position.
Select time if required (1-20mins) by turning the timer knob to the required position.
Keep warm mode
For keeping warm (left and right side)
Turning off the grill
Rotate the control knob to the ‘Off’ position and switch off at the electrical supply. Neon will extinguish.
CARE AND MAINTENANCE
Do not use a water jet or steam cleaner, and do not immerse this appliance.
Always disconnect the appliance from the power supply before cleaning or maintenance.
Steel parts can be cleaned using a cloth with water and mild detergent –aggressive or abrasive cleaning
substances such as steel wool or chlorine based products must be avoided.
Do not use sharp objects during cleaning.
If the appliance is not to be used for a lengthy period, disconnect from the mains supply and clean well.
All servicing, maintenance and component replacement must be carried out by a qualified person.
SPARE PARTS LIST
Glass
Elements
Control switch
Micro switch
Timer
Selector and timer knobs
Neon (Green)
EU DIRECTIVE 2002/96/EC (WEEE)
This information note is intended exclusively for appliances marked with the symbol
shown on the data plate applied onto the actual product (registration label).
This symbol indicates that the appliance is classified according to current legislation as
an electrical or electronic device. In compliance with EU Directive 2002/96/EC (WEEE), this
appliance at the end of its service life must not be treated as normal household waste but handed in free
of charge to available differentiated collection system for electrical or electronic devices. The user is
responsible for delivering the used product to any provided collection systems and is otherwise subject to
penalties in accordance with current legislation on waste products. By using a suitable collection system
for the reuse, treatment and waste management for environmental protection, you are promoting recycling
of the materials in this appliance and contributing to protecting the environment and health.
For more information concerning the available differentiated collection systems, please consult the local
authorities or the supplier from which this appliance was purchased.
The manufacturers and importers comply with their responsibility for recycling, treatment and waste
management for environmental protection both directly and by participating in differentiated collection
systems
ENG

IS560 ECN 3731 Page 7 of 10

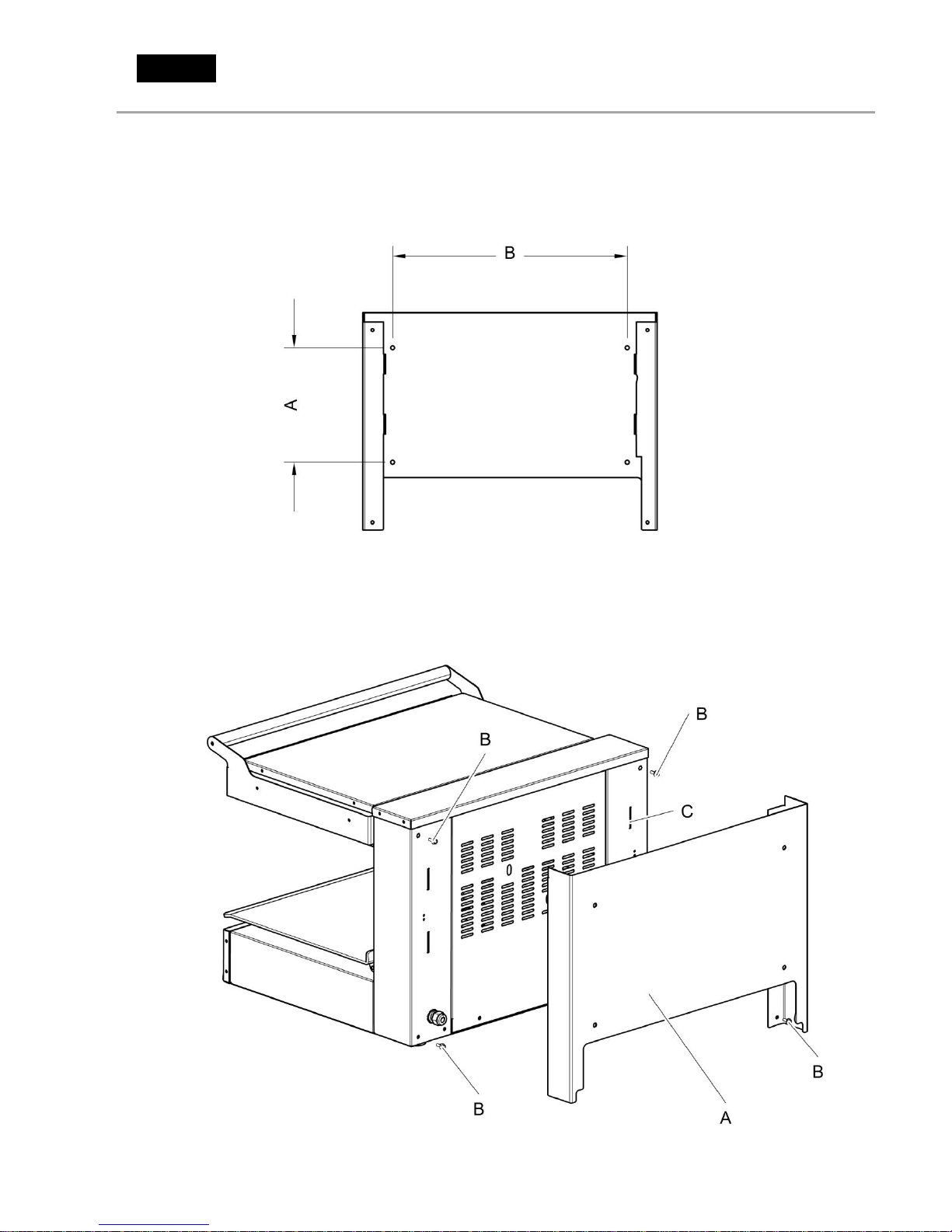

WALL MOUNTED (Brackets required –see accessories)
NOTE: Use clearance dimensions as per location of installation instructions
Measure and drill holes for wall mounting brackets A = 235, B = 480. Bolt bracket to the wall.
Remove the 4 wall mounting bolts (B) from the rear of the unit.
Lift the appliance into position on the wall mounting bracket using the slots (C) on the rear of the unit.
Reinstall the 4 x wall mounting bolts through the wall bracket in to the rear of the unit.
ENG

IS560 ECN 3731 Page 8 of 10
SERVICE INFORMATION
For help with the installation, maintenance and use of your Q90 equipment, please contact our service
department:
UK: 01522 875520
For non-UK customers, please contact your local Q90 dealer
All service work, other than routine cleaning should be carried out by one of our authorised service
agents. We cannot accept responsibility for work carried out by other persons.
To ensure your service enquiry is handled as efficiently as possible, please tell us:
Brief details of the problem
Product code
Type number
Serial number
All available on serial plate
Q90 reserve the right to carry out any work under warranty, given reasonable access to the appliance,
during normal working hours, Monday to Friday, 08:30 to 17:00.
GUARANTEE
This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does
not diminish your statutory or legal rights.
The guarantee does not cover:
Accidental damage, misuse or use not in accordance with the manufacturer’s instructions
Consumable items
Damage due to incorrect installation, modification, unauthorised service work or damage due to scale,
food debris build-up, etc.
The manufacturer disclaims any liability for incidental, or consequential damages.
Attendance is based on reasonable access to the appliance to allow the authorised technician to carry out
the warranty work.
Service calls to equipment under warranty will be carried out in accordance with the conditions of sale.
Unless otherwise specified, a maximum of 15 minutes of administrative time, not spent directly carrying out
servicing work, is provided for within the warranty. Any requirement for staff attending the call to spend
greater time than 15 minutes due to administrative requirements, such as on health and safety risk
assessments, will be chargeable at the prevailing rate.
ENG

IS560 ECN 3731 Page 9 of 10
APPENDIX DIMENSIONS
E
496
600
568
56.2
28.3
471
446
48
38
330
512
135
24
222
348
TECHNICAL DATA
T1
External height (mm)
462
External width (mm)
600
External depth (mm)
569
Cooking area (mm) W x D
600 x 348
Full power rating (kW)
4.6
Left or right power (kW)
2.3
Keep warm power (kW)
1.1
Electrical supply 1N~+E
230V 50-60Hz
Current Rating (A)
20
Electrical supply 3N~+E
400V 50-60Hz
Current Rating (A)
L1 = 10
L2 = 10
L3 = 0
QSE
ENG

IS560 ECN 3731 Page 10 of 10
AVVERTENZA
LA CASA COSTRUTTRICE DECLINA OGNI
RESPONSABILITÀ PER LE POSSIBILI INESATTEZZE
CONTENUTE NEL PRESENTE OPUSCOLO IMPUTABILI AD
ERRORI DI TRASCRIZIONE O STAMPA.
SI RISERVA INOLTRE IL DIRITTO DI APPORTARE
AL PRODOTTO QUELLE MODIFICHE CHE RITIENE UTILI O
NECESSARIE, SENZA PREGIUDICARNE LE
CARATTERISTICHE ESSENZIALI.
LA DITTA COSTRUTTRICE DECLINA OGNI E QUALSIASI
RESPONSABILITÀ QUALORA NON VENISSERO
STRETTAMENTE OSSERVATE LE NORME CONTENUTE IN
QUESTO MANUALE.
AVERTISSEMENT
LA SOCIETE CONSTRUCTRICE DECLINE TOUTE
RESPONSABILITE EN CE QUI CONCERNE LES
EVENTUELLES INEXACTITUDES CONTENUES DANS
CET OPUSCULE, IMPUTABLES A DES ERREURS DE
TRANSCRIPTION OU D'IMPRIMERIE.
ELLE SE RESERVE LE DROIT D'APPORTER A SES PRODUITS
LES MODIFICATIONS QU'ELLE RETIENDRA UTILES
OU NECESSAIRES, SANS TOUTEFOIS EN COMPROMETTRE
LES CARACTERISTIQUES ESSENTIELLES.
LA SOCIETE CONSTRUCTRICE DECLINE TOUTE
RESPONSABILITE EN CAS DE NON RESPECT DES
NORMES CONTENUES DANS CET OPUSCULE.
WARNING
THE MANUFACTURER CANNOT BE HELD RESPONSIBLE
FOR ANY INACCURACIES IN THIS BOOKLET DUE
TO ERRORS IN COPYING OR PRINTING.
DUE TO ITS POLICY OF CONTINUAL PRODUCT IMPROVEMENT,
THE MANUFACTURER RESERVES THE RIGHT
TO MAKE ANY CHANGES DEEMED NECESSARY.
THE MANUFACTURER CANNOT BE HELD RESPONSIBLE IF
THE INSTRUCTIONS CONTAINED IN THIS MANUAL ARE NOT
OBSERVED.
ADVERTENCIA
LA CASA CONSTRUCTORA DECLINA CUALQUIER
RESPONSABILIDAD
DEBIDA A LAS IMPRECISIONES CONTENIDAS
EN EL PRESENTE FOLLETO ATRIBUIDAS A ERRORES DE
TRANSCRIPCIÓN O IMPRENTA.
ADEMÁS SE RESERVA EL DERECHO DE APORTAR AL
PRODUC- TO LOS CAMBIOS QUE CONSIDERE ÚTILES Y
NECESARIOS, SIN COMPROMETER LAS
CARACTERÍSTICAS ESENCIALES.
LA EMPRESA CONSTRUCTORA DECLINA CUALQUIER
RESPONSABILIDAD EN CASO DE QUE NO SE
RESPETEN LAS NORMAS CONTENIDAS EN ESTE
MANUAL.
WARNUNG
DIE HERSTELLERFIRMA LEHNT JEGLICHE
UNGENAUIGKEITEN IN DER VORLIEGENDEN
BROSCHÜRE DURCH ÜBERTRAGUNGS- ODER
DRUCKFEHLER AB.
SIE BEHÄLT SICH AUSSERDEM DAS RECHT VOR, AM
PRODUKT ÄNDERUNGEN VORZUNEHMEN, DIE SIE FÜR
PASSEND ODER NOTWENDIG HÄLT, OHNE DADURCH SEINE
WESENTLICHEN EIGENSCHAFTEN ZU VERÄNDERN. DIE
HERSTELLERFIRMA LEHNT JEGLICHE VERANTWORTUNG AB,
WENN DIE IN DIESER BETRIEBSANWEISUNG ENTHALTENEN
VORSCHRIFTEN NICHT STRENGSTENS EINGEHALTEN
WERDEN.
WAARSCHUWING
DE FIRMA WIJST IEDERE VERANTWOORDELIJKHEID AF
VOOR MOGELIJKE NIET-JUISTE INFORMATIE DIE IN DIT
HANDBOEK STAAT EN DIE ONTSTAAN IS DOOR FOUTEN
DIE GEMAAKT ZIJN BIJ HET OVERSCHRIJVEN OF
DRUKKEN. DE CONSTRUCTEUR BEHOUDT ZICH HET
RECHT VOOR
OM DIE WIJZIGINGEN IN HET PRODUCT AAN TE
BRENGEN, DIE HIJ NUTTIG OF NOODZAKELIJK ACHT,
ZONDER
DE ESSENTIELE EIGENSCHAPPEN AAN TE TASTEN.
DE CONSTRUC TEUR WIJST IEDERE
VERANTWOORDELIJKHEID AF IN HET GEVAL DE
NORMEN, DIE IN DEZE
HANDLEIDING STAAN, NIET STRIKT OPGEVOLGD
WORDEN.
Whisby Road, Lincoln, LN6 3QZ, United Kingdom
Sales Tel: [phone]
Service Tel: [phone]
General Tel: [phone]
e-mail: [e-mail]
