Gigabyte 6VMA User manual

Table Of Contents
1
TABLE OF CONTENTS
1. INTRODUCTION
1.1. PREFACE..........................................................................................................1-1
1.2. KEY FEATURES...............................................................................................1-1
1.3. PERFORMANCE LIST......................................................................................1-2
1.4. BLOCK DIAGRAM.............................................................................................1-3
1.5. INTRODUCE THE PentiumII / III Processor .................................................1-4
1.6. What is AGP?....................................................................................................1-6
2. SPECIFICATION
2.1. HARDWARE .....................................................................................................2-1
2.2. SOFTWARE......................................................................................................2-2
2.3. ENVIRONMENT................................................................................................2-2
3. HARDWARE INSTALLATION
3.1. UNPACKING.....................................................................................................3-1
3.2. MAINBOARD LAYOUT.....................................................................................3-2
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS..............................3-1
3.4. DRAM INSTALLATION.....................................................................................3-7
3.5. CPU SPEED SETUP.........................................................................................3-7
3.6. CMOS RTC & ISA CFG CMOS SRAM.............................................................3-9
3.7. SPEAKER CONNECTOR INSTALLATION......................................................3-9
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION....................3-9
3.9. POWER LED CONNECTOR INSTALLATION.................................................3-9
3.10. IDE & ATAPI DEVICE INSTALLATION..........................................................3-9
3.11. PERIPHERAL DEVICE INSTALLATION........................................................3-9
3.12. KEYBOARD & PS/2 MOUSE INSTALLATION...............................................3-10
4. BIOS CONFIGURATION

6VMA
2
4.1. ENTERING SETUP...........................................................................................4-1
4.2. CONTROL KEYS ..............................................................................................4-1
4.3. GETTING HELP................................................................................................4-2
4.3.1. Main Menu.............................................................................................4-2
4.3.2. Status Page Setup Menu / Option Page Setup Menu............................4-2
4.4. THE MAIN MENU..............................................................................................4-2
4.5. STANDARD CMOS SETUP MENU..................................................................4-4
4.6. BIOS FEATURES SETUP ................................................................................4-8
4.7. CHIPSET FEATURES SETUP.........................................................................4-12
4.8. POWER MANAGEMENT SETUP....................................................................4-17
4.9. PNP/PCI CONFIGURATION ............................................................................4-21
4.10. LOAD BIOS DEFAULTS.................................................................................4-22
4.11. LOAD PERFORMANCE DEFAULTS .............................................................4-23
4.12. INTEGRATED PERIPHERALS.......................................................................4-24
4.13. SUPERVISOR/USER PASSWORD...............................................................4-29
4.14. IDE HDD AUTO DETECTION........................................................................4-30
4.15. SAVE & EXIT SETUP .....................................................................................4-31
4.16. EXIT WITHOUT SAVING ...............................................................................4-32
APPENDIX A: VIA Chipset Driver Installation
A.1. VIA Patch 95/98 Driver Ver.1.1(Win95/98 ONLY).............................................A-2
A.2. VIA AGP Driver Ver.2.9(Win95/98 ONLY)........................................................A-5
A.3. VIA PCI Routing Mimiport Driver Ver.1.3(Win98 ONLY)...................................A-8
A.4. Bus Master IDE Driver ......................................................................................A-10
APPENDIX B: Audio Driver Driver Installation
B.1. ESS Solo-1 PCI sound driver installation...........................................................B-1
APPENDIX C: Bugs & Limitations…………………………………………….C-1

Introduction
1-1
1. INTRODUCTION
1.1. PREFACE
Welcome to use the 6VMA motherboard. It is a PentiumII / III / Celeron
Processor based PC / AT compatible system with AGP/ PCI / ISA Bus, and
has been designed to be the fastest PC / AT system. There are some new
features allow you to operate the system with just the performance you want.
This manual also explains how to install the motherboard for operation, and
how to set up your CMOS CONFIGURATION with BIOS SETUP program.
1.2. KEY FEATURES
qIntel PentiumII / III / CeleronProcessor based PC / AT compatible
mainboard.
qSlot 1 supports PentiumII / III / Celeronprocessor running at 233-633
MHz.
qVIA Apollo Pro-Plus chipset, Supports AGP / SDRAM / Ultra DMA33 IDE /
Keyboard and PS/2 Mouse Power On / ACPI features.
qBuilt-in PCI ESS SOLO-1 audio chip.
qSupports external Modem Ring-On on COMA & COMB and internal
Modem Ring-On.
qSupports Wake-up on LAN (JP7).
qSupports 3xDIMMs using 3.3V SDRAM DIMM module.
qSupports 16MB - 768MB SDRAM memory on board.
q3xPCI Bus slots, 1xISA Bus slots, 1xAGP slot.
qSupports 2 channels Ultra DMA/33 IDE ports for 4 IDE Devices.
qSupports 2xCOM (16550), 1xLPT (EPP / ECP), 1x Floppy port.
qSupports1x Line in, 1x Line Out, 1x Micro in, 2x CD Line in,1x GAME Port,
1x TEL Port.
qSupports 2xUSB ports, 1xPS/2 Mouse, 1xPS/2 Keyboard.
qLicensed AWARD BIOS, 2Mbits FLASH RAM.

6VMA
1-2
q24.5 cm x 20 cm Micro-ATX form factor, 4 layers PCB.
1.3. PERFORMANCE LIST
The following performance data list is the testing results of some popular
benchmark testing programs.
These data are just referred by users, and there is no responsibility for different
testing data values gotten by users. (The different Hardware & Software
configuration will result in different benchmark testing results.)
•CPU PentiumII processor
•DRAM (128 x 1) MB SDRAM (TOSHIBA TC59S6408FTL-80H)
•CACHE SIZE 512 KB included in CPU
•DISPLAY GA-630 AGP Voodoo banshee(16MB SGRAM)
•STORAGE Onboard IDE (IBM DHEA-36481)
•O.S. Windows NT™4.0
•DRIVER Display Driver at 1024 x 768 x 64k colors x 75Hz.
VIA Bus Master IDE Driver 2.3.12
Intel PentiumII
Processor 350MHz(100x3.5) 450MHz(100x4.5)
Winbench99
CPU mark32 881 1110
FPU Winmark 1800 2300
Business Disk 3910 4220
Hi-End Disk 8530 8380
Business Graphics 161 194
Hi-End Graphics 281 354
Winstone99
Business 27.2 31

Introduction
1-3
3.3V EDO/SDRAM
DIMM Sockets
Floppy Port
Hi-End 23.2 27.2
1.4. BLOCK DIAGRAM
PS/2 Keyboard
24MHz
33MHz
33MHz
33MHz
100MHz
Ultra DMA/33
IDE Ports
IDE Bus
PCI Bus
ISA Bus
AGP Bus
LPT Port
COM Ports
DRAM Bus
PS/2 Mouse
USB Bus
USB Ports
14.318MHz
48MHz
14.318MHz
I/O
CHIPSET
Winbond
83977EF
Host Bus
VIA
82C693
CHIPSET
VIA
82C596A
CHIPSET
Clock
Generator
MIC
L-IN
L-OUT SOLO1
24.576MHz
14.318MHz
66MHz
Game
Port
100MHz
AGP SLOT
SLOT 1

6VMA
1-4
1.5. INTRODUCE THE Pentium

II / III Processor
Figure 1:Universal Retention Mechanism & attach Mount

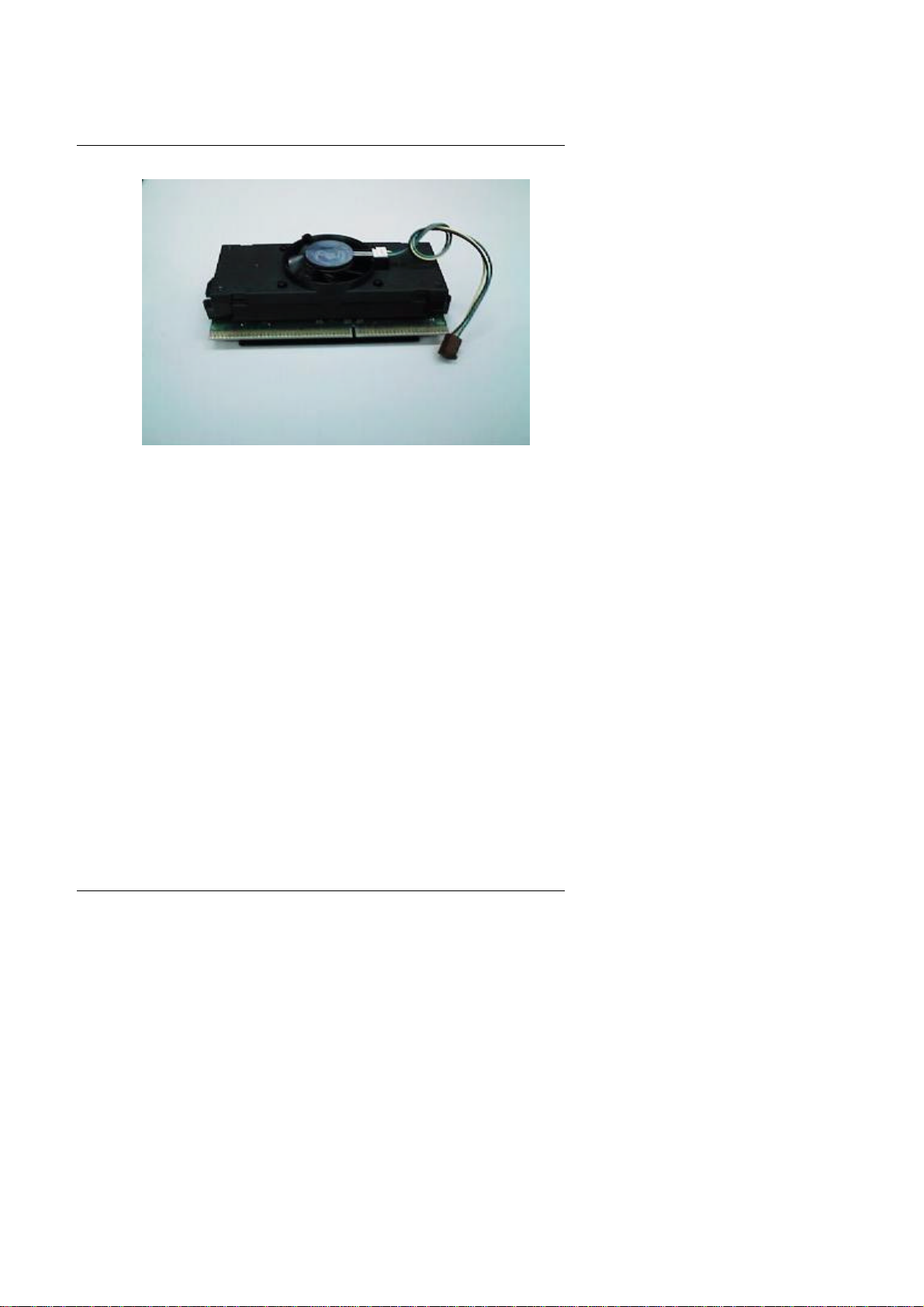

Figure 2:OEM PentiumII Processor

Introduction
1-5
Figure 3: OEM PentiumIII Processor

6VMA
1-6
1.6 What is AGP ?
The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI bridge
device that supports an AGP port. The main purpose of the AGP port is to
provide fast access to system memory.
The AGP port can be used either as fast PCI port (32-bits at 66MHz vs. 32-bits
at 33MHz) or as an AGP port which supports 2x data-rate, a read queue, and
side band addressing. When the 2x-data rate is used, the port can transmit
data at 533MB/sec (66.6*2*4). The read-queue can be used to pipeline reads –
removing the effects of the reads-latency. Side band addressing can be used to
transmit the data address on a separate line in order to speed up the
transaction.

Specification
2-1
2. SPECIFICATION
2.1. HARDWARE
•CPU −PentiumII/ III/ Celeronprocessor 233 –633 MHz.
−242 pins 66/100 MHz slot1 on board.
•SPEED −66/100 MHz system speed.
−66 MHz AGP bus speed. (2X mode 133MHz)
−33 MHz PCI-Bus speed.
−8 MHz AT bus speed.
•DRAM MEMORY −3 banks 168 pins DIMM module sockets on board.
−Use 16 / 32 / 64 / 128 / 256 MB DIMM module DRAM.
−16 MB~ 768MB SDRAM.
−Supports 3.3V SDRAM.
•CACHE MEMORY −32 KB 1st cache memory included in CPU.
−128KB / 512 KB 2nd cache in CPU.
−Supports DIB speed mode for L2 Cache.
•I/O BUS SLOTS −3 33MHz Master / Slave PCI-BUS.
−1 8MHz 16 bits ISA BUS.
−1 66MHz / 133MHz AGP bus.
•IDE PORTS −2 Ultra DMA 33 Bus Master IDE channels on
board.(Using IRQ14,15)
−Support Mode 3,4 IDE & ATAPI CD –ROM.
•I/O PORTS −Supports 2 16550 COM ports.
−Supports 1 LPT port.
−Supports 1 Floppy port.
−Supports 2 USB ports.
−Supports 1 PS/2 Mouse.
−Supports 1 PS/2 Keyboard.

6VMA
2-2
•Audio Ports −1x Line in
−1x Line out
−1x Micro in
−1x Game Port
−2x CD Line in
−1x TEL Port
•GREEN FUNCTION −Suspend mode support.
−Green switch & Green LED support.
−IDE & Display power down support.
−Monitor all IRQ / DMA / Display / I/O events.
•BIOS −2M bits FLASH RAM.
−Supports Plug & Play, DMI Function.
•DIMENSION −Micro ATX Form Factor, 4 layers PCB.
2.2. SOFTWARE
•DRIVER −UUCD
Bus Master IDE Driver
•BIOS −Licensed AWARD BIOS.
−AT CMOS Setup, BIOS / Chipset Setup, Green
Setup, Hard Disk Utility included.
•O.S. −Operation with MS-DOS, Windows95,
Windows98, WINDOWSNT, OS/2, NOVELL
and SCO UNIX.
2.3. ENVIRONMENT
•Ambient Temp. −0°C to +50°C (Operating).
•Relative Hum. −0 to +85% (Operating).
•Altitude −0 to 10,000 feet (Operating).
•Vibration −0 to 1,000 Hz.
•Electricity −4.9 V to 5.2 V. (Max. 20A current at 5V.)

Hardware Installation
3-1
3. HARDWARE INSTALLATION
3.1. UNPACKING
The mainboard package should contain the following:
•The 6VMA mainboard.
•Universal Retention Mechanism & Attach Mount
•USER'S MANUAL for mainboard.
•Cable set for IDE, Floppy devices.
•CD or diskette for Mainboard ¡BSound Utility.
The mainboard contains sensitive electric components, which can be easily
damaged by static electricity, so the mainboard should be left in its original
packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat. The
operator should be wearing an anti static wristband, grounded at the same
point as the anti-static mat.
Inspect the mainboard carton for obvious damage. Shipping and handling may
cause damage to your board. Be sure there are no shipping and handling
damages on the board before proceeding.
After opening the mainboard carton, extract the system board and place it only
on a grounded anti-static surface component side up. Again inspect the board
for damage. Press down on all of the socket IC's to make sure that they are
properly seated. Do this only on with the board placed on a firm flat surface.
M DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED.

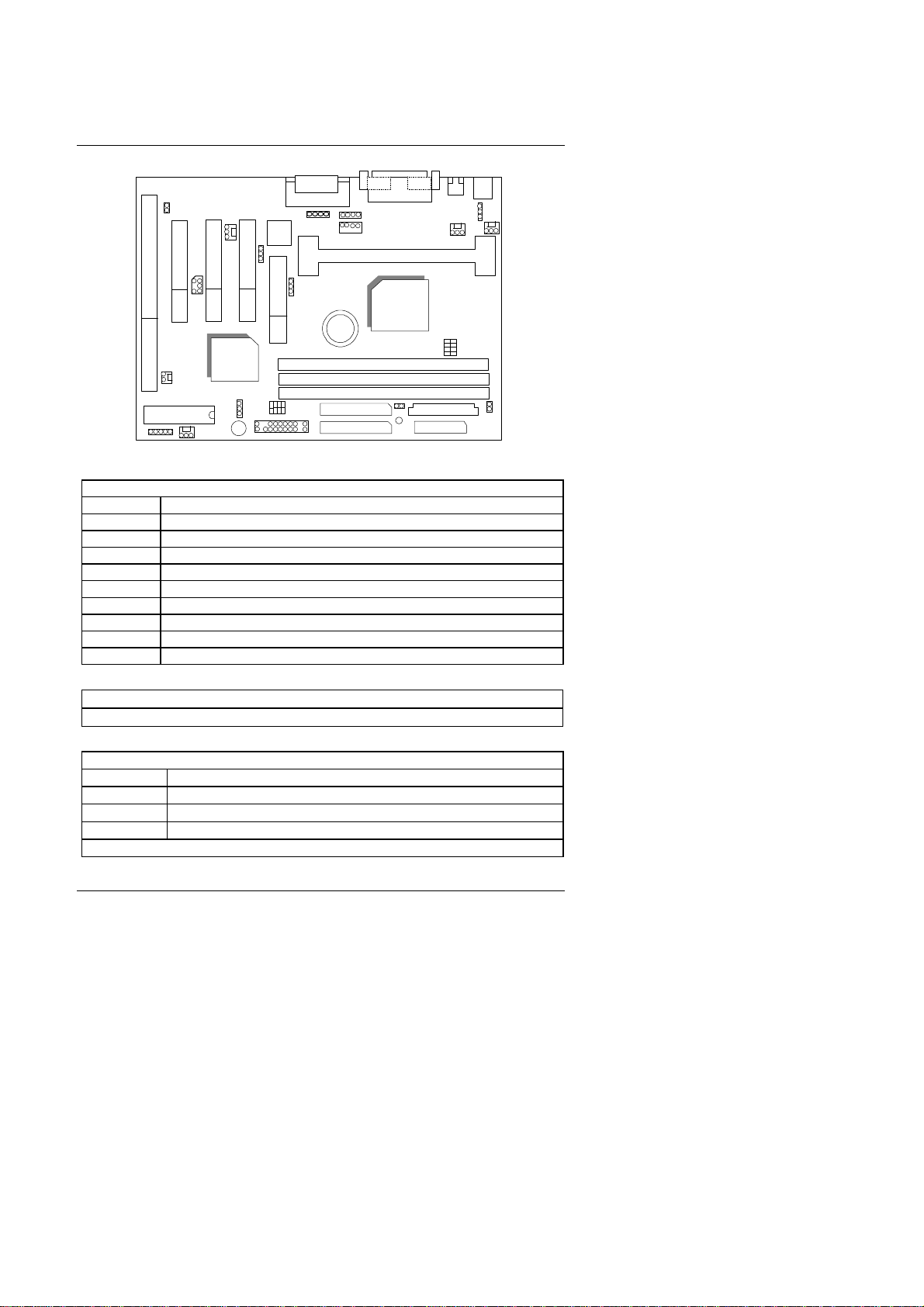

3.2. MAINBOARD LAYOUT

6VMA
3-2
6VMA
SOLO 1
VIA
VT82C693
VIA
VT82C596A
BIOS
JP10
JP7
TEL CN6
JP5
GAME&AUDIO
COMB
COMA
LPT USB
JP1
J3
SLOT 1
BAT1
SW2
JP11
J11
JP13
JP15
LED1
SW1
JP6
JP14
BZ1
J14
IR
BANK 1
BANK 2
PCI1
PCI2
PCI3
ISA
ATX POWER
FLOPPYIDE1
IDE2
BANK 0
× Figure 3.1 Ø
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS
tI/O Ports Connector
USB USB port.
IDE1 For Primary IDE port.
IDE2 For Secondary IDE port.
FLOPPY For Floppy port
PS/2 For PS/2 Keyboard / Mouse port.
COMB
For Serial port2 (COM B).[Support External Modem Ring On.]
COMA
For Serial port1 (COM A).[Support External Modem Ring On.]
LPT For LPT port.
GAME For GAME port.
AUDIO For MIC,LINE-IN,LINE-OUT port.
tSlot 1
For PentiumII/ III/ Celeronprocessor installed
tJ3 : CPU FAN : CPU cooling FAN Power Connector
Pin Function
1GND.
2+12V
3Signal
tJ13 : Power FAN :Power FAN Power Connector

Hardware Installation
3-3
Pin Function
1GND.
2+12V
3Signal
tJ14 : System FAN : System FAN Power Connector
Pin Function
1GND.
2+12V
3Signal
tJP7 : Wake on Lan
Pin Function
1+5V SB
2GND
3Signal
tIR : INFRARED Connector (IR) --(Optional)
Pin Function
1IR Data Output
2GND
3IR Data Input
4NC
5POWER (+)
tJP18 : Onboard Sound Function Selection
Pin Function
1-2 Close Onboard Sound Function Enabled(Default).
2-3 Close Onboard Sound Function Disabled.
tJP1 : Keyboard Power On Selection
Pin Function
1-2 Close Enabled Keyboard power on.
2-3 Close Disabled Keyboard power on (Default).

6VMA
3-4
tJP14: CLEAR CMOS Function
Pin Function
1-2 Close Clear CMOS
2-3 Close Normal operation (Default).
tJP13: Suspend To RAM Function (Optional).
Pin Function
OPEN Normal operation(Default).
Close Enabled Suspend To RAM.
tJP11: System Acceleration
Pin Function
1-2 short For 100MHz Turbo and other frequencies
2-3 short For 100MHz Normal (Default).
tJ11: Internal Modem Card RING PWR ON
Pin Function
1Signal
2GND
tSB-LINK (For PCI Sound Card Connector) (Optional)
Pin Function
1Signal
2GND
3NC
4Signal
5GND
6Signal
tJP10 : CASE OPEN Function (Optional)
Pin Function
1Signal
2GND

Hardware Installation
3-5
tTEL:The Connector is for Modem with internal Voice connector
Pin Function
1Signal
2GND
3GND
4Signal
tCN6 : CD Audio Line In
Pin Function
1GND
2Right
3GND
4Left
tJP5 : CD Audio Line In
Pin Function
1Right
2GND
3GND
4Left

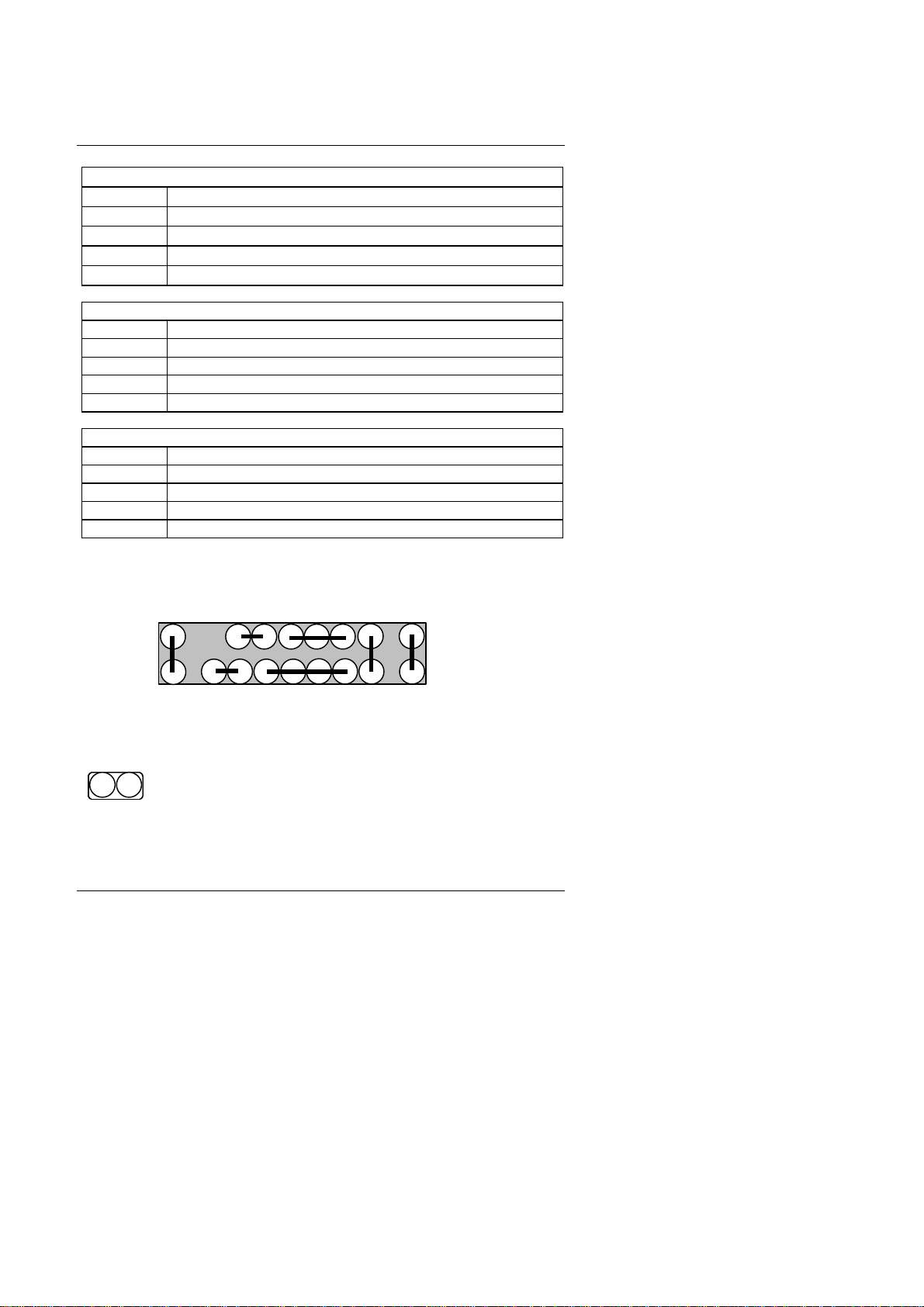

JP6 : For 2X11 PINs Jumper
PWR: Soft Power Connector
Open: Normal Operation
Short: Power On/Off
PWR P+P−P−HD
RES S P K
GN
GD
JP6 1
1 1
1

6VMA
3-6
RES: Reset Switch
Open: Normal Operation
Short: For Hardware Reset System
P+P − P − : Power LED
PIN 1 : anode (+)
PIN 2 : cathode (−)
PIN 3 : cathode (−)
SPK: Speaker Connector
PIN 1 : VCC (+)
PIN 2 : VCC
PIN 3 : Data
PIN 4 : Data (−)
SPK : Internal Speaker Connector (Default)
PIN 1 : VCC (+)
PIN 2-PIN3 : Short
PIN 4 : Data (−)
HD: IDE Hard Disk Active LED
PIN 1: LED anode (+)
PIN 2: LED cathode ( − )
GN: Green Function Switch
Open : Normal operation
Short : Entering Green Mode
GD: Green LED
PIN 1 : LED anode (+)
PIN 2 : LED cathode ( − )
1
1
1
1
+
−
1+
−

Hardware Installation
3-7
3.4. DRAM INSTALLATION
The mainboard can be installed with 16 / 32 / 64 / 128 / 256 MB 168 pins DIMM
module DRAM, and the DRAM speed must be 67~100 MHz for SDRAM. The
DRAM memory system on mainboard consists of bank 0 , bank 1, bank 2.
Since 168 pins DIMM module is 64 bits width, using 1 PCS which can match a
64 bits system. The total memory size is 16MB ~ 768MB / 256MB SDRAM. The
DRAM installation position refer to Figure 3.1, and notice the Pin 1 of DIMM
module must match with the Pin 1 of DIMM socket. Insert the DRAM DIMM
module into the DIMM socket at Vertical angle. If there is a wrong direction of
Pin 1, the DRAM DIMM module couldn't be inserted into socket completely.
3.5. CPU SPEED SETUP
The default system bus speed is 66 / 100MHz (SW2). The user can change the
DIP SWITCH (SW1) selection to set up the CPU speed for 233 - 633MHz
processor. The CPU speed must match with the frequency RATIO. It will cause
system hanging up if the frequency RATIO is higher than CPU's.
SW1:
CLK RATIO 1 23 4
X3 ON OFF ON ON
X3.5 OFF OFF ON ON
X4 ON ON OFF ON
X4.5 OFF ON OFF ON
X5 ON OFF OFF ON
X5.5 OFF OFF OFF ON
X6 ON ON ON OFF
X6.5 OFF ON ON OFF
X 7 ON OFF ON OFF
X 7.5 OFF OFF ON OFF
X 8 ON ON OFF OFF
X 8.5 OFF ON OFF OFF
X 9 ON OFF OFF OFF
X 9.5 OFF OFF OFF OFF
SW2:

6VMA
3-8
CPU 1 23 4
66 ON OFF OFF ON
75 ON ON OFF ON
83 ON OFF ON ON
100 OFF OFF OFF OFF
112 OFF ON OFF OFF
133 OFF OFF ON OFF
DIP SWITCH (SW)
1234FREQ.
RATIO EXT.CLK. MHz INT.CLK. MHz CPU Type
OFF OFF ON ON 3.5 66 233 PentiumII 233 MHz
(Celeron 233MHz)
ON ON OFF ON 466 266 PentiumII 266 MHz
(Celeron 266MHz)
OFF ON OFF ON 4.5 66 300 PentiumII 300 MHz
(Celeron 300MHz)
ON OFF OFF ON 566 333 PentiumII 333 MHz
(Celeron 333MHz)
OFF OFF OFF ON 5.5 66 366 PentiumII 366 MHz
(Celeron 366MHz)
ON ON ON OFF 666 400 PentiumII 400 MHz
(Celeron 400MHz)
OFF ON ON OFF 6.5 66 433 PentiumII 433 MHz
(Celeron 433MHz)
OFF OFF ON ON 3.5 100 350 PentiumII 350 MHz
ON ON OFF ON 4100 400 PentiumII 400 MHz
OFF ON OFF ON 4.5 100 450 PentiumIII 450 MHz
ON OFF OFF ON 5100 500 PentiumIII 500 MHz
OFF OFF OFF ON 5.5 100 550 PentiumIII 550 MHz
ON ON ON OFF 6100 600 PentiumIII 600 MHz
OFF ON ON OFF 6.5 100 650 PentiumIII 650 MHz
M The CPU is a sensitive electric component and it can be easily
damaged by static electricity, so users must keep it away from metal
surface when the CPU is installed onto mainboard.
M We don’t recommend you to setup your system speed to 75, 83, 112,
or 133MHz because these frequencies are not the standard
specifications for CPU, Chipset and most of the peripherals.
Whether your system can run under 75, 83, 112 or 133MHz properly
will depend on your hardware configurations: CPU, SDRAM, Cards,
etc.

Hardware Installation
3-9
3.6. CMOS RTC & ISA CFG CMOS SRAM
The mainboard contains RTC & CMOS SRAM on board. They have a power
supply from external battery to keep the DATA inviolate & effective. The RTC is
a REAL-TIME CLOCK device, which provides the DATE & TIME to system.
The CMOS SRAM is used for keeping the information of system configuration,
so the system can automatically boot OS every time. Since the lifetime of
internal battery is 5 years, the user can change a new Battery to replace old
one when it has consumed.
3.7. SPEAKER CONNECTOR INSTALLATION
There is a speaker in AT system for sound purpose. The 4 - Pins connector
SPK is used to connect speaker. Anode connects +, Cathode connects −.
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION
TheRESETswitch onpanelprovides userswithHARDWARE RESETfunction.
The system will do a cold start after the RESET switch is press and released by
user. The RESET switch is a 2 PINS connector and should be installed to RES
on mainboard.
3.9. POWER LED CONNECTOR INSTALLATION
System has power LED lamp on the panel of case. The power LED will light on
off or flash to indicate which step on the system. The connector should be
connected to LED of mainboard in correct direction.
3.10. IDE & ATAPI DEVICE INSTALLATION
There are two-Enhanced PCI IDE ports (IDE1, IDE2)onboard, whichfollowing
ATAPI standard SPEC. Any one IDE port can connected to two ATAPI devices
(IDE Hard Disk, CD-ROM & Tape Driver), so total four ATAPI devices can exist
in a system. The HD is the active LED port for ATAPI devices.
3.11. PERIPHERAL DEVICE INSTALLATION

6VMA
3-10
After the I/O device installation and jumpers setup, the mainboard can be
mounted into the case and fixed by screw. To complete the mainboard
installation, the peripheral device could be installed now. The basic system
needs a display interface card. If the PCI - Bus device is to be installed in the
system, any one of three PCI - Bus slots can be used.
3.12. KEYBOARD & PS/2 MOUSE INSTALLATION
The main board supports PS/2 Mouse. The BIOS will auto detect whether the
PS/2 Mouse is installed or not & assign IRQ12 for PS/2 Mouse port if it is
installed. After installing the peripheral device, the user should check
everything again, and prepare to power-on the system.
