Gigabyte GA-6ZM7A User manual

Table of Contents
1
TABLE OF CONTENTS
1. INTRODUCTION
1.1. PREFACE............................................................................................................ 1-1
1.2. KEY FEATURES................................................................................................. 1-1
1.3. PERFORMANCE LIST........................................................................................ 1-2
1.4. BLOCK DIAGRAM............................................................................................... 1-3
1.5. INTRODUCE THE INTELCeleronTM Socket 370 Processor............................ 1-4
1.6. What is AGP?...................................................................................................... 1-4
2. SPECIFICATION
2.1. HARDWARE ....................................................................................................... 2-1
2.2. SOFTWARE........................................................................................................ 2-2
2.3. ENVIRONMENT.................................................................................................. 2-2
3. HARDWARE INSTALLATION
3.1. UNPACKING....................................................................................................... 3-1
3.2. MAIN BOARD LAYOUT...................................................................................... 3-1
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS................................ 3-2
3.4. DRAM INSTALLATION....................................................................................... 3-6
3.5. CPU SPEED SETUP........................................................................................... 3-6
3.6. CMOS RTC & ISA CFG CMOS SRAM............................................................... 3-7
3.7. SPEAKER CONNECTOR INSTALLATION........................................................ 3-8
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION...................... 3-8
3.9. POWER LED CONNECTOR INSTALLATION................................................... 3-8

6ZM7/6ZM7A
2
3.10. IDE & ATAPI DEVICE INSTALLATION............................................................ 3-8
3.11. PERIPHERAL DEVICE INSTALLATION.......................................................... 3-8
3.12. KEYBOARD & PS/2 MOUSE INSTALLATION................................................. 3-8
4. BIOS CONFIGURATION
4.1. ENTERING SETUP............................................................................................. 4-1
4.2. CONTROL KEYS ................................................................................................ 4-1
4.3. GETTING HELP.................................................................................................. 4-2
4.3.1. Main Menu............................................................................................... 4-2
4.3.2. Status Page Setup Menu / Option Page Setup Menu.............................. 4-2
4.4. THE MAIN MENU................................................................................................ 4-2
4.5. STANDARD CMOS SETUP MENU.................................................................... 4-4
4.6. BIOS FEATURES SETUP .................................................................................. 4-8
4.7. CHIPSET FEATURES SETUP........................................................................... 4-12
4.8. POWER MANAGEMENT SETUP...................................................................... 4-14
4.9. PNP/PCI CONFIGURATION .............................................................................. 4-18
4.10. LOAD BIOS DEFAULTS................................................................................... 4-20
4.11. LOAD SETUP DEFAULTS................................................................................ 4-21
4.12. INTEGRATED PERIPHERALS......................................................................... 4-22
4.13. Hardware Monitor............................................................................................... 4-25
4.14. Supervisor / User PASSWORD......................................................................... 4-28
4.15. IDE HDD AUTO DETECTION.......................................................................... 4-29
4.16. SAVE & EXIT SETUP ....................................................................................... 4-30
4.17. EXIT WITHOUT SAVING ................................................................................. 4-31

Introduction
1-1
1. INTRODUCTION
1.1. PREFACE
Welcome to use the 6ZM7/6ZM7A motherboard. It is a CeleronTM Socket 370
Processor based PC / AT compatible system with AGP / PCI / ISA Bus, and
has been designed to be the fastest PC / AT system. There are some new
features allow you to operate the system with just the performance you want.
This manual also explains how to install the motherboard for operation, and
how to set up your CMOS CONFIGURATION with BIOS SETUP program.
1.2. KEY FEATURES
qIntel CeleronTM Socket 370 Processor based PC / AT compatible main
board.
qSocket 370 Pins ZIF white socket on board.
qBuilt-in PCI ESS SOLO-1 ES1938S audio chip (Optional).
qSupports CeleronTM Socket 370 processor running at 366-533 MHz.
qIntel 440ZX chipset, Supports AGP / SDRAM / Ultra DMA/33 IDE /
Keyboard and PS/2 Mouse Power On / ACPI features.
qSupports 2xDIMMs using 3.3V EDO or SDRAM DIMM module.
qSupports external Modem Ring-On on COMA & COMB and internal
Modem Ring-On.
qSupports EDO 16MB~256 MB, SDRAM 16MB~256MB memory on board.
qSupports Wake-up on LAN.
q1xAGP slot, 3xPCI Bus slots, 1xISA Bus slots.
qSupports 2 channels Ultra DMA/33 IDE ports for 4 IDE Devices.
qSupports 1x Line in, 1x Line Out, 1x Mic in, 2x CD Line in,1x GAME Port 1
x TEL. (Optional).
qSupports 2xCOM (16550), 1xLPT (EPP / ECP/ SPP), 1x1.44MB Floppy
port.
qSupports 2XUSB port & PS/2 Mouse/ Keyboard port.
qLicensed AMI BIOS, 2M bits FLASH RAM.
q24.3 cm x 20.5 cm Micro ATX SIZE form factor, 4 layers PCB.

6ZM7/6ZM7A
1-2
1.3. PERFORMANCE LIST
The following performance data list is the testing results of some popular
benchmark testing programs.
These data are just referred by users, and there is no responsibility for different
testing data values gotten by users. (The different Hardware & Software
configuration will result in different benchmark testing results.)
•CPU IntelCeleronTM 366MHz Socket 370 processor
•DRAM (128x 1) MB SDRAM (SEC KM48S8030BT-GH)
•CACHE SIZE 128 KB included in CPU
•DISPLAY GA-630 VOODOO BANSHEE (16MB SGRAM)
•STORAGE Onboard IDE (IBM DHEA 38451)
•O.S. Windows NT™4.0 SPK4
•DRIVER Display Driver at 1024 x 768 x 64k colors x 75Hz.
TRIONES Bus Master IDE Driver 3.60
Processor IntelCeleronTM (Socket 370)
366MHz (66x5.5)
Winbench99
CPU mark32 713
FPU Winmark 1970
Business Disk 4100
Hi-End Disk 10300
Business Graphics 176
Hi-End Graphics 326
Winstone99Business 26.9

Introduction
1-3
Hi-End 24.4
1.4. BLOCK DIAGRAM
24MHz
66
MHz
3.3V EDO/SDRAM
DIMM Sockets
14.318MHz
33MHz
33MHz
66MHz
PCI Bus
AGP Bus
LPT Port
Keyboard
Floppy Port
COM Ports
PS/2 Mouse
USB Bus
Ultra DMA/33
IDE Ports
USB Ports
14.318MHz
48MHz
14.318MHz
I/O
CHIPSET
Winbond
83977EF
AGP
SLOT
Host Bus
PAC
82443ZX
CHIPSET
PIIX4
82371EB
CHIPSET
66MHz
PGA 370
DRAM Bus
MIC
L-IN
L-OUT
SOLO-1
14.318 MHz
Game
Port
ICS 9148BF-
26
ISA Bus

6ZM7/6ZM7A
1-4
1.5. INTRODUCE THE INTEL

CeleronTM Socket 370 Processor
Figure 1: INTELCeleronTM Socket370 Processor
1.6 What is AGP ?
The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI bridge
device that supports an AGP port. The main purpose of the AGP port is to
provide fast access to system memory.
The AGP port can be used either as fast PCI port (32-bits at 66MHz vs. 32-bits
at 33MHz) or as an AGP port which supports 2x data-rate, a read queue, and
side band addressing. When the 2x-data rate is used the port can transmit data
at 533MB/sec (66.6*2*4). The read-queue can be used to pipeline reads –
removing the effects of the reads-latency. Side band addressing can be used to
transmit the data address on a separate line in order to speed up the
transaction.

Specification
2-1
2. SPECIFICATION
2.1. HARDWARE
•CPU −CeleronTM Socket 370 processor 366–533 MHz.
−66MHz Socket 370 on board.
•PROTECTION −Speaker Alarm when detect "CPU FAN Failure" or
“CPU Overheat”.
−Automatically slow down CPU speed when "CPU
Overheat".
−H/W monitor power status (±5V, ±12V, VGTL,5VSB,
CPU voltage & CMOS battery voltage).(Optional)
•SPEED −66 MHz system speed.
−66 MHz AGP bus speed. (2X mode 133MHz)
−33 MHz PCI-Bus speed.
−8 MHz AT bus speed.
•DRAM MEMORY −2 banks 168 pins DIMM module sockets on board.
−Use 16 / 32 / 64 / 128 / 256 MB DIMM module DRAM.
−Supports EDO 16MB ~ 256MB,
SDRAM 16MB~256MB.
•CACHE MEMORY −32 KB 1st cache memory included in CPU.
−128KB L2 cache memory included in CPU.
−Supports DIB speed mode for L2 Cache.
•I/O BUS SLOTS −3 33MHz Master / Slave PCI-BUS.
−1 8MHz 16 bits ISA BUS.
−1 66MHz / 133MHz AGP bus.
•IDE PORTS −2 Ultra DMA/33 Bus Master IDE channels on
board.(Using IRQ14,15)
−Supports Mode 3,4 IDE & ATAPI CD –ROM.

6ZM7/6ZM7A
2-2
•I/O PORTS −Supports 2 16550 COM ports.
−Supports 1 EPP/ECP LPT port.
−Supports 1 1.44/2.88 MB Floppy port.
−Supports 2 USB ports.
−Supports PS/2 Mouse & Keyboard.
•Audio Ports
(Optional)
−1x Line in
−1x Line out
−1x Mic in
−1x Game Port
−2x CD Line in
−1x TEL
•GREEN FUNCTION −Suspend mode support.
−Green switch & ACPI LED support.
−IDE & Display power down support.
−Monitors all IRQ / DMA / Display / I/O events.
•BIOS −2M bits FLASH RAM.
−Supports Plug & Play, DMI Function.
•DIMENSION −Micro ATX Form Factor, 4 layers PCB.
2.2. SOFTWARE
•DRIVER −UUCD (Bus Master + Sound Driver + LDCM + Utility)
(Optional)
•BIOS −Licensed AMI BIOS.
−AT CMOS Setup, BIOS / Chipset Setup, Green
Setup, Hard Disk Utility included.
•O.S. −Operation with MS-DOS, Windows95,
Windows98, WINDOWSNT, OS/2, NOVELL
and SCO UNIX.
2.3. ENVIRONMENT
•Ambient Temp. −0°C to +50°C (Operating).
•Relative Hum. −0 to +85% (Operating).
•Altitude −0 to 10,000 feet (Operating).
•Vibration −0 to 1,000 Hz.
•Electricity −4.75 V to 5.25 V. (Max. 20A current at 5V.)

Hardware Installation
3-1
3. HARDWARE INSTALLATION
3.1. UNPACKING
The main board package should contain the following:
•The 6ZM7/6ZM7A main board.
•USER'S MANUAL for main board.
•Cable set for IDE, Floppy devices.
•CD for main board Utility. (Bus Master + Sound Driver + LDCM + Utility)
The main board contains sensitive electric components, which can be easily
damaged by static electricity, so the main board should be left in its original
packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat. The
operator should be wearing an anti static wristband, grounded at the same
point as the anti-static mat.
Inspect the main board carton for obvious damage. Shipping and handling
may cause damage to your board. Be sure there are no shipping and handling
damages on the board before proceeding.
After opening the main board carton, extract the system board and place it only
on a grounded anti-static surface component side up. Again inspect the board
for damage. Press down on all of the socket IC's to make sure that they are
properly seated. Do this only on with the board placed on a firm flat surface.
M DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED.

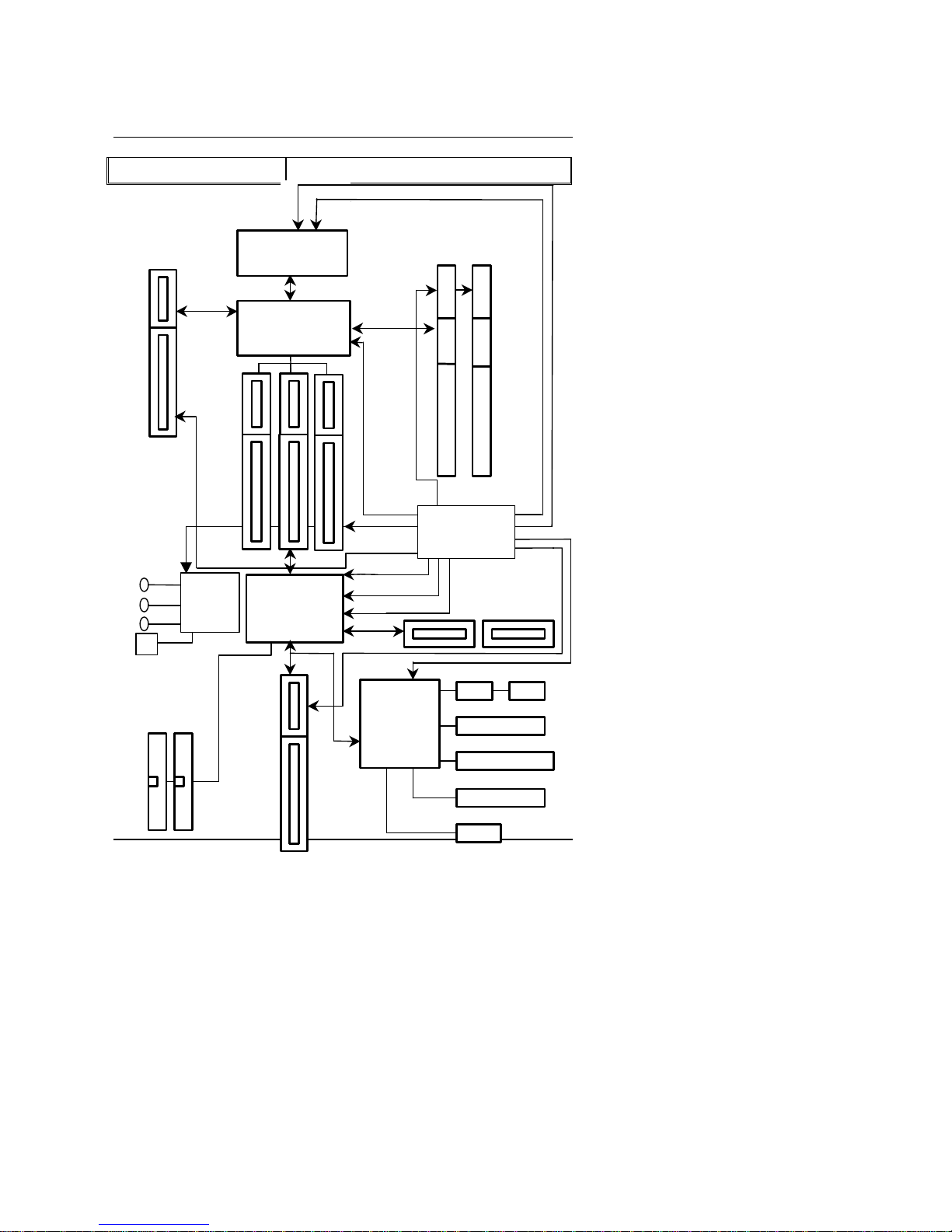

3.2. MAIN BOARD LAYOUT

6ZM7/6ZM7A
3-2
6ZM7
PIIX4E
Intel
440ZX
CPU
ESS
SOLO-1
BIOS
SW1
SW2
SYSTEM
FAN RING PWR ON IR
J13
JP8 IDE 1
IDE 2
Floppy
Buzzer
BANK 1
BANK 0
BAT 1
ATX PWR
PWR
FAN
CPU
FAN
JP1
PS/2USB
COMBCOM A
LPT
Audio
& GAME
Port
J10
J11
JP7
TEL
SB-
LINK
AGP
PCI1
PCI2PCI3
WAKE ON LAN
ISA 1
×Figure 3.1Ø
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS
tI/O Ports Connector
USB USB port.
IDE1 For Primary IDE port.
IDE2 For Secondary IDE port.
PS/2 For PS/2 Mouse & Keyboard port.
FLOPPY For Floppy port.
COMB For Serial port2 (COM B){Support Modem Ring On}.
COMA For Serial port1 (COM A){Support Modem Ring On}.
LPT For LPT port.
ATX Power For ATX Power Connector.
GAME & Audio For GAME & MIC LINE-IN, LINE-OUT,TEL Port
(Optional).
tSocket 370
For CeleronTM Socket 370 Processor installed

Hardware Installation
3-3
tIR : INFRARED Connector (IR) -- Function Option
Pin No. Function
1IR Data Output
2GND
3IR Data Input
4NC
5POWER (+)
tCPU FAN : CPU cooling FAN Power Connector
Pin No. Function
1GND.
2+12V
3SENSE
tPWR FAN: Power FAN Connector
Pin No. Function
1GND.
2+12V
3SENSE
tSystem FAN: System FAN Connector
Pin No. Function
1GND.
2+12V
3SENSE
tRING PWR ON
Pin No. Function
1Signal
2GND
tJP1 : Keyboard Power On Selection
Pin No. Function
1-2 Enabled Keyboard power on.
2-3 Disabled Keyboard power on(Default).

6ZM7/6ZM7A
3-4
tJ13 : CLEAR CMOS
Pin No. Function
1-2 Close Clear CMOS
2-3 Close Normal operation (Default).
tJP7 : Onboard Sound Function (Optional)
Pin No. Function
1-2 short Onboard Sound Enabled.(Default)
2-3 short Onboard Sound Disabled.
tWake on LAN
Pin No. Function
1+5V SB
2GND
3Signal
tSB-LINK : For PCI Audio / Sound Card use only--Optional
Pin No. Function
1Signal
2GND
3NC
4Signal
5GND
6Signal

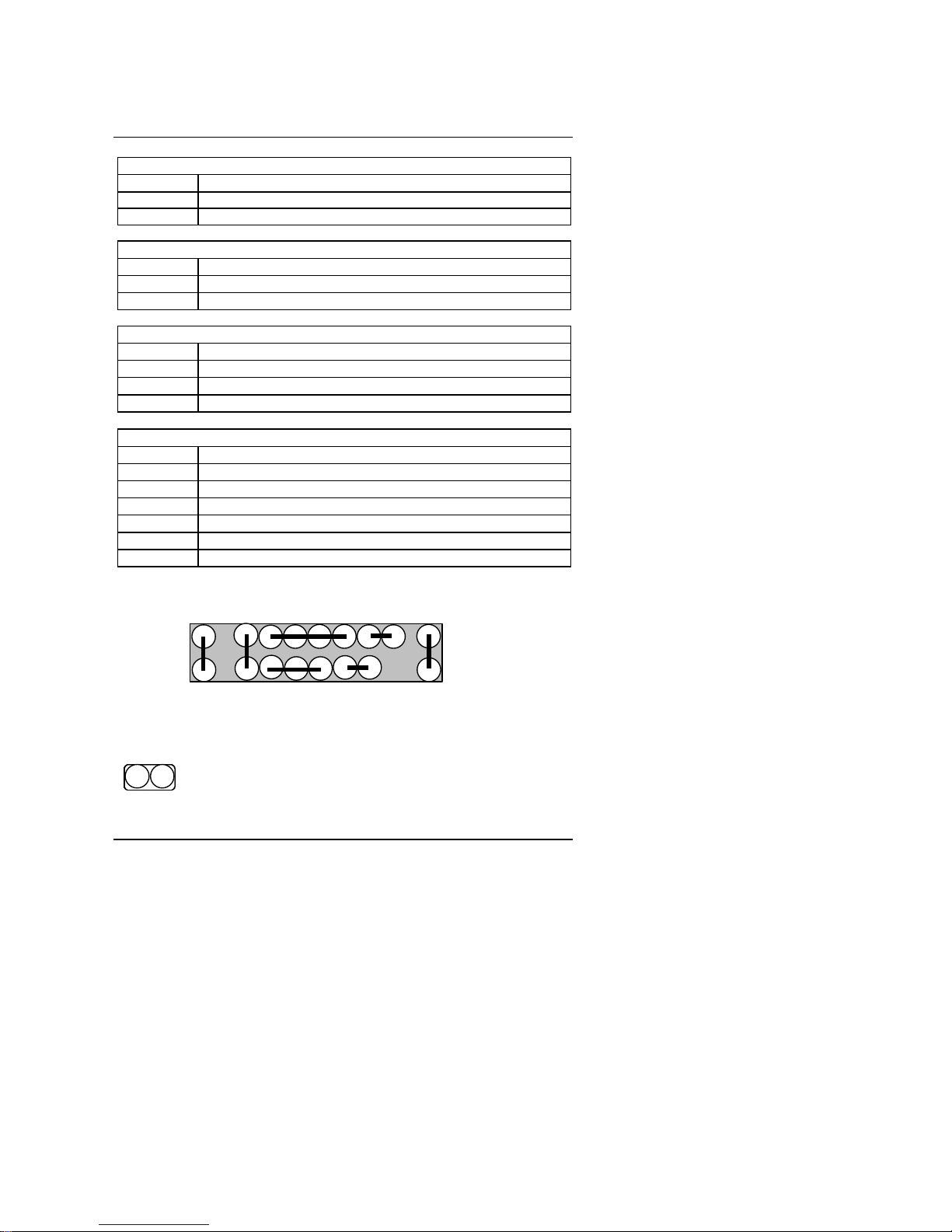

JP8 : For 2X11 PINs Jumper
Soft PWR: Soft Power Connector
Open: Normal Operation
Short: Power On/Off
RES
GN GD
JP8
PWR
P−P−P+
S P K R
1
HD
1
1
1

Hardware Installation
3-5

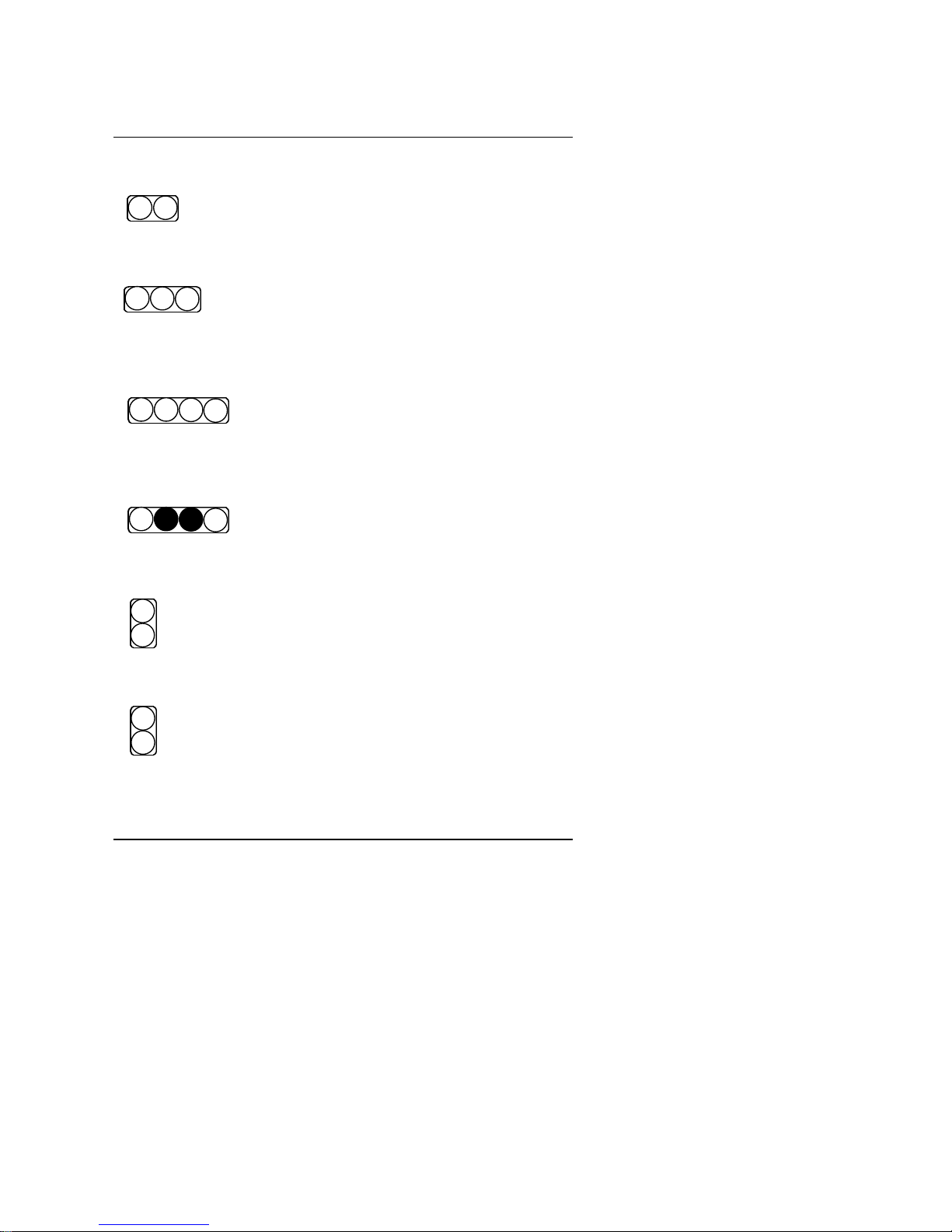

RES: Reset Switch
Open: Normal Operation
Short: For Hardware Reset System
P+P − P − : Power LED
PIN 1 : anode (+)
PIN 2 : cathode (−)
PIN 3 : cathode (−)
SPKR: Speaker Connector
PIN 1 : VCC (+)
PIN 2 : VCC
PIN 3 : Data
PIN 4 : Data (−)
SPKR : Internal Speaker Connector (Default)
PIN 1 : VCC (+)
PIN 2-PIN3 : Short
PIN 4 : Data (−)
HD: IDE Hard Disk Active LED
PIN 1: LED anode (+)
PIN 2: LED cathode ( − )
GN: Green Function Switch
Open : Normal operation
Short : Entering Green Mode
1
1
+
−
1
+
−
1

6ZM7/6ZM7A
3-6
GD: Green LED
PIN 1 : LED anode (+)
PIN 2 : LED cathode ( − )
3.4. DRAM INSTALLATION
The main board can be installed with 16 / 32 / 64 / 128 / 256 MB 168 pins DIMM
moduleDRAM,and theDRAMspeed mustbe50 or60ns forEDO& 67MHzfor
SDRAM when system bus speed is set to 66MHz. The DRAM memory system
on main board consists of bank 0 and bank 1.
Since 168 pins DIMM module is 64 bits width, therefore 1 piece of DIMM
module may match a 64 bits system. The total memory size is 16 MB ~ 256MB
SDRAM, EDO DRAM size is 16MB ~ 256MB. The DRAM installation position
refer to Figure 3.1, and notice the Pin 1 of DIMM module must match with the
Pin 1 of DIMM socket. Insert the DIMM module into the DIMM socket at Vertical
angle. If there is a wrong direction of Pin 1, the SDRAM DIMM module could
not be inserted into socket completely.
3.5. CPU SPEED SETUP
The system bus frequency can be switched between 66MHz and 133MHz by
adjusting DIP SW2. The CPU frequency ratio can be switched from X3 to X9.5
by adjusting DIP SW1. The user can set up CPU speed for 366~533MHz
processors by adjusting SW1 and SW2 properly.
SW1: (O:ON / X:OFF)
DIP SWITCH (SW)
FREQ. RATIO 1 2 3 4
X 3 OXO O
X 3.5 X X O O
X 4 O O XO
X 4.5 XOXO
X 5 OX X O
X 5.5 X X X O
X 6 OOOX
X 6.5 XO O X
X 7 OXOX
1

Hardware Installation
3-7
X 7.5 X X OX
X 8 O O X X
X 8.5 XOX X
X 9 OX X X
X 9.5 X X X X
Set System Bus Speed
SW2: (O:ON / X:OFF)
CPU AGP 1 23 4
66 66 OX X O
75 75 O O XO
83 83 OXO O
100 66 X X X X
112 75 XOX X
133 89 X X OX
M Please set the CPU host frequency in accordance with your
processor’s specifications. We don’t recommend you to set the
system bus frequency over the CPU’s specification because these
specific bus frequencies are not the standard specifications for
CPU, chipset and most of the peripherals. Whether your system can
run under these specific bus frequencies properly will depend on
your hardware configurations, including CPU, Chipsets, SDRAM,
Cards….etc.
M The CPU is a sensitive electric component and it can be easily
damaged by static electricity, so users must keep it away from metal
surface when the CPU is installed onto main board.
3.6. CMOS RTC & ISA CFG CMOS RAM
There're RTC & CMOS RAM on board; they have a power supply from external
battery to keep the DATA inviolate & effective. The RTC is a REAL-TIME
CLOCK device, which provides the DATE & TIME to system. The CMOS
SRAM is used for keeping the information of system configuration, so the
system can automatically boot OS every time. Since the lifetime of internal
battery is 5 years, the user can change a new Battery to replace old one after it
cannot work.
MDanger of explosion if battery is incorrectly replaced.
MReplace only with the same or equivalent type recommended by the
manufacturer.

6ZM7/6ZM7A
3-8
MDispose of used batteries according to the manufacturer’s instructions.
3.7. SPEAKER CONNECTOR INSTALLATION
There is a speaker in AT system for sound purpose. The 4 - Pins connector
SPKR is used to connect speaker. Pin2-3 short is internal speaker (Default
value).
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION
TheRESETswitch onpanelprovides userswithHARDWARE RESETfunction.
The system will do a cold start after the RESET switch is pushed and released
by user. The RESET switch is a 2 PIN connector and should be installed to
RST on main board.
3.9. POWER LED CONNECTOR INSTALLATION
System has power LED lamp on the panel of chassis. The power LED will light
on off or flash to indicate which step on the system. The connector should be
connected to P+P-P- of main board in a correct direction.
3.10. IDE & ATAPI DEVICE INSTALLATION
There are two-Enhanced PCI IDE ports (IDE1, IDE2)onboard, whichfollowing
ATAPI standard SPEC. Each IDE port can connected to two ATAPI devices
(IDE Hard Disk, CD-ROM or Tape Driver), so total four ATAPI devices can
exist in a system. The HD is the active LED port for ATAPI devices.
3.11. PERIPHERAL DEVICE INSTALLATION
After the I/O device installation and jumpers setup, the main board can be
mounted into the chassis and fixed by screw. To complete the main board
installation, the peripheral device could be installed now. The basic system
needs a display interface card. If the PCI - Bus device is to be installed in the
system, any one of three PCI - Bus slots can be used.
3.12. KEYBOARD & PS/2 MOUSE INSTALLATION
The main board supports PS/2 Mouse. The BIOS will auto detect whether the
PS/2 Mouse is installed or not & assign IRQ12 for PS/2 Mouse port if it is
installed. After installing the peripheral device, the user should check
everything again, and ready power-on the system.
