Gigabyte GA-8IEML-T User manual

When you installing AGP card, please make sure the following
notice is fully understood and practiced. If your AGP card has
"AGP 4X notch"(show below), please make sure your AGP card is
AGP 4X (1.5V).
Do not use AGP 2X card (3.3V) in this motherboard. It will burn
and damage the motherboard due to Intel®845(E/G) / 850(E)
chipset can't support AGP 2X(3.3V).
Example 1: Diamond Vipper V770 golden finger is compatible with 2X/
4X mode AGP slot. It can be switched between AGP 2X(3.3V) or
4X (1.5V) mode by adjusting the jumper. The factory default for this card
is 2X (3.3V). If you install this card in GA-8IEML-T(-C) (or any AGP 4X
only) motherboards without switching the jumper to 4X mode (1.5V), it
will burn the motherboard.
Example 2: Some ATi Rage 128 Pro graphics cards made by “Power
Color”, the graphics card manufacturer & some SiS 305 cards, their
golden finger is compatible with 2X/4X mode AGP slot, but they support
2X(3.3V) only. If you install this card in GA-8IEML-T(-C) (or any AGP 4X
only) motherboards, it will burn the motherboard.
Note : Although Gigabyte's AG32S(G) graphics card is based on ATi Rage
128 Pro chip, the design of AG32S(G) is compliance with AGP 4X (1.5V)
specification. Therefore, AG32S(G) will work fine with Intel®845(E/G)
/ 850(E) based motherboards.

00
00
0The author assumes no responsibility for any errors
or omissions that may appear in this document nor
does the author make a commitment to update the
information contained herein.
00
00
0Third-party brands and names are the property of
their respective owners.
00
00
0Please do not remove any labels on motherboard, this
may void the warranty of this motherboard.
00
00
0Due to rapid change in technology, some of the
specifications might be out of date before publication
of this booklet.

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a),
Class B Digital Device
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2.1077(a)
Responsible Party Name:
Address:
Phone/Fax No:
hereby declares that the product
Product Name:
Conforms to the following specifications:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful and (2) this device must accept any inference received,
including that may cause undesired operation.
Representative Person’s Name:
Signature: Eric Lu
Supplementary Information:
Model Number:
17358 Railroad Street
City of Industry, CA 91748
G.B.T. INC. (U.S.A.)
[phone]/ [phone]
Motherboard
GA-8IEML-T
Date:
ERIC LU
May 20,2002

Declaration of Conformity
We, Manufacturer/Importer
(full address)
G.B.T. Technology Träding GMbH
Ausschlager Weg 41, 1F, 20537 Hamburg, Germany
declare that the product
( description of the apparatus, system, installation to which it refers)
Mother Board
GA-8IEML-T
is in conformity with
(reference to the specification under which conformity is declared)
in accordance with 89/336 EEC-EMC Directive


EN 55011 Limits and methods of measurement
of radio disturbance characteristics of
industrial,scientific and medical (ISM
high frequency equipment


EN 61000-3-2*
77
77
7EN 60555-2
Disturbances in supply systems cause
by household appliances and similar
electrical equipment “Harmonics”


EN 55013 Limits and methods of measurement
of radio disturbance characteristics of
broadcast receivers and associated
equipment


EN 61000-3-3* Disturbances in supply systems cause
by household appliances and similar
electrical equipment “Voltage fluctuations”


EN 55014 Limits and methods of measurement
of radio disturbance characteristics of
household electrical appliances,
portable tools and similar electrical
apparatus
77
77
7EN 50081-1 Generic emission standard Part 1:
Residual commercial and light industry
77
77
7EN 50082-1 Generic immunity standard Part 1:
Residual commercial and light industry


EN 55015 Limits and methods of measurement
of radio disturbance characteristics of
fluorescent lamps and luminaries
Generic emission standard Part 2:
Industrial environment


EN 55081-2
Immunity from radio interference of
broadcast receivers and associated
equipment
Generic emission standard Part 2:
Industrial environment


EN 55082-2
77
77
7EN 55022 Limits and methods of measurement
of radio disturbance characteristics of
information technology equipment
lmmunity requirements for household
appliances tools and similar apparatus


ENV 55104
Cabled distribution systems; Equipment
for receiving and/or distribution from
sound and television signals
EMC requirements for uninterruptible
power systems (UPS)


EN50091-2


EN 55020


DIN VDE 0855


part 10


part 12
(EC conformity marking)
77
77
7CE marking
The manufacturer also declares the conformity of above mentioned product
with the actual required safety standards in accordance with LVD 73/23 EEC
Safety requirements for mains operated
electronic and related apparatus for
household and similar general use


EN 60950


EN 60065
Safety of household and similar
electrical appliances


EN 60335
Manufacturer/Importer
Signature:
Name:
(Stamp) Date : May 20, 2002
77
77
7EN 60555-3
Timmy Huang
Timmy Huang


EN 50091-1

USER’S MANUAL
GA-8IEML-T Series
P4 Titan Motherboard
Pentium®4 Processor Motherboard
Rev. 2011
12ME-8IEMLT-2011

2
GA-8IEML-T Series Motherboard
Table of Content
Item Checklist ......................................................................................... 4
WARNING! ............................................................................................... 4
Chapter 1Introduction .............................................................................. 5
Features Summary ...................................................................................... 5

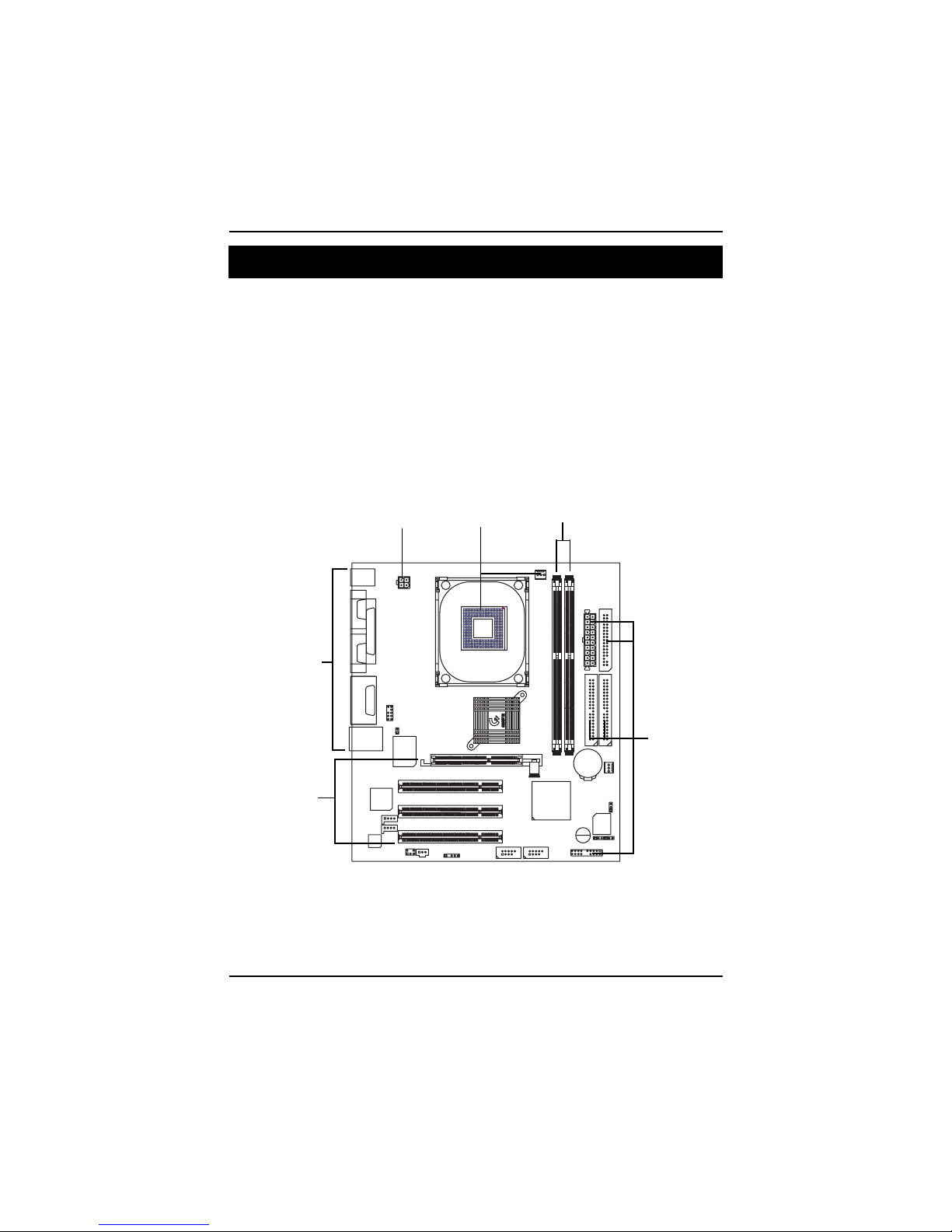

GA-8IEML-T Series Motherboard Layout ................................................... 7
Chapter 2 Hardware Installation Process ................................................ 8
Step 1: Install the Central Processing Unit (CPU)....................................... 9
Step 1-1: CPU Installation ................................................................................................. 9
Step 1-2: CPU Heat Sink Installation ............................................................................. 10
Step 2: Install memory modules ................................................................ 11
Step 3: Install expansion cards ................................................................. 12
Step 4: Connect ribbon cables, cabinet wires, and power supply ........... 13
Step 4-1: I/O Back Panel Introduction ............................................................................ 13
Step 4-2: Connectors Introduction .................................................................................. 15
Step 4-3: Jumper Introduction ........................................................................................ 21
Chapter 3 BIOS Setup .......................................................................... 23
The Main Menu (For example: BIOS Ver. : F1) ........................................ 24
Standard CMOS Features......................................................................... 26
Advanced BIOS Features .......................................................................... 29
Integrated Peripherals .............................................................................. 31

3
Table of Content
Power Management Setup ....................................................................... 36
PnP/PCI Configurations ............................................................................. 39
PC Health Status........................................................................................ 40
Frequency/Voltage Control ........................................................................ 42
Top Performance ...................................................................................... 44
Load Fail-Safe Defaults ............................................................................. 45
Load Optimized Defaults ........................................................................... 46
Set Supervisor/User Password .................................................................. 47
Save & Exit Setup ....................................................................................... 48
Exit Without Saving .................................................................................... 49
Chapter 4 Technical Reference ............................................................ 50
Block Diagram ........................................................................................... 50
Q-Flash Introduction.................................................................................. 51
@ BIOSTM Introduction............................................................................... 53
Easy TuneTM 4 Introduction ....................................................................... 54
Chapter 5 Appendix.............................................................................. 55

4
GA-8IEML-T Series Motherboard
Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To
protect them against damage from static electricity, you should follow some precautions whenever you
work on your computer.
1. Unplug your computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do not have
one, touch both of your hands to a safely grounded object or to a metal object, such as
the power supply case.
3. Hold components by the edges and try not touch the IC chips, leads or connectors, or
othercomponents.
4. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX
power connector on the motherboard.
If the motherboard has mounting holes, but they don’t line up with the holes on the base and there are
no slots to attach the spacers, do not become alarmed you can still attach the spacers to the mounting
holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so be careful
of your hands). In this way you can still attach the motherboard to the base without worrying about short
circuits. Sometimes you may need to use the plastic springs to isolate the screw from the motherboard
PCB surface, because the circuit wire may be near by the hole. Be careful, don’t let the screw contact
any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may damage the
board or cause board malfunctioning.
Installing the motherboard to the chassis…

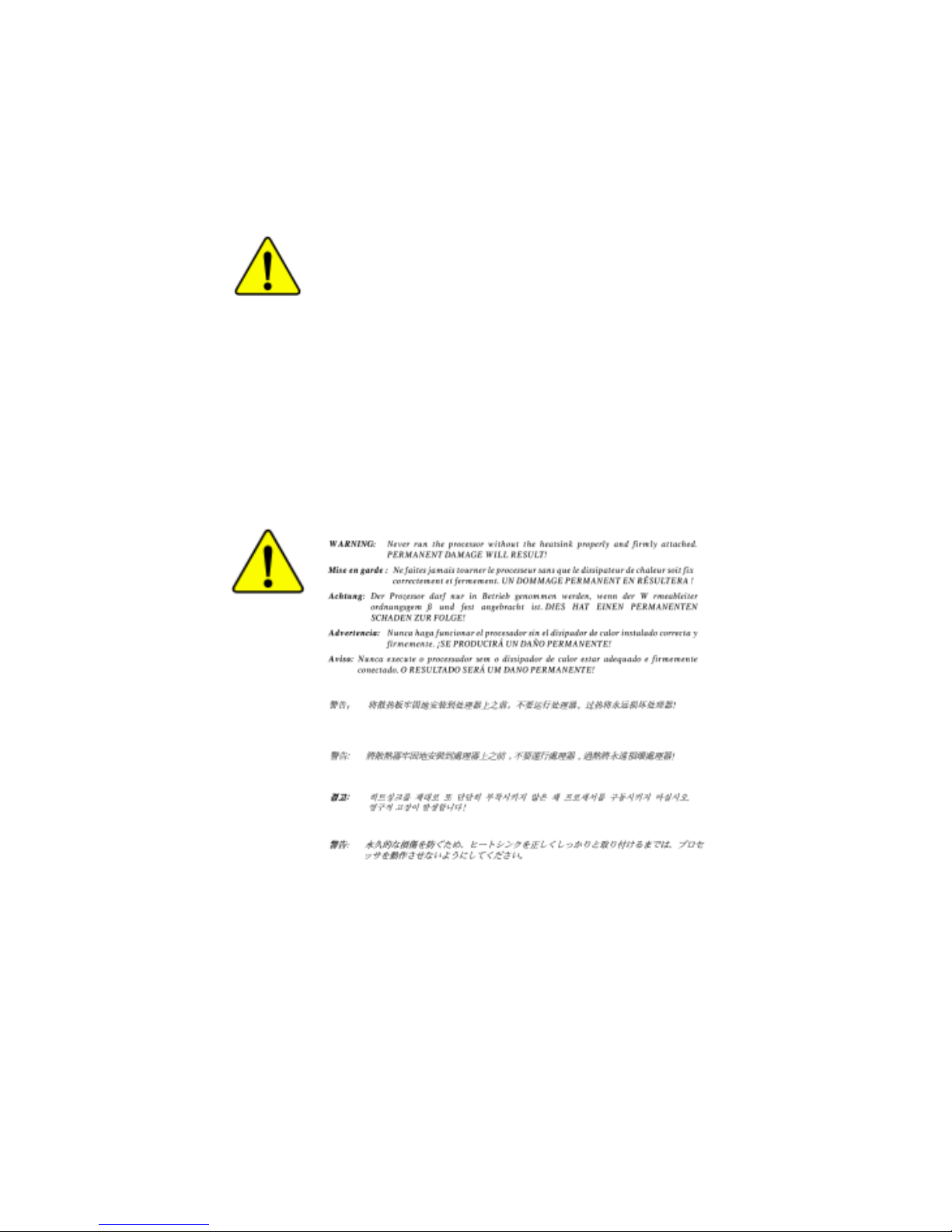

WARNING!
The GA-8IEML-T or GA-8IEML-T-C motherboard
IDE cable x 1 / Floppy cable x 1
CD for motherboard driver & utility (IUCD)
GA-8IEML-T Series user’s manual
I/O Shield
Item Checklist

5
Introduction
Form Factor y24.4cm x 21cm Micro ATX size form factor, 4 layers PCB.
Motherboard yGA-8IEML-T Series Motherboard:
GA-8IEML-T and GA-8IEML-T-C
CPU ySocket 478 for Intel®Micro FC-PGA2 Pentium®4 processor
y Support Intel®Pentium®4 (Northwood, 0.13 m) processor
yIntel Pentium®4 400/533MHz FSB
y2nd cache depend on CPU
Chipset yChipset 82845E HOST/AGP/Controller
yIntel ICH4 I/O Controller Hub
Memory y2 184-pin DDR DIMM sockets
ySupports DDR266/200 SDRAM
ySupports up to 2GB DRAM (Max)
ySupports only 2.5V DDR DIMM
ySupports 64bit ECC type DRAM integrity mode
I/O Control yWinbond W83627HF
Slots y1 AGP support 4X(1.5V) device
y3 PCI slot supports 33MHz & PCI 2.2 compliant
On-Board IDE y2 IDE bus master (DMA33/ATA66/ATA100) IDE ports for up to 4
ATAPI devices
ySupports PIO mode3,4 (UDMA 33/ATA66/ATA100) IDE & ATAPI
CD-ROM
On-Board Peripherals y1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M
and 2.88M bytes.
y1 Parallel port supports Normal/EPP/ECP mode
y2 Serial ports (COMA&COMB)
y6 x USB 2.0/1.1 (2 x Rear,4 xFront by cable )
y1 IrDA connector for IR
Hardware Monitor yCPU/System Fan Revolution detect
yCPU/System Temperature detect
ySystem Voltage Detect
Features Summary
Chapter 1 Introduction
to be continued......

6
GA-8IEML-T Series Motherboard
On-Board Sound yRealtek ALC650 CODEC
yLine Out / 2 front speaker
yLine In / 2 rear speaker(by s/w switch)
yMic In / center& woofer(by s/w switch)
ySPDIF out : by s/w switch
yCD_In / AUX_In / Game port
PS/2 Connector yPS/2 Keyboard interface and PS/2 Mouse interface
BIOS yLicensed AWARD BIOS, 2M bit FWH
On-Board LAN* yBuild in RTL8100(B)L Chipset
AdditionalFeatures yPS/2 Keyboard power on by password
yPS/2 Mouse power on
ySTR(Suspend-To-RAM)
yAC Recovery
yUSB KB/Mouse wake up from S3
ySupports @BIOS
ySupports EasyTune 4
Please set the CPU host frequency in accordance with your processor’s specifications.
We don’t recommend you to set the system bus frequency over the CPU’s specification
because these specific bus frequencies are not the standard specifications for CPU,
chipset and most of the peripherals. Whether your system can run under these specific
bus frequencies properly will depend on your hardware configurations, including CPU,
Chipsets,DDR, SDRAM,Cards….etc.
"*" For GA-8IEML-T only .

7
Introduction
"*" For GA-8IEML-T only .

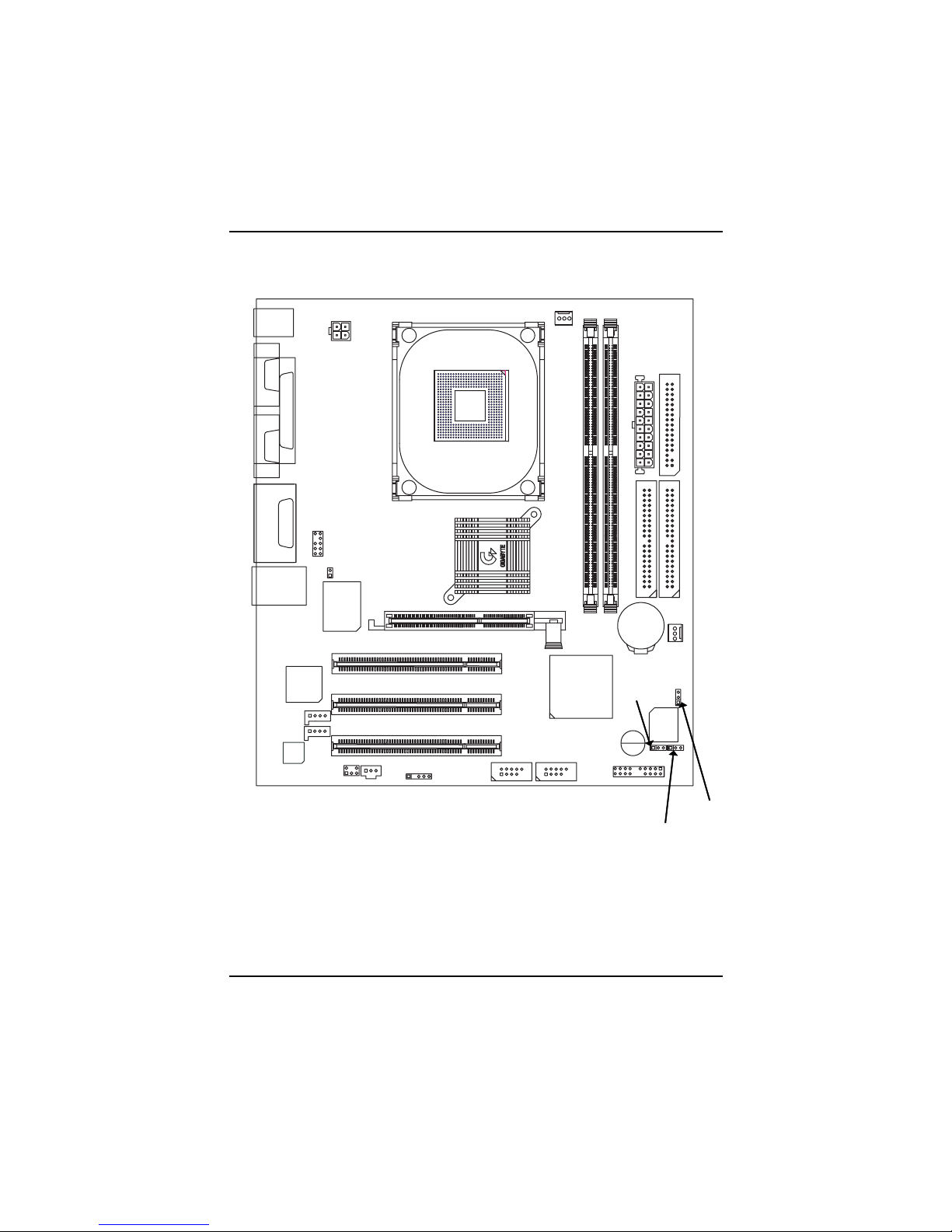

GA-8IEML-T Series Motherboard Layout
KB_MS
COMA
COMB
LPT
SOCKET478
FDD
USB
CPU_FAN
W83627HF
AGP
PCI1
PCI2
PCI3
CD_IN
F_AUDIO
CODEC
SPDIF F_PANEL
CLR_CMOS
BAT
ICH4
DDR1
DDR2
GA-8IEML-T(-C)
SYS_FAN
MIC_IN LINE_OUT
LINE_IN
GAME
ATX_12V
82845E
IDE2
IDE1
ATX
FWH
IR
RTL8100*
LAN*
CI
BUZZER
F_USB1 F_USB2
AUX_IN
BIOS_WP
SUR_CEN
PWR_LED

8
GA-8IEML-T Series Motherboard
To set up your computer, you must complete the following steps:
Step 1- Install the Central Processing Unit (CPU)
Step 2- Install memory modules
Step 3- Install expansion cards
Step 4- Connect ribbon cables, cabinet wires, and power supply
Step 5- Setup BIOS software
Step 6- Install supporting software tools
Chapter 2 Hardware Installation Process
Step 1 Step 2
Step 4
Step 4
Step 3
Step 4

9
Hardware Installation Process
Step 1: Install the Central Processing Unit (CPU)

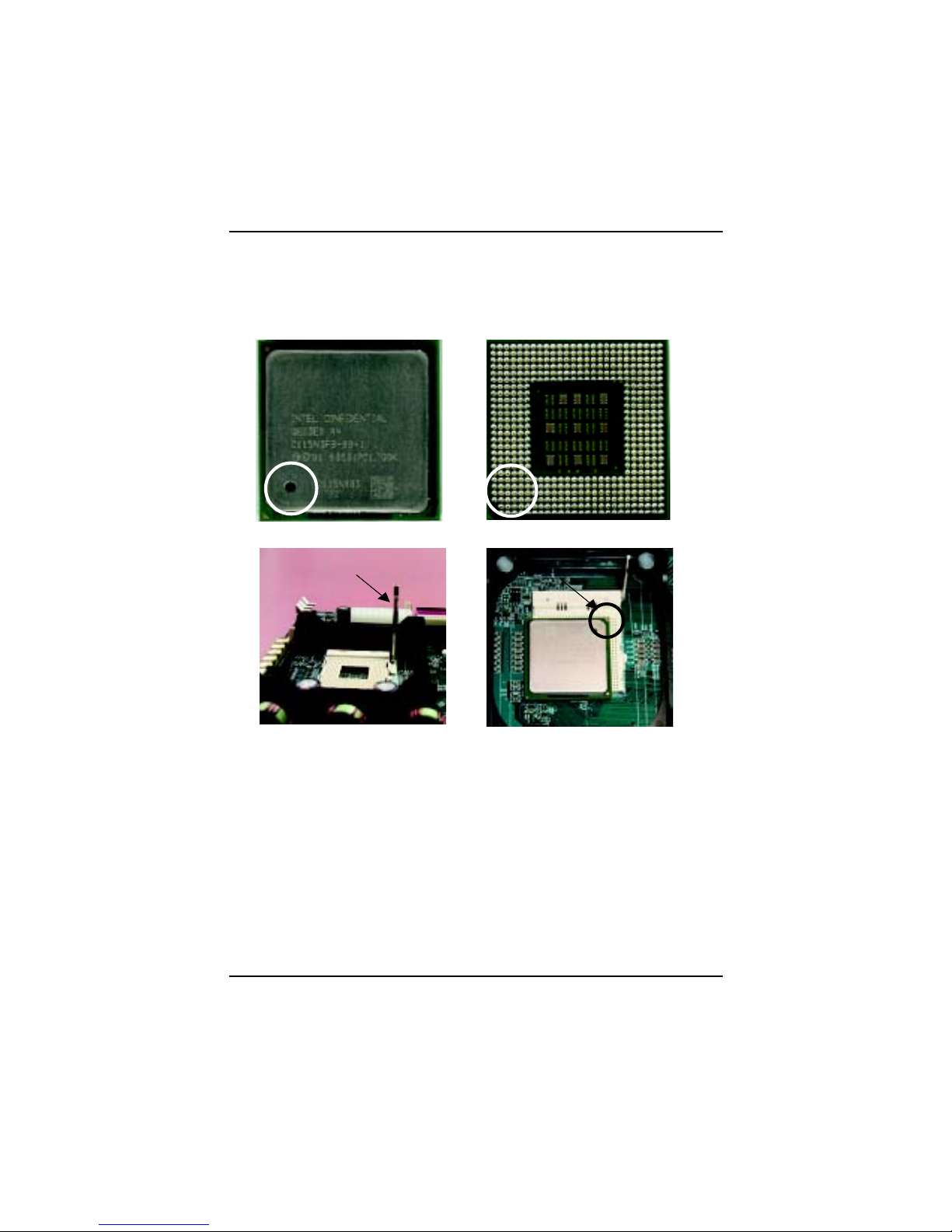

Step 1-1: CPU Installation


Please make sure the CPU type is supported by the motherboard.
Pin1 indicator Pin1indicator
CPU Top View CPU Bottom View
Socket Actuation Lever
1. Pull up the CPU socket lever
and up to 90-degree angle.
Pin1 indicator
2. Locate Pin 1 in the socket and look
for a (golden) cut edge on the CPU
upper corner. Then insert the CPU
into the socket.
3. Press down the CPU socket lever and
finish CPU installation.


If you do not match the CPU socket Pin 1 and CPU cut edge well, it will cause
improper installation. Please change the insert orientation.

10
GA-8IEML-T Series Motherboard
Step 1-2: CPU Heat Sink Installation
1. Fastentheheatsinksupporting-base
onto the CPU socket on the main-
board.
2. Make sure the CPU fan is plugged
to the CPU fan connector, than
install complete.


Please use Intel approved cooling fan.


We recommend you to apply the thermal tape to provide better heat
conduction between your CPU and heatsink.
(The CPU cooling fan might stick to the CPU due to the hardening of the
thermal paste. During this condition if you try to remove the cooling fan, you
might pull the processor out of the CPU socket alone with the cooling fan, and
might damage the processor. To avoid this from happening, we suggest you to
either use thermal tape instead of thermal paste, or remove the cooling fan with
extreme caution.)


Make sure the CPU fan power cable is plugged in to the CPU fan connector,
this completes the installation.


Please refer to CPU heat sink user’s manual for more detail installation
procedure.

11
Hardware Installation Process

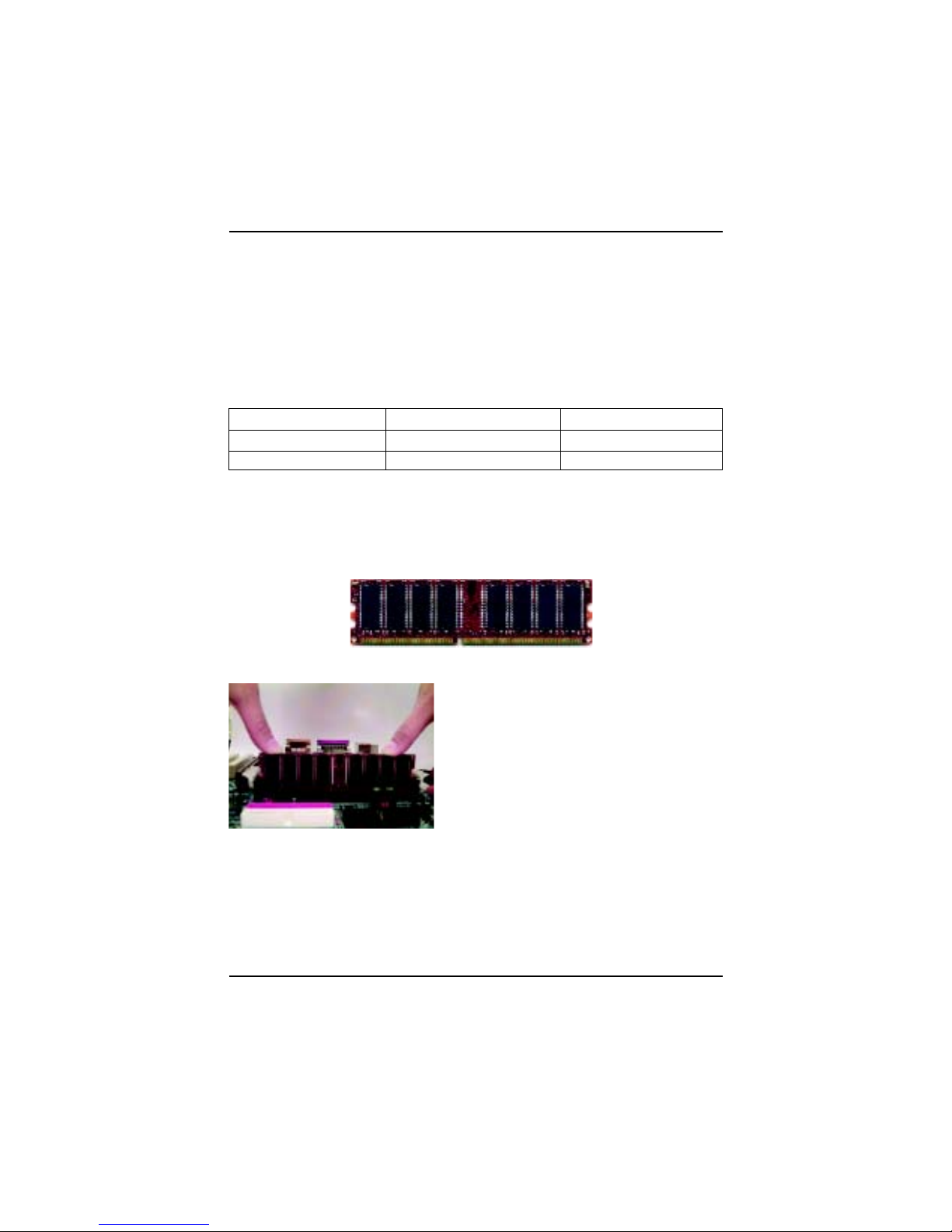

Step 2: Install memory modules
The motherboard has 2 dual inline memory module (DIMM) sockets. The BIOS will automatically
detects memory type and size. To install the memory module, just push it vertically into the DIMM Slot.
The DIMM module can only fit in one direction due to the notch. Memory size can vary between
sockets.
1. The DIMM slot has a notch, so the DIMM
memory module can only fit in one direction.
2. Insert the DIMM memory module vertically into the
DIMM slot. Then push it down.
3. Close the plastic clip at both edges of theDIMM slots
to lock the DIMM module.
Reverse the installation steps when you wish to
remove the DIMM module.
Please note that the DIMM module can only fit in one direction due to the two
notches. Wrong orientation will cause improper installation. Please change
the insert orientation.
DDR
Support Unbuffered DDR DIMM Sizes type:
64 Mbit (2Mx8x4 banks) 64 Mbit (1Mx16x4 banks) 128 Mbit(4Mx8x4 banks)
128 Mbit(2Mx16x4 banks) 256 Mbit(8Mx8x4 banks) 256 Mbit(4Mx16x4 banks)
512 Mbit(16Mx8x4 banks) 512 Mbit(8Mx16x4 banks)
Notes: Double-sided x16 DDR memory devices are not support by Intel 845E/G chipset.

12
GA-8IEML-T Series Motherboard
Step 3: Install expansion cards
1. Read the related expansion card’s instruction document before install the expansion card into
the computer.
2. Remove your computer’s chassis cover, screws and slot bracket from the computer.
3. Press the expansion card firmly into expansion slot in motherboard.
4. Be sure the metal contacts on the card are indeed seated in the slot.
5. Replace the screw to secure the slot bracket of the expansion card.
6. Replace your computer’s chassis cover.
7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.
8. Install related driver from the operating system.
AGP Card
Please carefully pull out the small white-
drawable bar at the end of the AGP slot when
you try to install/ Uninstall the AGP card.
Please align the AGP card to the onboard
AGP slot and press firmly down on the slot .
Make sure your AGP card is locked by the
small white- drawable bar.

13
Hardware Installation Process
Step 4: Connect ribbon cables, cabinet wires, and power
supply
Step 4-1: I/O Back Panel Introduction
XX
XX
XPS/2 Keyboard and PS/2 Mouse Connector
YY
YY
YParallel Port and Serial Ports (COMA/COMB)
PS/2 Mouse Connector
(6 pin Female)
PS/2 Keyboard Connector
(6 pin Female)
COMA COMB
Serial Ports (9 pin Male)
This connector supports standard PS/2
keyboard and PS/2 mouse.
This connector supports 2 standard COM ports
and 1 Parallel port. Device like printer can be
connected to Parallel port ; mouse and modem
etc can be connected to Serial ports.
Z
Y
X
[
\
Parallel Port
(25 pin Female)

14
GA-8IEML-T Series Motherboard
ZZ
ZZ
ZGame /MIDI Ports
Joystick/ MIDI (15 pin Female)
\\
\\
\USB/LAN* Connector
[[
[[
[Audio Connectors
This connector supports joystick, MIDI keyboard
and other relate audio devices.
After install onboard audio driver, you may
connect speaker to Line Out jack, micro phone to
MIC In jack. Device like CD-ROM , walkman
etc can be connected to Line-In jack.
Before you connect your device(s) into USB
connector(s), please make sure your device(s)
such as USB keyboard, mouse, scanner, zip,
speaker..etc. Have a standard USB interface.
Also make sure your OS (Win 95 with USB
supplement, Win98, Windows 2000, Windows
ME, Win NT with SP 6) supports USB controller.
If your OS does not support USB controller,
please contact OS vendor for possible patch or
driver upgrade. For more information please
contact your OS or device(s) vendors.
LAN*
Line In
MIC In
Line Out
USB 1
USB 0
"*" For GA-8IEML-T only .

15
Hardware Installation Process

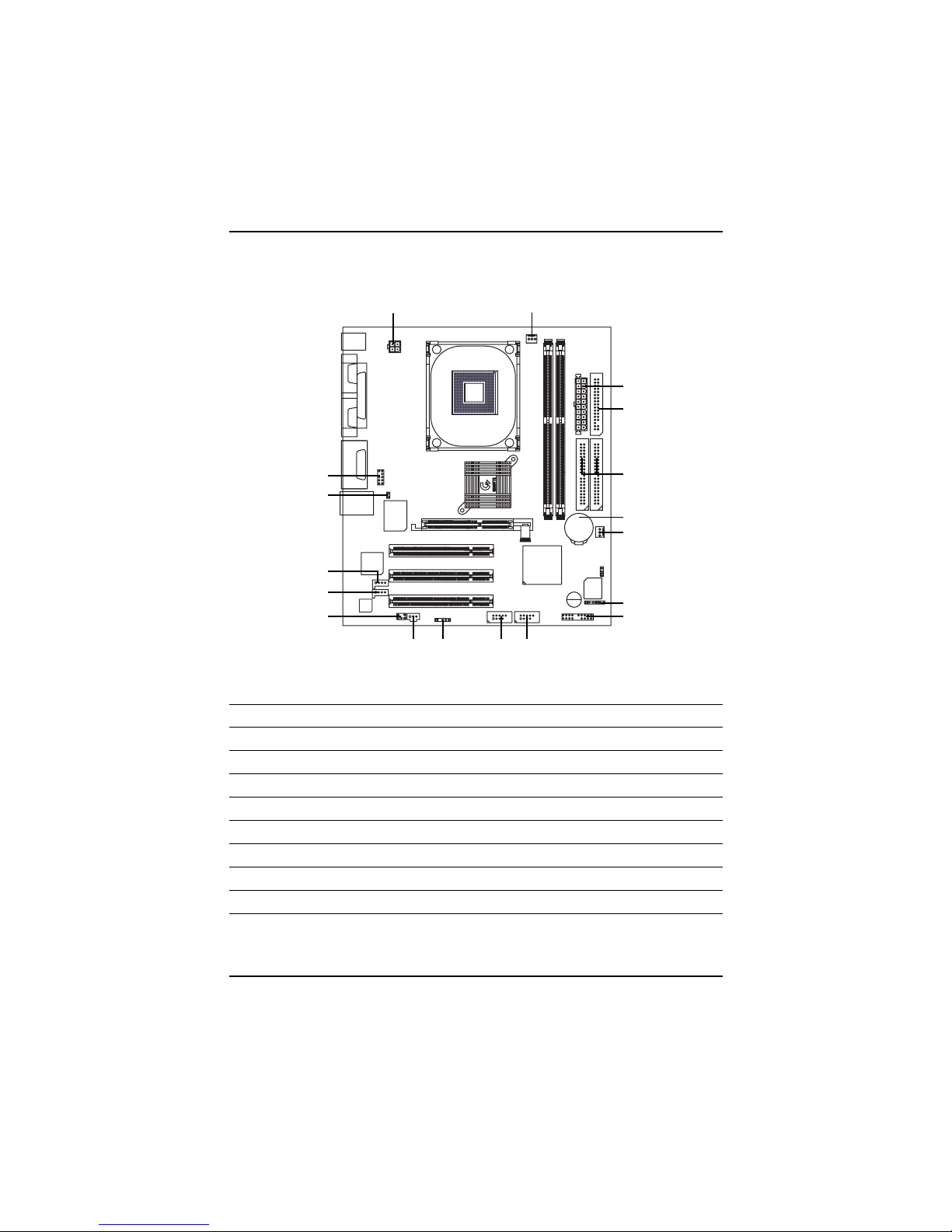

Step 4-2: Connectors Introduction
A) ATX_12V J) F_USB2
B) CPU_FAN K) F_USB1
C) ATX L) IR
D) FDD M) SPDIF
E) IDE1/IDE2 N) SUR_CEN
F) BAT O) CD_IN
G) SYS_FAN P) AUX_IN
H) PWR_LED Q) CI
I) F_PANEL R) F_AUDIO
A B
C
D
E
F
N
K
L
H
J
I
G
M
Q
P
O
R

16
GA-8IEML-T Series Motherboard
Q) CI (Case Open)
1
GND
Signal
B) CPU_FAN (CPU FAN Connector)
C) ATX (ATX Power)
AC power cord should only be connected to your power supply unit after ATX power cable and other
related devices are firmly connected to the mainboard.
Please note, a proper installation of the CPU
cooler is essential to prevent the CPU from
running under abnormal condition or damaged
by overheating.The CPU fan connector
supports Max. current up to 600mA .
G) SYS_FAN (System FAN Connector)
1GND +12V/Control
Sense
+12V/Control
GND
Sense
1
3.3V
GND
GND
VCC
VCC
PS-ON(Soft On/Off)
3.3V 3.3V
GND
GND
-12V
1
+12V
5V SB (Stand by +5V)
VCC
20
GND
Power Good
GND
GND
VCC
-5V
