Gigabyte GA-8PE667 Pro User manual

When you installing A G P card, please make sure the following
notice is fully understood and practiced. If your A G P card has
"AGP 4X(1.5V) notch"(show below), please make sure your AG P
cardis AGP 4X(1.5V).
Caution: A G P 2X(3.3V) card is not supported by Intel ®845(GE/PE) /
845(E/G) / 850(E). You might experience system unable to boot up
normally. Please insert an AGP 4X(1.5V) card
Example 1: Diamond Vipper V770 golden finger is compatible with
2X/4X mode AGP slot. It can be switched between AGP 2X(3.3V) or 4X
(1.5V) mode by adjusting the jumper. The factory default for this card is
2X(3.3V).
The GA-8PE667 Ultra2 / GA-8PE667 Pro(or any AGP 4X only)
motherboards might not function properly, if you install this card without
switching the jumper to 4X(1.5) mode in it.
Example 2: Some ATi Rage 128 Pro graphics cards made by
"Power Color", the graphics card manufacturer & some SiS 305 cards,
their golden finger is compatible with 2X(3.3V)/4X(1.5V) mode AGP slot,
but they support 2X(3.3V) only. The GA-8PE667 Ultra2 / GA-8PE667 Pro
(or any AGP 4X only) motherboards might not function properly, If you
install this card in it.
Note : Although Gigabyte's AG32S(G) graphics card is based on
ATi Rage 128 Pro chip, the design of AG32S(G) is compliance
with AGP 4X(1.5V) specification. Therefore, AG32S (G)will work
fine with Intel®845(GE/PE) /845(E/G) / 850(E) based motherboards.
Before you install PCI cards, please remove the Dual BIOS
label from PCI slots if there is one.

00
00
0The author assumes no responsibility for any errors or omissions
that may appear in this document nor does the author make a
commitment to update the information contained herein.
00
00
0Third-party brands and names are the property of theirrespective
owners.
00
00
0Please do not remove any labels on motherboard, thismay void the
warranty of this motherboard.
00
00
0Due to rapid change in technology, some of the specifications might
be out of date before publication of this booklet.

Declaration of Conformity
We, Manufacturer/Importer
(full address)
G.B.T. Technology Träding GMbH
Ausschlager Weg 41, 1F, 20537 Hamburg, Germany
declare that the product
( description of the apparatus, system, installation to which it refers)
Mother Board
GA-8PE667 Ultra2 / GA-8PE667 Pro
is in conformity with
(reference to the specification under which conformity is declared)
in accordance with 89/336 EEC-EMC Directive


EN 55011 Limits and methods of measurement
of radio disturbance characteristics of
industrial,scientific and medical (ISM
high frequency equipment


EN 61000-3-2*
77
77
7EN 60555-2
Disturbances in supply systems cause
by household appliances and similar
electrical equipment “Harmonics”


EN 55013 Limits and methods of measurement
of radio disturbance characteristics of
broadcast receivers and associated
equipment


EN 61000-3-3* Disturbances in supply systems cause
by household appliances and similar
electrical equipment “Voltage fluctuations”


EN 55014 Limits and methods of measurement
of radio disturbance characteristics of
household electrical appliances,
portable tools and similar electrical
apparatus
77
77
7EN 50081-1 Generic emission standard Part 1:
Residual commercial and light industry
77
77
7EN 50082-1 Generic immunity standard Part 1:
Residual commercial and light industry


EN 55015 Limits and methods of measurement
of radio disturbance characteristics of
fluorescent lamps and luminaries
Generic emission standard Part 2:
Industrial environment


EN 55081-2
Immunity from radio interference of
broadcast receivers and associated
equipment
Generic emission standard Part 2:
Industrial environment


EN 55082-2
77
77
7EN 55022 Limits and methods of measurement
of radio disturbance characteristics of
information technology equipment
lmmunity requirements for household
appliances tools and similar apparatus


ENV 55104
Cabled distribution systems; Equipment
for receiving and/or distribution from
sound and television signals
EMC requirements for uninterruptible
power systems (UPS)


EN50091-2


EN 55020


DIN VDE 0855


part 10


part 12
(EC conformity marking)
77
77
7CE marking
The manufacturer also declares the conformity of above mentioned product
with the actual required safety standards in accordance with LVD 73/23 EEC
Safety requirements for mains operated
electronic and related apparatus for
household and similar general use


EN 60950


EN 60065
Safety of household and similar
electrical appliances


EN 60335
Manufacturer/Importer
Signature:
Name:
(Stamp) Date : Nov. 12, 2002
77
77
7EN 60555-3
Timmy Huang


EN 50091-1
Timmy Huang
Safety for information technology equipment
including electrical bussiness equipment
General and Safety requirments for
uninterruptible power systems (UPS)

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109
(a),Class B Digital Device
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2.1077(a)
Responsible PartName:
Address:
Phone/Fax No:
hereby declares that the product
Product Name:
Conforms to the following specifications:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful and (2) this device must accept any inference received,
including that may cause undesired operation.
Representative Person’s Name:
Signature: Eric Lu
Supplementary Information:
Model Number:
17358 Railroad Street
City of Industry, CA 91748
G.B.T. INC. (U.S.A.)
[phone]/ [phone]
Motherboard
GA-8PE667 Ultra2 / GA-8PE667 Pro
Date:
ERIC LU
Nov. 12,2002

USER'S MANUAL
GA-8PE667 Ultra2 / Pro
P4 Titan 667 Motherboard
Pentium®4 Processor Motherboard
Rev. 1201
12ME-8PE667U2-1201

- 2 -GA-8PE667 Ultra2 / Pro Motherboard
English
Table of Content
Item Checklist ..........................................................................................4
WARNING! ..............................................................................................4
Chapter 1 Introduction .............................................................................5
Features Summary ....................................................................................... 5

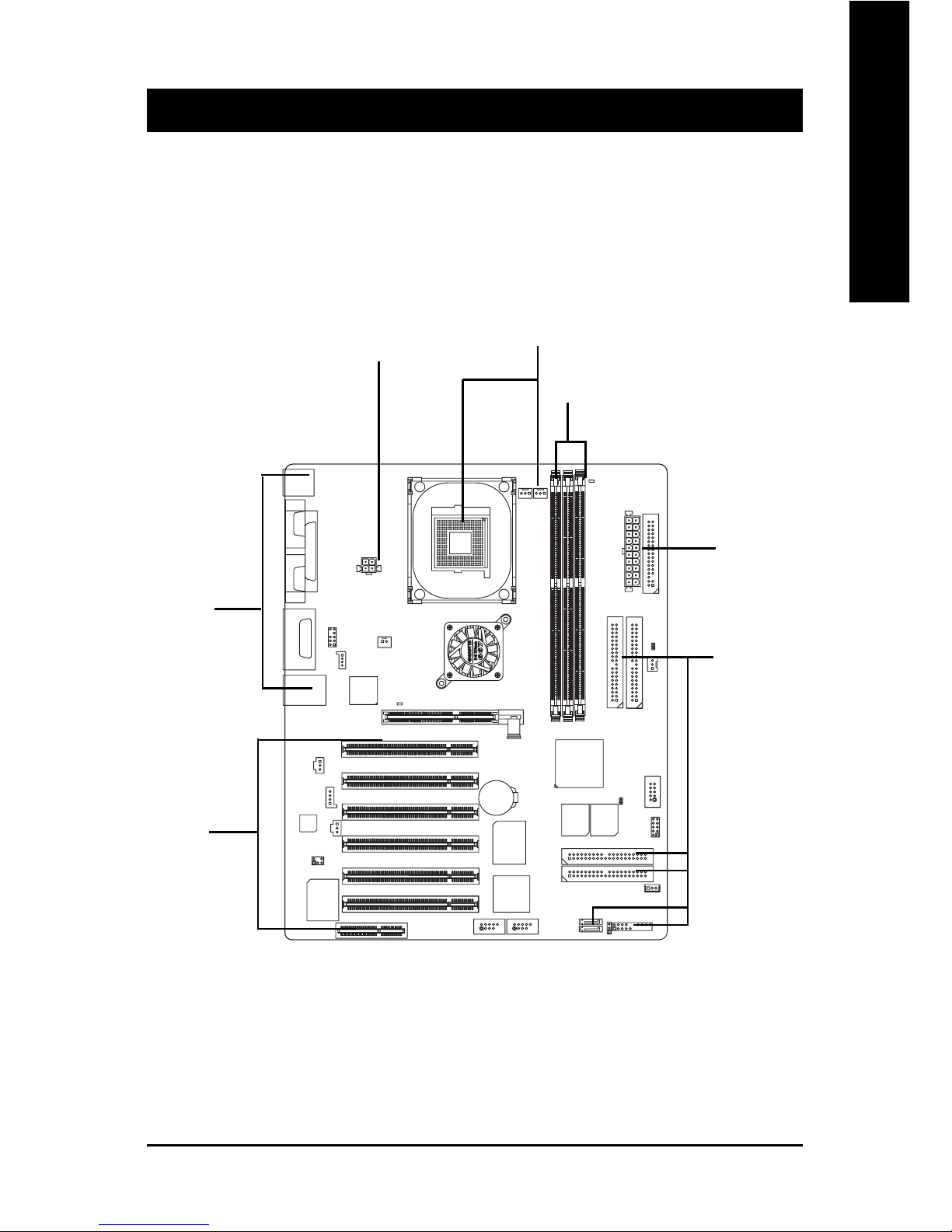

GA-PE667 Ultra 2 / Pro Motherboard Layout ............................................... 8
Block Diagramt ................................................................................... 9
Chapter 2 Hardware Installation Process .............................................. 11
Step 1: Install the Central Processing Unit (CPU) ...................................... 12
Step 1-1 : CPU Installation .............................................................................. 12
Step 1-2 : CPU Heat Sink Installation .............................................................. 13

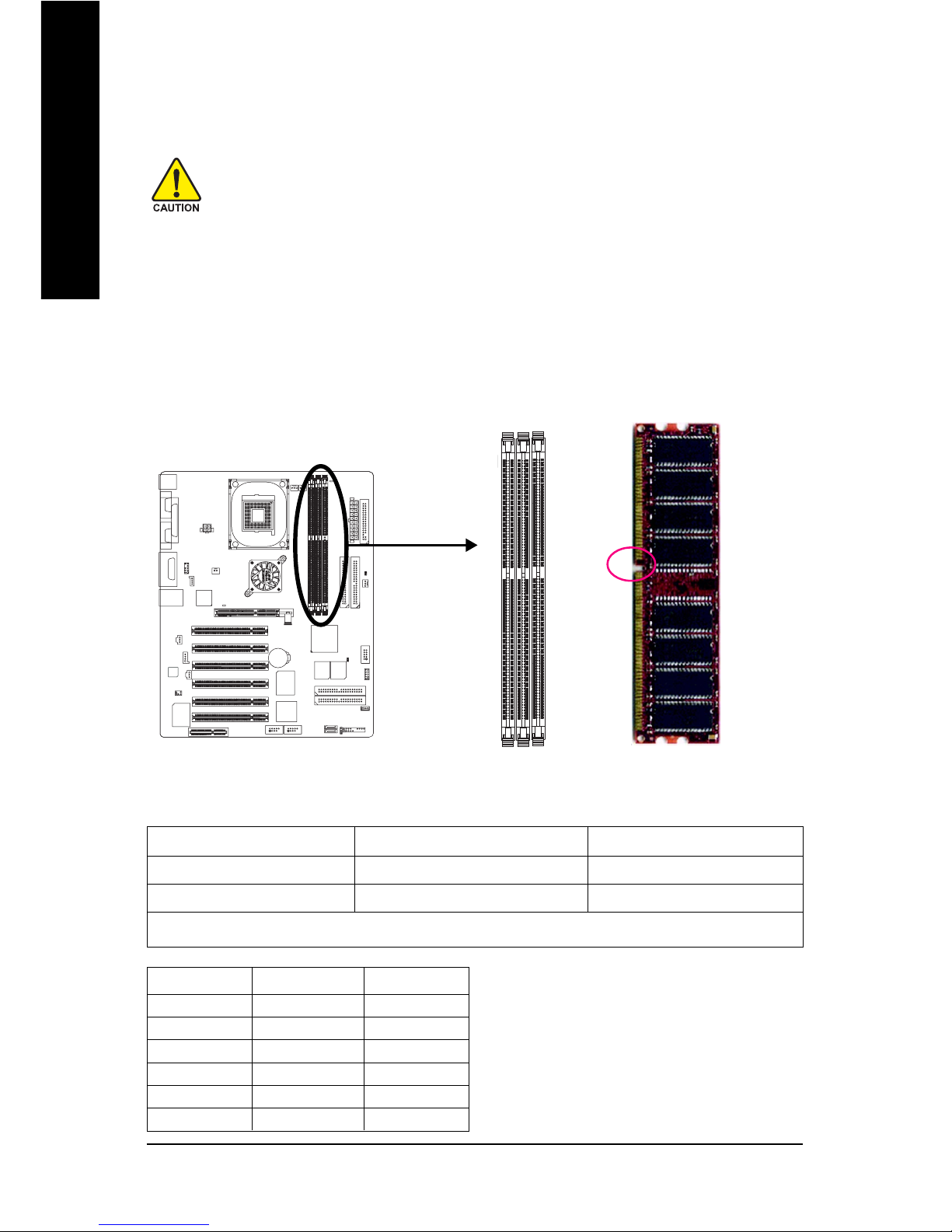

Step 2: Install memory modules ................................................................. 14

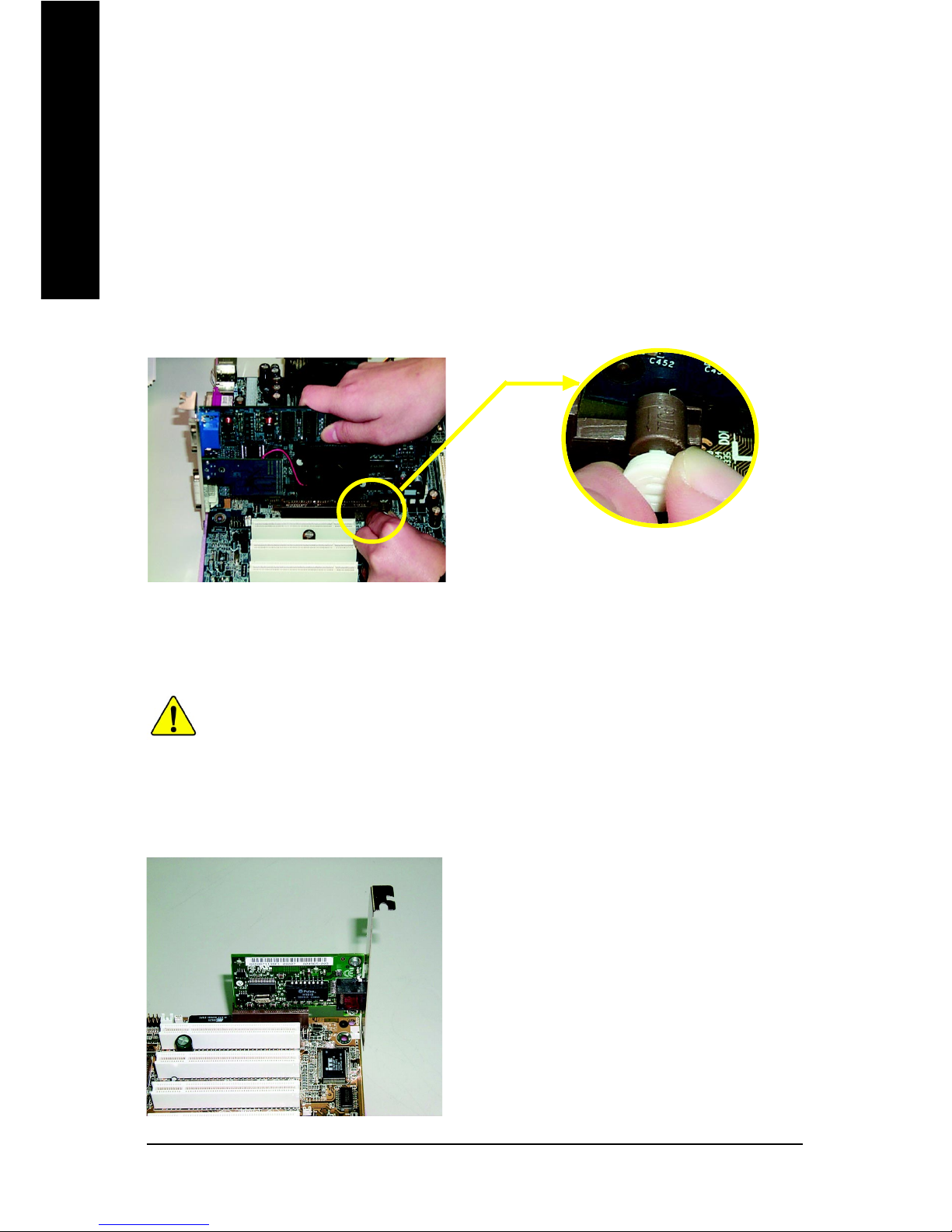

Step 3: Install expansion cards .................................................................. 16
Step 4: Connect ribbon cables, cabinet wires, and power supply .............. 17
Step 4-1 : I/O Back Panel Introduction ............................................................ 17
Step 4-2 : Connectors & Jumper Setting Introduction ...................................... 19
Chapter 3 BIOS Setup ..........................................................................35
The Main Menu (For example: BIOS Ver. :F1) ........................................... 36
Standard CMOS Features .......................................................................... 38
Advanced BIOS Features ........................................................................... 41
Integrated Peripherals ................................................................................ 43

Table of Content
English
- 3 -
Power Management Setup ......................................................................... 49
PnP/PCI Configurations ............................................................................. 52
PC Health Status ........................................................................................ 53
Frequency/Voltage Control ......................................................................... 55
Top Performance ........................................................................................ 57
Select Language ........................................................................................ 58
Load Fail-Safe Defaults .............................................................................. 59
Load Optimized Defaults ............................................................................ 60
Set Supervisor/User Password .................................................................. 61
Save & Exit Setup ...................................................................................... 62
Exit Without Saving ................................................................................... 63
Chapter 4 Technical Reference .............................................................65
@ BIOS Introduction .................................................................................. 65
Easy Tune 4TM Introduction......................................................................... 66
Face-Wizard Utilities Installation ................................................................ 67
BIOS Flash PRocedure .............................................................................. 68
2-/4-/6-Channel Audio Function Introduction .............................................. 88
Chapter 5 Appendix ...............................................................................95

- 4 -GA-8PE667 Ultra2 / Pro Motherboard
English
The GA-8PE667 Ultra2 /Pro motherboard IDE cable x1 / Floppy cable x 1 *
CD for motherboard driver & utility IDE cable x3 / Floppy cable x 1 **
GA-8PE667 Ultra2 /Pro user's manual 4 Port USB Cable x 1
Quick PC Installation Guide SATA cable x2 **
RAID Manual ** Audio combo kit x1 **
SATA RAID Manual ** SPDIF Kit x1(SPD-KIT) *
Motherboard Settings Label I/O Shield
GC-SATA Card (Optional) **
(Manual ; SATA cable x1 ; Power cable x 1)
Item Checklist
Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To protect
them against damage from static electricity, you should follow some precautions whenever you work on
your computer.
1. Unplug your computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do not have
one, touch both of your hands to a safely grounded object or to a metal object, such as
the power supply case.
3. Hold components by the edges and try not touch the IC chips, leads or connectors, or
other components.
4. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX
ower connector on the motherboard.
If the motherboard has mounting holes, but they don’t line up with the holes on the base and there
are no slots to attach the spacers, do not become alarmed you can still attach the spacers to the
mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so
be careful of your hands). In this way you can still attach the motherboard to the base without worrying
about short circuits. Sometimes you may need to use the plastic springs to isolate the screw from the
motherboard PCB surface, because the circuit wire may be near by the hole. Be careful, don't let the
screw contact any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may
damage the board or cause board malfunctioning.
Installing the motherboard to the chassis…
* For GA-8PE667 Pro Only ** For GA-8PE667 Ultra2 Only

Introduction- 5 -
English
Form Factor 30.5cm x 24.4cm ATX size form factor, 4 layers PCB.
Motherboard GA-8PE667 Series Motherboard:
GA-8PE667 Ultra2 and GA-8PE667 Pro
CPU Socket 478 for Intel®Micro FC-PGA2 Pentium®4 processor
Intel Pentium®4 533MHz/400MHz FSB
Support Intel ®Pentium ®4 (Northwood, 0.13 m) processor
 Support Intel ®Pentium ®4 Processor with HT Technology
2nd cache depend on CPU
Chipset Chipset 845PE HOST/AGP/Controller
ICH4 I/O Controller Hub
Memory 3 184-pin DDR DIMM sockets
Supports DDR333/DDR266 DDR DIMM
Supports up to 2GB DRAM (Max)
Supports only 2.5V DDR DIMM
I/O Control ITE8712
Slots 1 CNR(Communication and Networking Riser) Slot **
1 AGP slot 4X (1.5V only) device support
6 PCI slot supports 33MHz & PCI 2.2 compliant
On-Board IDE 2 IDE controllers on the Intel ICH4 PCI chipset
provides IDE HDD/CD-ROM (IDE1, IDE2) with PIO, Bus Master
(Ultra DMA33/ATA66/ATA100) operation modes.
IDE3 and IDE4 Compatible with RAID,Ultra ATA133/100.**
On-Board Peripherals 1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M
and 2.88M bytes.
1 Parallel port supports Normal/EPP/ECP mode
2 Serial ports (COMA & COMB)
6 USB 2.0/1.1 (2 port rear,4 ports by cable)
1 IrDA connector for IR/CIR
1 Front Audio connector
Chapter 1 Introduction
to be continued......
Features Summary


Due to (Intel 845PE/GE/GV) chipset architecture limitation, DDR 333 memory module is
only supported when using FSB 533 Pentium 4 processor. A FSB 400 Pentium 4 processor
will only support DDR 266 memory module
* For GA-8PE667 Pro Only ** For GA-8PE667 Ultra2 Only

- 6 -GA-8PE667 Ultra2 / Pro Motherboard
English
Hardware Monitor CPU/Power/System Fan Revolution detect
CPU/Power/System Fan Control
CPU Overheat Warning
System Voltage Detect
On-Board Sound Realtek ALC650 CODEC
Line Out / 2 front speaker
Line In / 2 rear speaker(by s/w switch)
Mic In / center& subwoofer(by s/w switch)
SPDIF out / SPDIF In
CD In / AUX In / Game port
On-Board RAID ** Onboard Promise PDC20276
Supports data striping (RAID 0) or mirroring (RAID 1)
Supports concurrent dual ATA133 IDE controller operation
Support ATAPI mode for CD ROM, DVD ROM ..etc.
Supports IDE bus master operation
Support ATA133/RAID mode switch by BIOS
Mirroring supports automatic background rebuilds
Features LBA and Extended Interrupt 13 drive translation in
controller onboard BIOS
On-Board SATA RAID ** Onboard Silicon Image Sil3112A
Supports Disk striping (RAID0) or DISK Mirroring (RAID1)
Supports UDMA up to 150 MB/sec
AIL UDMA and PIO Modes
Up to 2 SATA Device
ACPI and ATA/ATAPI6
On-Board LAN Intel Kenai-32 LAN PHY **
Data transfer rate 10/100/1000 supported
Intel Kinnereth-R LAN PHY *
Data transfer rate 10/100 supported
On-Board SCR IT8712 I/O Chipset (Smart Card Reader)
On-Board USB 2.0 Built in ICH4 Chipset
to be continued......
* For GA-8PE667 Pro Only ** For GA-8PE667 Ultra2 Only

Introduction- 7 -
English
Please set the CPU host frequency in accordance with your processor's specifications.
We don't recommend you to set the system bus frequency over the CPU's specification
because these specific bus frequencies are not the standard specifications for CPU,
chipset and most of the peripherals. Whether your system can run under these specific
bus frequencies properly will depend on your hardware configurations, including CPU,
Chipsets,SDRAM,Cards….etc.
PS/2 Connector PS/2 Keyboard interface and PS/2 Mouse interface
BIOS Licensed AWARD BIOS, 4M bit x 2 FWH **
Licensed AWARD BIOS, 3M bit x 2 FWH *
Supports Dual BIOS
Supports Multi Language
Supports Face Wizard
Supports Q-Flash
Additional Features PS/2 Keyboard power on by password
PS/2 Mouse power on
External Modem wake up
STR(Suspend-To-RAM)
Wake on LAN (WOL)
AC Recovery
Poly fuse for keyboard over-current protection
USB KB/Mouse wake up from S3
Supports @BIOS
Supports EasyTune 4
Supports clear password function
Overclocking Over Voltage (DDR/AGP/CPU) by BIOS
Over Clock (DDR/AGP/CPU/PCI) by BIOS
* For GA-8PE667 Pro Only ** For GA-8PE667 Ultra2 Only
"*" HT functionality requirement content :
Enabling the functionality of Hyper-Threading Technology for your computer system requires
all of the following platform components:
- CPU: An Intel®Pentium 4 Processor with HT Technology
- Chipset: An Intel®Chipset that supports HT Technology
- BIOS: A BIOS that supports HT Technology and has it enabled
- OS: An operation system that has optimizations for HT Technology

- 8 -GA-8PE667 Ultra2 / Pro Motherboard
English
GA-8PE667 Ultra2 / Pro Motherboard Layout
PWR_LED
2X_DET
NB-FAN
SPDIF_O
RAM_LED
SCR
GA-8PE667 Ultra2 / Pro
KB_MS
COMA
COMB
GAME
LINE_IN
LINE_OUT
MIC_IN
USB
ATX_12V
CD_IN
F_AUDIO
AC97
WOL
ITE8712
F_PANEL
BATTERY
BACKUP
BIOS
SYS_FAN
ICH4
Intel 845PE
SOCKET478
CPU_FAN
ATX
IR/CIR
FLOPPY
IDE1
IDE2
AGP
PCI1
PCI2
PCI3
PCI4
PCI5
PCI6
CNR**
P4 Titan667
PDC20276**
MAIN
BIOS
LPT1
LAN
SIL3112A**
Kinnereth-R*
Kenai-32**
AUX_IN
IDE4**
CI
Front USB 2.0
SUR_CEN
IDE3**
PWR_FAN
SPDIF_IN
F_USB1 F_USB2
DDR3
DDR1
DDR2
CLR_PWD
Serial ATA**
S_ATA2**
S_ATA1**
* For GA-8PE667 Pro Only ** For GA-8PE667 Ultra2 Only

- 9 - Hardware Installation Process
English
Block Diagram
Pentium 4
CPU
Intel
82845PE
6-channel
CODEC
Intel
ICH 4
CPUCLK+/-(100/133MHz)
System Bus
400/533MHz
DDR RAM
266/333 MHz
GMCHCLK+/-(66MHz)
MCHCLK+/-(100/133MHz)
66 MHz
33 MHz
14.318 MHz
48 MHz
LPC BUS
AGP 4X
AGPCLK
(66MHz)
6 PCI
RJ45
AC97 Link
LINE-OUT
6 USB
(2.0/1.1)
Ports
ATA33/
66/100
IDE Channels
CLK
GEN
MCH(66MHz)
CPUCLK+/-(100/133MHz)
AGPCLK (66MHz)
MCHCLK+/- (100/133mHz)
ICH3V66 (66MHz)
PCICLK (33MHz)
USBCLK (48MHz)
14.318 MHz
Kenai-32**
Kinnereth-R*
SCR
ITE8712
24 MHz
33 MHz
Game Port
Floppy
LPT Port
PS/2
KB/Mouse
COM
Ports
BIOS
PCICLK
(33MHz)
ATA133/RAID**
IDE Channels
24 MHz
33 MHz
MIC
LINE-IN
Promise**
PDC20276
Serial ATA**
Serial ATA**
Channels
CNR**
* For GA-8PE667 Pro Only ** For GA-8PE667 Ultra2 Only

- 10 -GA-8PE667 Ultra2 / Pro Motherboard
English

- 11 - Hardware Installation Process
English
To set up your computer, you must complete the following steps:
Step 1- Install the Central Processing Unit (CPU)
Step 2- Install memory modules
Step 3- Install expansion cards
Step 4- Connect ribbon cables, cabinet wires, and power supply
Chapter 2 Hardware Installation Process
Step 4
Step 4
Step1
Step4
Step3
Step 4
Step 2
Congratulations you have accomplished the hardware installation!
Turn on the power supply or connect the power cable to the power outlet. Continue with
the BIOS/software installation.

- 12 -GA-8PE667 Ultra2 / Pro Motherboard
English
Step 1: Install the Central Processing Unit (CPU)
Step 1-1: CPU Installation
Pin1 indicator
3. CPU Top View
2. Pull the rod to the 90-degree directly.
4. Locate Pin 1 in the socket and look
for a (golden) cut edge on the CPU
upper corner. Then insert the CPU
into the socket.
Angling the
rod to 650
Socket
Actuation
Lever
Pin1 indicator
1. Angling the rod to 65-degree maybe feel a
kind of tight , and then continue pull the rod
to 90-degree when a noise “cough” made.
Before installing the processor , adhere to the following warning:
If you do not match the CPU socket Pin 1 and CPU cut edge well, it will
cause improper installation. Please change the insert orientation.
Please make sure the CPU type is supported by the motherboard.

- 13 - Hardware Installation Process
English
Step 1-2 : CPU Heat Sink Installation
1.Please use Intel approved cooling fan.
2.We recommend you to apply the thermal tape to provide better heat conduction
between your CPU and heatsink.
(The CPU cooling fan might stick to the CPU due to the hardening of the thermal
paste. During this condition if you try to remove the cooling fan, you might pull the
processor out of the CPU socket alone with the cooling fan, and might damage the
processor. To avoid this from happening, we suggest you to either use thermal tape
instead of thermal paste, or remove the cooling fan with extreme caution.)
3.Make sure the CPU fan power cable is plugged in to the CPU fan connector, this
completes the installation.
Please refer to CPU heat sink user's manual for more detail installation procedure.
2. Make sure the CPU fan is plugged to
the CPU fan connector, than install
complete.
1. Fasten the heatsink supporting-base
onto the CPU socket on the
mainboard.

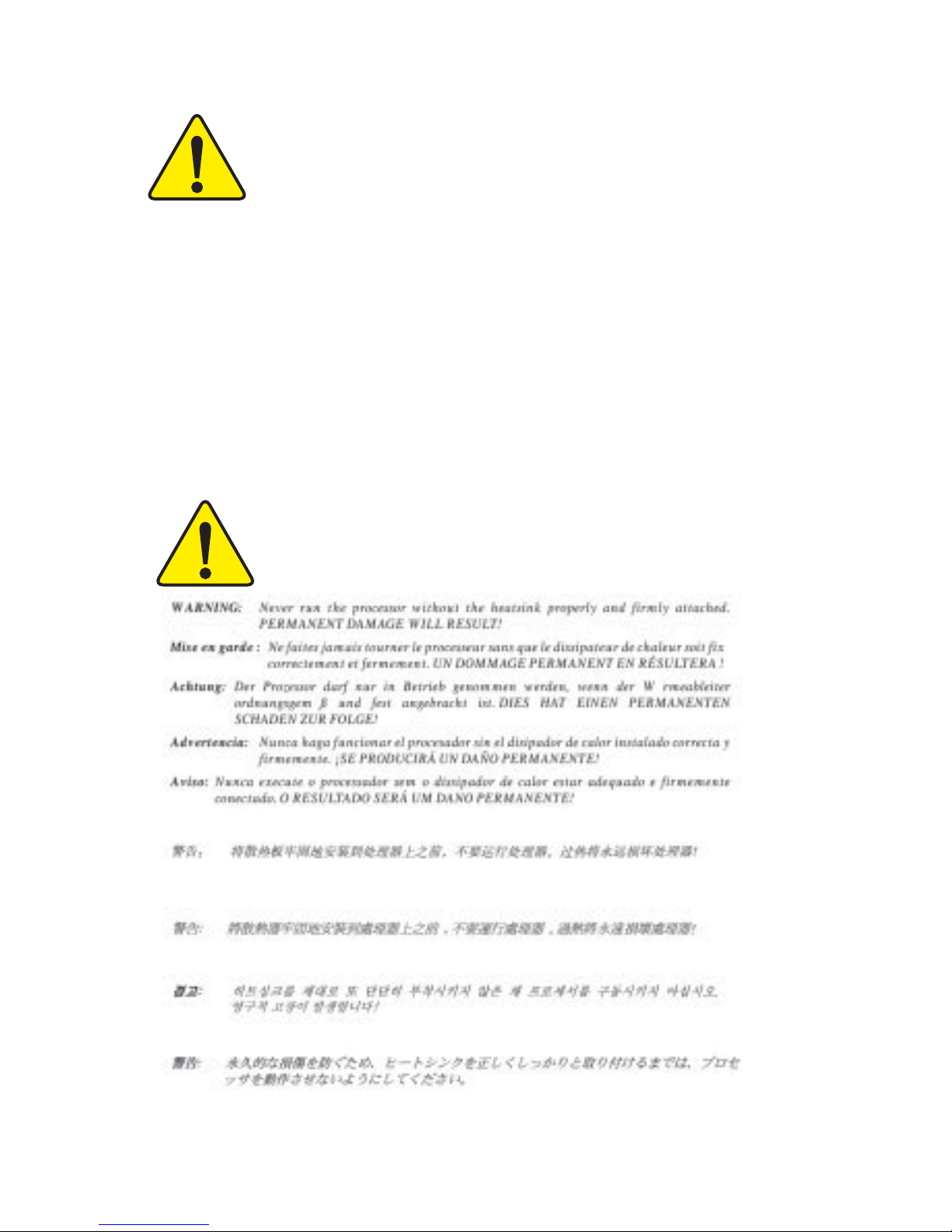

Before installing the CPU Heat Sink , adhere to the following warning:

- 14 -GA-8PE667 Ultra2 / Pro Motherboard
English
The motherboard has 3 dual inline memory module (DIMM) sockets, but it can only support a maxi-
mum of 4 banks of DDR memory. DDR sockets 1 uses 2 banks, DDR sockets 2&3 share the remain-
ing 2 banks. Please refer to the following tables for possible memory configurations supported. The
BIOS will automatically detects memory type and size. To install the memory module, just push it
vertically into the DIMM socket .The DIMM module can only fit in one direction due to the notch.
Memory size can vary between sockets.
Step 2: Install memory modules
DDR
Notch
D:Double Sided DIMM S:Single Sided DIMM
X:Not Use
DDR1 DDR2 DDR3
SSS
DSS
DDX
DXD
SDX
SXD
Before installing the processor and heatsink, adhere to the following warning:
When DIMM LED is ON, do not install/remove DIMM from socket.
Please note that the DIMM module can only fit in one direction due to the one notches.
Wrong orientation will cause improper installation. Please change the insert orientation.
Support Unbuffered DDR DIMM Sizes type:
64 Mbit (2Mx8x4 banks) 64 Mbit (1Mx16x4 banks) 128 Mbit(4Mx8x4 banks)
128 Mbit(2Mx16x4 banks) 256 Mbit(8Mx8x4 banks) 256 Mbit(4Mx16x4 banks)
512 Mbit(16Mx8x4 banks) 512 Mbit(8Mx16x4 banks)
Total System Memory (Max2GB)

- 15 - Hardware Installation Process
English
Established on the existing SDRAM industry infrastructure, DDR (Double Data Rate) memory is a
high performance and cost-effective solution that allows easy adoption for memory vendors, OEMs
and system integrators.
DDR memory is a sensible evolutionary solution for the PC industry that builds on the existing
SDRAM infrastructure, yet makes awesome advances in solving the system performance bottle-
neck by doubling the memory bandwidth. DDR SDRAM will offer a superior solution and migration
path from existing SDRAM designs due to its availability, pricing and overall market support. PC2100
DDR memory (DDR266) doubles the data rate through reading and writing at both the rising and
falling edge of the clock, achieving data bandwidth 2X greater than PC133 when running with the
same DRAM clock frequency. With peak bandwidth of 2.664GB per second, DDR memory enables
system OEMs to build high performance and low latency DRAM subsystems that are suitable for
servers, workstations, high-end PC's and value desktop SMA systems. With a core voltage of only
2.5 Volts compared to conventional SDRAM's 3.3 volts, DDR memory is a compelling solution for
small form factor desktops and notebook applications.
DDR Introduction
1. The DIMM slot has a notch, so the DIMM
memory module can only fit in one direction.
2. Insert the DIMM memory module vertically into
the DIMM slot. Then push it down.
3. Close the plastic clip at both edges of the DIMM
slots to lock the DIMM module.
Reverse the installation steps when you wish
to remove the DIMM module.

- 16 -GA-8PE667 Ultra2 / Pro Motherboard
English
Issues To Beware Of When Installing CNR **
Standard CNR Card
Step 3: Install expansion cards
1. Read the related expansion card’s instruction document before install the expansion card into
the computer.
2. Remove your computer’s chassis cover, necessary screws and slot bracket from the computer.
3. Press the expansion card firmly into expansion slot in motherboard.
4. Be sure the metal contacts on the card are indeed seated in the slot.
5. Replace the screw to secure the slot bracket of the expansion card.
6. Replace your computer’s chassis cover.
7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.
8. Install related driver from the operating system.
When an AGP 2x (3.3V) card is installed the 2X_DET will light up, indicating a non-supported
graphics card is inserted. Informing users that system might not boot up normally due to AGP 2x
(3.3V) is not supported by the chipset.
AGP Card
Please carefully pull out the small white- drawable bar
at the end of the AGP slot when you try to install/
Uninstall the AGP card. Please align the AGP card to
the onboard AGP slot and press firmly down on the slot
.Make sure your AGP card is locked by the small white-
drawable bar.
Please use standard CNR card like the one in
order to avoid mechanical problem.
** For GA-8PE667 Ultra2 Only
