Gigabyte GA-K8NF-9-RH User manual

GA-K8NF-9-RH
AMD Socket 939 Processor Motherboard
User's Manual
Rev. 2301
12ME-K8NF9R-2301R
* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste
and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!
* The WEEE marking applies only in European Union's member states.

Jun. 2, 2006
Motherboard
GA-K8NF-9-RH
Motherboard
GA-K8NF-9-RH
Jun. 2, 2006

Copyright
© 2006 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in the manual are legally registered to their respective companies.
Notice
The written content provided with this product is the property of Gigabyte.
No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any
means without Gigabyte's prior written permission. Specifications and features are subject to
change without prior notice.
Product Manual Classification
In order to assist in the use of this product, Gigabyte has categorized the user manual in the
following:
For quick installation, please refer to the "Hardware Installation Guide" included with the
product.
For detailed product information and specifications, please carefully read the
"Product User Manual".
For detailed information related to Gigabyte's unique features, please go to the
"Technology Guide" section on Gigabyte's website to read or download the information
you need.
For more product details, please click onto Gigabyte's website at www.gigabyte.com.tw

- 4 -
Table of Contents
GA-K8NF-9-RH Motherboard Layout ............................................................................ 6
Block Diagram ................................................................................................................ 7
Chapter 1 Hardware Installation .................................................................................... 9
1-1 Considerations Prior to Installation .................................................................... 9
1-2 Feature Summary .......................................................................................... 10
1-3 Installation of the CPU and Fan Heat Sink ..................................................... 12
1-3-1 Installation of the CPU ......................................................................................... 12
1-3-2 Installation of the Fan Heat Sink ........................................................................ 13
1-4 Installation of Memory .................................................................................... 14
1-5 Installation of Expansion Cards ...................................................................... 16
1-6 I/O Back Panel Introduction ........................................................................... 17
1-7 Connectors Introduction .................................................................................. 18
Chapter 2 BIOS Setup ................................................................................................ 27
The Main Menu (For example: BIOS Ver. : FD) ....................................................... 28
2-1 Standard CMOS Features ............................................................................. 30
2-2 Advanced BIOS Features .............................................................................. 32
2-3 IntegratedPeripherals ..................................................................................... 34
2-4 Power Management Setup ............................................................................. 37
2-5 PnP/PCI Configurations ................................................................................. 39
2-6 PC Health Status ........................................................................................... 40
2-7 MB Intelligent Tweaker(M.I.T.) ....................................................................... 43
2-8 Top Performance ............................................................................................. 45
2-9 Load Optimized Defaults ................................................................................. 45
2-10 Set Supervisor/User Password ..................................................................... 46
2-11 Save & Exit Setup ......................................................................................... 47
2-12 Exit Without Saving ....................................................................................... 47

- 5 -
Chapter 3 Drivers Installation ...................................................................................... 49
3-1 Install Chipset Drivers .................................................................................... 49
3-2 SoftwareApplication ....................................................................................... 50
3-3 Software Information ....................................................................................... 50
3-4 Hardware Information ..................................................................................... 51
3-5 Contact Us ..................................................................................................... 51
Chapter 4 Appendix ................................................................................................... 53
4-1 Unique Software Utilities ................................................................................ 53
4-1-1 EasyTune 5 Introduction ..................................................................................... 53
4-1-2 Xpress Recovery2 Introduction ......................................................................... 54
4-1-3 Flash BIOS Method Introduction ........................................................................ 56
4-1-4 Configuring SATA Hard Drive(s) ........................................................................ 65
4-1-5 2- / 4- / 6- / 8- Channel Audio Function Introduction ...................................... 79
4-2 Troubleshooting ............................................................................................... 83

- 6 -

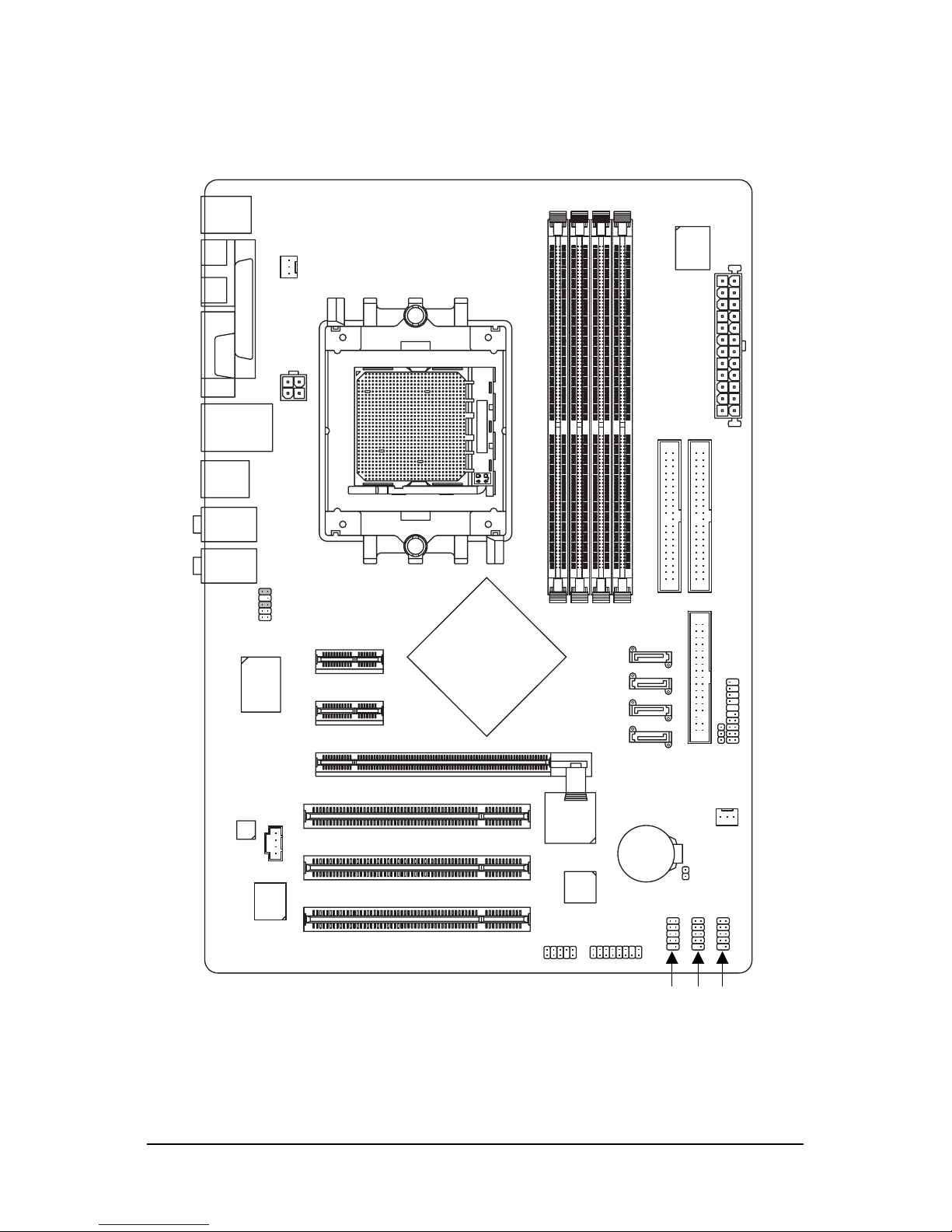

GA-K8NF-9-RH Motherboard Layout
ATX_12V
CPU_FAN
CODEC
IT8712
nVIDIA®
nForceTM 4-4X
BIOS
PCIE_1
PCIE_2
DDR1
F_USB1
DDR2 DDR3
BATTERY
ATX
IDE2
FDD
CLR_CMOS
SYS_FAN
GA-K8NF-9-RH
KB_MS
Socket 939
AUDIO1
USB USB
LAN
F_AUDIO
CD_IN
F_PANEL
PWR_LED
DDR4
IDE1
PCI1
PCI2
PCI3
PCIE_16
SPDIF_O
COMA
LPT
SPDIF_I
AUDIO2
SNO82AA2
SNO81BA3
F2_1394F1_1394
S_ATAII_2
S_ATAII_3
S_ATAII_0
S_ATAII_1
VITESSE 8201
F_USB2 F_USB3

- 7 -
Block Diagram
Line-Out
MIC
Line-In
SPDIF In
SPDIF Out
Side Speaker Out
Center/Subwoofer Speaker Out
Surround Speaker Out
AMD K8
Socket 939
CPU
CPUCLK+/-(200MHz)
Hyper Transport Bus
nVIDIA®
nForce4-4X
DDR 400/333/266/200MHz DIMM
24MHz
33MHz
IT8712
4 Serial ATA
ATA33/66/100/133
IDE Channels
PCICLK
(33MHz)
3PCI
PCI Bus
10 USB
Ports
Dual Channel Memory
Floppy
PS/2 KB/Mouse
LPT Port
PCI-ECLK
(100MHz)
LPC BUS
COM Port
CODEC
3 IEEE1394b
SNO82AA2
SNO81BA3
2 PCI Express x 1 Ports
RJ45
PCI Express x 1 Bus
VITESSE
8201
PCI-ECLK
(100MHz)
BIOS
PCI Express x 16

- 8 -

Hardware Installation- 9 -
English
1-1 Considerations Prior to Installation
Preparing Your Computer
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please
follow the instructions below:
1. Please turn off the computer and unplug its power cord.
2. When handling the motherboard, avoid touching any metal leads or connectors.
3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components
(CPU, RAM).
4. Prior to installing the electronic components, please have these items on top of an antistatic
pad or within a electrostatic shielding container.
5. Please verify that the power supply is switched off before unplugging the power supply connector
from the motherboard.
Installation Notices
1. Prior to installation, please do not remove the stickers on the motherboard. These stickers
are required for warranty validation.
2. Prior to the installation of the motherboard or any hardware, please first carefully read the
information in the provided manual.
3. Before using the product, please verify that all cables and power connectors are connected.
4. To prevent damage to the motherboard, please do not allow screws to come in contact with
the motherboard circuit or its components.
5. Please make sure there are no leftover screws or metal components placed on the motherboard
or within the computer casing.
6. Please do not place the computer system on an uneven surface.
7. Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
8. If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certified computer technician.
Instances of Non-Warranty
1. Damage due to natural disaster, accident or human cause.
2. Damage as a result of violating the conditions recommended in the user manual.
3. Damage due to improper installation.
4. Damage due to use of uncertified components.
5. Damage due to use exceeding the permitted parameters.
6. Product determined to be an unofficial Gigabyte product.
Chapter 1Hardware Installation

GA-K8NF-9-RH Motherboard - 10 -
English
CPU Socket 939 for AMD AlthlonTM 64 X2 Dual-Core / AlthlonTM 64 FX /
AlthlonTM 64 / SempronTM processor (K8)
Supports core frequencies in excess of 3000+ and faster
System Bus 1600MHz
Chipset nVIDIA®nForce4-4X chipset
LAN Onboard VITESSE 8201 phy (10/100/1000Mbit)
Audio Onboard Realtek ALC850 CODEC chip
Supports 2 / 4 / 6/ 8 channel audio
Supports Jack Sensing (Connector Sensing)
Supports SPDIF In/Out connection
Supports CD In connection
IEEE 1394 Onboard SNO82AA2/SNO81BA3 chip
3 IEEE1394b ports
Storage nVIDIA®nForce4-4X chipset
- 1 FDD connector, allowing connection of 2 FDD devices
- 2 IDE connectors (IDE1, IDE2) with UDMA 33/ATA 66/ATA 100/ATA 133
suppport, allowing connection of 4 IDE devices
- 4 SATA connectors (SATAII0_1, SATAII2_3), allowing connection of 4
SATA devices
- Supports data striping (RAID 0), mirroring (RAID 1),
striping + mirroring (RAID 0+1) for Serial ATA
O.S Support Microsoft Windows 2000/XP
Memory 4 DDR DIMM memory slots (supports up to 4GB memory) (Note 1)
Supports dual channel DDR 400/333/266/200 DIMMs
Supports 2.5V DDR DIMMs
Expanstion Slots 1 PCI Express x16 slot
2 PCI Express x1 slots
3 PCI slots
Internal Connectors 1 24-pin ATX power connector
1 4-pin ATX 12V power connector
1 floppy connector
2 IDE connectors
4 SATA connectors
1 CPU fan connector
1 system fan connector
1 front panel connector
1 front audio connector
1 CD In connector
3 USB 2.0/1.1 connectors for additional 6 USB 2.0/1.1 ports by cables
2 IEEE1394b connectors for 3 additional IEEE1394 ports by cables
1 power LED connector
1-2 Feature Summary

Hardware Installation- 11 -
English

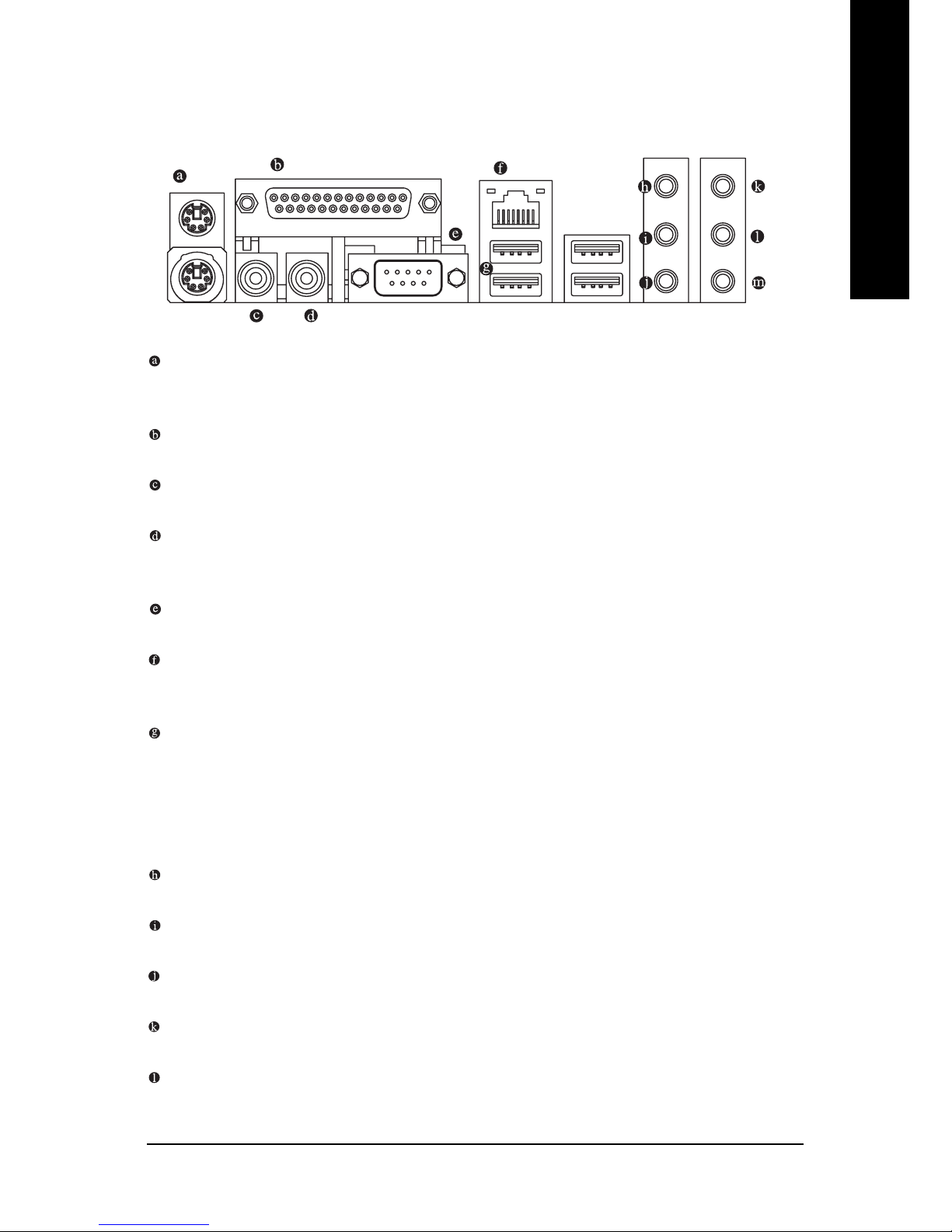

Rear Panel I/O 1 PS/2 keyboard port
1 PS/2 mouse port
1 parallel port
1 SPDIF in port
1 SPDIF out port
1 serial port (COMA)
4 USB 2.0/1.1 ports
1 RJ-45 port
6 audio jacks (Line In / Line Out / MIC In / Surround Speaker Out (Rear
Speaker Out) / Center/Subwoofer Speaker Out / Side Speaker Out)
I/O Control IT8712 chip
Hardware Monitor System voltage detection
CPU temperature detection
CPU / System fan speed detection
CPU warning temperature
CPU fan failure warning
CPU smart fan control (Note 2)
BIOS 1 4Mbit flash ROM
Use of licensed AWARD BIOS
Additional Features Supports @BIOS
Supports Download Center
Supports Q-Flash
Supports EasyTune (Note 3)
Supports Xpress Install
Supports Xpress Recovery2
Supports Xpress BIOS Rescue
Bundle Software Norton Internet Security (OEM version)
Form Factor ATX form factor; 30.5cm x 21.0cm
(Note 1) Due to standard PC architecture, a certain amount of memory is reserved for system usage
and therefore the actual memory size is less than the stated amount.
For example, 4 GB of memory size will instead be shown as 3.xxGB memory during system
startup.
(Note 2) Whether the CPU Smart FAN Control function is supported will depend on the CPU you install.
For more detailed information please check at the FAQ section on GIGABYTE's website.
(Note 3) EasyTune functions may vary depending on different motherboards.

GA-K8NF-9-RH Motherboard - 12 -
English
1-3 Installation of the CPU and Fan Heat Sink
Before installing the CPU, please comply with the following conditions:
1. Please make sure that the motherboard supports the CPU.

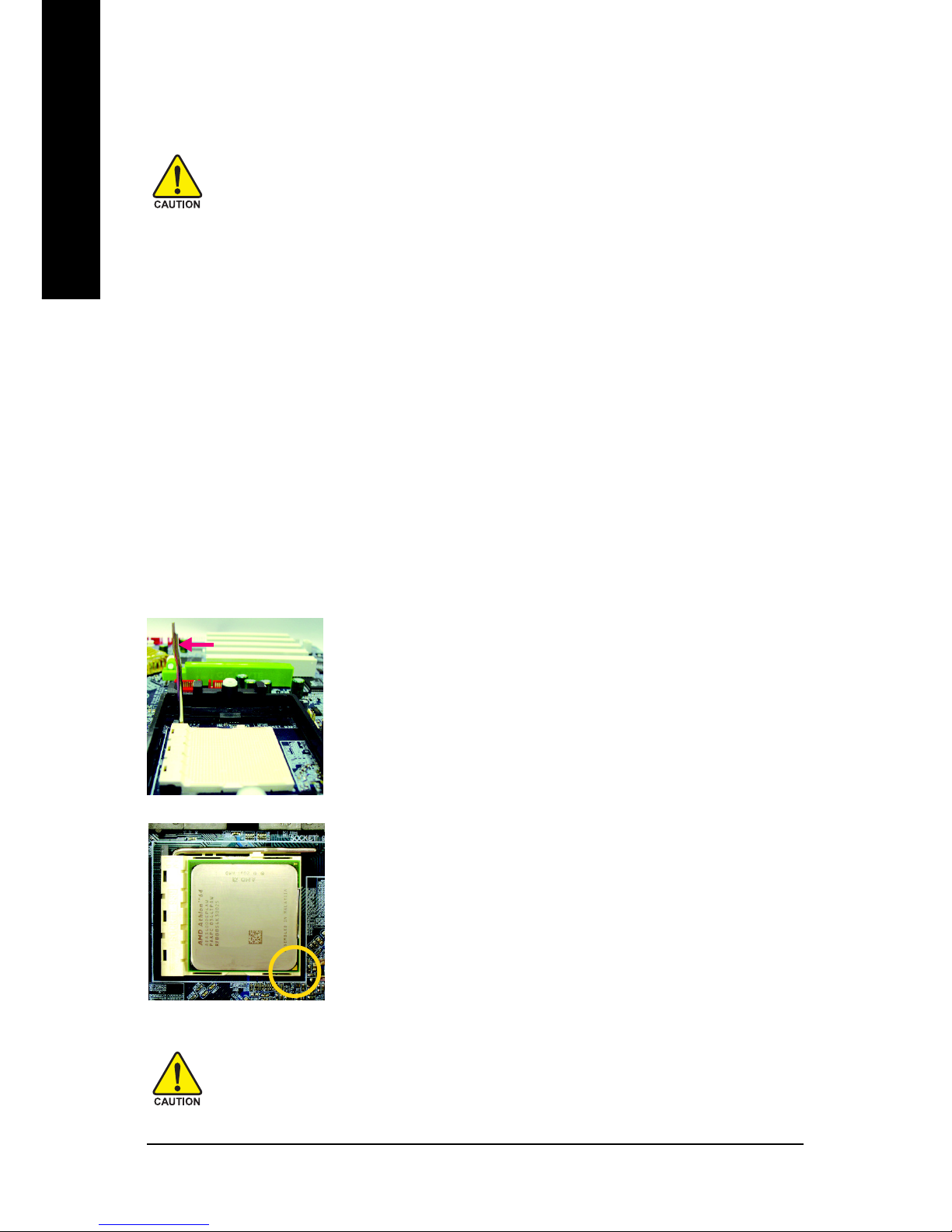

2. Please take note of the pin 1 marking (the small triangle) on the CPU. If you install the
CPU in the wrong direction, the CPU will not insert properly. If this occurs, please
change the insert direction of the CPU.
3. Please add an even layer of heat sink paste between the CPU and heatsink.
4. Please make sure the heatsink is installed on the CPU prior to system use, otherwise
overheating and permanent damage of the CPU may occur.
5. Please set the CPU host frequency in accordance with the processor specifications. It is not
recommended that the system bus frequency be set beyond hardware specifications since it
does not meet the required standards for the peripherals. If you wish to set the frequency
beyond the proper specifications, please do so according to your hardware specifications
including the CPU, graphics card, memory, hard drive, etc.
1-3-1 Installation of the CPU
Check the CPU pins to see that none are bent. Move the socket lever to the unlocked position as shown
in Fig. 1 (90oto the plane of the motherboard) prior to inserting the CPU. The pin 1 location is designated
on the CPU by a small triangle that corresponds to a triangle marking on the socket as shown in Fig.
2. Align the CPU to the socket and gently lower it into place. Do not force the CPU into the socket.
Fig.1
Position lever at a 90 degree angle.
Socket lever
Fig.2
Pin 1 location on the socket and processor.
Gently place the CPU into position making sure that the CPU pins fit
perfectly into their holes. Once the CPU is positioned into its socket,
place one finger down on the middle of the CPU and gently press the
metal lever back into its original position.
Please use extra care when installing the CPU. The CPU will not fit if positioned incorrectly.
Rather than applying force, please change the positioning of the CPU.
Pin One

Hardware Installation- 13 -
English

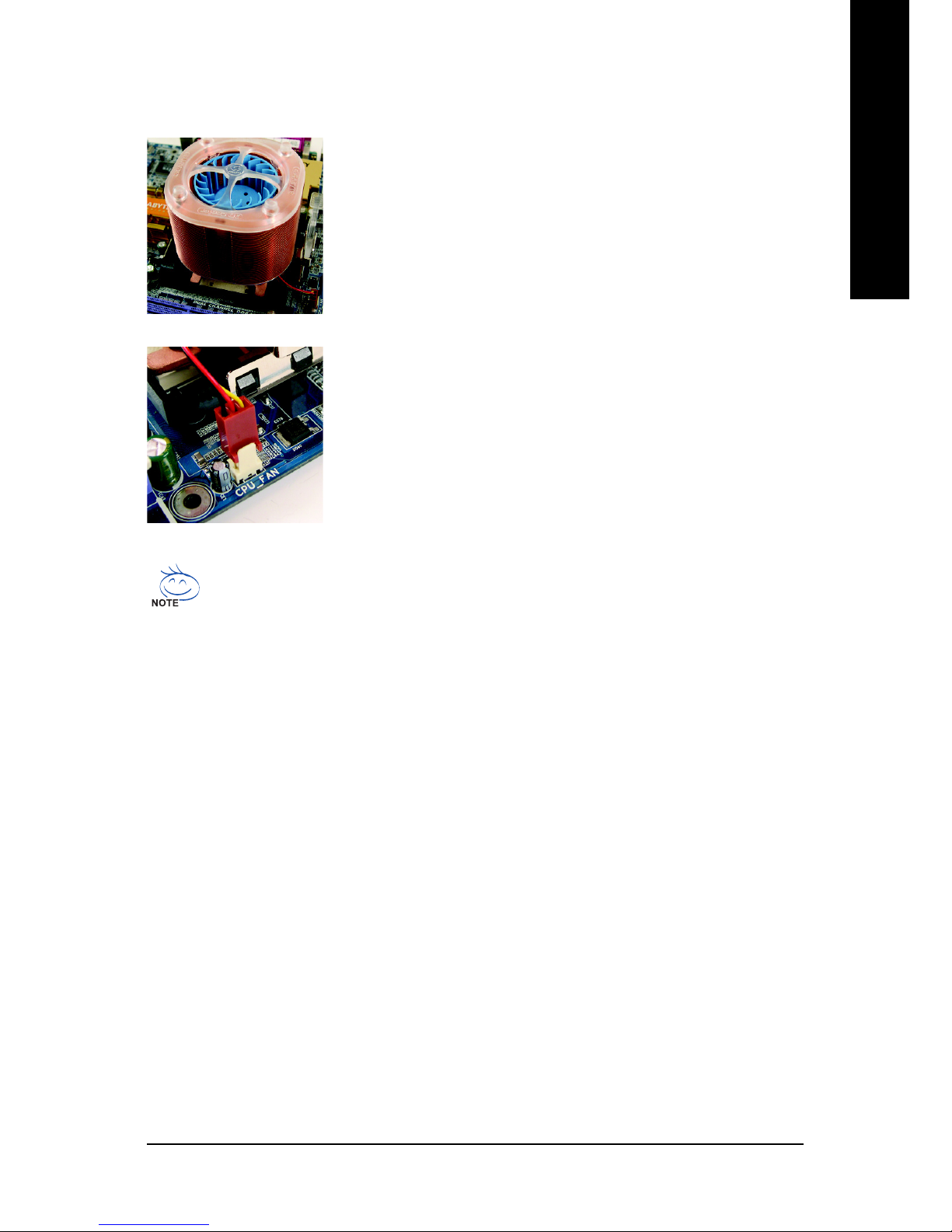

1-3-2 Installation of the Fan Heat Sink
The heat sink may adhere to the CPU as a result of hardening of the heat sink paste. To prevent
such an occurrence, it is suggested that either thermal tape rather than heat sink paste be used for
heat dissipation or using extreme care when removing the heat sink.
Fig.1
Before installing the heat sink, please first add an even layer of heat sink
paste on the surface of the CPU. Install all the heat sink components (Please
refer to the heat sink manual for detailed installation instructions).
Fig.2
Please connect the heat sink power connector to the CPU_FAN connector
located on the motherboard so that the heat sink can properly function to
prevent CPU overheating.

GA-K8NF-9-RH Motherboard - 14 -
English
Before installing the memory modules, please comply with the following conditions:
1. Please make sure that the memory used is supported by the motherboard. It is
recommended that memory of similar capacity, specifications and brand be used.
2. Before installing or removing memory modules, please make sure that the computer power
is switched off to prevent hardware damage.
3. Memory modules have a foolproof insertion design. A memory module can be installed in
only one direction. If you are unable to insert the module, please switch the direction.

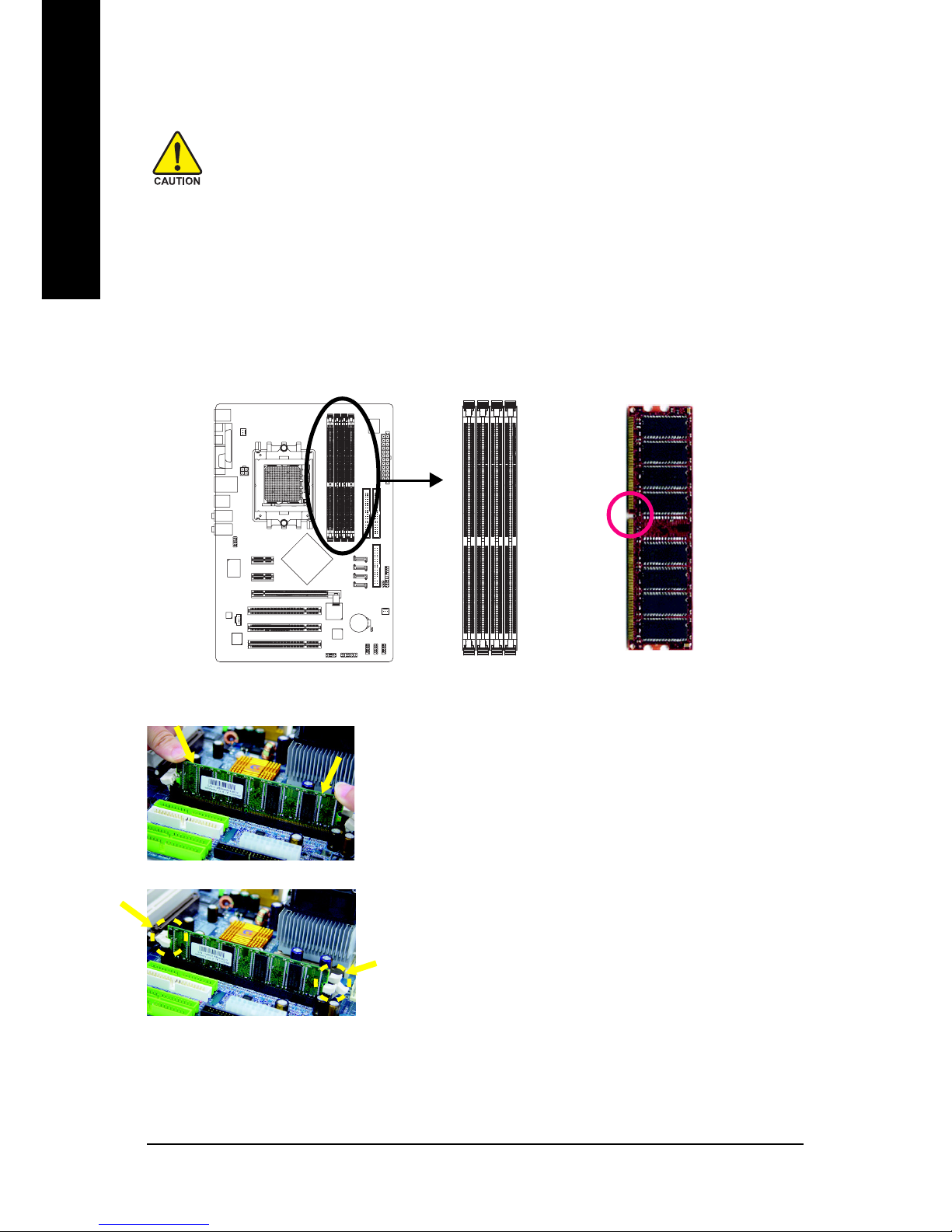

1-4 Installation of Memory
The motherboard supports DDR memory modules, whereby BIOS will automatically detect memory
capacity and specifications. Memory modules are designed so that they can be inserted only in one direction.
The memory capacity used can differ with each slot.
Notch
DDR
Fig.1
The DIMM socket has a notch, so the DIMM memory module can only
fit in one direction. Insert the DIMM memory module vertically into the
DIMM socket. Then push it down.
Fig.2
Close the plastic clip at both edges of the DIMM sockets to lock the
DIMM module.
Reverse the installation steps when you wish to remove the DIMM
module.

Hardware Installation- 15 -
English
Dual Channel Memory Configuration
The GA-K8NF-9-RH supports the Dual Channel Technology. After operating the Dual Channel Technology,
the bandwidth of Memory Bus will double.
Due to CPU limitation, if you wish to operate the Dual Channel Technology, follow the guidelines below:
1. Dual Channel mode will not be enabled if only one memory module is installed.
2. To enable Dual Channel mode with two memory modules (it is recommended to use memory
modules of identical brand, size, chips, and speed), you must install them into DIMM sockets
of the same color.
3. To enable Dual Channel mode with four memory modules, it is recommended to use memory
modules of identical brand, size, chips, and speed.
The following is a Dual Channel Memory configuration table:
(DS: Double Side, SS: Single Side, "--": Empty)
2 memory modules
4 memory modules
DDR1 DDR2 DDR3 DDR4
DS/SS DS/SS - - - -
- - - - DS/SS DS/SS
DS/SS DS/SS DS/SS DS/SS
If two memory modules are to be used to achieve Dual Channel mode, we recommend
installing them in DDR1 and DDR2 DIMM sockets.
1 memory module
2 memory modules
3 memory modules
DDR1 DDR2 DDR3 DDR4
- - DS/SS - - - -
- - - - - - DS/SS
- - DS/SS DS/SS - -
DS/SS - - -- DS/SS
- - DS/SS - - DS/SS
DS/SS DS/SS DS/SS - -
- - DS/SS DS/SS DS/SS
DS/SS - - DS/SS DS/SS
DS/SS DS/SS - - DS/SS
All of the memory configurations below will cause system unable to boot.
(DS: Double Side, SS: Single Side)

GA-K8NF-9-RH Motherboard - 16 -
English
1-5 Installation of Expansion Cards
You can install your expansion card by following the steps outlined below:
1. Read the related expansion card's instruction document before install the expansion card into the
computer.
2. Remove your computer's chassis cover, screws and slot bracket from the computer.
3. Press the expansion card firmly into expansion slot in motherboard.
4. Be sure the metal contacts on the card are indeed seated in the slot.
5. Replace the screw to secure the slot bracket of the expansion card.
6. Replace your computer's chassis cover.
7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.
8. Install related driver from the operating system.
Installing a PCI Express x16 expansion card:
Please carefully pull out the small white-
drawable bar at the end of the PCI Express
x 16 slot when you try to install/uninstall the
VGA card. Please align the VGA card to the
onboard PCI Express x16 slot and press
firmly down on the slot. Make sure your VGA
card is locked by the small white-drawable
bar.

Hardware Installation- 17 -
English
1-6 I/O Back Panel Introduction
PS/2 Keyboard and PS/2 Mouse Connector
To install a PS/2 port keyboard and mouse, plug the mouse to the upper port (green) and the keyboard to the
lower port (purple).
Parallel Port
The parallel port allows connection of a printer, scanner and other peripheral devices.
SPDIF_I (SPDIF In)
Use SPDIF In feature only when your device has digital output function.
SPDIF_O (SPDIF Out)
The SPDIF output is capable of providing digital audio to external speakers or compressed AC3
data to an external Dolby Digital Decoder.
COMA (Serial Port)
Connects to serial-based mouse or data processing devices.
LAN Port
The provided Internet connection is Gigabit Ethernet, providing data transfer speeds of 10/100/
1000Mbps.
USB port
Before you connect your device(s) into USB connector(s), please make sure your device(s) such
as USB keyboard, mouse, scanner, zip, speaker...etc. have a standard USB interface. Also make
sure your OS supports USB controller. If your OS does not support USB controller, please contact
OS vendor for possible patch or driver upgrade. For more information please contact your OS or
device(s) vendors.
Line In
Devices like CD-ROM, walkman etc. can be connected to Line In jack.
Line Out (Front Speaker Out)
Connect the stereo speakers, earphone or front surround speakers to this connector.
MIC In
Microphone can be connected to MIC In jack.
Center/Subwoofer Speaker Out
Connect the Center/Subwoofer speakers to this connector.
Rear Speaker Out
Connect the rear surround speakers to this connector.

GA-K8NF-9-RH Motherboard - 18 -
English
1-7 Connectors Introduction
You can use audio software to configure 2-/4-/6-/8-channel audio functioning.
Side Speaker Out
Connect the side surround speakers to this connector.
1) ATX_12V
2) ATX (Power Connector)
3) CPU_FAN
4) SYS_FAN
5) FDD
6) IDE1 / IDE2
7) SATAII0_1 / SATAII2_3
8) PWR_LED
9) BATTERY
10) F_PANEL
11) F_AUDIO
12) CD_IN
13) F_USB1 / F_USB2 / F_USB3
14) F1_1394 / F2_1394
15) CLR_CMOS
3
13
5
2
15
11
12
10
6
7
8
4
14
1
9

Hardware Installation- 19 -
English
1/2) ATX_12V / ATX (Power Connector)
With the use of the power connector, the power supply can supply enough stable power to all the
components on the motherboard. Before connecting the power connector, please make sure that
all components and devices are properly installed. Align the power connector with its proper
location on the motherboard and connect tightly.
The ATX_12V power connector mainly supplies power to the CPU. If the ATX_12V power connec-
tor is not connected, the system will not start.
Caution!
Please use a power supply that is able to handle the system voltage requirements. It is recom-
mended that a power supply that can withstand high power consumption be used (300W or
greater). If a power supply is used that does not provide the required power, the result can lead
to an unstable system or a system that is unable to start.
If you use a 24-pin ATX power supply, please remove the small cover on the power connector on
the motherboard before plugging in the power cord ; otherwise, please do not remove it.
Pin No. Definition
1 GND
2 GND
3 +12V
4 +12V
Pin No. Definition
1 3.3V
2 3.3V
3 GND
4 +5V
5 GND
6 +5V
7 GND
8 Power Good
9 5V SB(stand by +5V)
10 +12V
11 +12V(Only for 24-pinATX)
12 3.3V(Only for 24-pin ATX)
13 3.3V
14 -12V
15 GND
16 PS_ON(soft On/Off)
17 GND
18 GND
19 GND
20 -5V
21 +5V
22 +5V
23 +5V(Only for 24-pin ATX)
24 GND(Only for 24-pinATX)
113
24
12
34
12

GA-K8NF-9-RH Motherboard - 20 -
English
3/4) CPU_FAN / SYS_FAN (Cooler Fan Power Connector)
The cooler fan power connector supplies a +12V power voltage via a 3-pin power connector and
possesses a foolproof connection design.
Most coolers are designed with color-coded power connector wires. A red power connector wire
indicates a positive connection and requires a +12V power voltage. The black connector wire is
the ground wire (GND).
Remember to connect the CPU/system fan cable to the CPU_FAN/SYS_FAN connector to
prevent CPU damage or system hanging caused by overheating.
Pin No. Definition
1 GND
2 +12V
3 Sense
CPU_FAN
1
SYS_FAN
5) FDD (FDD Connector)
The FDD connector is used to connect the FDD cable while the other end of the cable connects to
the FDD drive. The types of FDD drives supported are: 360KB, 720KB, 1.2MB, 1.44MB and
2.88MB. Before attaching the FDD cable, please take note of the foolproof groove in the FDD
connector.
2
34
1
33
1
