Gigabyte IM-H410G User manual

GA-IMB410TN
IM-H410G
User's Manual
Rev. 1001
Copyright
©
2020 All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.

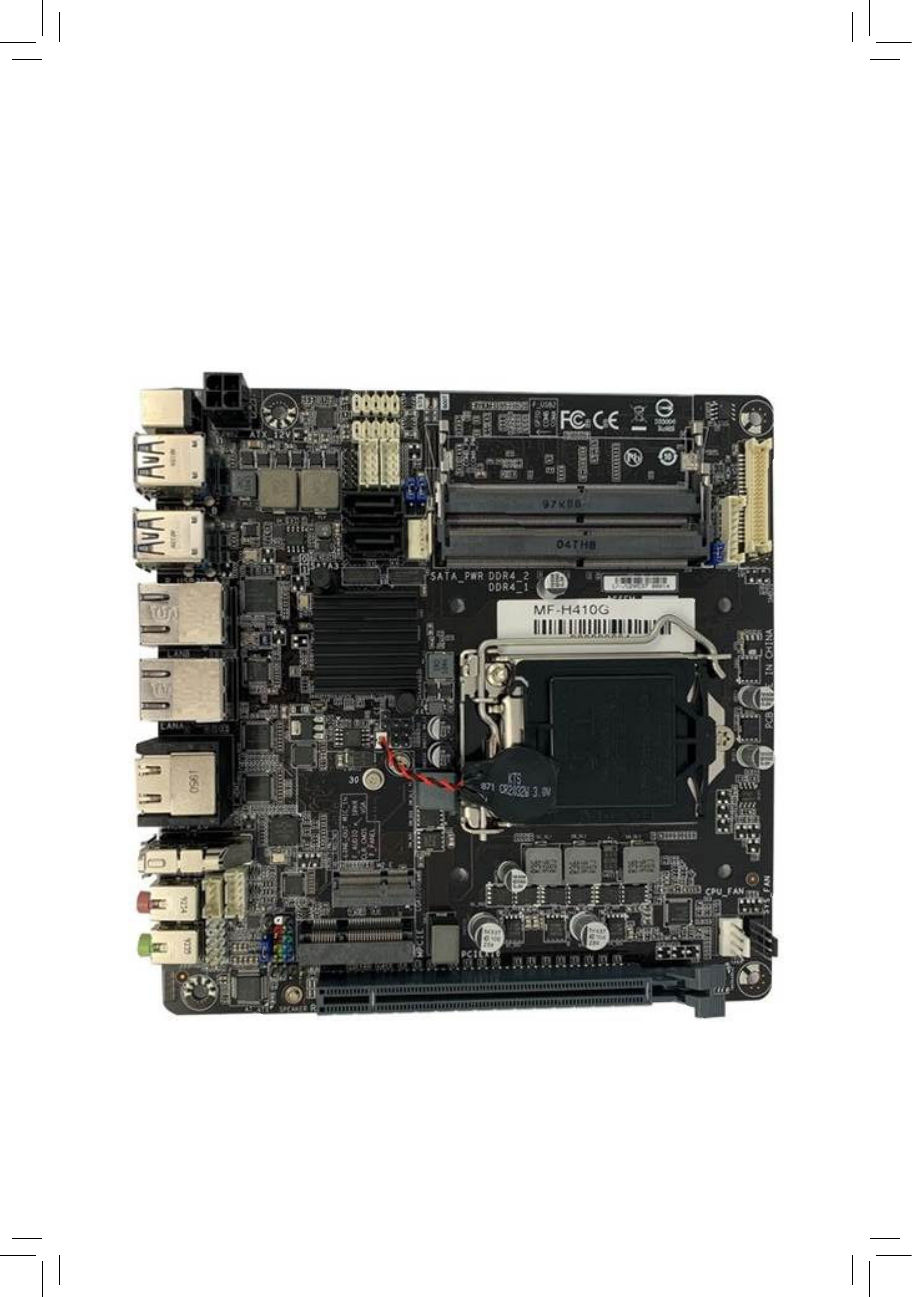

MotherboardMotherboard Picture

- 3 -

Table of Contents
IM-H410G Motherboard Layout................................................................................4
Chapter 1 Hardware Installation .....................................................................................5
1-1 Installation Precautions.................................................................................... 5
1-2 Product Specications...................................................................................... 6
1-3 Installing the CPU ............................................................................................ 9
1-4 Installing the Memory....................................................................................... 9
1-5 Installing an Expansion Card ......................................................................... 10
1-6 Back Panel Connectors.................................................................................. 10
1-7 Internal Connectors........................................................................................ 12
Chapter 2 BIOS Setup ..................................................................................................23
2-1 Startup Screen ............................................................................................... 23
2-2 The Main Menu .............................................................................................. 24
2-3 System ........................................................................................................... 25
2-4 Peripherals..................................................................................................... 26
2-5 Chipset........................................................................................................... 29
2-6 BIOS............................................................................................................... 31
2-7 Power............................................................................................................. 34
2-8 Save & Exit..................................................................................................... 35
Chapter 3 Appendix ......................................................................................................36
Drivers Installation..................................................................................................... 36

(Note) The connector/chip is on the back of the motherboard.
- 4 -
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
5One SATA power cable
5Two I/O Shields (high/low)
5One serial port cable
MIC_IN
DDR4_1
DDR4_2
DC_PWR
CODEC
M2_E
SPKR
F_PANEL
AT_ATX
LANB
SPEAKER
F_AUDIO PCIEX16
DOUBLE_
HDMI
SATA_PWR
GPIO
Intel®
H410
Intel®GbE
LAN
R_USB30_B
R_USB30_A
LANA
HDMI_20
MPCIE
CLR_CMOS
LINE_OUT
ATX_12V
0
SATA3
1
F_USB1
F_USB2
COMB COMA COMB_PW COMA_PW
COMC COMD COMC_PW COMD_PW
CPU_FAN SYS_FAN
U_SIM (Note)
LCD_VCC
SMBUS
FPD MON_SW
LVDS
STB
BOOT
Nuvoton Super I/O (Note)
LGA1200
(Note)
I2C
30
M2 (Note)
CI
VOLUME_CONTROL
Parade HDMI
2.0 chip
(Note) (Note)
(Note)
BIOS
Intel®GbE
LAN

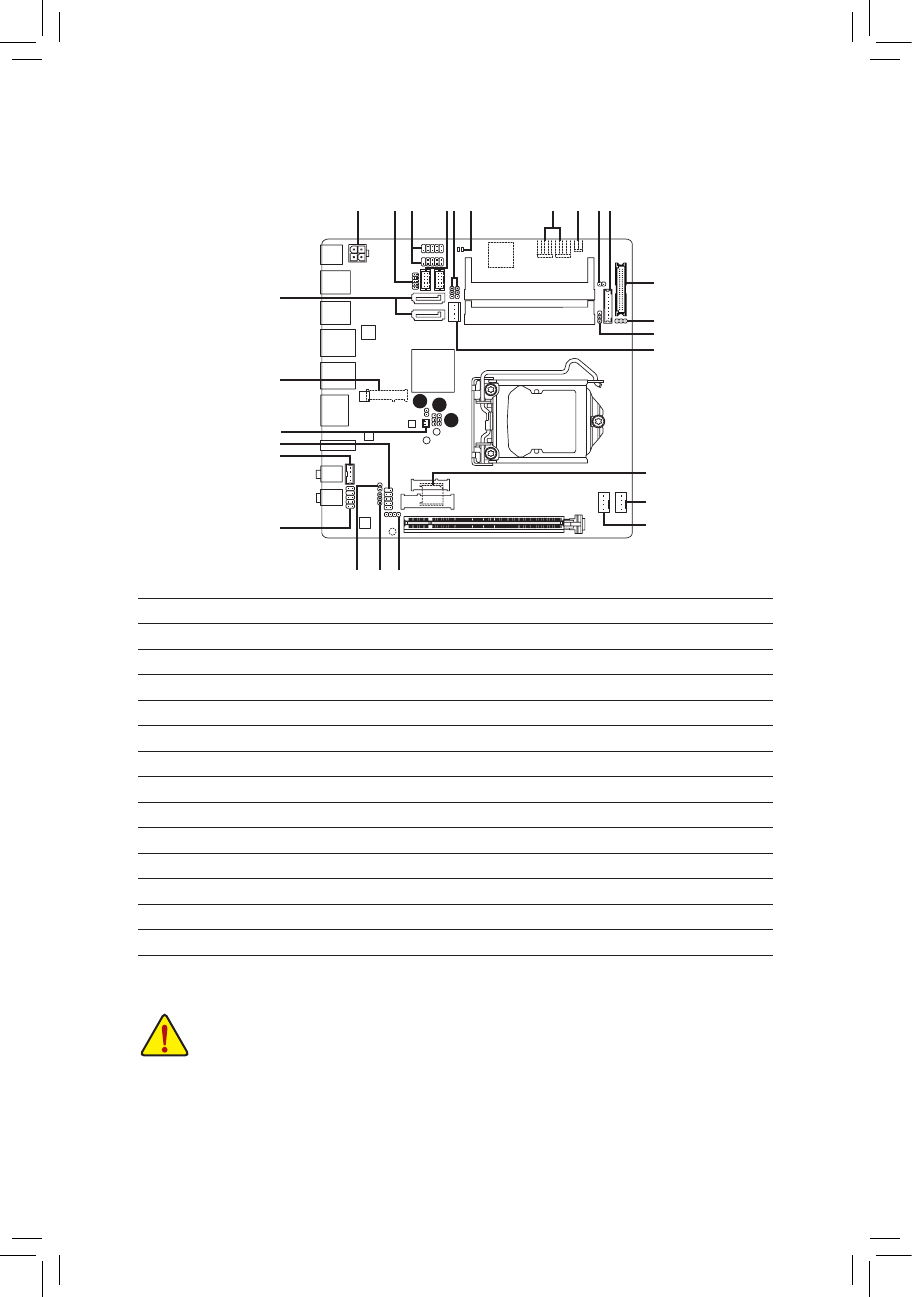

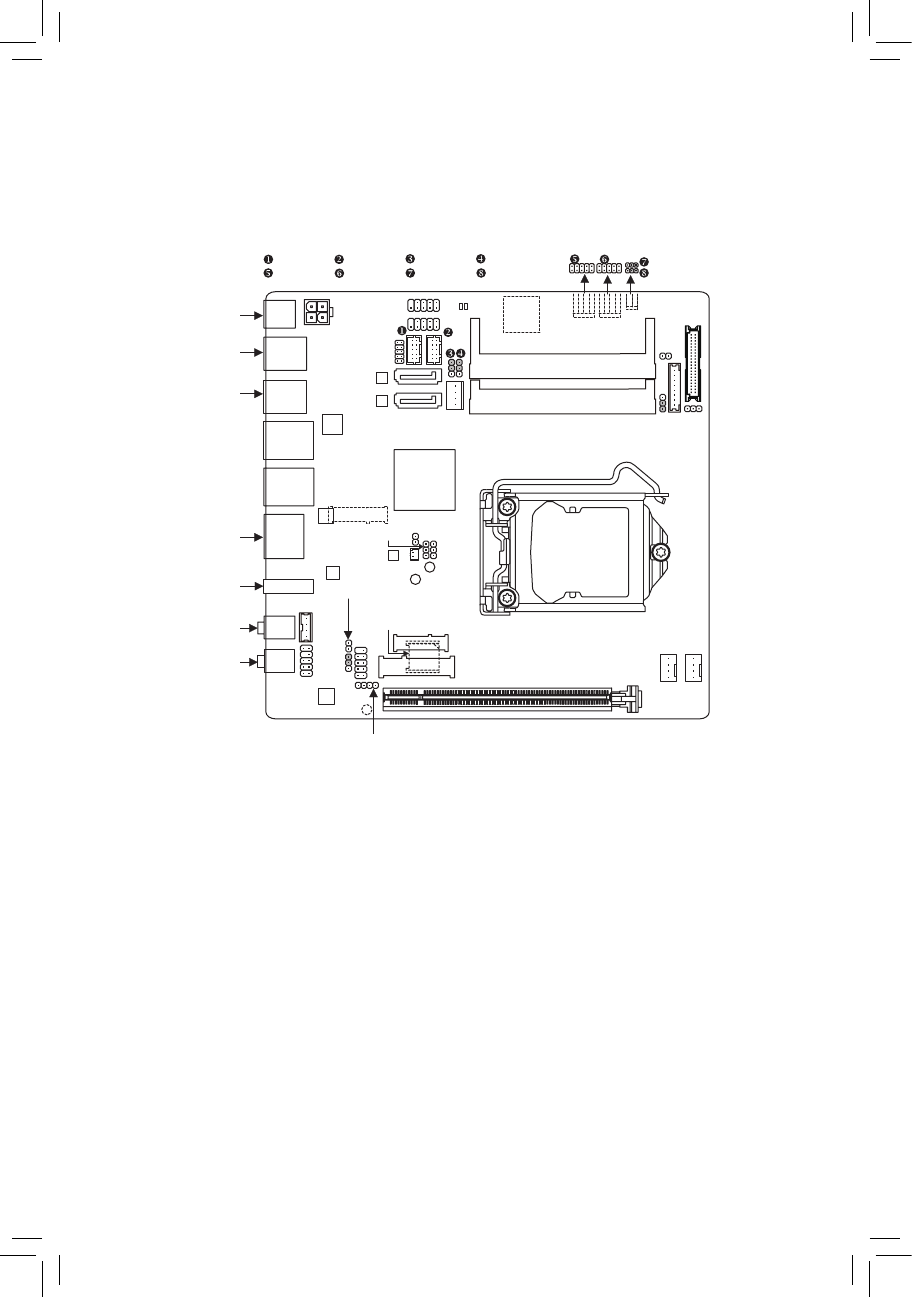

IM-H410G Motherboard Layout
IM-H410G
Box Contents
5 IM-H410G motherboard 5
Motherboard driver disc5
User's Manual5 Two SATA
cables

Chapter 1 Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can become
damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's
manual and follow these procedures:
•Prior to installation, make sure the chassis is suitable for the motherboard.
•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
•Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
•When connecting hardware components to the internal connectors on the motherboard, make
sure they are connected tightly and securely.
•When handling the motherboard, avoid touching any metal leads or connectors.
•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.
•Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
•Before connecting or unplugging the power supply cable from the motherboard, make sure
the power supply has been turned off.
•Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
•Before using the product, please verify that all cables and power connectors of your hardware
components are connected.
•To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
•Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
•Do not place the computer system on an uneven surface.
•Do not place the computer system in a high-temperature or wet environment.
•Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
•If you are uncertain about any installation steps or have a problem related to the use of the
product,pleaseconsultacertiedcomputertechnician.
•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation
and/or grounding instructions.
- 5 -

1-2 ProductSpecications
CPU Support for 10th Generation Intel® Core™i9 processors/Intel®Core™ i7
processors/Intel® Core™i5 processors/Intel® Core™ i3 processors/Intel®
Pentium® processors/Intel®Celeron®processors in the LGA1200 package
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU
Chipset Inte
l
®H410 Express Chipset
Memory Intel®Core™i9/i7 processors:
- Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel®Core™i5/i3/Pentium®/Celeron®processors:
- Support for DDR4 2666/2400/2133 MHz memory modules
 2 x DDR4 SO-DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)
of system memory
Dual channel memory architecture
(Go to GIGABYTE's website for the latest supported memory speeds and memory
modules.)
Onboard
Graph
i
cs
Integrated Graph
i
cs Processor-Inte
l
®HD Graph
i
cs support
:
- 2 x HDMI ports, support
i
ng a maximum reso
l
ut
i
on of 4096x2160@30 Hz
* Support for HDM
I
1.4 vers
i
on and HDCP 2.3.
Integrated Graphics Processor+Parade HDMI 2.0 chip:
- 1 x HDMI port, supporting a max
i
mum resolution of 4096x2160@60 Hz
* Support for HDM
I
2.0 vers
i
on
,
HDCP 2.2
,
and HDR.
Max
i
mum shared memory of 512 MB
Support for up to 2 d
i
sp
l
ays at the same t
i
me
Audio Realtek®ALC887 codec
HighDenitionAudio
2/4/5.1/7.1-channel
* Tocongure7.1-channelaudio,youneedtoopentheaudiosoftwareandselectDevice
advancedsettings>PlaybackDevicetochangethedefaultsettingrst.Pleasevisit
GIGABYTE'swebsitefordetailsonconguringtheaudiosoftware.
LAN 2 x Inte
l
®GbE
LAN ch
i
ps (1000/100/1000 Mb
i
t)
Expansion S
l
ots 1 x PCI Express x16 slot, running at x16
(The PC
I
Express x16 s
l
ot conforms to PC
I
Express 3
.
0 standard.)
1 x M.2 Socket 1 connector for a w
i
reless communication modu
l
e (M2 _ E)
1 x full size Mini PCIe connector (MINI_PCIE)
* The M
I
N
I
_PC
I
E connector can a
l
so be used as an MSATA connector.
(The m
i
n
i
PCI Express conforms to PC
I
Express 3
.
0 standard.)
Storage
I
nterface Ch
i
pset:
- 1 x M
.
2 connector on the back of the motherboard (Socket 3, M key
,
type
2280 SATA and PC
I
e x2 SSD support)
- 2 x SATA 6Gb/s connectors
USB Ch
i
pset:
- 4 x USB 3.0/2.0 ports on the back panel
- 4 x USB 2.0/1.1 ports ava
il
able through the internal USB headers
- 6 -

I
nternal
Connectors
1 x 4-pin ATX 12V power connector
1 x AT/ATX mode sw
i
tch jumper (AT_ATX)
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector on the back of the motherboard
2 x SATA 6Gb/s connectors
1 x MSATA connector (MPCIE)
1 x USIM connector on the back of the motherboard
1 x SATA power connector
1 x front panel header
1 x front panel audio header
1 x battery power cable connector
2 x USB 2.0/1.1 headers
4 x serial port headers
4 x serial port power select jumpers
1 x GPIO header
1 x LVDS header
1 x LVDS dr
i
ve vo
l
tage jumper (LCD _ VCC)
1 x front panel display header (FPD)
1 x at panel d
i
sp
l
ay sw
i
tch header (MON _ SW)
1 x speaker header (SPKR)
1 x buzzer header (SPEAKER)
1 x volume control header (VOLUME_CONTROL)
1 x C
l
ear CMOS jumper
1 x chassis intrusion header
1 x I2C jumper (I2C)
1 x SMBUS jumper (SMBUS)
Back Panel
Connectors
1 x DC-In power connector
2 x HDMI ports
1 x HDMI 2.0 port
4 x USB 3.0 ports
2 x RJ-45 ports
2 x audio jacks
I/O Controller Nuvoton I/O Controller Chip
Hardware
Monitor
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you
install.
- 7 -

BIOS 1 x 128 Mb
i
t ash
Use of
l
icensed AM
I
UEF
I
B
I
OS
PnP 1
.
0a
,
DMI 2
.
7
,
WfM 2
.
0, SM B
I
OS 2
.
7
,
ACP
I
5.0
Unique Features Support for @BIOS
Support for Q-F
l
ash
Bundled
Software Norton®
I
nternet Secur
i
ty (OEM vers
i
on)
Operat
i
ng
System
Form Factor
- 8 -
* We reserves the r
i
ght to make any changes to the product spec
i
cat
i
ons and product-related informat
i
on without
pr
i
or not
i
ce
.
 Support for Windows 10 64 - bit or Linux 4.36 64-bit
 Mini-ITX Form Factor; 17
.
0cm x 17.0cm

1-3 Installing the CPU
Read the following guidelines before you begin to install the CPU:
•Make sure that the motherboard supports the CPU. (two ways, ask to support or check at Intel ARK)
•Always turn off the computer and unplug the power cord from the power outlet before installing the
CPU to prevent hardware damage.
•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may
locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
•Apply an even and thin layer of thermal grease on the surface of the CPU.
•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage
of the CPU may occur.
•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended
thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics
card, memory, hard drive, etc.
1-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
•Make sure that the motherboard supports the memory. It is recommended that memory of the same
capacity, brand, speed, and chips be used.
•Always turn off the computer and unplug the power cord from the power outlet before installing the
memory to prevent hardware damage.
•Memory modules have a foolproof design. A memory module can be installed in only one direction.
If you are unable to insert the memory, switch the direction.

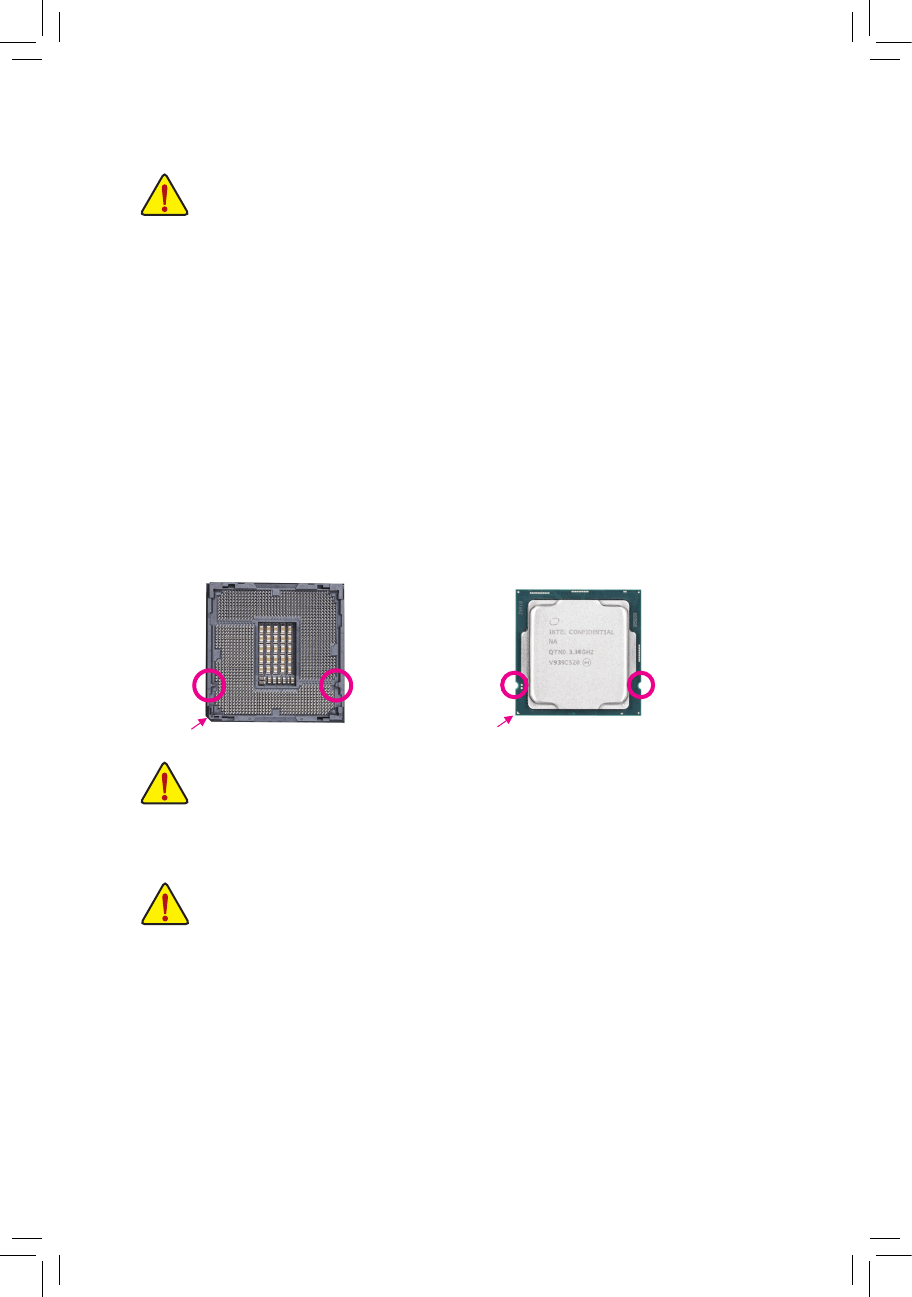

Installing the CPU
Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load
plate automatically during the process of re-engaging the lever after you insert the CPU.
Triangle Pin One Marking on the CPU
LGA1200 CPU
Alignment Key
LGA1200 CPU Socket
Pin One Corner of the CPU Socket
NotchNotch
Alignment Key
- 9 -

1-5 Installing an Expansion Card
Read the following guidelines before you begin to install an expansion card:
•Make sure the motherboard supports the expansion card. Carefully read the manual that came
with your expansion card.
•Always turn off the computer and unplug the power cord from the power outlet before installing an
expansion card to prevent hardware damage.

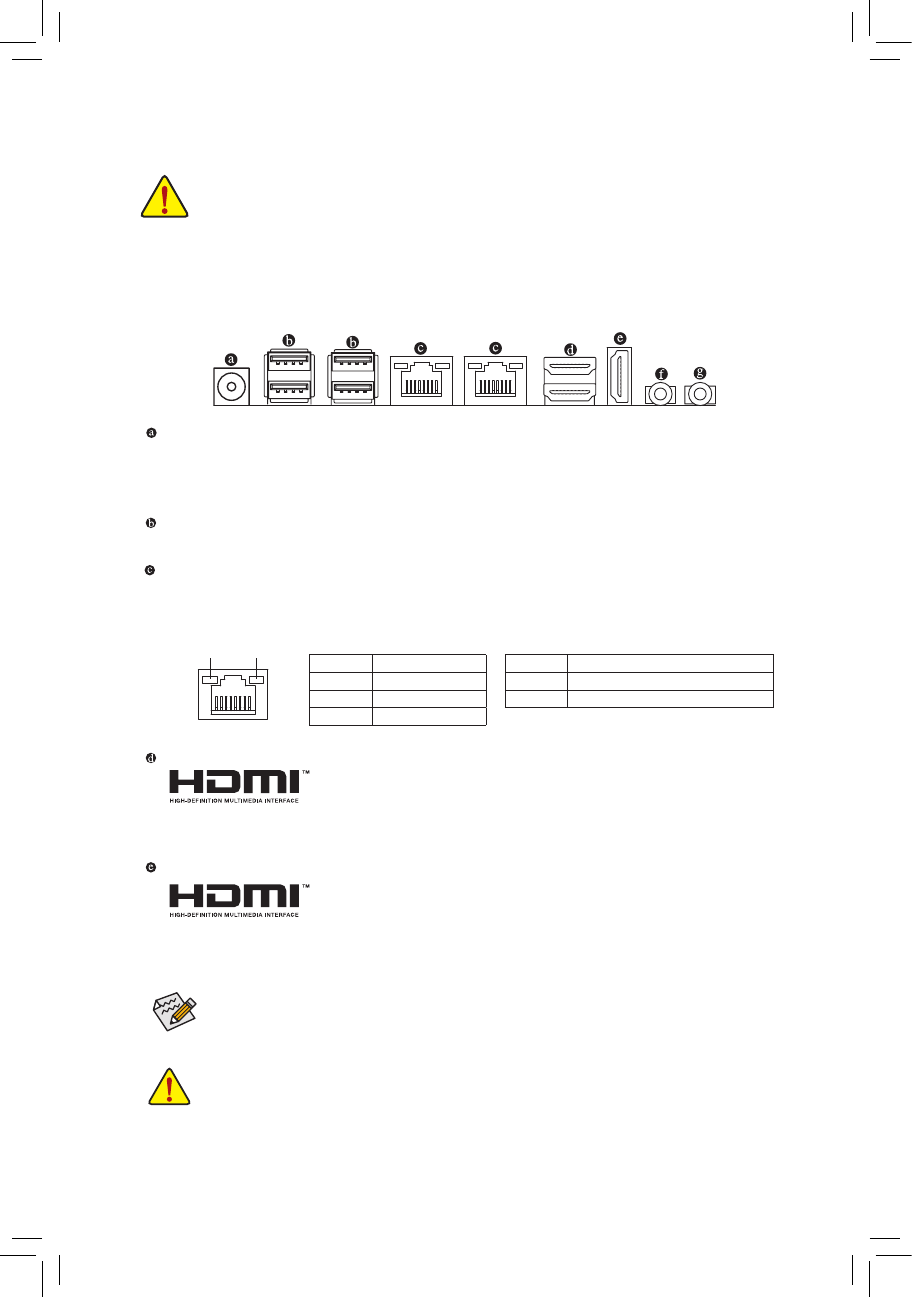

1-6 Back Panel Connectors
DC In Power Connector
Connect the DC power to this port. This port supports 19V power adapters. When a 35W CPU is installed,
it is recommended that a 95W power adapter be used. When a 65W CPU is installed, it is recommended
that a 120W power adapter be used.
USB 3.0 Port
TheUSBportsupportstheUSB3.0/2.0specication.UsethisportforUSBdevices.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
After installing the HDMI device, make sure to set the default sound playback device to HDMI. (The
item name may differ depending on your operating system.)
HDMI Port
The HDMI port supports HDCP 2.3 and Dolby TrueHD and DTS HD Master Audio
formats. It also supports up to 192KHz/16bit 8-channel LPCM audio output. You
can use this port to connect your HDMI-supported monitor. The maximum supported resolution is
4096x2160@30 Hz, but the actual resolutions supported are dependent on the monitor being used.
HDMI 2.0 Port
The HDMI port supports HDCP 2.2 and Dolby TrueHD and DTS HD Master
Audio formats. It also supports up to 192KHz/16bit 7.1-channel LPCM audio
output. You can use this port to connect your HDMI-supported monitor. The maximum supported
resolution is 4096x2160@60 Hz, but the actual resolutions supported are dependent on the monitor
being used.
•Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour
device and then remove it from the motherboard.
•When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.
Activity LED
Connection/
Speed LED
LAN Port
Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
Activity LED:
State Description
Blinking Data transmission or receiving is occurring
On No data transmission or receiving is occurring
- 10 -

Mic In (Pink)
The Mic in jack.
Line Out (Green)
The line out jack. Use this audio jack for a headphone or 2-channel speaker.
•TheintegratedHD(HighDenition)audioprovidesjackretaskingcapabilitythatallowsthe
user to change the function for each jack through the audio driver.
•To congure 7.1-channel audio, you needtoopentheaudiosoftwareandselectDevice
advancedsettings>PlaybackDevicetochangethedefaultsettingrst.
- 11 -

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
•First make sure your devices are compliant with the connectors you wish to connect.
•Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
•After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1) ATX_12V
2) AT_ATX
3) CPU_FAN
4) SYS_FAN
5) M2
6) U_SIM (Note)
7) SATA3 0/1
8) SATA_PWR
9) F_PANEL
10) F_ AUDIO
11) BAT
12) SPEAKER
13) COMA/COMB
14) COMC (Note)/COMD (Note)
15) COMA/B/C (Note)/D (Note)_PW
16) LVDS
17) LCD_VCC
18) F_USB1/F_USB2
19) FPD
20) I2C
21) SMBUS
22) SPKR
23) VOLUME_CONTROL
24) MON_SW
25) CLR_CMOS
26) CI
27) STB/BOOT
28) GPIO
(Note) The connector is on the back of the motherboard.
2 12
14
21
17
1 18 27
10
5
28
22
25
9
2415 1915
4
3
20
26 23
7
8
6
11
13
16
- 12 -

3/4) CPU_FAN/SYS_FAN (Fan Headers)
All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design.
When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire is
the ground wire). The speed control function requires the use of a fan with fan speed control design. For
optimum heat dissipation, it is recommended that a system fan be installed inside the chassis.
•Be sure to connect fan cables to the fan headers to prevent your CPU and system from
overheating. Overheating may result in damage to the CPU or the system may hang.
•Thesefanheadersarenotcongurationjumperblocks.Donotplaceajumpercapontheheaders.
Pin No. Denition
1 GND
2 Voltage Speed Control
3 Sense
4 PWM Speed Control
CPU_FAN/SYS_FAN
DEBUG
PORT
G.QBOFM
1
1) ATX_12V (2x2 12V Power Connector)
This connector can be used to input power when the DC power jack on the rear panel is not connected.
However, if the DC power jack is connected, this connector can only be used to output power.
When used to input power:
Pin No. Denition
1 GND
2 GND
3 +12V
4 +12V
4
3
2
1When used to output power:
Pin No. Denition
1 GND
2 GND
3 DC_OUT
4 DC_OUT
NOTE: The two connectors cannot be used simultaneously as a source of power input.
2) AT_ATX (ATX Power Switch Jumper)
This jumper allows you to select AT or ATX power mode.
1
1
1-2 Close: AT mode.
2-3 Close: ATX mode. (Default)
or
HDD LED
RESET SW
HDD LED
RESET SW
with
HDD LED
RESET SW
HDD LED
RESET SW
ar
- 13 -

5) M.2 (M.2 Socket 3 Connector) (Note)
The M.2 connector supports M.2 SATA SSDs and M.2 PCIe SSDs.
Follow the steps below to correctly install an M.2 SSD in the M.2 connector.
Step 1:
Use a screw driver to unfasten the screw from the motherboard.
Step 2:
Slide the M.2 SSD into the connector at an angle.
Step 3:
Press the M.2 SSD down and then secure it with the screw.
(Note) The connector is on the back of the motherboard.
6) USIM (USIM Connector)(Note)
This connector can be used to install a Micro Sim card to connect to a mini PCIe LAN card.
F_USB30 F_U
B_ 
F_  F_ 
 _ B
BS_ B
SB_ B
_S  S_ _ B _U _ B
 
 
S  
 
123
 
123
 
123
 
123
1
1
1
1
BSS
S
_S 
SSU
 
1 2 3  
 S3 BSSS

U
 __ 3
F_USB3F
S  _ S  _
S  _
SF
 
B_
B_
F _0
S S
_0F
_F
_
_
__B
 
U
S  _S
_ SF_
B 
USB0_B
B_
B_
F_USB3
 F_USB303

_

_3U
S_
80

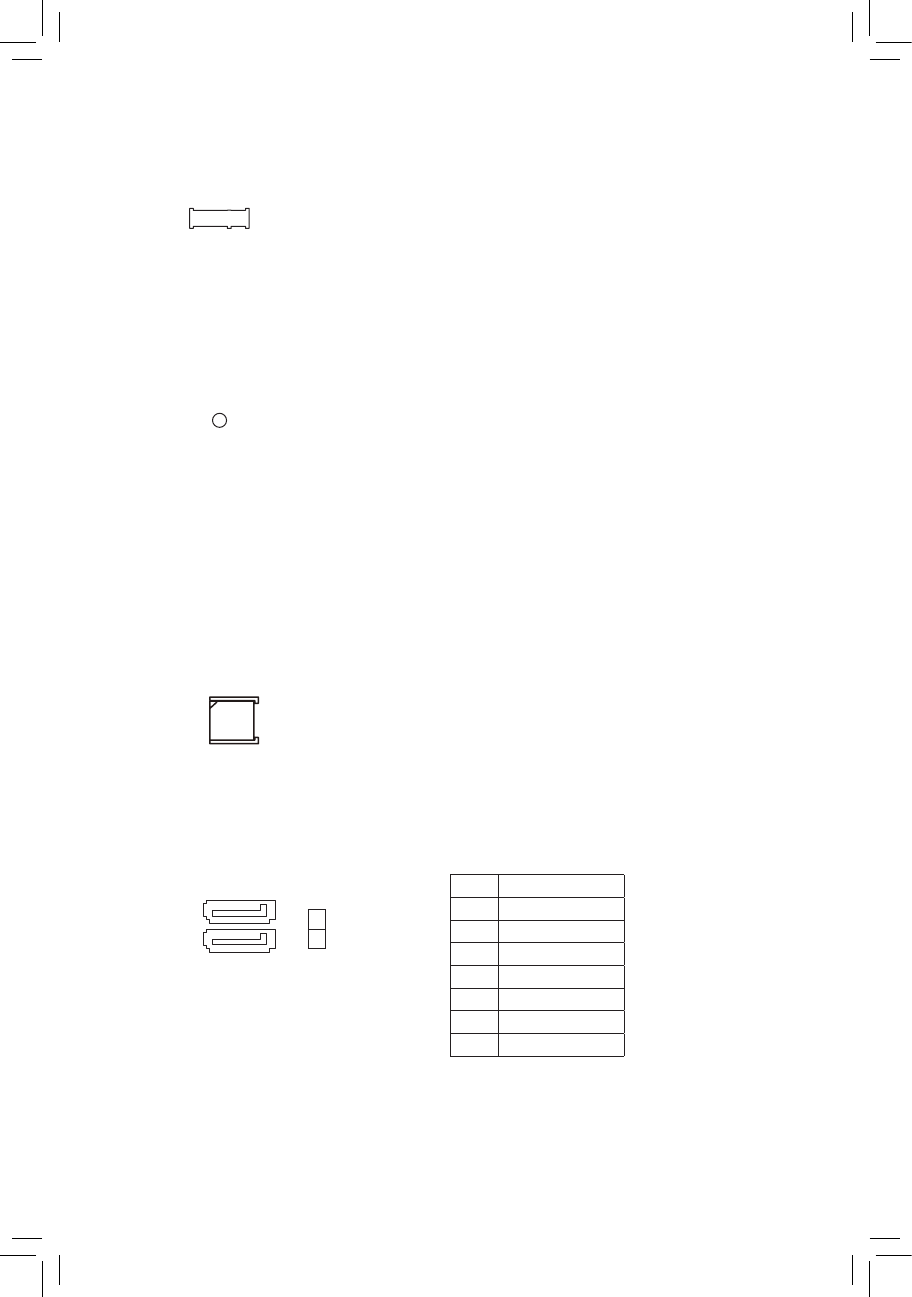

7) SATA3 0/13 (SATA 6Gb/s Connectors)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
1
1
7
7
SATA3
0
1
- 14 -

8) SATA_PWR (SATA Power Connector)
This connector provides power to installed SATA devices.
1Pin No. Denition
1 VCC
2 GND
3 GND
4 +12V
9) F_PANEL (Front Panel Header)
Connect the power switch, reset switch, and system status indicator on the chassis to this header according
to the pin assignments below. Note the positive and negative pins before connecting the cables.
9NC
PLED-
PW-
PLED+
PW+
HD-
RES+
HD+
RES-
Power Switch
Hard Drive
Activity LED
Reset Switch
Power LED
The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch,
power LED, hard drive activity LED and etc. When connecting your chassis front panel module to this header, make
sure the wire assignments and the pin assignments are matched correctly.
•PW (Power Switch, Red):
 Connectstothepowerswitchonthechassisfrontpanel.Youmaycongurethewaytoturnoffyoursystem
using the power switch (refer to Chapter 2, "BIOS Setup," "Power Management," for more information).
•HD (Hard Drive Activity LED, Blue):
Connects to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is
reading or writing data.
•RES (Reset Switch, Green):
Connects to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the
computer freezes and fails to perform a normal restart.
•NC (Purple):
No connection.
•PLED (Power LED, Yellow):
System Status LED
S0 On
S3/S4/S5 Off
Connects to the power status indicator on the chassis front panel. The LED is on
when the system is operating. The LED is off when the system is in S3/S4 sleep
state or powered off (S5).
10
12
- 15 -

10) F_AUDIO (Front Panel Audio Header)
 ThefrontpanelaudioheadersupportsHighDenitionaudio(HD).Youmayconnectyourchassisfront
panel audio module to this header. Make sure the wire assignments of the module connector match the
pin assignments of the motherboard header. Incorrect connection between the module connector and the
motherboard header will make the device unable to work or even damage it.
Some chassis provide a front panel audio module that has separated connectors on each wire
instead of a single plug. For information about connecting the front panel audio module that has
different wire assignments, please contact the chassis manufacturer.
Pin No. Denition Pin No. Denition
1 MIC2_L 6 Sense
2 GND 7 GND
3 MIC2_R 8 No Pin
4 NC 9 LINE2_L
5 LINE2_R 10 Sense
12
910
Pin No. Denition
1(+) RTC Power
2(-) GND
11) BAT (Battery/Battery Power Cable Connector)
 Thebatteryprovidespowertokeepthevalues(suchasBIOScongurations,date,andtimeinformation)
in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low
level, or the CMOS values may not be accurate or may be lost.
You may clear the CMOS values by removing the battery cable:
1. Turn off your computer and unplug the power cord.
2. Unplug the the battery cable from the battery cable header and wait for one
minute.
3. Plug in the battery cable.
4. Plug in the power cord and restart your computer.
•Always turn off your computer and unplug the power cord before replacing the battery.
•Replace the battery with an equivalent one. Damage to your devices may occur if the battery is
replaced with an incorrect model.
•Contact the place of purchase or local dealer if you are not able to replace the battery by yourself
or uncertain about the battery model.
•Used batteries must be handled in accordance with local environmental regulations.
F_USB30 F_U
B_ 
F_  F_ 

_
B
BS_
B
SB_
B
_S

S_
_
B
_U
_
B


 
S  
 
123
 
123
 
123
 
123
1
1
1
1
BSS
S
_S 
SSU
 
1 2 3  
 S3 BSSS

U
 __ 3
F_USB3F
S  _
S  _
S  _
SF


B_
B_
F
_0
S
S
_0F
_F
_
_
__B


U
S  _S
_ SF_
B 
USB0_B
B_
B_
F_USB3
 F_USB303

_

_3U
S_
2(-)
1(+)
- 16 -

13) COMA/COMB (Serial Port Headers)
Each COM header can provide one serial port via an optional COM port cable. For purchasing the optional
COM port cable, please contact the local dealer.
12
910
12) SPEAKER (Buzzer Header)
Connects to the buzzer on the chassis front panel. The system reports system startup status by issuing a
beep code. One single short beep will be heard if no problem is detected at system startup.
Pin No. Denition
1 VCC
2 NC
3 NC
4 SPK-
DEBUG
PORT
G.QBOFM
1
Pin No. Denition
1 NDCD-
2 NDSR-
3 NSIN
4 NRTS-
5 NSOUT
6 NCTS-
7 NDTR-
8 +5V/+12V
9 GND
10 NC
RS232 devices:
Pin No. Denition
1 TX(B)
2 NC
3 TX(A)
4 NC
5 RX(A)
6 NC
7 RX(B)
8 +5V/+12V
9 GND
10 NC
RS422 devices (Note):
Pin No. Denition
1 D-
2 NC
3 D+
4 NC
5 NC
6 NC
7 NC
8 +5V/+12V
9 GND
10 NC
RS485 devices (Note):
(Note) Only the COMA header supports RS422/R485 devices.
- 17 -

14) COMC/COMD (Serial Port Headers)(Note 1)
Each COM header can provide one serial port via an optional COM port cable. For purchasing the optional
COM port cable, please contact the local dealer.
(Note 1) The connectors/jumpers are on the back of the motherboard.
(Note 2) Only the COMC header supports RS422/R485 devices.
COMC COMD
1 9
2 10
1 9
2 10
15) COMA_PW/COMB_PW/COMC_PW(Note 1)/COMD_PW(Note 1)
( Serial Port Header Power Select Jumpers)
The power select jumpers are used to select serial port power.
1-2 Close: Set to 12V.
2-3 Close: Set to 5V. (Default)
1
1
COMA_PW/COMB_PW
COMC_PW
COMD_PW
1
1
Pin No. Denition
1 NDCD-
2 NDSR-
3 NSIN
4 NRTS-
5 NSOUT
6 NCTS-
7 NDTR-
8 +5V/+12V
9 GND
10 NC
RS232 devices:
Pin No. Denition
1 TX(B)
2 NC
3 TX(A)
4 NC
5 RX(A)
6 NC
7 RX(B)
8 +5V/+12V
9 GND
10 NC
RS422 devices (Note 2):
Pin No. Denition
1 D-
2 NC
3 D+
4 NC
5 NC
6NC
7 NC
8 +5V/+12V
9 GND
10 NC
RS485 devices (Note 2):
- 18 -

16) LVDS (LVDS Header)
LVDS stands for Low-voltage differential signaling, which uses high-speed analog circuit techniques to
provide multigigabit data transfers on copper interconnects and is a generic interface standard for high-
speed data transmission.
(Note) Connects to the ground pin of the LVDS.
Pin No. Denition Pin No. Denition Pin No. Denition
1 LCD_VCC 15 -RXO3_C 29 CABLE_DET
(Note)
2 LCD_VCC 16 +RXO3_C 30 -RXE3_C
3VCC3 17 GND 31 +RXE3_C
4 NC 18 -RXECLKO_C 32 GND
5 NC 19 +RXECLKO_C 33 -RXECLKE_C
6 -RXO0_C 20 GND 34 +RXECLKE_C
7 +RXO0_C 21 -RXE0_C 35 GND
8 GND 22 +RXE0_C 36 SC_BKLT_EN
9 -RXO1_C 23 GND 37 SC_BKLT_CTL
10 +RXO1_C 24 -RXE1_C 38 FPD_PWR
11 GND 25 +RXE1_C 39 FPD_PWR
12 -RXO2_C 26 GND 40 FPD_PWR
13 +RXO2_C 27 -RXE2_C
14 GND 28 +RXE2_C
21
4039
- 19 -

19) FPD (Flat Panel Display Header)
The FPD is a high-speed interface connecting the output of a video controller in a laptop computer, computer
monitor or LCD television set to the display panel. Most laptops, LCD computer monitors and LCD TVs use
thisinterfaceinternally.TheheaderconformstoFPDspecication.
1
8
Pin No. Denition
1 BKLT_EN
2 BKLT_PWM
3 BKLT_PWR (FPD_PWR)
4 BKLT_PWR (FPD_PWR)
5 BKLT_GND/Brightness_GND
6 BKLT_GND/Brightness_GND
7 Brightness_Up
8 Brightness_Down
18) F_USB1/F_USB2 (USB 2.0/1.1 Headers)
 TheheadersconformtoUSB2.0/1.1specication.EachUSBheadercanprovidetwoUSBportsviaan
optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.
Pin No. Denition Pin No. Denition
1 Power (5V) 6 USB DY+
2 Power (5V) 7 GND
3 USB DX- 8 GND
4 USB DY- 9 No Pin
5 USB DX+ 10 NC
•Do not plug the IEEE 1394 bracket (2x5-pin) cable into the USB 2.0/1.1 header.
•Prior to installing the USB bracket, be sure to turn off your computer and unplug the power cord
from the power outlet to prevent damage to the USB bracket.
1
210
9
17) LCD_VCC (LVDS Drive Voltage Jumper)
This jumper can be used to provide different screen voltage settings.
1-2 Close: Set to 3V. (Default)
2-3 Close: Set to 5V.
1
1
- 20 -
