Gigabyte PC64 User manual

PC64
Rev. A+
System Board
Users Manual
40800950

Copyright
This publication contains information that is protected by copyright.
No part of it may be reproduced in any form or by any means or
used to make any transformation/adaptation without the prior
written permission from the copyright holders.
This publication is provided for informational purposes only. The
manufacturer makes no representations or warranties with respect to
the contents or use of this manual and specifically disclaims any
express or implied warranties of merchantability or fitness for any
particular purpose.The user will assume the entire risk of the use or
the results of the use of this document. Further, the manufacturer
reserves the right to revise this publication and make changes to its
contents at any time, without obligation to notify any person or
entity of such revisions or changes.
© 1999. All Rights Reserved.
Trademarks
Microsoft®MS-DOS®, WindowsTM, Windows®95 and Windows®98
are registered trademarks of Microsoft Corporation. Intel®, Pentium®
II, and Pentium®III are registered trademarks of Intel Corporation.
Award is a registered trademark of Award Software, Inc. Other
trademarks and registered trademarks of products appearing in this
manual are the properties of their respective holders.
Caution:
Danger of explosion if battery incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
Dispose of used batteries according to the battery manufacturers
instructions.

FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
 Consult the dealer or an experienced radio TV technician for
help.
Notice:
1. The changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority
to operate the equipment.
2. Shielded interface cables must be used in order to comply with
the emission limits.

Table of Contents
Chapter 1 - Introduction
1.1 Features and Specifications..................................................................................
1.2 Package Checklist.........................................................................................................
Chapter 2 - Hardware Installation
2.1 System Board Layout .............................................................................................
2.2 System Memory.............................................................................................................
2.3 Processor Installation.................................................................................................
2.4 Jumper Settings for Clearing CMOS Data..........................................
2.5 Jumper Settings for Wake-On-Keyboard/Mouse....................................
2.6 Jumper Settings for the Systems Beep Message...........................
2.7 Ports and Connectors.............................................................................................
Chapter 3 - Award BIOS Setup Utility
3.1 The Basic Input/Output System.....................................................................
3.1.1 Standard CMOS Features.............................................................
3.1.2 Advanced BIOS Features..............................................................
3.1.3 Advanced Chipset Features ......................................................
3.1.4 Integrated Peripherals.........................................................................
3.1.5 Power Management Setup............................................................
3.1.6 PnP/PCI Configurations....................................................................
3.1.7 System Health Monitor.....................................................................
3.1.8 CPU Frequency Control..................................................................
3.1.9 Load Fail-Safe Defaults.....................................................................
3.1.10 Load Optimized Defaults..............................................................
3.1.11 Set Supervisor Password...............................................................
3.1.12 Set User Password..............................................................................
3.1.13 Save & Exit Setup.................................................................................
3.1.14 Exit Without Saving..............................................................................
6
12
40
40
44
48
50
55
59
61
62
63
64
64
65
65
65
13
14
18
21
22
23
24

78
78
Chapter 4 - Supported Softwares
4.1 Desktop Management Interface.....................................................................
4.2 Hardware Doctor Utility........................................................................................
4.3 Intel 820 INF Update Utility for Windows95/98....................
4.4 IDE, USB and Firmware Hub Patch Utility for Intel 820........
4.5 Sound Driver......................................................................................................................
4.6 Aureal Vor tex Player for Windows 95/98............................................
4.7 Intel Ultra ATA Storage Device for Windows 98/NT................
4.8 Microsoft DirectX 6.1 for Windows 95/98.........................................
4.9 Drivers and Utilities Installation Notes.....................................................
Appendix A - Using the Suspend to RAM
Function
A.1 Using the Suspend to RAM Function........................................................
Appendix B - System Error Messages
B.1 POST Beep.......................................................................................................................
B.2 Error Messages..............................................................................................................
Appendix C - Troubleshooting
C.1 Troubleshooting Checklist....................................................................................
66
69
69
70
70
71
72
72
72
74
80

Introduction
1
6
1.1 Features and Specifications
1.1.1 Features
Chipset
 Intel®820 AGPset
Processor
The system board is equipped with a 242-pin Slot 1 processor slot
for installing an Intel PentiumII or PentiumIII processor. It is also
equipped with a switching voltage regulator that automatically
detects 1.30V to 3.5V.
 Pentium®III 133MHz FSB (533MHz-733MHz) or 100MHz FSB
(450MHz-700MHz) processor
 Pentium®II 100MHz FSB (350MHz-450MHz) processor
System Memory
 Two 184-pin SRIMM sockets
 Single Direct Rambus channel optimized for 300MHz, 356MHz
and 400MHz operations; up to 1600MB/sec. bandwidth
 Supports maximum of 32 Direct RDRAM devices
 ECC supported
Chapter 1 - Introduction
Maximum
256MB
512MB
1GB
Increments
8MB
16MB
32MB
RDRAM Technology
64Mbit/72Mbit
128Mbit/144Mbit
256Mbit/288Mbit
Please refer to System Memory in chapter 2 for more information.

1
Introduction
7
Expansion Slots
The system board is equipped with 1 universal AGP slot. AGP is an
interface designed to support high performance 3D graphics cards. It
utilizes a dedicated pipeline to access system memory for texturing,
z-buffering and alpha blending.The universal AGP slot supports AGP
2x with up to 533MB/sec. bandwidth and AGP 4x with up to
1066MB/sec. bandwidth for 3D graphics applications. AGP in this
system board will deliver faster and better graphics to your PC.
The system board is also equipped with 5 dedicated PCI slots and
1 AMR slot. AMR (Audio/Modem Riser) is an interface designed for
installing an audio riser card, modem riser card or audio/modem riser
card that is compliant to the AMR specification.
Onboard PCI Audio Features (Aureal AU8810)
The system board uses Aureal AU8810 which provides a powerful
PCI audio onboard.
 Supports Microsoft®DirectSound/DirectSound 3D
 256-voice wavetable with DLS 1.0
 Supports A3D positional audio effects
 16 channels of high quality sample rate conversion
 Supports Sound Blaster, Sound Blaster Pro emulation and AdLib,
OPL 2/3 FM synthesis
 PCI 2.2 compliant and AC'97 2.1 interface compliant
ATX Double Deck Ports (PC 99 color-coded connectors)
 Two USB ports
 Two NS16C550A-compatible DB-9 serial ports
 One SPP/ECP/EPP DB-25 parallel port
 One mini-DIN-6 PS/2 mouse port
 One mini-DIN-6 PS/2 keyboard port
 One game/MIDI port
 Three audio jacks: line-out, line-in and mic-in

Introduction
1
8
Connectors
 One connector for IrDA interface
 Two IDE connectors
 One floppy drive interface supports up to two 2.88MB floppy
drives
 One 20-pin ATX power supply connector
 One Wake-On-LAN connector
 One Wake-On-Ring connector
 CPU, chassis and second chassis fan connectors
 One opened chassis alarm connector
 Four internal audio connectors (video-in, AUX-in, CD-in and TAD)
 One thermal sensor connector for user customization
PCI Bus Master IDE Controller
 Two PCI IDE interfaces support up to four IDE devices
 Supports ATA/33 or ATA/66 hard drives
 PIO Mode 4 Enhanced IDE (data transfer rate up to 14MB/sec.)
 Bus mastering reduces CPU utilization during disk transfer
 Supports ATAPI CD-ROM, LS-120 and ZIP
IrDA Interface
The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices. It
supports peripheral devices that meet the IrDA or ASKIR standard.
USB Ports
The system board is equipped with two USB ports. USB allows
data exchange between your computer and a wide range of
simultaneously accessible external Plug and Play peripherals.
BIOS
 Award BIOS, Windows®95/98 Plug and Play compatible
 Supports SCSI sequential boot-up
 Flash EPROM for easy BIOS upgrades (4Mbit)
 Includes NCR 810 SCSI BIOS
 Supports DMI 2.0 function
 Monitors System Health status and failure alert

1
Introduction
9
Desktop Management Interface (DMI)
The system board comes with a DMI 2.0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventory, maintenance and troubleshooting of
computer systems easier. Refer to chapter 4 for instructions on using
the DMI utility.
1.1.2 System Health Monitor Functions
The system board is capable of monitoring the following system
health conditions.
 Monitors processor/system temperature and overheat alarm
 One optional temperature sensor for user customization
 Monitors 5VSB/VBAT/1.5V/3.3V/5V/±12V/processor voltages
and failure alarm
 Monitors the fan speed of the processor fan, chassis fan and
second chassis fan; controls the fan speed of the processor and
chassis fans; and failure alarm
 Automatic fan on/off control
 Read back capability that displays temperature, voltage and fan
speed
 Opened chassis alarm
 Supports processor thermal diode output (real processor
temperature)
Refer to System Health Monitor in chapter 3 and Hardware
Doctor Utility in chapter 4 for more information.
1.1.3 Intelligence
Automatic CPU/Chassis Fan Off
The CPU and chassis fans will automatically turn off once the system
enters the Suspend mode.

Introduction
1
10
Dual Function Power Button
Depending on the setting in the Soft-Off By PWR-BTTN field of
the Power Management Setup, this switch will allow the system to
enter the Soft-Off or Suspend mode.
Wake-On-Ring
This feature allows the system that is in the Suspend mode or Soft
Power Off mode to wake-up/power-on to respond to calls coming
through an internal or external modem. Refer to Wake-On-Ring
Connector in chapter 2 for more information.
RTC Timer to Power-on the System
The RTC installed on the system board allows your system to
automatically power-on on the set date and time.
Wake-On-LAN Ready
The Wake-On-LAN function allows the network to remotely wake
up a Soft Power Down (Soft-Off) PC.Your LAN card must support
the remote wakeup function. Refer to Wake-On-LAN Connector in
chapter 2 for more information.
Important:
The 5VSB power source of your power supply must support a
minimum of 1.5A.
Wake-On-Keyboard/Wake-On-Mouse
This function allows you to use the keyboard or PS/2 mouse to
power-on the system. Refer to Jumper Settings for Wake-On-
Keyboard/Wake-On-Mouse in chapter 2 and Keyboard/Mouse
Power On in the Integrated Peripherals section in chapter 3 for
more information.
Important:
 The power button will not function once a keyboard
password has been set in the KB Power On Password
field of the Integrated Peripherals submenu. You must type
the correct password to power-on the system. If you forgot
the password, power-off the system and remove the

1
Introduction
11
battery. Wait for a few seconds and install it back before
powering-on the system.
 The 5VSB power source of your power supply must
support a minimum of 1.5A.
AC Power Failure Recovery
When power returns after an AC power failure, you may choose to
either power-on the system manually, let the system power-on
automatically or return to the state where you left off before power
failure occurs. Refer to PWR Lost Resume State in the Integrated
Peripherals section in chapter 3 for more information.
Year 2000 Compliant
 Supports hardware Y2K function.
 Supports hardware Random Number Generator (RNG) to en-
able a new security and manageability infrastructure for PC.
ACPI
The system board is designed to meet the ACPI (Advanced
Configuration and Power Interface) specification. ACPI has energy
saving features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management. Currently, only Windows®98 supports the ACPI
function. ACPI when enabled in the Power Management Setup will
allow you to use the Suspend to RAM function.
With the Suspend to RAM function enabled, you can power-off
the system at once by pressing the power button or selecting
Standby when you shut down Windows®98 without having to go
through the sometimes tiresome process of closing files, applications
and operating system. This is because the system is capable of
storing all programs and data files during the entire operating session
into RAM (Random Access Memory) when it powers-off. The
operating session will resume exactly where you left off the next time
you power-on the system. Refer to Using the Suspend to RAM
Function in appendix A for more information.
Important:
The 5VSB power source of your power supply must support a
minimum of 1.5A.

Introduction
1
12
Virus Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.
1.2 Package Checklist
The system board package contains the following items:
þThe system board
þA users manual
þOne IDE cable for ATA/33 or ATA/66 IDE drives
þOne 34-pin floppy disk drive cable
þOne CRIMM module
þOne Main Board Utility CD
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

2
Hardware Installation
13
2.1 System Board Layout
Chapter 2 - Hardware Installation

2
14
Hardware Installation
2.2 System Memory
The two 184-pin SRIMM sockets on the system board uses RIMMTM
modules for memory expansion. A RIMMTM module may come with
4, 8, 12, 16 or more devices. A device refers to 1 RDRAM chip. In
other words, a module with 8 devices means the module has 8
RDRAM (Rambus Dynamic RAM) chips on it. A device provides
1.6GB/sec bandwidth which is several times the bandwidth available

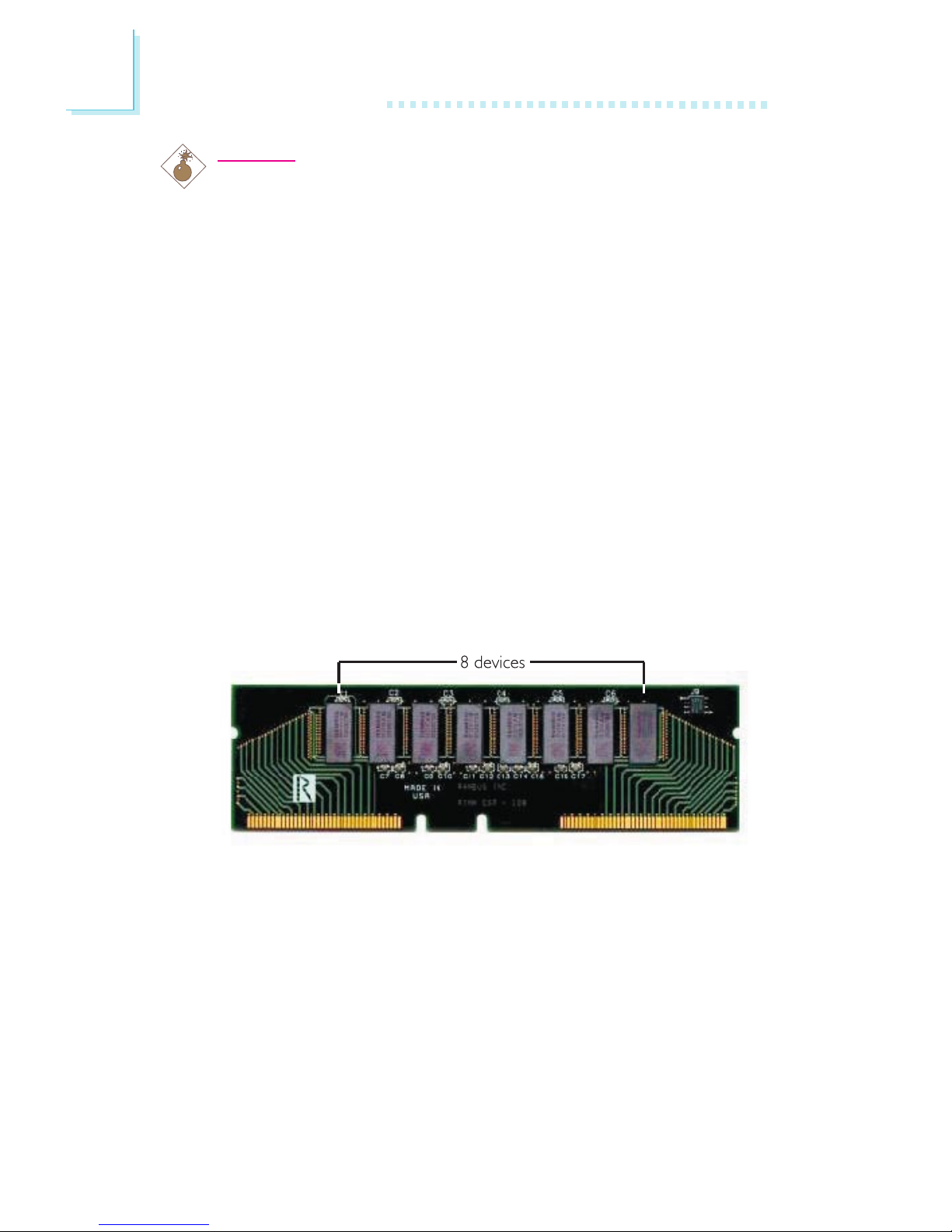

from a SDRAM. An example of a RIMMTM module with 8 devices is
shown below.
Warning:
Electrostatic discharge (ESD) can damage your system board,
processor, disk drives, add-in boards, and other components. Perform
the upgrade instruction procedures described at an ESD workstation
only. If such a station is not available, you can provide some ESD
protection by wearing an antistatic wrist strap and attaching it to a
metal part of the system chassis. If a wrist strap is unavailable,
establish and maintain contact with the system chassis throughout
any procedures requiring ESD protection.
When you purchase a RIMMTM module, the devices on the module
are not visible unlike the one shown above. This is because the
module has already been packaged with a heatsink. Make sure you
know the number of devices and the RDRAM technology used
when you purchase the module because these information are
important when you configure your system memory. Please read the
following sections carefully.

2
Hardware Installation
15
For example, if a module that uses the 64Mbit/72Mbit technology
has 8 devices - then the memory size of a device multiplied by the
number of devices will be the total memory size of the module.
Memory Size of a Device
8MB
16MB
32MB
RDRAM Technology
64Mbit/72Mbit
128Mbit/144Mbit
256Mbit/288Mbit
8MB
(memory size of
1 device in a
64Mbit/72Mbit
technology)
x8
(8 devices on the
module)
=64MB
(memory size of
the module)
2.2.1 Determining the Memory Size of a RIMMTM Module
The memory size of a RIMMTM module will depend on the memory
size of a device and the number of devices used; and the memory
size of a device will depend on the RDRAM technology used.
2.2.3 Important Installation Instructions
Important:
Certain rules must be followed when installing RIMMTM
modules to obtain optimum system performance.
Rule 1. The RIMMTM module with the most devices must be
installed into the RIMM1 socket.
Mem. Size of a Device x 32 Devices = Max. Memory
8MB x 32 = 256MB
16MB x 32 = 512MB
32MB x 32 = 1GB
RDRAM Technology
64Mbit/72Mbit
128Mbit/144Mbit
256Mbit/288Mbit
2.2.2 Determining the Maximum System Memory Size
The maximum memory size supported by the system will depend
on the memory size of a device (relevant to its RDRAM technology)
multiplied by 32. Why 32? This is because a system has only 1
Rambus Channel and a Rambus Channel supports up to 32 devices
only.

2
16
Hardware Installation
Rule 2. Regardless of the number of RIMMTM modules used,
the total number of devices must not exceed 32
devices.
Rule 3. Due to RDRAMs signal routing, all SRIMM sockets
must be populated with modules.This is to allow the
Direct Rambus Channel to function properly. If a
socket is not populated with RIMMTM module, YOU
MUST install it with CRIMM (continuity module). If, at
any time, you wish to upgrade the system memory,
remove the CRIMM that is next to the existing
RIMMTM module and replace it with another RIMMTM
module - always taking into consideration rule 1.
RIMM1 socket is installed with
a RIMM module.
RIMM2 socket is installed with
a CRIMM module.
RIMM1 and RIMM2 sockets
are installed with RIMM
modules.

2
Hardware Installation
17
The CRIMM module included in the system board package looks
similar to the one shown below..
The figure below shows a clearer illustration of the RDRAM
signal routing principle.
2.2.4 Installing the RIMMTM Module
A RIMM module simply snaps into a RIMM socket on the system
board. Pin 1 of the RIMM module must correspond with Pin 1 of
the socket.
Direct Rambus
ASIC Cell (RAC) Rambus
Channel
SPD ROM
RIMM
Module
Rambus
DRAM
RIMM
Connector
Direct Rambus
Clock Generator
(DRCG)
Master
Device

2
18
Hardware Installation
1. Pull the tabs which are at the ends of the socket to the side.
2. Position the RIMM above the socket with the notches in the
module aligned with the keys on the socket.
3. Seat the module vertically into the socket. Make sure it is
completely seated.The tabs will hold the RIMM in place.
2.3 Processor Installation
The system board is equipped with a 242-pin processor slot (Slot
1). The ends of the slot are installed with the Universal Retention
Mechanism (URM). URM is used to hold an Intel®SECC, SECC2 or
SEPP processor onto the slot.
Warning:
The processor must be kept cool by using a fan with heatsink.
Leave certain space clearances to maintain proper airflow once
the processor and heatsink are installed. All cables (for floppy
drive, hard drive, CD-ROM, etc.) must be routed clear of the
processor and its airspace. Otherwise, the processor will
overheat subsequently damaging the processor and the system
board.
2.3.1 Installing the Processor

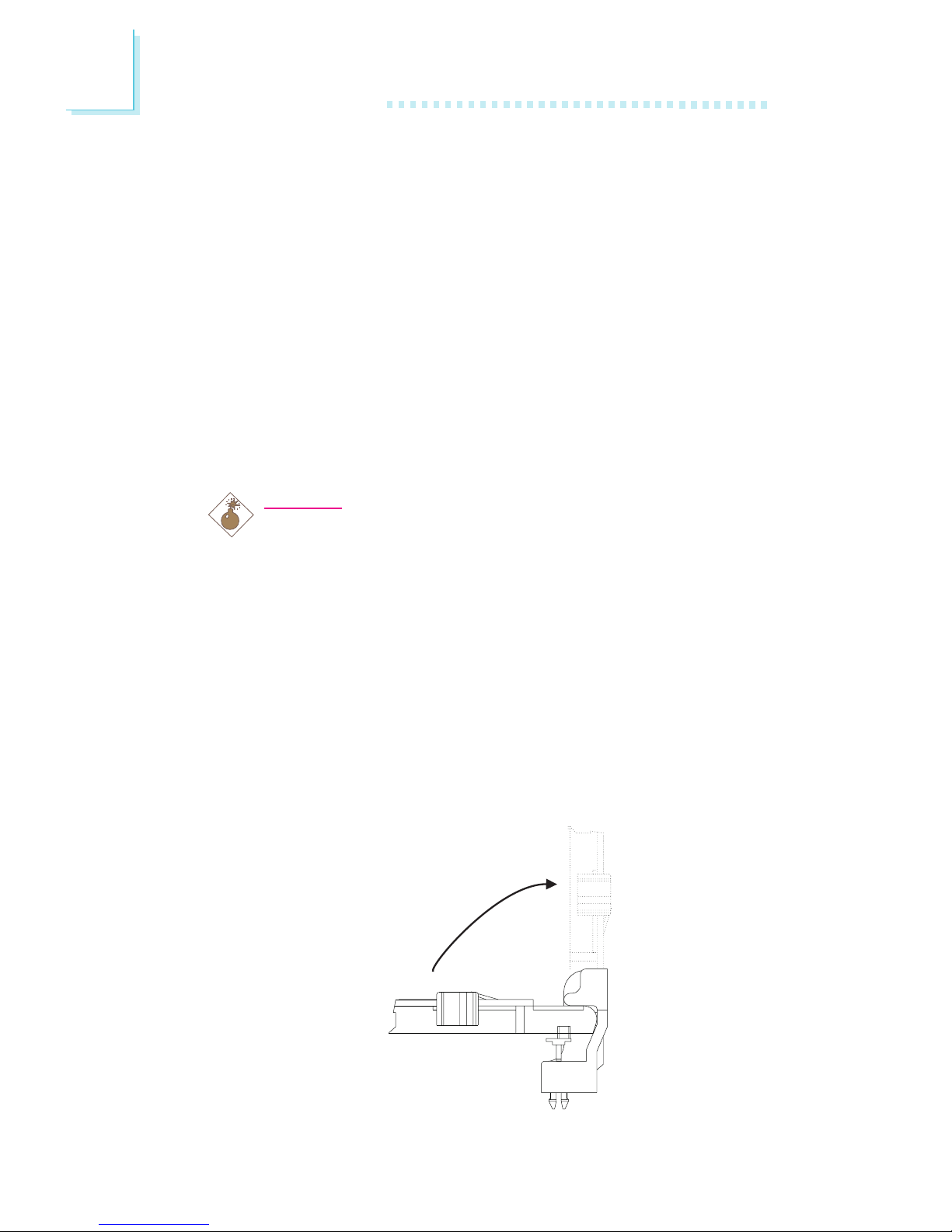

1. Position the URM located at each end of Slot 1 into its upright
position.
Original
position
Upright
position

2
Hardware Installation
19
2. SECC processor:
Position the SECC processor above Slot 1 with the notch in
the processor aligned with the key on the slot. Push the
processor down firmly, with even pressure on both sides of the
top, until it is completely seated. Push the latches located on the
top sides of the processor outward until they click into place in
the URM.
SECC2 or SEPP processor:
Position the SECC2 or SEPP processor above Slot 1 with the
notch in the processor aligned with the key on the slot. Push
the processor down firmly, with even pressure on both sides of
the top, until it is completely seated.The sides of the processors
heatsink will click and lock through the slit of the URMs tab.

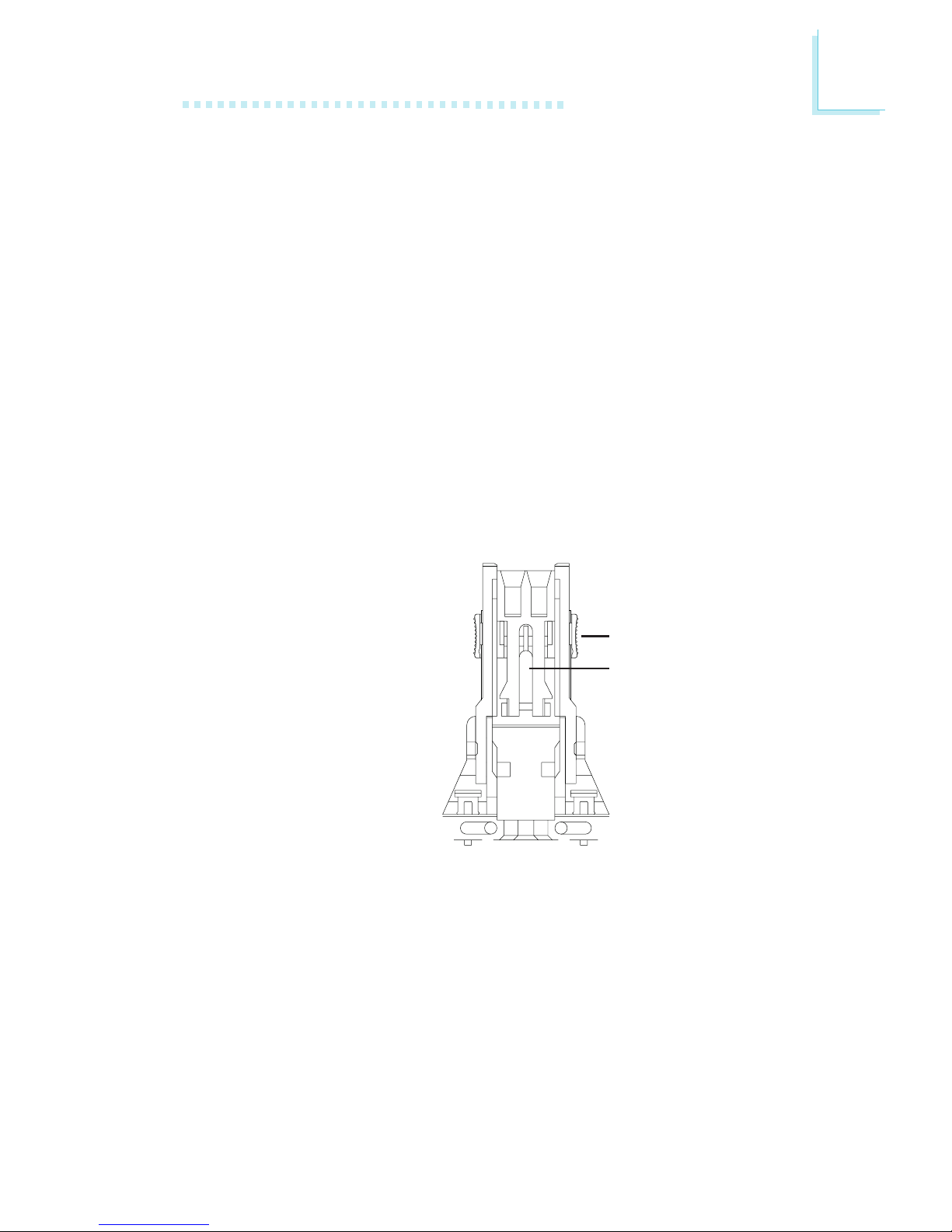

Make sure the slide is in the LOCK position.
Slit of the
URMs tab
Slide
2.3.2 Removing the Processor
SECC processor:
Push the latches on the top sides of the processor toward the
center until they click into place. Lift one end of the processor until it
is freed from Slot 1. Lift the other end of the processor until it is
freed from Slot 1. Lift the entire processor until it is free from the
URM.

2
20
Hardware Installation
SECC2 or SEPP processor:

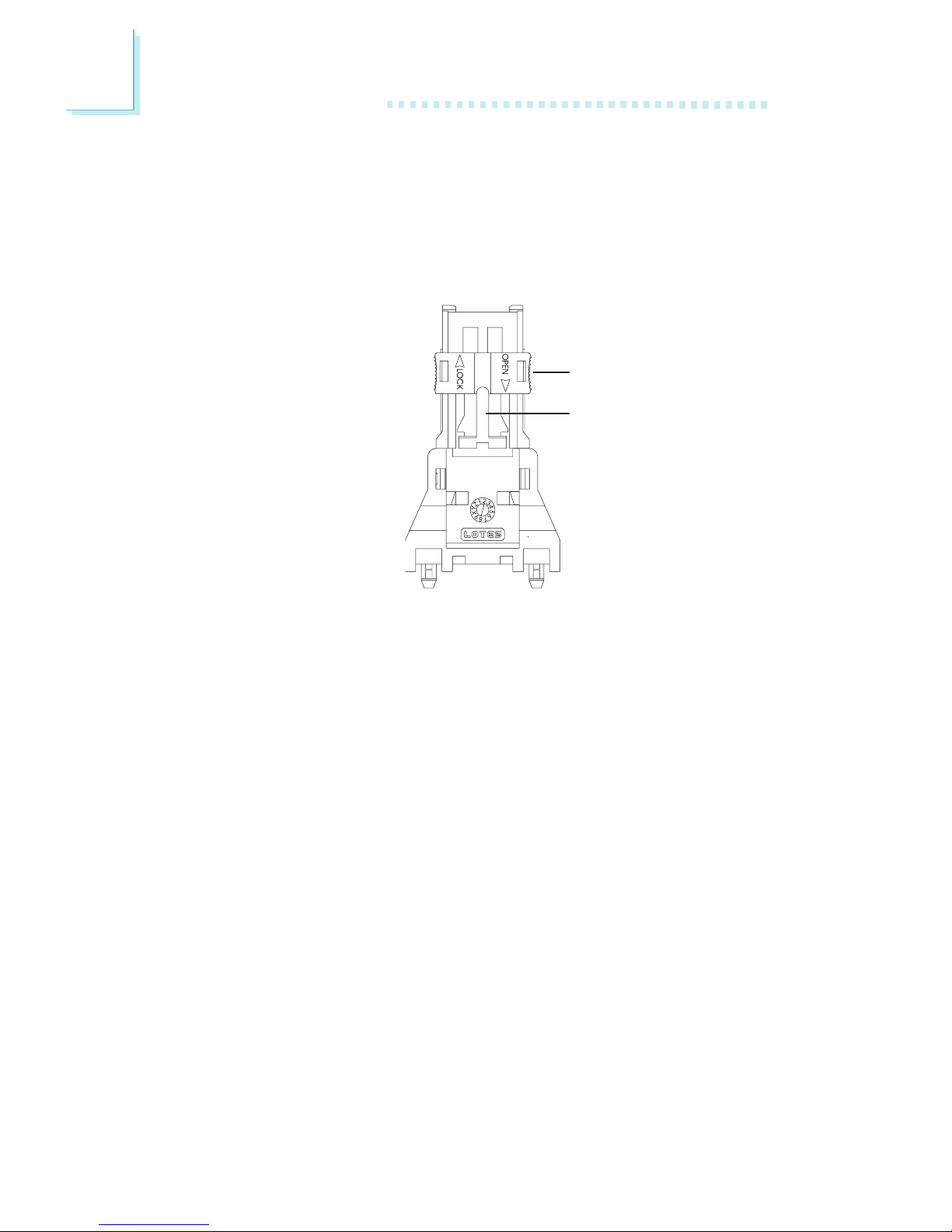

Push the slide of the URM downward until it clicks into its OPEN
position. Lift one end of the processor until it is freed from Slot 1.
Lift the other end of the processor until it is freed from Slot 1. Lift
the entire processor until it is free from the URM.
Tab
Slide
