Gigabyte GA-EG45M-DS2H User manual

Rev. 1001
12MD-STPM-1001R
•We recommend that you download the latest version of the Smart TPM utility from GIGABYTE's
website.
•If you have installed Ultra TPM earlier, you can install the Smart TPM utility directly without unin-
stalling Ultra TPM rst. The original settings in Ultra TPM will be kept.
Smart TPM
User's Manual

- 2 -
Table of Contents
TPM Conguration Procedure.........................................................................................3
1. Conguring the System BIOS .......................................................................... 3
2. Installing the Inneon TPM Driver and the Smart TPM Utility .......................... 4
2.1. Installing the Inneon TPM Driver ............................................................................4
2.2. Installing the Smart TPM Utility ................................................................................4
3. Initializing the TPM chip ................................................................................... 5
3.1. Initializing the TPM Chip with the Smart TPM Utility.................................................5
3.2. Advanced Mode........................................................................................................8
4. Conguring the Smart TPM Utility.................................................................. 18
4.1. Creating a USB Key ...............................................................................................18
4.2. Creating a Bluetooth Cell Phone Key .....................................................................19
4.3. Other Bluetooth Settings ........................................................................................21
4.4. Other Features .......................................................................................................21

- 3 -
To enable the TPM, follow the steps below in sequence:
1. Conguring the system BIOS
2. Installing the Inneon TPM driver and the Smart TPM utility
3. Initializing the TPM chip
4. Conguring the Smart TPM utility
1. ConguringtheSystemBIOS
To use the TPM functionality, rst enter the system BIOS Setup to activate the TPM chip.
Step 1:
As the computer starts, enter the BIOS Setup program. Go to the SecurityChipConguration menu and
the following screen will appear. To activate the TPM chip, set SecurityChip to Enabled/Activate. It's rec-
ommended that you use the ClearSecurityChip setting (press <Ctrl> + <F1> in the BIOS main menu to
display this setting) to clear the TPM chip.
TPMCongurationProcedure
CMOS Setup Utility-Copyright (C) 1984-2009 Award Software
Security Chip Conguration
Security Chip [Enabled/Activate]
Clear Security Chip [Enter]
Security Chip State Enabled/Activated
: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Item Help
Menu Level 
Step 2:
After completing the settings, press <F10> to save changes and then exit the BIOS Setup program.
PreviouslyencryptedleswillbecomeinaccessibleaftertheTPMchipiscleared.Besuretobackupthe
encryptedlesrst.
TopreventtheTPMsettingsbeingclearedbyotherusers,werecommendthatyousettheUserPassword
intheBIOSSetupprogram.

- 4 -
2. InstallingtheInneonTPMDriverandtheSmartTPMUtility
Before you use the Smart TPM utility, ensure that the Inneon TPM driver and the Smart TPM utility have
been installed.

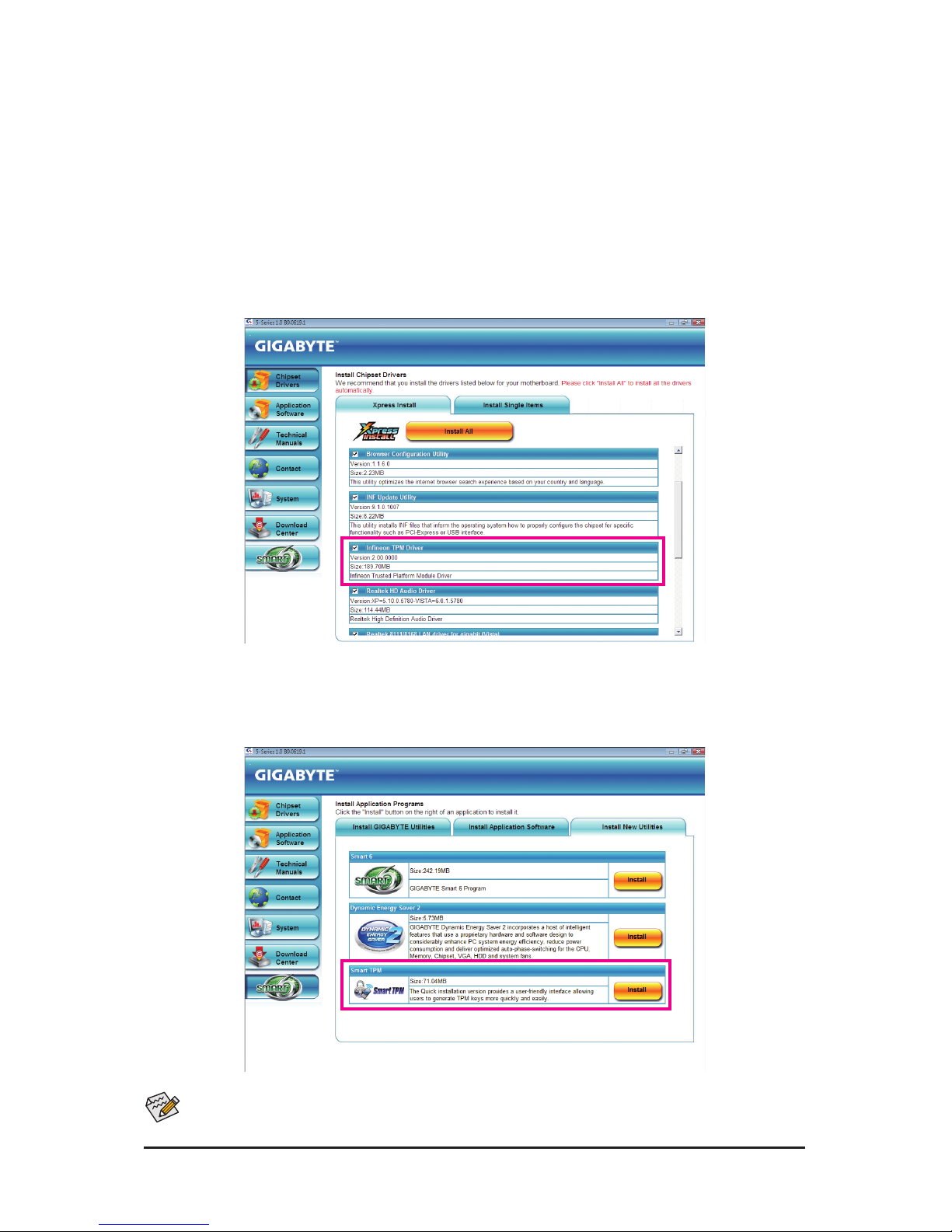

2.1. InstallingtheInneonTPMDriver
Insert the GIGABYTE motherboard driver disk. "Xpress Install" will automatically scan your system and list all
of the drivers that are recommended to install. Click the InstallAll button and "Xpress Install" will install all of
the selected drivers, including the Inneon TPM driver.
2.2. InstallingtheSmartTPMUtility
Click the tab at the bottom of the left pane of the autorun screen and you'll be directed to the InstallNew
Utilities menu. Click the Install button on the right of Smart TPM to install it.
SomemotherboarddriverdisksincludetheSmartTPMutilityin"XpressInstall."Clickthe"InstallAll"button
onthe"XpressInstall"mainmenutoinstalltheInneonTPMdriverandtheSmartTPMutilityaltogether.

- 5 -
3. InitializingtheTPMchip
After configuring the system BIOS and installing the driver software, the Infineon Security Platform icon ,
which indicates that the Inneon Security Platform is not yet initialized, will appear in the notication area.
Double-click the icon or right-click the Smart TPM icon and select InitializationWizard to access Smart
TPM. With the Smart TPM utility, you can initialize the TPM chip, set up a TPM User Password, congure a
Personal Secure Drive (PSD), and create a portable user key (refer to the instructions in Section 3.1). Or you
can select Advancedmode (refer to the instructions in Section 3.2) to launch the Inneon Security Platform
Initialization Wizard to congure advanced settings in the Inneon Security Platform.
3.1. InitializingtheTPMChipwiththeSmartTPMUtility
The easy-to-use Smart TPM interface allows you to easily initialize the TPM chip, set up a TPM User Pass-
word, and congure a Personal Secure Drive.
• SmartTPMsimpliesthecongurationprocedureoftheInneonSecurityPlatforminitializationandits
functions.Tomakefurthersettings,pleaseselect"Advancedmode."
• SmartTPMprovidesthe"Fileandfolderencryption-PersonalSecureDrive(PSD)"settingsonly.Touse
the"Securee-mail"or"Fileandfolderencryption-EncryptingFileSystem(EFS)"functions,pleasese-
lect"Advancedmode."
3.1.1. TheSmartTPMInterface
SetYourTPMPassword
A password is automatically provided. You can change it to your
own password. Be sure to memorize this password because it
allows you to create a portable user key using your Bluetooth
cell phone or USB ash drive.
SetupyourPersonalSecureDrive(PSD)
Configure a Personal Secure Drive (PSD) here. Specify the
PSD drive letter, drive label, size, and a local drive on which
your PSD will be saved.
CreateYourSmartTPMKey
Set your Bluetooth cell phone/USB flash drive as the Smart
TPM user key. You will be able to access/close your PSD data
when connecting to the Bluetooth cell phone or when plugging
in the USB ash drive that is congured as the Smart TPM user
key.

- 6 -

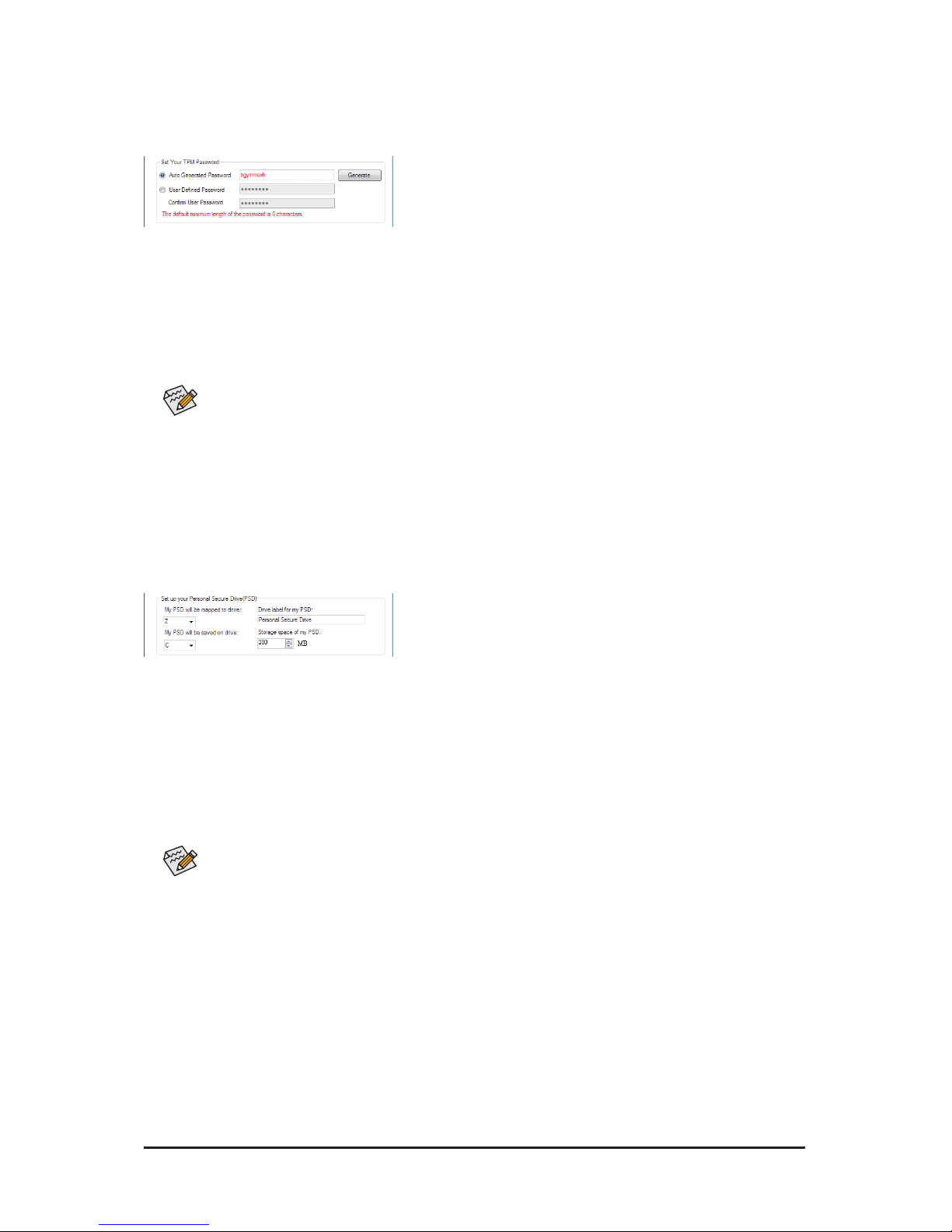

3.1.2. InitializationProcedureofSmartTPM
Step1:SetYourTPMUserPassword
Step2:SetupYourPersonalSecureDrive(PSD)
1.AutoGeneratedPassword
A password will be automatically provided after Smart TPM is launched. To generate a new password,
click Generate.
2.UserDenedPassword/ConrmUserPassword
You can dene your own password in the UserDenedPassword box (the maximum length is 16 char-
acters). Enter the password in the ConrmUserPassword box again to conrm.
1.SpecifyadriveletterandlabelforyourPersonalSecureDrive
To specify the drive letter for your Personal Secure Drive, select an unused letter from the MyPSDwillbe
mappedtodrive drop-down list of available letters. To specify the drive label, enter the label in the Drive
labelformyPSD box. The label should be no more than 32 characters in length.
2.SpecifyyourPersonalSecureDrivesizeandalocaldriveonwhichyourPersonalSecureDrivewillbesaved
Select a local drive from the MyPSDwillbesavedondrive drop-down list for saving your Personal Se-
cure Drive and enter the Personal Secure Drive size in the StoragespaceofmyPSD box.
• TopreventtheTPMsettingsbeingclearedbyotherusers,werecommendthatyousettheUserPass-
wordintheBIOSSetupprogram.
•This password incorporates the functionalities of the "Owner Password," "User Password," "Emer-
gencyRecoveryToken Password," and "Password Reset Token Password"of the Inneon Security
Platform. Be sure to memorize this password to administrate and use the SecurityPlatform in the fu-
ture. For details on the rules of the Inneon SecurityPlatform passwords and their usage,please refer
to the Inneon SecurityPlatform accompanyingdocumentation.
YourPersonalSecureDrivesizecannotbechangedaftersetup,sopleaseensurethatthesizeyou
specifyislargeenoughtomeetyourneeds.Pleasenotethatyoucannotusethefulldrivesize,sincethe
lesystemallocatessomespace.Thisdependsontheoperatingsystemandmaybesignicantforsmall
drivesizes.PleasealsonotethatthemaximumPSDdrivesizeislimited:
ThemaximumPSDdrivesizeonFAT16volumesis2GB.
ThemaximumPSDdrivesizeonFAT32volumesis4GB.

- 7 -

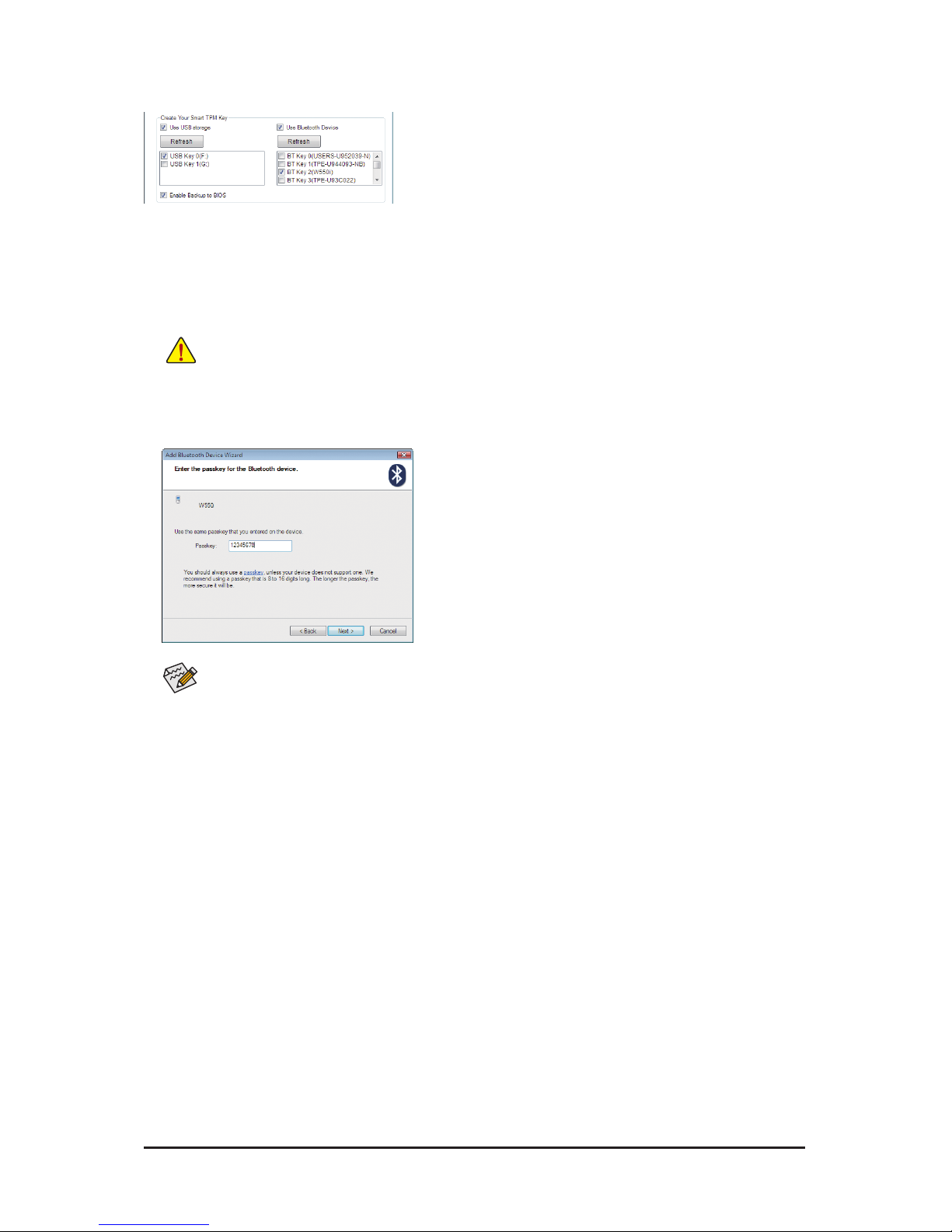

2.CreateaBluetoothcellphonekey:
Select the UseBluetoothDevice check box and click Refresh
to search for the Bluetooth enabled cell phone(s). Then select
the cell phone that you want to use as the portable Smart TPM
user key and a screen similar to that on the left will appear. En-
ter a passkey (8~16 digits recommended) in Passkey which will
be used for pairing with your cell phone. Then enter the same
passkey on your cell phone for pairing.
BeforecreatingaBluetoothcellphonekey,makesureyourmotherboardincludesaBluetoothreceiver
andturnonthesearchandBluetoothfunctionsonyourphone.
Upon completing the steps above, click OK to begin the initialization of the TPM chip and the setups of the
TPM User Password, your PSD, and the Smart TPM user key(s).
Step3:CreateYourSmartTPMKey
1.CreateaUSBkey:
Select the UseUSBstorage check box and click Refresh to search for the USB ash drive(s) that you
plug in. Then select the USB ash drive that you want to use as the portable Smart TPM user key. You can
select more than one USB ash drive at the same time. Selecting the EnableBackuptoBIOS check box
will store the encrypted TPM User Password in the system BIOS.
IfmorethanoneuserstorestheirencryptedTPMUserPasswordsintheBIOS,thelatterwilloverwritethe
former.

- 8 -
3.2. AdvancedMode
On the Smart TPM main screen, click Advancedmode to access the Inneon Security Platform Initialization
Wizard.
A.InneonSecurityPlatformInitializationWizard-Owner
Click Advanced mode to launch the Inneon Security Platform Initialization Wizard. Follow the on-screen
instructions to initialize the Security Platform Owner and to congure Security Platform Features (backup
including Emergency Recovery, Password Reset, Enhanced Authentication, BitLocker). This wizard provides
the basis for all further activities on the Inneon Security Platform.
A-1. When the Inneon Security Platform Initialization Wizard appears, click Next to continue.

- 9 -
A-2. Select SecurityPlatforminitialization and click Next to create the Security Platform Owner Password.
TheInneonSecurity Platform Owner key is createdandstoredintheInneonTrustedPlatformModule
togetherwiththeInneonSecurityPlatformOwnersecret.ThiskeyisprotectedbytheOwnerPasswordthat
mustbedenedhere.YoumustmemorizethispasswordinordertoadministratetheSecurityPlatform.
ExplanationsonsettingtheOwnerPassword
1. Enter the Owner Password in the Password
box or click Random to randomly generate a
password.
2. Enter the password again to conrm (not neces-
sary if you use a random password).
3. You must uncheck the Hidetyping check box if
you decide to use the random password. Save
this password or print it to prevent the loss of
the password.

- 10 -
A-3. Select Security Platform Features, which comprises AutomaticBackup (includes Emergency Recovery)
and PasswordReset. Click Next.
A-4. With this page you can congure automatic Security Platform backups. The Security Platform backups
comprise the Security Platform Credentials and Settings and the PSD encrypted data, etc. This can prevent
if a hardware or storage media failure occur, the backups could restore for the certain users settings. Click
Next.
DetailsonFeatures
Automatic Backup (includes Emergency Recovery)
Check this feature, if you want to congure automatic Security Platform backups. Conguring Backup is
strongly recommended. Otherwise all user data will be lost in case of emergency.
Password Reset
Check this feature, if you want to create a Password Reset Token for all users. Conguring Password Reset
is strongly recommended. Otherwise Basic User Passwords can not be reset.
Youcannotuncheckthisfeature,ifthepolicyEnforcecongurationofBackupincludingEmergencyRecovery
isenabled.
Youcannotuncheckthisfeature,ifthepolicyEnforcecongurationofPasswordResetisenabled.Thisfea-
turecanbeconguredonlyonce.Theselectionisdisabled,ifPasswordResethasalreadybeencongured.

- 11 -

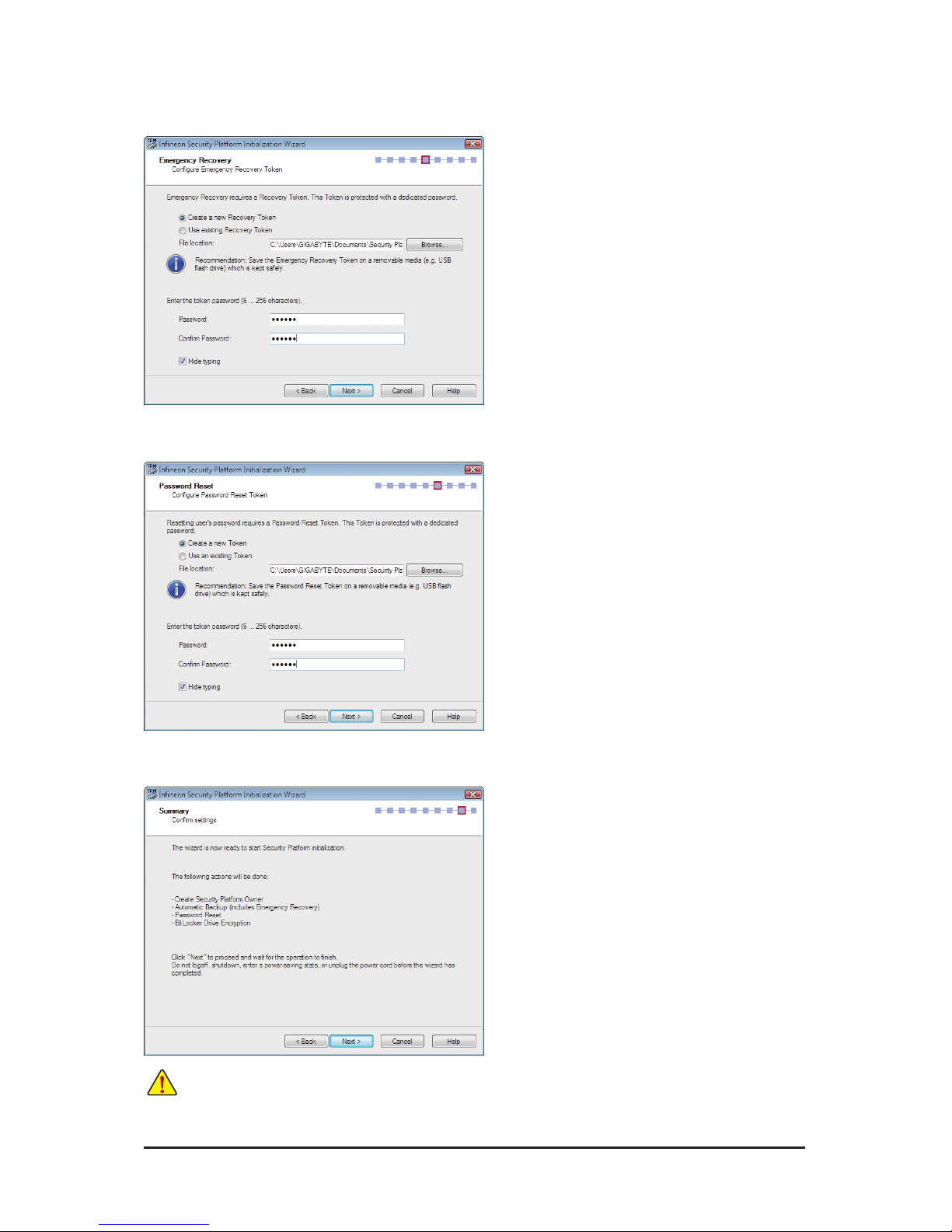

A-5. Select CreateanewRecoveryToken. Then enter a new token password to be used for Emergency
Recovery.
A-6. Select CreateanewToken to create a Password Reset Token. Then enter a new token password.
A-7. Make sure you have selected all the functions you want to perform. Click Next to continue.
Donotlogoff,shutdown,enterapower-savingstate,orunplugthepowercordbeforethewizardhascom-
pleted.

- 12 -
A-8. Click Finish to complete the initialization and conguration of the Inneon Security Platform. Then ac-
cess the Inneon Security Platform User Initialization Wizard (select the StartSecurityPlatformUserIni-
tializationWizard check box).
B.InneonSecurityPlatformInitializationWizard-User
The Inneon Security Platform User Initialization Wizard is used to initialize the Security Platform Users and
to congure the user-specic features (secure e-mail, le and folder encryption with EFS and PSD, Enhanced
Authentication). This wizard has to be started for each computer user, who is intended to use the personal-
ized Inneon Security Platform Features (i.e., who will be Inneon Security Platform User).
B-1. Launch the Inneon Security Platform User Initialization Wizard. Click Next to continue.

- 13 -

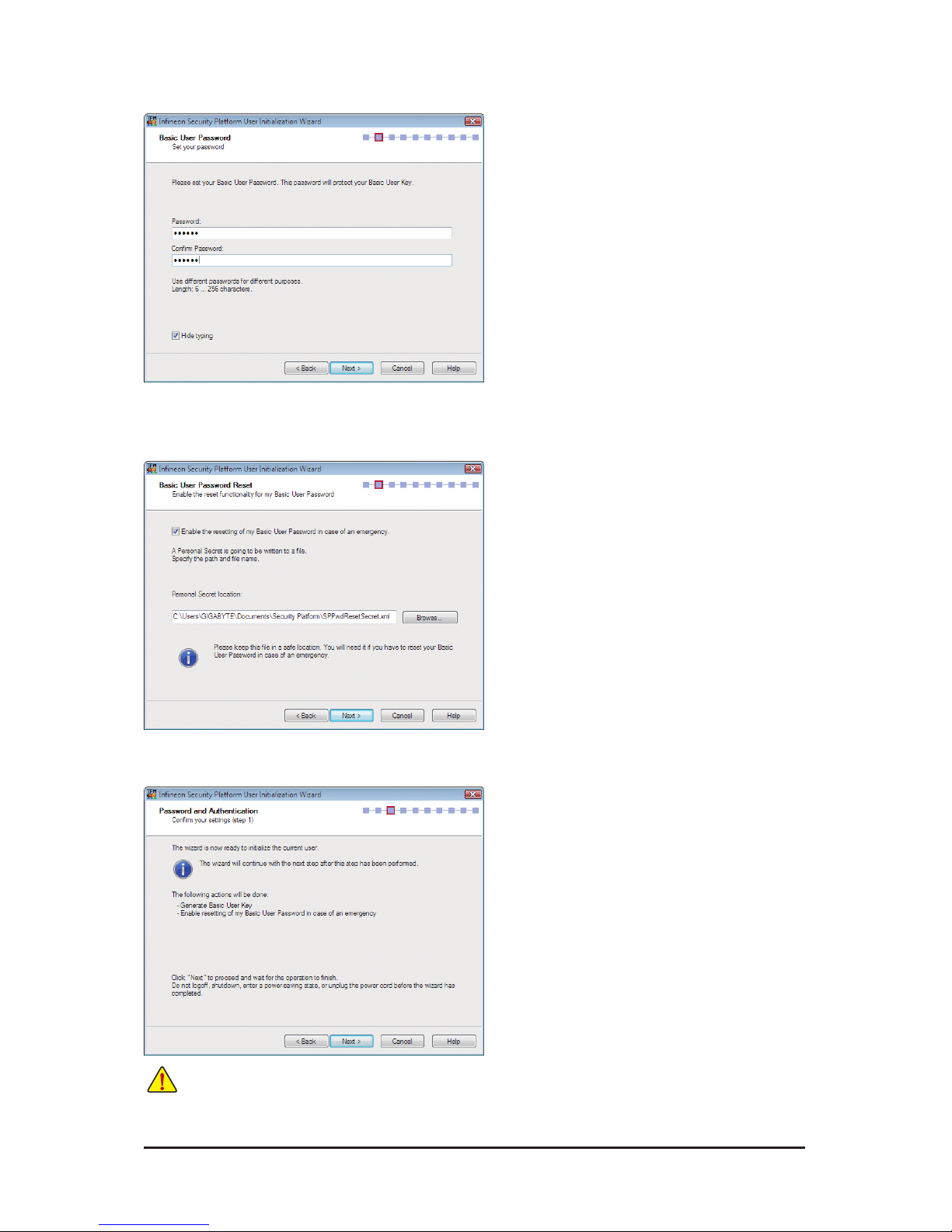

B-2. Set a Basic User Password and click Next.
B-3. Enable the reset functionality for the Basic User Password. Select the location that you wish to save the
le and then click Next.
B-4. Click Next to continue the initialization.
Donotlogoff,shutdown,enterapower-savingstate,orunplugthepowercordbeforethewizardhascom-
pleted.

- 14 -

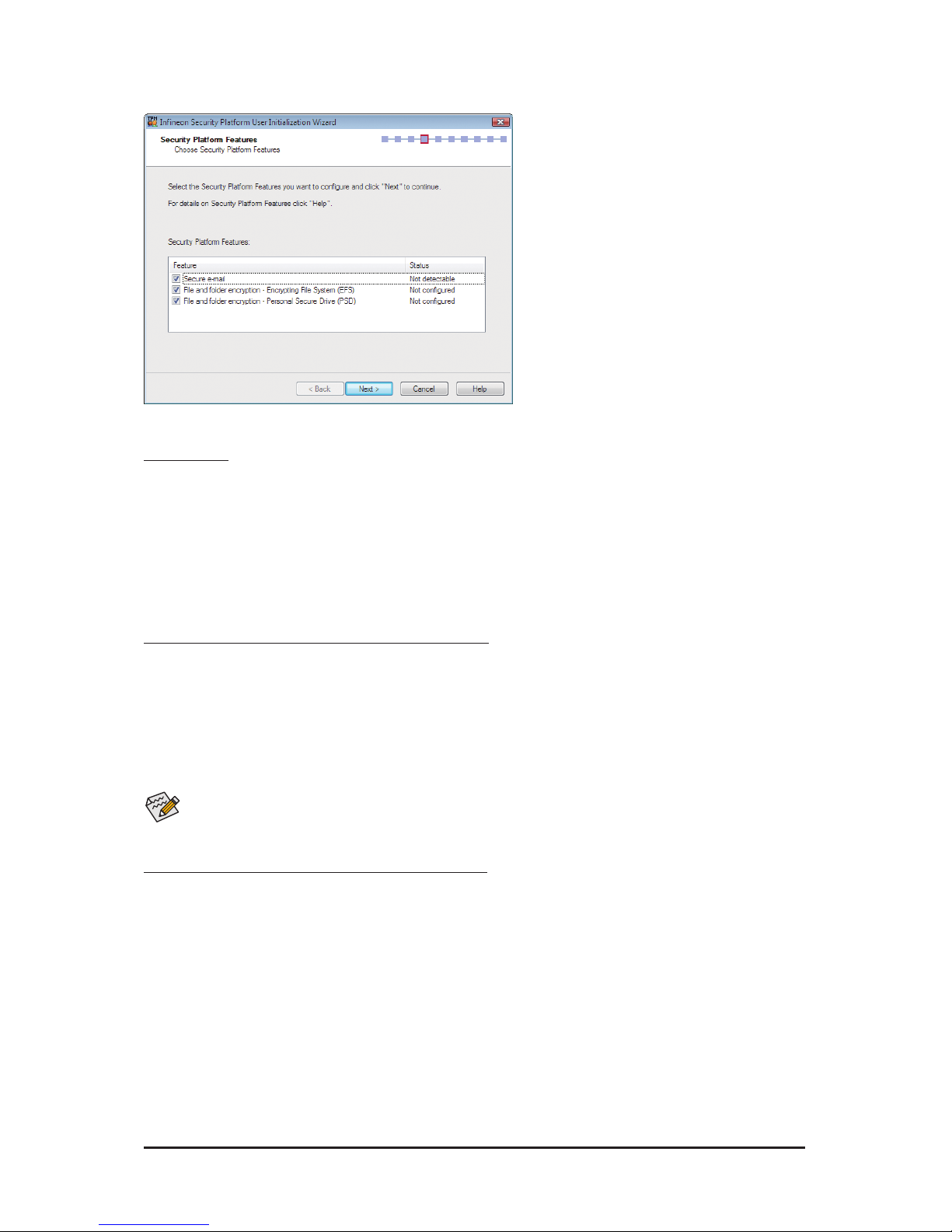

B-5. Select the Security Platform Features you want to congure and click Next to continue.
DetailsonFeatures
Secure e-mail
User-specic e-mail encryption and/or signing to prevent unauthorized persons from reading or changing your
e-mails. Using this feature guarantees that only the e-mail creator and the specied recipients will be able to
decrypt and read the message or validate the identity of the sender.
If you chose to congure this feature, you can request a certicate for secure e-mail (if a certicate request
web address is set in your policy settings). The wizard will provide information how to congure secure e-mail.
The conguration of your mail client is not part of this wizard. Thus the status cannot be displayed here.
File and folder encryption - Encrypting File System (EFS)
The operating system incorporates the functionality to perform user-specic encryption of the content of fold-
ers and les on the local computer using the Microsoft Encrypting File System (EFS). Only the user who cre-
ated a le in these folders can access the content of this le. Other users have to be granted access rights to
an EFS folder in an explicit administrative operation to enable them to use les in it.
If you chose to congure this feature, you can select a certicate for EFS. You can also request or create a
new certicate.
EFSisnotsupportedinWindowsVistaHomeBasic,VistaHomePremiumandXPHomeEditions.
File and folder encryption - Personal Secure Drive (PSD)
Personal Secure Drive features le and folder encryption similar to EFS. Unlike EFS, PSD is supported in
Windows Vista Home Basic, Vista Home Premium and XP Home Editions.
A logical drive is provided to permitted users. This drive offers access protection and encryption for all content
in it. The encryption is performed automatically. A PSD cannot be accessed via its UNC identier to get read-
able data and can be installed only on the local computer. Network access is not possible. If you chose to
congure this feature, you can set up, modify or delete your PSD. Like EFS conguration, you can select a
certicate for PSD. You can also request or create a new certicate.

- 15 -
Keylengthfornewcerticates:
Hereyoucanselectdefaultkeylengthfor
newlycreatedencryptioncerticates,e.g.1024
bitsor2048bits.
B-5-2. Click Create to create the certicate. After the certicate appears, click the certicate and click Select.
B-5-3. The certicate has been selected. Click Next.
B-5-1. Use the Fileandfolderencryption-PersonalSecureDrive(PSD) as the example:
You can congure a Encryption Certicate with this page. If no valid certicate is registered currently, the wizard of-
fers to create a new certicate and select it automatically. Click Next to create the certicate automatically, or click
Change to create an encryption certicate manually.

- 16 -

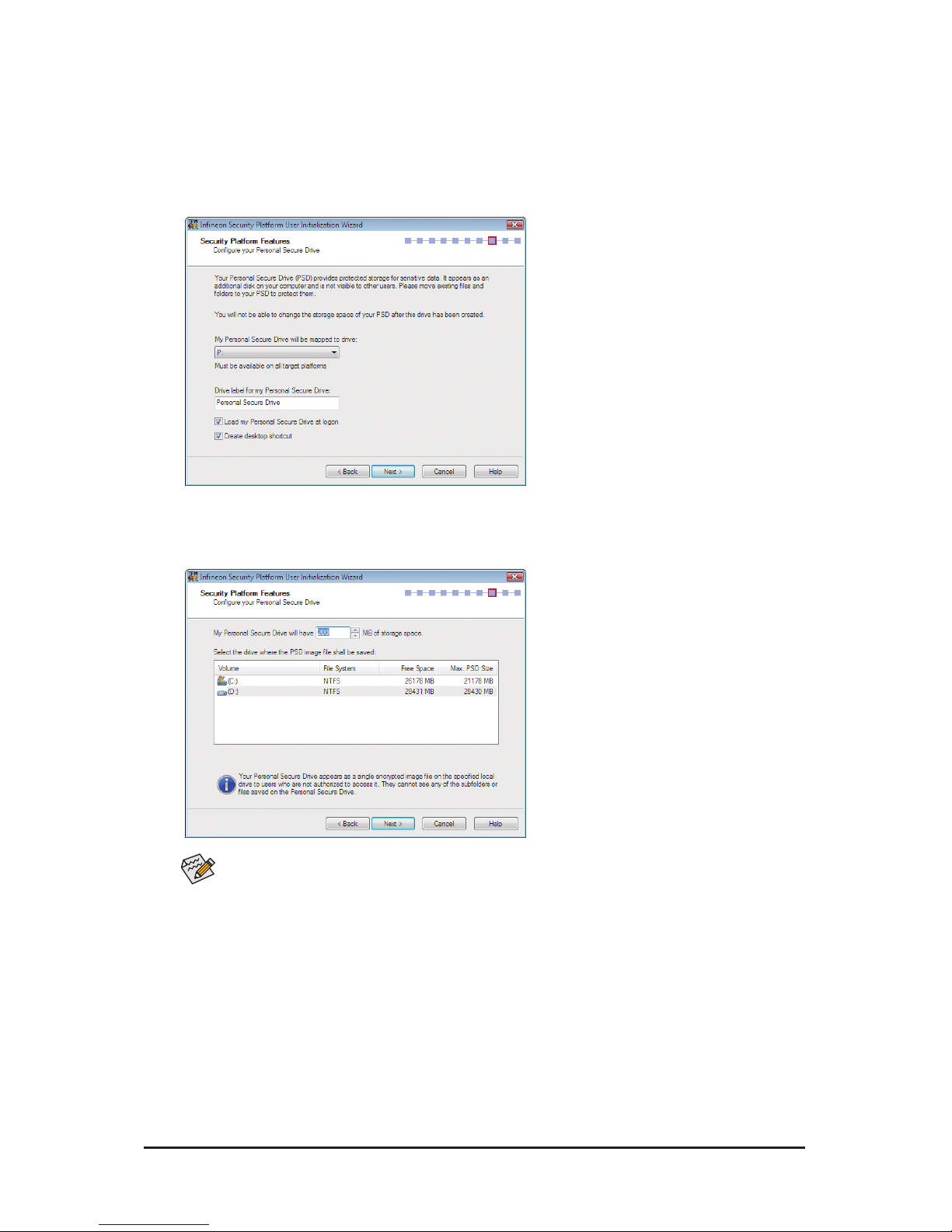

B-6. Set up a Personal Secure Drive (PSD)
B-6-1. Specify a drive letter and label for your Personal Secure Drive
To specify the drive letter for your Personal Secure Drive, select an unused letter from the drop-down list of available
letters. To specify the drive label, enter the label in the eld provided. The label should be no more than 32 characters
in length. Select the LoadmyPersonalSecureDriveatlogon check box, if you want to load your PSD at logon.
Click Next.
B-6-2. Specify your Personal Secure Drive size and a local drive on which your Personal Secure Drive will be saved. Click
Next.
YourPersonalSecure Drive size cannot be changedafter setup, so pleaseensure that thesize you
specifyislargeenoughtomeetyourneeds.Pleasenotethatyoucannotusethefulldrivesize,since
thelesystemallocatessomespace.Thisdependsontheoperatingsystemandmaybesignicant
forsmalldrivesizes.
PleasealsonotethatthemaximumPSDdrivesizeislimited:
ThemaximumPSDdrivesizeonFAT16volumesis2GB.
ThemaximumPSDdrivesizeonFAT32volumesis4GB.

- 17 -

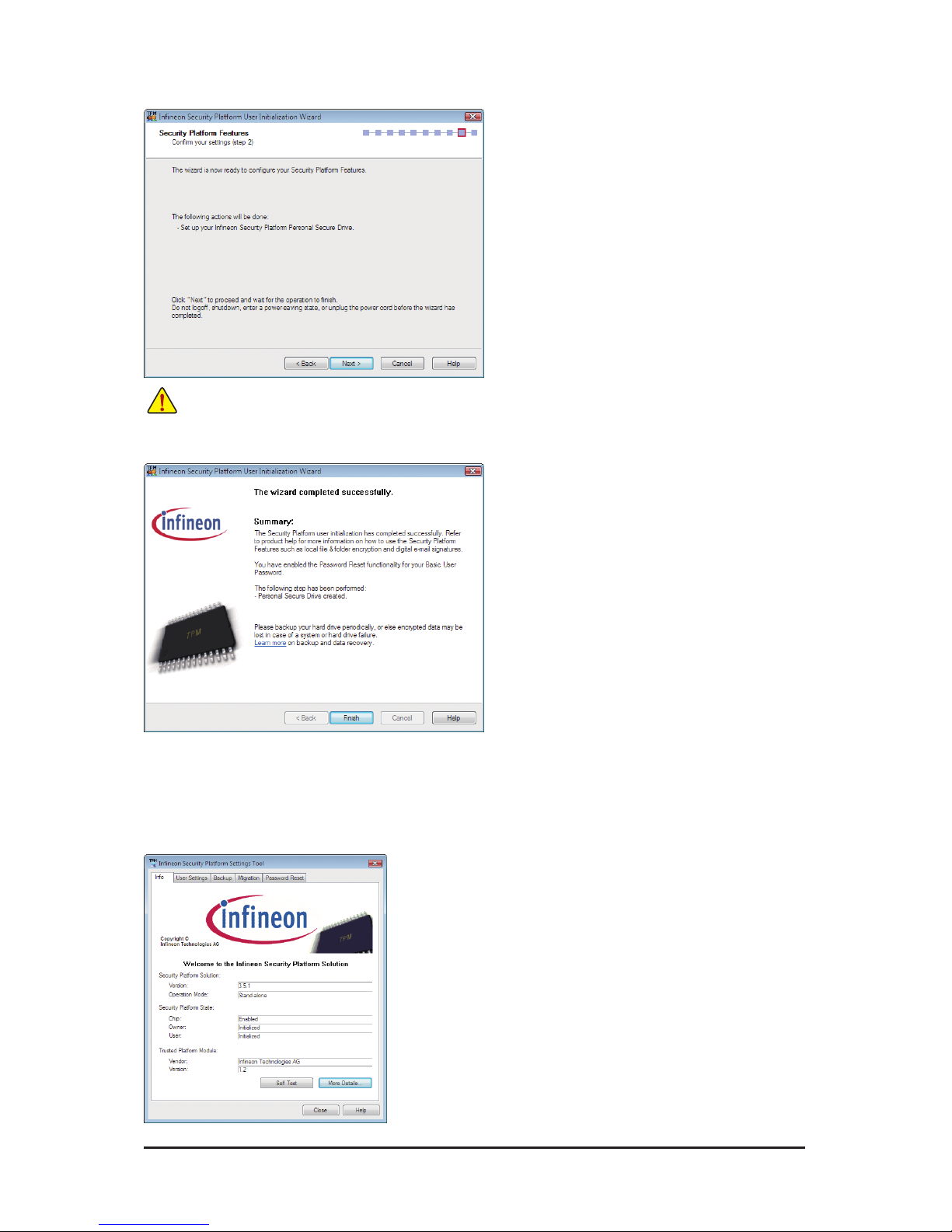

B-7. Click Next to continue.
B-8. Click Finish to nish the user initialization and features conguration of the Inneon Security Platform.
C.InneonSecurityPlatformSettingsTool
With the Security Platform Settings Tool you can get various information about the Trusted Platform Module
of your system. Also, you are able to carry out several administrative tasks, such as to change Basic User
Password, perform backups, export/import Security Platform User keys and certicates, etc.
Donotlogoff,shutdown,enterapower-savingstate,orunplugthepowercordbeforethewizardhascom-
pleted.

- 18 -
4. ConguringtheSmartTPMUtility
GIGABYTE's unique Smart TPM (Trusted Platform Module) supports the industry's most advanced hardware-
based data encryption. Smart TPM provides users with an easy-to-use software interface to create a portable
user key using a Bluetooth cell phone or USB ash drive. Users can access/close their PSD data by simply
connecting to the Bluetooth cell phone or plugging in the USB ash drive, without the hassles of complicated
congurations. In addition, users can create more than one Bluetooth cell phone/USB ash drive key, so
when they lost a key they still can access data.
• Aftercreatingthe password(s) and key(s) associated with the TPM,besuretostoretheminasecure
locationandbackthemup.Lossofthepassword(s)orthekey(s)willrenderthelesencryptedviathe
TPMunabletobecrackedorread.
• Thoughthe TPMdeliversthelatest datasecuritytechnology,itdoes notguaranteedataintegrityor
providehardwareprotection.GIGABYTEisnotliableforlossofencrypteddataasaresultofhardware
damage.
4.1. CreatingaUSBKey
Step 1:
After initializing the TPM chip and setting up the TPM User Password and your PSD, right-click the Smart
TPM icon in the notication area to display the menu as shown below.
Step 2:
Click CongureSmartTPMDevices to launch the Smart TPM utility. To create a portable USB key, select
CongureUSBStorages and then select the USB ash drive that you want to use as the portable user key. (If
the screen doesn't display the USB ash drive inserted, click Refresh to let Smart TPM re-detect the device.)
Ifmorethanoneuserusesthe"EnableBacuptoBIOS"functiontostoretheirencryptedTPMUserPass-
wordsintheBIOS,thelatterwilloverwritetheformer.

- 19 -
4.2. CreatingaBluetoothCellPhoneKey
Step 1:
To create a portable Bluetooth cell phone key, select CongureBTDevices and then select the Bluetooth
cell phone that you want to use as the portable user key. (If the screen doesn't display your Bluetooth-enabled
cell phone, click Refresh to let Smart TPM re-detect the device.)
TocancelaUSBkey:
To cancel a USB key, uncheck the USB ash drive that has been congured as the Smart TPM user key on
the CongureUSBStorages tab. When prompted to conrm, click Yes. Then the USB key is cancelled.
DonotturnofforresetyourcomputerwhenaUSBkeyisbeingcre-
ated.
• Ifyou entertheTPMUser Passwordincorrectlythreetimes,Smart TPMwillbelocked. Tobeableto
enterthepasswordagain,go to the "Security Chip Conguration" menu in BIOS Setup and thenset
"SecurityChip"to"Enabled/Activate."
• WhenyouunplugtheUSBkey,theInneonSecurityPlatformSettingsToolwillgivethefollowingwarning
message,whichisnormal.
BeforecreatingaBluetoothcellphonekey,makesureyourmotherboardincludesaBluetoothreceiverand
turnonthesearchandBluetoothfunctionsonyourphone.
Step 3:
Enter the TPM User Password that you set earlier and click OK to complete creating the USB key. You are
able to access/close your PSD by plugging in or unplugging the USB ash drive.

- 20 -

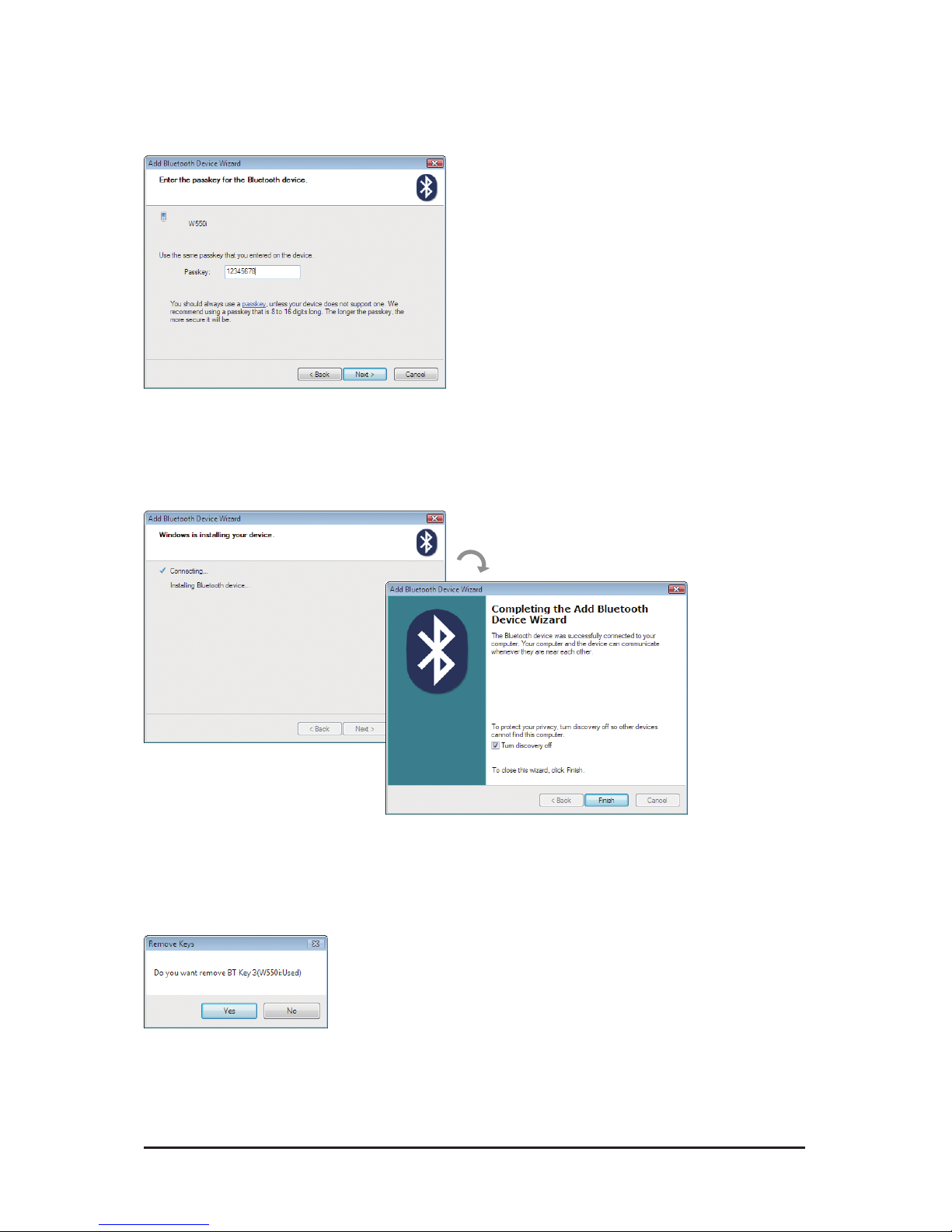

Step 3:
Enter the same passkey on your cell phone for pairing. After conrming the passkey, click Finishto complete
creating the Bluetooth cell phone key. You are able to access/close your PSD when turning on/off Bluetooth
on your cell phone or when your cell phone gets close to or away from the computer.
TocancelaBluetoothcellphonekey:
To cancel a Bluetooth cell phone key, uncheck the Bluetooth cell phone that has been congured as the
Smart TPM key on the CongureBTDevices tab. When prompted to conrm, click Yes. Then the Bluetooth
cell phone key is cancelled.
Step 2:
When the AddBluetoothDeviceWizard appears, enter a passkey (8~16 digits recommended) which will be
used for pairing with your cell phone.
