GIGAIPC QBiP-1165G7B User manual

3.5” SBC Boards QBiP-1165G7B/ 1135G7B/ 1115G4EB
1www.gigaipc.com
QBiP-1165G7B/
QBiP-1135G7B/
QBiP-1115G4EB
3.5” SBC Boards
User’s Manual 1st Ed

2
www.gigaipc.com
Copyright Notice
This document is copyrighted, 2018. All rights are reserved. The
original manufacturer reserves the right to make improvements to the
products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translat¬ed, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no respon¬sibility for its use, or for any
in¬fringements upon the rights of third parties that may result from its
use.
The material in this document is for product information only and
is subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its accuracy,
GIGAIPC assumes no liabilities resulting from errors or omissions in this
document, or from the use of the information contained herein.
GIGAIPC reserves the right to make changes in the product design
without notice to its users.

3.5” SBC Boards QBiP-1165G7B/ 1135G7B/ 1115G4EB
3www.gigaipc.com
Acknowledgement
All other products’ name or trademarks are properties of their
respective owners.
• AMD® is trademark of Advanced Micro Devices.
• Microsoft Windows is a registered trademark of Microsoft Corp.
• Intel, Pentium, Celeron, and Xeon are registered trademarks of Intel
Corporation
• Core, Atom are trademarks of Intel Corporation
• ITE is a trademark of Integrated Technology Express, Inc.
• IBM, PC/AT, PS/2, and VGA are trademarks of International Business
Machines Corporation.
All other product names or trademarks are properties of their
respective owners.

4
www.gigaipc.com
Packing List
Before setting up your product, please make sure the following items
have been shipped:
Item Quantity
QBiP-1165G7B/ QBiP-1135G7B /
QBiP-1115G4EB MB 1
SATA power cable 1
If any of these items are missing or damaged, please contact your
distributor or sales representative immediately.

3.5” SBC Boards QBiP-1165G7B/ 1135G7B/ 1115G4EB
5www.gigaipc.com
About this Document
This User’s Manual contains all the essential information, such as
detailed descriptions and explanations on the product’s hardware
and software features (if any), its specifications, dimensions, jumper/
connector settings/definitions, and driver installation instructions (if
any), to facilitate users in setting up their product.
Users may refer to the GIGAIPC.com for the latest version of this
document.

6
www.gigaipc.com
Safety Precautions
Please read the following safety instructions carefully. It is advised that
you keep this manual for future references
1. All cautions and warnings on the device should be noted.
2. Make sure the power source matches the power rating of the
device.
3. Position the power cord so that people cannot step on it. Do
not place anything over the power cord.
4. Always completely disconnect the power before working on the
system’s hardware.
5. No connections should be made when the system is powered
as a sudden rush of power may damage sensitive electronic
components.
6. If the device is not to be used for a long time, disconnect it from
the power supply to avoid damage by transient over-voltage.
7. Always disconnect this device from any AC supply before
cleaning.
8. While cleaning, use a damp cloth instead of liquid or spray
detergents.
9. Make sure the device is installed near a power outlet and is
easily accessible.
10. Keep this device away from humidity.
11. Place the device on a solid surface during installation to prevent
falls
12. Do not cover the openings on the device to ensure optimal heat
dissipation.

3.5” SBC Boards QBiP-1165G7B/ 1135G7B/ 1115G4EB
7www.gigaipc.com
13. Watch out for high temperatures when the system is running.
14. Do not touch the heat sink or heat spreader when the system is
running
15. Never pour any liquid into the openings. This could cause fire or
electric shock.
16. As most electronic components are sensitive to static electrical
charge, be sure to ground yourself to prevent static charge
when installing the internal components. Use a grounding
wrist strap and contain all electronic components in any static-
shielded containers.
17. If any of the following situations arises, please the contact our
service personnel:
i. Damaged power cord or plug
ii. Liquid intrusion to the device
iii. Exposure to moisture
iv. Device is not working as expected or in a manner as described
in this manual
v. The device is dropped or damaged
vi. Any obvious signs of damage displayed on the device
18. DO NOT LEAVE THIS DEVICE IN AN UNCONTROLLED
ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S
PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO
PREVENT DAMAGE.

8
www.gigaipc.com
FCC Statement
This device complies with Part 15 FCC Rules. Operation
is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device
must accept any interference received including
interference that may cause undesired operation.
Caution:
There is a danger of explosion if the battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions and your local government’s
recycling or disposal directives.
Attention:
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte.
Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le
constructeur. Recycler les batteries usées en accord avec les instructions du fabricant
et les directives gouvernementales de recyclage.

3.5” SBC Boards QBiP-1165G7B/ 1135G7B/ 1115G4EB
9www.gigaipc.com
China RoHS Requirements (CN)
产品中有毒有害物质或元素名称及含量
GIGAIPC Main Board/ Daughter Board/ Backplane
部件名称
有毒有害物质或元素
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
印刷电路板
及其电
子组件
○ ○ ○ ○ ○ ○
外部信号
连接器
及线材
○ ○ ○ ○ ○ ○
O：表示该有毒有害物质在该部件所有均质材料中的含量均在
SJ/T 11363-2006 标准规定的限量要求以下。
X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出
SJ/T 11363-2006 标准规定的限量要求。
备注：此 产 品 所 标 示 之 环 保 使 用 期 限，系 指 在 一 般 正 常 使 用 状 况下。

10
www.gigaipc.com
China RoHS Requirement (EN)
Poisonous or Hazardous Substances or Elements in Products
GIGAIPC Main Board/ Daughter Board/ Backplane
Component
Poisonous or Hazardous Substances or Elements
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
Chromium
(Cr(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl Ethers
(PBDE)
PCB & Other
Components O O O O O ○
Wires &
Connectors
for External
Connections
O O O O O O
O：The quantity of poisonous or hazardous substances or elements found in each
of the component's parts is below the SJ/T 11363-2006-stipulated requirement.
X: The quantity of poisonous or hazardous substances or elements found in at least
one of the component's parts is beyond the SJ/T 11363-2006-stipulated requirement.
Note: The Environment Friendly Use Period as labeled on this
product is applicable under normal usage only

3.5” SBC Boards QBiP-1165G7B/ 1135G7B/ 1115G4EB
11 www.gigaipc.com
Table Contents
3.5” SBC Boards 1
User’s Manual 1st Ed 1
Copyright Notice .......................................................................... 2
Acknowledgement ....................................................................... 3
Packing List................................................................................... 4
About this Document ................................................................... 5
Safety Precautions ....................................................................... 6
FCC Statement.............................................................................. 8
China RoHS Requirements (CN).................................................... 9
China RoHS Requirement (EN) ................................................... 10
Chapter 1 - Product Specifications 13
1.1 Specifications ............................................................... 15
17
Chapter 2 – Hardware Information 17

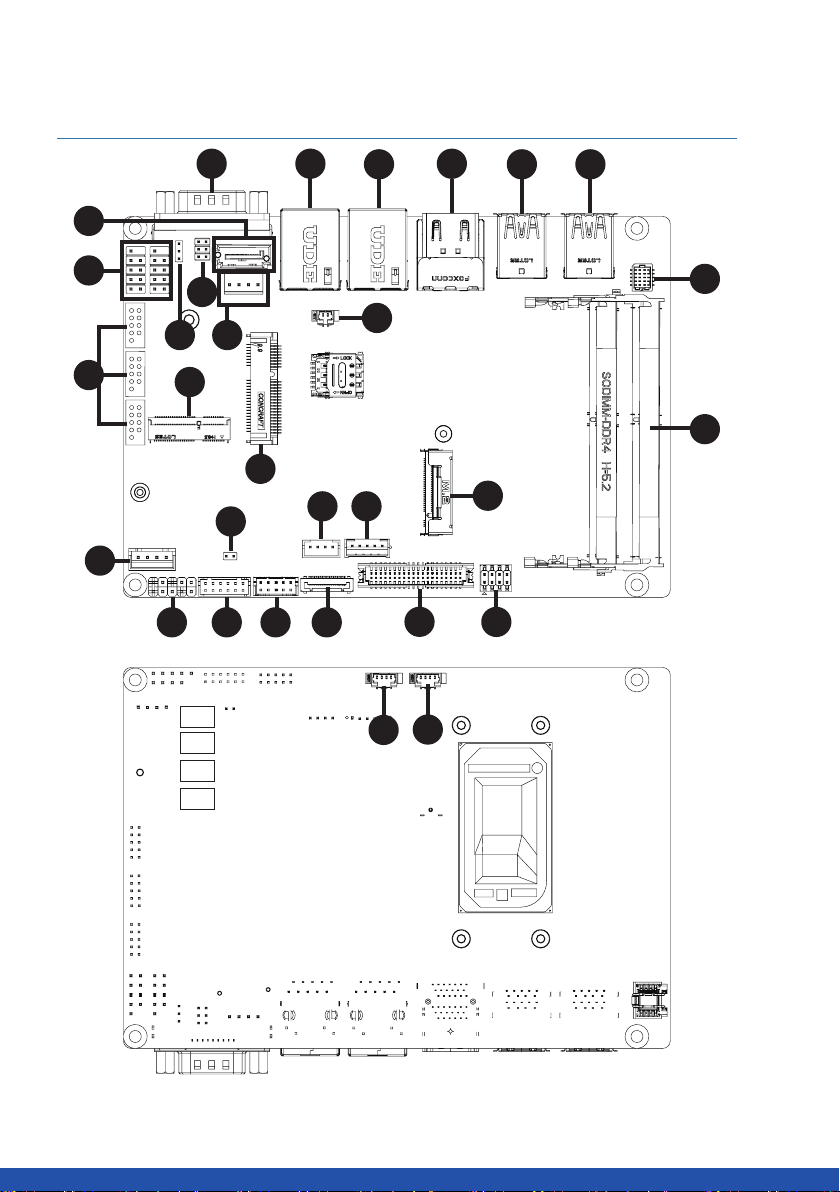

2.1 Jumpers and Connectors ............................................. 18
2.2.1 SYS_FAN (System fan connector) ................................. 21
2.2.2 CPU_FAN (CPU fan connector) ..................................... 22
2.2.3 FUSB1, FUSB2 (USB2.0 headers) ................................... 23
2.2.4 AT_CN (AT/ATX power mode select jumper) .............. 24
2.2.5 JCOM1 (COM1 RI# pin RI#/5V/12V Select).................... 25
2.2.6 SATA0 (SATA 6Gb/s connector) ................................... 26
2.2.7 SATAPW0 (SATA 6Gb/s power connector) .................... 27
2.2.8 COM2, COM3, COM4 (Serial port header, ................... 28
RS-232/422/485)........................................................... 28

12
www.gigaipc.com
2.2.9 M2E (M.2 Slot, E-key, NGFF2230, WiFi & Bluetooth
module)......................................................................... 29
2.2.10 MPCIE (Mini PCIe full size, support 3G/4G module) ..... 29
2.2.11 BATTERY (Battery cable Connector) ............................. 30
2.2.12 DC_IN (DC IN 1x4 pin power connector) ...................... 31
2.2.13 SYS_PANEL (Front panel header) .................................. 32
2.2.14 GPIO_CNT (General Purpose input/output header) ..... 33
2.2.15 FP_AUDIO (Front Audio connector) .............................. 34
2.2.16 PCIEX1 (PCIe Gen3 x1 connector)................................. 35
2.2.17 ME (ME Enable jumper) ................................................ 36
2.2.18 SPK_OUT (Speaker out connector) ............................... 37
2.2.19 BKL_CN (Back light brightness control header) ............ 38
2.2.20 LVDS (LVDS connector)................................................ 39
2.2.21 LSW (LVDS resolution jumper).................................... 40
2.2.22 M2M (M.2 Slot, SATA/PCIeX2, NGFF 2280) ...................41
2.2.23 SODIMM1, SODIMM2 (DDR4 SO-DIMM Slot)................41
2.2.24 TPM (Trusted Platform Module Connector)................. 42

3.5” SBC Boards QBiP-1165G7B/ 1135G7B/ 1115G4EB
13 www.gigaipc.com
Chapter 1
Chapter 1 - Product Specifications

14
www.gigaipc.com
8.89 133.96
146
3.18 95.2
101.7
19.65

3.5” SBC Boards QBiP-1165G7B/ 1135G7B/ 1115G4EB
15 www.gigaipc.com
1.1 Specifications
Motherboard QBiP-1165G7B QBiP-1135G7B QBiP-1115G4EB
Form Factor 3.5’’ SBC
146W x 101.7Dmm
CPU
Intel® Core™ i7-
1165G7 Processor
10nm SuperFin,
4 cores, 8 threads,
up to 4.7 GHz,
TDP28W
12 MB Smart Cache
Intel® Core™ i5-
1135G7 Processor
10nm SuperFin,
4 cores, 8 threads,
up to 4.2 GHz,
TDP28W
8 MB Smart Cache
Intel® Core™ i3-
1115G4E Processor
10nm SuperFin,
2 cores, 4 threads,
up to 3.90 GHz,
TDP28W
6 MB Smart Cache
Socket 1 x FCBGA1449
Chipset —
Memory 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 3200 MHz memory modules
Ethernet 2 x GbE LAN ports (Intel® i219V and Intel® i211AT)
Video
Integrated Graphics Processor - Intel® Iris®
Xe Graphics:
2 x HDMI2.0 port, supporting a maximum
resolution of 4096 x 2304 @60Hz
1 x LVDS port, supporting a maximum
resolution of 1920 x 1080@60 Hz
* Support up to 3 displays at the same time
Integrated Graphics
Processor - Intel® UHD
Graphics:
2 x HDMI2.0 port,
supporting a maximum
resolution of 4096 x
2304 @60Hz
1 x LVDS port,
supporting a maximum
resolution of 1920 x
1080@60 Hz
* Support up to 3
displays at the same
time
Audio Realtek® Audio codec
Storage 1 x SATA 6Gb/s port
Raid Intel® SATA RAID 0/1

16
www.gigaipc.com
Motherboard QBiP-1165G7B QBiP-1135G7B QBiP-1115G4EB
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size mini PCIe with SIM slot
1x PCIe x1 (Board to Wire connector, PCIe Gen3 x 1)
Internal I/O
1 x 4 pin box power connector (DC in +9V ~ 48VDC)
1 x SATA Power headers
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
3 x COM headers (RS-232/422/485)
1 x Backlight control header
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBUS header
1 x SPI header
Rear I/O
1 x COM port (RS-232/422/485 and RI/5V/12V)
2 x HDMI
2 x RJ45 LAN ports
4 x USB3.2 Gen2x1
TPM 1 x TPM Header
OS
Compatibility Windows® 10 (x64)
Operating
Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)

3.5” SBC Boards QBiP-1165G7B/ 1135G7B/ 1115G4EB
17 www.gigaipc.com
Chapter 2
Chapter 2 – Hardware Information

18
www.gigaipc.com
2.1 Jumpers and Connectors
1
26
20
27
9
18
28
17
24
25
14
8
13
2
27 25
23
22
21
19
1615
12
10
3
4
5
6
711

3.5” SBC Boards QBiP-1165G7B/ 1135G7B/ 1115G4EB
19 www.gigaipc.com
No Code Description
1SYS_FAN System fan connector
2CPU_FAN CPU fan connector
3FUSB1, FUSB2 USB2.0 headers
4AT_CN AT/ATX power mode select jumper
5JCOM1 COM 1 (COM RI# pin RI#/5V/12V Select)
6SATA0 SATA 6Gb/s connector
7SATAPW0 SATA 6Gb/s power connector
8COM2, COM3,
COM4 Serial port header (RS-232/422/485)
9M2E M.2 Slot, E-key, NGFF2230, WiFi & Bluetooth
module
10 MPCIE Mini PCIe full size, support 3G/4G module
11 BATTERY Battery cable connector
12 DC_IN DC IN 1x4 pin power connector
13 SYS_PANEL Front panel header
14 GPIO_CNT General purpose input / ouput header
15 FP_ AUDIO Front Audio connector
16 PCIEX1 PCIe Gen3 x1 connector
17 ME ME Enable jumper
18 SPK_OUT Speaker out connector
19 BKL_CN Back light brightness control header
20 LVDS LVDS connector
21 LSW LVDS resolution jumper
22 M2M M.2 Slot, SATA/PCIex2, NGFF 2280

20
www.gigaipc.com
No Code Description
23 SODIMM1
SODIMM2 DDR4 SO-DIMM Slot
24 TPM Trusted Platform Module connector
25 USB31_1
USB31_2 USB3.2 Gen2x1 connector
26 HDMI_21 HDMI connector
27 LAN1, LAN2 LAN connector
28 COM1 Serial port
