1AB196360006-GT
OPTO TRX SFP L-4.1 DDM -40/+85 ALU Compatible
Digital Diagnostic Functions
The SFP supports the 2-wire serial communication protocol as defined in the SFF 8472. Digital diagnostic
information are accessible over the 2-wire interface at the address 0xA2. Digital Diagnostics are internally
calibrated by default. A micro controller unit inside the transceiver gathers the monitoring information and reports
the status of transceiver.
Transceiver Temperature- Internally measured, represented as a 16 bit signed twos complement value in
increments of 1/256 degrees Celsius, Temperature accuracy is better than ±3 degrees Celsius over specified
operating temperature and voltage.
Transceiver Supply Power- Internally measured, represented as a 16 bit unsigned integer with the voltage
defined as the full 16 bit value (0 –65535) with LSB equal to 100 μVolt, yielding a total range of 0 to +6.55 Volts.
Transceiver TX bias current- Internally measured, represented as a 16 bit unsigned integer with the current
defined as the full 16 bit value (0 –65535) with LSB equal to 2 μA, yielding a total range of 0 to 131mA. Accuracy is
better than ±10% over specified operating temperature and voltage.
Transceiver TX output power- Internally measured, represented as a 16 bit unsigned integer with the power
defined as the full 16 bit value (0 –65535) with LSB equal to 0.1 μW. Data is assumed to be based on measurement
of laser monitor photodiode current. Accuracy is better than ±3dB over specified temperature and voltage. Data is
not valid when the transmitter is disabled.
Transceiver RX received optical power- Internally measured, represented as a 16 bit unsigned integer with the
power defined as the full 16 bit 35 value (0 –65535) with LSB equal to 0.1 μW. Accuracy is better than ±3dB over
specified temperature and voltage.

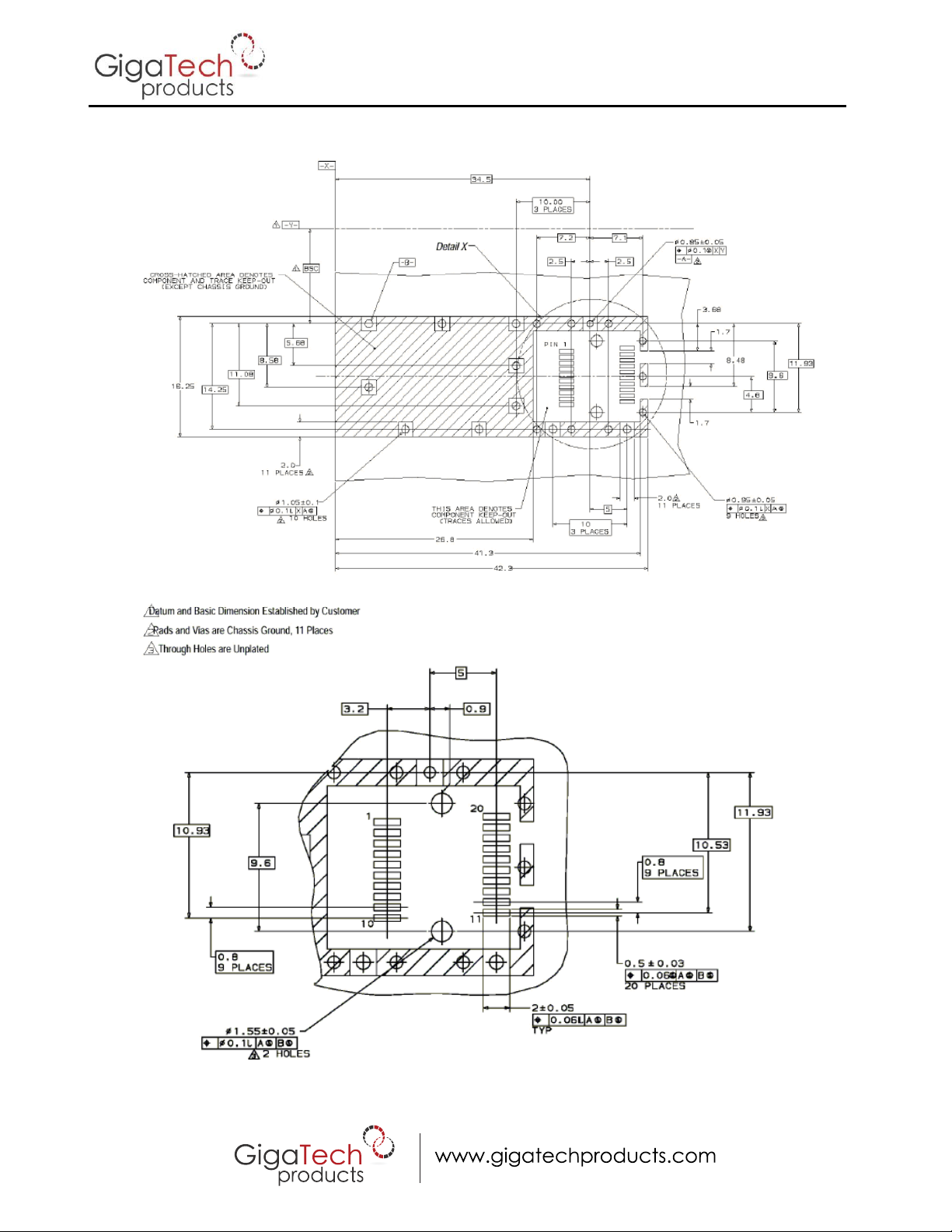

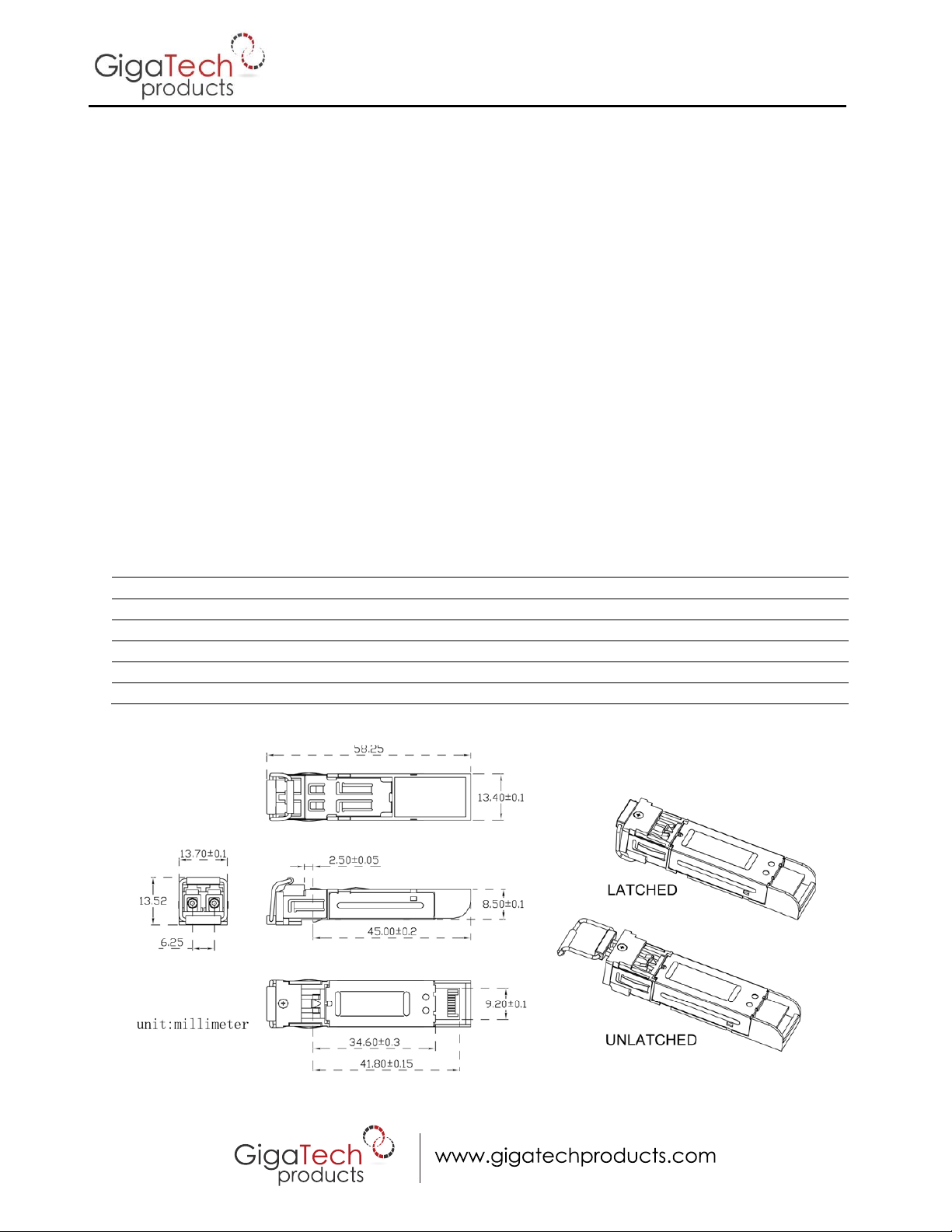

Dimensions
ALL DIMENSIONS ARE ±0.2mm UNLESS OTHERWISE SPECIFIED UNIT: mm
