BUILD AREA
35'
35'
30' OPENING RECOMMENDED

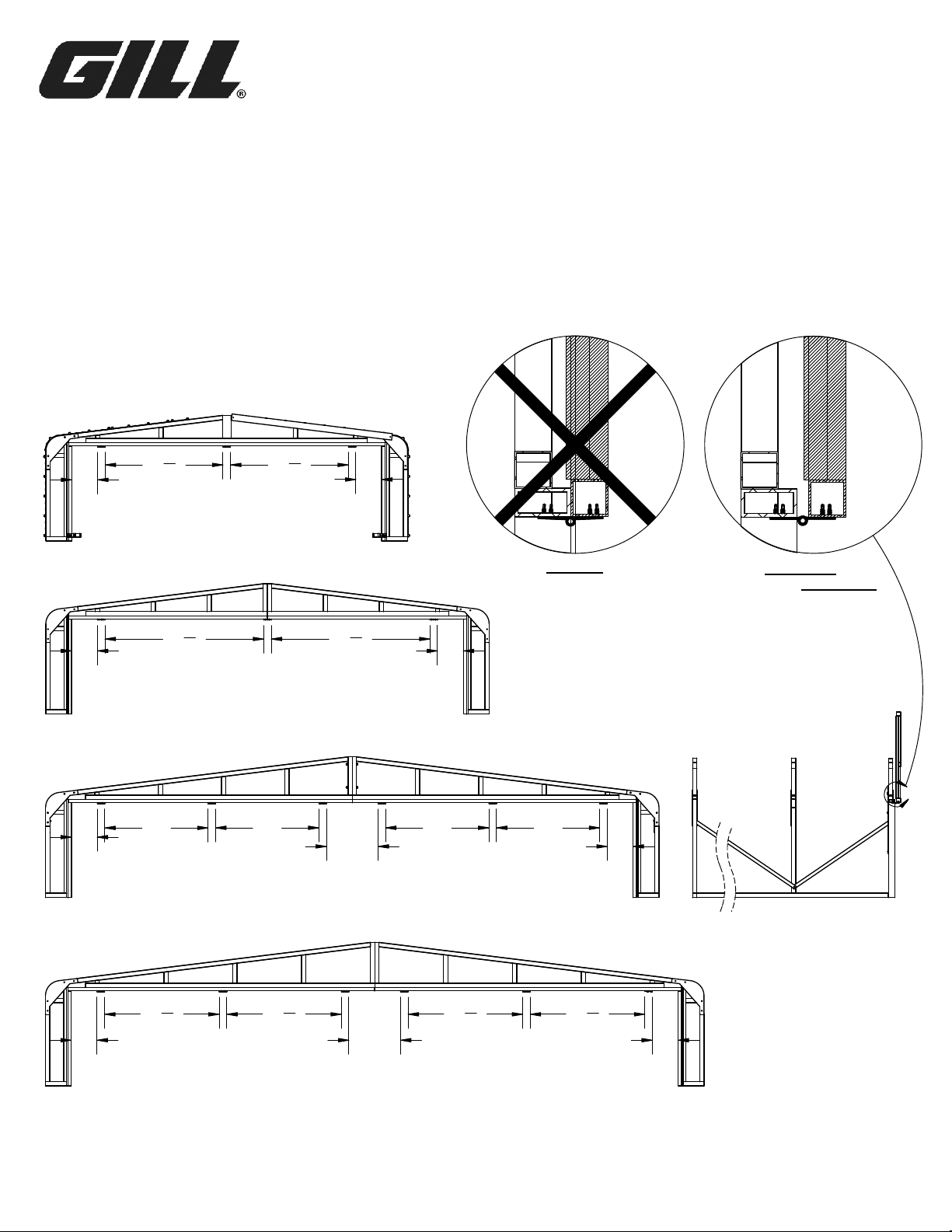

881018 SMALL HJ GARAGE - 16'-6"
881425 LARGE HJ GARAGE - 19'-8"
882021 SMALL PV GARAGE - 26'-4"
883022 LARGE PV GARAGE - 27'-10"
BUILD AREA
DIP
LANDING AREA
AS POSSIBLE.
BUILD AREA

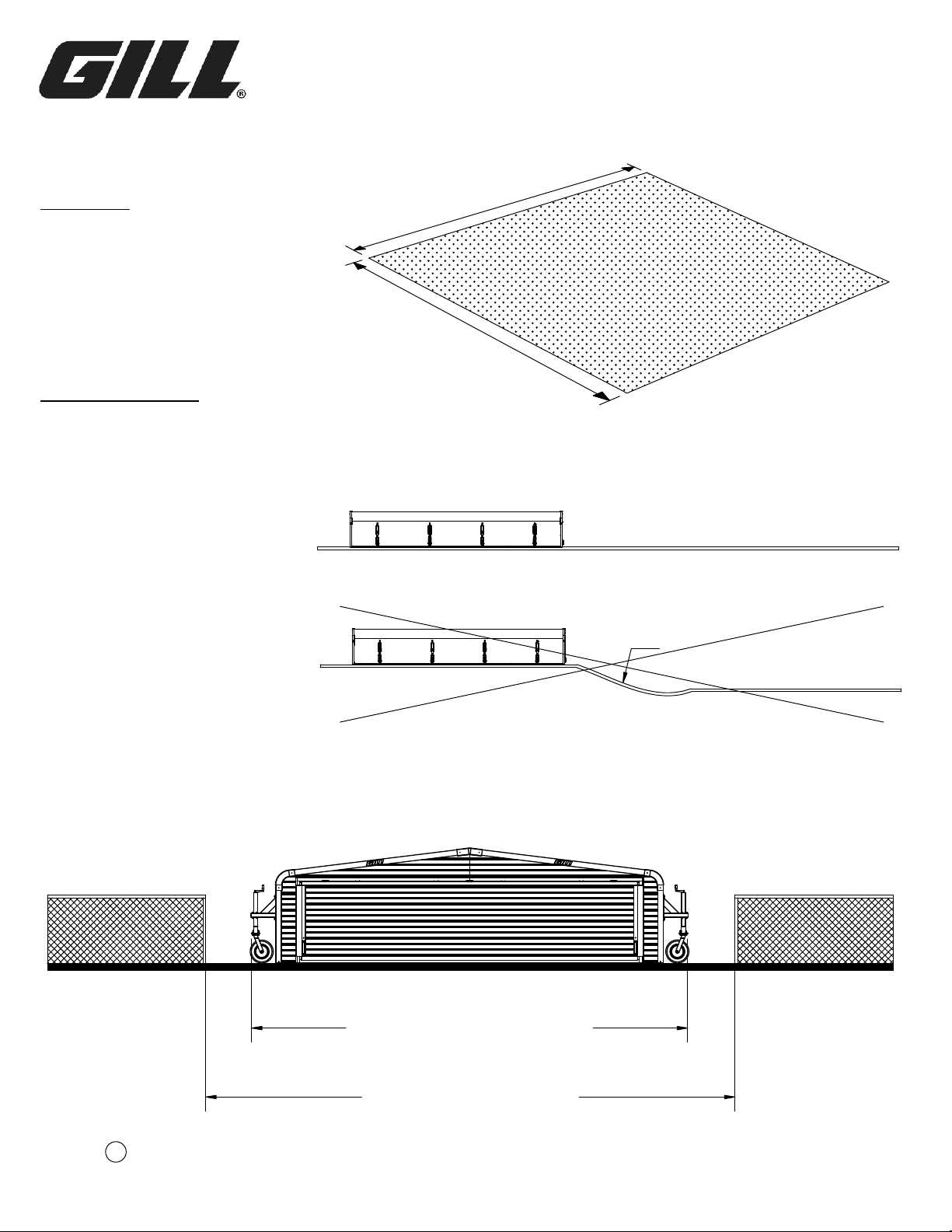

THIS AREA NEEDS TO BE AS FLAT
EACH PIT GARAGE.
IS RECOMMENDED TO ASSEMBLE
A MINIMUM AREA OF 35'x35'
MOVING THE GARAGE
MAKE SURE THAT THE PIT GARAGE
CAN BE MANEUVERED FROM THE
BUILD LOCATION TO THE LANDING
AREA WITH MINIMAL OBSTACLES
BLOCKING THE PATH.
IF GARAGE IS ASSEMBLED AWAY
FROM THE LANDING AREA, A 30'
WIDE PATH NEEDS TO BE AS
FLAT AS POSSIBLE WITHOUT ANY
OBSTACKLES SUCH AS TREES,
FENCES OR DIPS IN TERRAIN.
A SLIGHT SLOPE IS PERMISSABLE
IF CONSISTENT AND DOES NOT
DIP OR RISE TOO EXTREME
PREVENTING THE WHEELS AND
GARAGE UNDERSIDE TO GET
STUCK.
IF GROUND CONDITIONS ARE NOT
SUITABLE, THE PIT GARAGE MIGHT
NOT BE USABLE
