Giotto Cellini Premium User manual

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 1 of 25












User’s Manual

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 2 of 25
Summary
Page Description
3 General data
4 Important safeguards
5 Introduction
6 Instruction for use
8 Description of external components
9 Installation
10 Technical data
11 Start up
15 Brewing espresso
18 Dispensing steam
19 Dispensing hot water
20 How to disassemble/dismantle the machine
21 Proper care and maintenance
22 Espresso glossary and recipes
23 Trouble shooting

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 3 of 25
General data
Manufacturer: ECM S.p.A.
Viale delle Industrie 26
20090 Settala (Mi)
Italy
Phone + 39 02 950 754 1
Fax + 39 02 950 754 99
Email [e-mail]
Model: Giotto
Manufactured since: 1997
Distributed by:

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 4 of 25
Important Safeguards
1. Read all Instructions
2. Do not touch hot surfaces. Use handle or knobs.
3. To protect against electric shock do not immerse cord and plugs in water or other
liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before
putting on or taking off parts.
6. Do not operate any appliance with a damaged cord, plugs, or after the appliance
malfunctions or has been damaged in any manner. Return appliance to the
nearest authorized service facility for examination, repair, or adjustment.
7. The use of accessory attachments not recommended by the appliance
manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner or in a heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or
other hot liquids.
12. Always attach plug to appliance first, then plug cord into wall outlet. To
disconnect, turn any control to “off”, then remove plug from wall outlet.
13. Do not use appliance for other than intended use.
14. Save these instructions.

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 5 of 25
Introduction
Please read this technical handbook carefully since it provides important
information on the correct installation, use and maintenance of your ECM
coffee machine.
The information contained in this manual is necessary for the safe installation and
operation of your ECM coffee machine. It should be retained in a safe place for future
reference. Copies are available from your local ECM dealer.
The information contained in this manual relating to installation and operation is not a
substitute for safety instructions and technical data affixed to the machine and/or its
packaging.
The manual provides information that is current at the time of publication. The
information is subject to amendment or alteration without notice.
Your ECM machine should only be operated in accordance with instructions contained
in this manual and verbal instructions and training provided by an authorised ECM
dealer.
Installation and maintenance should only be carried out by technicians and service
providers authorised by ECM.
ECM accepts no liability for injury and damage to person, persons or property caused
by incorrect installation, misuse, and user negligence, neglect of the machine or any
other circumstances beyond its control.

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 6 of 25
Instruction for use
This machine has been designed for the sole purpose of producing coffee, hot water and
steam for hot beverages.
All other uses are outside of the scope of this machine and, therefore, dangerous and
hazardous.
The machine has been designed from safe, accessible, durable components and
materials and manufactured to the highest standards for use only in home / domestic
environment.
The machine should not be exposed to elements such as sunlight, rain, snow, extreme
temperatures etc.
The machine must be operated by responsible adult persons who know the use of the
equipment and should not be used by children, minors or untrained persons.
To protect against electric shock do not immerse machine, cord and plugs in water or
other liquid and do never let machine’s internal parts get in touch with liquids.
The user should be fully conversant with safety operating procedures contained in the
manual and should follow the instructions and advice provided with.
To ensure maximum performance efficiency, it is essential that technical service and
maintenance is carried out exclusively by ECM authorised technicians.
It is the responsibility of the user to notify the manufacturer of any defects or damages
which may affect the safety of the original installation or future safe operation of the
machine.
The user must respect the safety regulations at the point of installation.
The user must check the surrounding area to ensure safe and hygienic use are
guaranteed.
The machine component’s manufacturers are responsible for the parts supplied by them.
The customer is responsible for the personal use of the equipment.
It is the responsibility of the user ensure that the location of the machine is hygienic,
and that its continued safe operation can be guaranteed.
When the machine is not being used for long periods of time, the hydraulic systems
should be drained completely and the machine stored in a temperature above freezing
(0°C or 32°F).
This will prevent the hydraulic system from freezing which could damage internal pipes
and boiler.
All spare parts fitted to the machine must be original ECM components.

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 7 of 25
Before any cleaning or maintenance the machine should be disconnected from the
electric supply.
Never pull the electrical supply cable.
When cleaning the machine never use caustic or abrasive cleaning chemicals.
To avoid electric shocks:
Do not immerse machine itself, cord and plugs in water or other liquid and do never
let machine’s internal parts get in touch with liquids.
Ensure that the machine is installed with a proper earth/ground in accordance to
local safety practises, codes and legislation.
Prevent the power cable from being stretched, or pulled tight.
Avoid using the machine with wet hands.
Never operate the machine in bare feet.
Never operate the machine without ensuring the water reservoir contains water.
The machine must be operated with soft, clean drinking water.
If the local water supply has a high mineral content use a water softener. A build up of
mineral deposit may restrict the flow of water within the hydraulic systems causing
damage to the machine and risking personal injury.
The machine must be switched off whenever it is left unattended.

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 8 of 25

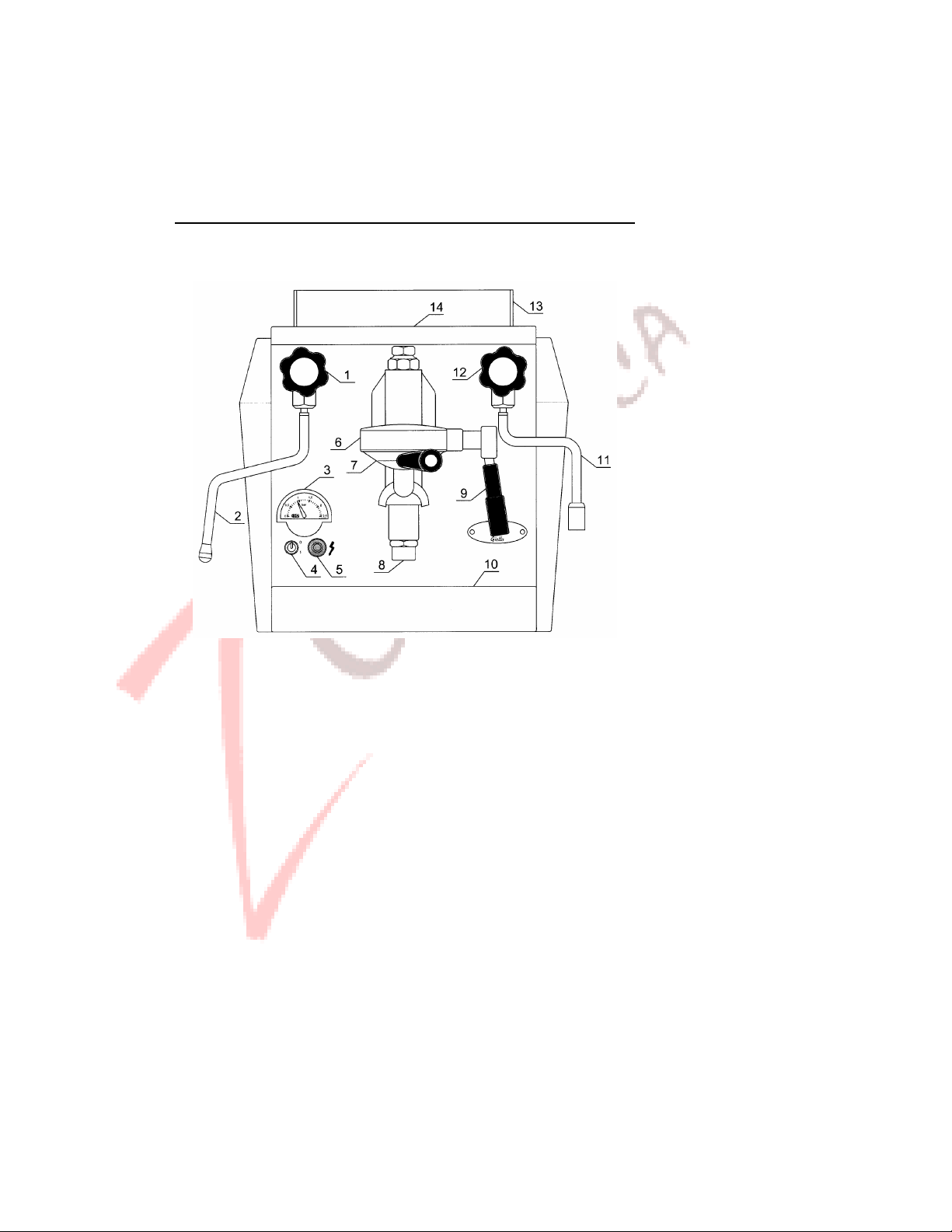

Description of external components
1Steam valve handle. Turn left to open steam; turn right to shut.
2Steam wand. Can become hot and cause burns. Caution!
3Boiler pressure gauge .Boiler pressure should be around 1 Bar.
4Machine’s on/off switch. Position “0” = off; position “1” = on.
5Control lamp “Machine on” (when lightening)
6Brewing head. It’s very hot and can cause burns! Caution!
7Filter holder. Its metal parts can become hot and cause burns. Caution!
8Brewing head’s (or group’s) progressive infusion piston. Unloads hot
water into drip tray once brewing process is terminated. Caution: its metal
parts can become very hot and cause serious burns. Attention to hot water
flow coming out beneath after brewing process is terminated!
9Lever for brewing process control. Caution: its metal parts can become
very hot and cause burns!
10 Drip tray and grid.
11 Hot water wand. Can become very hot and cause serious burns. Caution!
12 Hot water handle. Turn left to open. Turn right to shut.
13 Cups frame.
14 Cups tray. Do never pour any liquid on this tray! It will filter inside the
equipment and can cause electrical shocks and serious injuries. Danger!
Fig. A

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 9 of 25
Installation
All ECM machines are designed to ensure maximum possible user safety. It is,
however, an important responsibility of the user to observe the following safety codes to
further enhance safe installation and operation.
Always ensure that hazardous packing items such as plastic bags, styrofoam, nails,
etc. are properly disposed of to prevent accidental injury to children or other
persons.
If there is evidence of defect or damage to the machine an authorised ECM dealer or
technician should be notified immediately so that remedial action can be taken..
This machine is safe only when it has been correctly connected to an efficient
earthing/grounding system. This should conform to local safety standards and
legislation in force at the time of installation.
Installation of any ECM product should only be undertaken by duly authorised,
properly trained and qualified personnel
Dangerous or improper electrical connections are extremely hazardous and should
never occur.
Always check the integrity of the components elements of the machine.
Never fit defective or damaged spare parts. Always request replacement from ECM.
Before connecting the machine to electric supply, always check that capacity and
power rating at least equals the power requirement of the machine.
Protect the user by fitting a circuit breaker to electric supply feeding the machine.
Never attempt to run the machine with water that is harder than 7°F.
This equipment is to be installed to comply with the
applicable Federal, state, or local plumbing codes having
jurisdiction.

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 10 of 25
Technical data
Brewing groups: 1
Hot steam wands: 1
Hot water wands: 1
Coffee portion control: Manual
Boiler water level control: Automatic
Voltage: Please see machines data plate
Frequency: Please see machines data plate
Wattage: 1300 W
Dimensions: Width 330 mm (13 inches)
Depth 425 mm (16.8 inches)
Height 350 mm (13.8 inches)
Weight: 23 kg (app. 29 lbs)

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 11 of 25

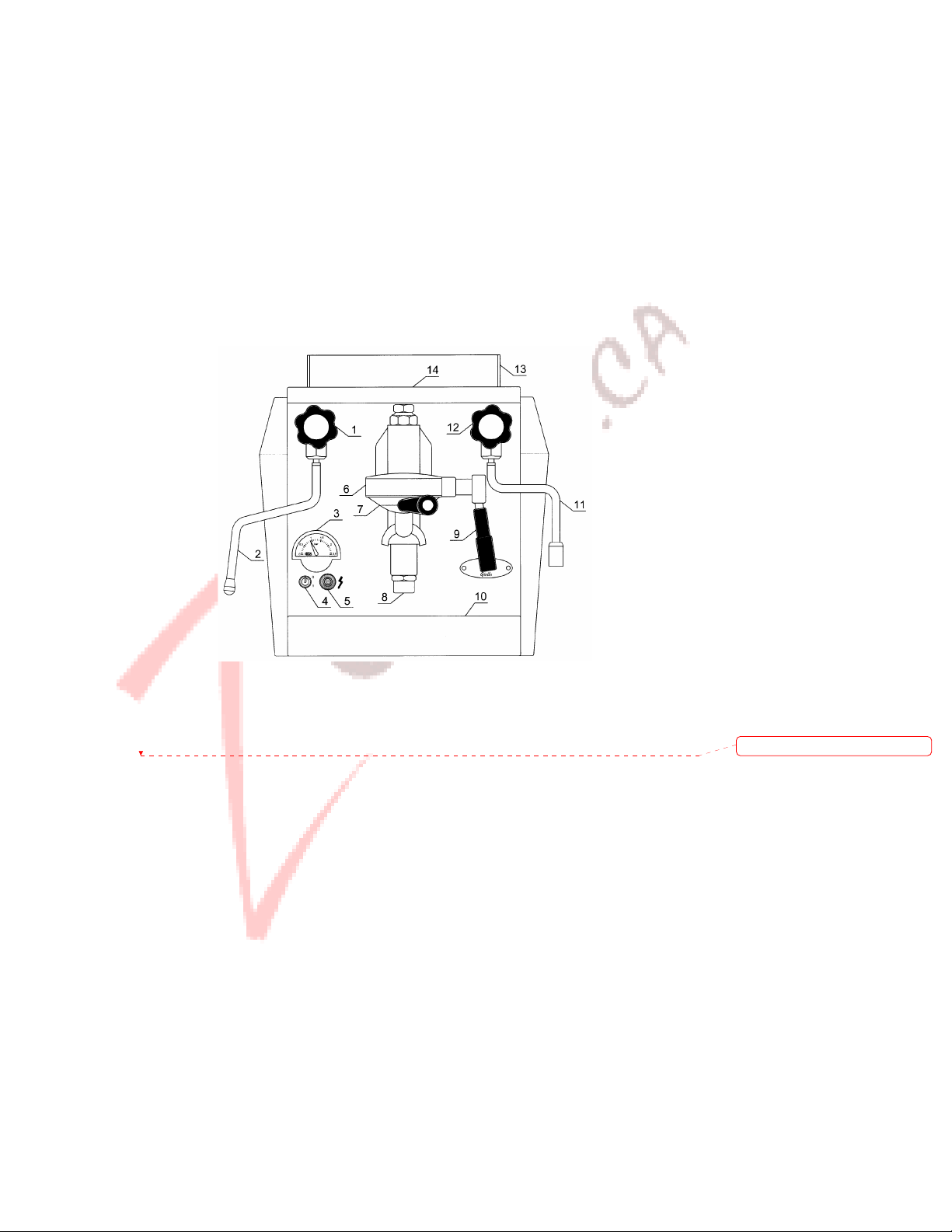

Start up
Parts which can become hot and cause injuries. Caution!
Fig. A
Never touch the following parts. They are or can become hot and could
cause burns:
Fig. A Pos. 1 Metal parts of steam handle
2 Hot steam wand and spout
6 Coffee brewing group
7 Not insulated metal parts of filter holder
8 Infusion piston
9 Not insulated parts of lever
11 Hot water wand and spout
12 Not insulated metal parts of hot water handle

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 12 of 25
We assume the machine is properly installed
Before starting using the machine, please control the following:
Fig. A
1. Lever (Fig. A-9) is completely down.
2. Steam handle (Fig. A-1) is closed.
3. Hot water handle (Fig. A-12) is closed.
4. On/off switch is on position “0” (=machine switched off)
5. Machine is unplugged.
6. Drip tray (Fig. A-10) and its grid are properly placed into the machine.


<sp>

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 13 of 25
Now please proceed as follows:
Fig. A
Fig. B
1. Remove the cover from the water reservoir Fig. B-2
2. Remove the water reservoir (Fig. B-2 and clean it carefully with food quality
cleaning products. It’s very important that the water reservoir is always clean!
Please repeat this operation every day and whenever necessary.
3. Fill the water tank with fresh drinking water to just over ¾ full.
4. Place the tank inside the machine taking care not to spill water.

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 14 of 25
5. Put on the cover on top of the water reservoir.
6. Plug in the machine.

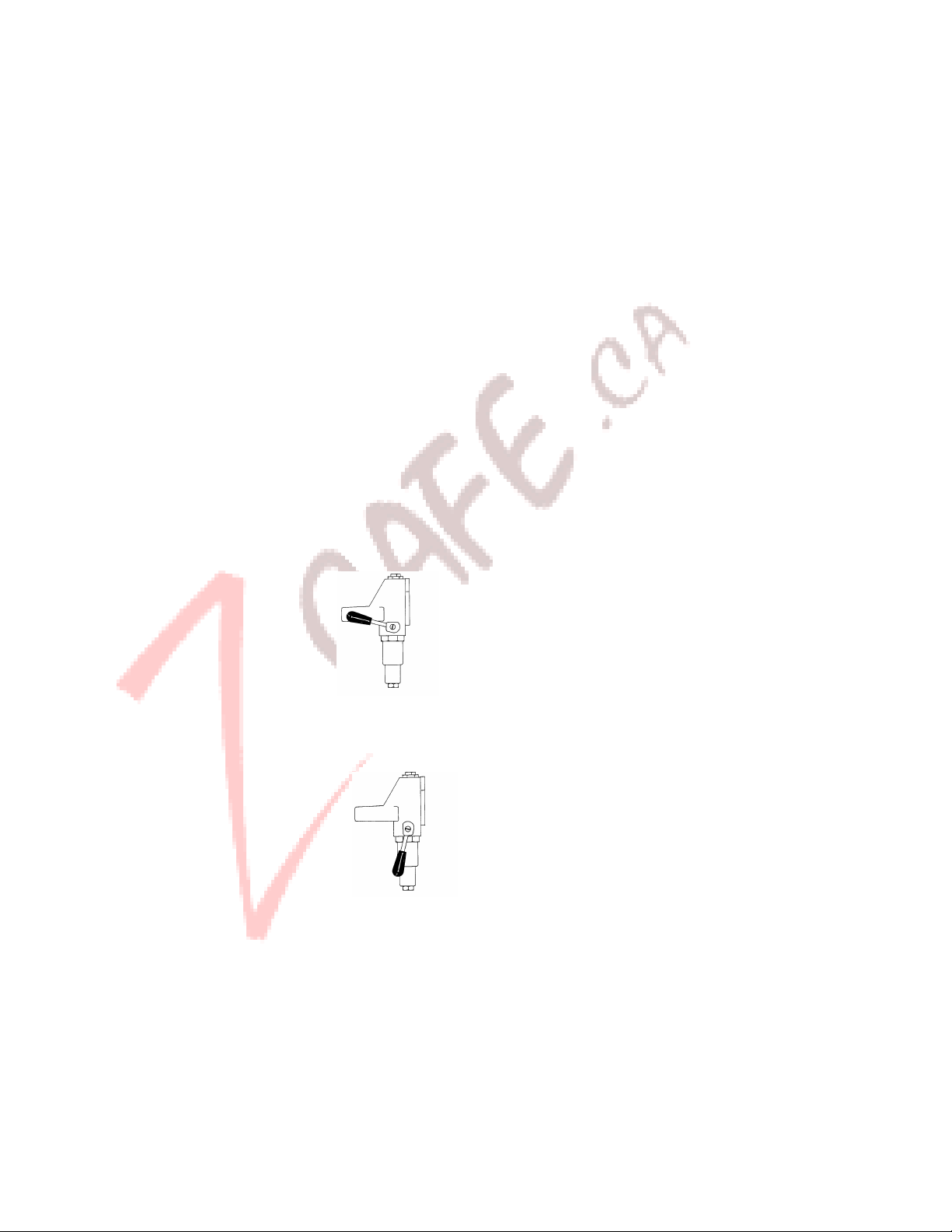

7. Turn the on/off switch (Fig. A-4) to the on position “1” and open the steam handle
(Fig. A-1). Boiler water fill starts (you will hear the pump’s noise).
8. When the boiler is properly filled with water, the pump will stop (=no more noise).
Now close the steam handle (Fig. A-1).
9. The heating up of the boiler water starts.
10. Wait till the boiler pressure gauge (Fig. A-3) reads approximately 1 bar.
11. Now open the steam handle (Fig. A-1) for 5 seconds to let out some steam. This
operation is very important as it removes possible vacuum inside the boiler which
will reflect in suction of milk inside the boiler itself once starting to steam milk.
Close the steam handle (Fig. A-1) again.
12. Wait until the boiler pressure gauge (Fig. A-3) reaches again 1 Bar.
13. Pull the lever (Fig. A-9) completely up.
14. Allow a cup of water to come out of the coffee brewing group (Fig. A-6).
15. Pull the lever (Fig. A-9) completely down (water will stop flowing).
Now the machine is ready for operation.

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 15 of 25

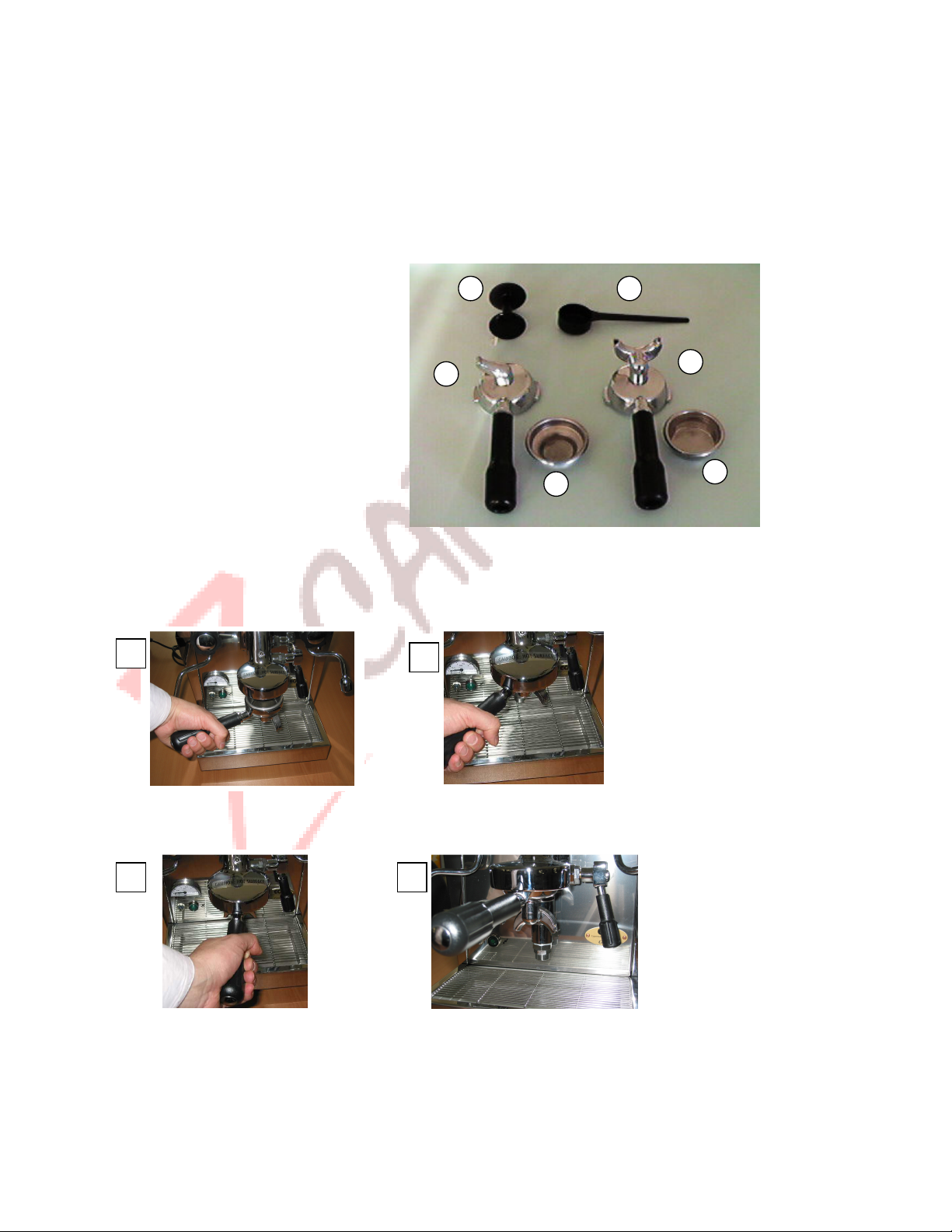

Brewing espresso
The below shown components are supplied with your machine
(the one cup filter holder comes typically on special order)
1 Tamper (A)
1 Measuring spoon (B)
1 Two cups metal filter basket (C)
1 Two cups filter handle (D)
1 One cup metal filter basket (E)
1 One cup filter handle (F)
Suggestion: We strongly suggest that you train how to tighten the filterholder (with the
metal filter basket firmly plugged in) into the brewing head (Fig. A-6).
It seems to be an easy operation. Nevertheless we think it may need some exercise.
3 4
2
1
A B
F
E
C
D

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 16 of 25

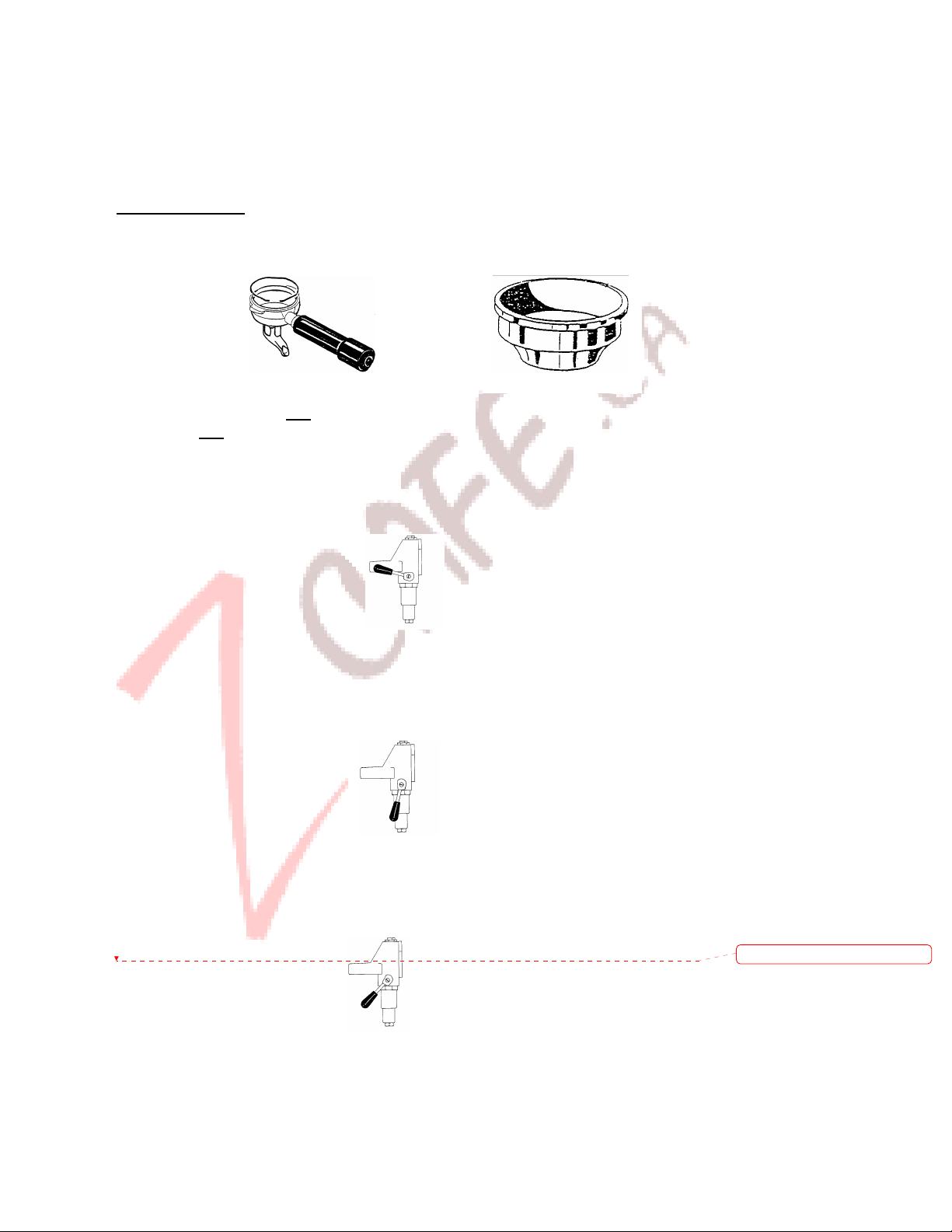

Preparing one or two cups of espresso
Preparing one cup
1. Use one cup filter handle (with 1 spout)
2. Position the metal one cup filter basket firmly inside the filter holder
3. Pour one measuring spoon (app. 6,5-7 g) of ground espresso coffee into the filter
basket
4. Tamp the ground coffee gently using the tamper supplied with the machine
5. Tighten the filter holder firmly into the brewing head (Fig. A-6).
6. Pull the lever (Fig. A-9) completely upwards.
Hot coffee flows into the cups from the filter handle’s coffee spouts.
7. When the desired quantity of coffee (i.e. 25 cc/ 1 oz. for a typical espresso) has
been dispensed, position the lever (Fig. A-9) completely down to stop the coffee
dispensing process.
For safety reasons and to avoid personal injury it’s extremely important that the lever
(Fig. A-9) is positioned completely down and not just to the position where the coffee
stops to flow out and the pump’s noise can’t be heard any more.
Never leave lever (Fig. A-9) in the position as shown here below:
8. Remove the filter holder (Fig. A-7) from the machine and empty used coffee
grounds.


<sp>

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 17 of 25

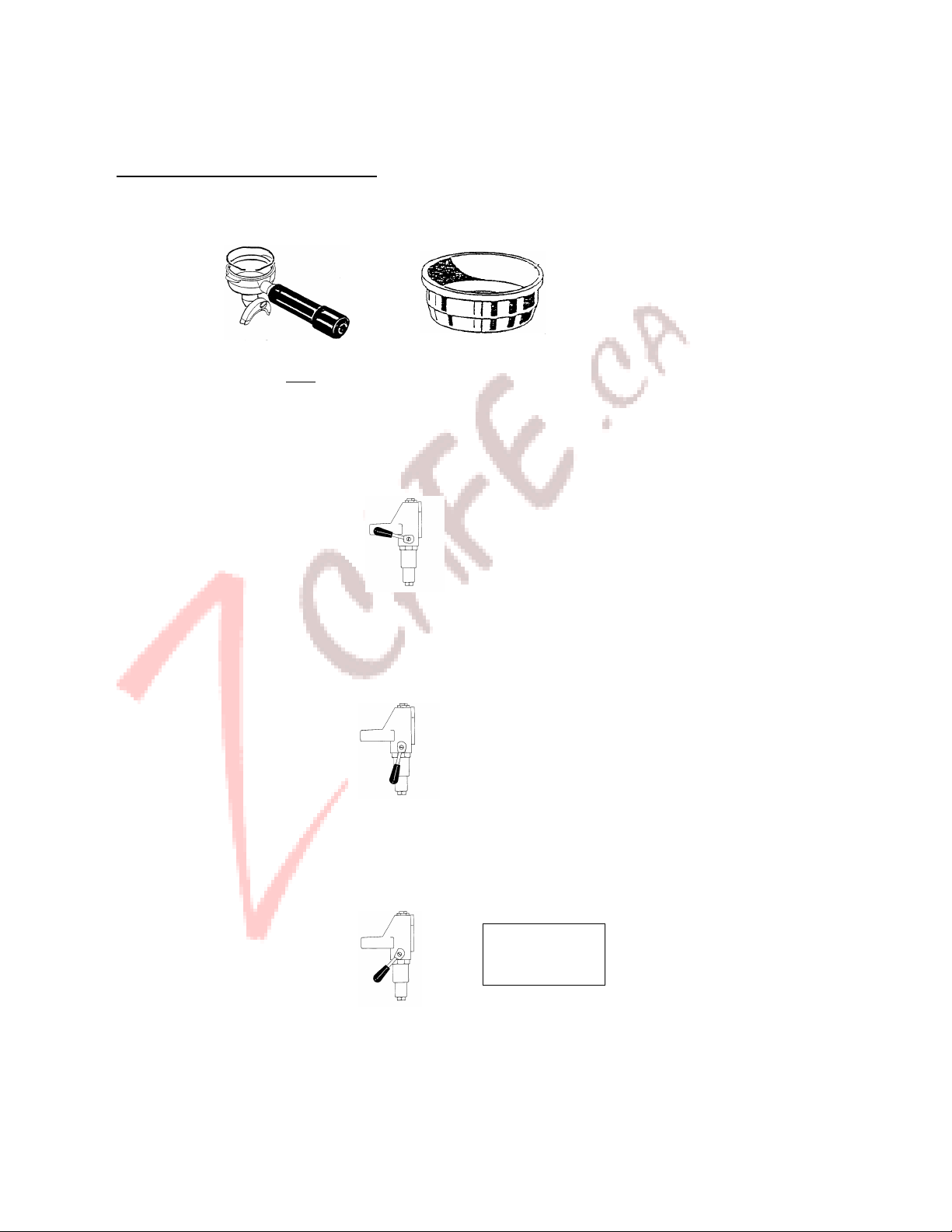

Preparing two cups of espresso coffee
1. Use two cups filter handle (with 2 spouts)
2. Position the metal two cups filter basket firmly inside the filter holder
3. Pour 2 measuring spoons (app. 13-14 g) of ground espresso coffee into the filter
basket
4. Tamp the ground coffee gently using the tamper supplied with the machine
5. Tighten the filter holder firmly into the brewing head (Fig. A-6).
6. Pull the lever (Fig. A-9) completely upwards.
Hot coffee flows into the cups from the filter handle’s coffee spouts.
1. When the desired quantity of coffee has been dispensed, position the lever
(Fig. A-9) completely down to stop the coffee dispensing process.
For safety reasons and to avoid personal injury it’s extremely important that the lever
(Fig. A-9) is positioned completely down and not just to the position where the coffee
stops to flow out and the pump’s noise can’t be heard any more.
Never leave lever (Fig. A-9) in the position as shown here below:
8. Remove the filter holder (Fig. A-7) from the machine and empty used coffee
grounds.
NO!
DANGER !

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 18 of 25
Dispensing steam to froth or heat up liquids
1. Fill a suitable ideally stainless steel pitcher (used for food only) with an
insulated grip with the liquid to be heated up or frothed.
2. Position the steam nozzle of the steam wand (Fig. A-2) inside the liquid in the
recipient just below the surface of the liquid. To avoid personal injury always
ensure that the end nozzle of the steam pipe (Fig. A-2) is below the surface of
the liquid to be steamed.
3. Turn on steam valve (Fig. A-1).
4. Heat up or froth the liquid inside the pitcher.
Pay attention to hot sprays! They may cause injuries.
5. When you’re done, close the steam valve (Fig. A-1).
Clean the steam wand (Fig. A-2) and the steam wand’s end nozzle carefully with
a non abrasive damp cloth after each single use without touching it directly with
any part of the body to avoid injury or damage due to the hot surface of steam
wand end nozzle.
Caution: Hot surface.
Example: Steaming milk
1. Use a clean, cold pitcher and fill 1/3 with cold, fresh milk.
If milk has previously been steamed and stored in the refrigerator, we suggest
adding some fresh milk in order to achieve optimum foam. Milk should be
stored at a temperature around 4-5°C (app. 40°F).
2. Insert steam nozzle (fig. A-2) into the centre milk just below the surface of the
milk.
3. Open steam valve (fig. A-1) rapidly.
4. Steam will come out of the nozzle and froth the milk. The milk volume will
increase rapidly. Please lower the pitcher progressively to make sure that the
steam nozzle is always right below the surface of the milk.

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 19 of 25
5. When enough foam is achieved, submerge nozzle (going sidewise) and keep it in
that position finishing heating milk until the pitcher is too warm to touch.
Please remember that milk should never be steamed over app. 76°C (168°F).
Milk steamed to over this temperature is scalded.
6. Close steam valve (fig. A-1) rapidly, then remove milk pitcher from steam wand.
7. Wipe the steam wand (Fig. A-2) immediately after using with a non abrasive
clean damp towel without touching the steam wand (Fig. A-2) directly with any
part of the body to avoid injury or damage due to the hot surface of steam wand
end nozzle. Use a towel that is designated for the steam wand only. Do not cross
contaminate kitchen towels by using the same towel for cleaning the steam wand
and i.e. kitchen tops.
Do not let the milk bake onto the steam wand.
Clogged wands and steam valves can be expensive to repair or to replace.
8. Burp your steam wand (Fig. A-2) immediately after using opening and closing
immediately after the steam valve (Fig. A-1). Caution: Hot steam will come
out of steam wand (Fig. A-2).
Burping the wand will remove the milk residue from the inside of the nozzle.
9. Finish espresso drinks with correct portions of milk and foam.
10. Clean steam pitcher and store for next drink.
Dispensing of hot water
1. Position the end nozzle of the hot water wand (Fig. A-11) inside a suitable
pitcher used for food only.
2. Open the hot water valve (Fig. A-12).
3, Hot water will be dispensed into the pitcher.
4. Close the hot water valve (Fig. A-12) when you’re done.

User’s manual Giotto espresso coffee machine
__________________________
Subject to change without notice Page 20 of 25
How to disassemble/dismantle the machine
The machine has to be disassembled and dismantled by an authorized technician.
Disassembling of the machine:
Operations to be effected with machine in working conditions at operating temperature.
1. Place a recipient (with insulated grip) under the hot water wand (Fig. A-11).
2. Open the hot water valve (Fig. A-12) and let hot water flow in the recipient.
3. When no more hot water comes out, close the hot water valve (Fig.A-12).
4. Put on/off switch (Fig.A-4) to position “O” (machine off).
5. Unplug the machine from the electrical mains.
Operations to be effected with machine switched off and cooled down to room
temperature
1. Empty the fresh water reservoir and clean it carefully before replacing it back
into the machine.
2. Make sure that the lever (Fig. A-9) is completely down.
3. Store the machine in a safe, dry place.
