Glastender DI-FR User manual

Operation Manual and Parts Directory
Glastender, Inc. · 5400 North Michigan Road · Saginaw, MI · 48604-9780
800.748.0423 · 989.752.4275 · Fax [phone] · www.glastender.com
FRA-24, FRA-36, FRB-24, FRB-36, DI-FR, DI-FR-DW, DI-FR36, DI-FR36-FL,
DI-FR36-DW, DI-FR36-DW-FL
Ice cream Freezers
© 2008 Glastender, Inc.
DI-FR-DW
Rev. 08-26-08
FRA-24

IMPORTANT !!
Attention Service Companies
Please review the important warranty information on page 3 of this
manual. If labor warranty applies, authorization must be obtained
from the factory prior to the service being performed. Please call the
factory between 8:00AM and 5:00PM EST, Monday through Friday.
Topic Page
Utility Requirements and Connections........................................................... 1
Operation......................................................................................................... 1
Cleaning Instructions ...................................................................................... 1
Uncrating and Start-Up Instructions...............................................................2
Drop-In Model Installation Instructions ......................................................... 2
Terms and Conditions ..................................................................................... 3
Warranty.......................................................................................................... 3
Replacement Parts........................................................................................4-5
Wiring Diagram .............................................................................................. 5
Index
Visit our web site for current specication sheets, operations manuals, parts directories and price lists
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 1
1
IntroductIon
Cleaning is essential to sustaining the integrity of your equipment and preventing corrosion.
ESTIMATED CLEANING TIME: 5 to 10 minutes per unit daily.
FREQUENCY: Daily cleaning of exterior & door gaskets. Interior un-thawing and cleaning as necessary.
PROCEDURE:
1. A non-chlorine based cleaner or mild detergent and warm water applied with a soft cloth or sponge to all con-
tact surfaces.
2. Immediately rinse off cleaning agent(s), using clean warm water, clean soft cloth or sponge.
3. Dry with a soft clean cloth, removing standing water as soon as possible.
NOTES:
1. Never use hydrochloric acid, wire brushes, steel wool, scrapers, or chlorine based cleaners on stainless steel
surfaces, since they will break down the passivity layer and allow corrosion to occur.
2. On stainless steel surfaces, you may use a soft bristle brush or Scotch-Brite®pad for more stubborn stains.
Always scrub with the direction of the grain. Follow with a thorough cleaning as described above.
3. Deposits from food preparation must be properly removed. Even hard water deposits will rust stainless steel,
if not removed.
4. Door gaskets are most often overlooked when cleaning. Failure to clean them regularly will lead to premature
failure, since alcohol, debris, and moisture build-up breaks down the gasket material.
5. When excess frost builds up on the interior liner, store ice cream in the kitchen freezer and unplug the unit for
the night. First thing the next morning, clean the interior, using a sponge to soak up excess moisture.
6. NEVER use a pick or sharp object to remove frost from the interior liner.
This manual describes the operation features of the Ice Cream Freezer. Please review this information before
attempting installation and operation.
Long term, trouble-free operation will follow if good housekeeping and maintenance procedures are followed.
Thank you for selecting Glastender, Inc. products.
utIlIty requIrements and connectIons
cleanIng InstructIons
Electrical: 115 Volt AC, 1 Phase, 60 Hz, 4.68 full load amps. A dedicated 15 amp circuit is recom-
mended. A 6-foot grounded cord is included.
Plumbing: 1. Without dipper well - none required.
2. With dipper well-
• Drain: 1-1/2” PVC tailpiece provided.
• Water Supply: 3/8” chrome riser provided.
operatIon
The Ice Cream Freezer is designed to store ice cream. The FRA-24, FRB-24, and DI-FR models hold one 3-
gallon container and the FRA-36, FRB-36, and DI-FR36 models hold two 3-gallon containers. The operating
temperature range is -5ºF (-21ºC) to 10ºF (-12ºC).

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
2
Ice Cream Freezer models are shipped in one carton. These steps should be followed:
1. If legs are included, bolt them to the base with bolts provided.
2. Unwrap power cord.
3. Position unit and level.
4. Plug into 115 volt AC outlet.
5. Your Glastender equipment is now ready for use.
uncratIng and start-upInstructIons
drop-Inmodel InstallatIon InstructIons
FOR AIR FLOW
MINIMUM 5" CLEARANCE
MINIMUM 5" CLEARANCE
FOR AIR FLOW
DI-FR DI-FR-DW DI-FR36
DI-FR36-FL DI-FR36-DW-FL
DI-FR36-DW

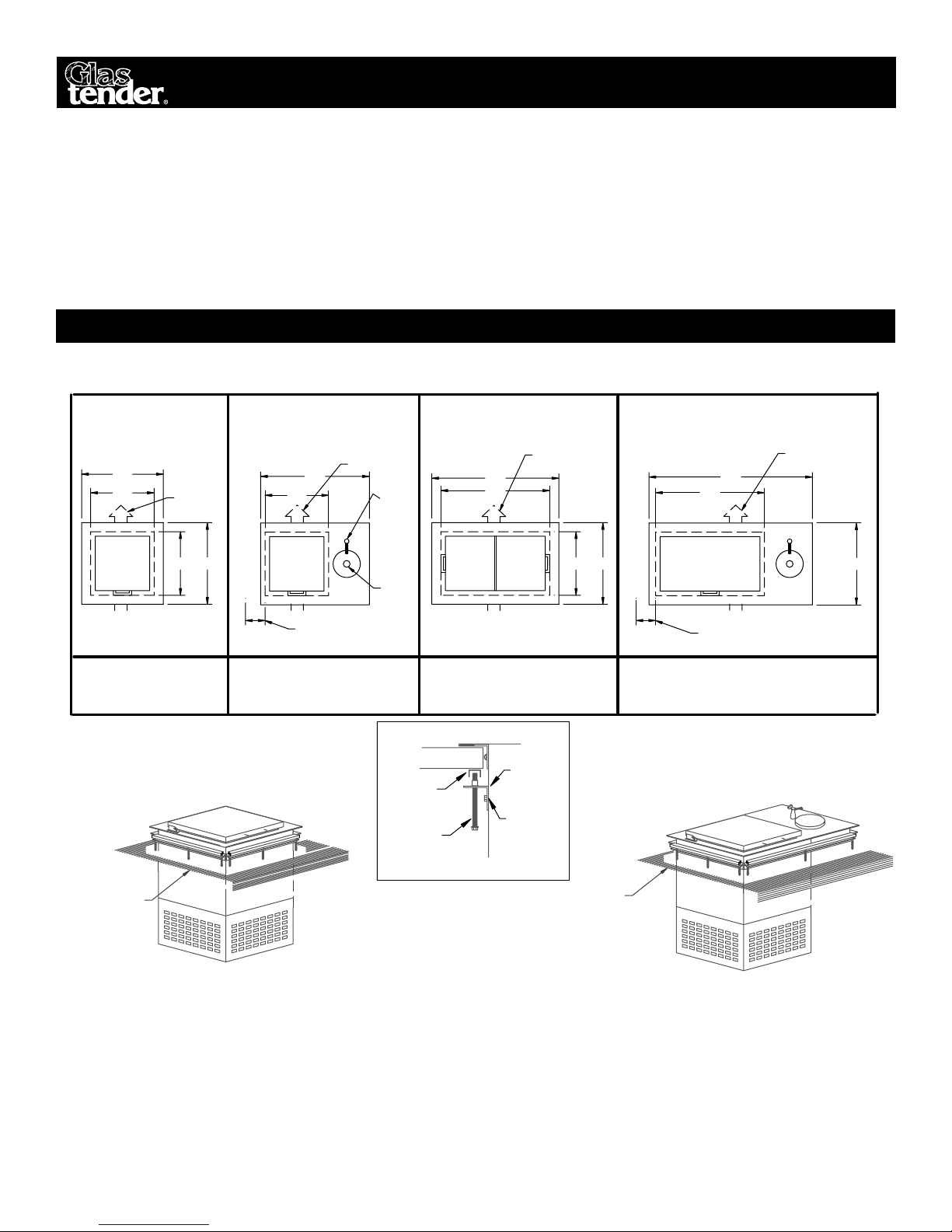

PLAN VIEWS
14" 18"
14"
18"
AIR FLOW 14"
24"
AIR FLOW
COLD
WATER
DRAIN
24"
28"
AIR FLOW AIR FLOW
24"
34"
18"14"
CUT-OUT DIMENSION
14-3/4" X 14-3/4" 22-3/4" X 14-3/4"
CUT-OUT DIMENSION
24-3/4" X 14-3/4"
CUT-OUT DIMENSION
32-3/4" X 14-3/4"
CUT-OUT DIMENSION
18"
2. Place freezer into appropriate size cut-out
INSTALLATION INSTRUCTIONS
cream freezer.
6. Seal as necessary.
5. Tighten each bolt evenly along U-channels.
4. Place U-channels on top of bolts.
3. Replace angle brackets, firmly tighten screws.
for specific model number used.
1. Remove angle brackets from drop-in ice
NOTE:
COMPRESSOR FAILURE AND VOID WARRANTY.
AIR FLOW RESTRICTION WILL CAUSE
DI-FR DI-FR-DW
COUNTER TOP COUNTER TOP
ANGLE
BRACKET
SCREW
U-CHANNEL
BOLT
SIDE ELEVATION
COUNTER TOP

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 3
prIces:
All prices are LIST. Applicable taxes will be added.
quotatIons:
Unless otherwise stated, quotations are effective for 30 days only.
acceptance:
All orders are subject to acceptance by Glastender, Inc.’s headquarters
in Saginaw, Michigan. Possession of the Parts Directory and Price List
is not an offer to sell.
shIpments:
F.O.B. factory in Saginaw, Michigan. Partial shipments will be made
unless otherwise specified by the customer. Orders are shipped via UPS
or DHL unless otherwise specified.
payment terms:
Cash should be included with all orders unless credit terms have been
arranged. To establish credit, banking and trade references are required.
A convenient credit application is available upon request. Visa and
Mastercard are also accepted.
delIvery:
Varies according to prior production commitments, but parts orders
generally ship within two working days.
returns:
A Return Authorization (RA) number must be issued by the factory in
advance for any items that are returnable. The RA number MUST be
noted on the outside of the returned package. Returns must be received
within 90 days of the RA issue date. Shipping charges must be prepaid.
A 20% handling charge will be applied to all authorized returns if
received in new, unused condition in the original packaging.
loss or damage:
Glastender, Inc. is not responsible for any loss, damage, or delay of
merchandise during shipment. Such transit claims must be filed with the
carrier. Merchandise must be examined on arrival. If shortages occur,
Glastender, Inc. must be notified in writing within five (5) days of deliv-
ery to honor any shortage claim.
NOTE: Glastender, Inc.’s policy of constant quality improvement means
that prices, specifications, and policies are subject to change without
notice.
IMPORTANT!!
Attention Refrigeration Service Companies
Please review the important warranty information on this page. If you believe a
service call should be covered by the factory, please call the factory for authorization
between 8AM and 5PM EST, Monday through Friday.
terms and condItIons
Warranty statement
LABOR: Glastender, Inc. warrants all products to be free of defects in
material and workmanship. In established areas, a start-up and a 90-
day labor warranty are included with glasswasher models GT-24 and
GT-30. The GT-18 series glasswashers include a 90-day labor warranty.
Self-contained refrigeration models, except beer line chillers, include a
1-year labor warranty, for the duration of one year from date of instal-
lation or up to 18 months from date of factory shipment, whichever
occurs sooner. For warranty labor claims beyond 15 months from the
date of factory shipment, proof of date of installation or occupancy must
be provided. Authorization for labor must be obtained from Glastender
within the warranty period and prior to the service being performed.
Labor warranty applies to the United States and Canada only.
PARTS: Within one year from date of installation, or 15 months from
date of factory shipment, whichever occurs sooner, Glastender, Inc.
will replace any part or assembly found defective under normal use and
service. Field replacement parts include a warranty of 90 days from date
of installation. All self-contained refrigeration models include a 5-year
compressor warranty.
A warranty claim form MUST accompany all returned defective parts or
assemblies. This form MUST be completed in full. Failure to do so may
result in delay or denial of credit. Any defective part or assembly must
be returned to Glastender, Inc., Saginaw, Michigan, with all transporta-
tion and delivery charges prepaid. Warranty repairs or replacements will
be shipped FOB factory in Saginaw, Michigan.
The warranty does not cover equipment subjected to accidents, freight
damage, alterations, improper power and/or plumbing hookups, improp-
er chemical use, general misuse, or lack of routine required maintenance
as determined by Glastender, Inc.
No representative, distributor, dealer, or any other person is authorized
to modify this warranty. This warranty replaces all other written or
verbal warranties.
NOTE: Glastender, Inc.’s policy of constant quality improvement
means that prices, specifications, and policies are subject to change
without notice. Questions regarding this warranty should be directed to
Glastender’s Customer Service Representative.
03/01/07

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
4

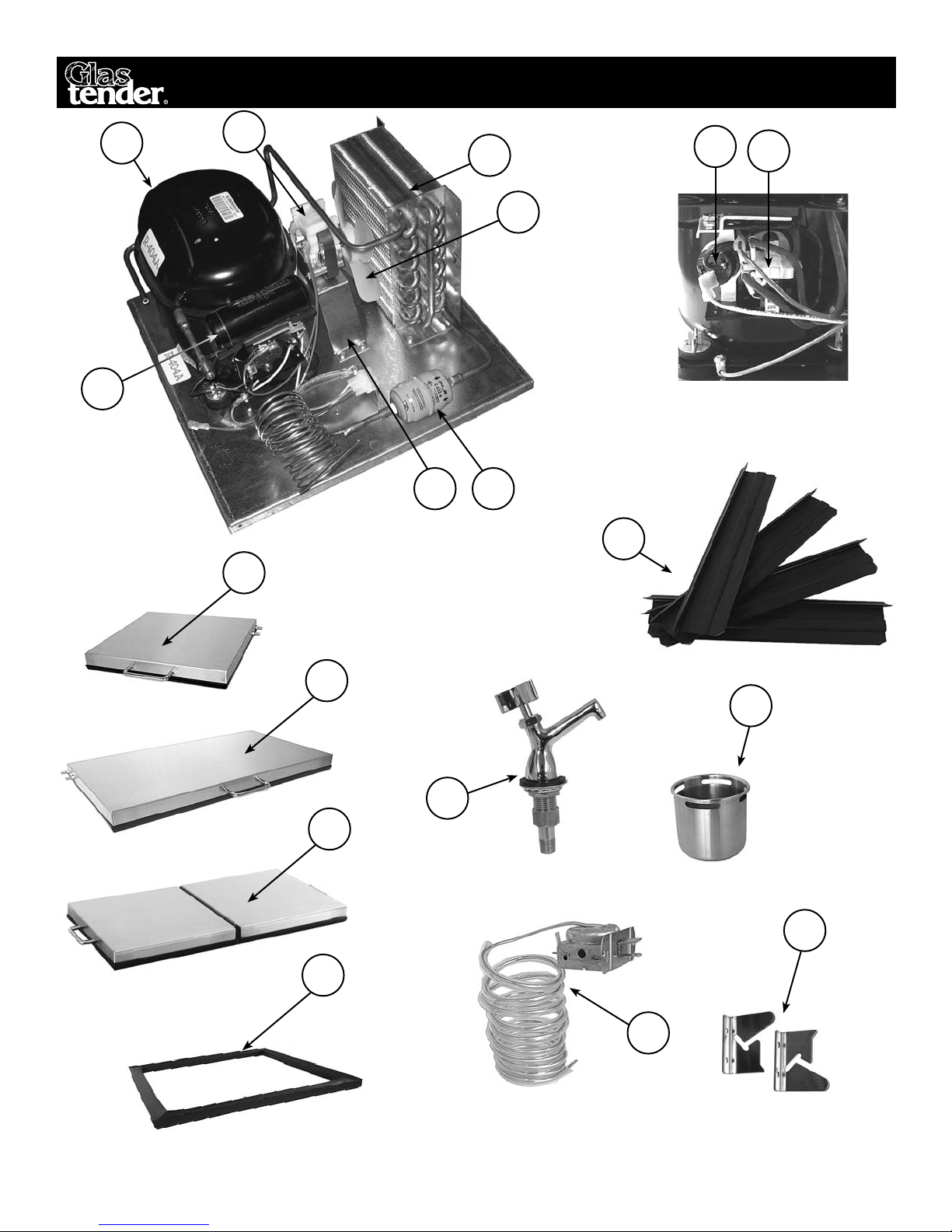

replacement parts
1
7
17
2
9
84
5
16
15
10
11
12
14
13
3
6
18

Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com 5
replacement parts
ELECTRICAL RATINGS
Compressor 115 VOLT 4.40 AMP
Condensing Unit Fan Motor 115 VOLT .28 AMP
TOTAL AMPS 4.68
REFRIGERATION RATINGS
Refrigerant R404A 6 oz.
Condensing Unit Fan Motor Approx. 12 PSIG

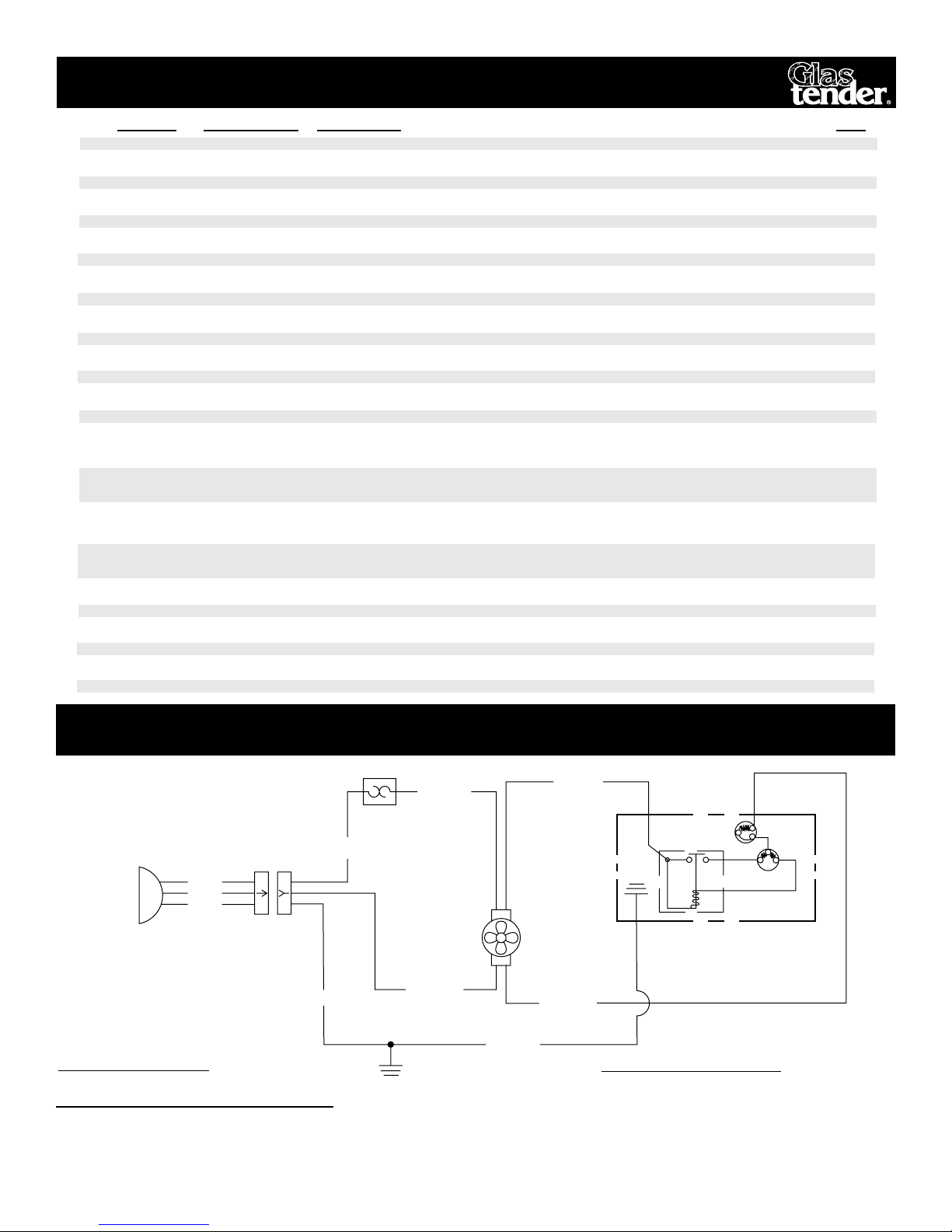

WIrIng dIagram
part no. old part no. descrIptIon lIst
1. 04000105 GT-035012 Compressor, 1/5 HP, R404A refrigerant $460.00
2. 04000241 Start relay 19.00
3. 04000120 GT-032204 Start capacitor 18.00
4. 04000121 GT-031206 Overload 10.00
5. 06001445 GT-035107 Fan motor 35.00
6. 06001395 GT-032802 Fan blade 5.00
7. 07000133 GT-031513 Fan motor bracket 20.00
8. 04000100 GT-032608 Condenser coil 130.00
9. 06004028 Filter Dryer with service port 25.00
10. 04000108 GT-036219 Door for single unit, models FRA-24, FRB-24, and DI-FR 114.00
11. 04000109 GT-036220 Door for double unit, models FRA-36, FRB-36, DI-FR36, and DI-FR36-DW 138.00
12. 04000110 GT-036253 Flip lid, double unit, models DI-FR36-FL and DI-FR36-DW-FL 162.00
13. 04000091 GT-031309 Single door gasket, 11-15/16” x 11-15/16” 18.00
04000092 GT-031310 Double door gasket, 21-15/16” x 11-15/16” 18.00
04000093 GT-031324 Flip lid gasket (two required), 11-7/8” x 11-1/32” 18.00
14. 04000184 Breaker strip, four pieces, single unit, models FRA-24, FRB-24, 25.00
DI-FR, and DI-FR-DW (S/N 404099008X and greater)
04000118 GT-038506 Breaker strip, four pieces, single unit, models FRA-24, FRB-24, 25.00
DI-FR, and DI-FR-DW (manufactured from 4/96 to 3/06)
04000185 Breaker strip, four pieces, double unit, models FRA-36, FRB-36, DI-FR36, 30.00
DI-FR36-DW, DI-FR36-FL, DI-FR36-DW-FL (S/N 404099008X and greater)
04000119 GT-038507 Breaker strip, four pieces, double unit, models FRA-36, FRB-36, DI-FR36, 30.00
DI-FR36-DW, DI-FR36-FL and DI-FR36-DW-FL (manufactured 4/96 to 3/06)
15. 04000104 GT-034617 Dipper well faucet 93.00
16. 04000112 GT-038426 6” Diameter stainless strainer 115.00
17. 04000103 GT-033206 Thermostat 55.00
18. 04000126 GT-032102 Bracket, freezer lid cover, set of 2 25.00
04000124 GT-032509 Cap tube, (.036 x 96”) 20.00
07000599 Replacement powercord assembly, includes (06001572 01000669 06001314) 40.00
MAIN
POWER
SUPPLY
CORD
BLACK
WHITE
GREEN
115v AC
15amp
BLACK 16 GA
THERMOSTAT
BLUE 16 GA
BLUE 16 GA
OVERLOAD
RELAY
STARTER
START
COMMON
RUN
COMPRESSOR
WHITE 16 GA
WHITE 16 GA
CONDENSER FAN
GREEN 16 GA
GREEN 16 GA

Expect more
more flexibility
more features
Glastender has the most complete line of bar equipment and
the ability to manufacture custom units, giving you virtually
unlimited design exibility. Each piece of equipment is
engineered with features that enhance your efciency, ease
your maintenance, and prolong the life of your investment.
The exibility you want. The features you need.
Glastender. Expect more.
UNPARALLELED UNDERBAR DESIGN & ENGINEERING
GLASSWASHERS • COCKTAIL STATIONS • COOLERS • FROSTERS • BEER SYSTEMS
