Glastender FRA-24 User manual

© 2010 Glastender, Inc.
DI-FR-DW
Rev. 04-03-14
FRA-24
4004503
Conforms to UL STD 471
Certied to CAN/CSA STD
C22.2 No. 120-M91
Ice cream Freezers
FRA-24, FRA-36, FRB-24, FRB-36, DI-FR, DI-FR-DW, DI-FR36, DI-FR36-FL,
DI-FR36-DW, DI-FR36-DW-FL
A Family Company Manufacturing
In The USA Since 1969
Operation Manual, Parts Directory, and Price List
Glastender, Inc. · 5400 North Michigan Road · Saginaw, MI · 48604-9780
800.748.0423 · 989.752.4275 · Fax [phone] · www.glastender.com

1
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
DelIvery:
The majority of equipment is manufactured to order and typically ships
within three to six weeks after complete order information is received by
the factory. In-stock equipment typically ships within two to three days
of the factory receiving complete order information.
returns:
Items specified as “Manufactured to Order” are NOT returnable.
A Return Material Authorization (RMA) number must be issued by the
factory in advance for any items that are returnable. The RMA number
MUST be noted on the outside of the returned package. Returns must be
received within 90 days of the RMA issue date. Shipping charges must
be prepaid. A minimum 20% restocking charge will be applied to all
authorized returns if received in new, unused condition in the original
packaging.
The above conditions apply to spare part returns, except spare part
returns must be received within 30 days of original shipment for elec-
tronic or electrical parts or within 90 days for all other parts.
loss or Damage:
For customer routed shipments, Glastender, Inc. is not responsible for
any loss, damage, or delay of merchandise during shipment. Such transit
claims must be filed with the carrier. Merchandise must be examined on
arrival. If shortages occur, Glastender, Inc. must be notified in writing
within five (5) days of delivery to honor any shortage claim. Glastender
will assume responsibility for freight claims on Prepay and Add ship-
ments but the customer must inspect freight and note any damage upon
receipt. Failure to do so may result in losses at the customer’s expense.
custom orDers:
Custom orders must be paid in advance and are not subject to cancel-
lation.
lamInates:
Some products include common, readily available plastic laminates of
the customer’s selection. There may be an additional charge if uncom-
mon varieties are ordered. 05/18/10
IMPORTANT !! - Attention Service Companies
Please review the important warranty information on page 2 of this manual. If labor warranty applies,
authorization must be obtained from the factory prior to the service being performed. Please call the factory
between 8:00AM and 5:00PM EST, Monday through Friday.
Terms and Conditions ...................................1
Warranty........................................................2
Utility Requirements and Connections.........3
Operation.......................................................3
Cleaning Instructions ....................................3
Visit our web site for current specication sheets,
operations manuals, parts directories and price lists
InDex
terms anD conDItIons
Uncrating and Start-Up Instructions.............4

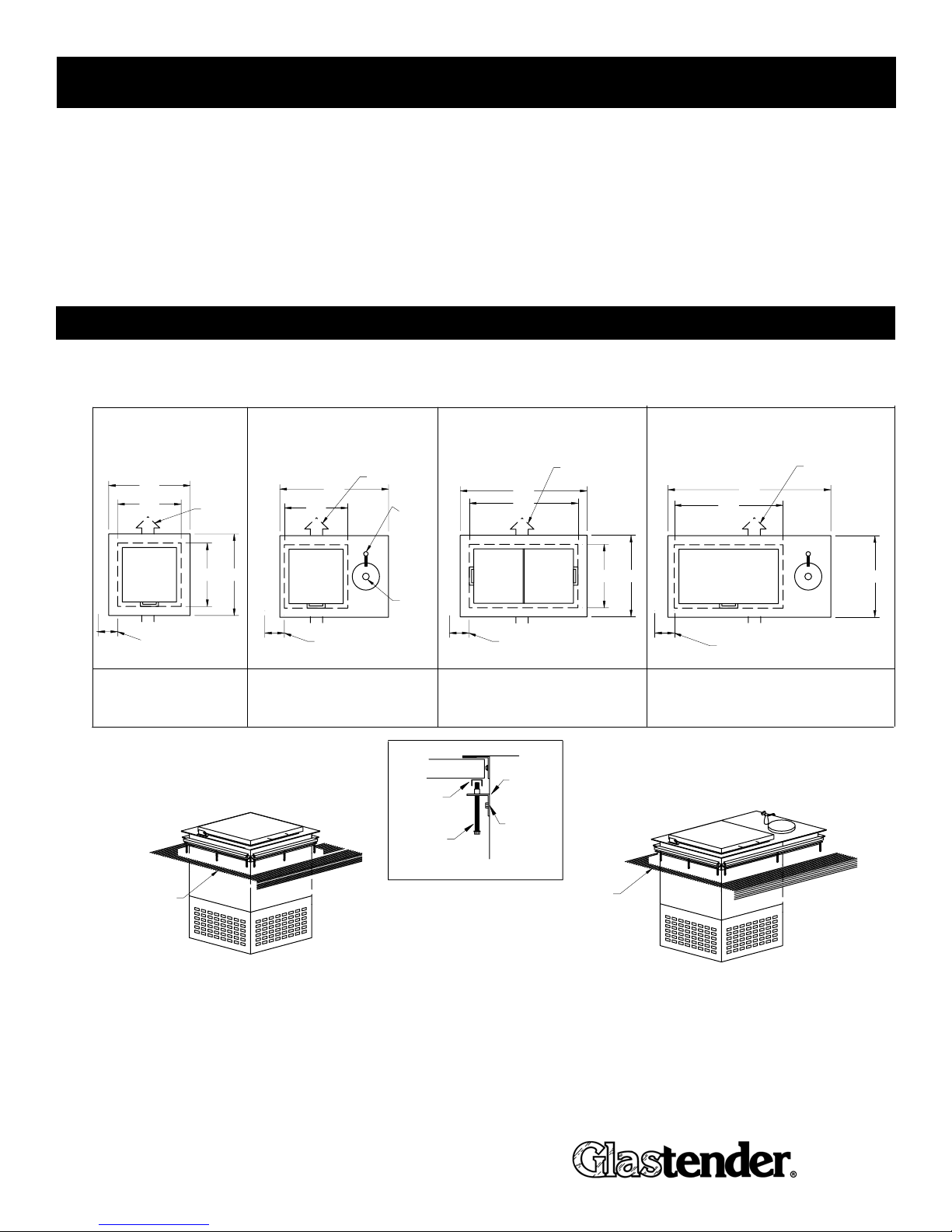

Drop-In Model Installation Instructions .......4
Replacement Parts..................................... 5-6
Wiring Diagram ............................................5
PrIces:
All prices are LIST. Applicable taxes will be added.
QuotatIons:
Unless otherwise stated, quotations are effective for 30 days only.
accePtance:
All orders are subject to acceptance by Glastender, Inc.’s headquarters in
Saginaw, Michigan. Possession of the Product Directory and Price List
is not an offer to sell.
shIPments:
F.O.B. factory in Saginaw, Michigan. Freight terms are Third Party or
Collect if shipped directly to you. Prepay and Add to Invoice freight
terms are available upon request. The approximate shipping weights of
all products are listed with the prices. Partial shipments will be made
unless otherwise specified by the customer. Surface freight classifica-
tions are:
Glasswashers, Line Chillers - Class 92.5
Cocktail Stations, Underbar Equipment - Class 85
Bar Die/Underbar Equipment – Class 125
Refrigeration Equipment, 48” long or smaller - Class 100
Refrigeration Equipment, greater than 48” long - Class 110
All small items are evaluated to see the most cost effective means for
shipment. Many small items ship via UPS or FedEx; however, when
dimensional weight is excessive DB Schenker, UPS Supply Chain, or
even common LTL carriers are the most cost effective choice. Spare
parts orders received before 1:00 PM EST can usually be shipped the
same day.
The order department is happy to assist with routing or shipping ques-
tions.
Payment terms:
Cash should be included with all orders unless credit terms have been
arranged. To establish credit, banking and trade references are required.
A convenient credit application is available upon request. Payment via
credit card is not our normal means of receiving payment. Visa and
MasterCard will be accepted, but must be charged at the time of ship-
ment. In addition, a payment via credit card for orders totaling more than
$500 will incur a 3% convenience fee on the total transaction amount.

2
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
Warranty statement
APPLICABLE TO ALL PRODUCTS SOLD WITHIN THE UNITED STATES AND CANADA
LABOR: Glastender, Inc. warrants all products to be free of defects in
material and workmanship. In established areas, a start-up is included
with glasswasher models GT-24 and GT-30. A 1-year labor warranty
applies to all glasswashers. BDS model bottle disintegration systems
and self-contained refrigeration models, except beer line chillers,
include a 1-year labor warranty, for the duration of one year from date of
installation or up to 18 months from date of factory shipment, whichever
occurs sooner. For warranty labor claims beyond 15 months from the
date of factory shipment, proof of date of installation or occupancy must
be provided. Authorization for labor must be obtained from Glastender
within the warranty period and prior to the service being performed.
Labor warranty applies to the United States and Canada only.
PARTS: Within one year from date of installation or 18 months from
date of factory shipment, whichever occurs sooner, Glastender, Inc.
will replace any part or assembly found defective under normal use and
service. Field replacement parts include a warranty of 90 days from date
of installation.
FOUR YEAR ADDITIONAL COMPRESSOR WARRANTY:
Glastender will warrant to the original user the compressor for all self-
contained refrigeration models for an additional four years following the
regular one-year warranty period. This plan applies to the compressor
only.
A warranty claim form MUST accompany all returned defective parts or
assemblies. This form MUST be completed in full. Failure to do so may
result in delay or denial of credit. Any defective part or assembly must
be returned to Glastender, Inc., Saginaw, Michigan, with all transporta-
tion and delivery charges prepaid. Warranty repairs or replacements
will be shipped FOB factory in Saginaw, Michigan. Reimbursement for
applicable freight charges covers ground service only.
Glastender provides in-warranty repairs during a service company’s
regular working days and hours. There is no provision for payment
of a premium rate during “overtime” hours. When warranty service is
requested during other than normal working hours, the end user will be
charged the premium portion of the overtime rate.
The warranty covers substantiated travel expenses for up to 2 hours /
100 miles round trip and a maximum of $150. Any additional costs due
to installations that require extra work, time, or travel to gain access
for service are the sole responsibility of the equipment purchaser. Any
exceptions to these travel and access limitations must be pre-approved
by a factory representative.
The warranty does not cover equipment subjected to accidents, freight
damage, alterations from the original design, improper power and/or
plumbing hookups, improper chemical use, general misuse, or lack
of routine required maintenance as determined by Glastender, Inc.
Installation, normal control adjustments, general maintenance, correct-
ing an installation error, or service calls that reveal the unit is function-
ing normally will not be reimbursed under warranty.
Condenser coils on self-contained refrigeration products must be
cleaned regularly. Failure to provide adequate air flow to a refrigeration
unit will void the warranty.
Glastender shall not be liable for loss of use, revenue, or profit, or for
any other indirect, incidental, special, or consequential damage includ-
ing, but not limited to, product spoilage or loss.
This warranty is conditioned upon Glastender receiving notice of any
defect subject to this warranty within sixty (60) days of its discovery
by the end user or dealer. All products are warranted only for the initial
place of installation. Removal of a product automatically terminates
this warranty.
SECOND YEAR EXTENDED PARTS & LABOR WARRANTY:
Glastender’s one-year parts and labor warranty on self-contained refrig-
eration units, excluding beer line chillers, can be extended to two years
with the purchase of a two year parts and labor warranty. Specify part
number EWR2 ($150 net price) when ordering.
EXPORT WARRANTY - One year parts only.
EXCLUSION OF WARRANTIES
EXCEPT AS PROVIDED ABOVE, GLASTENDER MAKES
NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING,
BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
OR NON-INFRINGEMENT.
LIMITATION OF REMEDIES AND DAMAGES
If Buyer makes a valid and timely claim as outlined above, Glastender’s
liability and Buyer’s remedies under this agreement will be limited solely
to labor charges authorized and/or replacement or credit, at Glastender’s
option, with respect to Products returned at Buyer’s expense within thir-
ty (30) days after warranty repair. GLASTENDER’S LIABILITY WILL
IN NO EVENT BE GREATER IN AMOUNT THAN THE PURCHASE
PRICE OF THE RETURNED PRODUCTS. GLASTENDER
WILL NOT BE LIABLE UNDER ANY CIRCUMSTANCE FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING,
BUT NOT LIMITED TO, LABOR COSTS EXCEPT AS COVERED
UNDER OUR WARRANTY, LOST PROFITS OR THE LOSS OF
PERISHABLE PRODUCTS RESULTING FROM THE USE OF OR
INABILITY TO USE OUR PRODUCTS OR FROM OUR PRODUCTS’
INCORPORATION INTO OR BECOMING A COMPONENT OF
ANY OTHER PRODUCT. NEITHER PARTY WILL HAVE ANY
NEGLIGENCE OR OTHER TORT LIABILITY TO THE OTHER, OR
TO ANY THIRD PARTY, ARISING FROM ANY BREACH OF THIS
AGREEMENT.
GOVERNING LAW - JURISDICTION
The terms and conditions of an order are to be governed and construed
according to the laws of the State of Michigan, without regard to conflict
of laws principles. Buyer hereby consents to the jurisdiction and venue
of the courts located in Saginaw County, Michigan.
No representative, distributor, dealer, or any other person is authorized
to modify this warranty. This warranty replaces all other written or
verbal warranties.
NOTE: Glastender, Inc.’s policy of constant quality improvement
means that prices, specifications, and policies are subject to change
without notice. Questions regarding this warranty should be directed to
Glastender’s Customer Service Representative.
03-21-14
IMPORTANT!!
Attention Refrigeration Service Companies
Please review the important warranty information on this page. If you
believe a service call should be covered by the factory, please call
the factory for authorization between 8AM and 5PM EST, Monday
through Friday.

3
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
IntroDuctIon
Cleaning is essential to sustaining the integrity of your equipment and preventing corrosion.
ESTIMATED CLEANING TIME: 5 to 10 minutes per unit daily.
FREQUENCY: Daily cleaning of exterior & door gaskets. Interior thawing and cleaning as necessary.
PROCEDURE:
1. A non-chlorine based cleaner or mild detergent and warm water applied with a soft cloth or sponge to all con-
tact surfaces.
2. Immediately rinse off cleaning agent(s), using clean warm water, clean soft cloth or sponge.
3. Dry with a soft clean cloth, removing standing water as soon as possible.
NOTES:
1. Never use hydrochloric acid, wire brushes, steel wool, scrapers, or chlorine based cleaners on stainless steel
surfaces, since they will break down the passivity layer and allow corrosion to occur.
2. On stainless steel surfaces, you may use a soft bristle brush or Scotch-Brite®pad for more stubborn stains.
Always scrub with the direction of the grain. Follow with a thorough cleaning as described above.
3. Deposits from food preparation must be properly removed. Even hard water deposits will rust stainless steel,
if not removed.
4. Door gaskets are most often overlooked when cleaning. Failure to clean them regularly will lead to premature
failure, since alcohol, debris, and moisture build-up breaks down the gasket material.
5. When excess frost builds up on the interior liner, store ice cream in the kitchen freezer and unplug the unit for
the night. First thing the next morning, clean the interior, using a sponge to soak up excess moisture.
6. NEVER use a pick or sharp object to remove frost from the interior liner.
This manual describes the operation features of the Ice Cream Freezer. Please review this information before
attempting installation and operation.
Long term, trouble-free operation will follow if good housekeeping and maintenance procedures are followed.
Thank you for selecting Glastender, Inc. products.
utIlIty reQuIrements anD connectIons
cleanIng InstructIons
Electrical: 120 Volt AC, 1 Phase, 60 Hz, 3.9 full load amps. A dedicated 15 amp circuit is recom-
mended. A 6-foot grounded cord is included.
Plumbing: 1. Without dipper well - none required.
2. With dipper well-
• Drain: 1-1/2” PVC tailpiece provided.
• Water Supply: 3/8” chrome riser provided.
oPeratIon
The Ice Cream Freezer is designed to store ice cream. The FRA-24, FRB-24, and DI-FR models hold one 3-
gallon container and the FRA-36, FRB-36, and DI-FR36 models hold two 3-gallon containers. The operating
temperature range is -5ºF (-21ºC) to 10ºF (-12ºC).

4
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
Ice Cream Freezer models are shipped in one carton. These steps should be followed:
1. If legs are included, bolt them to the base with bolts provided.
2. Unwrap power cord.
3. Position unit and level.
4. Plug into 115 volt AC outlet.
5. Your Glastender equipment is now ready for use.
uncratIng anD start-uPInstructIons
DroP-InmoDel InstallatIon InstructIons
INSTALLATION INSTRUCTIONS
DI-FR-DW
DI-FR
NOTE: THIS UNIT REQUIRES PROPER VENTILATION. AIR FLOW RESTRICTIONS AND/OR LACK OF VENTILATION OF CABINET
SPACE WILL CAUSE COMPRESSOR FAILURE AND WILL VOID WARRANTY.
CONDENSER NEEDS 150 CFM OF SUPPLY AIR TO MAINTAIN PROPER OPERATION.
FOR AIR FLOW AROUND ALL SIDES
MINIMUM 5" CLEARANCE
1. Remove angle brackets from drop-in ice
2. Place freezer into appropriate size cut-out
for specific model number used.
3. Replace angle brackets, firmly tighten screws.
4. Place U-channels on top of bolts.
5. Tighten each bolt evenly along U-channels.
6. Seal as necessary.
MINIMUM 5" CLEARANCE
FOR AIR FLOW AROUND
ALL SIDES
MINIMUM 5" CLEARANCE
FOR AIR FLOW AROUND
ALL SIDES
MINIMUM 5" CLEARANCE
FOR AIR FLOW AROUND
ALL SIDES
cream freezer.
DI-FR DI-FR-DWDI-FR36
DI-FR36-FL DI-FR36-DW-FL
DI-FR36-DW
PLAN VIEWS
14" 18"
14"
18"
AIR FLOW 14"
24"
AIR FLOW
COLD
WATER
DRAIN
24"
28"
AIR FLOW AIR FLOW
24"
34"
COUNTER TOP
COUNTER TOP
18"14"
CUT-OUT DIMENSION
22-3/4" X 14-3/4"
CUT-OUT DIMENSION
24-3/4" X 14-3/4"
CUT-OUT DIMENSION
32-3/4" X 14-3/4"
CUT-OUT DIMENSION
18"
14-3/4" X 14-3/4"
COUNTER TOP
SIDE ELEVATION
BOLT
U-CHANNEL
SCREW
ANLE
BRACKET

5
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
rePlacement Parts
1
7
17
2
9
84
5
16
15
10
11
12
14
13
WIrIng DIagram
3
6
18

6
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax [phone] • www.glastender.com
rePlacement Parts
220 volt 50 hzrePlacement Parts
Part no. DescrIPtIon PrIce
1. 04000105 Compressor, 1/5HP, R404A $470.00
2. 04000241 Start relay (prior to 01/22/2014 SN 404148514) 19.00
04000308 Relay, 1/5HP, 120V, R404A Tecumseh compressor (on and after 01/22/2014 SN
404148514)
15.00
3. 04000120 Start capacitor (prior to 01/22/2014 SN 404148514) 18.00
04000310 Start capacitor, 1/5HP, 120V, R404A Tecumseh compressor (on and after
01/22/2014 SN 404148514)
25.00
4. 04000121 Overload (prior to 01/22/2014 SN 404148514) 10.00
04000309 Overload, 1/5HP, 120V, R404A Tecumseh compressor (on and after 01/22/2014
SN 404148514)
9.00
5. 06001445 Fan motor 45.00
6. 06001395 Fan blade 5.00
7. 07000133 Fan motor bracket 20.00
8. 04000100 Condenser coil 130.00
9. 06001385 Filter dryer, 1/4" x 1/4" 20.00
10. 04000108 Door for single unit, models FRA-24, FRB-24, and DI-FR 114.00
11. 04000109 Door for double unit, models FRA-36, FRB-36, DI-FR36, and DI-FR36-DW 138.00
12. 04000110 Flip lid, double unit, models DI-FR36-FL and DI-FR36-DW-FL 162.00
13. 04000091 Single door gasket, 11-15/16" x 11-15/16" 18.00
04000092 Double door gasket, 21-15/16" x 11-15/16" 20.00
04000093 Flip lid gasket (two required), 11-7/8" x 11-1/32" 18.00
14. 04000184 Breaker strip, four pieces, single unit, models FRA-24, FRB-24, DI-FR, and
DI-FR-DW (SN 404099008X and greater)
25.00
04000118 Breaker strip, four pieces, single unit, models FRA-24, FRB-24, DI-FR,
and DI-FR-DW (manufactured from 4/96 to 3/06)
25.00
04000185 Breaker strip, four pieces, double unit, models FRA-36, FRB-36, DI-FR36,
DI-FR36-DW, DI-FR36-FL, DI-FR36-DW-FL (SN 40409908X and greater)
30.00
04000119 Breaker strip, four pieces, double unit, models FRA-36, FRB-36, DI-FR36,
DI-FR36-DW, DI-FR36-FL, and DI-FR36-DW-FL (manufactured 4/96 to 3/06)
30.00
15. 04000104 Dipper well faucet 125.00
16. 04000112 6" diameter stainless strainer 115.00
17. 04000265 Thermostat, freezer, 9530N1492, replacement 55.00
18. 04000126 Bracket, freezer lid cover, set of 2 25.00
04000124 Cap tube (.036 x 96") 20.00
07000599 Replacement power cord assembly, includes (06001572, 01000669, 06001314) 40.00
Part no. DescrIPtIon PrIce
04000106 Compressor, 1/5HP, 230/1/50, R404A $555.00
04000242 Start capacitor, 1/5HP, 230/1/50, Tecumseh compressor AEA2380ZXC (04000106) 25.00
04000244 Overload Protector, 1/5HP, 230/1/50 Tecumseh compressor (04000106) 21.00
06001415 Relay 1/5HP R22, 230/1/50V Tecumseh, model AEA2380ZXC (04000106) 19.00
06001448 Motor, evaporator fan, 220V 57.00
