Glen GL 675 User manual

BUILT-IN
MICROWAVE
GL 675
U S E R ' S G U I D E

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
Do not attempt to operate this oven with the door open since this can result in harmful exposure to
microwave energy. It is important not to break or tamper with the safety interlocks.
Do not place any object between the oven front face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
WARNING: If the door or door seals are damaged, the oven must not be operated until it has been
repaired by a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect
the lifespan of the apparatus and lead to a dangerous situation.
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Rated Input Power(Grill):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
230V~ 50Hz
1000 W
Approx.18.5kg
1 0 W
28L
315 mm
595X400X388mm
GL 675
900 W
45
SPECIFICATIONS
IMPORTANT SAFETY INSTRUCTIONS WARNING
To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven
energy when using your appliance, follow basic precautions, including the following:
Warning: Liquids and other foods must not be heated in sealed containers since they are liable to
explode.
Warning: It is hazardous for anyone other than a competent person to carry out any service or repair
operation that involves the removal of a cover which gives protection against exposure to microwave
energy.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made
by children unless they are older than 8 and supervised.
Keep the appliance and its cord out of reach of children less than 8 years.
Only use utensils suitable for use in microwave ovens.
The oven should be cleaned regularly and any food deposits should be removed.
Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of
ignition.

If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any
flames.
Do not overcook food.
Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside
the oven.
Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in
the oven.
Install or locate this oven only in accordance with the installation instructions provided.
Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
This appliance is intended to be used in household and similar applications such as:- staff kitchen areas
in shops, offices and other working environments;- by clients in hotels, motels and other residential type
environments; -farm houses;- bed and breakfast type environments.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
Do not store or use this appliance outdoors.
Do not use this oven near water, in a wet basement or near a swimming pool.
The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are
liable to get hot during use. Keep cord away from heated surface, and do not cover any vents on the
oven.
Do not let cord hang over edge of table or counter.
Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly result in a hazardous situation.
The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature
checked before consumption, in order to avoid burns.
Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken
when handling the container.
The appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
The appliances are not intended to be operated by means of an external timer or separate remote-
control system.
Accessible parts may become hot during use. Young children should be kept away.
Steam cleaner is not to be used.
During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside
the oven.
Only use the temperature probe recommended for temperature-sensing probe.) this oven.(for ovens
provided
WARNING: The appliance and its accessible parts become hot during use. Care should be taken to
avoid touching heating elements. Children less than 8 years of age shall be kept away unless
continuously supervised.
The microwave oven must be operated with the decorative door open.(for ovens with a decorative door.)
Surface of a storage cabinet can get hot.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation
DANGER
Electric Shock Hazard Touching some of the internal components can cause serious personal injury or
death. Do not disassemble this appliance.
WARNING
Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an
outlet until appliance is properly installed and grounded.
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord
having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly
installed and grounded.
Consult a qualified electrician or serviceman if the grounding instructions are not completely understood
or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension
cord, use only a 3-wire
A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or
tripping over a longer cord. cord is used:
The marked electrical rating of the cord set or extension cord should be at least as great as the electrical
rating of the appliance.
The extension cord must be a grounding-type 3-wire cord.
The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be
pulled on by children or tripped over unintentionally.
CLEANING
Be sure to unplug the appliance from the power supply.
Clean the cavity of the oven after using with a slightly damp cloth.
Clean the accessories in the usual way in soapy water.
The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they
are dirty.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of the glass.
Cleaning Tip For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in
a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven
clean using a soft, dry cloth.
UTENSILS
CAUTION Personal Injury Hazard It is hazardous for anyone other than a component person to carry
out any service or repair operation that involves the removal of a cover which gives protection against
exposure to microwave energy.
See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can
test the utensil in question following the procedure below.
Utensil Test
Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
Cook on maximum power for 1 minute.
Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
Do not exceed 1 minute cooking time.

Materials you can use in microwave oven
Aluminum Foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry
to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch
(2.5cm) away from oven walls.
Browning Dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16
inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped
dishes.
Glass Jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat
resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked
or chipped dishes.
Oven Cooking Bags Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow
steam to escape.
Paper Plates and Cups Use for short–term cooking/warming only. Do not leave oven unattended while
cooking.
Paper Towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term
cooking only.
Parchment Paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "Microwave
Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed
plastic bags should be slit, pierced or vented as directed by package.
Plastic Wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow
plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax Paper Use as a cover to prevent splattering and retain moisture.
Materials to be avoided in microwave oven
Aluminum Tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils Metal shields the food from microwave energy. Metal trim may cause
arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature
Wood Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following
accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Grill Rack( Only for Grill series )
A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Shut off oven power if the door is opened during operation.
F
G
A
C B
ED
Hub (underside)
Glass tray
Turntable shaft
Turntable ring assembly
Turntable Installation
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Countertop Installation
Remove all packing material and accessories. Examine the oven for any damage such as dents or
broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the microwave oven cabinet surface. Do not remove the
light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation and connection
This appliance is only intended for domestic use.
This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a
cupboard.
Please observe the special installation instructions.
The appliance can be installed in a 60cm wide wall-mounted cupboard (at lease 55cm deep and 85cm
off the floor).
The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
The mains voltage must correspond to the voltage specified on the rating plate.
The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the
plug is no longer to accessible following installation, an all-pole disconnecting device must be present
on the installation side with a contact gap of at lease 3mm.
Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.
The accessible surfacemay be
hot duringoperation.

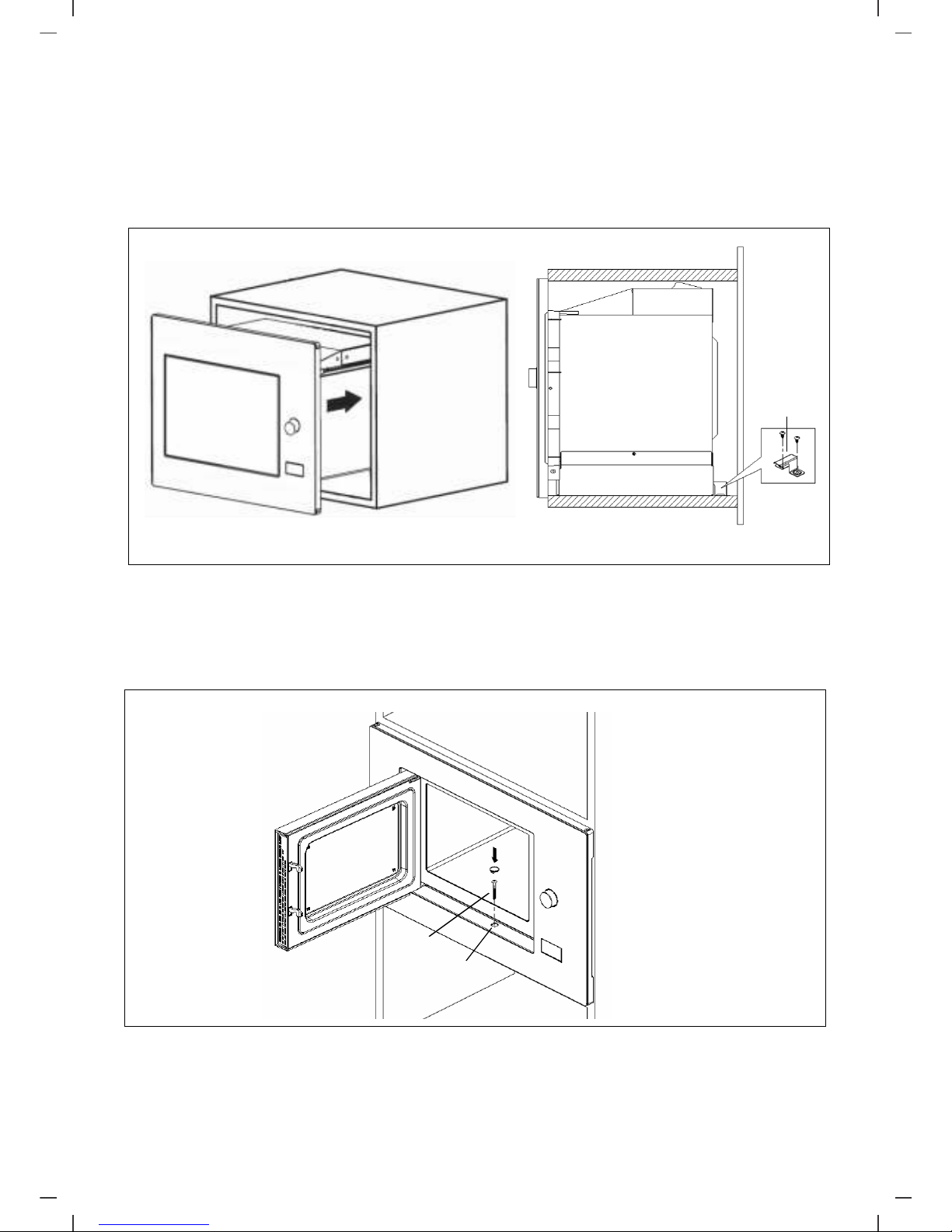

Installation Instructions
Please Read the Manual Carefully Before Installation
Please Note: Electrical Connection
The oven is fitted with a plug and must only be connected to a properly installed earthed socket. The
socket must only be installed and the connecting cable must only be replaced by a qualified electrician,
and in accordance with the appropriate regulations. If the plug is no longer accessible following
installation, an all-pole isolating switch must be present on the installation side with a contact of at least 3
mm. The fitted cabinet must not have a back wall behind the appliance. Minimum installation height 85
CM. Do not cover ventilation slots and suction holes.
Note : Do not trap or bend the power cable.
380+2
A. Built-in furniture

B. Prepare the cabinet
Read the instruction on the BOTTOM CABINET TEMPLATE put the template on the bottom plane of
cabinet.
Make the marks on the bottom plane of cabinet according to marks"a" of the template.
aa
CENTER LINE
FRONT EDGE
LEFT EDGE
T EDGE RIGH
Remove the bottom cabinet template and x the bracket with screw A.
Bracket
Screw A
aa
Screw A
Bracket
Centre line

bracket
Installation Hole
Screw B
C. Install the Oven
Install the oven to the cabinet
Make sure the back of the oven is locked by bracket.
Do not trap or kink the power cord.
Open the door, fix the oven to the cabinet with Screw B, at the installation hole
Then fix the Trim-kit plastic cover to the installation hole.

Control Panel

Operation Instructions
1) Press " " once, the screen display "P100".
2) Turn " " to adjust the hour gures, the input time should be within 0--23.
3) Press " ", the minute gures will ash.
3) Press " " to conrm, and the screen displays "P 80".
4) Turn " " to adjust the cooking time until the oven displays "20:00".
5) Press " " to start cooking .
1. Clock Setting
When the microwave oven is electried, the LED will display "0:00", buzzer will ring once.
1) Press " " twice to select clock function, the hour gures will ash.
4) Turn " " to adjust the minute gures, the input time should be within 0--59.
5) Press " " to nish clock setting. ":" will ash, and the time will light.
Note: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
2) Press " " once again or turn" " to choose 80% microwave
power.
Note: 1)
2) During the process of clock setting, if you press " ", the oven
will go back to the previous status automatically.
2. Microwave Cooking
Press " " the LED will display "P100 ".Press " "
for times or turn " "to choose the power you want, and "P100", "P80" "P50",
"P30 " or "P10" will display for each added press. Then press" "
to conrm, and turn " " to set cooking time from 0:05 to 95:00. Press
" " again to start cooking.
Example: If you want to use 80% microwave power to cook for 20 minutes, you can
operate the oven as the following steps.
Micro.Grill/Combi.
Start/+30Sec./Conrm
Kitchen Timer/Clock
Start/+30Sec./Conrm
Start/+30Sec./Conrm
Stop/Clear
Start/+30Sec./Conrm
Micro.Grill/Combi.
Micro.Grill/Combi.
Micro.Grill/Combi.
The clock will not work if it is not set when powered.
Kitchen Timer/Clock
Kitchen Timer/Clock

1) Press " " once, the screen display "P100".
3) Press " " to conrm, and the screen displays "C-1".
4) Turn " " to adjust the cooking time until the oven displays "10:00".
5) Press " " to start cooking .
2) Press " " once again or turn " " to choose combi. 1 mode.
Note:If half the grill time pass es, the oven sounds twice , and this is normal.
In order to have a better effect of grilling food, you should turn the food over,
close the door, and then if no operation the oven will continue cooking.
3. Grill or Combi. Cooking
Press " " the LED will display"P100",and press " "
for times or turn the " " to choose the power you want, and "G","C-1" or "C-2"
will display for each added press. Then press " " to conrm, and
turn " " to set cooking time from 0:05 to 95:00.
Press " " again to start cooking.
Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for
10 minutes, you can operate the oven as the following steps.
Start/+30Sec./Conrm
Start/+30Sec./Conrm
Start/+30Sec./Conrm
Start/+30Sec./Conrm
Micro.Grill/Combi. Micro.Grill/Combi.
Micro.Grill/Combi.
Micro.Grill/Combi.
1) Press " " once, and the oven will display "dEF1".
2) Turn " " to select the weight of food from 100 to 2000 g.
3) Press " " to start defrosting.
1) In waiting state, Press " " to start cooking with 100% power,
each added press will increase 30 seconds cooking time up to 95 minutes.
2) In microwave cooking or time defrost state, each press of
" " can increase 30 seconds of cooking time.
3) In waiting state, turn " " left to set cooking time with 100%
microwave power, then press " " to start cooking.
4. Quick Start
5. Defrost By Weight
Start/+30Sec./Conrm
Start/+30Sec./Conrm
Start/+30Sec./Conrm
Start/+30Sec./Conrm
W.T./Time Defrost

1) Press " " twice, and the oven will display "dEF2".
2) Turn " " to select the defrost time. The MAX time is 95 minutes.
7. Kitchen Timer
(1) Press " "
(2) Turn " " to enter the correct timer.(The maximum cooking time is 95 minutes.)
(3) Press " " to conrm setting.
(4) When the kitchen time is reached, clock indicator will go out. The buzzer will ring 5 times.
If the clock be set(24-hour system), LED will display the current time.
Note: The kitchen Time is different from 24-hour system,Kitchen Timer is a timer.
6. Defrost By Time
3) Press " " to start defrosting.The defrost power is P30 , and
it will not be changed.
Start/+30Sec./Conrm
Start/+30Sec./Conrm
W.T./Time Defrost
1) Turn " " clockwise till "A- " display.
Example: If you want to use "Auto Menu" to cook sh for 350g.
2) Press " " to conrm.
1) Turn " " right to choose the menu, and "A-1" to "A-8" will display, which
means pizza,meat, sh,beverage and popcorn.
2) Press " " to conrm.
3) Turn " " to choose the default weight as the menu chart.
4) Press " " to start cooking.
3) Turn " " to select the weight of sh till "350" display.
4) Press " " to start cooking.
8. Auto Menu
Start/+30Sec./Conrm
Start/+30Sec./Conrm
Start/+30Sec./Conrm
Start/+30Sec./Conrm
once, LED will display 00:00.
vegetable,pasta, potato,
6
Kitchen Timer/Clock

Auto Menu
Menu Weight Display
A-2
A-3
A-5
Vegetable
A-4
Fish
A-6
Beverage
A-7
Pasta
A-8
Popcorn
200 g
400 g
250 g
300 g
400 g
200 g
1(about 120ml)
2(about 240ml)
3(about 360ml)
50g(with 450 cold water)
100g(with 800 cold water)
50
A-1
Pizza
200
400
250
200
300
400
200
1
2
3
50
100
50
Meat 350 g
450 g
350
450
200 g
Potato 400 g
600 g
400
600
250 g
350 g
450 g
250
350
450
100 100
85 85

7) Press " " to start cooking, and buzzer will sound once for the
rst section, defrosting time counts down; buzzer will sound once again entering
the second cooking. when cooking nish, buzzer sounds ve times.
1) Press " " twice, and the oven will display "dEF2".
2) Turn " " to select the defrost time till "5:00" display.
3) Press " " once, the screen display "P100".
5) Press " " to conrm, and the screen displays "P 80".
6) Turn " " to adjust the cooking time till the oven displays "7:00".
4) Press " " once again or turn " " to choose 80%
microwave power.
10. Inquiring Function
(1) In states of microwave,grill and combination cooking, press " ",
the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back
to the former state;
(2) In cooking state, press " " to inquire the time and the time will
display for 3 seconds.
11. Lock-out Function for Children
Lock: In waiting state, press " " for 3 seconds, there will be a long beep
denoting entering the children-lock state and the current time will diplay if the time
has been set, otherwise, the LED will display " ".
Lock quitting: In locked state, press " " for 3 seconds, there will be a long
"beep" denoting that the lock is released.
9. Multi-section cooking
At most 2 sections can be set for cooking. In multi-section cooking, if one section is
defrosting, then defrosting shall be placed in the rst section.
Example: If you want to defrost food for 5 minutes and then cook with 80% microwave
power for 7 minutes, operate it as the following:
Start/+30Sec./Conrm
Start/+30Sec./Conrm
Stop/Clear
Stop/Clear
Micro.Grill/Combi.
Micro.Grill/Combi.
Micro.Grill/Combi.
W.T./Time Defrost
Kitchen Timer/Clock

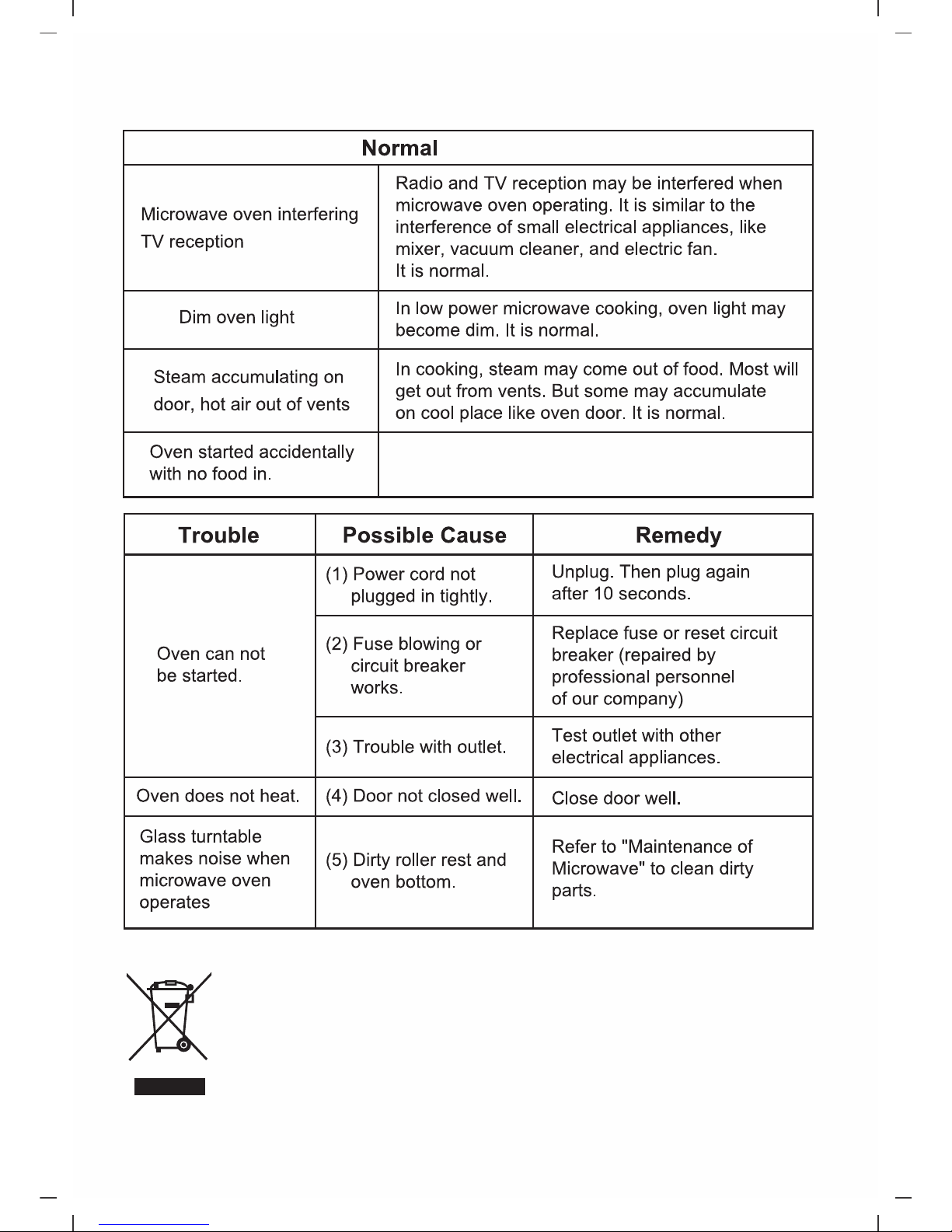

Trouble Shooting
It is forbidden to run the unit without any food
inside. It is very dangerous.
According to Waste of Electrical and Electronic Equipment (WEEE)
directive, WEEE should be separately collected and treated. If at any
time in future you need to dispose of this product please do NOT
dispose of this product with household waste. Please send this product
to WEEE collecting points where available.

WARRANTY
This Built-in Microwave is fully warranted against any defect arising out of defective
materials or faulty workmanship for a period of one year from the date of purchase. Should
any defect develop in this product, the customer should bring the product to the nearest
authorised service centre, where the company undertakes to get the product repaired free of
charge.
This warranty is not valid if :
• The use and care instructions have not been followed.
• Defects are caused by accident, misuse, abuse or commercial use.
• The repair work is carried out by persons not authorised by the company.
• Any modification or alteration of any nature is made in the product.
• Normal wear & tear of the product is not covered under warranty
• The Bill/Cash memo and copy of warranty card is not presented.
Under no circumstances, whether based on limited warranty or otherwise shall the
company be liable for incidental, special or consequential damages. Use of product
indicates acceptance by you of the aforesaid terms and conditions.
PRODUCT NAME : BUILT-IN MICROWAVE
MODEL NO.:
SERIAL NO.:
BILL NO. & DATE:
NAME OF OWNER:
ADDRESS:
GL 675
Imported & Marketed by/In case of customer complaints Contact Manager - Customer Support
Glen Appliances Pvt. Ltd.
I-34, DLF Ind. Area, Phase-I, Faridabad, India. Phone [phone]
E-mail : [email protected], [email protected] Website : www.glenindia.com
