Glitch Works 8085 SBC User manual

Glitch Works 8085 SBC rev 3
GW-8085SBC-3
User’s Manual and Assembly Guide
Revision 1, 2018-06-30
c
2018 The Glitch Works
http://www.glitchwrks.com/
This manual is licensed under a
Creative Commons “Attribution-NonCommercial-ShareAlike 4.0” license.

Contents
1 Introduction 2
2 Configuration 2
2.1 ConfiguringI/O....................................... 3
2.2 ROMOptions........................................ 3
2.3 InterruptJumpering .................................... 3
2.4 GlitchbusExpansion .................................... 3
3 Assembly 4
3.1 Assembling the 8085 SBC rev 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3.2 AssemblyChecklist..................................... 5
3.3 InsertSocketedICs..................................... 6
3.4 SolderConsoleCable.................................... 6
4 Initial Checkout and Testing 7
4.1 Troubleshooting....................................... 7
4.2 RepairandService ..................................... 7
5 Technical Notes 8
5.1 BoardControlRegister................................... 8
5.2 BoardStatusRegister ................................... 8
5.3 DefaultMemoryMap.................................... 9
5.4 DefaultI/OMap ...................................... 9
6 Errata and Clarifications 10
6.1 ResistorPackValues .................................... 10
6.2 ROMCompatibility..................................... 10
7 Parts List 11
Assembly Drawing 13
Schematics 14
1

1 Introduction
The Glitch Works 8085 SBC rev 3 (GW-8085SBC-3) is a single-board computer based on the Intel
8085 CPU. It includes the following features:
•Intel 8085 CPU at 2 MHz (guaranteed operation, overclocking possible)
•64 KB static RAM, FeRAM compatible
•32 KB ROM, EEPROM, or FeRAM in 4K pages, in-board programmable
•Serial console via Intel 8251A USART
•USART clock independent of system clock
•Software controlled power-on jump
•ROM paging and switch-out
•Debounced reset and power supply supervisory circuit
•Glitchbus expansion header
The 8085 SBC rev 3, when paired with GWMON, is a self-contained system needing only a serial
terminal (or teminal emulation software on a PC) for full operation. GWMON for the 8085 SBC
rev 3 includes Glitch Works ROM-FS, which allows for the storage of file records in ROM. These
records can be loaded from the monitor, or automatically selected by option switches on reset/power-
up. This also allows for in-board updates to GWMON without overwriting the current, known-good
copy.
2 Configuration
The 8085 SBC rev 3 includes a number of jumpers and switch packs for configuring system op-
tions:
Name Function
J1 ROM Boot, 1-2 disables ROM boot, 2-3 enables ROM boot
J2 ROM Enabled, 1-2 disables ROM on reset, 2-3 enables ROM on reset
J5 Console USART Bitrate, jumper one position only for printed speed
SW2 I/O Port Block Base Address
SW3 ROM Base Address, Write Protect, and Boot Page Address
For normal operation with standard GWMON ROM images, J1 and J2 should both be set 2-3, SW2
should be all open, SW3 1-4 should be closed, and SW3 5-8 should be open. This places the I/O block
at 0x00 - 0x03, ROM at 0xF000 - 0xFFFF, and enables jump to ROM on reset and power-up.
Console bitrate is selected with J5. The board’s silkscreen shows each position’s speed. Only one
speed may be selected. Note that the silkscreen legend will be incorrect if anything other than a
2.4576 MHz crystal is used at Y2.
2

2.1 Configuring I/O
The addresses of the USART registers, the board status register, and the board control register are
controlled by switch pack SW2. In a default configuration, SW2 is set to all open and places the
I/O base at 0x00 - 0x03. The base I/O block may be re-addressed on any four-byte boundary in
address space for use with other software.
2.2 ROM Options
ROM configuration on the 8085 SBC rev 3 is flexible. ROM is addressed in 4K pages, using the
ROM base set on SW3 and three bits from the board control register. The board control register is
software programmable, and is reset to 0x00 at reset and power-on.
A pair of D-type flip-flops allows switching the ROM on or off under software control, as well as
mapping ROM to 0x0000 for booting. The default states for these flip-flops are controlled by jumpers
J1 and J2. J1 controls remapping to 0x0000 for booting: place its shunt from 1-2 to disable ROM
boot, or from 2-3 to enable ROM boot. J2 controls whether the ROM is enabled or disabled at reset.
Place its shunt from 1-2 to disable ROM at reset, or from 2-3 to enable ROM at reset. Note that
ROM must be enabled at reset for ROM boot to work (both J1 and J2 must be strapped for 2-3).
2.3 Interrupt Jumpering
The five hardware interrupt lines of the Intel 8085 are pulled down to an inactive state with 4.7 kΩ
resistors. While they are not used by the default Glitch Works software package, they are available
for use. Additionally, the *BINT line from the Glitchbus expansion header is inverted and brought to
TP1, INTERRUPT. It may be jumpered to any of the five available hardware interrupts. Consult the
schematic for further details.
2.4 Glitchbus Expansion
The 8085 SBC rev 3 is expandable through a Glitchbus expansion header. The Glitchbus is a generic
8-bit bus intended to be processor-agnostic. We plan on offering many expansion boards that utilize
this bus design. As implemented on the 8085 SBC rev 3, the Glitchbus is designed to stack above
the SBC using PC/104 style stacking headers.
Do note that some of the status and control lines are not fully buffered on the 8085 SBC rev 3 and
are subject to loading limitations.
The 8085 SBC’s Glitchbus expansion header is not compatible with previous expansion boards designed
for past revisions of the Glitch Works 8085 SBC. Previous boards will not work with the 8085 SBC
rev 3 – use only Glitchbus compatible expansion boards! Previous boards are of a different physical
size and should be fairly hard to get mixed up with Glitchbus boards.
3

3 Assembly
The 8085 SBC rev 3 is designed to be easy to assemble for anyone with moderate soldering ability.
It is a moderately complex board and will typically require between one and three hours of assembly
time, depending on the skill of the assembler. The following tools will be required:
•Soldering iron, 20-40 W recommended, grounded tip
•Solder, 63/37 leaded solder recommended, Kester “44 Core” or similar
•Diagonal cutters or flush cutters
•Solder braid, solder sucker, or desoldering station, in the event errors are made
•Needle-nose pilers for bending component leads
•1/4 and 1/8 W resistor lead forms (optional)
This manual does not cover basic soldering technique. If you are new to soldering, we recommend the
Adafruit soldering guide and plenty of practice on a piece of protoboard, before beginning assembly
of the 8085 SBC rev 3. The Adafruit guide can be found at:
https://learn.adafruit.com/adafruit-guide-excellent-soldering
3.1 Assembling the 8085 SBC rev 3
If you purchased a full Glitch Works parts kit, we recommend completing all assembly sections, since
extra features can be disabled as needed. If supplying your own parts, you may choose which sections
to complete based on the functionality required.
Note that pin 1 is designated with a square pad for all ICs, resistor packs, switches, and most
connectors. Pin 1 is toward the top of the board, as seen from the front, for all ICs, diodes, resistor
packs, and switches. The component (front) side of the board is the side which contains the white
silkscreen legend. It is recommended to install components from shortest to tallest, which makes
assembly without an assembly vise or jig easier, assuming the board is flipped over and soldered with
the component side resting on a table top.
All jumper headers and connector headers are press-fit and may require a bit of force or gentle
wiggling to install. This is normal and helps keep the headers in place when the board is flipped over
for soldering.
4

3.2 Assembly Checklist
Verify parts list against kit contents or builder-provided parts
Consult the assembly drawing for component locations and values
Bend all 0.01 µF bypass capacitors (yellow axial bead) – position 2 on a 1/8 W lead form
Install all 0.01 µF capacitors in positions marked C in assembly diagram
Hairpin bend three 4.7 kΩ resistors and set aside
Bend remaining 4.7 kΩ resistors and install in their marked locations – position 1 on a 1/4 W
lead form
Bend all 330 Ω resistors and install in their marked locations – position 1 on a 1/4 W lead form
Install non-socketed DIP ICs at their marked locations. Do not install U9, U15, U16, U17,
U19, or U21
Install a 16-pin socket at U21
Install 28-pin sockets at U15, U16, U17, and U19
Install a 40-pin socket at U9
Install 22 µF 10V capacitors at C8 and C17, bend leads with needle-node pliers
Install micro tact pushbutton at SW1
Install 20 pF radial ceramic capacitor at C9
Install 10 nF radial ceramic capacitors at C1, C16
Install resistor packs at RP1, RP2
Install DIP switches at SW2, SW3
Install five 22 µF 16 V radial electrolytic capacitors at C25 - C29
Install TO-92 DS1233 at U1
Hairpin bend all 1 kΩ resistors and install at R21, R22
Install three previously hairpinned 4.7 kΩ resistors at R3, R4, R20
Install three LEDs at D1, D2, D3
Break the 22-pin pin header strip into two 8-pin sections and two 3-pin sections
Install two 3-pin header sections at J1, J2
Install two 8-pin header sections next to one another at J5
Install 4 MHz CPU clock crystal at Y1
Install 2.4576 MHz serial clock crystal at Y2
5

3.3 Insert Socketed ICs
Insert SRAM into sockets at U15, U16
Insert 8085 CPU into socket at U9
Insert 28C256 EEPROM into socket at U17
Insert 8251A USART into socket at U19
Insert MAX232 level shifter into socket at U21
3.4 Solder Console Cable
Glitch Works parts kits include a DB25F connector for the 8085 SBC rev 3 console cable, as well as a
one-foot pigtail terminated in a 5-pin Molex KK-100 connector. This pigtail connects to J6, RS-232
CONSOLE. Use the following table to build a console cable appropriate to your intended terminal:
J6 Pin DB25F DCE Pin DB25F DTE Pin Function
1 5 4 Request to Send
2 3 2 Transmit Data
3 2 3 Receive Data
4 4 5 Clear to Send
5 7 7 Signal Ground
J6 pin 4, CTS must be asserted for the console USART to transmit data. RTS may be left unconnected
if hardware handshaking is not desired. Console pigtails provided with Glitch Works parts kits omit
pin 1, RTS.
A serial light box will help debug potential serial wiring problems, we highly recommend the addition
of a light box to your toolkit if you regularly interface RS-232 equipment. Our personal favorite is
the IQ Technologies SmartCable SC821 Plus.
6

4 Initial Checkout and Testing
Once the 8085 SBC rev 3 is assembled, configure it as described in the “Configuration” section,
starting on Page 2. Make sure that RPA2 - RPA0 (SW2, positions 6-8) are all open.
Double-check all ICs for proper orientation, check all solder joints for cold joints or solder bridges.
Connect the power pigtail provided to a suitable regulated 5 V power supply capable of providing
at least 500 mA. Connect your serial terminal or computer to the console port. Apply power to
your system and press RESET. The GWMON sign-on message should be printed to the console, and
GWMON should respond to appropriate user input. POWER ON and ROM ON LEDs D1 and D2 should
be lit.
4.1 Troubleshooting
If your 8085 SBC rev 3 fails to come up, recheck all solder joints for cold joints, bridges, or missed
pins – this is by far the most common problem we’ve observed during assembly workshops. Recheck
configuration options. Ensure your serial terminal or terminal emulator software is properly config-
ured and that your cable is wired correctly (a RS-232 light box is very helpful here). The Intel 8251A
must have CTS asserted or it will disable its transmitter and refuse to send characters.
Verify that *BRESET is properly strobing during power-up and when pressing the RESET button (SW1).
If the ROM ON (D2) LED does not light after reset, either the power-on options for ROM (J1 and J2)
are incorrect, or the flip-flop circuit is faulty.
4.2 Repair and Service
If you purchased an assembled 8085 SBC rev 3 from The Glitch Works, your board is warranted to
work on arrival. If you have assembled a kit that fails to work, you may return it to The Glitch
Works for evaluation, repair, and testing. For questions concerning returns or configuration, please
visit http://www.glitchwrks.com/ and click the “Contact” link.
Do note that while we will attempt to help those who have purchased used boards, there is no
warranty extended.
7

5 Technical Notes
5.1 Board Control Register
The 8085 SBC rev 3 includes a board control register, which is a series of writable latches that affect
how various parts of the built-in circuitry function. This register is addressed at I/O BASE + 0x02;
in the default configuration, this places the board control register at 0x02. Electrically, it is composed
of three different latches: a 4-bit D-type latch at U2, and two elements of a dual D-type latch at U3.
The bits of the board control register are mapped as follows:
Register Bit Function Notes
0 ROM Page Address, bit 0 Cleared on reset
1 ROM Page Address, bit 1 Cleared on reset
2 ROM Page Address, bit 2 Cleared on reset
3 ROM Boot flip-flop Reset state determined by J1
4 ROM Enabled flip-flop Reset state determined by J2
5 Unused
6 Unused
7USER LED output Cleared (LED off) on reset
Bits 0-2 control the selected 4K page of ROM available at ROM BASE. These bits are cleared on reset
so that the first page of ROM is available for booting. Writing to these bits immediately changes the
ROM page. The state of these bits is available through the Board Status Register.
Bit 3 controls the ROM Boot flip-flop. When set, ROM is addressed at all memory locations,
repeating throughout memory. This allows the 8085 to read ROM code at 0x0000 on reset. Writing
a 0 to this bit clears it and immediately switches off the ROM Boot functionality. Typically, ROM
boot code should contain a jump to a startup routine in ROM, which should immediately clear the
ROM Boot bit. The reset state of bit 3 is controlled by J1, see the “Configuration” section for more
information. The state of these bits is available through the Board Status Register.
Bit 4 enables ROM when set, and disables ROM when cleared. This allows unmapping ROM for use
of the full 64 KB of system memory. Writing a 0 to this bit clears it and immediately switches off
ROM, writing a 1 to this bit switches ROM in. The selected ROM page is not affected. The reset
state of bit 3 is controlled by J2, see the “Configuration” section for more information. The state of
these bits is available through the Board Status Register.
Bits 5 and 6 are not implemented; that is, nothing responds to their state when writing to the Board
Control Register.
Bit 7 is connected to the USER LED (D3). Writing a 1 to this bit lights the LED, writing a 0 turns
the LED off. This bit is cleared on reset.
5.2 Board Status Register
The 8085 SBC rev 3 includes a board status register which provides the state of several bits of the
Board Control Register, as well as ROM OPT (SW3) DIP switch settings. This register is addressed
at I/O BASE + 0x02; in the default configuration, this places the board control register at 0x02.
8

Electrically, it is composed of an octal tristate bus transceiver. The bits of the board status register
are mapped as follows:
Register Bit Function Notes
0 RPA0 switch, SW3-8 Closed reads 1
1 RPA1 switch, SW3-7 Closed reads 1
2 RPA2 switch, SW3-6 Closed reads 1
3 ROM Boot status Boot Enabled reads 1
4 ROM Enabled status ROM Enabled reads 1
5 ROM Page Address latch, bit 0
6 ROM Page Address latch, bit 1
7 ROM Page Address latch, bit 2
Bits 0-2 reflect the state of SW3 positions 8 through 6. These positions are labeled RPA0 - RPA2 in
the silkscreen. With the standard version of GWMON, these switches select the ROM-FS record to
load into memory at reset. A 1 in a given bit position corresponds to a closed switch.
Bit 3 reflects the status of the ROM Boot flip-flop. ROM Boot is enabled when this bit reads 1.
Bit 4 reflects the status of the ROM Enabled flip-flop. ROM is enabled when this bit reads 1.
Bits 5-7 reflect the state of the ROM Page Address latch, which selects the currently addressed 4K
page from ROM at U17.
5.3 Default Memory Map
Address Range Contents
0x0000 - 0x7FFF Static RAM, IC socket U15
0x8000 - 0xEFFF Static RAM, IC socket U16
0xF000 - 0xFFFF Static RAM, IC socket U16, when ROM is disabled
0xF000 - 0xFFFF 4K page of ROM, IC socket U19, when ROM is enabled
Onboard memory devices may be overlaid by external devices on the Glitchbus using the *BMASK
signal.
5.4 Default I/O Map
I/O Address R/W Function
0x00 R/W USART Data Register
0x01 R USART Status Register
0x01 W USART Control Register
0x02 R Board Status Register
0x02 W Board Control Register
0x03 R Board Status Register
0x03 W Board Control Register
Note that the Board Control Register and Board Status register appear at both 0x02 and 0x03.
9

6 Errata and Clarifications
6.1 Resistor Pack Values
Kits provided at VCF East XIII (May 2018) included 18 kΩ resistor packs for both RP1 and RP2.
18 kΩ was discovered to be insufficient for 74LS85 address comparators, resulting in SW3 1-4 being
ignored (ROM BASE always at 0xF000). All later parts kits include 10 kΩ or smaller resistor packs for
both positions. Thanks to Josh Bensadon for reporting this error!
6.2 ROM Compatibility
The ROM socket at U17 is compatible with JEDEC standard 32K x 8 static RAM, Ferroelectric
RAM (FeRAM), and 28C256 EEPROMs. It may not be compatible with some manufacturers’ UV
EPROMs, such as the common 27256 EPROM.
10

7 Parts List
The following substitutions may be made if you have purchased a bare board and are supplying your
own parts, or in a full Glitch Works parts kit:
•Any compatible 7400 series family logic ICs may be used (for example, a 74LS04 in the parts
list may be shipped as a 7404, 74S04, 74F04, 74LS04, 74ALS04, or 74HCT04)
•All 4.7 kΩ resistors and resistor packs on the GW-OSI-RAM1 are pull-up or pull-down resistors,
and may be any value from 2.2 kΩ to 10 kΩ, even though they are indicated as 4.7 kΩ on the

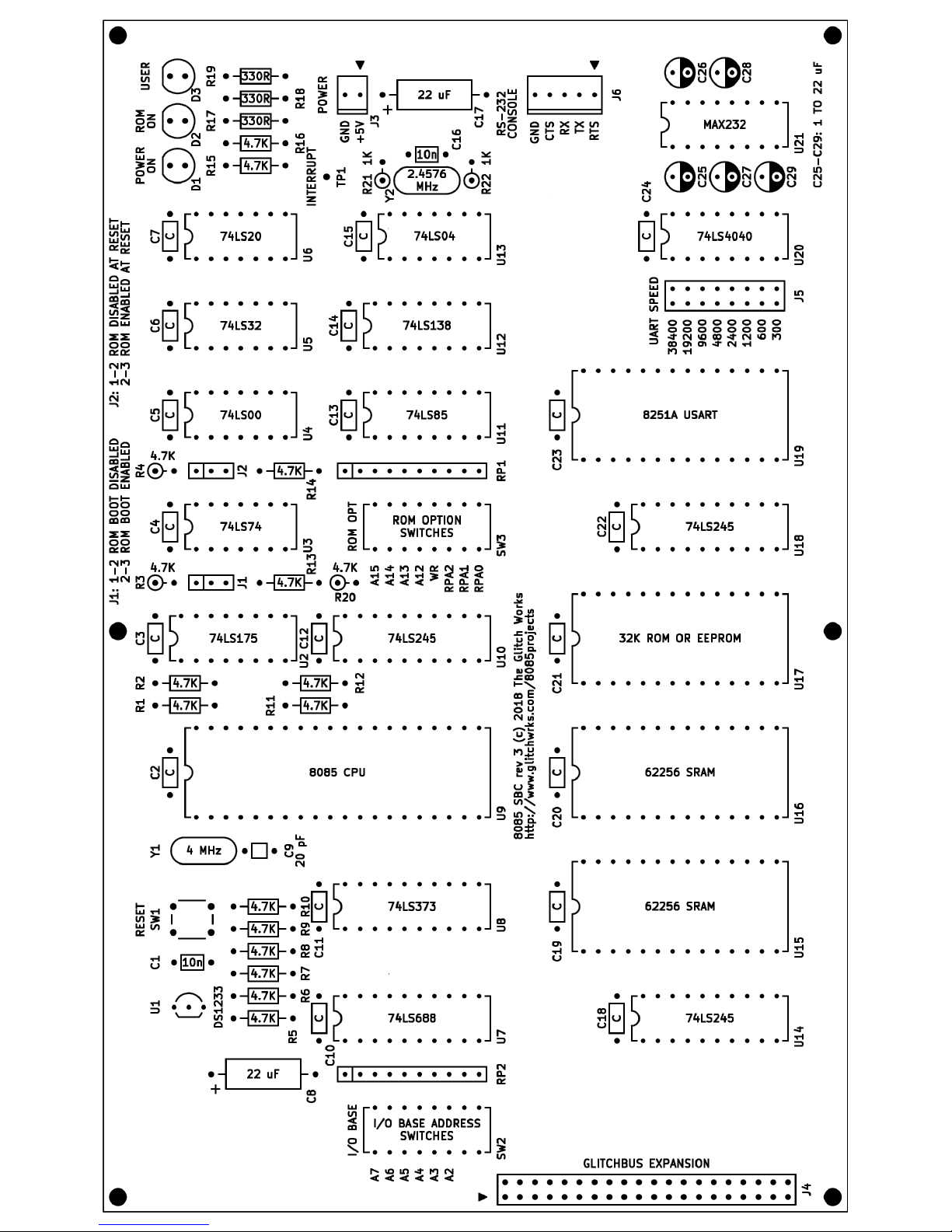

assembly drawing
•Resistors may be of varying precision and body type
If you purchased a full Glitch Works parts kit, be sure it includes the following:
1x 20 pF radial ceramic capacitor
19x 0.01 µF axial ceramic capacitor (yellow bead)
2x 10 nF 16 V radial ceramic capacitor
2x 22 µF 10 V axial tantalum capacitor
5x 22 µF 16 V radial electrolytic capacitor
3x 330 Ω 1/4 W resistor
2x 1 kΩ 1/4 W resistor
17x 4.7 kΩ 1/4 W resistor (see above note)
2x 10 kΩ x 9 SIP resistor packs (see note above)
1x 4 MHz crystal
1x 2.4576 MHz crystal
1x 8085 CPU
1x 8251A USART
1x 28C256 EEPROM, preloaded with GWMON
2x JEDEC 62256-type 32K x 8 static RAM
1x 74LS00 quad 2-input NAND gate
1x 74LS04 hex inverter
1x 74LS20 dual 4-input NAND gate
1x 74LS32 quad OR gate
1x 74LS74 dual D-type flip flop
1x 74LS85 4-bit comparator
1x 74LS138 1-of-8 decoder
1x 74LS175 quad D-type latch
11

3x 74LS245 tranceiver
1x 74LS373 octal D-type latch
1x 74LS688 magnitude comparator
1x 74HCT4040 12-stage binary counter
1x MAX232 RS-232 level shifter
1x DS1233 EconoReset
2x 8-position DIP switch
3x red T-5 LED
1x mini tact pushbutton switch
1x 22-pin breakaway header strip
2x jumper shunt
1x 2-position Molex KK-100 header
1x 5-position Molex KK-100 header
4x 28-pin IC socket
1x 16-pin IC socket
1x Power pigtail
1x RS-232 console pigtail
1x DB25F connector
12

1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
A
B
C
D
E
A
B
C
D
E
Date: 2018-07-01
KiCad E.D.A. kicad 4.0.4-stable Rev: 1Size: USLedger Id: 1/3
Title: 8085 SBC rev 3
File: 8085_sbc_rev3.sch
Sheet: /
The Glitch Works
J. Chapman
Y1
4 MHz
C9
20 pF
OE
1
O0 2 D0
3
D1
4O1 5
O2 6 D2
7
D3
8O3 9
LE
11
O4 12 D4
13
D5
14 O5 15
O6 16 D6
17
D7
18 O7 19
U8
74LS373
A->B
1
A0
2
A1
3
A2
4
A3
5
A4
6
A5
7
A6
8
A7
9B7 11
B6 12
B5 13
B4 14
B3 15
B2 16
B1 17
B0 18
CE
19
U10
74LS245
A15
A14
A13
A12
A11
A10
A9
A8
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0
BA7
BA6
BA5
BA4
BA3
BA2
BA1
BA0
BA15
BA14
BA13
BA12
BA11
BA10
BA9
BA8
A15
A14
A13
A12
A11
A10
A9
A8
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0
ALE
ALE
GND
GND
VCC
A->B
1
A0
2
A1
3
A2
4
A3
5
A4
6
A5
7
A6
8
A7
9B7 11
B6 12
B5 13
B4 14
B3 15
B2 16
B1 17
B0 18
CE
19
U14
74LS245
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0 BD0
BD1
BD2
BD3
BD4
BD5
BD6
BD7
BR**W
*RD
BIO**M
*RD
RESET_OUT
1
23
U4A
74LS00
1 2
U13A
74LS04
*RD
BR**W *BSTART
*BRESET
UART and I/O
uart_io.sch
Memory Devices
memory.sch
GND BCLOCK
Address Latch and Buffering
Data Bus Buffer and Control Logic
X1
1
X2
2
RESET_OUT
3
SOD
4
SID
5
TRAP
6
RST_7.5
7
RST_6.5
8
RST_5.5
9
INTR
10
ALE 30
INTA
11
A8 21
*WR 31
AD0 12
A9 22
*RD 32
AD1 13
A10 23
S1 33
AD2 14
A11 24
IO**M 34
AD3 15
A12 25
READY
35
AD4 16
A13 26
RESET_IN
36
AD5 17
A14 27
CLK_OUT
37
AD6 18
A15 28
HLDA
38
AD7 19
S0 29
HOLD
39
U9
8085
GND
GND
VCC VDD
VSS
C19
C
C20
C
C21
C
C22
C
C23
C
C24
C
C12
C
W1
MTG W2 MTG W3 MTG W4 MTG
GND
Mounting Holes
1 2
3 4
5 6
7 8
9 10
20
30
40
11
21
31
12
22
32
13
23
33
14
24
34
15
25
35
16
26
36
17
27
37
18
28
38
19
29
39
J4
GLITCHBUS
R6 4.7K
R7 4.7K
R8 4.7K
R9 4.7K
R104.7K
R5 4.7K
R1 4.7K
R2
4.7K
VCC
GND
1*RESET 2
VCC
3U1
DS1233 *BRESET
VCC
GND C1
10n
SW1
RESET
GND
C10
C
C11
C
C2
C
C3
C
C4
C
C5
C
C6
C
C13
C
C14
C
C15
C
C7
C
C18
C
VCC
GND
BD0 BD1
BD2 BD3
BD4 BD5
BD6 BD7
BA7BA6 BA5BA4 BA3BA2 BA1BA0
BA15BA14 BA13BA12 BA11BA10 BA9BA8
1
2
4
5
6
U6A
74LS20
8
9
10
12
13
U6B
74LS20
*ROM_CS
*RAM_LO_CS
*RAM_HI_CS
*IO_BASE_SEL
*EXTERNAL_BUS
*EXTERNAL_BUS
*BRESET
*BMASK
*BSTART BCLOCK
BIO**M
BR**W *BINT
*BSTART Signal Generator -- Signals Start of Bus Transaction
*BINT
R15
4.7K
VCC
INTERRUPT
TP1
INTC8
22uF
R11
4.7K
R12
4.7K
VCC
1 2
D1
POWER
GND
VCC
R17
330R
Power Indicator
W5
MTG W6 MTG
Bypass and Decoupling Caps
Bypass caps are 0.01 - 0.1 uF
Reset circuit
Open collector with internal pull-up
Can connect an external switch from Glitchbus
Glitchbus Expansion Connector
Interrupt Inverter
If desired, jumper output to one of the 8085 interrupt inputs
Recommended to use a half-interrupt, not INTR
Processor, Oscillator, and Pull-Ups/Pull-Downs
External data bus is only active when no onboard device is selected
BREADY
BREADY
1
2
J3
POWER
C17
22uF

1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
A
B
C
D
E
A
B
C
D
E
Date: 2018-07-01
KiCad E.D.A. kicad 4.0.4-stable Rev: 1Size: USLedger Id: 2/3
Title: 8085 SBC rev 3
File: uart_io.sch
Sheet: /UART and I/O/
The Glitch Works
J. Chapman
89 U13D
74LS04
G
1
P0
2
R0
3
P1
4
R1
5
P2
6
R2
7
P3
8
R3
9
P4
11
R4
12
P5
13
R5
14
P6
15
R6
16
P7
17
R7
18
P=R 19
U7
74LS688
*BSTART
BIO**M
8
9
10 U5C
74LS32
11
12
13 U5D
74LS32
BA1
*BA1
*UART_CS
*CONTROL_REG_CS
VCC
VCC
D2
1
D3
2
RxD 3
D4
5
D5
6
D6
7
D7
8
*TxC 9
*WR
10
CLK 20
*CS
11
RESET
21
C**D
12 *DSR 22
*RD
13
*RTS 23
RxRDY 14
*DTR 24
TxRDY 15
*RxC 25
SYNDET/BD 16
*CTS 17
D0
27
TxEMPTY 18
D1
28
TxD 19
U19
8251A_USART
BA0
BCLOCK
BR**W
*RD
*UART_CS
RESET_OUT
1
23
U5A
74LS32
4
56
U5B
74LS32
BR**W
*RD *STATUS_REG_CS
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
SW2
I/O BASE
BA7
BA6
BA5
BA4
BA3
BA2
RP2
10K
GND
VCC
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0
Q11 1
Q5 2
Q4 3
Q6 4
Q3 5
Q2 6
Q1 7
Q0 9 CLK
10
Reset
11
Q8 12
Q7 13
Q9 14
Q10 15
U20
4040
Y2
2.4576 MHz
C16
10n
R21
1K R22 1K
BA1 *BA1
GND
76800
38400
19200
9600
4800
2400
1200
600
300
150
75
37.5
12 34 56 78 910 1112 1314 1516
J5
UART SPEED
UART_CLOCK
UART_CLOCK
1011 U13E
74LS04
1213 U13F
74LS04
*IO_BASE_SEL
UART Clock Generator
I/O Base Address and Device Select Decode Logic
LOGIC RS232
C1+
1
VS+ 2
C1-
3
C2+ 4
C2- 5
VS- 6
T2OUT 7
R2IN 8 R2OUT
9
T2IN
10
T1IN
11
R1OUT
12 R1IN 13
T1OUT 14
GND
15 VCC 16
U21 MAX232
VCC
GND
C25
CP
C27
CP
C28
CP
TxD
RxD
*RTS
*CTS
TxD
RxD
*RTS
*CTS
C29
CP
GND
VCC
C26
CP
1
2
3
4
5
J6
CONSOLE
EIATX
EIARX
GND
EIARTS
EIACTS
EIARTS
EIATX
EIACTS
EIARX
C25-C29: 1 to 22 uF
8251A USART
RS-232 Level Shifter

1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
A
B
C
D
E
A
B
C
D
E
Date: 2018-07-01
KiCad E.D.A. kicad 4.0.4-stable Rev: 1Size: USLedger Id: 3/3
Title: 8085 SBC rev 3
File: memory.sch
Sheet: /Memory Devices/
The Glitch Works
J. Chapman
11
12
13
U4D
74LS00
BA15
*ROM
*BMASK BIO**M
A14
1
A12
2
A7
3A6
4A5
5A4
6A3
7A2
8A1
9A0
10
*CE 20
D0 11
A10
21
D1 12
*OE 22
D2 13
A11
23
A9
24
D3 15
A8
25
D4 16
A13
26
D5 17
*WE 27
D6 18
D7 19
U15
62256
BA14
BA13
BA12
BA11
BA10
BA9
BA8
BA7
BA6
BA5
BA4
BA3
BA2
BA1
BA0
*RAM_LO_CS
BR**W
*RD
*RAM_LO_CS
A0
1
A1
2
A2
3
E1
4E2
5E3
6
O7 7
O6 9
O5 10
O4 11
O3 12
O2 13
O1 14
O0 15
U12
74LS138
*RAM_HI_CS
ROM_CS
*BSTART
GND
*ROM_CS
A14
1
A12
2
A7
3A6
4A5
5A4
6A3
7A2
8A1
9A0
10
*CE 20
D0 11
A10
21
D1 12
*OE 22
D2 13
A11
23
A9
24
D3 15
A8
25
D4 16
A13
26
D5 17
*WE 27
D6 18
D7 19
U16
62256
BA14
BA13
BA12
BA11
BA10
BA9
BA8
BA7
BA6
BA5
BA4
BA3
BA2
BA1
BA0
*RAM_HI_CS
BR**W
*RD
A14
1
A12
2
A7
3A6
4A5
5A4
6A3
7A2
8A1
9A0
10
*CE 20
D0 11
A10
21
D1 12
*OE 22
D2 13
A11
23
A9
24
D3 15
A8
25
D4 16
A13
26
D5 17
*WE 27
D6 18
D7 19
U17
32K ROM
BA10
BA9
BA8
BA7
BA6
BA5
BA4
BA3
BA2
BA1
BA0
*ROM_CS
*ROM_WR
*RD
BA11
Mr
1
Q0 2
Q0 3
D0
4
D1
5
Q1 6
Q1 7
Cp
9
Q2 10
Q2 11
D2
12
D3
13
Q3 14
Q3 15
U2
74LS175
*BRESET
RPA0
RPA1
RPA2
RPA0
RPA1
RPA2
ROM Page Register
This register controls which 4K page of ROM is addressed.
Cleared to 0 on *RESET, writable at IO_BASE + 2
Bits 0 - 2 set ROM page, bit 7 is user-defined
Memory Device Select Logic
Memory Devices
*CONTROL_REG_CS
A->B 1
A0 2
A1 3
A2 4
A3 5
A4 6
A5 7
A6 8
A7 9 B7
11 B6
12 B5
13 B4
14 B3
15 B2
16 B1
17 B0
18
CE 19
U18
74LS245 *STATUS_REG_CS
RPA0
RPA1
RPA2
ROM_ENABLED
ROM_AT0
Status Register
Readable at IO_BASE + 2
ROMBASE12
ROMBASE13
ROMBASE14
ROMBASE15
VCC
GND
Q8
Q9
Sd 10
Cp
11
D
12
Cd
13
U3B
74LS74
Cd
1
D
2
Cp
3
Sd 4
Q5
Q6
U3A
74LS74
*BRESET
ROM_ENABLED
*ROM_AT0
*ROM_ADDRESS
*CONTROL_REG_CS
*CONTROL_REG_CS
ROM_AT0
B3
1
Ia<b 2
Ia=b 3
Ia>b 4
Oa>b 5
Oa=b 6
Oa<b 7
B0
9
A0
10
B1
11
A1
12 A2
13
B2
14
A3
15
U11
74LS85
BA14
BA13
BA12
BA15
ROMBASE12
ROMBASE13
ROMBASE14
ROMBASE15
VCC
GND
4
56
U4B
74LS00
8
9
10 U4C
74LS00
*ROM_AT0
*ROM_ADDRESS ROM_ADDRESS_SELECT
ROM_ENABLED
ROM_ADDRESS_SELECT *ROM
ROM Boot Flip-Flop
Places ROM at all memory locations when SET
Writable at IO_BASE + 2 bit 3
ROM Enabled Flip-Flop
Allows ROM to be activated when SET
Writable at IO_BASE + 2 bit 4
ROM Base Address Decoder
Determines the address of the 4K segment that ROM normally
occupies when enabled and boot flip-flop is CLEAR
RP1
10K
AD7
AD3
AD4
AD2
AD1
AD0
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0
1
2
3
J2
ROM_ENABLED
1
2
3
J1
ROM_BOOT
1-2: ROM at ROM Base Only on *RESET
2-3: ROM at All Addresses on *RESET
1-2: ROM Disabled at *RESET
2-3: ROM Enabled at *RESET
*BRESET
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
SW3
ROM OPT
GND
5 6
U13C
74LS04
3 4
U13B
74LS04
BR**W*ROM_WR
R20
4.7K
R13
4.7K
R3
4.7K
R14
4.7K
R4
4.7K
VCC
VCC
VCC
VCC
R16
4.7K
VCC
R19
330R
1 2
D3
USER
VCC
R18
330R
1 2
D2
ROM
VCC
ROM Address Select Logic
