Global Sat GD-101 User manual

GPS Director
GD-101 User Manual
Version 1.0

2
CONTENT
Chapter 1：Functions and Specifications........................ 3
Function and Features ................................................................... 3
Specifications .............................................................................. 4
Accessories................................................................................ 6
Appearance ................................................................................ 6
Chapter 2：Start to Use.................................................. 7
Install Battery .............................................................................. 7
Magnetic North Adjustment.............................................................. 7
Chapter 3：Using GD-101............................................... 8
3-1 Direction Indication Screen ......................................................... 8
3-1-1 Automatic Setting the Destination ........................................................................9
3-2 Main Setting Screen ................................................................10
3-2-1 Manual Setting Destination’s Coordinate.............................................................. 11
3-2-2 Function Setting................................................................................................12
3-2-3 Setting Data..................................................................................................... 14
3-3 Adjusting E-Compass...............................................................16
3-4 Turning Off GD-101 .................................................................16
Chapter 4: Troubleshooting...........................................17
Appendix 1：World Time Zone Table .............................18
Appendix 2：FCC Notices...............................................20

3
Chapter 1：Functions and Specifications
Function and Features
zCan set 5 Destination Points
zDisplay directions with Digital Arrow Display (Can display 16 directions)
zMagnetic North Direction Indication; present coordinates display
zManual Setting of Destination Coordinates
zMaximum Destination Distance Showing (0~999.99)
zGPS fix status indication
z3 Kinds of Distance Unit: km/mi/nm for setting
zTime Zone Setting/ Date and time display
zEnd User changeable Battery Design: AAA x 2, Rechargeable Battery /General
Battery / Alkaline Battery
zAlkaline battery life can last for 18 hours. The battery life can be lengthened
under power-saving mode.
zSimple function of buttons
zBattery Power Level Indication
zBacklight Time Setting
zPower-saving mode setting

4
Specifications
Electricity
GPS chipset High sensitivity single chip solution
Frequency L1, 1575.42 MHz
C/A Code 1.023 MHz chip rate
Channels 48 channel all-in-view tracking
Sensitivity Tracking:-161dBm
Display
Pixel H*W 96x65 dot Matrix
Backlight Type White
Power
Battery Type AAA X 2
Operation Time 9 hours
Buttons
Power/Backlight
Button Short-click: Turn on backlight.
Long-click:
1. Power off device under main screen.
2. Return to last page under each setting screen.。
Selection/ Setting
Button Short-click: To select.
Long-click: To set.
Make GD-101 enter main screen by long clicking
Power/Backlight Button and Selection/ Setting Button at the
same time.
Appearance
Dimension 60 X 60 X 28 (mm)
Weight 45g, (Not including batteries)
COORDINATES SYSTEM
Coordinates
System Default：WGS-84
DYNAMIC CONDITION
Accelerate Speed Less than 4G
Height Limit 18,000 Meter
Speed Limit 515 m/sec
Vibration Limit 20 m/sec**3
GPS FIX TIME
Hot Start Average 1 second
Warm Start Average 38 second
Cold Start Average 42 second
Get GPS fix Again Average 0.1 second
Antenna
GPS antenna 12 X 12 mm, Patch Antenna

5
ACCURACY
Horizontal
Position 10 meters, 2D RMS
1-5 meters 2D RMS, WAAS corrected
Speed Accuracy 0.1 m/sec
Time Accuracy 1 micro-second synchronized to GPS time
Temperature
Operation
Temperature 0°C ~ 50°C
Storage
Temperature -20°C ~ 70°C
Humidity Range Operational up to 95% non-condensing
Certification
FCC USA (Covers requirements for CANADA ICES-003)
CE Europe

6

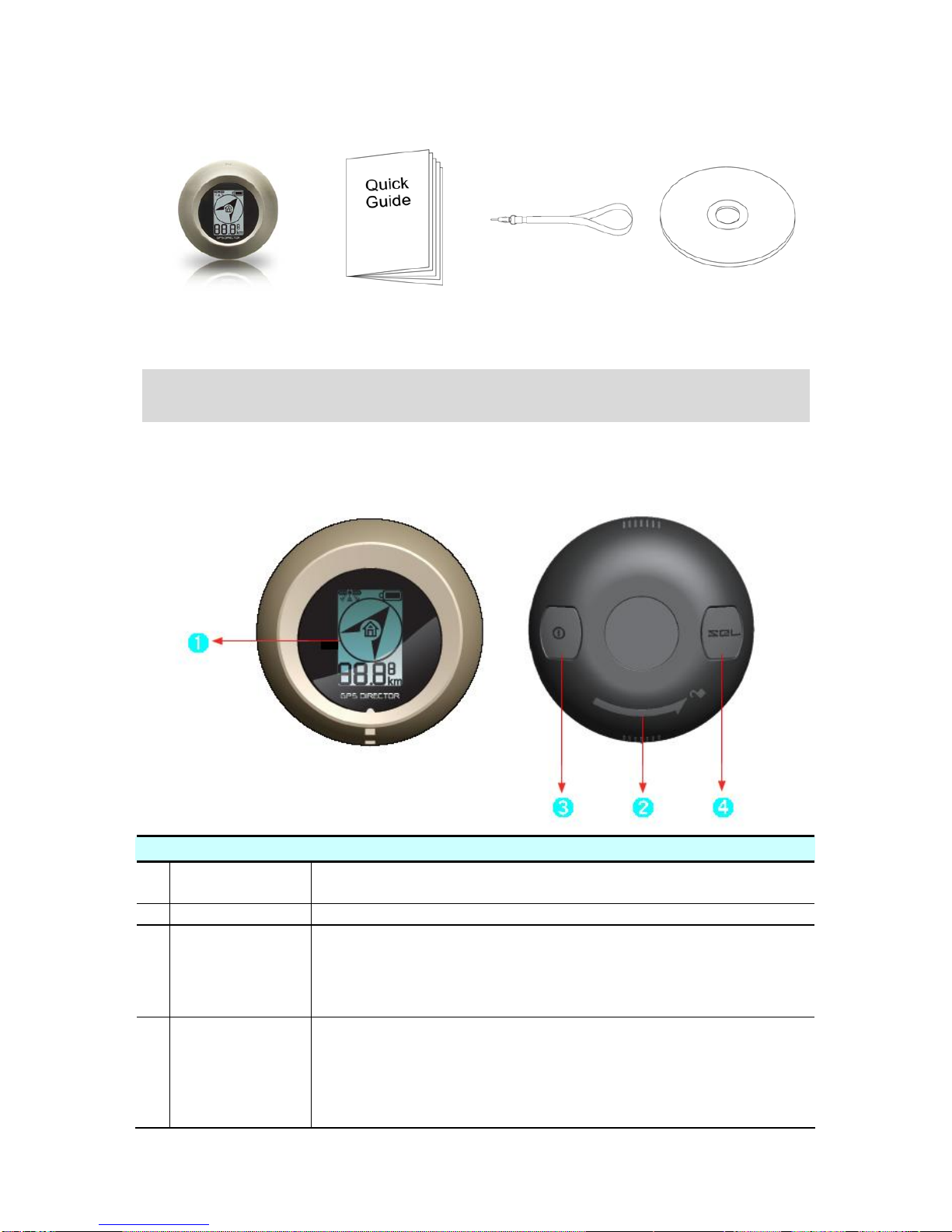

Accessories
GD-101Main Unit
Quick Guide
Hang tape CD
NOTE：
If any accessory is not included or damaged, please contact the local dealer.
Appearance
Front view and Back view
➊Display Shows the GPS fix status, power level, destination direction
and distance
➋Battery Cover Open the battery cover by rotating it according to the arrow.
➌Power/Backlight
Button
Short-click (1sec): Turn on backlight.
Long-click (2sec):
1. Power off device under main screen.
2. Return to last page under each setting screen.
➍Selection/
Setting Button
Short-click (1sec): To select.
Long-click (2sec): To set.
Make GD-101 enter main screen by long clicking
Power/Backlight Button and Selection/ Setting Button at the
same time.

7
Chapter 2：Start to Use
Install Battery
Open Battery cover
Loosen the cover
Install Battery
Lock the cover
Magnetic North Adjustment
1. When using GD-101 for the first time, GD-101 will automatically perform the
magnetic-north adjustment as seen in the screenshot below.
2. For the method of adjustment, please refer to Chapter 3-2.
3. If GD-101 shows the incorrect or inaccurate direction, please perform the
magnetic adjustment by operating the function button.

8
Chapter 3：Using GD-101

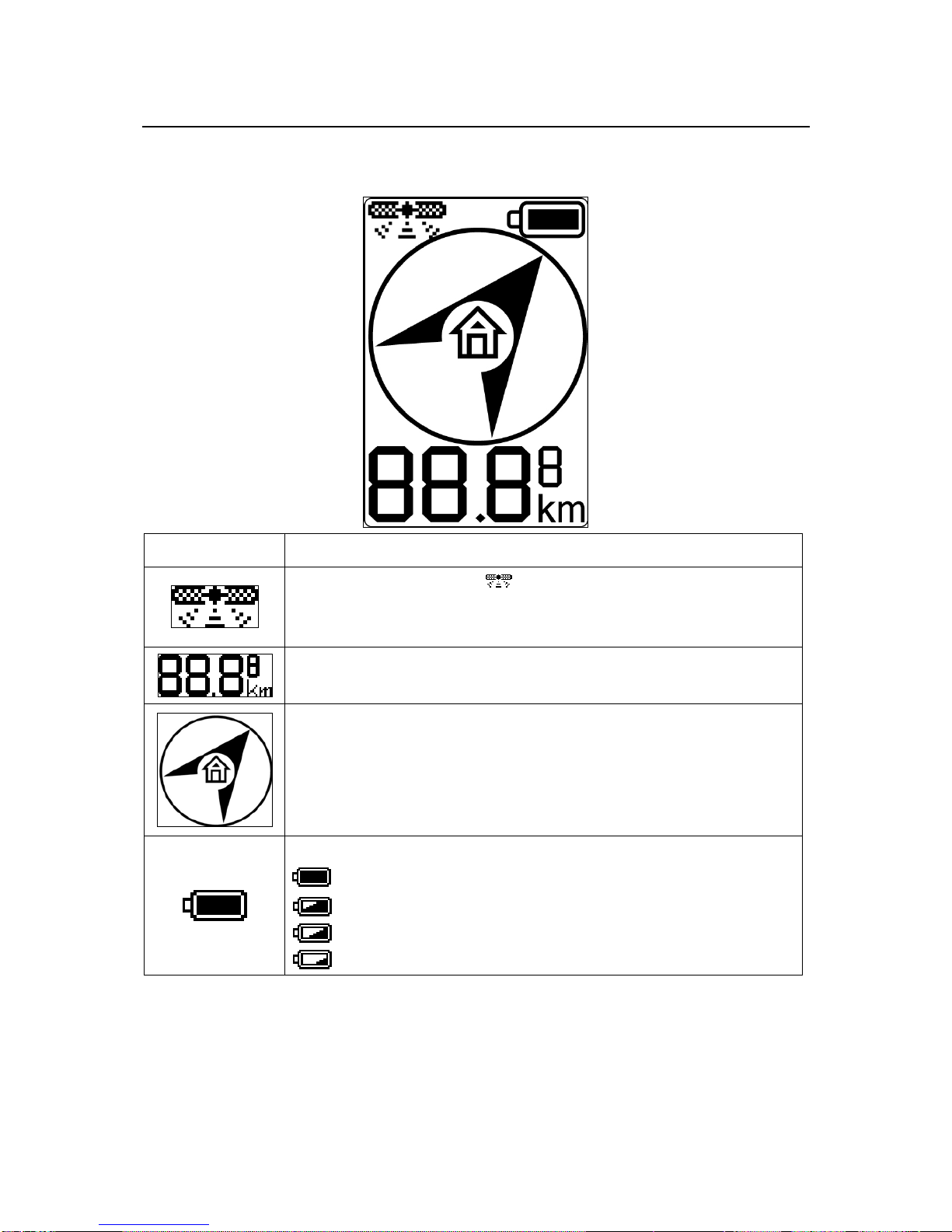

3-1 Direction Indication Screen
Indication Description
The GPS fix indication will keep ON when device gets a
GPS fix. GPS fix indicator will flash when device does not have
GPS fix.
The distance between GD-101 and destination will only be
shown/ displayed when device has GPS fix.
The direction of the setting destination of GD-101. The arrow will
direct to the destination after GD-101 has GPS fix and has
performed the magnetic-north adjustment.
What is shown on upper right corner is the battery power level
75%~100%
50%~75%
25%~50%
Battery Low. Please change the batteries

9

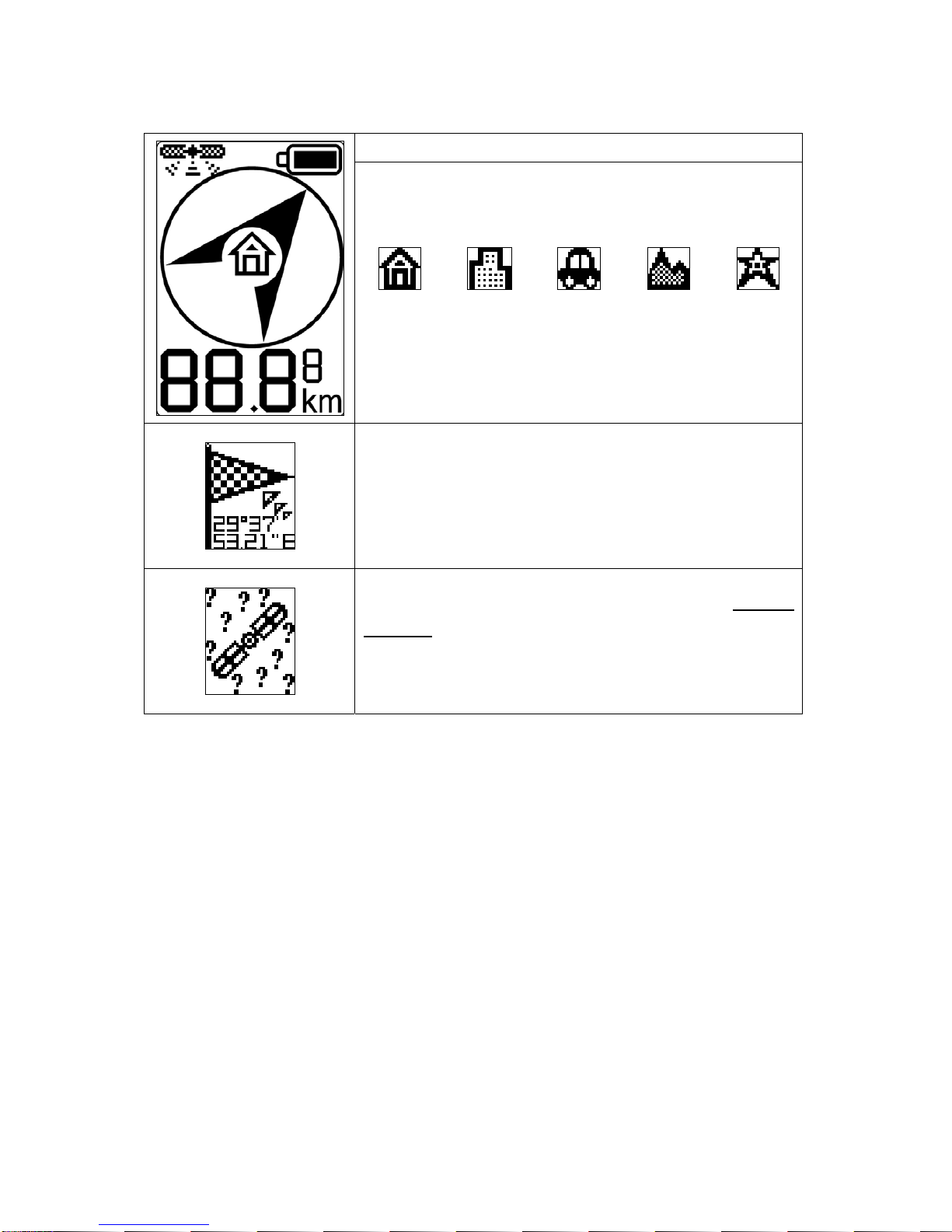

3-1-1 Automatic Setting the Destination
Description
1. Under direction indication screen, click Selection/
Setting button to select and set the following 5
destination’s coordinates.
2. After GD-101 has GPS fix, long click Selection/
Setting button will save the present coordinates as
the selected destination’s coordinates.
While GD-101 is saving coordinates, GD-101 will
display as seen in the screen shot to the left and then
return to the direction indication screen.
If you try to save the present coordinates under no GPS
fix status, GD-101 will display as seen in the screenshot
to the left and then return to the direction indication
screen.

10
3-2 Main Setting Screen
In the direction indication screen, you could make GD-101 enter main screen by long
clicking Power/Backlight Button and Selection/ Setting Button at the same time.
Screen and Operation Explanation:
Indication Function Operation
Long click Selection/Setting button to enter setting
screen.
You could set the following 5 destination’s
coordinates.
Manual Set
Destination’s
Coordinate
Long click Selection/Setting button to enter setting
screen.
You could set the following items.
Time Zone Distance Unit
Function
Setting
Backlight Setting
Automatic Sleeping Time
Long click Selection/Setting button to enter setting
screen.
You could set the following items.
Date GPS Cold Start
Data Setting
Delete Memory

11
3-2-1 Manual Setting Destination’s Coordinate
icon Explanation
Set Home’s coordinates. The indication
will be ON when the destination’s coordinates
are set.
Set Building’s coordinates. The indication
will be ON when the destination’s coordinates
are set.
Set Car’s coordinates. The indication will
be ON when the destination’s coordinates are
set.
Set Travel’s coordinates. The indication
will be ON when the destination’s coordinates
are set.
Set My Favorite’s coordinates. The indication
will be ON when the destination’s
coordinates are set.
Setting Destination’s Longitude
1. The upper left corner is the selected destination.
The number is the setting longitude (East or
West).An arrow will be indicated to the number on
the initial screen.
2. Short click Selection/Setting button to select the
number. Long click Selection/Setting button to
enter the selected value and move to the next digit
for setting.
3. The maximum setting is 180 ° 00 ’00 . 00 ”
Setting Destination’s Latitude
1. The upper left corner is the selected destination.
The number is the setting longitude (North or
South). An arrow will be indicated to the number
on the initial screen.
2. Short click Selection/Setting button to select the
number. Long click Selection/Setting button to
enter the selected value and move to the next digit
for setting.
3. The maximum setting is 90 ° 00 ’00 . 00 ”

12
3-2-2 Function Setting
Icon Explanation
Set User’s Time Zone
Select the unit of displayed distance, KM,
mile, and nm.
Set backlight timeout
Set the automatic sleeping time for
power-saving
Setting Time Zone Explanation
1. You could set time zone in this screen. The value
on the lower screen represents the GMT time.
2. Short click Selection/Setting button to select the
time zone.
3. Long click Selection/Setting button to save the
time zone.
4. Long click Power button to return to last screen.
Setting Unit of Displayed Distance Explanation
1. You could select the unit of displayed distance in
this screen. The default setting is km.
2. Short click Selection/Setting button to select the
unit.
3. Long click Selection/Setting button to save the
unit.
4. Long click Power button to return to last screen.

13

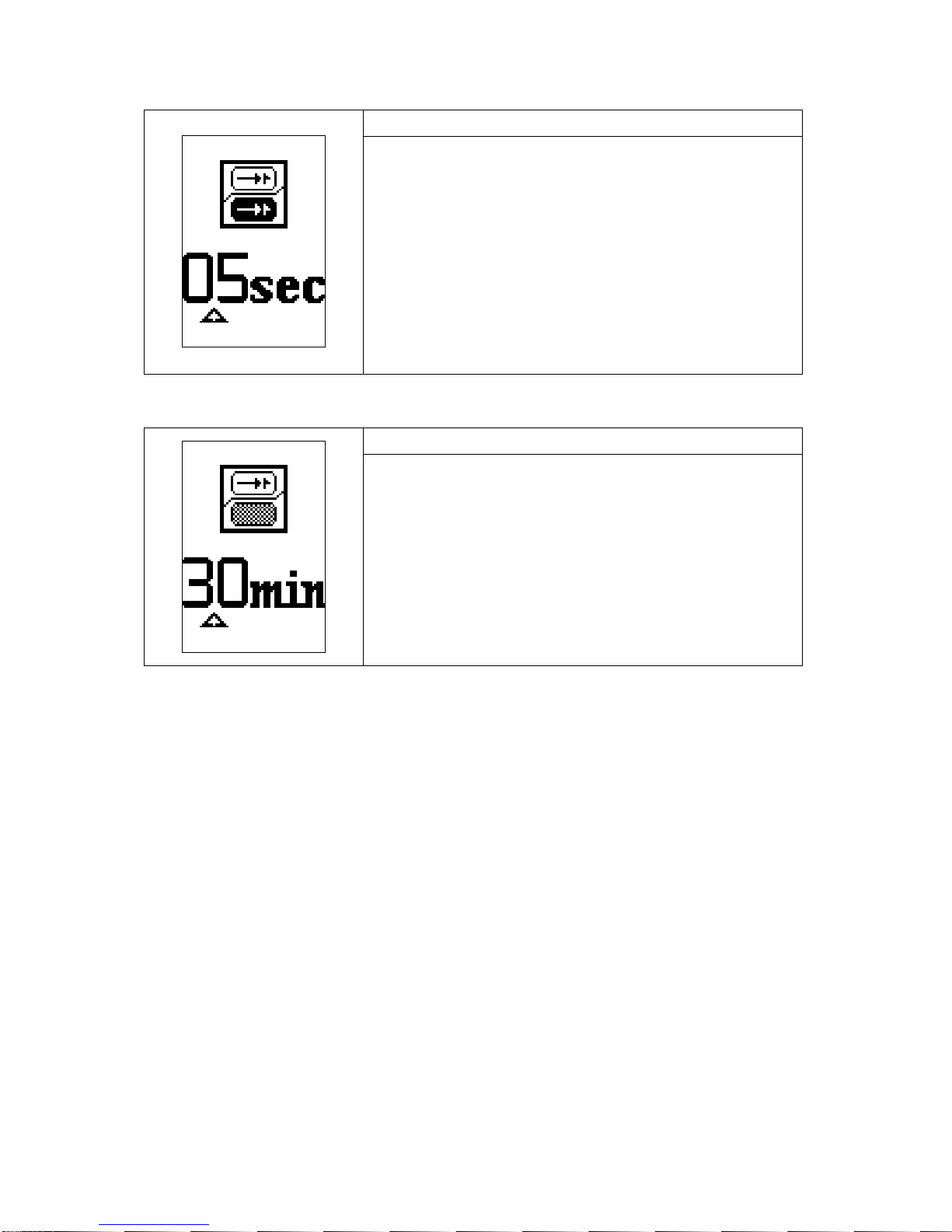

Setting Backlight Timeout-time Explanation
1. Set the backlight timeout-time in this screen. The
value in the lower screen is the backlight time-out
time. The backlight will be on for the time-out time
after you short click the power/backlight button.
2. Short click Selection/Setting button to select the
backlight timeout.
3. Long click Selection/Setting button to save the
backlight timeout
4. Long click Power button to return to last screen.
Set Idle-timeout Time for Going to Sleep Mode
Explanation
1. Set idle-timeout time for going to sleep mode in
this screen. The value in the lower screen
represents the idle-timeout time.
2. Short click Selection/Setting button to select
idle-timeout-time.
3. Long click Selection/Setting button to save
idle-timeout-time.
4. Long click Power button to return to last screen.

14
3-2-3 Setting Data
Icon Explanation
Display the present time of the set time
zone.
Make GD-101 do cold start。
Delete the setting coordinate of destination
in GD-101
Showing Date and Time Explanation
1. The displayed date and time is from satellite data.
It is not user-defined.
2. Long click Power button to return to last screen.
3. Long click Selection/Setting button to go to main
screen.
Cold Start Explanation
1. This screen shows GD-101 is performing a GPS
Cold Start
2. It will return to navigation screen after 1 second.

15

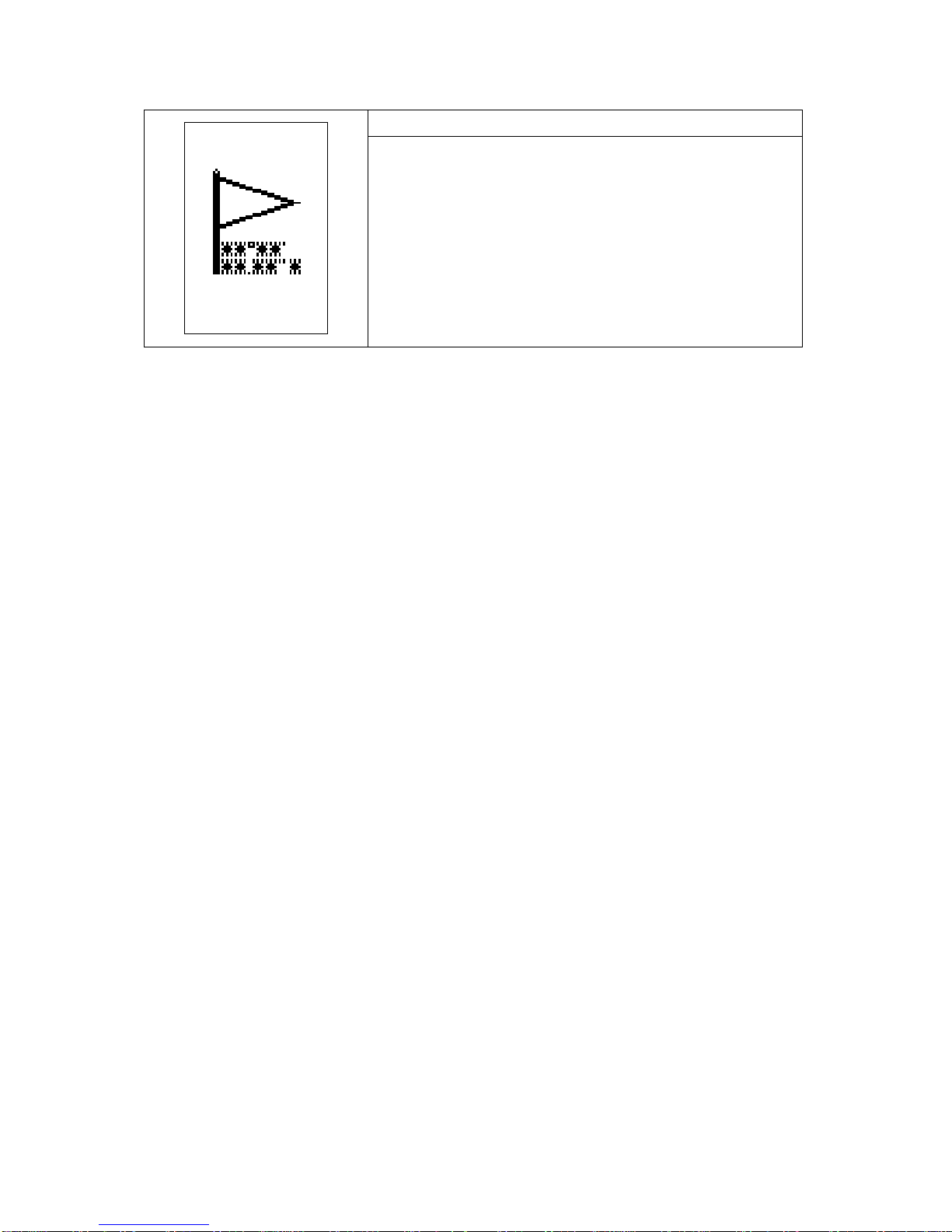

Deleting Coordinates of Destination Screen
Explanation
1. This screen shows GD-101 is deleting the
coordinates of the destination.
2. It will return to navigation screen after 1 second.

16

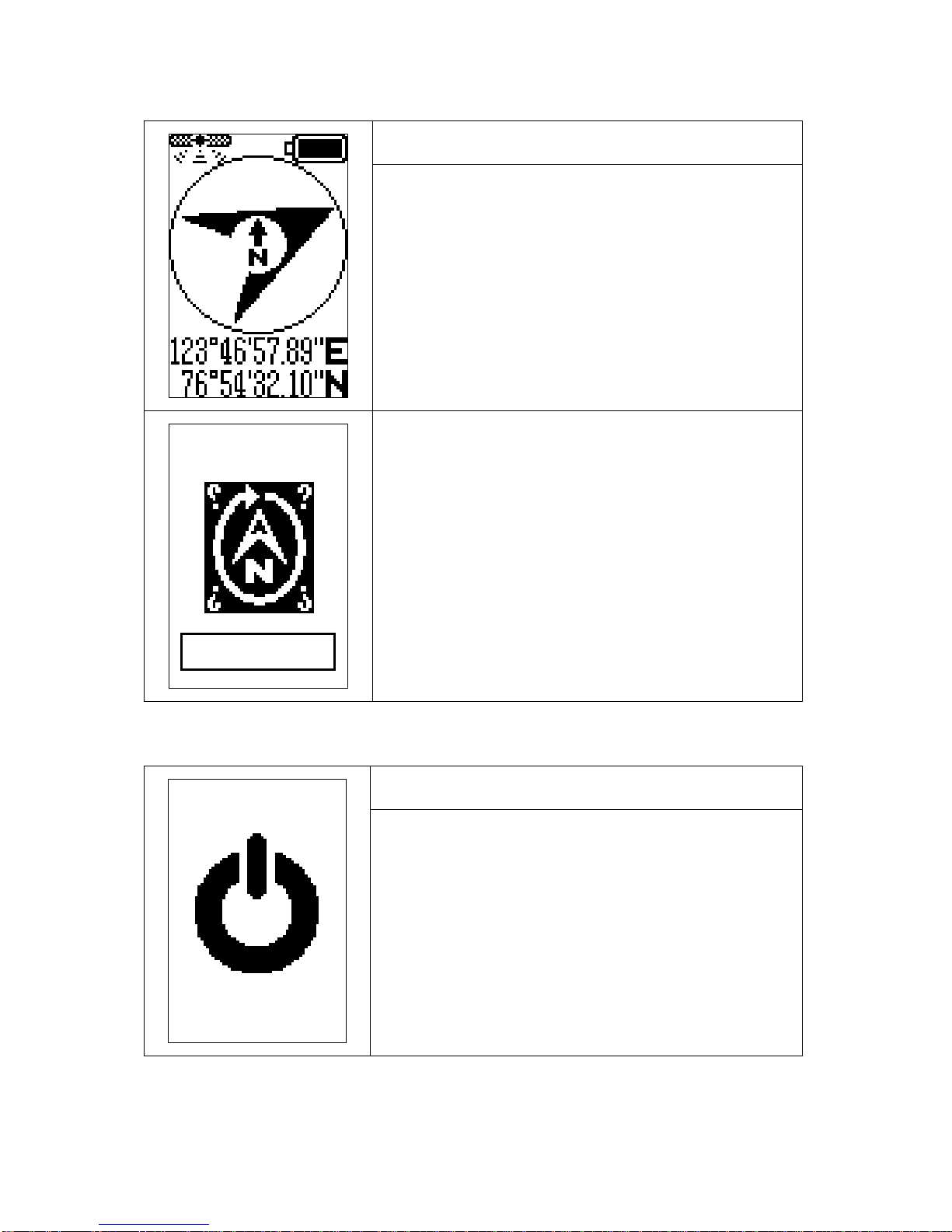

3-3 Adjusting E-Compass Explanation
1. GD-101 will display the magnetic northern
direction after entering the adjusting electronic
compass mode.
2. GD-101 will show the coordinates after getting a
GPS fix.
Adjusting the Electronic Compass
1. You could adjust electronic compass in this
screen.
2. In order to avoid the magnetic interference from
other objects, please adjust the compass
outdoors. Place the GD-101 on flat surface and
rotate clockwise 360 degrees, twice.
3. GD-101 will automatically return to navigation
screen.
3-4 Turning Off GD-101 Explanation
1. In the direction navigation screen, long click
power button to turn off GD-101.
2. GD-101 will be turned off 2 seconds after seeing
this screen.

17
Chapter 4: Troubleshooting
When GD-101 can not be turned on or does not work properly,
Please check if the battery is installed correctly.

It requires more time to get GPS fix while GD-101 is moving. Please
keep GD-101 stationary when powering on GD-101. This will shorten
the time to get a GPS fix.

Keep GD-101 away from excessive moisture and extreme
temperatures. Do not leave it in the closed vehicles or put it under
direct sunlight for extended periods of time. Excessive moisture and
extreme temperatures may damage the GD-101.
If the date and time is not correct, please select the local time zone in
the time zone setting. Ie PST GMT -8 / Taiwan GMT +8

Do not put GD-101 near the magnetic objects like electric appliances
or magnets. The magnetic objects may cause the GD-101 point to
wrong direction.
 If the pointed direction is not accurate, please adjusting the electronic
compass.

18
Appendix 1：World Time Zone Table
Time Code Description Region Time Zone
ACDT Australian Central Daylight Time Australia +10:30
ACST Australian Central Standard Time Australia + 9:30
ADT Atlantic Daylight Time North America - 3:00
AEDT Australian Eastern Daylight Time Australia + 11:00
AEST Australian Eastern Standard Time Australia + 10:00
AKDT Alaska Daylight Time North America - 8:00
AKST Alaska Standard Time North America - 9:00
AST Atlantic Standard Time North America - 4:00
AWDT Australian Western Daylight Time Australia + 9:00
AWST Australian Western Standard Time Australia + 8:00
BST British Summer Time Europe + 1:00
CDT Central Daylight Time Australia +10:30
CDT Central Daylight Time North America - 5:00
CEDT Central European Daylight Time Europe + 2:00
CEST Central European Summer Time Europe + 2:00
CET Central European Time Europe + 1:00
CST Central Summer Time Australia + 10:30
CST Central Standard Time Australia + 9:30
CST Central Standard Time North America - 6:00
CXT Christmas Island Time Australia + 7:00
EDT Eastern Daylight Time Australia + 11:00
EDT Eastern Daylight Time North America - 4:00
EEDT Eastern European Daylight Time Europe + 3:00
EEST Eastern European Summer Time Europe + 3:00
EET Eastern European Time Europe + 2:00
EST Eastern Summer Time Australia + 11:00
EST Eastern Standard Time Australia + 10:00
EST Eastern Standard Time North America - 5:00
GMT Greenwich Mean Time Europe 0:00
HAA Heure Avancée de l'Atlantique North America - 3:00
HAC Heure Avancée du Centre North America - 5:00
HADT Hawaii-Aleutian Daylight Time North America - 9:00
HAE Heure Avancée de l'Est North America - 4:00
HAP Heure Avancée du Pacifique North America - 7:00

19
HAR Heure Avancée des Rocheuses North America - 6:00
HAST Hawaii-Aleutian Standard Time North America - 10:00
HAT Heure Avancée de Terre-Neuve North America -2:30
HAY Heure Avancée du Yukon North America - 8:00
HNA Heure Normale de l'Atlantique North America - 4:00
HNC Heure Normale du Centre North America - 6:00
HNE Heure Normale de l'Est North America - 5:00
HNP Heure Normale du Pacifique North America - 8:00
HNR Heure Normale des Rocheuses North America - 7:00
HNT Heure Normale de Terre-Neuve North America - 3:30
HNY Heure Normale du Yukon North America - 9:00
IST Irish Summer Time Europe + 1:00
MDT Mountain Daylight Time North America - 6:00
MESZ Mitteleuroäische Sommerzeit Europe + 2:00
MEZ Mitteleuropäische Zeit Europe + 1:00
MSD Moscow Daylight Time Europe + 4:00
MSK Moscow Standard Time Europe + 3:00
MST Mountain Standard Time North America - 7:00
NDT Newfoundland Daylight Time North America - 2:30
NFT Norfolk (Island) Time Australia + 11:30
NST Newfoundland Standard Time North America - 3:30
PDT Pacific Daylight Time North America - 7:00
PST Pacific Standard Time North America - 8:00
UTC Coordinated Universal Time Europe 0:00
WDT Western Daylight Time Australia + 9:00
WEDT Western European Daylight Time Europe + 1:00
WEST Western European Summer Time Europe + 1:00
WET Western European Time Europe 0:00
WST Western Summer Time Australia + 9:00
WST Western Standard Time Australia + 8:00

20
Appendix 2：FCC Notices
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
FCC RF Exposure requirements:
This device and its antenna(s) must not be co-located or operation in conjunction with
any other antenna or transmitter.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
