Global Sat GPS Director YE-GD101 User manual

GPS Director
YE-GD101 User Manual
Version 1.1

2
CONTENT
Chapter 1：Functions and Specifications........................ 3
Function and Features.....................................................................3
Specifications................................................................................4
Accessories..................................................................................6
Appearance..................................................................................6
Chapter 2：Start to Use.................................................. 7
Install Battery................................................................................7
Magnetic North Adjustment ...............................................................7
Chapter 3：Using YE-GD101 .......................................... 8
3-1 Direction Indication Screen...........................................................8
3-1-1 Automatic Setting the Destination.......................................................................... 9
3-2 Main Setting Screen................................................................. 10
3-2-1 Manual Setting Destination’s Coordinate ...............................................................11
3-2-2 Function Setting..................................................................................................12
3-2-3 Setting Data........................................................................................................14
3-3 Adjusting E-Compass ............................................................... 16
3-4 Turning Off YE-GD101 ............................................................. 16
Chapter 4: Troubleshooting...........................................17
Appendix 1：World Time Zone Table .............................18

3
Chapter 1：Functions and Specifications
Function and Features
Can set 5 Destination Points
Display directions with Digital Arrow Display (Can display 16 directions)
Magnetic North Direction Indication; present coordinates display
Manual Setting of Destination Coordinates
Maximum Destination Distance Showing (0~999.99)
GPS fix status indication
3 Kinds of Distance Unit: km/mi/nm for setting
Time Zone Setting/ Date and time display
End User changeable Battery Design: AAA x 2, Rechargeable Battery /General
Battery / Alkaline Battery
Alkaline battery life can last for 18 hours. The battery life can be lengthened
under power-saving mode.
Simple function of buttons
Battery Power Level Indication
Backlight Time Setting
Power-saving mode setting

4
Specifications
Electricity
GPS chipset High sensitivity single chip solution
Frequency L1, 1575.42 MHz
C/A Code 1.023 MHz chip rate
Channels 48 channel all-in-view tracking
Sensitivity Tracking:-161dBm
Electronic Compass YAMAHA YAS52P 3Axis
Display
Pixel H*W 96x65 dot Matrix
Backlight Type White
Power
Battery Type AAA X 2
Operation Time 9 hours
Buttons
Power/Backlight
Button Short-click: Turn on backlight.
Long-click:
1. Power off device under main screen.
2. Return to last page under each setting screen.
Selection/ Setting
Button Short-click: To select.
Long-click: To set.
Make YE-GD101 enter main screen by long clicking
Power/Backlight Button and Selection/ Setting Button at the
same time.
Appearance
Dimension 60 X 60 X 28 (mm)
Weight 45g, (Not including batteries)
COORDINATES SYSTEM
Coordinates
System Default：WGS-84
DYNAMIC CONDITION
Accelerate Speed Less than 4G
Height Limit 18,000 Meter
Speed Limit 515 m/sec
Vibration Limit 20 m/sec**3
GPS FIX TIME
Hot Start Average 1 second
Warm Start Average 38 second
Cold Start Average 42 second
Get GPS fix Again Average 0.1 second

5
Antenna
GPS antenna 12 X 12 mm, PatchAntenna
ACCURACY
Horizontal
Position
10 meters, 2D RMS
1-5 meters 2D RMS, WAAS corrected
Speed Accuracy 0.1 m/sec
Time Accuracy 1 micro-second synchronized to GPS time
Temperature
Operation
Temperature 0°C ~ 50°C
Storage
Temperature -20°C ~ 70°C
Humidity Range Operational up to 95% non-condensing
Certification
FCC USA (Covers requirements for CANADA ICES-003)
CE Europe
TAIWAN BSMI

6

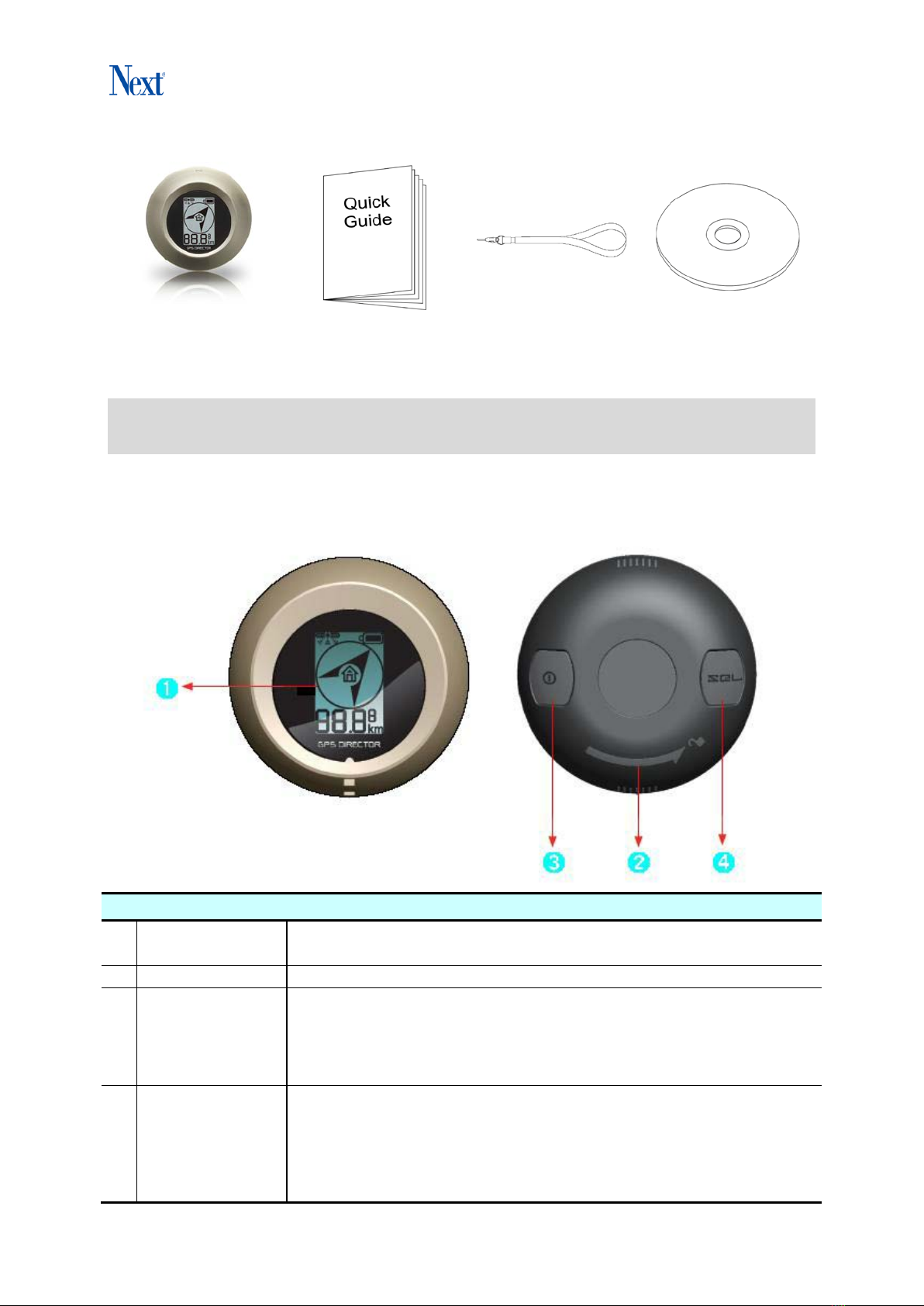

Accessories
YE-GD101 Main
Unit
Quick Guide
Hang tape
CD
NOTE：
If any accessory is not included or damaged, please contact the local dealer.
Appearance
Front view and Back view
➊Display
Shows the GPS fix status, power level, destination direction
and distance
➋
Battery Cover
Open the battery cover by rotating it according to the arrow.
➌Power/Backlight
Button
Short-click (1sec): Turn on backlight.
Long-click (2sec):
1. Power off device under main screen.
2. Return to last page under each setting screen.
➍Selection/
Setting Button
Short-click (1sec): To select.
Long-click (2sec): To set.
Make YE-GD101 enter main screen by long clicking
Power/Backlight Button and Selection/ Setting Button at the
same time.

7
Chapter 2：Start to Use

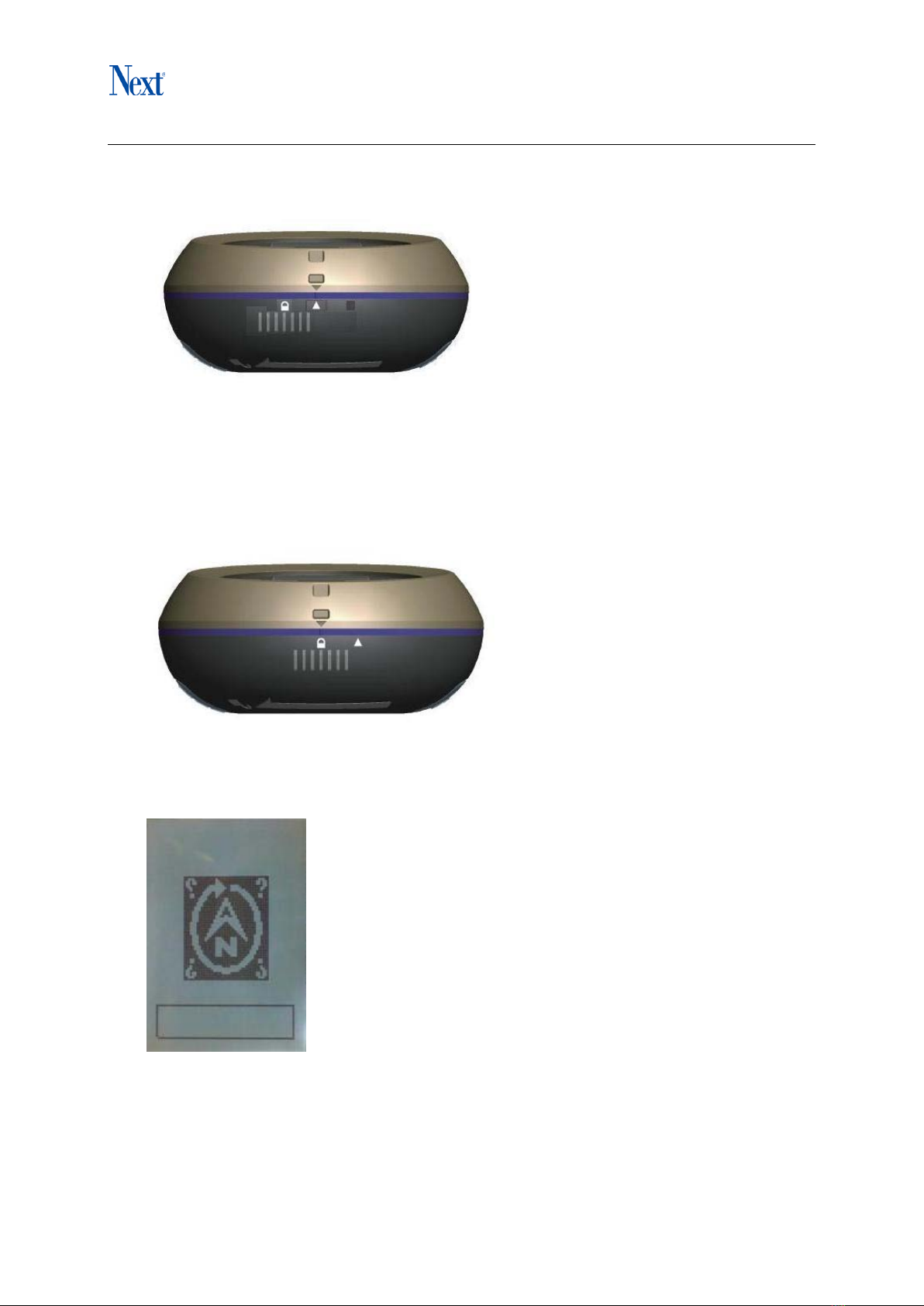

Install Battery
Close the battery cover
YE-GD101 in the battery cover
on the triangle mark position,
when the battery cover marked
with the YE-GD101 Charm-hole
mark at the bottom, and then in
accordance with the battery
YE-GD101
direction of the
arrow for rotation in the
opposite direction, then can
close the battery cover.
Open the battery cover
YE-GD101
in accordance with
the battery rotation direction of
the arrow to open the battery
cover and put in the battery.
Magnetic North Adjustment
1. When using YE-GD101 for the first time,
YE-GD101 will automatically perform the
magnetic-north adjustment as seen in the
screenshot below.
2. For the method of adjustment, please refer to
Chapter 3-2.
3. If YE-GD101 shows the incorrect or inaccurate
direction, please perform the magnetic
adjustment by operating the function button.

8
Chapter 3：Using YE-GD101

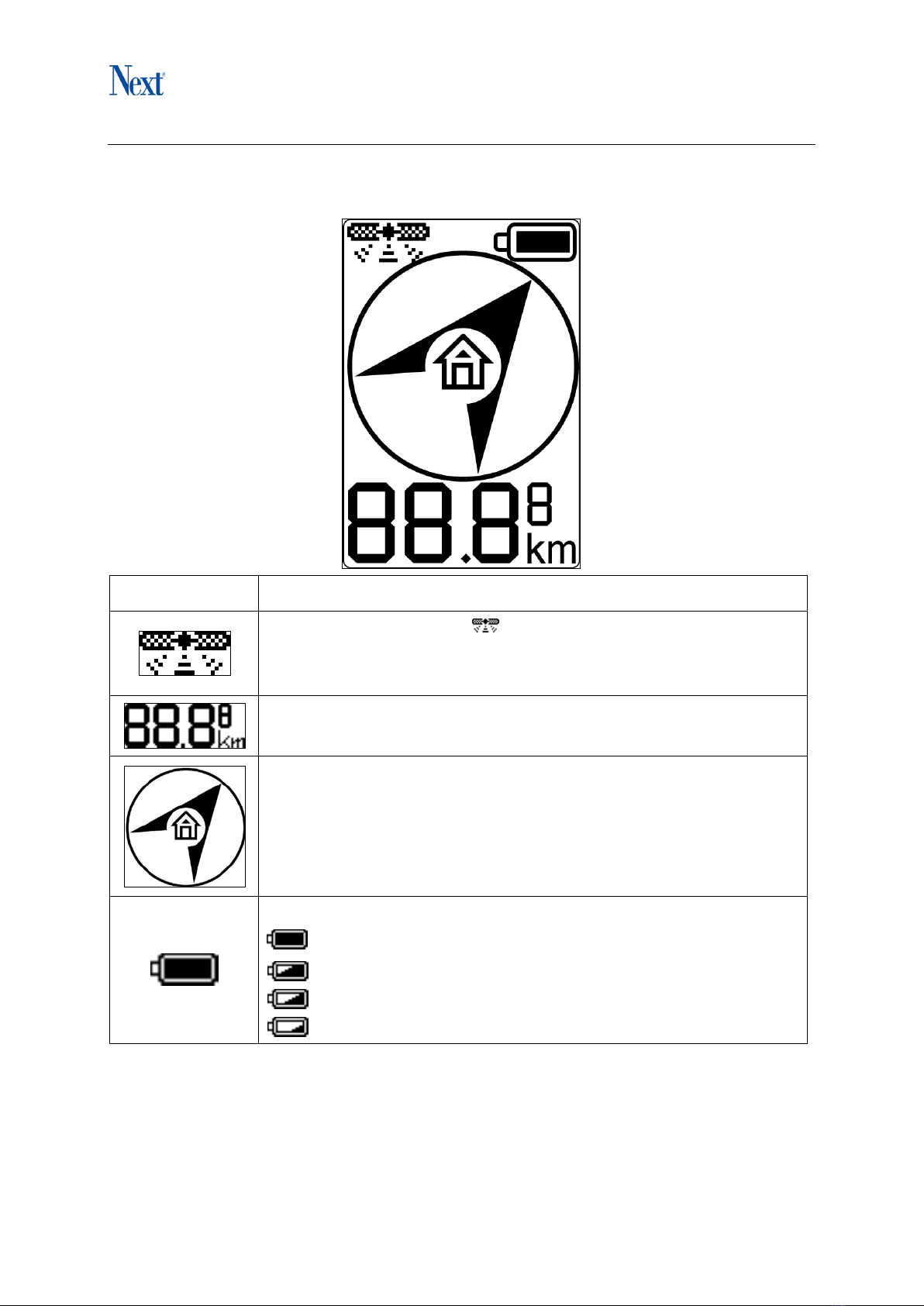

3-1 Direction Indication Screen
Indication Description
The GPS fix indication will keep ON when device ge
ts a
GPS fix. GPS fix indicator will flash when device does not have
GPS fix.
The distance between YE-GD101 and destinati
on will only be
shown/ displayed when device has GPS fix.
The direction of the setting destination of YE-GD101 . The arrow
will direct to the destination after YE-GD101 has GPS fix and has
performed the magnetic-north adjustment.
What is shown on upper right corner is the battery power level
75%~100%
50%~75%
25%~50%
Battery Low. Please change the batteries

9
3-1-1 Automatic Setting the Destination
Description
1.
Under direction indication screen, click Selection/
Setting button to select
and set the following 5
destination’s coordinates.
2. After YE-GD101 has GPS fix, long click Selection/
Setting button will save the present coordinates as
the selected destination’s coordinates.
While YE-GD101 is saving coordinates, YE-GD101 will
display as seen in the screen shot to the left and then
return to the direction indication screen.
If you try to save the present coordinates under no GPS
fix status, YE-GD101 will display as seen in the
screenshot to the left and then return t
o the direction
indication screen.

10

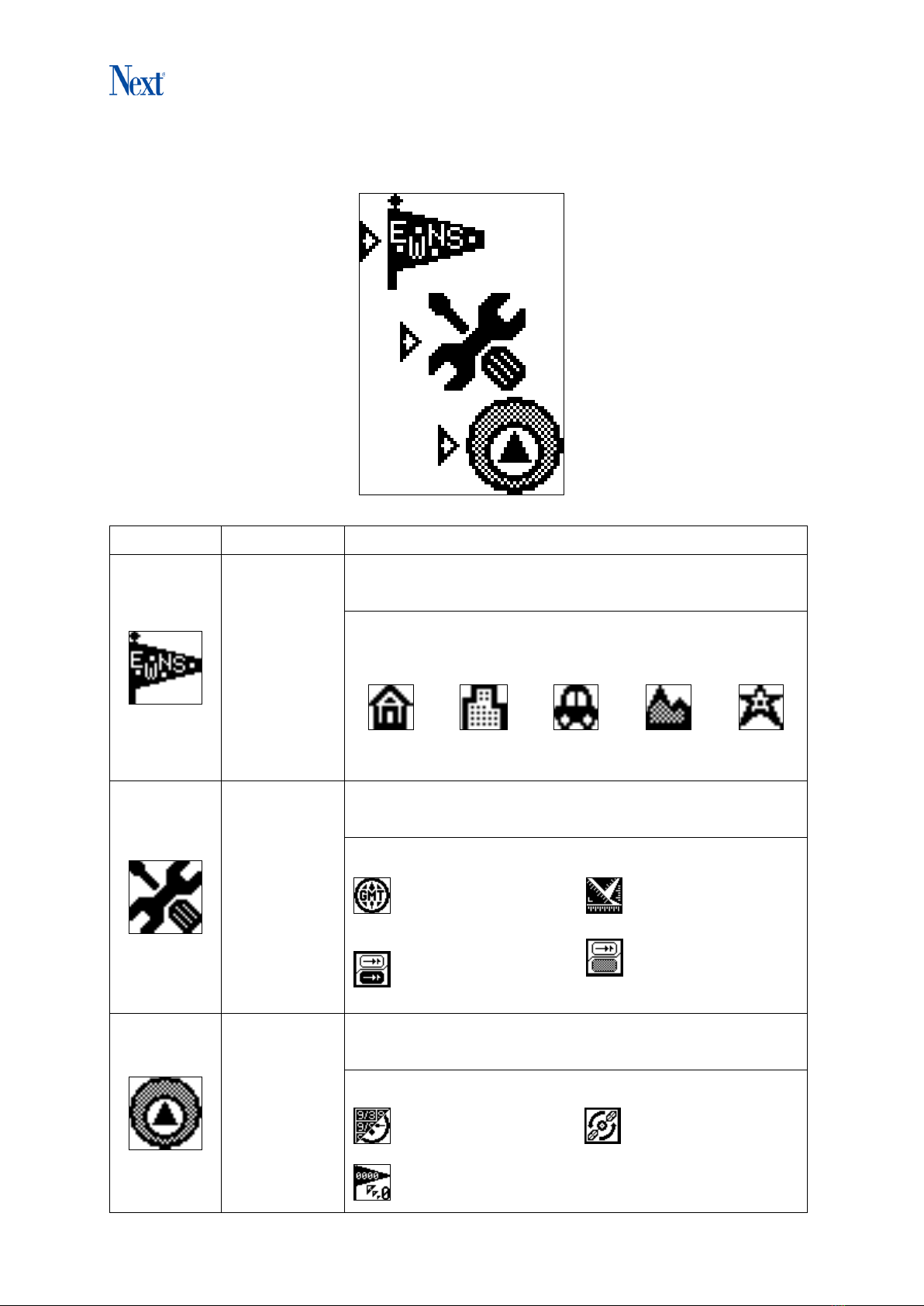

3-2 Main Setting Screen
In the direction indication screen, you could make YE-GD101 enter main screen by
long clicking Power/Backlight Button and Selection/ Setting Button at the same time.
Screen and Operation Explanation:
Indication Function Operation
Manual Set
Destination’s
Coordinate
Long click Selection/Setting button to enter setting
screen.
You could set the following 5 destination’s
coordinates.
Function
Setting
Long click Selection/Setting button to enter setting
screen.
You could set the following items.
Time Zone Distance Unit
Backlight Setting
Automatic Sleeping Time
Data Setting
Long click Selection/Setting button to enter setting
screen.
You could set the following items.
Date GPS Cold Start
Delete Memory

11

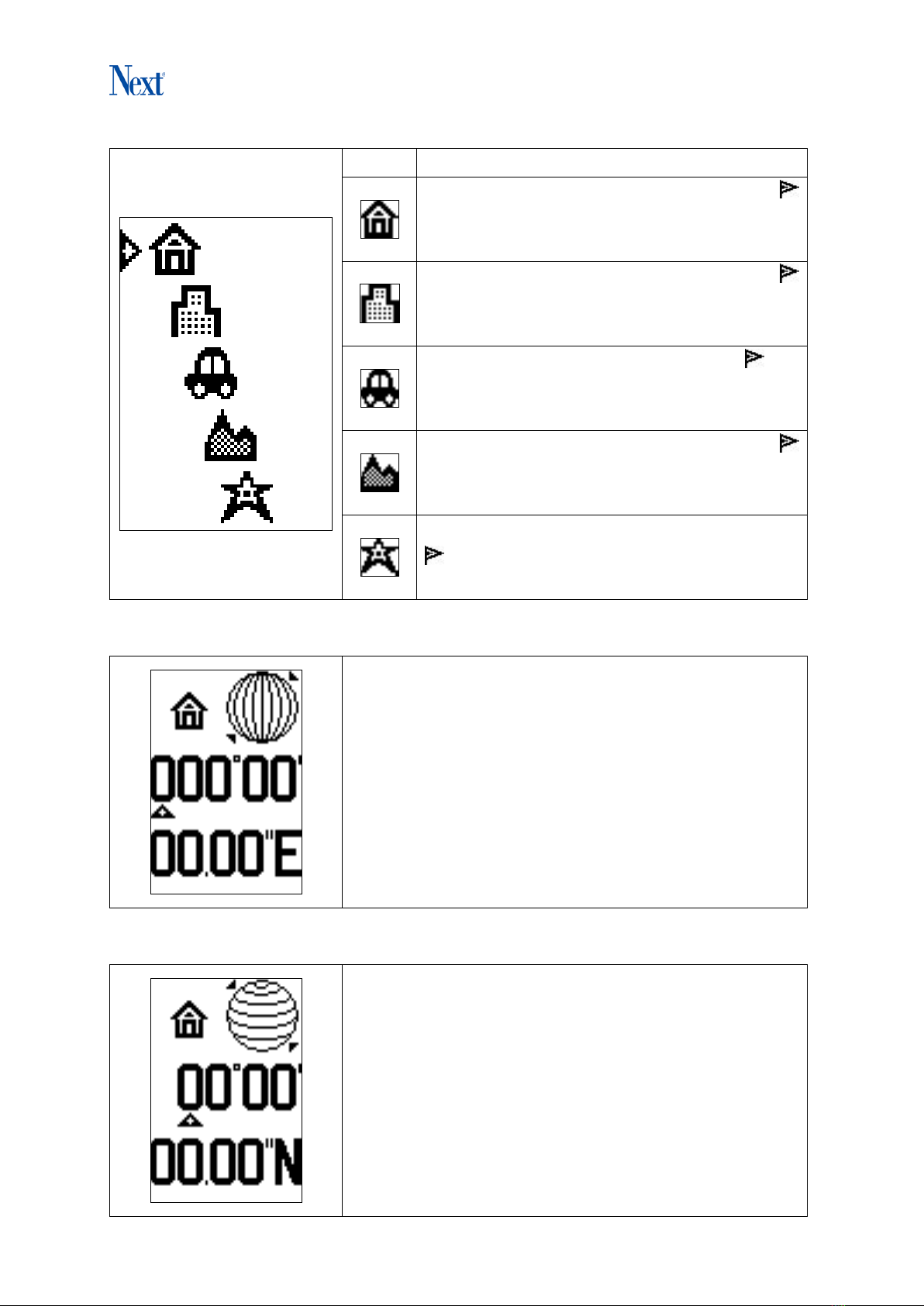

3-2-1 Manual Setting Destination’s Coordinate
icon
Explanation
Set Home’s coordinates. The indication
will be ON when the destination’s coordinates
are set.
Set Building’s coordinates. The indication
will be ON when the destination’s coordinates
are set.
Set Car’s coordinates. The indication will
be ON when the destination’s coordinates are
set.
Set Travel’s coordinates. The indication
will be ON when the destination’s coordinates
are set.
Set My Favorite’s coordinates. The indication
will be ON when the destination’s
coordinates are set.
Setting Destination’s Longitude
1.
The upper left corner is the selected destination.
The number is the setting longitude
(East or
West)
. An arrow will be indicated to the number on
the initial screen.
2. Short click
Selection/Setting button to select the
number. Long click
Selection/Setting button to
enter the selected value and move to the next digit
for setting.
3. The maximum setting is 180 ° 00 ’00 . 00 ”
Setting Destination’s Latitude
1.
The upper left corner is the selected destination.
The number is the setting longitude (North or
South). An arrow will be indicated to the number
on the initial screen.
2. Short click Selectio
n/Setting button to select the
number. Long click
Selection/Setting button to
enter the selected value and move to the next digit
for setting.
3. The maximum setting is 90 ° 00 ’00 . 00 ”

12
3-2-2 Function Setting
Icon Explanation
Set User’s Time Zone
Select the unit of displayed distance
, KM,
mile, and nm.
Set backlight time out
Set the automatic sleeping time for
power-saving
Setting Time Zone
Explanation
1.
You could set time zone in this screen. The value
on the lower screen represents the GMT time.
2. Short click
Selection/Setting button to select the
time zone.
3. Long click Selection/Setting button to
save the
time zone.
4. Long click Power button to return to last screen.
Setting Unit of Displayed Distance
Explanation
1. You could sele
ct the unit of displayed distance in
this screen. The default setting is km.
2. Short click
Selection/Setting button to select the
unit.
3. Long click Selection/Setting button to save the
unit.
4. Long click Power button to return to last screen.

13

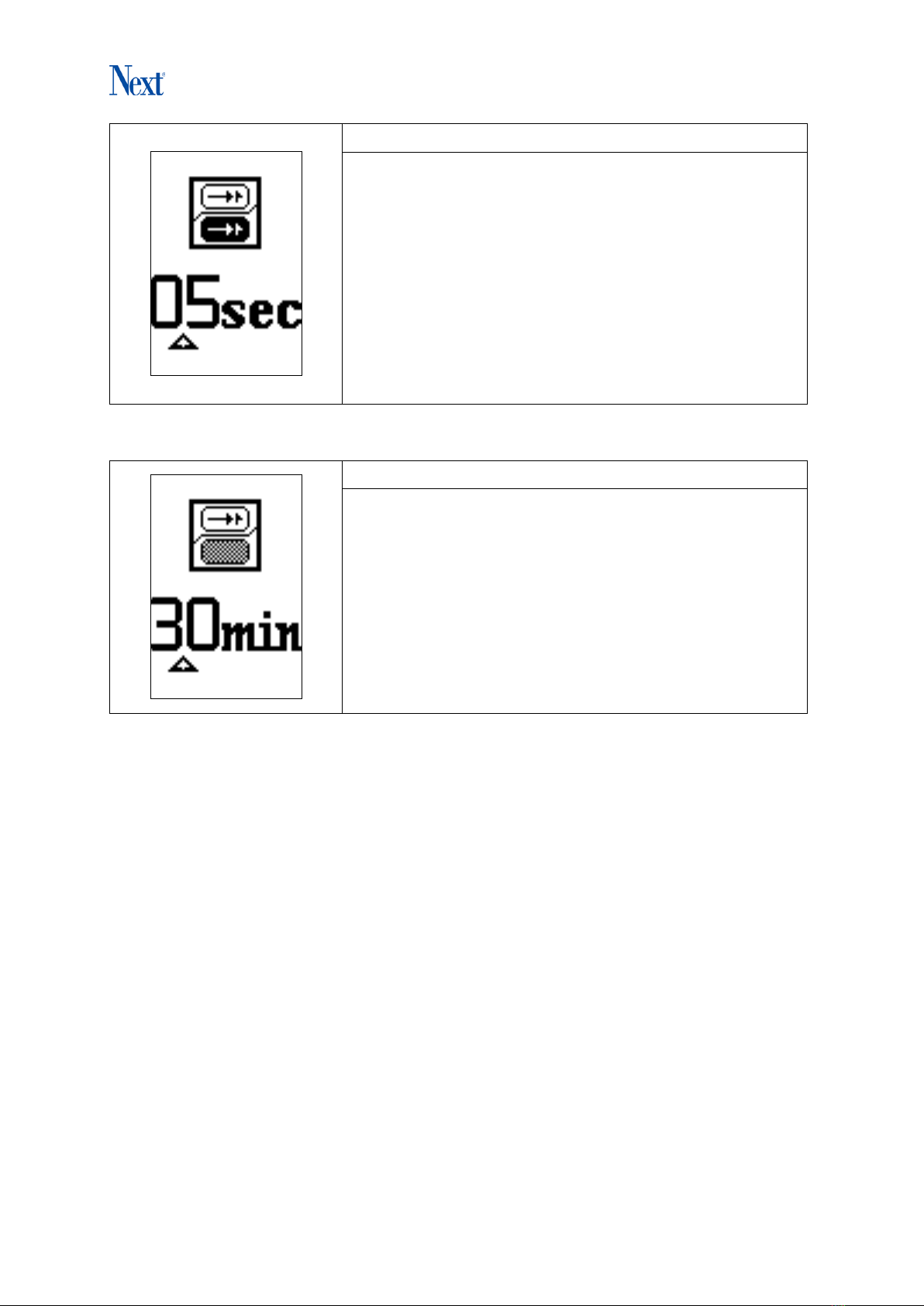

Setting Backlight Timeout-time
Explanation
1. Set the backlight timeout-time in this screen. The
value in the lower screen is the backlight time-out
time. The backlight will be on for the time-out time
after you short click the power/backlight button.
2. Short click Selection/Setting button to select the
backlight timeout.
3. Long click
Selection/Setting button to save the
backlight timeout
4. Long click Power button to return to last screen.
Set Idle-timeout Time for Going to Sleep Mode
Explanation
1. Set idle-timeout ti
me for going to sleep mode in
this screen. The value in the lower screen
represents the idle-timeout time.
2. Short click Selection/Setting button to select
idle-timeout-time.
3. Long click Selection/Setting button to save
idle-timeout-time.
4. Long click Power button to return to last screen.

14

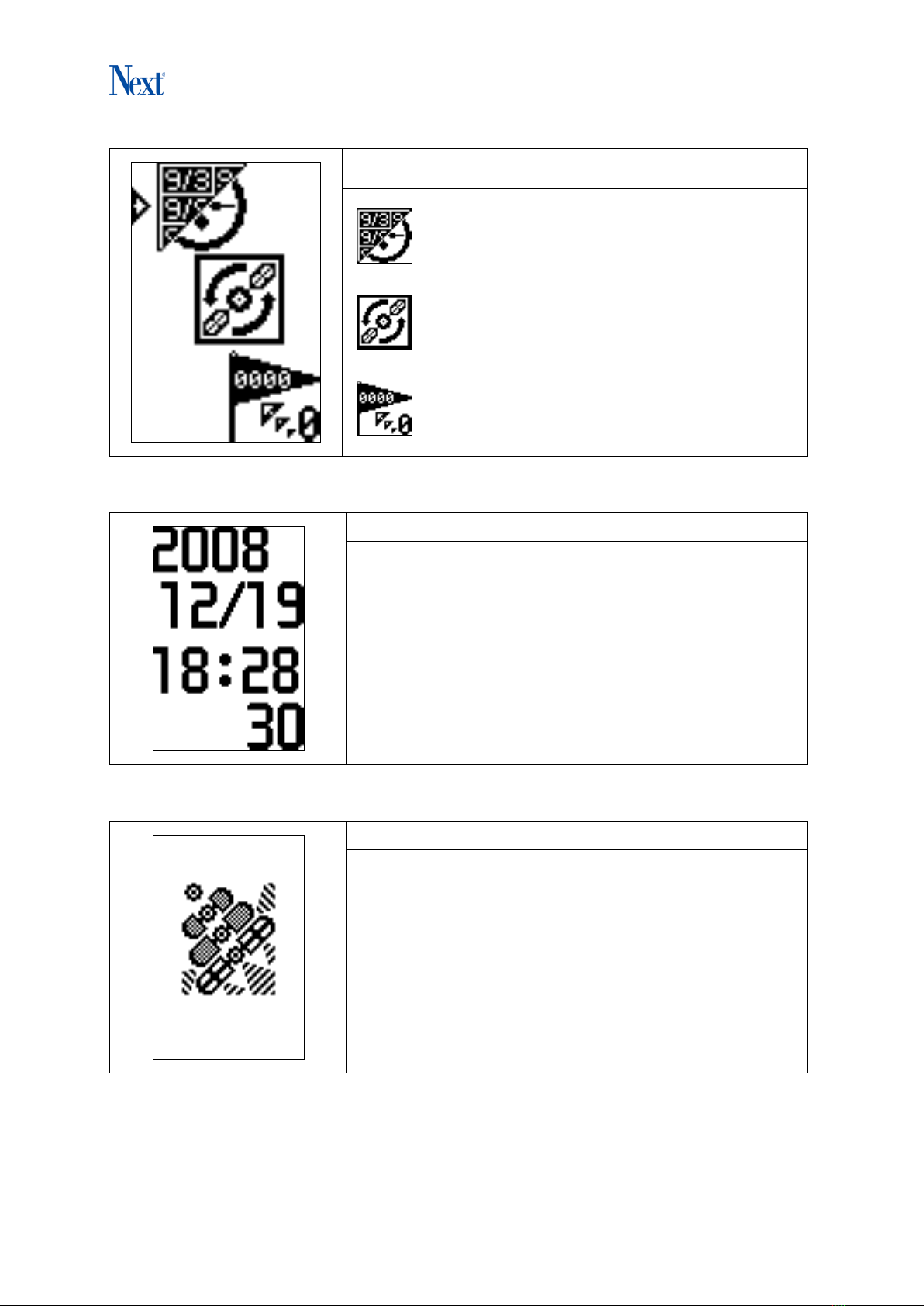

3-2-3 Setting Data
Icon Explanation
Display the present time of the set time
zone.
Make YE-GD101 do cold start。
Delete the setting coordinate of destination
in YE-GD101
Showing Date and Time
Explanation
1. The displayed date and time is from satellite data.
It is not user-defined.
2. Long click Power button to return to last screen.
3. Long click Selection/Setting button to go to main
screen.
Cold Start
Explanation
1. This screen shows YE-GD101 is performing a
GPS Cold Start
2. It will return to navigation screen after 1 second.

15
Deleting Coordinates of Destination Screen
Explanation
1. This screen shows YE-GD101
is deleting the
coordinates of the destination.
2. It will return to navigation screen after 1 second.

16

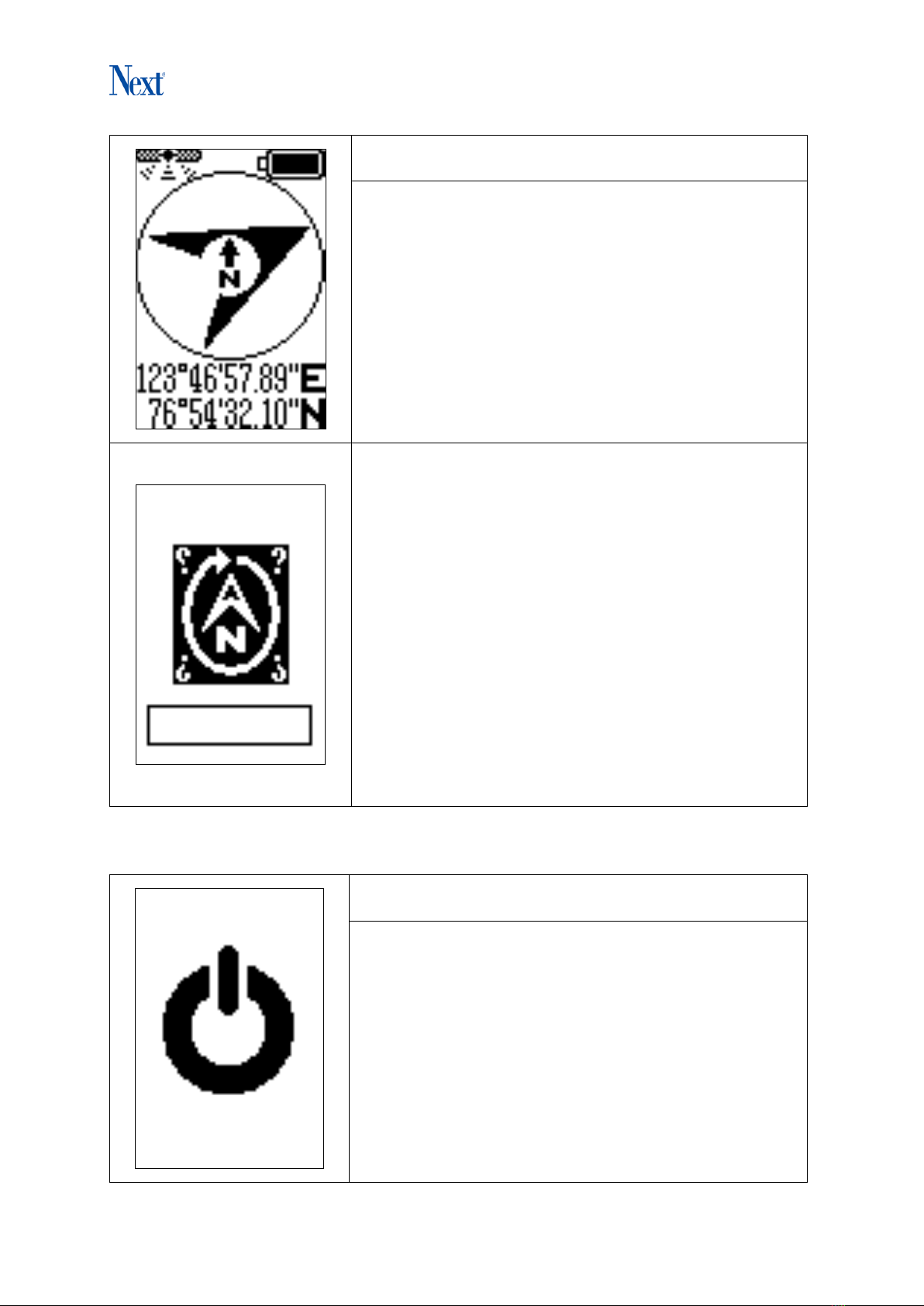

3-3 Adjusting E-Compass
Explanation
1. YE-GD101
will display the magnetic northern
direction
after entering the adjusting electronic
compass mode.
2. YE-GD101
will show the coordinates after
getting a GPS fix.
Adjusting the Electronic Compass
1.
You could adjust electronic compass in this
screen.
2. If you need to YE-GD101
for the correction
magnetic north directions
, please enter the
magnetic north indicates,
Long click
Selection/Setting,
it will host in accordance with
the flat and turn clockwise circle 1-
2 complete
correction.
3.
Proposed to carry out this action in the outdoors,
to avoid interference with magnetic anomalies.
4. YE-GD101 will automatically return to navigation
screen.
3-4 Turning Off YE-GD101
Explanation
1. In the
direction navigation screen, long click
power button to turn off YE-GD101 .
2. YE-GD101
will be turned off 2 seconds after
seeing this screen.

17
Chapter 4: Troubleshooting
When YE-GD101 can not be turned on or does not work properly,
please check if the battery is installed correctly.

It requires more time to get GPS fix while YE-GD101
is moving.
Please keep YE-GD101 stationary when powering on YE-GD101 .
This will shorten the time to get a GPS fix.

Keep YE-GD101
away from excessive moisture and extreme
temperatures. Do not leave
it in the closed vehicles or put it under
direct sunlight for extended periods of time. Excessive moisture and
extreme temperatures may damage the YE-GD101 .

If the date and time is not correct, please select the local time zone in
the time zone setting. Ie PST GMT -8 / Taiwan GMT +8

Do not put YE-GD101
near the magnetic objects like electric
appliances or magnets. The magnetic objects may cause the
YE-GD101 point to wrong direction.
 If the pointed direction is not accurate, please adjusting the electronic
compass.

18
Appendix 1：World Time Zone Table
Time Code
Description
Region
Time Zone
ACDT Australian Central Daylight Time Australia +10:30
ACST Australian Central Standard Time Australia + 9:30
ADT Atlantic Daylight Time North America - 3:00
AEDT Australian Eastern Daylight Time Australia + 11:00
AEST Australian Eastern Standard Time Australia + 10:00
AKDT Alaska Daylight Time North America - 8:00
AKST Alaska Standard Time North America - 9:00
AST Atlantic Standard Time North America - 4:00
AWDT Australian Western Daylight Time Australia + 9:00
AWST Australian Western Standard Time
Australia + 8:00
BST British Summer Time Europe + 1:00
CDT Central Daylight Time Australia +10:30
CDT Central Daylight Time North America - 5:00
CEDT Central European Daylight Time Europe + 2:00
CEST Central European Summer Time Europe + 2:00
CET Central European Time Europe + 1:00
CST Central Summer Time Australia + 10:30
CST Central Standard Time Australia + 9:30
CST Central Standard Time North America - 6:00
CXT Christmas Island Time Australia + 7:00
EDT Eastern Daylight Time Australia + 11:00
EDT Eastern Daylight Time North America - 4:00
EEDT Eastern European Daylight Time Europe + 3:00
EEST Eastern European Summer Time Europe + 3:00
EET Eastern European Time Europe + 2:00
EST Eastern Summer Time Australia + 11:00
EST Eastern Standard Time Australia + 10:00
EST Eastern Standard Time North America - 5:00
GMT Greenwich Mean Time Europe 0:00
HAA Heure Avancée de l'Atlantique North America - 3:00
HAC Heure Avancée du Centre North America - 5:00
HADT Hawaii-Aleutian Daylight Time North America - 9:00
HAE Heure Avancée de l'Est North America - 4:00
HAP Heure Avancée du Pacifique North America - 7:00

19
HAR Heure Avancée des Rocheuses North America - 6:00
HAST Hawaii-Aleutian Standard Time North America - 10:00
HAT Heure Avancée de Terre-Neuve North America -2:30
HAY Heure Avancée du Yukon North America - 8:00
HNA Heure Normale de l'Atlantique North America - 4:00
HNC Heure Normale du Centre North America - 6:00
HNE Heure Normale de l'Est North America - 5:00
HNP Heure Normale du Pacifique North America - 8:00
HNR Heure Normale des Rocheuses North America - 7:00
HNT Heure Normale de Terre-Neuve North America - 3:30
HNY Heure Normale du Yukon North America - 9:00
IST Irish Summer Time Europe + 1:00
MDT Mountain Daylight Time North America - 6:00
MESZ Mitteleuroäische Sommerzeit Europe + 2:00
MEZ Mitteleuropäische Zeit Europe + 1:00
MSD Moscow Daylight Time Europe + 4:00
MSK Moscow Standard Time Europe + 3:00
MST Mountain Standard Time North America - 7:00
NDT Newfoundland Daylight Time North America - 2:30
NFT Norfolk (Island) Time Australia + 11:30
NST Newfoundland Standard Time North America - 3:30
PDT Pacific Daylight Time North America - 7:00
PST Pacific Standard Time North America - 8:00
UTC Coordinated Universal Time Europe 0:00
WDT Western Daylight Time Australia + 9:00
WEDT Western European Daylight Time Europe + 1:00
WEST Western European Summer Time Europe + 1:00
WET Western European Time Europe 0:00
WST Western Summer Time Australia + 9:00
WST Western Standard Time Australia + 8:00

20
Notice
For any questions, you are welcome to contact local
dealers or send Email to [e-mail]
Thank you.
YÜKSEL ELEKTROTEKNİK SAN. TİC. LTD. STİ
Address: Perpa Elektrokent İş Merkezi A Blok Kat 8 No 810
Okmeydanı / İstanbul / Turkey
Tel : [phone]
Fax: [phone]
Web: www.next.com.tr
Support: www.nextnavigasyon.com
